Webb 193866001 Installation and operation manual

Please read & understand this manual, paying particular attention to the safety instructions, before use.
Operator’s Manual & Parts List
20 Nov 2015
193866001
26cc Loop Handle
Petrol Brush Cutter
WEBC26
193871001
33cc Cow Horn Handle
Petrol Brush Cutter
WEBC33
193872001
43cc Cow Horn Handle
Petrol Brush Cutter
WEBC43
WEBC26 WEBC33 WEBC43 IM.indd 1 27/06/2016 13:42

CONTENTS
SPECIFICATIONS
COMPONENTS
ASSEMBLY
OPERATION
MAINTENANCE, CLEANING & STORAGE
TROUBLE SHOOTING
PARTS DIAGRAM & LIST
WARRANTY
DECLARATION OF CONFORMITY
For Spares or Support of your Webb product, please contact us:
Tel: [phone]
(Mon – Fri 8.30am to 5.00pm)
Email: [email protected]
www.webblawnmowers.co.uk
SAFETY INSTRUCTIONS
WEBC26 WEBC33 WEBC43 IM.indd 2 27/06/2016 13:42

CONTENTS
SPECIFICATIONS
COMPONENTS
ASSEMBLY
OPERATION
MAINTENANCE, CLEANING & STORAGE
TROUBLE SHOOTING
PARTS DIAGRAM & LIST
WARRANTY
DECLARATION OF CONFORMITY
For Spares or Support of your Webb product, please contact us:
Tel: [phone]
(Mon – Fri 8.30am to 5.00pm)
Email: [email protected]
www.webblawnmowers.co.uk
SAFETY INSTRUCTIONS
WEBC26 WEBC33 WEBC43 IM.indd 3 27/06/2016 13:42

STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medicaon that could affect
your ability to use it properly. Do not use this machine when you are red or distracted from the job at hand.
Be aware of what you are doing at all mes. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluered areas invite injuries.
Keep your work area clean with sufficient light. Keep area around the machine clear of obstrucons, stones,
scks, wires and other debris or foreign bodies which could cause damage to the machine.
DO NOT SMOKE, whilst using the machine.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for ghtness before each use, especially those securing guards and drive
mechanisms. Vibraon during use may cause these to loosen.
Replace damaged, missing or failed parts before using.
Warning labels carry important informaon.
Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckes or jewelry (rings, wrist watches), which can be caught in
moving parts.
ALWAYS wear protecve eye and ear wear. Appropriate gloves are also recommended.
Wear protecve hair covering to contain long hair, prevenng it from geng caught in machinery.
DO NOT use whilst barefoot or wearing open toed footwear.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons or animals a minimum distance of 15 metres away from the mower. Do not allow
children to handle, use, or climb on the lawnmower.
DO NOT OVERREACH
Keep proper foong and balance at all mes, parcularly if using on slopes. The machine should not be used
on steep slopes and always be sure of foong.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands out of the way of moving parts, parcularly the engine and rotang cung tool.
DO NOT FORCE TOOL
Always work within the rated capacity. Do not use the machine for a purpose for which it was not
intended. Always use the correct handles and shoulder straps provided with the machine.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately aer use. Keep the machine clean to ensure it operates to its full and safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry locaon. Keep the machine away from children and
others not qualified to use it. DO NOT STORE FUEL IN THE MACHINE, fuel over 30 days old can become stale
and if used, damage the carburetor, which is not covered by the manufacturer’s warranty.
SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the machine. Learn its applicaon and
limitaons as well as the specific potenal hazards. Retain these instrucons for future reference. The
operator is responsible for following the warnings & instrucons in this manual and on the product.
Read & understand operator’s manual
before using the machine. Failure to
follow instrucons could result in
death or serious injury.
This graphic and when accompanied by
WARNING or DANGER, calls aenon
to acons which could lead to SERIOUS
INJURY

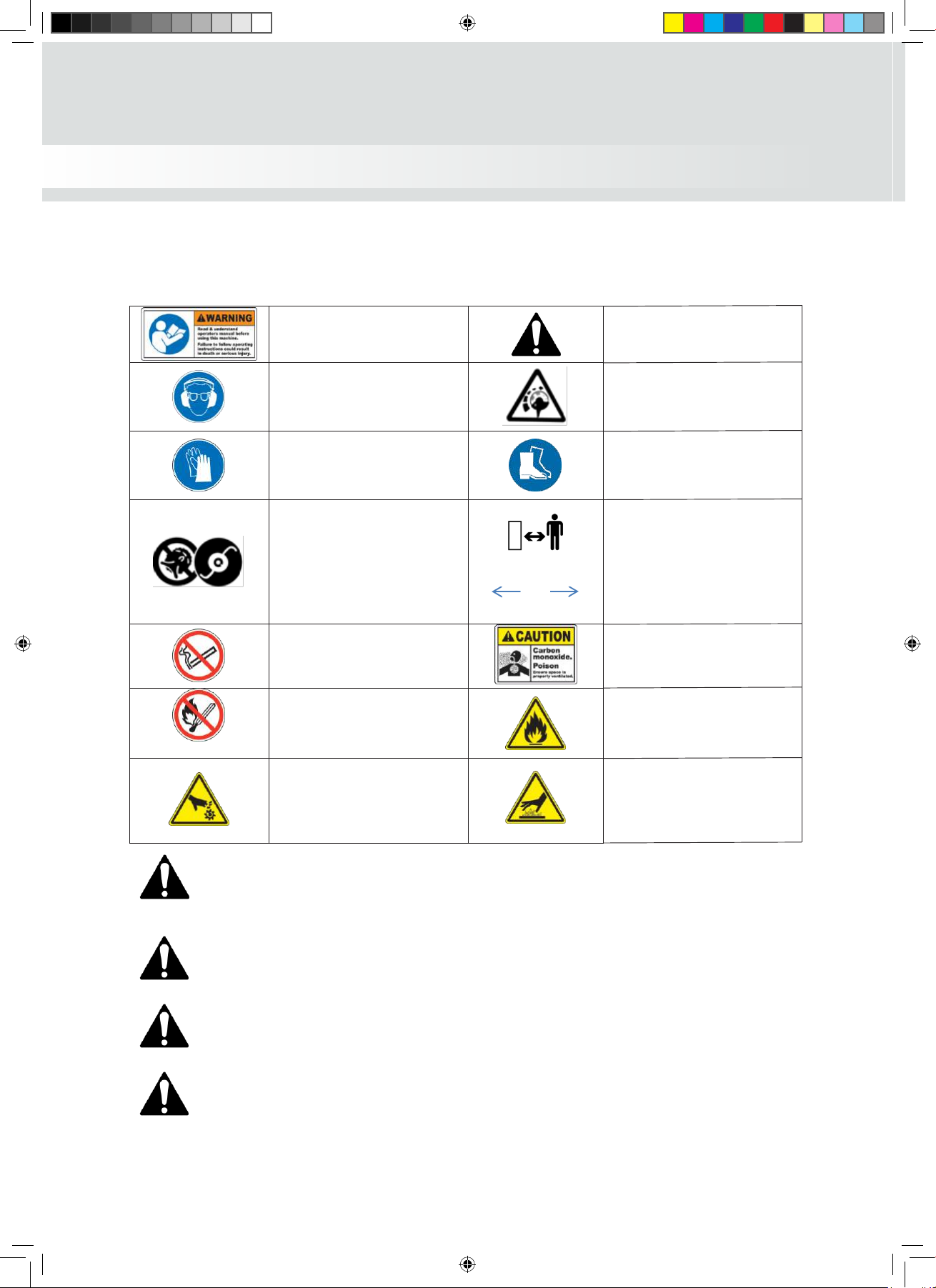

Always wear eye and ear protecon
Always TURN OFF THE ENGINE,
ensuring the cung tool has stopped,
before cleaning, removing or adjusng
the blade.
Always wear gloves to protect your
hands.
SHARP ROTATING BLADES
Wear foot proteconor sensible shoes
when using the machine
WARNING
Never modify a machine in any way.
Incorrect use of a machine can cause
SERIOUS OR FATAL PERSONAL INJURY
15m
Keep all bystanders & animals at least
15 metres away from the machine
during operaon.
If approached, stop the machine
immediately.
No smoking
Risk of Carbon Monoxide Poisoning.
Ensure working area is correctly
venlated.
Do not use near a flame, or sparks
Fire Risk
Fire and its vapors are extremely
flammable & explosive.
Fire or explosion can cause severe
burns or death.
Moving Parts
Rotang parts can contact or entangle
hands, feet, hair, clothing or
accessories.
Traumac amputaonor severe
laceraon can result
Hot Surface.
Running engines produce heat. Engine
parts, especially the exhaust, become
extremely hot.
Severe thermal burns can occur on
contact
Safety alert symbol. Used to alert you to potenal personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situaon which, if not avoided, will result in serious injury.
WARNING
Indicates a potenally hazardous situaon which, if not avoided, could result in serious injury
CAUTION
Indicates a potenally hazardous situaon which, if not avoided, may result in minoror moderate injury.
CAUTION
Used without the safety alert symbol indicates a potenally hazardous situaon which, if not avoided, may
result in property damage.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 4 27/06/2016 13:42

STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medicaon that could affect
your ability to use it properly. Do not use this machine when you are red or distracted from the job at hand.
Be aware of what you are doing at all mes. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluered areas invite injuries.
Keep your work area clean with sufficient light. Keep area around the machine clear of obstrucons, stones,
scks, wires and other debris or foreign bodies which could cause damage to the machine.
DO NOT SMOKE, whilst using the machine.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for ghtness before each use, especially those securing guards and drive
mechanisms. Vibraon during use may cause these to loosen.
Replace damaged, missing or failed parts before using.
Warning labels carry important informaon.
Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckes or jewelry (rings, wrist watches), which can be caught in
moving parts.
ALWAYS wear protecve eye and ear wear. Appropriate gloves are also recommended.
Wear protecve hair covering to contain long hair, prevenng it from geng caught in machinery.
DO NOT use whilst barefoot or wearing open toed footwear.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons or animals a minimum distance of 15 metres away from the mower. Do not allow
children to handle, use, or climb on the lawnmower.
DO NOT OVERREACH
Keep proper foong and balance at all mes, parcularly if using on slopes. The machine should not be used
on steep slopes and always be sure of foong.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands out of the way of moving parts, parcularly the engine and rotang cung tool.
DO NOT FORCE TOOL
Always work within the rated capacity. Do not use the machine for a purpose for which it was not
intended. Always use the correct handles and shoulder straps provided with the machine.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately aer use. Keep the machine clean to ensure it operates to its full and safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry locaon. Keep the machine away from children and
others not qualified to use it. DO NOT STORE FUEL IN THE MACHINE, fuel over 30 days old can become stale
and if used, damage the carburetor, which is not covered by the manufacturer’s warranty.
SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the machine. Learn its applicaon and
limitaons as well as the specific potenal hazards. Retain these instrucons for future reference. The
operator is responsible for following the warnings & instrucons in this manual and on the product.
Read & understand operator’s manual
before using the machine. Failure to
follow instrucons could result in
death or serious injury.
This graphic and when accompanied by
WARNING or DANGER, calls aenon
to acons which could lead to SERIOUS
INJURY
Always wear eye and ear protecon
Always TURN OFF THE ENGINE,
ensuring the cung tool has stopped,
before cleaning, removing or adjusng
the blade.
Always wear gloves to protect your
hands.
SHARP ROTATING BLADES
Wear foot proteconor sensible shoes
when using the machine
WARNING
Never modify a machine in any way.
Incorrect use of a machine can cause
SERIOUS OR FATAL PERSONAL INJURY
15m
Keep all bystanders & animals at least
15 metres away from the machine
during operaon.
If approached, stop the machine
immediately.
No smoking
Risk of Carbon Monoxide Poisoning.
Ensure working area is correctly
venlated.
Do not use near a flame, or sparks
Fire Risk
Fire and its vapors are extremely
flammable & explosive.
Fire or explosion can cause severe
burns or death.
Moving Parts
Rotang parts can contact or entangle
hands, feet, hair, clothing or
accessories.
Traumac amputaonor severe
laceraon can result
Hot Surface.
Running engines produce heat. Engine
parts, especially the exhaust, become
extremely hot.
Severe thermal burns can occur on
contact
Safety alert symbol. Used to alert you to potenal personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situaon which, if not avoided, will result in serious injury.
WARNING
Indicates a potenally hazardous situaon which, if not avoided, could result in serious injury
CAUTION
Indicates a potenally hazardous situaon which, if not avoided, may result in minoror moderate injury.
CAUTION
Used without the safety alert symbol indicates a potenally hazardous situaon which, if not avoided, may
result in property damage.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 5 27/06/2016 13:42

COMPONENTS
1. Blade
11. Primer Bulb
2. Drivesha
12. Choke Lever
3. Throle Trigger
13. Guard/Shield
4. Ignion Switch
14. Knife
5. Safety Lever
15. Easy Load Head
6. Cow Horn Handle
16. D-Handle
7. Harness Eyelet
17. Harness Assembly
8. Air Filter Cover
18. Ignion Switch
9. Fuel Tank Cap
19. Safety Lever
10. Fuel Tank
20. Throle Trigger
SPECIFICATIONS
Model WEBC26 WEBC33 WEBC43
Product Number 193866001 193871001 193872001
Engine (cc) 25.4 32.6 42.7
Idle Speed (r/min) 2800 2800 2800
Carburetor Diaphragm Diaphragm Diaphragm
Fuel Tank Capacity (Litre) 0.45 0.70 0.80
25:1 25:1 25:1
Blade 255mm 3-blade 255mm 3-blade 255mm 3-blade
Nylon Line Diameter (mm) 2.5mm 2.5mm 2.5mm
Weight (kgs) N.W 6.5 - G.W 9.2 N.W 7.0 - G.W 10.4 N.W 7.7 - G.W 11.5
The manufacturer reserves the right to change the product specificn and livery according to con ued
product improvements.
This symbol on the product or on its packaging indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable colle on point for the recycling of electrical and
electronic equipment.
For more detailed informa on about recycling of this product, please contact your local council o ce, your
household waste disposal service or shop where you purchased the product.
INSTRUCTION MANUAL
Fuel Rao (Petrol:2 Stroke Mineral Oil)
WEBC26 WEBC33 WEBC43 IM.indd 6 27/06/2016 13:42

COMPONENTS
1. Blade
11. Primer Bulb
2. Drivesha
12. Choke Lever
3. Throle Trigger
13. Guard/Shield
4. Ignion Switch
14. Knife
5. Safety Lever
15. Easy Load Head
6. Cow Horn Handle
16. D-Handle
7. Harness Eyelet
17. Harness Assembly
8. Air Filter Cover
18. Ignion Switch
9. Fuel Tank Cap
19. Safety Lever
10. Fuel Tank
20. Throle Trigger
SPECIFICATIONS
Model WEBC26 WEBC33 WEBC43
Product Number 193866001 193871001 193872001
Engine (cc) 25.4 32.6 42.7
Idle Speed (r/min) 2800 2800 2800
Carburetor Diaphragm Diaphragm Diaphragm
Fuel Tank Capacity (Litre) 0.45 0.70 0.80
25:1 25:1 25:1
Blade 255mm 3-blade 255mm 3-blade 255mm 3-blade
Nylon Line Diameter (mm) 2.5mm 2.5mm 2.5mm
Weight (kgs) N.W 6.5 - G.W 9.2 N.W 7.0 - G.W 10.4 N.W 7.7 - G.W 11.5
The manufacturer reserves the right to change the product specificn and livery according to con ued
product improvements.
This symbol on the product or on its packaging indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable colle on point for the recycling of electrical and
electronic equipment.
For more detailed informa on about recycling of this product, please contact your local council o ce, your
household waste disposal service or shop where you purchased the product.
INSTRUCTION MANUAL
Fuel Rao (Petrol:2 Stroke Mineral Oil)
WEBC26 WEBC33 WEBC43 IM.indd 7 27/06/2016 13:42

FITTING COW HORN HANDLES (WEBC33 & WEBC43)
1. Install handle on lower bracket.
2. Posion handle in a comfortable operang posion
3. Fit upper bracket.
4. Tighten the four fixing screws.
FITTING D-HANDLE (WEBC26 Only)
1. Place top handle onto drivesha.
2. Posion lower handle, beneath the top handle in a comfortable operang posion
3. Tighten the four fixing screws.
FITTING THE METAL BLADE
1. Install holder A, the blade , holder B, tooth washer, in this order
2. Then clamp with the le-hand thread nut.
3. Align hole of gear case and holder A, and insert Allen Key.
4. Rotate lehand thread nut with spanner in clockwise direcon unl securely ghtened.
5. Install the Split Pin 2×16 and split legs to secure.
REPLACING YOUR NYLON LINE
1. Cut 3 metres of 2.5mm diameter Nylon Line.
2. Align the arrows on the feed/bump knob with the eyelets.
3. Feed the line into the feed pipe (supplied).
4. Feed the feed pipe & line in through the first eyelet and out of the second eyelet.
5. Remove the feed pipe and put in a safe place.
6. Pull the nylon line unl you have two equal lengths.
7. Now rotate the feed/bump knob CLOCKWISE, to wind the nylon line into the head.
8. Stop when you have 150mm of nylon line protruding from both eyelets.
WARNING
EXCESSIVE VIBRATION OF THE METAL BLADE INDICATES IT HAS NOT BEEN INSTALLED CORRECTLY.
STOP THE ENGINE IMMEDIATELY, CHECK THE BLADE INSTALLATION AND RE-INSTALL CORRECTLY. AN
INCORRECTLY INSTALLED BLADE CAN CAUSE INJURY.
ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Tel: [phone] - Mon – Fri 8.30am – 5.00pm (excl. Bank Holidays)
Email: [e-mail]

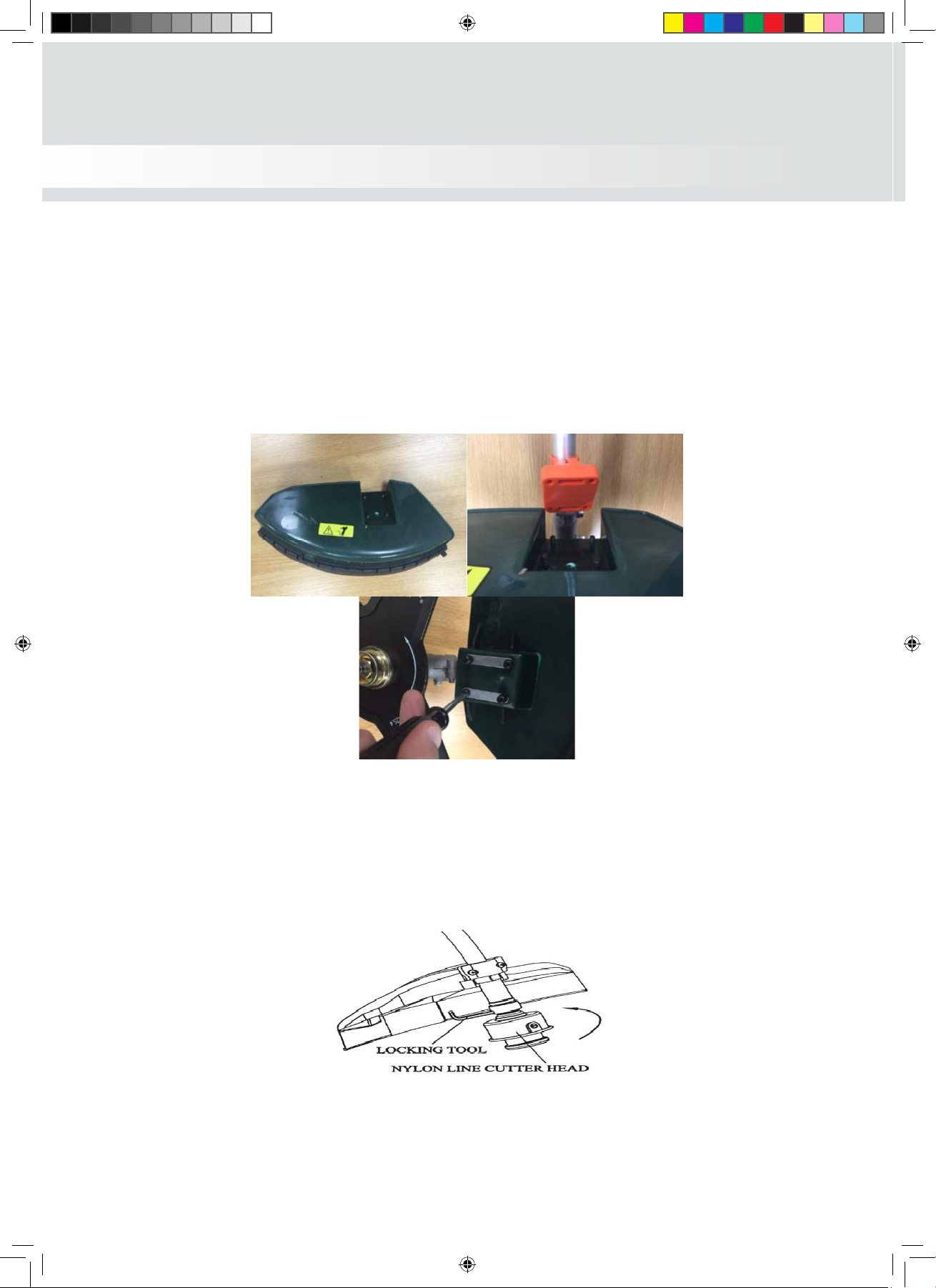

FITTING GUARD/SHIELD
1. Install the safety cover onto the shawith the safety cover bracket.
2. Align the four screws of the cover with the safety cover bracket
3. Tighten the screws aer seng the safety cover bracket at the appropriate posion.
FITTING THE HARNESS
1. Place the clasp of the harness, through the Harness Eyelet located on the drivesha
2. Adjust the Harness to ensure it is comfortable, but ght enough to allow you to operate the machine
appropriately.
FITTING NYLON LINE CUTTING HEAD
1. Align hole in adapter plate with hole in the shaand install Allen Key.
2. Thread cuer head onto sha(turning it an-clockwise) unl it is ght. Remove locking tool.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 8 27/06/2016 13:42

FITTING COW HORN HANDLES (WEBC33 & WEBC43)
1. Install handle on lower bracket.
2. Posion handle in a comfortable operang posion
3. Fit upper bracket.
4. Tighten the four fixing screws.
FITTING D-HANDLE (WEBC26 Only)
1. Place top handle onto drivesha.
2. Posion lower handle, beneath the top handle in a comfortable operang posion
3. Tighten the four fixing screws.
FITTING THE METAL BLADE
1. Install holder A, the blade , holder B, tooth washer, in this order
2. Then clamp with the le-hand thread nut.
3. Align hole of gear case and holder A, and insert Allen Key.
4. Rotate lehand thread nut with spanner in clockwise direcon unl securely ghtened.
5. Install the Split Pin 2×16 and split legs to secure.
REPLACING YOUR NYLON LINE
1. Cut 3 metres of 2.5mm diameter Nylon Line.
2. Align the arrows on the feed/bump knob with the eyelets.
3. Feed the line into the feed pipe (supplied).
4. Feed the feed pipe & line in through the first eyelet and out of the second eyelet.
5. Remove the feed pipe and put in a safe place.
6. Pull the nylon line unl you have two equal lengths.
7. Now rotate the feed/bump knob CLOCKWISE, to wind the nylon line into the head.
8. Stop when you have 150mm of nylon line protruding from both eyelets.
WARNING
EXCESSIVE VIBRATION OF THE METAL BLADE INDICATES IT HAS NOT BEEN INSTALLED CORRECTLY.
STOP THE ENGINE IMMEDIATELY, CHECK THE BLADE INSTALLATION AND RE-INSTALL CORRECTLY. AN
INCORRECTLY INSTALLED BLADE CAN CAUSE INJURY.
ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Tel: [phone] - Mon – Fri 8.30am – 5.00pm (excl. Bank Holidays)
Email: [e-mail]
FITTING GUARD/SHIELD
1. Install the safety cover onto the shawith the safety cover bracket.
2. Align the four screws of the cover with the safety cover bracket
3. Tighten the screws aer seng the safety cover bracket at the appropriate posion.
FITTING THE HARNESS
1. Place the clasp of the harness, through the Harness Eyelet located on the drivesha
2. Adjust the Harness to ensure it is comfortable, but ght enough to allow you to operate the machine
appropriately.
FITTING NYLON LINE CUTTING HEAD
1. Align hole in adapter plate with hole in the shaand install Allen Key.
2. Thread cuer head onto sha(turning it an-clockwise) unl it is ght. Remove locking tool.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 9 27/06/2016 13:42

CUTTING WITH A NYLON HEAD
Always keep a firm grip with both hands during operaon
The machine should be held ata comfortable posion, with the triggerhandle athip height. Adjustthe
harness to suit.
Maintain a firm foong in case the machine hits a solid object & kicks back
Cuttall grass from the top down to preventgrass wrapping around the shahousing & strong head, which
may cause overheang and damage. If grass becomes entangled, stop the engine completely and remove
the grass.
The line trimmerhead rotates in an ANTI-CLOCKWISE direcon. The knife, located on the leside of the guard,
ensures yournylon line is operang atthe correct length foropmum trimming.
NOTE: Nylon line which is too long orthe incorrect diameter(Recommended 2.5mm), will cause excess wear
to the engine and clutch components, notcovered by the manufacturer’s warranty.
It is recommended thatthe head is lted, so the nylon line cung circle is moving away from the userand
guard/shield. This will enable debris to be thrown away from the user.
TRIMMING
This is feeding the trimmercarefully into the material you wish to cut. Tilt the head slowly to direct debris
away from you. If cung up to a barriersuch as fence, wall ortree, approach from an angle where any debris
ricocheng offthe barrier, will flyaway from you. Move the line head slowly unl the grass is cutrightup the
barrier, butdo notjam (over-feed) the line into the barrier
If trimming up to a wire mesh orchain linked fence, be careful to feed only up to the fence. If you go too far,
the line will snap offaround the fence.
Trimming can be done to cutthrough weed stems one ata me. Place the trimmerline head nearthe boom
of the weed, neverhigh up, which could cause the weed to chaer and catch the line. Ratherthan cutthe
weed right through, justuse the very end of the line to wearthrough the stem slowly.
SCALPING AND EDGING
Both of these are done with the line head lted ata steep angle.
Scalping is removing top growth leaving the earthbare.
Edging is trimming the grass back where it has spread overa path ordriveway.
During edging and scalping, hold the unit ata steep angle and in a posion where the debris and any dislodged
dirt and stones will notcome back towards you, even if it ricochets offthe hard surface.
WARNING
DO NOT use a metal blade forscalping oredging
WARNING
DO NOT trim any area where there maybe strands of fencing wire. Do notcutwhere you cannotsee whatthe
cung tool is cung.
OPERATION
DANGER
All model line trimmers & brushcuers can throw small stones, metal or small objects as well as material
being cut. Do not allow anyone to enter the operang DANGER ZONE with you. The danger zone is an area
15 metres in radius
Insist that persons in the RISK ZONE beyond the danger zone wear eye protecon from thrown objects. If
the unit must be used where there are unprotected people, operate at a low throle speed to reduce the
risk of thrown objects.
DANGER ZONE WITHIN 15 METRES - RISK ZONE GREATER THAN 15 METRES
GENERAL USE
WARNING
Prior to using the machine, ensure all hardware (bolts, screws & nuts) are securely ghtened.
Operate the trigger with your right hand & hold the D-Handle with your lehand. (WEBC26 Only)
Operate the trigger on the right handle and hold the lehandle for stability (WEBC33 & WEBC43)
The trigger increases and decreases the power of the engine to the aachment, increasing the
revoluon/reciprocaon of the aachment.
WORKING PLAN
Limit the amount of me the product is used connuously to a maximum of 40 minutes per session.
Leave the machine to rest between sessions for between 10-20 minutes.
Total amount of work performed per day with the machine, should be limited to 120 minutes maximum.
Connuous use of the machine can cause “Repeve Stress Injury (RSI)”. If you feel discomfort, redness or
swelling of your hands and fingers or any other body part, consult your doctor.
Check local regulaons for sound level and hours of operaon constraints.
Never transport the machine, whilst the engine is running.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 10 27/06/2016 13:42

CUTTING WITH A NYLON HEAD
Always keep a firm grip with both hands during operaon
The machine should be held ata comfortable posion, with the triggerhandle athip height. Adjustthe
harness to suit.
Maintain a firm foong in case the machine hits a solid object & kicks back
Cuttall grass from the top down to preventgrass wrapping around the shahousing & strong head, which
may cause overheang and damage. If grass becomes entangled, stop the engine completely and remove
the grass.
The line trimmerhead rotates in an ANTI-CLOCKWISE direcon. The knife, located on the leside of the guard,
ensures yournylon line is operang atthe correct length foropmum trimming.
NOTE: Nylon line which is too long orthe incorrect diameter(Recommended 2.5mm), will cause excess wear
to the engine and clutch components, notcovered by the manufacturer’s warranty.
It is recommended thatthe head is lted, so the nylon line cung circle is moving away from the userand
guard/shield. This will enable debris to be thrown away from the user.
TRIMMING
This is feeding the trimmercarefully into the material you wish to cut. Tilt the head slowly to direct debris
away from you. If cung up to a barriersuch as fence, wall ortree, approach from an angle where any debris
ricocheng offthe barrier, will flyaway from you. Move the line head slowly unl the grass is cutrightup the
barrier, butdo notjam (over-feed) the line into the barrier
If trimming up to a wire mesh orchain linked fence, be careful to feed only up to the fence. If you go too far,
the line will snap offaround the fence.
Trimming can be done to cutthrough weed stems one ata me. Place the trimmerline head nearthe boom
of the weed, neverhigh up, which could cause the weed to chaer and catch the line. Ratherthan cutthe
weed right through, justuse the very end of the line to wearthrough the stem slowly.
SCALPING AND EDGING
Both of these are done with the line head lted ata steep angle.
Scalping is removing top growth leaving the earthbare.
Edging is trimming the grass back where it has spread overa path ordriveway.
During edging and scalping, hold the unit ata steep angle and in a posion where the debris and any dislodged
dirt and stones will notcome back towards you, even if it ricochets offthe hard surface.
WARNING
DO NOT use a metal blade forscalping oredging
WARNING
DO NOT trim any area where there maybe strands of fencing wire. Do notcutwhere you cannotsee whatthe
cung tool is cung.
OPERATION
DANGER
All model line trimmers & brushcuers can throw small stones, metal or small objects as well as material
being cut. Do not allow anyone to enter the operang DANGER ZONE with you. The danger zone is an area
15 metres in radius
Insist that persons in the RISK ZONE beyond the danger zone wear eye protecon from thrown objects. If
the unit must be used where there are unprotected people, operate at a low throle speed to reduce the
risk of thrown objects.
DANGER ZONE WITHIN 15 METRES - RISK ZONE GREATER THAN 15 METRES
GENERAL USE
WARNING
Prior to using the machine, ensure all hardware (bolts, screws & nuts) are securely ghtened.
Operate the trigger with your right hand & hold the D-Handle with your lehand. (WEBC26 Only)
Operate the trigger on the right handle and hold the lehandle for stability (WEBC33 & WEBC43)
The trigger increases and decreases the power of the engine to the aachment, increasing the
revoluon/reciprocaon of the aachment.
WORKING PLAN
Limit the amount of me the product is used connuously to a maximum of 40 minutes per session.
Leave the machine to rest between sessions for between 10-20 minutes.
Total amount of work performed per day with the machine, should be limited to 120 minutes maximum.
Connuous use of the machine can cause “Repeve Stress Injury (RSI)”. If you feel discomfort, redness or
swelling of your hands and fingers or any other body part, consult your doctor.
Check local regulaons for sound level and hours of operaon constraints.
Never transport the machine, whilst the engine is running.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 11 27/06/2016 13:42

FUEL & OIL MIXTURE
Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking.
Allow the engine to cool for more than 2 minutes, before re-fueling. Never fuel the machine with the engine
running. Fuel the engine at least 3 metres away from your work area. Always fuel your machine outdoors.
Use good quality unleaded fuel which contains NO ETHANOL or METHANOL. Use Branded 89 octane or higher
unleaded fuel, known to be of good quality.
Fuel which is older than 30 days old can become stale and cause acid & gum deposits in the fuel system or
essen al carburetor components. This could result in star ng issues which would not be covered by your
manufacturer’s warranty.
To keep fuel fresh, we recommend you use Handy Parts – Sure Start Garden Machinery Fuel Addi ve which is
available in 250ml bo les, for 25 litres of fuel.
Helps makes machines easier to start
Extends shelf life of petrol up to 2 years
Keeps carburetor & engine clean
Reduces emissions & increases fuel economy
Only use 2-stroke air cooled engine oil. DO NOT USE automo ve or marine oil.
It is recommended that you use a Fuel Mixing Bo le, to ensure the correct fuel mixture is used with your
machine. We recommend Handy Parts item HP-120. The fuel mixture should be shaken prior to entering the
machine fuel tank.
Mix only the quan ty you require to complete your specific task.
Unscrew the machine fuel cap slowly and fill the fuel tank with your fuel mixture to a maximum of 80%
capacity. This will allow for fuel tank expansion.
Fasten the fuel cap tly, being careful not to cross-thread. This will also prevent loosening through vibra on
during use.
Wipe away any spillage, with an appropriate material.
If the machine has con nued leaks, the product should not be started. Never use the machine with damaged
igni n cable or spark plug cap, as there is a risk of sparks.
IMPORTANT
Ensure that any stored petrol/oil mixture is clearly marked in a separate appropriate canister for a maximum
of 4-6 weeks.
If the machine is not going to be used for a long period, drain the mixture from the fuel tank, start the engine
and drain the carburetor of any remaining fuel. (See Maintenance for further instru on)
Dispose of any unwanted 2-stroke mixture at an authorised recycling point.
Unleaded
Petrol – litre
Two-Stroke
Mineral Oil - ml
1
40
2
80
3
120
4
160
5
200
CUTTING WITH THE METAL BLADE
Always keep a firm grip with both hands during operaon
The machine should be held ata comfortable posion, with the triggerhandle athip height. Adjustthe
harness to suit.
Maintain a firm foong in case the machine hits a solid object& kicks back.
Do notuse the metal blade nearfencing, posts, buildings orotherimmoveable objects – use the nylon
head.
Bestresults are obtained if you cutfrom right to le, in a broad sweeping moon.
If a hard objectis struck, immediately stop the machine and inspect fordamage.
WARNING
DO NOT use the putthe metal blade into contact with Ulity Wires, Metal Stakes, Rubber, Masonry, Rocks,
Fences, and Trees.
DANGER
DO NOT cutwith a dull, cracked ordamaged metal blade.
Before cung, inspect forobstrucons. If an obstrucon cannotbe removed, mark its locaon clearly so you
can avoid it during operaon.
Rocks & metal can dull ordamage a blade. Wires can wrap around the blade head orbe thrown in the air.
SCYTHING WEEDS
This is cung by swinging the blade in a level arc. Itcan quickly clearareas of field grass and weeds. Scything
should notbe used to cutlarge, tough weeds orwoody growths.
Scything can be done in both direcons, orjustin one way which results in the debris being thrown away from
you. This is done by using the side of the blade that it is rotang away from you. Tilt the blade downwards
slightly, on this same side .You will be hit by some debris if you scythe in both direcons
NOTE: THE METAL BLADE IS REVERSIBLE. DO NOT SHARPEN THE METAL BLADE, AN UNEVEN BLADE WILL
CAUSE EXCESSIVE VIBRATION.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 12 27/06/2016 13:42

FUEL & OIL MIXTURE
Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking.
Allow the engine to cool for more than 2 minutes, before re-fueling. Never fuel the machine with the engine
running. Fuel the engine at least 3 metres away from your work area. Always fuel your machine outdoors.
Use good quality unleaded fuel which contains NO ETHANOL or METHANOL. Use Branded 89 octane or higher
unleaded fuel, known to be of good quality.
Fuel which is older than 30 days old can become stale and cause acid & gum deposits in the fuel system or
essen al carburetor components. This could result in star ng issues which would not be covered by your
manufacturer’s warranty.
To keep fuel fresh, we recommend you use Handy Parts – Sure Start Garden Machinery Fuel Addi ve which is
available in 250ml bo les, for 25 litres of fuel.
Helps makes machines easier to start
Extends shelf life of petrol up to 2 years
Keeps carburetor & engine clean
Reduces emissions & increases fuel economy
Only use 2-stroke air cooled engine oil. DO NOT USE automo ve or marine oil.
It is recommended that you use a Fuel Mixing Bo le, to ensure the correct fuel mixture is used with your
machine. We recommend Handy Parts item HP-120. The fuel mixture should be shaken prior to entering the
machine fuel tank.
Mix only the quan ty you require to complete your specific task.
Unscrew the machine fuel cap slowly and fill the fuel tank with your fuel mixture to a maximum of 80%
capacity. This will allow for fuel tank expansion.
Fasten the fuel cap tly, being careful not to cross-thread. This will also prevent loosening through vibra on
during use.
Wipe away any spillage, with an appropriate material.
If the machine has con nued leaks, the product should not be started. Never use the machine with damaged
igni n cable or spark plug cap, as there is a risk of sparks.
IMPORTANT
Ensure that any stored petrol/oil mixture is clearly marked in a separate appropriate canister for a maximum
of 4-6 weeks.
If the machine is not going to be used for a long period, drain the mixture from the fuel tank, start the engine
and drain the carburetor of any remaining fuel. (See Maintenance for further instru on)
Dispose of any unwanted 2-stroke mixture at an authorised recycling point.
Unleaded
Petrol – litre
Two-Stroke
Mineral Oil - ml
1
40
2
80
3
120
4
160
5
200
CUTTING WITH THE METAL BLADE
Always keep a firm grip with both hands during operaon
The machine should be held ata comfortable posion, with the triggerhandle athip height. Adjustthe
harness to suit.
Maintain a firm foong in case the machine hits a solid object& kicks back.
Do notuse the metal blade nearfencing, posts, buildings orotherimmoveable objects – use the nylon
head.
Bestresults are obtained if you cutfrom right to le, in a broad sweeping moon.
If a hard objectis struck, immediately stop the machine and inspect fordamage.
WARNING
DO NOT use the putthe metal blade into contact with Ulity Wires, Metal Stakes, Rubber, Masonry, Rocks,
Fences, and Trees.
DANGER
DO NOT cutwith a dull, cracked ordamaged metal blade.
Before cung, inspect forobstrucons. If an obstrucon cannotbe removed, mark its locaon clearly so you
can avoid it during operaon.
Rocks & metal can dull ordamage a blade. Wires can wrap around the blade head orbe thrown in the air.
SCYTHING WEEDS
This is cung by swinging the blade in a level arc. Itcan quickly clearareas of field grass and weeds. Scything
should notbe used to cutlarge, tough weeds orwoody growths.
Scything can be done in both direcons, orjustin one way which results in the debris being thrown away from
you. This is done by using the side of the blade that it is rotang away from you. Tilt the blade downwards
slightly, on this same side .You will be hit by some debris if you scythe in both direcons
NOTE: THE METAL BLADE IS REVERSIBLE. DO NOT SHARPEN THE METAL BLADE, AN UNEVEN BLADE WILL
CAUSE EXCESSIVE VIBRATION.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 13 27/06/2016 13:42

MAINTENANCE, CLEANING & STORAGE
WARNING
Improper maintenance & storage of the machine may void your warranty.
Keep the machine clean for beer and safer performance.
MAINTENANCE
Before each use, check all nuts & bolts to be sure they are sufficiently ghtened.
We recommend only manufacturer original parts are used when maintaining this machine. Failure to do so
could invalidate your manufacturer’s warranty.
The engine must be switched off, with the spark plug cap removed, before the machine is unassembled,
cleaned, serviced or maintained.
ADJUSTING CARBURETOR
Do not adjust carburetor unless necessary. If you have trouble with the carburetor, see your dealer. Improper
adjustment may cause engine damage and void warranty.
SPARK PLUG
Check the Spark Plug aer every 10-15 hours of use.
Remove the Spark Plug cap
Using the Spark Plug Spanner supplied, remove the Spark Plug by turning it an-clockwise.
Clean & adjust the electrode gap to 0.6-0.7mm
If the Spark Plug is visibly damaged or worn, replace immediately (See Specificaon for details)
Install the new/cleaned Spark Plug to finger ghtness, before fully ghtening with the spanner.
BLADE SHARPENING
Never aempt to sharpen the blade. It is reversible, so should be turned over when blunt. The blade must
remain balanced; an unbalanced blade will cause excessive vibraon through the machine. Always check
for any damage before each use and replace a damaged blade immediately, with an approved
replacement part.
CLEANING
Keep your machine clean.
Thoroughly clean the machine at the end of each use, paying parcular aenon to cungs in and around
the guard and cung tool.
AIR FILTER
Accumulated dust in the air filter will reduce engine efficiency, increase fuel consumpon and allow abrasive
parcles to pass in the engine. Remove & clean the air filter regularly to ensure opmum performance.
Remove the air filter cover, by releasing the securingwinged screw from the front of the cover.
Lioffthe cover.
Remove the sponge air filter from the housing.
Tap the filter to remove light surface dust.
Heavy deposits should be washed out of the Air Filter in soapy water. Allow the filter to dry completely.
FUEL FILTER
The fuel tank is fied with a filter. It is situated at the free end of fuel pipe and can be picked out through
the fuel filler neck, with a piece of hooked wire or similar.
Check the fuel filter periodically. Do not allow dust to enter into the fuel tank. A clogged filter will cause
difficulty in starng the engine or abnormalies in engine performance.
When the filter is dirty, replace the filter.
When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with petrol.
ENGINE STARTING & STOPPING PROCEDURE
STARTING A COLD ENGINE
1. Place the machine onto a flat, firm surface.
2. Keep the cung head offof the ground and clearof any surrounding objects
3. Move the stop switch to "START" posion
4. Give a gentle push on the primerpump repeatedly (7-10 mes) unl fuel comes into the primer
pump.
5. Pull the Choke Leverup to close the choke
6. Whilst holding the machine down with yourlehand, away from the engine and pull the engine recoil
starter rope vigorously, unl the engine false starts.
(DO NOT LET THE RECOIL STARTER ROPE RETRACT BY ITSELF, FEED THE ROPE BACK INTO THE HOUSING)
7. Push the choke leverdownwards (excessive cranking with choke leverup will cause the engine to
flood, making it difficult to start.)
8. Pull starter handle unl engine starts.
9. Allow engine to warm up for a few minutes before using.
STARTING A WARM ENGINE
1. Move the switch to "START" posion
2. If the fuel tank was run dry on previous operaon, follow steps 3-7 of cold startprocedure.
3. Whilst holding the machine down with yourlehand, away from the engine and pull the engine recoil
starter rope vigorously, unl the engine false starts.
STOPPING THE ENGINE
1. Move the stop switch to the “STOP” posion
Choke Closed
Cold Start
Posion
Choke Open
Warm Start or
Run Posion
COW HORN HANDLE
D- HANDLE
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 14 27/06/2016 13:42

MAINTENANCE, CLEANING & STORAGE
WARNING
Improper maintenance & storage of the machine may void your warranty.
Keep the machine clean for beer and safer performance.
MAINTENANCE
Before each use, check all nuts & bolts to be sure they are sufficiently ghtened.
We recommend only manufacturer original parts are used when maintaining this machine. Failure to do so
could invalidate your manufacturer’s warranty.
The engine must be switched off, with the spark plug cap removed, before the machine is unassembled,
cleaned, serviced or maintained.
ADJUSTING CARBURETOR
Do not adjust carburetor unless necessary. If you have trouble with the carburetor, see your dealer. Improper
adjustment may cause engine damage and void warranty.
SPARK PLUG
Check the Spark Plug aer every 10-15 hours of use.
Remove the Spark Plug cap
Using the Spark Plug Spanner supplied, remove the Spark Plug by turning it an-clockwise.
Clean & adjust the electrode gap to 0.6-0.7mm
If the Spark Plug is visibly damaged or worn, replace immediately (See Specificaon for details)
Install the new/cleaned Spark Plug to finger ghtness, before fully ghtening with the spanner.
BLADE SHARPENING
Never aempt to sharpen the blade. It is reversible, so should be turned over when blunt. The blade must
remain balanced; an unbalanced blade will cause excessive vibraon through the machine. Always check
for any damage before each use and replace a damaged blade immediately, with an approved
replacement part.
CLEANING
Keep your machine clean.
Thoroughly clean the machine at the end of each use, paying parcular aenon to cungs in and around
the guard and cung tool.
AIR FILTER
Accumulated dust in the air filter will reduce engine efficiency, increase fuel consumpon and allow abrasive
parcles to pass in the engine. Remove & clean the air filter regularly to ensure opmum performance.
Remove the air filter cover, by releasing the securingwinged screw from the front of the cover.
Lioffthe cover.
Remove the sponge air filter from the housing.
Tap the filter to remove light surface dust.
Heavy deposits should be washed out of the Air Filter in soapy water. Allow the filter to dry completely.
FUEL FILTER
The fuel tank is fied with a filter. It is situated at the free end of fuel pipe and can be picked out through
the fuel filler neck, with a piece of hooked wire or similar.
Check the fuel filter periodically. Do not allow dust to enter into the fuel tank. A clogged filter will cause
difficulty in starng the engine or abnormalies in engine performance.
When the filter is dirty, replace the filter.
When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with petrol.
ENGINE STARTING & STOPPING PROCEDURE
STARTING A COLD ENGINE
1. Place the machine onto a flat, firm surface.
2. Keep the cung head offof the ground and clearof any surrounding objects
3. Move the stop switch to "START" posion
4. Give a gentle push on the primerpump repeatedly (7-10 mes) unl fuel comes into the primer
pump.
5. Pull the Choke Leverup to close the choke
6. Whilst holding the machine down with yourlehand, away from the engine and pull the engine recoil
starter rope vigorously, unl the engine false starts.
(DO NOT LET THE RECOIL STARTER ROPE RETRACT BY ITSELF, FEED THE ROPE BACK INTO THE HOUSING)
7. Push the choke leverdownwards (excessive cranking with choke leverup will cause the engine to
flood, making it difficult to start.)
8. Pull starter handle unl engine starts.
9. Allow engine to warm up for a few minutes before using.
STARTING A WARM ENGINE
1. Move the switch to "START" posion
2. If the fuel tank was run dry on previous operaon, follow steps 3-7 of cold startprocedure.
3. Whilst holding the machine down with yourlehand, away from the engine and pull the engine recoil
starter rope vigorously, unl the engine false starts.
STOPPING THE ENGINE
1. Move the stop switch to the “STOP” posion
Choke Closed
Cold Start
Posion
Choke Open
Warm Start or
Run Posion
COW HORN HANDLE
D- HANDLE
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 15 27/06/2016 13:42

STORAGE
For years of trouble free service, make sure the machine is clean and dry before storing.
Before storing, clean the machine thoroughly as indicated above.
Store indoors or in a safe, locked protected area during severe weather and winter months.
DO NOT STORE in an enclosed area, where fuel vapors can reach an open hot flame.
DO NOT STORE fuel in the machine. Ensure fuel is removed from the fuel tank and carburetor.
If storing for an extended period, inspect, clean and repair the machine if necessary. Remove all fuel from
the fuel tank. Start the engine, this will remove all fuel from the carburetor and fuel lines. Remove the
spark plug, pour a small quanty of 2-stroke oil into the spark plug hole of the cylinder and re-seat spark
plug. Store in a clean, dry, dust free area.
DO NOT STORE fuel for longer than 30 days. Fuel can become stale and cause damage to the engine
carburetor, which is not covered by the machines manufacturer’s warranty.
TROUBLE SHOOTING
Failures such as a difficulty in starng the engine, irregularity in funcons and abnormality in performance can
normally be prevented if careful aenon is paid toall operang instrucons and maintenanceprocedures.
Should the engine not funcon properly, check the following?
That the fuel system is in good condion and fuel is flowing to the engine.
The ignion system is in good condion and the spark plug, sparks correctly.
Compression ofthe engine is adequate.
FAILURE TO START
Correctly follow the starng procedure, not seng the choke lever or priming the engine can cause the
engine to not start.
Dispose of fuel from the tank, parcularly if over 30 days old.
Ensure that fuel is fresh and clean.
Check fuel filter to ensure it is clean. (Replace filter if necessary).
Make sure air filter elements are clean.
Install a new, properly gapped spark plug.
When there is serious trouble with the unit, do not try to repair it yourself, but have your local approved
service dealer inspect it for you.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 16 27/06/2016 13:42

STORAGE
For years of trouble free service, make sure the machine is clean and dry before storing.
Before storing, clean the machine thoroughly as indicated above.
Store indoors or in a safe, locked protected area during severe weather and winter months.
DO NOT STORE in an enclosed area, where fuel vapors can reach an open hot flame.
DO NOT STORE fuel in the machine. Ensure fuel is removed from the fuel tank and carburetor.
If storing for an extended period, inspect, clean and repair the machine if necessary. Remove all fuel from
the fuel tank. Start the engine, this will remove all fuel from the carburetor and fuel lines. Remove the
spark plug, pour a small quanty of 2-stroke oil into the spark plug hole of the cylinder and re-seat spark
plug. Store in a clean, dry, dust free area.
DO NOT STORE fuel for longer than 30 days. Fuel can become stale and cause damage to the engine
carburetor, which is not covered by the machines manufacturer’s warranty.
TROUBLE SHOOTING
Failures such as a difficulty in starng the engine, irregularity in funcons and abnormality in performance can
normally be prevented if careful aenon is paid toall operang instrucons and maintenanceprocedures.
Should the engine not funcon properly, check the following?
That the fuel system is in good condion and fuel is flowing to the engine.
The ignion system is in good condion and the spark plug, sparks correctly.
Compression ofthe engine is adequate.
FAILURE TO START
Correctly follow the starng procedure, not seng the choke lever or priming the engine can cause the
engine to not start.
Dispose of fuel from the tank, parcularly if over 30 days old.
Ensure that fuel is fresh and clean.
Check fuel filter to ensure it is clean. (Replace filter if necessary).
Make sure air filter elements are clean.
Install a new, properly gapped spark plug.
When there is serious trouble with the unit, do not try to repair it yourself, but have your local approved
service dealer inspect it for you.
INSTRUCTION MANUAL
WEBC26 WEBC33 WEBC43 IM.indd 17 27/06/2016 13:42

PARTS LIST - WEBC26 Engine
Item No. Part No. Descrip on Qty
Item No. Part No. Descrip on Qty
1 WE03010110121 Screw M5x12 1
32 WE70070030026 Cover 1
2 WE70030030853 Engine Cowling 1
33 WE70030030164 Guide 1
3 WE03020020055
Screw GB/T9074.4
M4x12 1 34 WE03040020012 Washer GB/T97.1 4 2
4 WE03010010062 Screw M5x20 4
35 WE02070010048 Spacer 2
5 WE70070130069 Cylinder 1
36 WE02050030229 Igni n Coil 1
6 WE03130010013 Spark Plug RCJ6Y 1
37 WE03020020054 Bolt GB/T9074.4 M4*20 2
7 WE02070010032 Cylinder Gasket 1
38 WE02050050213 Electrical Connec ons 1
8 WE02020020003 Piston Ring 2
39 WE02080030042 Rubber 1
9 WE02010020005 Piston 1
40 WE02070010162 Exhaust Gasket 1
10 WE02020150002 Stop Ring 2
41 WE02050010138 Exhaust 1
11 WE02020010004 Piston Pin 1
42 WE03050010008 Washer GB/T93 8 1
12 WE02020030017 Piston Pin Retainer 2
43 WE03040020018 Washer GB/T97.1 8 1
13 WE03090020018 Needle Bearing 1
44 WE03010010077 Bolt M5x55 2
14 WE02020120023 Cranksha 1
45 WE02070010019 Side Gasket 1
15 WE03090010028
Bearing GB/T276
6001/P5
2
46 WE70030020016 Insulator 1
16 WE03100010009 Seal 12x22x7 2
47 WE03020020012 Bolt GB/T9074.4 M5*20 6
17 WE03060010002 Pin 4
48 WE02070010071 Carbure or Gasket 1
18 WE70070050038 Rear Crankcase 1
49 WE02050020101 Carbure or 1
19 WE02050100015 Starter Pawl 1 50 WE70080120007
Air Filter Housing with
Choke 1
20 WE02050070090 Recoil Assembly 1
51 WE03020020044 Bolt GB/T9074.4 M5*55 2
21 WE03020020029
Screw GB/T9074.4
M4*16 5 52 WE02090010011 Air Filter 1
22 WE03070010001
WoodruffKey
3x3.7x12 1 53 WE70030040225 Air Filter Cover 1
23 WE02070010119 Crankcase Gasket 1
54 WE02110030079 Air Filter Screw 1
24 WE70070050039 Front Crankcase 1
55 WE02110020026 Fuel Tank Cap Assembly 1
25 WE03010010058 Bolt M5x25 4
56 WE61330010017 Fuel Inlet Pipe 1
26 WE02050030020 Flywheel 1
57 WE61330010018 Fuel Outlet Pipe 1
27 WE03030020003 Nut M8 1
58 WE02050120002 Fuel Filter 1
28 WE03040050052
Washer
φ6*15*1.2 2 59 WE03020020027
Screw GB/T9074.4
M5*16 3
29 WE02050160002 Clutch Assembly 1
60 WE03040050022 Washer φ5*15*1 3
30 WE03040050042 Washer 2
61 WE70050030170 Fuel Tank 1
31 WE02020130001 Clutch Bolt 2
PARTS DIAGRAM - WEBC26 Engine
WEBC26 WEBC33 WEBC43 IM.indd 18 27/06/2016 13:42

PARTS LIST - WEBC26 Engine
Item No. Part No. Descrip on Qty
Item No. Part No. Descrip on Qty
1 WE03010110121 Screw M5x12 1
32 WE70070030026 Cover 1
2 WE70030030853 Engine Cowling 1
33 WE70030030164 Guide 1
3 WE03020020055
Screw GB/T9074.4
M4x12 1 34 WE03040020012 Washer GB/T97.1 4 2
4 WE03010010062 Screw M5x20 4
35 WE02070010048 Spacer 2
5 WE70070130069 Cylinder 1
36 WE02050030229 Igni n Coil 1
6 WE03130010013 Spark Plug RCJ6Y 1
37 WE03020020054 Bolt GB/T9074.4 M4*20 2
7 WE02070010032 Cylinder Gasket 1
38 WE02050050213 Electrical Connec ons 1
8 WE02020020003 Piston Ring 2
39 WE02080030042 Rubber 1
9 WE02010020005 Piston 1
40 WE02070010162 Exhaust Gasket 1
10 WE02020150002 Stop Ring 2
41 WE02050010138 Exhaust 1
11 WE02020010004 Piston Pin 1
42 WE03050010008 Washer GB/T93 8 1
12 WE02020030017 Piston Pin Retainer 2
43 WE03040020018 Washer GB/T97.1 8 1
13 WE03090020018 Needle Bearing 1
44 WE03010010077 Bolt M5x55 2
14 WE02020120023 Cranksha 1
45 WE02070010019 Side Gasket 1
15 WE03090010028
Bearing GB/T276
6001/P5
2
46 WE70030020016 Insulator 1
16 WE03100010009 Seal 12x22x7 2
47 WE03020020012 Bolt GB/T9074.4 M5*20 6
17 WE03060010002 Pin 4
48 WE02070010071 Carbure or Gasket 1
18 WE70070050038 Rear Crankcase 1
49 WE02050020101 Carbure or 1
19 WE02050100015 Starter Pawl 1 50 WE70080120007
Air Filter Housing with
Choke 1
20 WE02050070090 Recoil Assembly 1
51 WE03020020044 Bolt GB/T9074.4 M5*55 2
21 WE03020020029
Screw GB/T9074.4
M4*16 5 52 WE02090010011 Air Filter 1
22 WE03070010001
WoodruffKey
3x3.7x12 1 53 WE70030040225 Air Filter Cover 1
23 WE02070010119 Crankcase Gasket 1
54 WE02110030079 Air Filter Screw 1
24 WE70070050039 Front Crankcase 1
55 WE02110020026 Fuel Tank Cap Assembly 1
25 WE03010010058 Bolt M5x25 4
56 WE61330010017 Fuel Inlet Pipe 1
26 WE02050030020 Flywheel 1
57 WE61330010018 Fuel Outlet Pipe 1
27 WE03030020003 Nut M8 1
58 WE02050120002 Fuel Filter 1
28 WE03040050052
Washer
φ6*15*1.2 2 59 WE03020020027
Screw GB/T9074.4
M5*16 3
29 WE02050160002 Clutch Assembly 1
60 WE03040050022 Washer φ5*15*1 3
30 WE03040050042 Washer 2
61 WE70050030170 Fuel Tank 1
31 WE02020130001 Clutch Bolt 2
PARTS DIAGRAM - WEBC26 Engine
WEBC26 WEBC33 WEBC43 IM.indd 19 27/06/2016 13:42

PARTS LIST - WEBC26 Machine
Item
No. Part No. Descrip on Qty
Item
No. Part No. Descrip on Qty
1 WE61270030148 Gear Head Assembly 1
39 WE02080020006 Rubber Cover 6
1-2 WE03120020002 Retaining Ring 26 1
40 WE61270090005 Handle Assembly 1
1-3 WE03120010001 Retaining Ring 10 1
40-41 WE03010010049 Screw M5X35 4
1-4 WE03090010074 Bearing 6000-2RS/P5 2
40-42 WE70030160079 Handle 1
1-5 WE02020090063 Pinion 1
40-43 WE70030160032 Handle Clamp 1
1-6 WE03020030014 Screw M5×25 1
44 WE61270040018 Trigger Assembly 1
1-7 WE03020030021 Bolt M6×12 2
44-45 WE03010010029 Screw M5X14 1
1-8 WE70070010031 Gear Case 1
44-46 WE02020160213 Clamp 1
1-9 WE02020160725 Safety Guard 1
44-47 WE03030080002 Nut M5 3
1-10 WE03020020018 Screw M5×12 3
44-48 WE70030070164 Trigger Housing - Right 1
1-11 WE03090010072 Bearing 6000/P5 1
44-49 WE02080020054 Rubber Cover 1
1-12 WE02020090012 Gear 1
44-50 WE70030180091 Clamp 1
1-13 WE02020090029 Gear Sha 1
44-51 WE03010010022 Screw M5X20 2
1-14 WE03090010014 Bearing 6002-2RS/P5 1
44-52 WE02050050078 Stop Switch 1
1-15 WE03120020001 Stop Ring 32 1
44-53 WE70030070047 Tine 1
1-16 WE02020100020 Holder A 1
44-54 WE02020110039 Spring 1
1-17 WE02020100012 Holder B 1
44-55 WE02020110041 Spring 1
1-18 WE03040050014 Washer 10 1
44-56 WE70030070172 Safety Lever 1
1-19 WE03030010008 Nut M10×1.25 (Le Hand) 1
44-57 WE02020110041 Spring 1
1-20 WE03060020004 Pin 2×16 2
44-58 WE70030070074 Thro le Lever 1
21 WE70080060045 Clutch Assembly 1
44-59 WE02050040045 Electrical Cable 1
21-22 WE02020050040 Clutch Drum 1
44-60 WE03010010046 Screw M5X30 1
21-23 WE03120020004 Stop Ring 35 1
44-61 WE70030070216 Trigger Housing - Le 1
21-24 WE03090010070 Bearing 6202-2RS/P5 1
44-62 WE03030010005 Nut M6 2
21-25 WE03120010005 Stop Ring 15 1
44-63 WE61350020002 Tube 1
21-26 WE70070060032 Clutch Case 1
64 WE70080120227 Safety Guard Assembly 1
21-27 WE02080020104 Rubber Cover 1
64-65 WE70030030786 Safety Guard 1
21-28 WE03010010056 Screw M5×14 1
64-66 WE70030180314 Guard Shield 1
21-29 WE03010010058 Screw M5×25 2
64-67 WE03010040025 Screw ST4.2×13 2
21-30 WE70070080038 Clamp B 1
64-68 WE02020070102 Knife 1
21-31 WE70070080039 Clamp A 1
69 WE02020160712 Bracket 1
32 WE03010010061 Screw M6×20 6
70 WE02060040165 Blade 1
33 WE70030180133 Harness Clamp 1
71 WE02050220013 Nylon Cu er Head 1
34 WE70030160007 Clamp 1
72 WE02050060020 Harness Assembly 1
35 WE03020020012 Screw M5×20 1
73 WE70080010003 Fuel/Oil Mixer Bo le 1
36 WE02010010215 Sha (26*1.5*1500) 1
74 WE03080030011 Spark Plug Wrench 1
37 WE02020060006 Drive Sha (1540mm) 1
75 WE03080010004 Allen Key 1
38 WE02040010006 Oil-Bearing
（
8*14*14) 6
76 WE03080010003 Allen Key 1

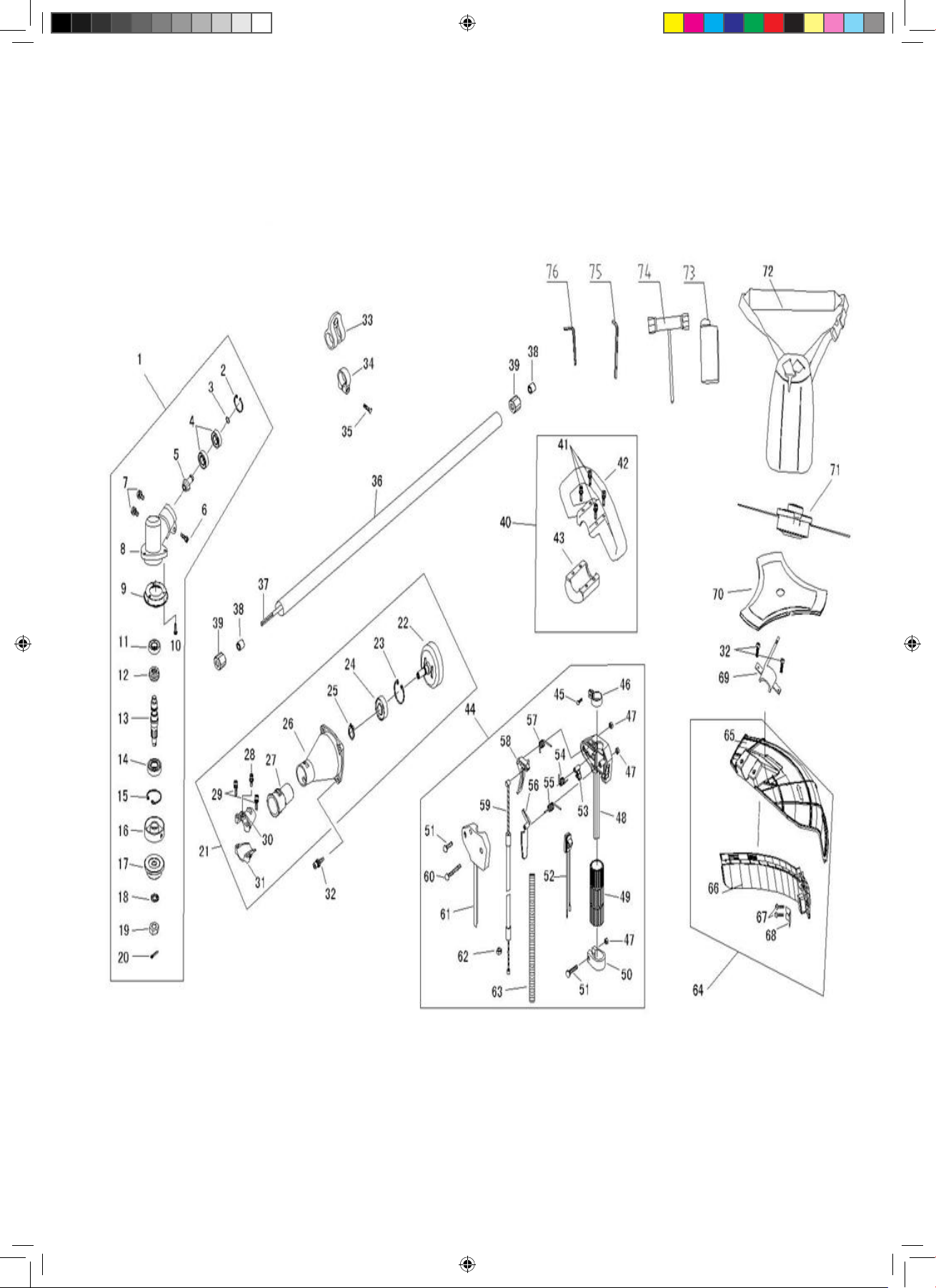

PARTS DIAGRAM - WEBC26 Machine
WEBC26 WEBC33 WEBC43 IM.indd 20 27/06/2016 13:42
