SPIRIT™500 Series
LP Gas Barbecue
Serial Number
Please use this number in registering your warranty and
any correspondence with the factory.
Owner’s Manual
WARNING: Do not try to light this appliance
without reading "Lighting" instructions
section of this manual.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use. FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP tank not connected for use shall
not be stored in the vicinity of this or
any other appliance.
WARNING: Follow all leak check procedures
carefully in this manual prior to barbecue
operation. Do this even if barbecue was
dealer assembled.
National Association PROPANE GAS
®
98567 10/97

2
DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual
may result in serious bodily injury or death, or in a fire or an explosion causing damage
to property.
WARNINGS
Do not store a spare or disconnected LP tank under or near this barbecue.
Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual.
After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks
and burner obstructions before using. See instructions in this manual for correct procedures.
Do not operate the Weber Gas Barbecue if there is a gas leak present.
Do not use a flame to check for gas leaks.
Combustible materials should never be within 24 inches of the top, bottom, back or sides of your
Weber Gas Barbecue.
Do not put a barbecue cover or anything flammable on or in the storage area under the barbecue.
Your Weber Gas Barbecue should never be used by children.
You should exercise reasonable care when operating your Weber Gas Barbecue. It will be hot during
cooking or cleaning, and should never be left unattended.
Should the burners go out during operation, turn all gas valves off. Open the lid and wait five minutes
before attempting to relight, using the lighting instructions.
Do not use charcoal or lava rock in your Weber Gas Barbecue.
Never lean over open grill or place hands or fingers on the front edge of the cooking box.
Should a grease fire occur, turn off all burners and leave lid closed until fire is out.
Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
The Weber Gas Barbecue should be thoroughly cleaned on a regular basis.
LP gas is not natural gas. The conversion or attempted use of natural gas in an LP unit or LP gas in a
natural gas unit is dangerous and will void your warranty.
Do not attempt to disconnect any gas fitting while your barbecue is in operation.
Use heat-resistant barbecue mitts or gloves when operating barbecue.
LP GAS UNITS ONLY:
Use the regulator that is supplied with your Weber Gas Barbecue.
Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.
A dented or rusty LP tank may be hazardous and should be checked by your liquid propane supplier.
Do not use an LP tank with a damaged valve.
Although your LP tank may appear to be empty, gas may still be present, and the tank should be
transported and stored accordingly.
If you see, smell or hear the hiss of escaping gas from the LP tank:
1. Get away from LP tank.
2. Do not attempt to correct the problem yourself.
3. Call your fire department.

3
Weber-Stephen Products Co. (Weber) hereby
warrants to the ORIGINAL PURCHASER of this
Weber Gas Barbecue that it will be free of
defects in material and workmanship from the
date of purchase as follows:
Aluminum Castings, 10 years,
Cooking Grates and Flavorizer Bars, 3 years,
All Remaining Parts, 5 years,
when assembled and operated in accordance
with the printed instructions accompanying it.
Weber may require reasonable proof of your
date of purchase. THEREFORE, YOU SHOULD
RETAIN YOUR SALES SLIP OR INVOICE.
This Limited Warranty shall be limited to the
repair or replacement of parts which prove
defective under normal use and service and
which on examination shall indicate, to Weber's
satisfaction, they are defective. Before returning
any parts, contact Weber-Stephen Products Co.
Customer Service Center. If Weber confirms the
defect and approves the claim, Weber will elect
to replace such parts without charge. If you are
required to return defective parts, transportation
charges must be prepaid. Weber will return parts
to the purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures
or operating difficulties due to accident, abuse,
misuse, alteration, misapplication, vandalism,
improper installation or improper maintenance or
service, or failure to perform normal and routine
maintenance, including but not limited to damage
caused by insects within the burner tubes, as set
out in this owner's manual.
Deterioration or damage due to severe weather
conditions such as hail, hurricanes, earthquakes
or tornadoes, discoloration due to exposure to
chemicals either directly or in the atmosphere, is
not covered by this Limited Warranty.
There are no other express warrants except as
set forth herein and any applicable implied
warranties of merchantability and fitness are
limited in duration to the period of coverage of
this express written Limited Warranty. Some
states do not allow limitation on how long an
implied warranty lasts, so this limitation may not
apply to you.
Weber is not liable for any special, indirect or
consequential damages. Some states do not
allow the exclusion or limitation of incidental or
consequential damages, so this limitation or
exclusion may not apply to you.
Weber does not authorize any person or
company to assume for it any other obligation or
liability in connection with the sale, installation,
use, removal, return, or replacement of its
equipment; and no such representations are
binding on Weber.
This Warranty applies only to products sold at
retail.
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
[phone]
LP Tank
The LP tank manufacturer is responsible for the
materials, workmanship and performance of the tank. If
the tank has a defect, malfunctions, or you have a
question regarding the tank, call the tank manufac-
turer's customer service center. The phone number is
on the warning decal which is permanently attached to
the tank. If the tank manufacturer has not resolved the
issue to your satisfaction, then call Weber-Stephen
Products Co., Customer Service Center.
WARRANTY

© 1997 Weber. Weber, , Flavorizer and Crossover are registered
U.S. trademarks; Spirit, Gas Catcher, FlameCheck, and Spider
Stopper are U.S. trademarks of Weber-Stephen Products Co., 200
East Daniels Road, Palatine, IL 60067-6266. U.S.A. Spirit is
covered under the following patent nos.: U.S.A. #4,677,964;
4,727,853; #4,829,978; #4,941,817; and #4,966,125; Canada:
#1,279,540; #1,300,994; and #1,300,995. Printed in the U.S.A.
PATENTS AND TRADEMARKS
4

5
Contents
WARNINGS................................................................ 2
Warranty & Patents.................................................. 3-4
General Instructions.................................................... 6
Assembly............................................................... 7-20
Operating Instructions
Lighting........................................................ 21-22
Cooking............................................................ 23
Storage and/or Nonuse.................................... 23
Cleaning .......................................................... 23
LP Tank Information.................................... 24-26
Troubleshooting & Maintenance
Annual Maintenance......................................... 27
General Maintenance.................................. 28-29
Troubleshooting................................................ 31
Parts Listing.............................................................. 35

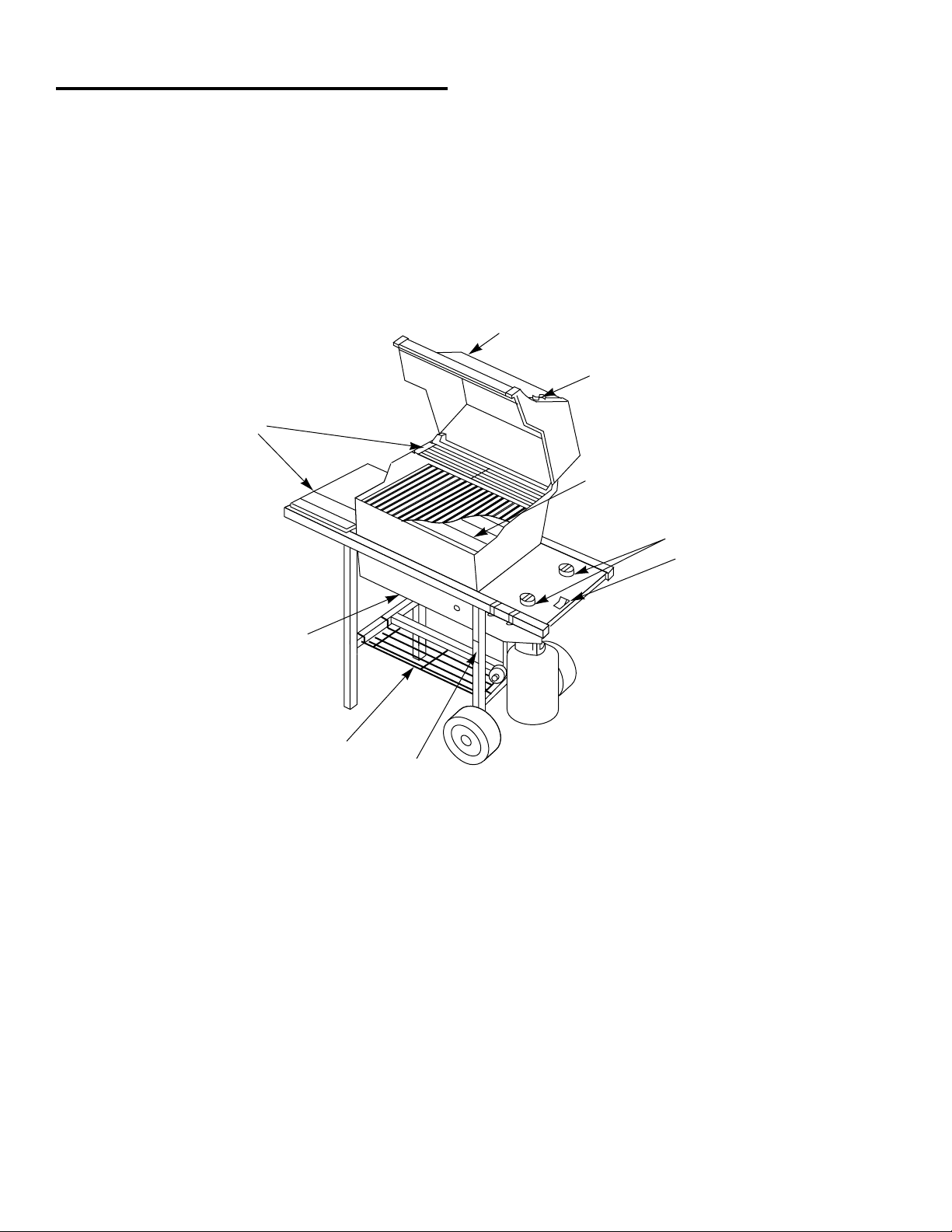

FEATURES:
a) Convenient tables and racks.
b) Heavy gauge porcelain-on-steel lid seals in heat.
c) Rapid read thermometer for precision cooking
measures grill temperature, and can be removed and
inserted into the food.
d) Heavy gauge steel Flavorizer Bars distribute heat
within the grill. Flavorizer Bars heat just the right
amount of drippings for flavoring, letting excess fat
drip past to help prevent flare-ups.
e) Separate burners for temperature control.
f) Crossover Ignition System with Gas Catcher Ignition
Chamber.
g) Fuel scale indicates LP gas supply.
h) Catch pan catches excess grease.
a
b
c
d
e
f
g
a
h
IMPORTANT NEW FEATURES:
Your Weber Gas Barbecue is equipped with a new and
improved LP tank connection, that has additional
safety features. They are:

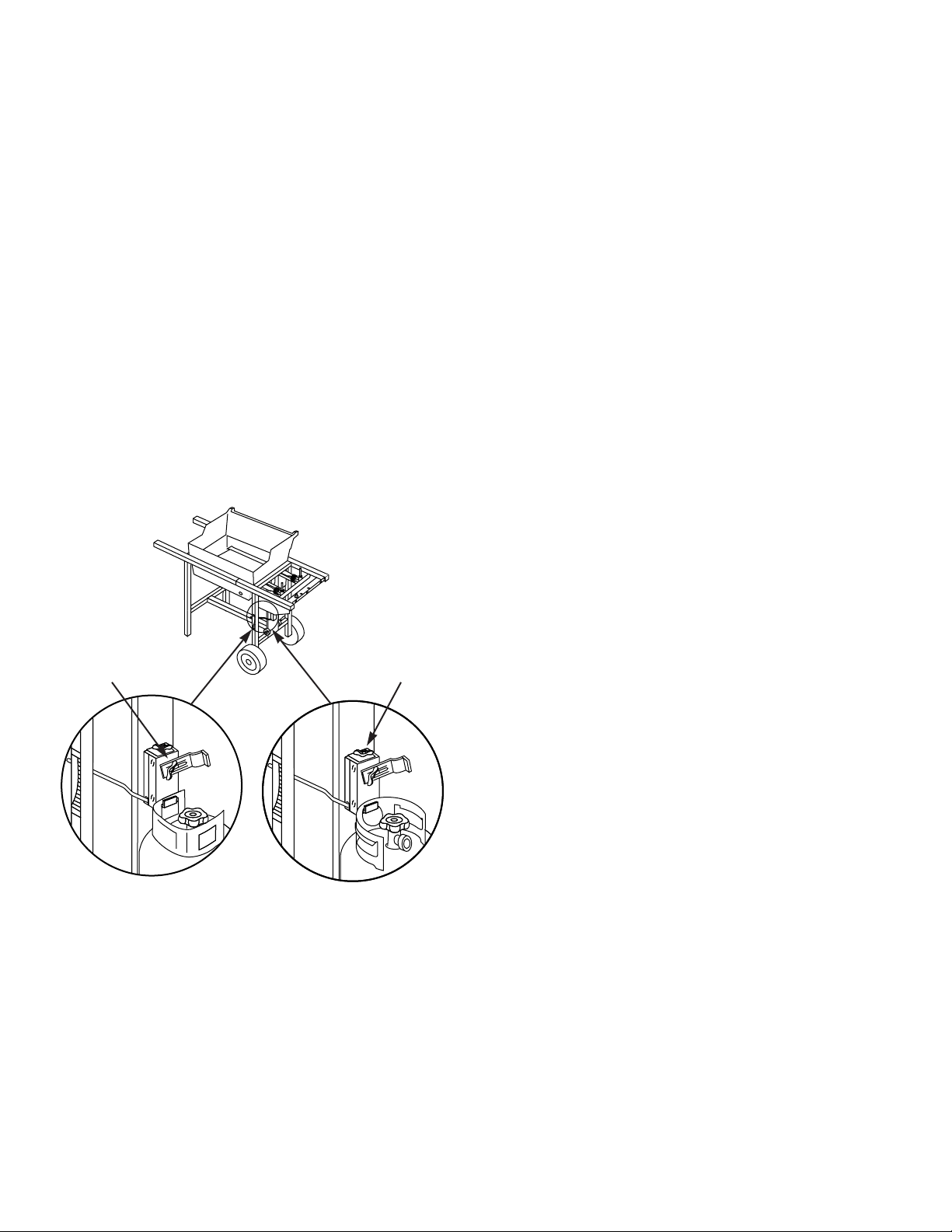

1. The connection of the barbecue to the LP tank can be
made without the use of tools.
2. The new connection will not permit the flow of gas
until a positive gas connection is made.
3. If an accidental fire occurs at the LP tank connection,
the flow of gas is stopped by a temperature activated
shutoff.
4. If the LP supply hose becomes damaged, cut,
punctured, or accidentally fire damaged, the barbecue
connection is equipped with an excess flow control
that will limit the flow of gas if leakage or a fire occurs.

6
General Instructions
Your Weber Gas Barbecue is a portable outdoor cooking
appliance. With the Weber Gas Barbecue you can grill,
barbecue, roast and bake with results that are difficult to
duplicate with indoor kitchen appliances. The closed lid and
Flavorizer Bars produce that "outdoor" flavor in the food.
The Weber Gas Barbecue is portable so you can easily
change its location in your yard or on your patio. Portability
means you can take your Weber Gas Barbecue with you if
you move.
Liquid Propane (LP) gas supply is easy to use and gives
you more cooking control than charcoal fuel.
■These instructions will give you the minimum
requirements for assembling your Weber Gas
Barbecue. Please read the instructions carefully
before using your Weber Gas Barbecue. Improper
assembly can be dangerous.
■Not for use by children.
■If there are local codes that apply to portable gas grills,
you will have to conform to them. If there are no local
codes, you must conform to the latest edition of the
National Fuel Gas Code: ANSI Z 223.1.
■The pressure regulator supplied with the Weber
Gas Barbecue must be used. This regulator is set
for 10.5 inches of water column (pressure).
■This Weber Gas Barbecue is designed for use with
liquid propane (LP) gas only. Do not use with natural
(piped in city) gas. The valves, orifices, hose and
regulator are for LP gas only.
■Do not use with charcoal fuel.
■Check that the area under the control panel and the
bottom tray are free from debris that might obstruct
the flow of combustion or ventilation air.
■The area around the LP tank must be free and clear
from debris.
For Installation in Canada
These instructions, while generally acceptable, do not
necessarily comply with the Canadian Installation codes,
particularly with piping above and below ground. In
Canada the installation of this appliance must comply with
local codes and/or Standard CAN/CGA-B149.2 (Installation
Code for Propane Burning Appliances and Equipment).
Storage
■The gas must be turned OFF at the LP tank when the
Weber Gas Barbecue is not in use.
■When the Weber Gas Barbecue is stored indoors, the
gas supply must be disconnected and the LP tank
stored outdoors in a well-ventilated space.
■LP tanks must be stored outdoors in a well-ventilated
area out of the reach of children. Disconnected LP
tanks must not be stored in a building, garage or any
other enclosed area.
■When the LP tank is not disconnected from the Weber
Gas Barbecue, the appliance and LP tank must be
kept outdoors in a well-ventilated space.
Operating area
WARNING: Onlyuse this barbecue outdoors in a
well ventilated area. Do not use in a garage, building,
breezeway or any other enclosed area.
■Never use your Weber Gas Barbecue under an
unprotected combustible roof or overhang.
■Your Weber Gas Barbecue is not intended to be
installed in or on recreational vehicles and/or boats.
■Do not use combustible materials within 24 inches of
the top, bottom, back or sides of the grill.
■The entire cooking box gets hot when in use. Do not
leave unattended.
■Keep any electrical supply cord and the fuel supply
hose away from any heated surface.
■Keep the cooking area clear of flammable vapors
and liquids, such as gasoline, alcohol, etc., and
combustible materials.
■Never store an extra (spare) LP tank under or near
the Weber Gas Barbecue.

7

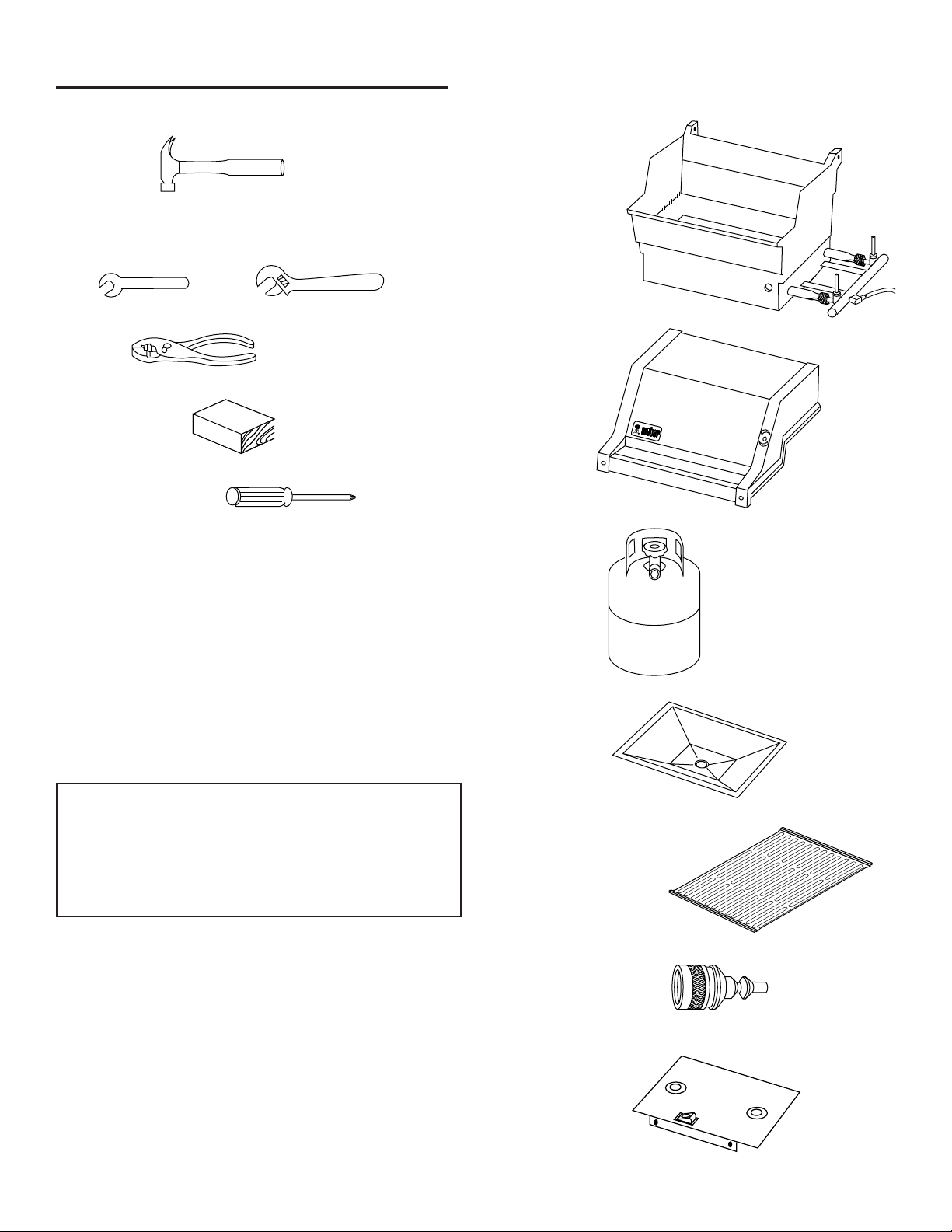

Step 1
Check package contents
Cooking box
(assembly)
Lid
(assembly)
LP tank
Bottom tray
Two cooking grates
LP tank filler adapter
Control panel
Assembly
Tools needed
Hammer
7/16 open-end or an adjustable wrench
Pliers
Block of wood
Supplies needed
Your LP tank is shipped empty for safety. After setting the
LP fuel scale you will need to fill it. (See Step "Fill LP tank.")
You will need a soap and water solution to check for gas
leaks. (See Step "Check for gas leaks.")
Note - The hardware size of nuts, bolts and screws is
given. For example "1/4-20 x 2 inch bolt" means a bolt
1/4 inch in diameter with 20 threads to the inch, 2 inches
long. On a small screw for example, "6-32 x 1/2 inch
screw" means a number 6 screw, with 32 threads to the
inch, 1/2 inch long.
®® ®® ®® ®®
While we give much attention to our products,
unfortunately an occasional error may occur. If a part is
missing, do not go back to the store. Call the Weber
Customer Service Center toll free 1-800-446-1071 to
receive immediate assistance. Have your owner’s manual
and serial number of the barbecue available for reference.

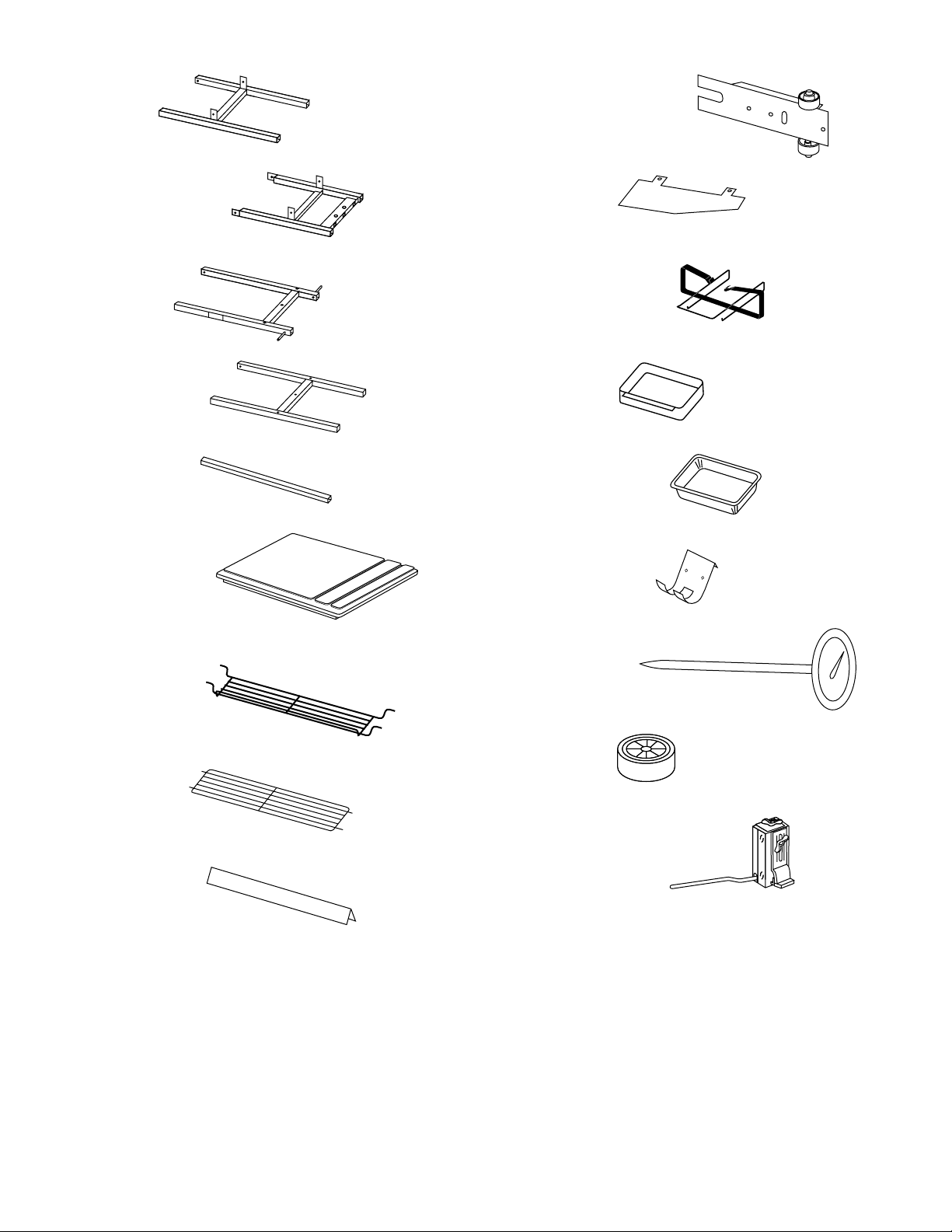

Phillips Screwdriver

Left frame
Right frame
Wheel frame
Leg frame
Frame connector
Molded work table
Accessory rack
Warming rack
Five Flavorizer Bars
Tank panel assembly
Front panel
Catch pan holder
Catch pan
Two drip pans
Manifold bracket
Thermometer
Two wheels
Fuel scale assembly
8
W
E
B
E
R
W
E
B
E
R
W
E
B
E
R
W
E
B
E
R

Two plastic buttons
(actual size)
Two 1/4-20 wing nuts
(actual size)
Ten 1/4 inch nylon washers
Two hair pin cotters
Two wheel hubcaps
Work table spacer
1/4-20 keps nut
Check contents of hardware packs
Two burner control knobs
Two tool holders
Eight tubing plugs
(two are spares)
Two hinge pins
(hardware size: 1/4 x 1 1/2 inch clevis pin)
(actual size)
1/4-20 x 2 inch bolt
(actual size)
Two 1/4-20 x 1 3/4 inch bolts
(actual size)
Six 1/4-20 x 1/2 inch bolts
(actual size)
9
Two Phillips screws/washers

10
Figure 1
Step 2
Assemble wheel frame
You will need: wheel frame, two wheels, two wheel hubcaps,
hammer and a block of wood.
Set one end of wheel frame on the block of wood (or other
hard, protected surface). Put one wheel on axle, WEBER
side facing up, and tap on one hubcap.Figure 1.
Repeat with other wheel and hubcap.
W
E
B
E
R
W
E
B
E
R
Figure 2

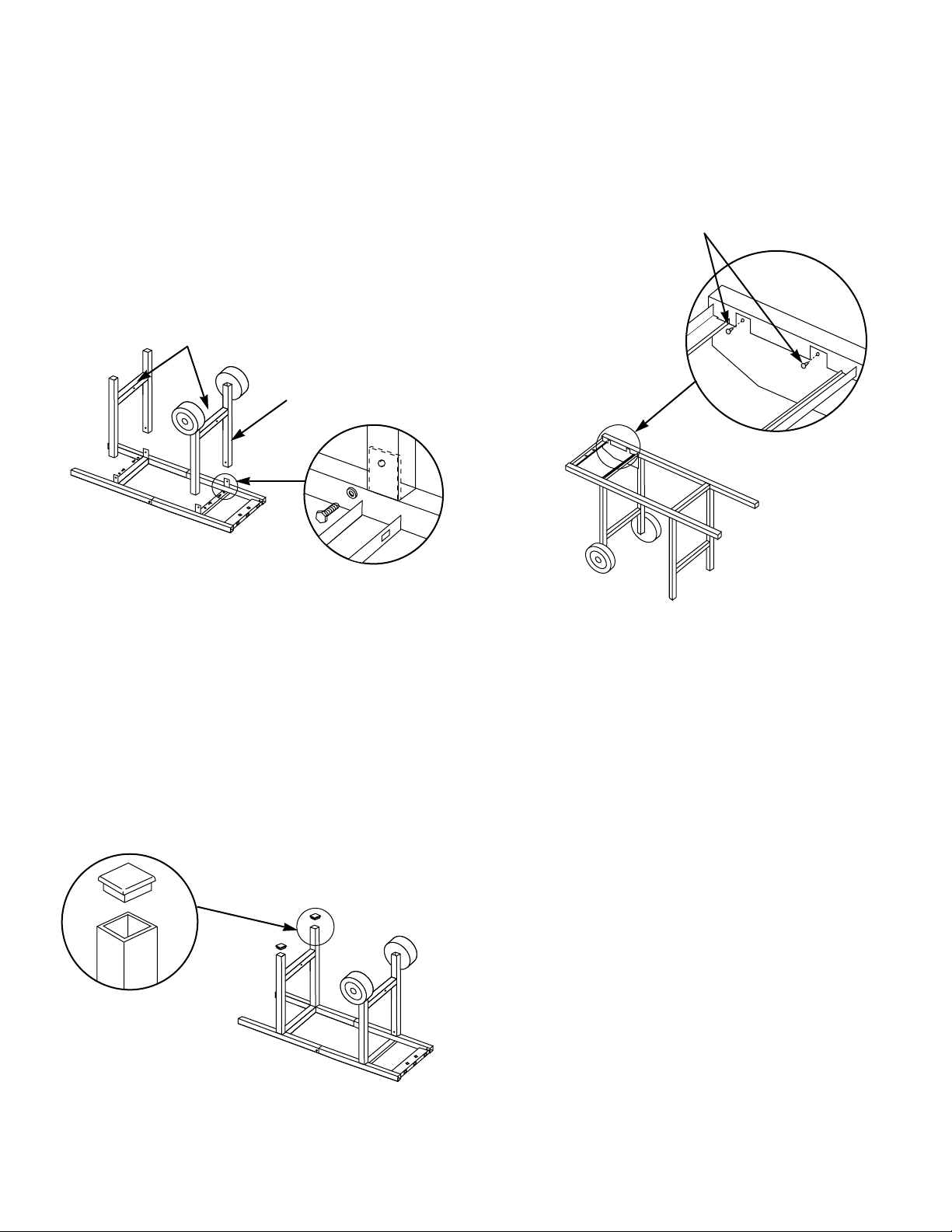

Step 3
Assemble top frame
You will need: left frame, right frame, two 1/4-20 x 1/2 inch
bolts, two nylon washers and a 7/16 inch wrench.
Note - Work on carpeted area (on grass or one of the
boxes) to protect the finish during frame assembly.
Lay the leg pieces as shown so the leg tabs point up.
Figure 2.
Slip the two frame pieces together with the tabs inside.
Figure 2 (a). Slip washers on bolts, insert bolts as shown
and tighten. Figure 2 (b). (If you try to insert a bolt and
there are no holes, you have the left frame turned the
wrong way. Turn the left frame around.)
Leg tabs
Frame tabs
(a)
(b)
Right frame
Left frame

11
Figure 3
Step 4
Continue frame assembly
You will need: leg frame, wheel frame, four 1/4-20 x 1/2 inch
bolts, four nylon washers and a 7/16 inch wrench.
Place the leg frame onto the tabs of the left frame with the
dimple to the inside. Figure 3. Place the wheel frame onto
the tabs of the right frame with the dimple to the inside. The
fuel scale decal should face away as shown. Figure 3.
The leg tabs must be on the inside of the frames.
Add the washers to the bolts, insert in the holes as shown
and tighten with the wrench. Figure 3.
Figure 4
Step 5
Install tubing plugs
You will need: two tubing plugs and a hammer.
Insert tubing plugs into the ends of the leg frame.Figure 4.
To fully seat the plugs, you may have to tap them lightly
with a hammer.
Figure 5
Step 6
Add front panel
You will need: front panel and two plastic buttons.
Turn frame assembly right side up.
Align the panel with the holes in the frame and insert the
plastic buttons through the front panel and frame. Figure 5.
View from rear
of barbecue
Dimples to
the inside
Fuel scale
decal
Plastic buttons

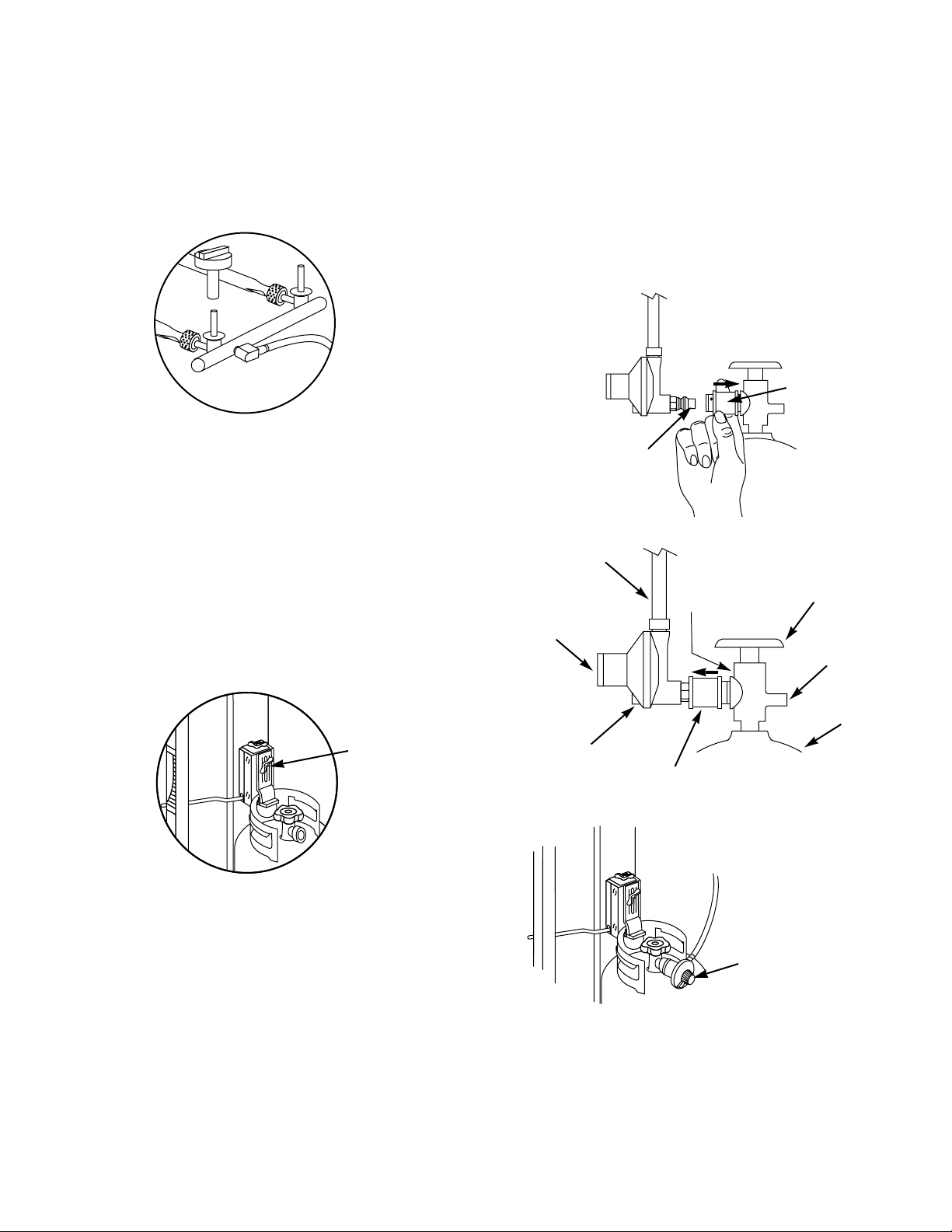

Your Weber Gas Barbecue burner assembly has been
factory assembled, pressure and flame tested. As a safety
precaution we recommend you check the burner alignment:
a) Do the valves fit into the ends of the burners?
Figure 8 (a).
b) Are the ends of the burners under the washers at the
left rear and left front of the cooking box? The screws
are only guides. Do not tighten. Figure 8 (b).
c) Are the wing nuts under the burner assembly hand
tight? Do not tighten with pliers. Figure 8 (c).
If you answered YES to a, b and c, the burners are
correctly aligned. If you answered NO, the burners are
misaligned. Contact Weber-Stephen Customer Service.
Do not use barbecue.
Guide screw
(a)
(b)
(c)
Wing Nuts
View from
behind
cooking
box
Figure 8
12
Figure 6

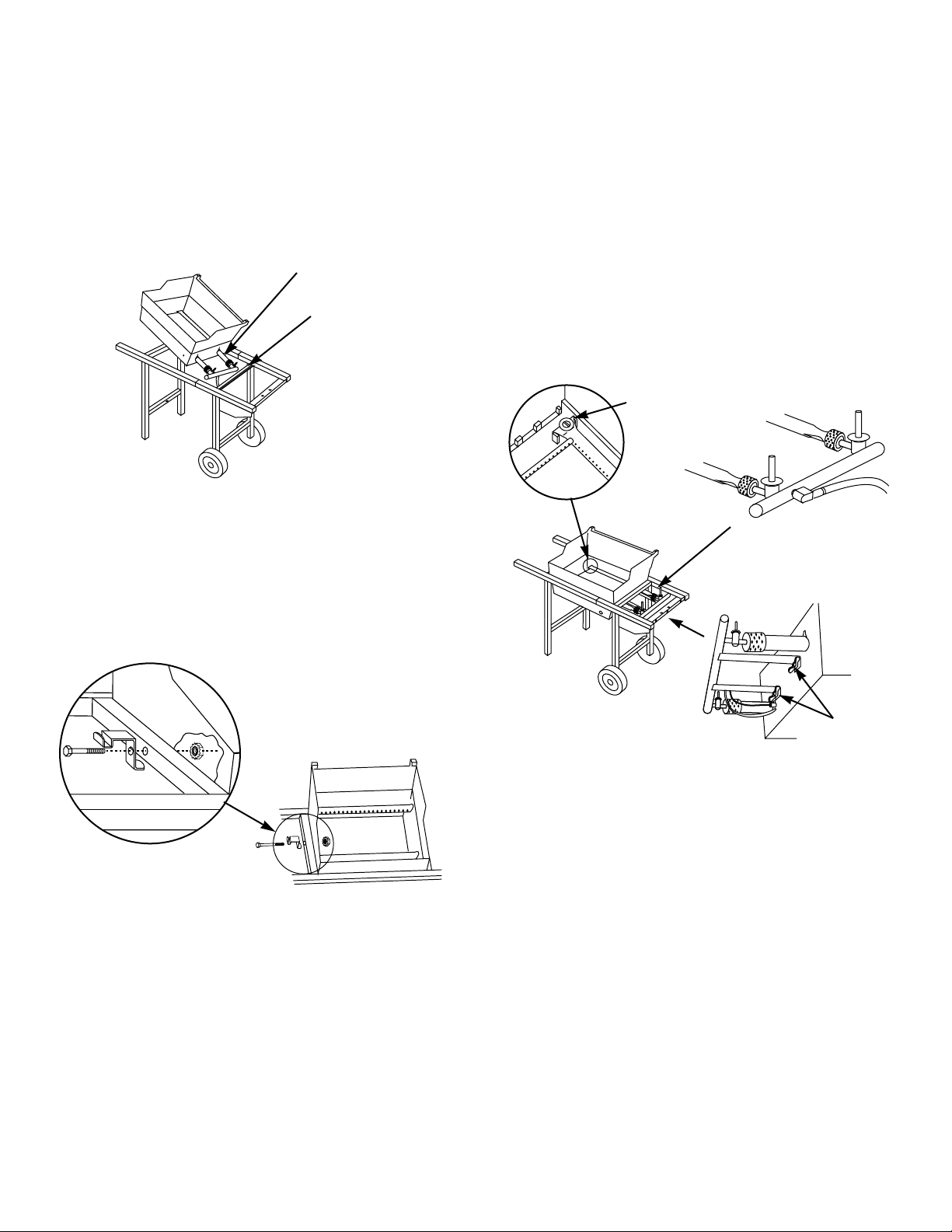

Step 7
Add cooking box
You will need: frame assembly, cooking box assembly, work
table spacer, 1/4-20 keps nut, 1/4-20 x 2 inch bolt, pliers
and a 7/16 inch wrench.
Uncoil the hose.
Set the cooking box in the frame so the burner tubes are
under the frame brace. Figure 6.
Burner tubes
Frame brace
Slide the cooking box to the left within the frame. Hold the
work table spacer up to the frame. Insert the bolt through
the hole in the work table spacer, frame, and cooking box
with the head of the bolt outside the box. Figure 7. Add
keps nut. Tighten by holding the bolt with pliers while you
tighten the nut with a wrench.
Figure 7

Frame brace Manifold bracket
13
Figure 9
Step 8
Install manifold bracket
You will need: manifold bracket
Hook the bracket onto the manifold at approximately the
center of the length of the manifold. Place your hand
underneath the bracket. Lift the manifold, bracket and
cooking box slightly and hook the tab of the bracket onto
the frame brace. Figure 9.
Step 9
Install tank panel assembly and frame connector
You will need: tank panel assembly, frame connector, two
1/4-20 x 1 3/4 inch bolts, two nylon washers and a 7/16 inch
wrench.
Insert the tank panel tabs into the slots in the frame brace.
Figure 10.
Figure 10
Figure 11
Frame
connector
Cross brace
Tank panel tabs
Slots in frame brace Frame brace
Slide tank panel up until notch at bottom of panel fits over
the cross brace. Insert one bolt with washer through the
hole in the bottom of the tank panel, through the wheel
frame and into the end of the frame connector. Insert the
other bolt with washer through the leg frame and into the
other end of the frame connector. Hold the frame connector
square and tighten the bolts. Figure 11.

14
Step 10
Add fuel scale assembly
You will need: fuel scale assembly, two 1/4-20 wing nuts
and two nylon washers.
Slip the bolts on the back of the fuel scale assembly through
the two small holes in the tank panel. Make sure indicator
rod of fuel scale is on the left side of the wheel frame.
Add washers then wing nuts and tighten. Figure 12.
Figure 12
View from front rightView from front left
F
E
F
E
Step 11
Install igniter
Note - The igniter wires are already attached to the Gas
Catcher Ignition Chamber and the igniter. This was done to
factory test the ignition system.
The igniter lock nut is on the igniter.
Insert the top of the igniter up through the large part of the
keyhole in the frame brace. Figure 13 (b).Loosen the igniter
lock nut and slide the igniter into the small part of the
keyhole. Figure 13 (c). Tighten the igniter lock nut. Figure 13.
Note - If the igniter works loose, carefully tighten the igniter
lock nut with an adjustable wrench or pliers.
Figure 13 Igniter lock nut
Small part of keyhole
in frame brace
Frame brace
Frame brace
Keyhole in
frame brace
(a)
(b)
(c)

15
Step 12
Set LP fuel scale
You will need: LP tank (empty).
Note - For accuracy, the fuel scale must be set with an
empty tank.
We utilize various LP tank manufacturers. Some of the
tanks we receive have differing top collar assemblies.
(The top collar is the metal protective ring around the
valve.) One series of tanks mounts with the valve facing
front. The other tanks mount with the valve facing away
from the fuel scale. These types of tanks are illustrated in
Figure 14.
Loosen the tank lock wing nut. Tighten so the lock is held
up out of the way. Figure 14 (a). Lift and hook the tank onto
the fuel scale. With an empty LP tank, adjust the fuel scale
setting to E with scale setting (top) wing nut. Figure 14 (b).
CAUTION: Do not remove adjustment wing nut from
tank scale.
After adjusting tank scale, push tank down a couple of
times to check that the tank scale is set on “E”.
F
E
F
E
F
E
Figure 14
Tank lock
wing nut
(a) (b)
Scale setting
wing nut
Step 13
Fill LP tank
Note - The LP tank manufacturer is responsible for the
materials, workmanship and performance of the tank. If
the tank has a defect, malfunctions, or you have a
question regarding the tank, call the tank manufacturer's
customer service center. The phone number is on the
warning decal which is permanently attached to the tank.
If the tank manufacturer has not resolved the issue to your
satisfaction, then call Weber-Stephen Products Co.,
Customer Service Center.
To fill, take the LP tank and filler adapter to an RV center
or look up gas-propane in the phone book for other
sources of LP gas.
WARNING: We recommend that your LP tank be
filled at an authorized LP gas dealer by a qualified
attendant, who fills the tank by weight.
IMPROPER FILLING IS DANGEROUS.
Tell your LP dealer that this is a new LP tank. The air must
be removed from a new LP tank before the initial filling.
Your LP tank dealer is equipped to do this.
WARNING: If you exchange your LP tank, make
sure you get a similar tank in return. Your LP tank is
equipped with a quick-disconnect valve and an OPD
(Overfilling Prevention Device). Other LP tanks are not
compatible with your barbecue connection.
The LP tank must be installed, transported and stored in
an upright position. LP tank should not be dropped or
handled roughly.
Never store or transport the LP tank where temperatures
can reach 125° Fahrenheit (too hot to hold by hand – for
example: do not leave the LP tank in a car on a hot day).
For full instructions on safe handling of LP tanks, see
Section "Safe handling tips for LP gas".

16
Route the hose so it will not interfere with the scale
indicator rod.
The hose and regulator are connected in the following
manner:
Slide back the collar of the quick disconnect on the tank
valve. Push the male fitting of the regulator into the quick
disconnect, and maintain pressure. Slide the collar closed.
Figure 17 (a). Figure 17 (b) shows the quick disconnect
engaged and various components of the tank and
regulator. Regulator vent hole should be at 3, 6, or 9
o'clock. It should not be pointed up. Figure 17 (c).
Figure 17
Turn so regulator vent
does not collect water
Hose
Tank lock
wing nut Quick disconnect
engaged
Valve handwheel
close clockwise
Tank valve
Collar
Male
fitting
Pressure
relief valve
Tank
Regulator
Regulator
vent
(a)
(b)
(c)
Step 15
Connect LP tank
WARNING: Make sure that the LP tank valve is
closed. Close by turning clockwise.
Hook the LP tank onto the fuel scale. Loosen the tank lock
wing nut. Swing the tank lock down. Tighten the wing nut.
Figure 16.
Step 14
Check that all burner valves are off
You will need: one burner control knob.
Valves are shipped in the OFF position, but you should
check to be sure. Put the knob on each valve. Check by
pushing down and turning clockwise. If they do not turn
they are off, proceed to the next step. Figure 15.
Figure 16
Figure 15
F
E

17
WARNING: You should check for gas leaks every
time you disconnect and reconnect a gas fitting.
Note - All factory made connections have been thoroughly
checked for gas leaks. The burners have been flame
tested. As a safety precaution you should recheck all
fittings for leaks before using your Weber Gas Barbecue.
Shipping and handling may have loosened or damaged a
gas fitting.
WARNING: Perform these leak checks even if your
barbecue was dealer or store assembled.
You will need: a soap and water solution and a rag or
brush to apply it.
To perform leak checks: open tank valve by turning the
tank valve handwheel counterclockwise. Figure 18.
Figure 18
 DANGER
Do not use an open flame to check for gas
leaks. Be sure there are no sparks or open
flames in the area while you check for
leaks. This will result in a fire or explosion
which can cause serious bodily injury or
death and damage to property.
Check:
a) Hose to manifold connection. Figure 19 (a).
b) Regulator to tank connection. Figure 19 (b).
WARNING: If there is a leak at connection (a)
retighten the fitting with a wrench and recheck for
leaks with soap and water solution.
If a leak persists after retightening the fitting, turn OFF
the gas. DO NOT OPERATE THE BARBECUE. Contact
Weber-Stephen Customer Service.
c) Valves to manifold connections. Figure 19 (c).
d) The hose to regulator connection. Figure 19 (d).
WARNING: If there is a leak at connections
(b), (c) or (d), turn OFF the gas. DO NOT OPERATE
THE BARBECUE. Contact Weber-Stephen Customer
Service.
When leak checks are complete, turn gas supply OFF and
rinse connections with water.
Check for leaks by wetting the connections with the soap
and water solution and watching for bubbles. If bubbles
form or if a bubble grows there is a leak.
Note - Since some leak test solutions, including soap and
water, may be slightly corrosive, all connections should be
rinsed with water after checking for leaks.
WARNING: Do not ignite burners when leak checking.
(a)
Figure 19
(c)
(d)
(b)
Step 16
Check for gas leaks

18
Step 17

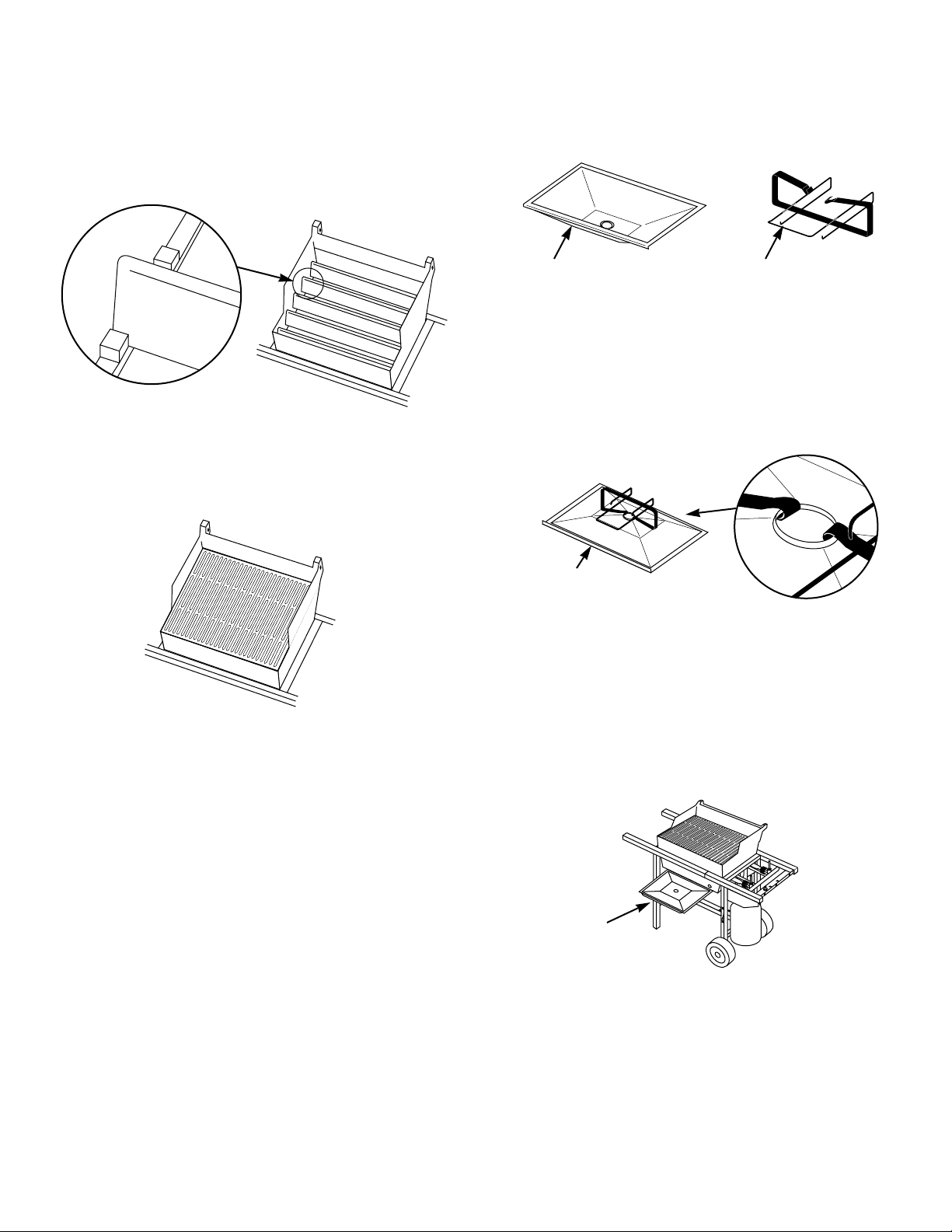

Install Flavorizer Bars and Cooking Grates
You will need: five Flavorizer Bars and two cooking grates.
Set the Flavorizer Bars side to side in the cooking box.
Figure 20.
Figure 20
Set the cooking grates onto the ledges in the cooking box
with the rounded side up. Figure 21.
Figure 21
Step 18
Install the bottom tray
You will need: bottom tray, catch pan holder, catch pan and
one drip pan.
Figure 23
Figure 22
Figure 24
Bottom tray
Finger grip on front
edge of bottom tray
Finger grip
Front side of catch
pan holder
Put the foil drip pan into the catch pan.
Slide the catch pan into the catch pan holder with its finger
grip towards you.
Slide the bottom tray onto the mounting rails under the
cooking box with finger grip toward you. Figure 24.
CAUTION: Do not line bottom tray with aluminum foil.
It can cause grease fires by trapping the grease and not
allowing grease to flow into the catch pan.
Hook the ends of the catch pan holder into the hole in the
bottom tray. Figure 23. The front of the catch pan holder
must be on the same side as the finger grip of the
bottom tray.

19
Step 19
Install Lid
You will need: lid, two hinge pins and two hair pin cotters.
Set the lid in place. Align the hinges at the rear of the
barbecue. Insert hinge pins from the outside. Insert hair pin
cotters into the small holes in the hinge pins. Figure 25.
Hair pin cotter
Hinge pin
Figure 25
Step 20
Add tool holders, control panel and burner
control knobs
You will need: two tool holders, control panel, two Phillips
screws/washers, a Phillips screwdriver, and two burner
control knobs.
Hook the tool holders over the frame rail. Figure 26.
Set the control panel in place over both frame braces.
(Hold the Crossover Ignition button up while setting the
control panel in place.) Line up the holes in the control
panel with the holes in the inserts in the frame brace. Insert
screws and tighten with Phillips screwdriver until snug. Do
not overtighten. Figure 26 (a).
Push on the burner control knobs. Figure 26 (b).
Figure 26
Tool holders
Insert in
frame brace
Control panel
Phillips screws/
washers
(a)
(b)
Crossover
Ignition
Button

20
Step 21
Complete accessory installation
You will need: work table, accessory rack, warming rack,
four tubing plugs and thermometer.
Set the accessory rack across the bottom braces in front
of the frame connector. Figure 27 (a).
Open the lid and set the warming rack into the slots at the
rear of the cooking box. Figure 27 (b).
Set the work table onto the left side rails and work table
spacer. Figure 27 (c).
Note: Work table should rest between the frame rails and on
the work table spacer installed in “Add cooking box” step.
Insert the thermometer into its holder. Figure 27 (d).
Insert the tubing plugs into the ends of the frame. To fully
seat the plugs, you may have to tap them lightly with a
hammer. Figure 27 (e).
Figure 27
(a)
(d)
(b)
(e)
(c)
Work table
Work table
spacer
