545192166
4/15/09
NEW
Page:

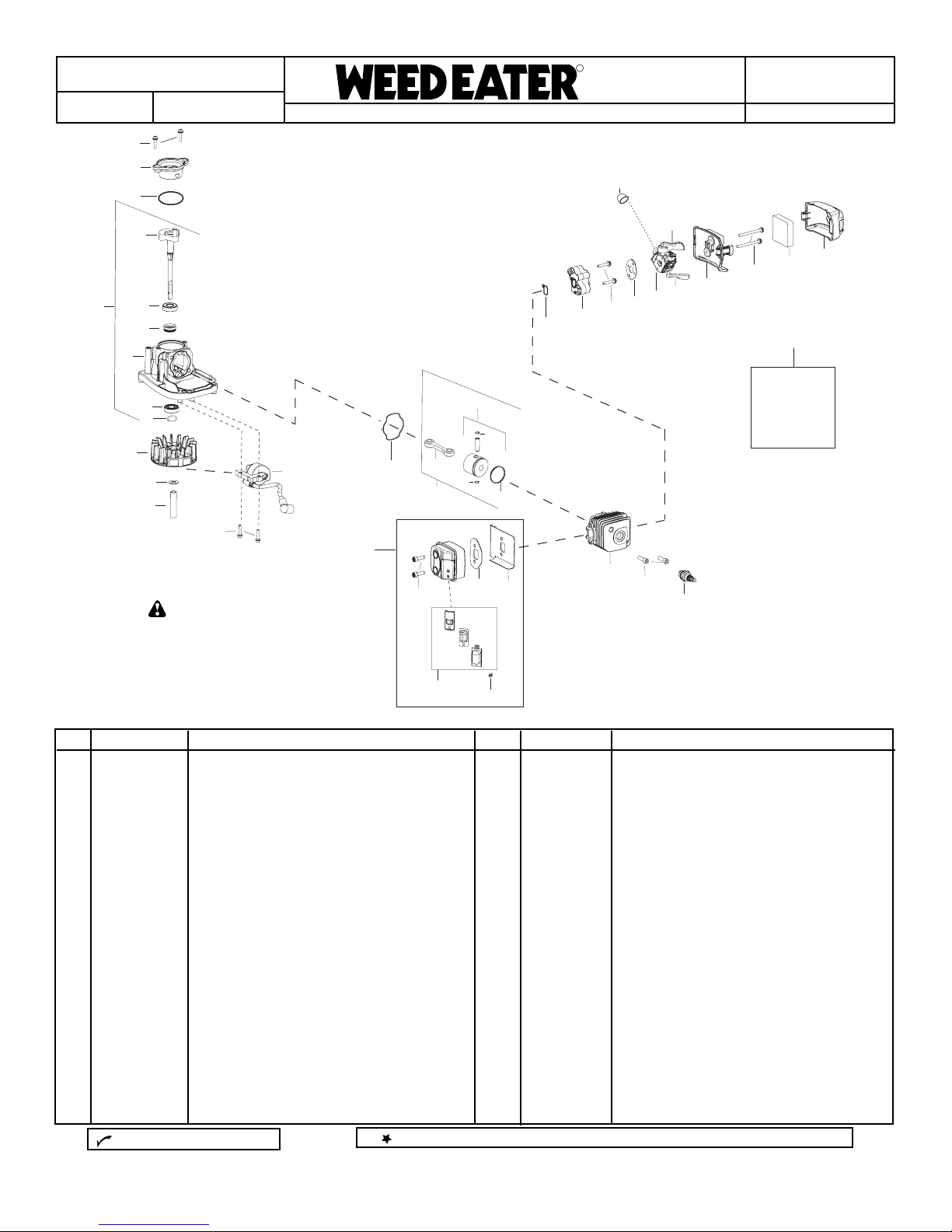

PARTS LIST FB25
1
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
1. 530016386 Screw
2. 530057954 Assy - Rear Plug (Incl. 3)
3. 545180866 O-Ring - Rear Plug (kit)
4. 545180861 Kit - Crankshaft / Crankcase (Incl. 5,8,10)
5. 545091101 Assy - Crankshaft
6. 530032125 Bearing - Inner
7. 530019264 Seal - Crankshaft
8. 545197401 Assy - Crankcase (Incl. 6,7,9)
9. 530055728 Bearing - Outer
10. 530015941 Ring - Crankshaft Retainer
11. 545197301 Assy - Flywheel
12. 530015149 Washer
13. 545113701 Spacer - Flywheel
14. 530016357 Screw
15. 545158001 Module - Ignition
16. 545180866 Seal - Crankcase / Cylinder (kit)
17. 530071833 Kit - Piston (Incl. 18,20)
18. 530015162 Retainer - Wrist Pin
19. 530069945 Kit - Connecting Rod
20. 530055120 Ring - Piston
21. 530071785 Kit - Piston and Rod (Incl. 17,19)
22. 545180865 Kit - Muffler (Incl. 23,24,25,26,27)
23. 530016338 Screw - Muffler
24. 545180866 Gasket - Muffler (kit)
25. 545210501 Shield - Muffler
26. 530071544 Kit - Spark Arrestor
27. 530015241 Screw
28. 530012541 Cylinder - Machined (25cc)
29. 530015953 Screw - Cylinder
30. 952030249 Accy - Spark Plug (RCJ-6Y)
31. 530058709 Bulb - Purge
32. 545180868 Kit - Throttle
33. 545180866 Seal - Cylinder/Carb. Adapter (kit)
34. 545197001 Adapter - Carburetor
35. 530016441 Screw
36. 545180866 Gasket - Carburetor (kit)
37. 545180864 Kit - Carburetor Assy.
38. 545180869 Kit - Choke
39. 545193501 Base - Air Box
40. 530016429 Screw
41. 530036575 Filter - Foam Air
42. 545193601 Cover - Air Box
43. 545180866 Kit - Gasket (Incl. 3,16,24,33,36)
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. Part No. Description
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
4
2
3
1
5
6
7
8
18
18
21 20
16
33 34 35 36 37 38 39
40
43
Gasket
Kit
41 42
23
22
24 25
26 27
28
29
30
17
9
10
19
11
12
13
14
15
31
32
545192166
4/15/09
NEW
Page:
PARTS LIST FB25
2
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
1. 545197801 Assy - Handle (Incl. qty. 2 of ref. 2,3)
2. 530015814 Screw
3. 545206801 Spring - Isolator
4. 545203101 Isolator - Handle
5. 545192601 Housing - Upper Engine
6. 525433201 Assy - Muffler Guard
7. 530016449 Screw
8. 530054834 Handle - Starter
9. 545180862 Kit - Rope
10. 530015775 Screw - Retainer
11. 530027523 Retainer
12. 545180863 Kit - Starter Pulley (Incl. 10,11)
13. 545054901 Spring - Starter
14. 526480601 Assy - Fan housing with bearing
15. 545196201 Assy - Lower Engine Housing (Incl. 10,11,12,13,14)
16. 530015810 Screw
17. 545203001 Assy - Scroll Housing
18. 530015814 Screw
19. 545193301 Assy - Impeller
20. 545164501 Washer - Impeller
21. 530092322 Washer - Lock
22. 530626605 Nut
23. 545192901 Cover - Inlet
24. 530015880 Screw
25. 530057996 Deflector - Intake
26. 530014347 Cap - Fuel (w/retainer)
27. 545197701 Assy - Fuel Tank (Incl. 26,28,29,30)
28. 530023877 Fitting - Fuel Line
29. 530069599 Kit - Fuel Line (Incl. 28)
30. 530014362 Assy - Fuel Pick-up
31. 530015880 Screw
32. 545193701 Tube - Blower
545186729 Manual
545216201 Decal - Warning
525485301 Decal - Entanglement Warning
522928601 Decal - Spark Arrestor Warning
Ref. Part No. Description Ref. Part No. Description
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Not Shown
8
9
10
11
12
13
15
14
16
17
18
19
20
21
22
23
24
25
32
26
27
28
29
30
31
1
2
3
2
2
2
2
3
6
7
4
5
