Safe Operation Practices for Walk-Behind Powered Rotary Tillers
TRAINING
8 Read the Owner’s Manual carefully. Be thoroughly
familiar with the controls and the proper use of the
equipment. Know how to stop the unit and disengage
the controls quickly.
8 Never allow children to operate the equipment. Never
allow adults to operate the equipment without proper
instruction.
8 Keep the area of operation clear of all persons, particu¬
larly small children, and pets.
PREPARATION
8 Thoroughly inspect the area where the equipment is to
be used and remove all foreign objects.
® Disengage all clutches and shift into neutral before
starting the engine (motor).
® Do not operate the equipment without wearing ad¬
equate outer garments. Wear footwear that will im¬
prove footing on slippery surfaces.
8 Handle fuel with care; it is highly flammable.
9 Use an approved fuel container.
9 Never add fuel to a running engine or hot engine.
• Fill fuel tank outdoors with extreme care. Never fill fuel
tank indoors.
8 Replace gasoline cap securely and clean up spilled
fuel before restarting.
8 Use extension cords and receptacles as specified by
the manufacturer for all units with electric drive motors
or electric starting motors.
• Never attempt to make any adjustments while the
engine (motor) is running (except where specifically
recommended by manufacturer).
OPERATION
® Do not put hands or feet near or under rotating parts.
9 Exercise extreme caution when operating on or cross¬
ing gravel drives, walks, or roads. Stay alert for hidden
hazards or traffic. Do not carry passengers.
• After striking a foreign object, stop the engine (motor),
remove the wire from the spark plug, thoroughly in¬
spect the tiller for any damage, and repair the damage
before restarting and operating the tiller.
a Exercise caution to avoid slipping or failing.
8 if the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibration is generally a warning of trouble.
9 Stop the engine (motor) when leaving the operating
position.
° Take all possible precautions when leaving the ma¬
chine unattended. Disengage the tines, shift into
neutral, and stop the engine.
® Before cleaning, repairing, or inspecting, shut off the
engine and make certain all moving parts have stopped.
Disconnect the spark plug wire, and keep the wire
away from the plug to prevent accidental starting.
Disconnect the cord on electric motors.
• Do not run the engine indoors; exhaust fumes are
dangerous.
• Never operate the tiller without proper guards, plates,
or other safety protective devices in place.
8 Keep children and pets away.
9 Do not overload the machine capacity by attempting to
till too deep at too fast a rate.
9 Never operate the machine at high speeds on slippery
surfaces. Look behind and use care when backing.
8 Never allow bystanders near the unit.
• Use only attachments and accessories approved by
the manufacturer of the tiller.
" Never operate the tiller without good visibility or light
® Be careful when tilling in hard ground. The tines may
catch in the ground and propel the tiller forward. If this
occurs, let go of the handlebars and do not restrain the
machine.
MAINTENANCE AND STORAGE
8 Keep machine, attachments, and accessories in safe
working condition.
8 Check shear pins, engine mounting bolts, and other
bolts at frequent intervals for proper tightness to be
sure the equipment is in safe working condition.
* Never store the machine with fuel in the fuel tank inside
a building where ignition sources are present, such as
hot water and space heaters, clothes dryers, and the
like. Allow the engine to cool before storing in any
enclosure.
8 Always refer to the operator’s guide instructions for
important details if the tiller is to be stored for an
extended period.
- IMPORTANT -
CAUTIONS, 1MPORTANTS, AND NOTES ARE A MEANS
OF ATTRACTING ATTENTION TO IMPORTANT OR
CRITICAL INFORMATION IN THIS MANUAL.
IMPORTANT: USED TO ALERT YOU THAT THERE IS A
POSSIBILITY OF DAMAGING THIS EQUIPMENT.
NOTE; Gives essential information that will aid you to
better understand, incorporate, or execute a particular set
of instructions.
A
Look lor this symbol to point out im¬
portant safety precautions. It means
CAUTION!!! BECOME ALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: Always disconnect spark
plug wire and place wire where it can¬
not contact spark plug in order to pre¬
vent accidental starting when setting
up, transporting, adjusting or making
repairs.
A WARNING A
The engine exhaust from this product con¬
tains chemicals known to the State of Califor¬
nia to cause cancer, birth defects, or other
reproductive harm.

CONGRATULATIONS on your purchase of a new tiller. It
has been designed, engineered and manufactured to give
you the best possible dependability and performance.
Should you experience any problems you cannot easily
remedy, please contact your nearest authorized service
center. We have competent, well-trained technicians and
the proper tools to service or repair this unit.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your tiller properly.
Always observe the “SAFETY RULES”.

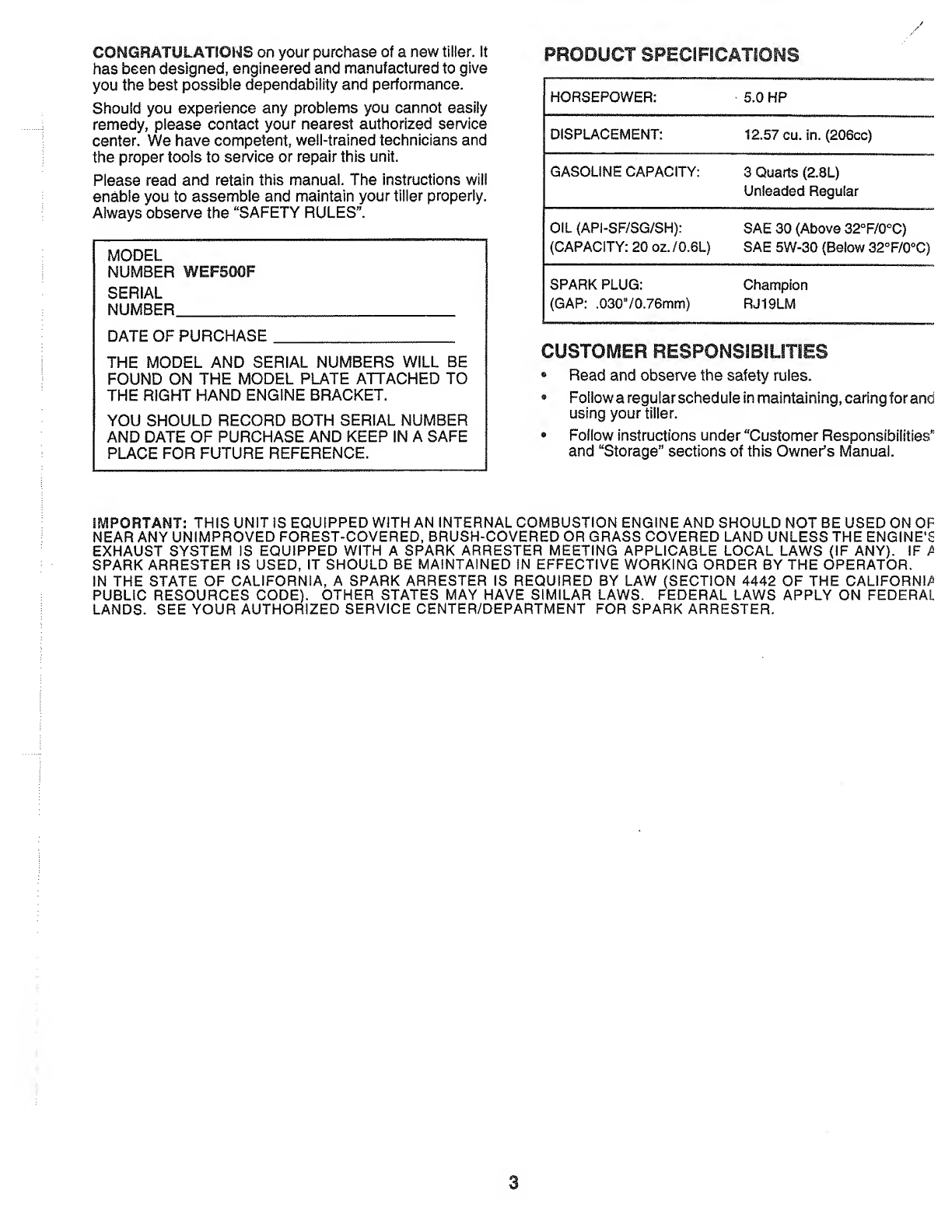

MODEL
NUMBER WBF500F
SERIAL
NUMBER_
DATE OF PURCHASE_
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON THE MODEL PLATE ATTACHED TO
THE RIGHT HAND ENGINE BRACKET.
YOU SHOULD RECORD BOTH SERIAL NUMBER
AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE.
PRODUCT SPECIFICATION
HORSEPOWER:
5.0 HP
DISPLACEMENT:
12.57 cu. in. (206cc)
GASOLINE CAPACITY:
3 Quarts (2.8L)
Unleaded Regular
OIL (APi-SF/SG/SH):
SAE 30 (Above 32°F/0°C)
(CAPACITY: 20 oz./0.6L)
SAE 5W-30 (Below 32°F/0°C)
SPARK PLUG:
Champion
(GAP: .03070.76mm)
RJ19LM
CUSTOMER RESPONSIBILITIES
* Read and observe the safety rules.
* Follow a regular schedule in maintaining, caring for and
using your tiller.
® Follow instructions under “Customer Responsibilities"
and “Storage” sections of this Owner’s Manual.
IMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL COMBUSTION ENGINE AND SHOULD NOT BE USED ON OF
NEAR ANY UNIMPROVED FOREST-COVERED, BRUSH-COVERED OR GRASS COVERED LAND UNLESS THE ENGINE'S
EXHAUST SYSTEM IS EQUIPPED WITH A SPARK ARRESTER MEETING APPLICABLE LOCAL LAWS (IF ANY). IF A
SPARK ARRESTER IS USED, IT SHOULD BE MAINTAINED IN EFFECTIVE WORKING ORDER BY THE OPERATOR.
IN THE STATE OF CALIFORNIA, A SPARK ARRESTER IS REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA
PUBLIC RESOURCES CODE). OTHER STATES MAY HAVE SIMILAR LAWS. FEDERAL LAWS APPLY ON FEDERAL
LANDS. SEE YOUR AUTHORIZED SERVICE CENTER/DEPARTMENT FOR SPARK ARRESTER.
3

SAFETY RULES. 2
CUSTOMER RESPONSIBILITIES...3,11-13
PRODUCT SPECIFICATIONS ..3
WARRANTY. 4
ASSEMBLY... . 5 -8
OPERATION. 7 .
MAINTENANCE SCHEDULE.. ...
SERVICE & ADJUSTMENTS.13-
STORAGE .
TROUBLESHOOTING...
REPAIR PARTS.18-
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in
materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will
repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be
defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine or components parts thereof. Please refer to the applicable manufacturer’s
warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the
purchaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the
purchaser unless such return is requested by American Yard Products.
3. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of
original purchase.
4. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in
accordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to
alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
5. Exclusions: Excluded from this Warranty are belts, tines, tine adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
6. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
American Yard Products In Canada contact:
Service Department American Yard Products
P.O. Box 1 6 87 1580 Trinity Drive, Units 5-8
Orangeburg.SC 29116 USA Mississauga, Ontario
L5T1L6
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN¬
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights
which vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

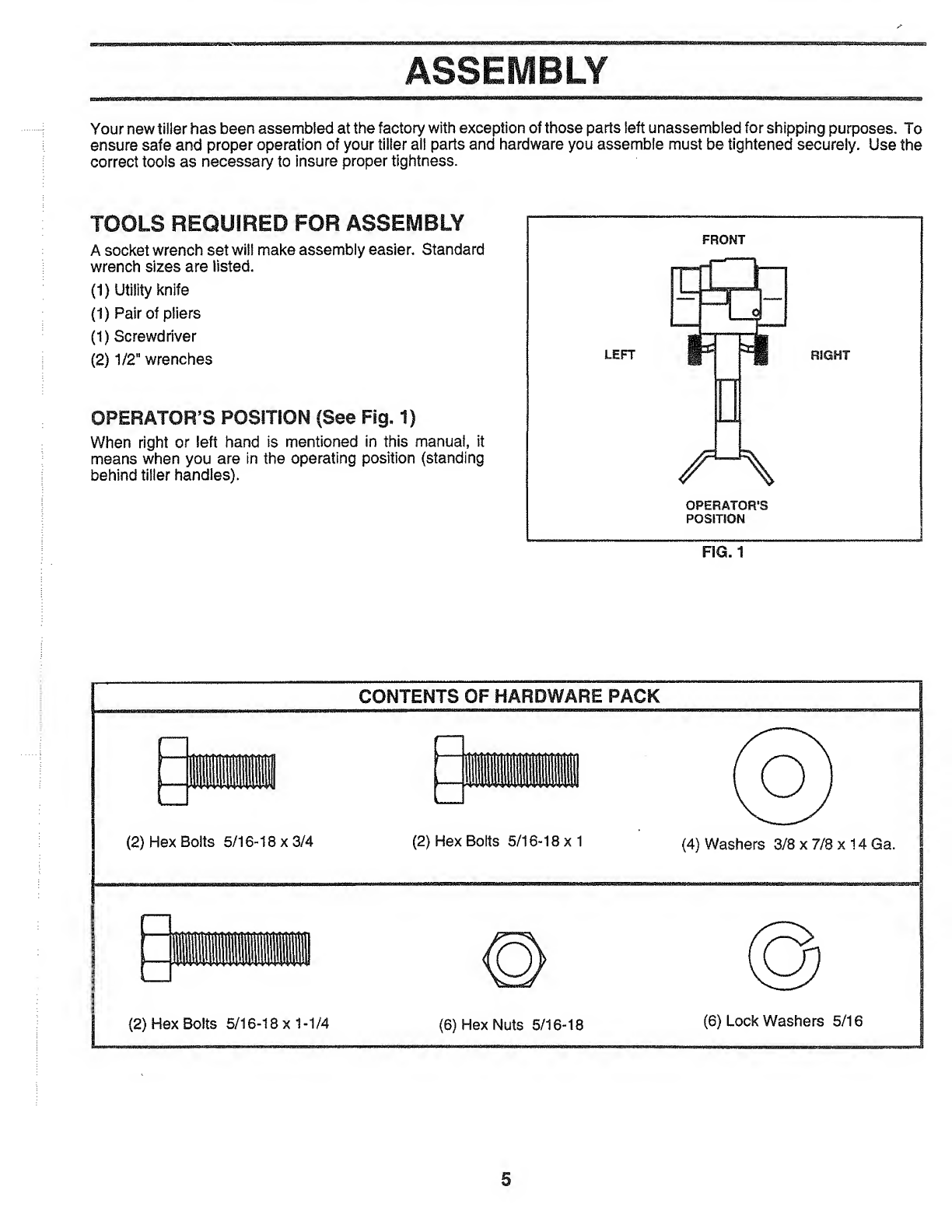

ASSEMBLY
Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To
ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the
correct tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Pair of pliers
(1) Screwdriver
(2) M2" wrenches
OPERATOR’S POSITION (See Fig. 1)
When right or left hand is mentioned in this manual, it
means when you are in the operating position (standing
behind tiller handles).
FIG. 1

UNPACK CARTON & INSTALL HANDLE (See
Fig. 2)
A CAUTION: Be careful of exposed
staples when handling or disposing of
cartoning material.
IMPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
9 Cut cable ties securing handles.
9 Slowly lift handle assembly up and align handle holes
with handle panel hole and slot.
• Loosely assemble hardware as shown. Be sure the
shorter (3/4" long) hex bolt is assembled in lower hole
of handle. Repeat for opposite side. Tighten all
hardware securely.
* Cut cable ties securing tiller to skid and remove tiller
from skid.
INSTALL DEPTH STAKE ASSEMBLY
(See Fig. 3)
• Loosen nut “A”.
8 Insert stake support between engine bracket halves
with stake spring down.
• Bolt stake support to engine brackets with hex bolts,
lock washers and nuts. Tighten securely. Tighten nut
A .
8 Depth stake must move freely. If it does not, loosen
support bolt.
HANDLE HEIGHT
® Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Adjust¬
ments section of this manual).
TILLING WIDTH
« Tilling width may be adjusted to better handle your
tilling conditions (See “TINE ARRANGEMENT” in the
Service and Adjustments section of this manual).
TINE OPERATION
• Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).

KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER
Compare the illustrations with your tiller to familiarize yourself with the locations of various controls and adjustments. Save
this manual for future reference.
fgttfliiffrratrttft L ■ j. ji j liii ju w i *w«**vn .<Tiw ^85a w ,, M>n n 11 m 1111II Ih 11
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
meaning.
F
FNRA®e+
TILLING FORWARD NEUTRAL REVERSE CAUTION ENGINE
OR WARNING ON
ENGINE
OFF
FAST
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
TINE CONTROL - Engages tines.
CHOKE CONTROL - Used when starting a cold engine.
THROTTLE CONTROL - Controls engine speed.
DEPTH STAKE - Controls forward speed and the depth at
which the tiller will dig.
RECOIL STARTER HANDLE - Used to start the engine.

SAFETY GLASSES
The operation of any tiiier can result in foreign objects thrown into the eyes, which can
result in severe eye damage. Always wear safety glasses or eye shields before starting
your tiiier and while tilling. We recommend a wide vision safety mask over spectacles or
standard safety glasses.

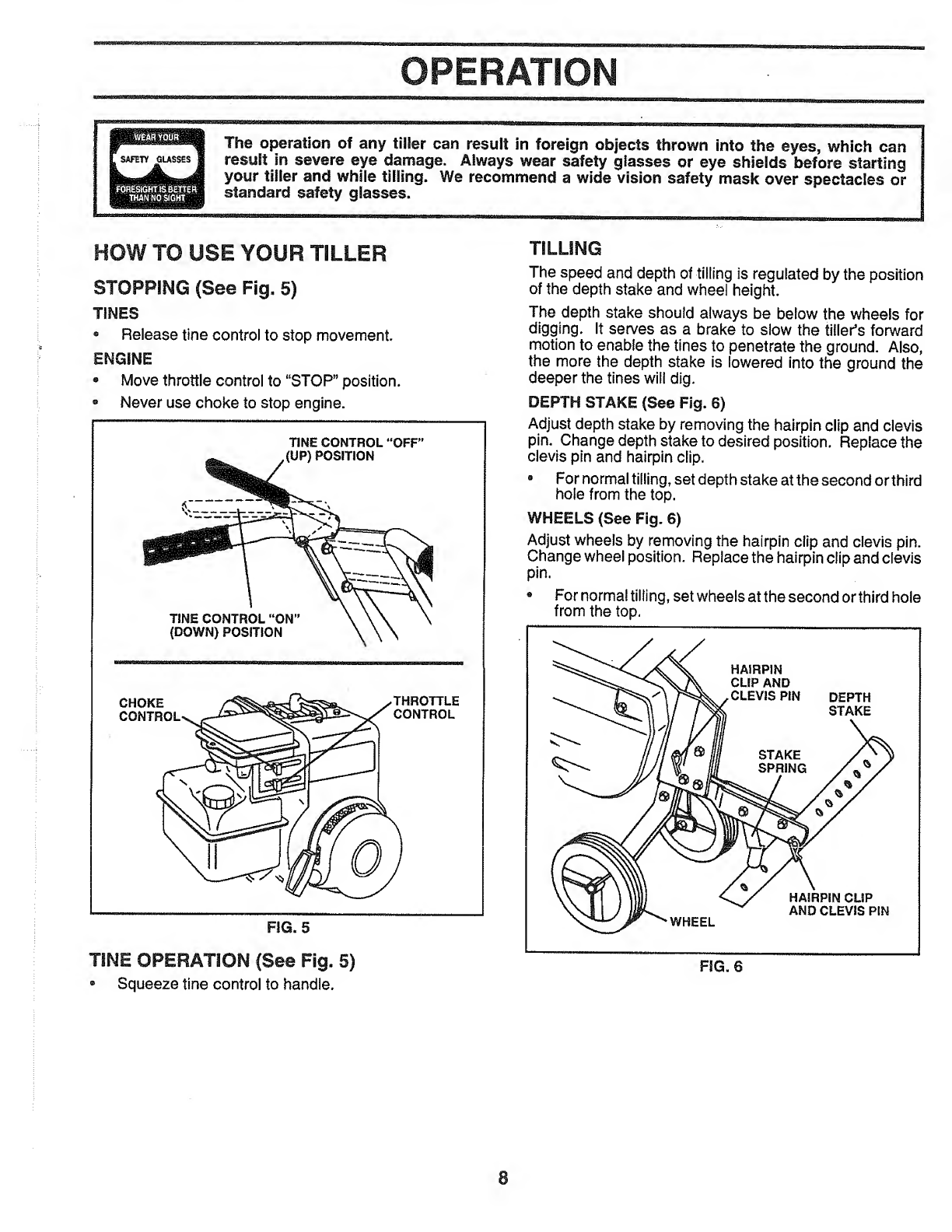

HOW TO USE YOUR TILLER
STOPPING (See Fig. 5)
TINES
• Release tine control to stop movement.
ENGINE
0 Move throttle control to “STOP” position.
® Never use choke to stop engine.
FIG. 5
TINE OPERATION (See Fig. 5)
• Squeeze tine control to handle.
TILLING
The speed and depth of tilling is regulated by the position
of the depth stake and wheel height.
The depth stake should always be below the wheels for
digging. It serves as a brake to slow the tiller’s forward
motion to enable the tines to penetrate the ground. Also,
the more the depth stake is lowered into the ground the
deeper the tines will dig.
DEPTH STAKE (See Fig. 6)
Adjust depth stake by removing the hairpin clip and clevis
pin. Change depth stake to desired position. Replace the
clevis pin and hairpin clip.
0 For normal tilling, set depth stake at the second orthird
hole from the top.
WHEELS (See Fig. 6)
Adjust wheels by removing the hairpin clip and clevis pin.
Change wheel position. Replace the hairpin clip and clevis
pin.
• For normal tilling, set wheels at the second or third hole
from the top.

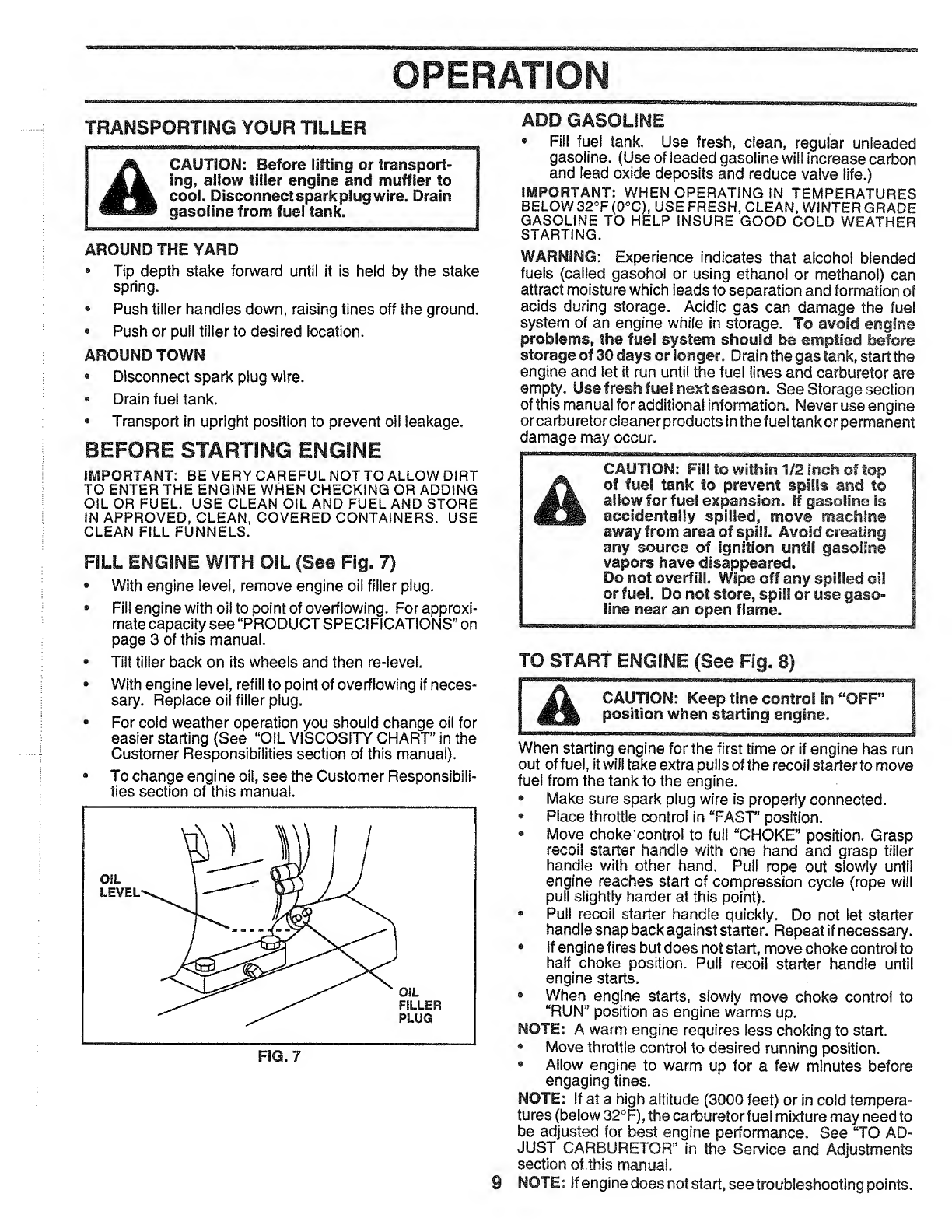

TRANSPORTING YOUR TILLER
A CAUTION: Before Sifting or transport¬
ing, allow tiller engine and muffler to
cool. Disconnect spark plug wire. Drain
gasoline from fuel tank.
AROUND THE YARD
• Tip depth stake forward until it is held by the stake
spring.
• Push tiller handles down, raising tines off the ground.
» Push or pull tiller to desired location.
AROUND TOWN
9 Disconnect spark plug wire.
• Drain fuel tank.
9 Transport in upright position to prevent oil leakage.
BEFORE STARTING ENGINE
IMPORTANT: BE VERY CAREFUL NOTTO ALLOW DIRT
TO ENTER THE ENGINE WHEN CHECKING OR ADDING
OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE
IN APPROVED, CLEAN, COVERED CONTAINERS. USE
CLEAN FILL FUNNELS.
FILL ENGINE WITH OIL {See Fig. 7)
• With engine level, remove engine oil filler plug.
® Fill engine with oil to point of overflowing. For approxi¬
mate capacity see “PRODUCT SPECIFICATIONS” on
page 3 of this manual.
0 Tilt tiller back on its wheels and then re-level.
a With engine level, refill to point of overflowing if neces¬
sary. Replace oil filler plug.
8 For cold weather operation you should change oil for
easier starting {See “OIL VISCOSITY CHART” in the
Customer Responsibilities section of this manual).
9 To change engine oil, see the Customer Responsibili¬
ties section of this manual.
9 Fill fuel tank. Use fresh, clean, regular unleaded
gasoline. (Use of leaded gasoline will increase carbon
and lead oxide deposits and reduce valve life.)
IMPORTANT: WHEN OPERATING IN TEMPERATURES
BELOW 32°F (0°C), USE FRESH, CLEAN, WINTER GRADE
GASOLINE TO HELP INSURE GOOD COLD WEATHER
STARTING.
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before
storage of 30 days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and carburetor are
empty. Use fresh fuel next season. See Storage section
of this manual for additional information. Never use engine
or carburetor cleaner products in the fuel tank or permanent
damage may occur.
A
CAUTION: Fill to within 1/2 Inch of top j
of fuel tank to prevent spills and t© !
allow for fuel expansion. If gasoline Is j
accidentally spilled, move machine i
away from area of spill. Avoid creating I
any source of ignition until gasoline j
vapors have disappeared, j
Do not overfill. Wipe off any spilled oil l
or fuel. Do not store, spill or use gaso- j
line near an open flame. * \
TO START ENGINE (See Fig. 8)
\A
CAUTION: Keep tine control in “OFF” j
position when starting engine, 1
When starting engine for the first time or if engine has run
out of fuel, it will take extra pulls of the recoil starter to move
fuel from the tank to the engine.
• Make sure spark plug wire is properly connected.
• Place throttle control in “FAST’ position.
8 Move choke control to full “CHOKE” position. Grasp
recoil starter handle with one hand and grasp tiller
handle with other hand. Pull rope out slowly until
engine reaches start of compression cycle (rope will
puli slightly harder at this point).
8 Pull recoil starter handle quickly. Do not let starter
handle snap back against starter. Repeat if necessary.
® If engine fires but does not start, move choke control to
half choke position. Pull recoil starter handle until
engine starts.
• When engine starts, slowly move choke control to
“RUN” position as engine warms up.
NOTE: A warm engine requires less choking to start.
8 Move throttle control to desired running position.
9 Allow engine to warm up for a few minutes before
engaging tines.
NOTE: If at a high altitude (3000 feet) or in cold tempera¬
tures (below 32° F), the carburetor fuel mixture may need to
be adjusted for best engine performance. See “TO AD¬
JUST CARBURETOR” in the Service and Adjustments
section of this manual.

FIG. 8

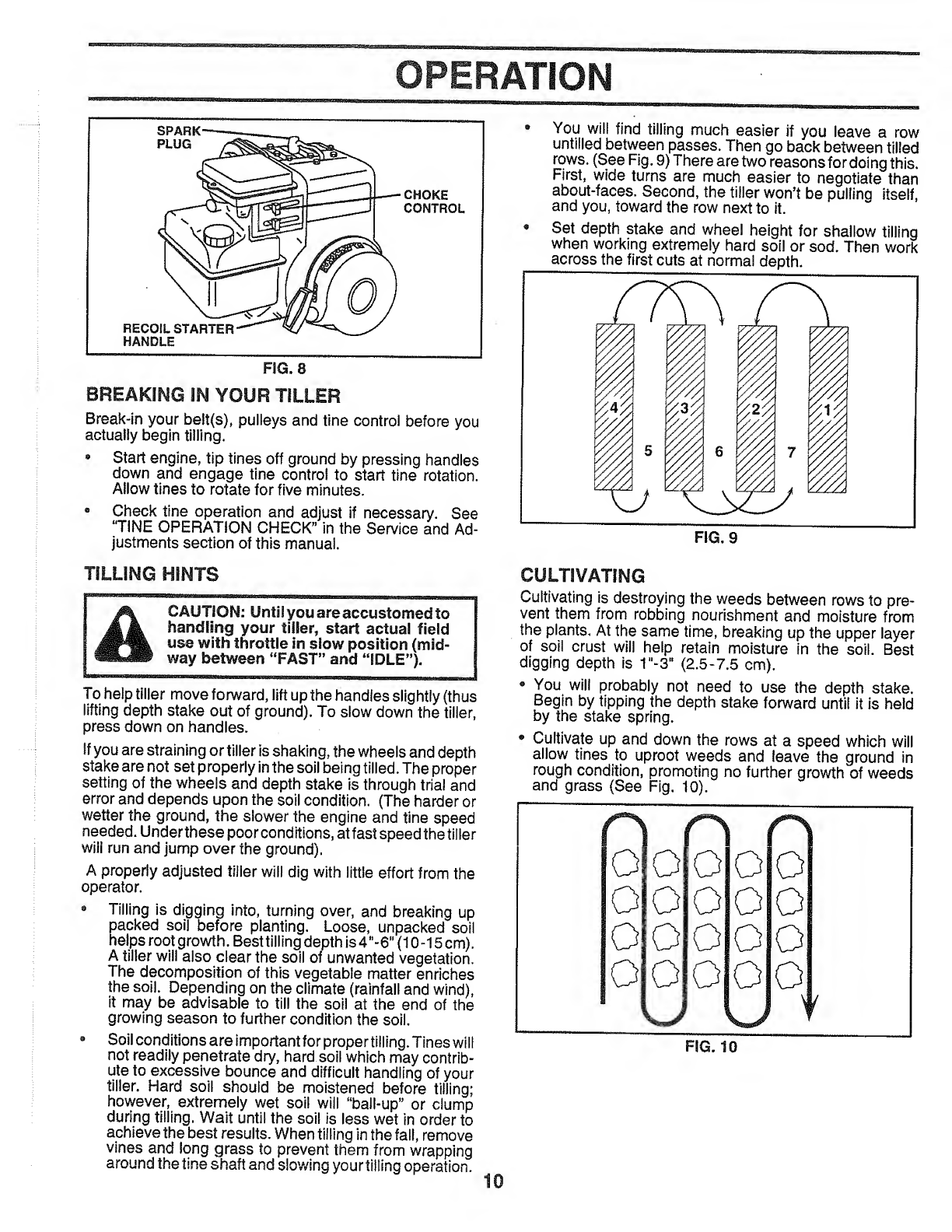

BREAKING IN YOUR TILLER
Break-in your belt(s), pulleys and tine control before you
actually begin tilling.
9 Start engine, tip tines off ground by pressing handles
down and engage tine control to start tine rotation.
Allow tines to rotate for five minutes.
8 Check tine operation and adjust if necessary. See
“TINE OPERATION CHECK” in the Service and Ad¬
justments section of this manual.
TILLING HINTS
I A, CAUTION: Until you are accustomed to
A jk handling your tiller, start actual field j
I Sk with throttle in slow position (mid-
I flwLJP way between “FAST” and “IDLE”).
To help tiller move forward, lift up the handles slightly (thus
lifting depth stake out of ground). To slow down the tiller,
press down on handles.
If you are straining or tiller is shaking, the wheels and depth
stake are not set properly in the soil being tilled. The proper
setting of the wheels and depth stake is through trial and
error and depends upon the soil condition. (The harder or
wetter the ground, the slower the engine and tine speed
needed. Underthese poor conditions, at fast speed the tiller
will run and jump over the ground).
A properly adjusted tiller will dig with little effort from the
operator.
9 Tilling is digging into, turning over, and breaking up
packed soil before planting. Loose, unpacked soil
helps root growth. Best tilling depth is4"-6" (10-15 cm).
A tiller will also clear the soil of unwanted vegetation.
The decomposition of this vegetable matter enriches
the soil. Depending on the climate (rainfall and wind),
it may be advisable to till the soil at the end of the
growing season to further condition the soil.
* Soil conditions are importantfor proper tilling. Tines will
not readily penetrate dry, hard soil which may contrib¬
ute to excessive bounce and difficult handling of your
tiller. Hard soil should be moistened before tilling;
however, extremely wet soil will “ball-up” or clump
during tilling. Wait until the soil is less wet in order to
achieve the best results. When tilling in the fall, remove
vines and long grass to prevent them from wrapping
around the tine shaft and slowing your tilling operation.
e You will find tilling much easier if you leave a row
untilled between passes. Then go back between tilled
rows. (See Fig. 9) There are two reasons for doing this.
First, wide turns are much easier to negotiate than
about-faces. Second, the tiller won’t be pulling itself,
and you, toward the row next to it.
Set depth stake and wheel height for shallow tilling
when working extremely hard soil or sod. Then work
across the first cuts at normal depth.
FIG. 9
CULTIVATING
Cultivating is destroying the weeds between rows to pre¬
vent them from robbing nourishment and moisture from
the plants. At the same time, breaking up the upper layer
of soil crust will help retain moisture in the soil. Best
digging depth is 1"-3" (2.5-7.S cm).
9 You will probably not need to use the depth stake.
Begin by tipping the depth stake forward until it is held
by the stake spring.
® Cultivate up and down the rows at a speed which will
allow tines to uproot weeds and leave the ground in
rough condition, promoting no further growth of weeds
and grass (See Fig. 10).
FIG. 10

CUSTOMER
1 * Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.

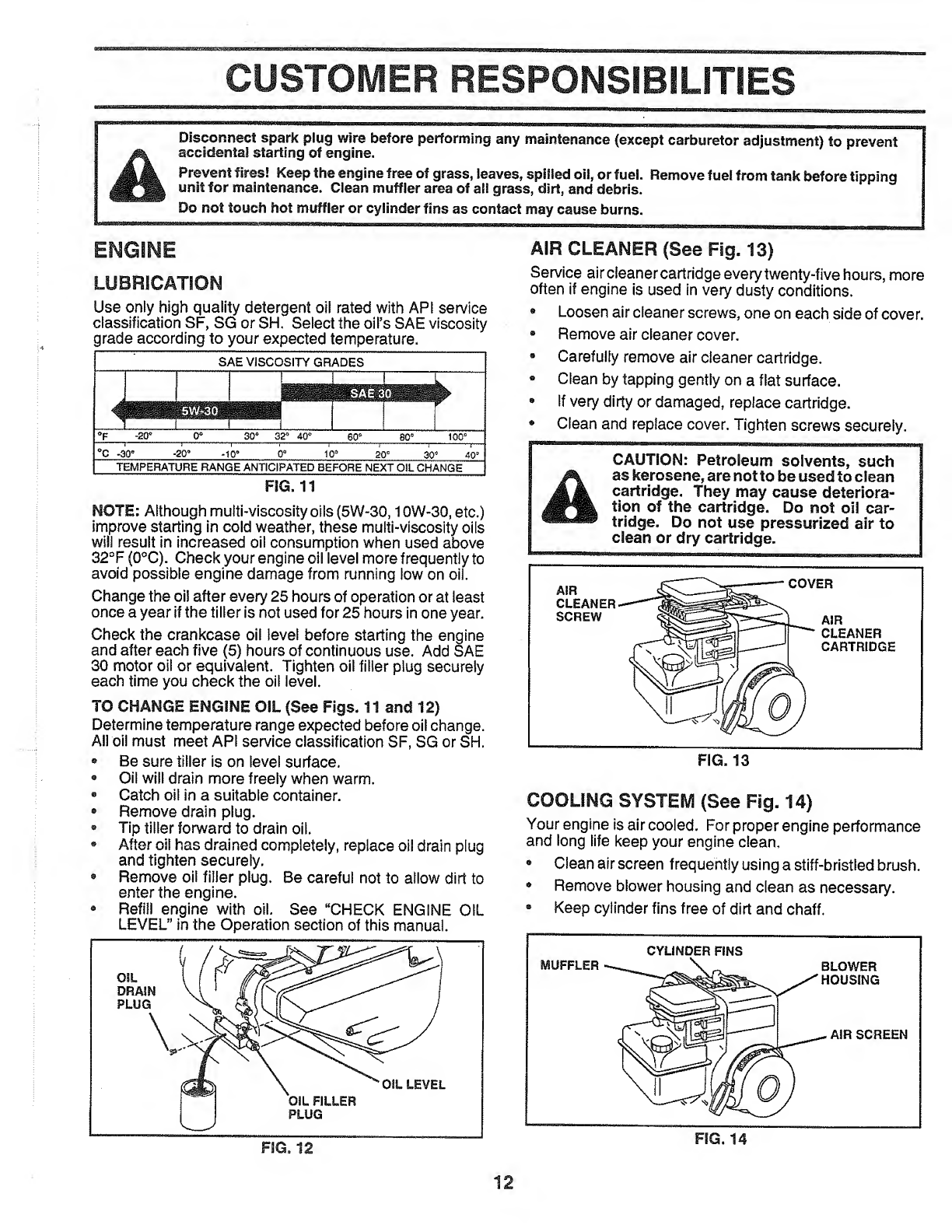

GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover items that have
been subjected to operator abuse or negligence. To
receive full value from the warranty, operator must main¬
tain tiller as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tiller.
All adjustments in the Service and Adjustments section of
this manual should be checked at least once each
season.
* Once a year you should replace the spark plug, clean
or replace air filter, and check tines and belt for wear.
A new spark plug and clean air filter assure proper air-
fuel mixture and help your engine run better and last
longer.
BEFORE EACH USE
* Check engine oil level.
* Check tine operation.
9 Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See “LUBRICATION CHART”).
LUBRICATION CHART
* "ONE
4 SAE 30 OR 10W-30 MOTOR OIL
** REFER TO CUSTOMER RESPONSIBILITIES "ENGINE” SECTION

Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to prevent
accidental starting of engine.
Prevent fires' Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank before tipping
ENGINE
LUBRICATION
Use only high quality detergent oii rated with API service
classification SF, SG or SH. Select the oil’s SAE viscosity
grade according to your expected temperature.
SAE VISCOSITY GRADES
°F -20°_0° 30° 32° 40° 60° 80° 100°
°C -30° _ -20° -10° _ 0° 10° _ 20° 3Q° 40°
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
FIG. 11
NOTE: Although multi-viscosity oils (5W-30,10W-30, etc.)
improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F (0°C). Check your engine oil level more frequently to
avoid possible engine damage from running low on oil.
Change the oii after every 25 hours of operation or at least
once a year if the tiller is not used for 25 hours in one year.
Check the crankcase oil level before starting the engine
and after each five (5) hours of continuous use. Add SAE
30 motor oil or equivalent. Tighten oil filler plug securely
each time you check the oil level.
TO CHANGE ENGINE OIL (See Figs. 11 and 12)
Determine temperature range expected before oil change.
All oil must meet API service classification SF, SG or SH.
® Be sure tiller is on level surface.
s Oil will drain more freely when warm.
s Catch oil in a suitable container.
e Remove drain plug.
• Tip tiller forward to drain oil.
8 After oil has drained completely, replace oi! drain plug
and tighten securely.
• Remove oil filler plug. Be careful not to allow dirt to
enter the engine.
• Refill engine with oil. See “CHECK ENGINE OIL
LEVEL” in the Operation section of this manual.
AIR CLEANER (See Fig. 13)
Service air cleaner cartridge every twenty-five hours, more
often if engine is used in very dusty conditions.
® Loosen air cleaner screws, one on each side of cover.
8 Remove air cleaner cover.
8 Carefully remove air cleaner cartridge.
® Clean by tapping gently on a flat surface.
9 If very dirty or damaged, replace cartridge.
® Clean and replace cover. Tighten screws securely.
CAUTION: Petroleum solvents, such
A as kerosene, are not to be used to clean
cartridge. They may cause deteriora¬
tion of the cartridge. Do not oil car¬
tridge. Do not use pressurized air to
clears or dry cartridge.
COOLING SYSTEM (See Fig. 14)
Your engine is air cooled. For proper engine performance
and long life keep your engine clean,
* Clean air screen frequently using a stiff-bristled brush.
• Remove blower housing and clean as necessary.
a Keep cylinder fins free of dirt and chaff.

CUSTOMER RESPONSIBILITI
MUFFLER
Do not operate titter without muffler. Do not tamper with
exhaust system. Damaged mufflers or spark arresters
could create a fire hazard, inspect periodically and replace
if necessary, if your engine is equipped with a spark
arrester screen assembly, remove every 50 hours for
cleaning and inspection. Replace if damaged.
SPARK PLUG
Replace spark plugs at the beginning of each tilling season
or after every 50 hours of use, whichevercomesfirst. Spark
plug type and gap setting is shown in “PRODUCT SPECI¬
FICATIONS” on page 3 of this manual.
TRANSMISSION
Yourtransmission is sealed and will only require lubricatio
if serviced.
CLEANING
® Clean engine, wheels, finish, etc. of all foreign matte
• Keep finished surfaces and wheels free of all gasoline
oil, etc.
• Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose to clean yoi
unit unless the muffler, air filter and carburetor are covere
to keep water out. Water in engine can result in a shorten©'
engine life.
SERVICE AND ADJUSTMENTS
A CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into
contact with plug.
TILLER
TO ADJUST HANDLE HEIGHT (See Fig. 15)
Factory assembly has provided lowest handle height. Se¬
lect handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.
• If a higher handle height is desired, loosen the four nuts
securing handle panel to engine brackets.
• Slide handle panel to desired location.
• Tighten the four nuts securely.
TINE ARRANGEMENT
Your outer tines can be assembled in several different way:
to suit your tilling or cultivating needs.
CAUTION: Tines are sharp. Wear
jftJL gloves or other protection when harv-
%l§pl§| dling fines.
NORMAL TILLING - 24761 cm PATH (See Fig. 16)
• Assemble holes “A” in tine hubs to holes “B” in tint
shaft.
FIG. 15

MID-WIDTH TILLING - 22756cm PATH (See Fig. 17)
• Assemble holes “A” in tine hubs to holes “C” in tine
shaft.
NARROW Tl LLIN G/CU LT1V ATING - 12.75732cm PATH
(See Fig. 18)
e Remove outer tines.
FIG. 18
NOTE: When reassembling outer tines, be sure right tine
assembly (marked “R”) and left tine assembly (marked “L”)
are mounted to correct side of tine shaft.
ME OPERATION CHECK (See Fig. 19)
Be sure tines do not rotate when engine is running and tine
control is in the “OFF” position.
FINAL CHECK “OFF* POSITION
• With tine control “OFF” (up), push down on handle to
raise tines off the ground.
® Slowly pull recoil starter handle while observing tines.
Tines should not rotate.
• If tines rotate, place loop of idler spring in a lower link
of chain and retest.
FINAL CHECK <S 0M” POSITION
® With tine control “ON” (held down to handle) push down
on handle to raise tines off the ground.
• Slowly pull recoil starter handle while observing tines.
Tines should rotate forward.
• If tines do not rotate, place loop of idler spring in a
higher link of chain and retest.
NOTE: If “ON” position check required adjustment, re¬
check “OFF” position adjustment to insure tines do not
rotate when control is “OFF” (up).
TO REMOVE BELT GUARD(S@e Fig. 20)
* Remove cap nut and washer from side of belt guard.
• Loosen (do not remove) tine shield nut on underside of
tine shield and cap nut on top of belt guard.
* Pul! belt guard out and away from unit.
• Replace belt guard by reversing above procedure. Be
sure slot in bottom of belt guard is under head of tine
shield bolt and all nuts are tightened securely.
14

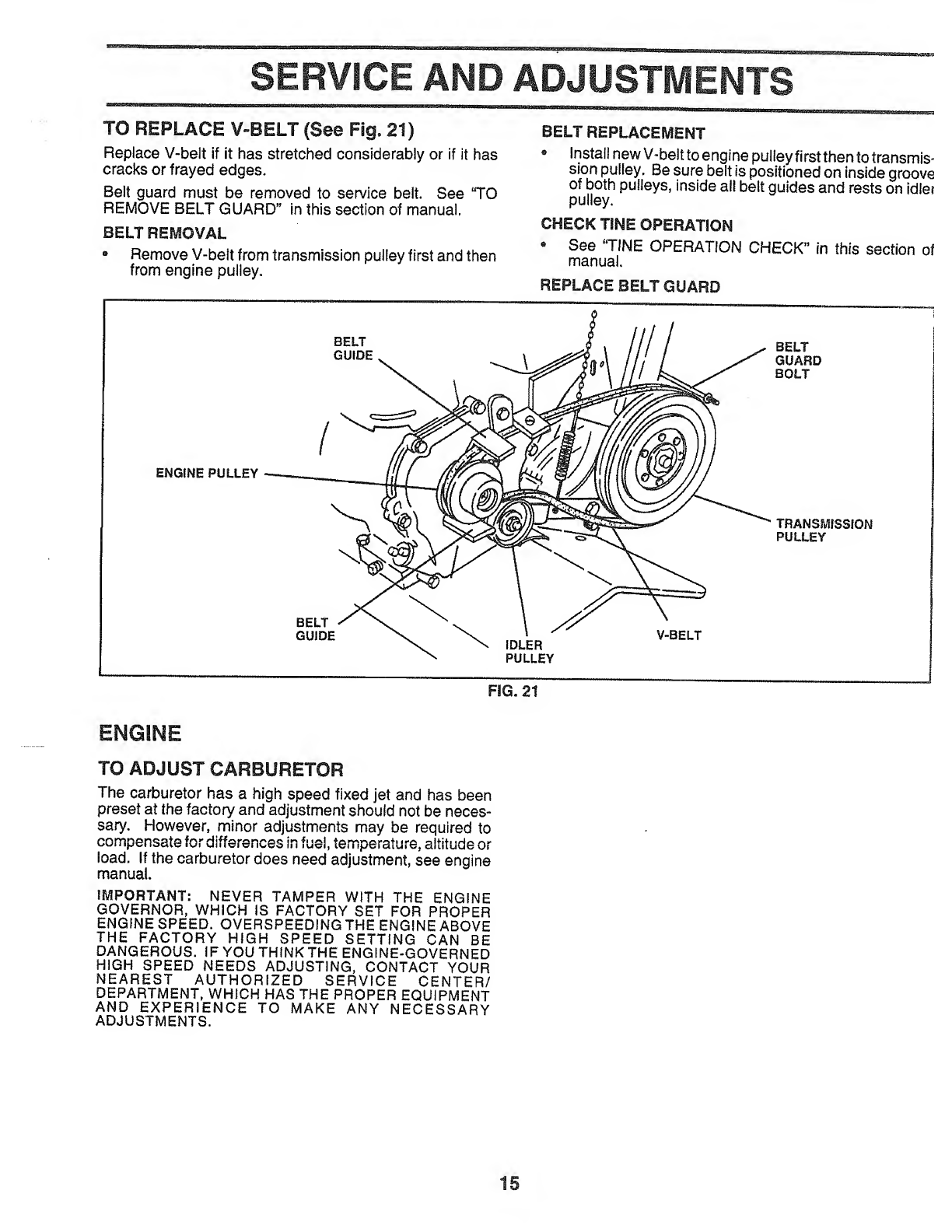

TO REPLACE V-BELT (See Fig, 21)
Replace V-belt if it has stretched considerably or if it has
cracks or frayed edges.
Belt guard must be removed to service belt. See “TO
REMOVE BELT GUARD” in this section of manual.
BELT REMOVAL
* Remove V-belt from transmission pulley first and then
from engine pulley.
BELT REPLACEMENT
9 Install new V-belt to engine pulley first then to transmis¬
sion pulley. Be sure belt is positioned on inside groove
of both pulleys, inside all belt guides and rests on idler
pulley.
CHECK TINE OPERATION
- See “TINE OPERATION CHECK” in this section of
manual.
REPLACE BELT GUARD
ENGINE
TO ADJUST CARBURETOR
The carburetor has a high speed fixed jet and has been
preset at the factory and adjustment should not be neces¬
sary. However, minor adjustments may be required to
compensate for differences in fuel, temperature, altitude or
load. If the carburetor does need adjustment, see engine
manual.
IMPORTANT: NEVER TAMPER WITH THE ENGINE
GOVERNOR, WHICH IS FACTORY SET FOR PROPER
ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE
THE FACTORY HIGH SPEED SETTING CAN BE
DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED
HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR
NEAREST AUTHORIZED SERVICE CENTER/
DEPARTMENT, WHICH HAS THE PROPER EQUIPMENT
AND EXPERIENCE TO MAKE ANY NECESSARY
ADJUSTMENTS.

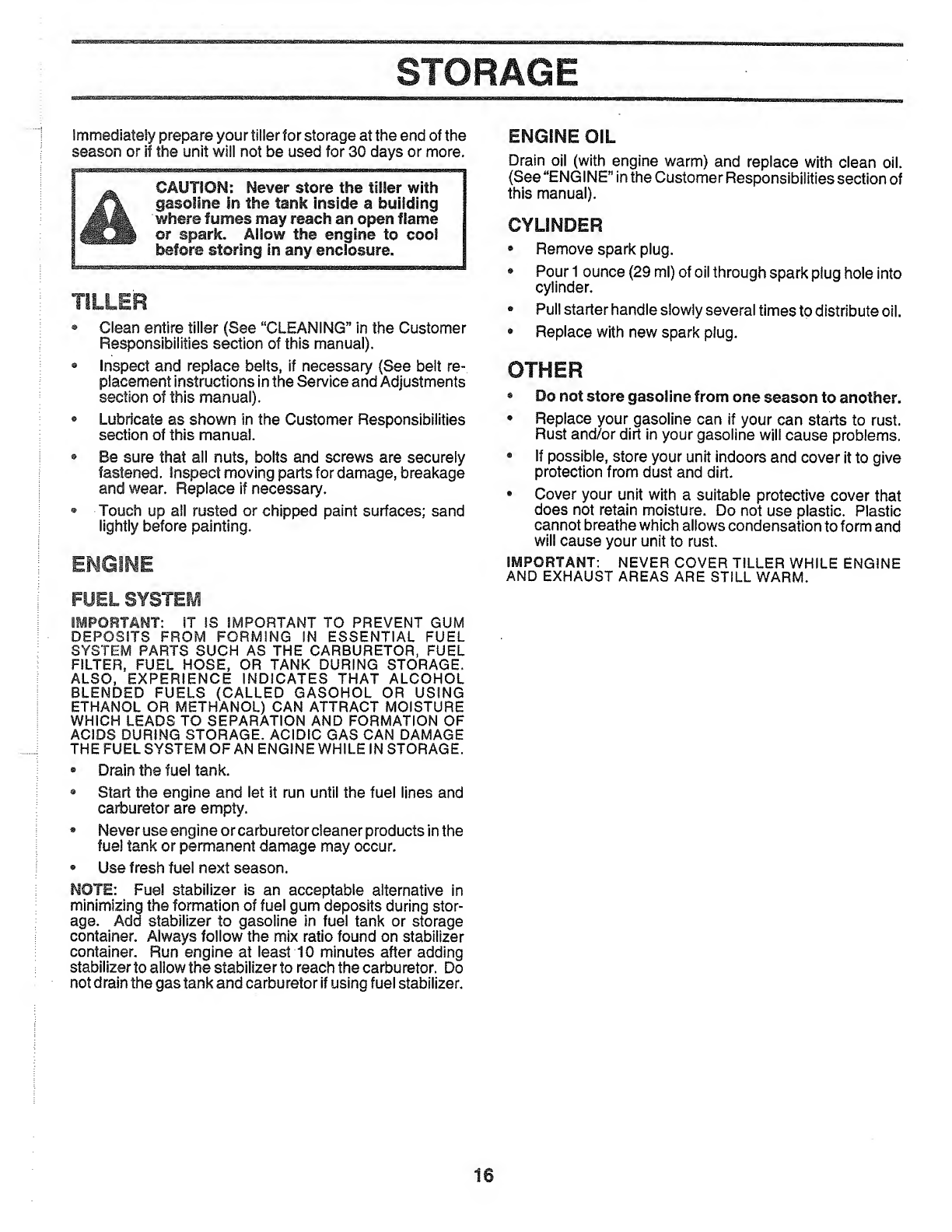

Immediately prepare your tiller for storage at the end of the
season or if the unit will not be used for 30 days or more.
CAUTION: Never store the tiller with
gasoline in the tank inside a building
where fumes may reach an open flame
or spark. Allow the engine to cool
before storing in any enclosure.
• Clean entire tiller (See “CLEANING” in the Customer
Responsibilities section of this manual).
• Inspect and replace belts, if necessary {See belt re¬
placement instructions in the Service and Adjustments
section of this manual).
• Lubricate as shown in the Customer Responsibilities
section of this manual.
• Be sure that all nuts, bolts and screws are securely
fastened, inspect moving parts for damage, breakage
and wear. Replace if necessary.
• Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS THE CARBURETOR, FUEL
FILTER, FUEL HOSE, OR TANK DURING STORAGE.
ALSO, EXPERIENCE INDICATES THAT ALCOHOL
BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN ATTRACT MOISTURE
WHICH LEADS TO SEPARATION AND FORMATION OF
ACIDS DURING STORAGE. ACIDIC GAS CAN DAMAGE
THE FUEL SYSTEM OF AN ENGINE WHILE IN STORAGE.
s Drain the fuel tank.
• Start the engine and let it run until the fuel lines and
carburetor are empty.
• Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
• Use fresh fuel next season.
NOTE; Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor¬
age. Add stabilizer to gasoline in fuel tank or storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace with clean oil.
(See “ENGINE” in the Customer Responsibilities section of
this manual).
CYLINDER
8 Remove spark plug.
• Pour 1 ounce (29 ml) of oil through spark plug hole into
cylinder.
8 Pull starter handle slowly several times to distribute oil.
• Replace with new spark plug.
8 Do not store gasoline from one season to another.
8 Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
• If possible, store your unit indoors and cover it to give
protection from dust and dirt.
® Cover your unit with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your unit to rust.
IMPORTANT: NEVER COVER TILLER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
16

TROUBLESHOOTING POINTS
PROBLEM
CAUSE
CORRECTION
Will not start
1. Out of fuel.
2. Engine not “CHOKED” properly.
3. Engine flooded.
4. Dirty air cleaner.
5. Water in fuel.
6. Clogged fuel tank.
7. Loose spark plug wire.
8. Bad spark plug or improper gap.
9. Carburetor out of adjustment.
1. Fill fuel tank.
2. See “TO START ENGINE” in the Operation section.
3. Wait several minutes before attempting to start.
4. Clean or replace air cleaner cartridge.
5. Drain fuel tank and carburetor, and refill tank with fresh
gasoline.
6. Remove fuel tank and clean.
7. Make sure spark plug wire is seated property on plug.
8. Replace spark plug or adjust gap.
9. Make necessary adjustments.
Hard to start
1. Throttle control not set properly.
2. Dirty air cleaner.
3. Bad spark plug or improper gap.
4. Stale or dirty fuel.
5. Loose spark plug wire.
6. Carburetor out of adjustment.
1. Place throttle control in “FAST” position,
2. Clean or replace air cleaner cartridge.
I 3. Replace spark plug or adjust gap,
4. Drain fuel tank and refill with fresh gasoline.
5. Make sure spark plug wire is seated properly on plug.
6. Make necessary adjustments.
Loss of power
1. Engine is overloaded.
2. Dirty air cleaner.
3. Low oil level/dirty oil.
4. Faulty spark plug.
5. Oil in fuel.
6. Stale or dirty fuel.
7. Water in fuel.
8. Clogged fuel tank.
9. Spark plug wire loose.
10. Dirty engine air screen.
11. Dirty/clogged muffler.
12. Carburetor out of adjustment.
13. Poor compression.
1. Set depth stake and wheels for shallower tilling.
2. Clean or replace air cleaner cartridge.
3. Check oil level/change oil.
4. Clean and regap or change spark plug.
5. Drain and clean fuel tank and refill, and clean carburetor.
6. Drain fuel tank and refill with fresh gasoline.
7. Drain fuel tank and carburetor, and refill tank with fresh
gasoline.
8. Remove fuel tank and clean.
9. Connect and tighten spark plug wire.
10. Clean engine air screen.
11. Clean/replace muffler.
12. Make necessary adjustments.
13. Contact an authorized service center/department.
Engine overheats
1. Low oil level/dirty oil.
2. Dirty engine air screen.
3. Dirty engine. [
4. Partially plugged muffler.
5. Improper carburetor adjustment.
1. Check oil level/change oil.
2. Clean engine air screen.
3. Clean cylinder fins, air screen, muffler area.
4. Remove and clean muffler.
5. Adjust carburetor to richer position.
Excessive bounce/
difficult handling
1. Ground too dry and hard.
2. Wheels and depth stake incorrectly adjusted.
1. Moisten ground or wait for more favorable soil
conditions.
2. Adjust wheels and depth stake.
Soil balls up or clumps
1. Ground too wet.
1. Wait for more favorable soil conditions.
Engine runs but tiller
won’t move
1. Tine control is not engaged.
2. V-belt not correctly adjusted.
3. V-beit is off pulley(s).
1. Engage tine control.
2. Inspect/adjust V-belt.
3. inspect V-belt.
Engine runs but labors
when tilling
1. Tilling too deep.
2. Throttle control not properly adjusted.
3. Carburetor out of adjustment. j
1. Set depth stake for shallower tilling.
2. Check throttle control setting.
3. Make necessary adjustments.
17

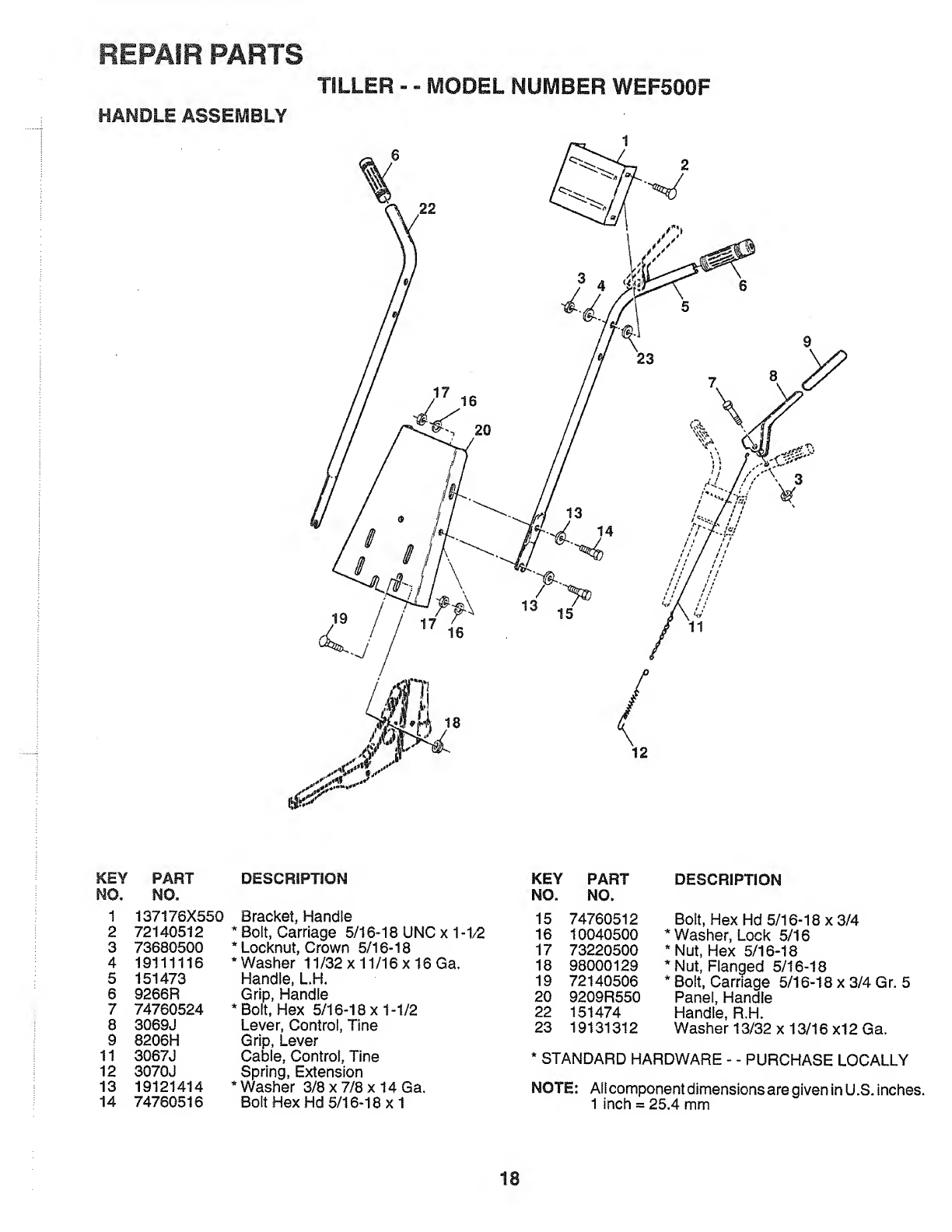

REPAIR PART:
TILLER - - MODEL NUMBER WEF5O0F
HANDLE ASSEMBLY
KEY
NO,
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
137178X550 Bracket, Handle
15
74760512
Bolt, Hex Hd 5/16-18x3/4
2
72140512
* Bolt, Carriage 5/16-18 UNC x 1-1/2
16
10040500
* Washer, Lock 5/16
3 73680500
* Locknut, Crown 5/16-18
17
73220500
* Nut, Hex 5/16-18
4
19111116
* Washer 11/32 x 11/16 x 16 Ga.
18 98000129
* Nut, Flanged 5/16-18
5
151473 Handle, L.H.
19
72140506
* Bolt, Carriage 5/16-18 x 3/4 Gr. 5
6 9266R
Grip, Handle
20
9209R550
Panel, Handle
7
74760524
* Bolt, Hex 5/16-18x1-1/2
22
151474
Handle, R.H.
8
9
3069J
8206H
Lever, Control, Tine
Grip, Lever
23
19131312
Washer 13/32 x 13/16 x12 Ga.
11
12
3067J
3070J
Cable, Control, Tine
Spring, Extension
* STANDARD HARDWARE - - PURCHASE LOCALLY
13
14
19121414
74760516
* Washer 3/8 x 7/8 x 14 Ga.
Bolt Hex Hd 5/16-18x1
NOTE: All component dimensions are given in U.S. inches
1 inch = 25.4 mm
18

REPAIR PARTS
TILLER - - MODEL NUMBER WEF500F
BELT GUARD AND PULLEY ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION
1
159233
Bracket, Beit Guard
2
109227X Pad, Idler
3
130812
Pulley, Engine
4
74610812
Bolt, Hex 1/2-20x3/4
5
72140404
* Bolt, Carriage 1/4-20 x 1/2
6 121463X
Keeper, Belt
7 104213X
Nut, Cap 1/4-20
8
19091016
* Washer 9/32 x 5/8 x 16 Ga.
9
131158X550
Guard, Belt
10
72140405
Bolt, Carriage 1/4-20 x 5/8
11
9180R
V-Belt
12
23230506
* Screw, Set, Socket, Headless
13
12000028
Ring, Retainer
14
151223
Pulley, Transmission
15 110528X
Bolt, Belt Guard
KEY
NO.
PART
NO.
DESCRIPTION
16
12000036
Ring, Klip
17
73350600
* Nut, Hex, Jam 3/8-16
18
161806
Pulley, Idler
19
162290
Arm, Idler
20
74760620
* Bolt, Hex 3/8-16 x 1-1/4
21
106968X
Shaft, Idler Arm
22
73350500
Nut, Hex, Jam 5/16-18
23
73220400
Nut Fin Hex 1/4-20
24
10040400
Washer Lock Hvy Hlcl 1/4
25
73510400
Nut Hex 1/4-20
26
19091416
Washer 9/32 x 7/8 x 16 Ga.
*STANDARD HARDWARE— PURCHASE LOCALLY
MOTE: AH component dimensions given in U.S. inches,
t inch = 25.4 mm
19

TILLER - - MODEL NUMBER WEF500F
WHEEL AND DEPTH STAKE ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION KEY
NO.
PART
NO.
DESCRIPTION
1
9194R Pin,
Clevis 14 120958X Washer
2
74760520
Bolt, Hex 5/16-18x1-1/4 15 5388J Spring, Stake
3 74760512
* Bolt, Hex 5/16-18x3/4
16 121117X Bolt, Shoulder
4 73220500
* Nut, Hex 5/16-18
17
9188R Wheel
5
10040500
* Washer, Lock 5/16 18
19131311
* Washer 13/32 x 13/16 x 1
6 73800600
* Locknut, Hex, W/Wsh 3/8-16 19 9190R
Bracket, Wheel
7 4921H
Clip, Hairpin 20 73680600 * Locknut, Crown 3/8-16
8 1952J
Support, Depth Stake, R.H. 21
74760516 Bolt, Hex 5/16-18 x 1
9 122233X Stake, Depth 22 73800500 Locknut, w/insert 5/16-18
10 326J
11 74780628
12 74760524
13 1951J
Pin, Clevis
Bolt, Fin, Hex 3/8-16 x 1-3/4
Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
Support, Depth Stake, L.H.
'STANDARD HARDWARE —PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
