Weed Eater FX26SCE User manual

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
NEW
1

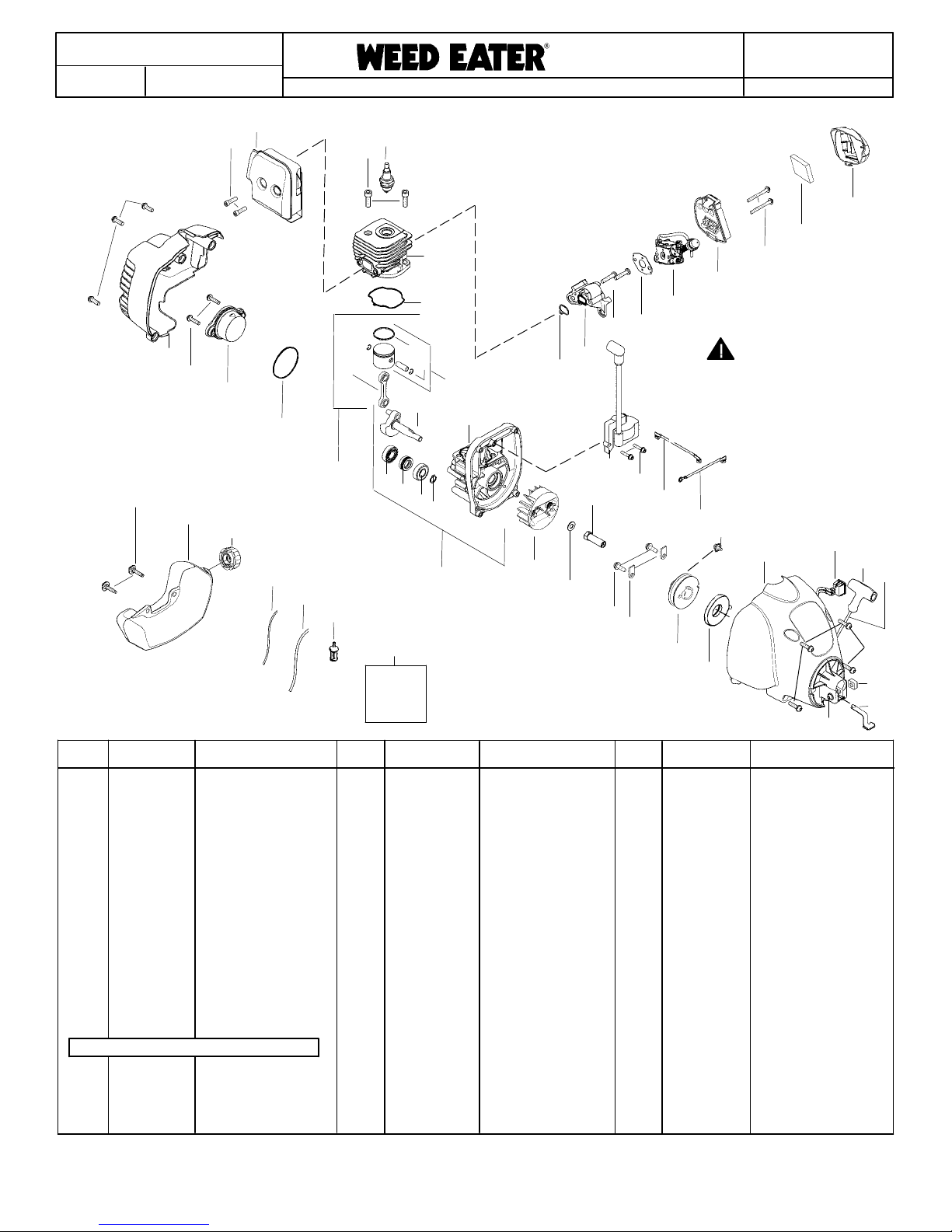

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
577136101 FX26S E
DATE
12/14/10
1. 5 0057991 Assy---Throttle Cable
2. 5 0058000 Trigger
. 5 0057582 Throttle Hsg. (Right)
4. 5 0015880 Screw---Throttle Hsg.
5. 5 0015786 Bolt---Handle
6. 545008059 Kit---Drive Shaft (Incl. 11,12)
7. 5 0057581 Throttle Hsg. (Left)
8. 545026201 Assy---Handle (Incl . 5,9,10)
9. 5 0016152 Wingnut
10. 5 0150 8 Spool Buddy
11. --- --- --- Collet (Ref. 1 )
12. 5 0015880 Screw
1 . 545008057 Kit---Coupler Shaft
(Incl. 11,12,14,15)
14. --- --- --- Collar---Shaft (Ref. 1 )
15. --- --- --- Nut--- Collet (Ref. 1 )
16. 545008066 Kit---Shaft Lower (Incl. 14,15)
17. 5 0052286 Line Limiter
18. 5 0016 49 Screw--- Line Limiter
19. 5 0015820 Bolt
20. 5 0071795 Kit---Shield Assy
(Incl. 17,18,19,21)
21. 5 0016152 Wingnut
22. 952711621 Accy--- TNG VI Cutting Head
(Incl. 2 ,24,25,26)
2 . 5 0095776 Assy--- Hub
24. 5 005 241 Spring--- Compression
25. 5 0401957 Clip---Retainer---Head
26. 952711616 Accy--- Spool w/Line
115 79427 Operator Manual
545207 01 Decal---Shaft Warning
527291101 Decal---Spark Arrestor Warning
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
18
17
21
20
22
23
24
26
Ref. Part No. Description Ref. Part No. Description
19
25
= NEW PART NUMBER FOR THIS IPL n= REFER TO THE SERVI E REFEREN E INDI ATED FOR MORE INFORMATION. (LO ATED AT END OF IPL) K
Not Shown
1
2
3
4
5
7
8
9
10
6
14
15
16
11
12
13

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
NEW
2
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
577136101 FX26S E
DATE
12/14/10
1. 530015814 Screw
2. 530058982 Bolt--Muffler
3. 545227901 Assy--Muffler/Shield
Incl. 2)
4. 530015953 Screw--Cylinder
5. 952030249 Spark Plug RCJ 6Y)
6. 530012541 Cylinder
7. 530071750 Seal--Cylinder kit)
8. 530055120 Piston Ring
9. 530015162 Retainer--Piston Pin
10. 530071833 Kit -- Piston Incl. 8, 9)
11. 530057829 Assy--Crankshaft
12. 530012582 Assy--Crankcase
Incl. 44,45,46)
13. 530071750 Seal--Cyl/Carb. kit)
14. 530057547 Adapter--Carb.
15. 530016441 Screw
16. 530071750 Gasket--Carb. kit)
17. 577135901 Kit--Carb. Zama)
18. 530057585 Air Box
19. 530016429 Screw
20. 530057781 Foam--Air Filter
21. 576694401 Cover--Air Box
22. 545024901 Ignition Module
23. 530038604 Coupling--Drive
24. 530016357 Screw
25. 530014663 Assy--Leadwire
26. 530014662 Assy--Ground Wire
27. 530016392 Screw
28. 530058600 Assy.--Fan Hsg
29. 545081869 Kit--Switch
30. 530027569 Handle--Starter
31. 530071767 Kit -- Rope
32. 530016386 Screw
33. 530016124 Nut
34. 530057588 Clip--Spring
35. 530016430 Screw
36. 530042085 Spring--Starter
37. 530071786 Kit--Pulley--Starter
38. 530027523 Retainer--Pulley
39. 530015775 Screw
40. 530015828 Washer--Flat
41. 545005101 Assy--Flywheel
42. 530071768 Assy--C’case & C’shaft
Incl. 11,12,43)
43. 530015941 Retain. Ring--C’shaft
44. 530055728 Outer Bearing
45. 530019264 Seal--C’case
46. 530032125 Inner Bearing
47. 530069945 Assy--Connecting Rod
48. 530071785 Kit--piston/rod
Incl. 10,47)
49. 530071750 O--Ring--C’case kit)
50. 530057954 Assy--Plug incl.49)
51. 530016386 Screw
52. 545011004 Shroud--Rear
53. 530016445 Retainer--Tank
54. 545104103 Assy--Fuel Tank incl.
filter, lines & fuel cap)
55. 530014347 Assy--Fuel Cap
56. 530069247 Kit--Fuel Line Small)
57. 530069216 Kit--Fuel Line Large)
58. 530095646 Assy--Fuel Pickup
59. 530071750 Kit--Engine Gasket
Incl. 7,13,16,49)
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
59
Engine
Gasket
Kit
= NEW PART NUMBER FOR THIS IPL n= REFER TO THE SERVI E REFEREN E INDI ATED FOR MORE INFORMATION. (LO ATED AT END OF IPL) K
3
2
1
51
50
55
56
53
54
4
5
7
10
8
9
11
12
46 45 4443
42
24
22
23 25
26
41
40
37
36
28
32
31
30
29
17
18
19
20
21
16
15
14
13
6
57
58
27
47
49
38
52
39
33
34
35
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
(Note: Repair kits are not available for this carburetor)
48
