Welbilt Delfield 4400 Series User manual

Original Document
,Caution
Read this instruction before operating this equipment.
Fresh Soluons, Fit For You
Part Number: 9295093 07/20
Compact Refrigerators
4400 Series
Specifications, Installation, Operation & Maintenance Manual
This manual is updated as new information and models are released.
Visit our website for the latest information.

Safety Notices
nWarning
Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.
DANGER
Donotinstalloroperateequipmentthathasbeenmisused,
abused, neglected, damaged, or altered/modified from
that of original manufactured specifications.
DANGER
Never stand on the unit! They are not designed to hold
the weight of an adult, and may collapse or tip if misused
in this manner.
DANGER
Keep power cord AWAY from HEATED surfaces. DO NOT
immerse power cord or plug in water. DO NOT let power
cord hang over edge of table or counter.
DANGER
All utility connections and fixtures must be maintained in
accordance with local and national codes.
nWarning
Authorized Service Representatives are obligated to follow
industry standard safety procedures, including, but not
limited to, local/national regulations for disconnection
/ lock out / tag out procedures for all utilities including
electric, gas, water and steam.
nWarning
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions, for cleaning.
nWarning
This product contains chemicals known to the State of
California to cause cancer and/or birth defects or other
reproductive harm. Operation, installation, and servicing
of this product could expose you to airborne particles
of glasswool or ceramic fibers, crystalline silica, and/
or carbon monoxide. Inhalation of airborne particles
of glasswool or ceramic fibers is known to the State of
California to cause cancer. Inhalation of carbon monoxide
is known to the State of California to cause birth defects
or other reproductive harm.
nWarning
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
nWarning
Use caution when handling metal surface edges of all
equipment.
nWarning
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision concerning use
of the appliance by a person responsible for their safety.
Do not allow children to play with this appliance.
Notice
Proper installation, care and maintenance are essential
for maximum performance and trouble-free operation of
your equipment. Visit our website www.wbtkitchencare.
com for manual updates, translations, or contact
information for service agents in your area.

Part Number: 9295093 07/20 3
Section 1
General Information
Serial Number Information................................................................................................ 4
Warranty Information........................................................................................................ 4
Regulatory Certifications ................................................................................................... 4
Model Numbers ................................................................................................................ 4
Section 2
Installation
Location ............................................................................................................................ 6
Weight of Equipment......................................................................................................... 7
Clearance Requirements.................................................................................................... 8
Dimensions ....................................................................................................................... 8
Capacity ............................................................................................................................ 9
Electrical Service ............................................................................................................. 10
Ground Fault Circuit Interrupter ...................................................................................10
Rated Amperages, Horsepower, Voltage & Power Cord Chart......................................10
Drain Connections ........................................................................................................... 11
Refrigeration ................................................................................................................... 12
Level & Stable ................................................................................................................. 13
Leg & Caster Installation.................................................................................................. 13
Changing Pan Height ....................................................................................................... 13
Shelf Installation Instructions .......................................................................................... 13
Optional Overshelf Installation Instructions..................................................................... 14
Standard Cutting Board Bracket Mounting....................................................................... 15
Standard Bracket Adjustment .......................................................................................... 15
Heavy Duty Cutting Board Bracket Mounting................................................................... 16
Section 3
Operation
Power To Cool ................................................................................................................. 19
Temperature Control ....................................................................................................... 19
Efficient Operation .......................................................................................................... 19
Defrost ............................................................................................................................ 19
Evaporator Fan Operation................................................................................................ 19
Section 4
Maintenance
Interior Cleaning.............................................................................................................. 20
Gaskets.......................................................................................................................... 20
Fluorescent Light Bulb Replacement.............................................................................21
Preventing Blower Coil Corrosion .................................................................................21
Exterior Cleaning ............................................................................................................. 21
Drain.............................................................................................................................. 21
Drawer Assembly Cleaning .............................................................................................. 21
Cleaning the Condenser Coil............................................................................................ 22
Doors/Hinges .................................................................................................................. 22
Table of Contents

4 Part Number: 9295093 07/20
Serial Number Information
The serial number is on the identification plate that also
includes the model number. The identification plate is
located near the top front corner of the left interior wall.
Always have the serial number of your unit available
when calling for parts or service.
Warranty Information
Visit www.delfield.com/warranty to:
• Register your product for warranty.
• Verify warranty information.
• View and download a copy of your warranty.
Regulatory Certifications
All models are certified by:
• National Sanitation Foundation (NSF)
• Underwriters Laboratories (UL)
• Underwriters Laboratories of Canada (cUL)
Section 1
General Information
Model Numbers
This manual covers the following models:
Model Description
Refrigerated Front Breathers With Doors
4427NP-6 One Door Salad Top
4427NP-8
4427NP-9M
One Door Mega Top4427NP-12M
4432NP-12M
4448NP-6
Two Door Salad Top4448NP-8
4448NP-12
4448NP-6M
Two Door Mega Top4448NP-12M
4448NP-18M
4460NP-8 Two Door Salad Top
4460NP-12
4460NP-12M
Two Door Mega Top4460NP-18M
4460NP-24M
4464NP-8 Two Door Salad Top
4464NP-12
4464NP-12M Two Door Mega Top
4464NP-16 Two Door Salad Top
4464NP-18M Two Door Mega Top
4464NP-24M
4472NP-12 Three Door Salad Top
4472NP-18
4472NP-18M
Three Door Mega Top4472NP-24M
4472NP-30M
Refrigerated Front Breathers With Drawers
D4427NP-6 Two Drawer Salad Top
D4427NP-8
D4427NP-9M
Two Drawer Mega TopD4427NP-12M
D4432NP-12M
D4448NP-6
Four Drawer Salad TopD4448NP-8
D4448NP-12
D4448NP-6M
Four Drawer Mega TopD4448NP-12M
D4448NP-18M
D4460NP-8 Four Drawer Salad Top
D4460NP-12
D4460NP-12M
Four Drawer Mega TopD4460NP-18M
D4460NP-24M
D4464NP-8 Four Drawer Salad Top
D4464NP-12
D4464NP-12M Four Drawer Mega Top
D4464NP-16 Four Drawer Salad Top

Part Number: 9295093 07/20 5
Section 1 General Information
Model Description
D4464NP-18M Four Drawer Mega Top
D4464NP-24M
D4472NP-12 Six Drawer Salad Top
D4472NP-18
D4472NP-18M
Six Drawer Mega TopD4472NP-24M
D4472NP-30M
Refrigerated Front Breathers With Doors & 4” S/S Backsplash
ST4427NP-6 One Door Salad Top
ST4427NP-8
ST4448NP-6
Two Door Salad Top
ST4448NP-8
ST4460NP-8
ST4460NP-12
ST4448NP-6M
Two Door Mega Top
ST4448NP-12M
ST4460NP-12M
ST4460NP-18M
ST4464NP-8 Two Door Salad Top
ST4464NP-12
ST4464NP-12M Two Door Mega Top
ST4464NP-18M
ST4472NP-12 Three Door Salad Top
ST4472NP-18M Three Door Mega Top
ST4472NP-24M
Refrigerated Front Breathers w/ Drawers & 4” S/S Backsplash
STD4427NP-8 Two Drawer Salad Top
STD4448NP-6
Four Drawer Salad Top
STD4448NP-8
STD4460NP-8
STD4460NP-12
STD4448NP-6M
Four Drawer Mega Top
STD4448NP-12M
STD4460NP-12M
STD4460NP-18M
STD4464NP-8 Four Drawer Salad Top
STD4464NP-12
STD4464NP-12M Four Drawer Mega Top
STD4464NP-18M
STD4472NP-12 Six Drawer Salad Top
STD4472NP-18M Six Drawer Mega Top
STD4472NP-24M
Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table
4448RP Two Section with six 1/3 pan capacity
4472RP Two Section with nine 1/3 pan capacity
4496RP Three Section with twelve 1/3 pan capacity
Refrigerated Front Breathers w/ Drawers & Raised Rail Prep Table
D4448RP Two Section with six 1/3 pan capacity
D4472RP Two Section with nine 1/3 pan capacity
D4496RP Three Section with twelve 1/3 pan capacity

6 Part Number: 9295093 07/20
DANGER
Installation must comply with all applicable fire and
health codes in your jurisdiction.
DANGER
Use appropriate safety equipment during installation and
servicing.
nWarning
Do not damage the refrigeration circuit when installing,
maintaining or servicing the unit.
Location
nWarning
This equipment must be positioned so that the plug is
accessible unless other means for disconnection from the
power supply (e.g., circuit breaker or disconnect switch)
is provided.
nWarning
Adequate means must be provided to limit the movement
of this appliance without depending on or transmitting
stress to the electrical conduit or gas lines.
nWarning
To avoid instability the installation area must be capable
of supporting the combined weight of the equipment
and product. Additionally the equipment must be level
side to side and front to back.
nWarning
This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.
The location selected for the equipment must meet the
following criteria. If any of these criteria are not met, select
another location.
• Units are intended for indoor use only.
• The location MUST be level, stable and capable of
supporting the weight of the equipment.
• The location MUST be free from and clear of combustible
materials.
• Equipment MUST be level both front to back and side to
side.
• Position the equipment so it will not tip or slide.
• Front casters MUST be locked once positioned.
• Recommended air temperature is 50° - 100°F
(10° - 38°C).
• Proper air supply for ventilation is REQUIRED AND
CRITICAL for safe and efficient operation.
• Do not obstruct the flow of ventilation air. Make sure the
air vents of the equipment are not blocked.
• Do not install the equipment directly over a drain. Steam
rising up out of the drain will adversely affect operation,
air circulation, and damage electrical / electronic
components.
Section 2
Installation

Part Number: 9295093 07/20 7
Section 2 Installation
Weight of Equipment
Model Ship Weight
Refrigerated Front Breathers With Doors
4427NP-6 223lbs (101kg)
4427NP-8 240lbs (109kg)
4427NP-9M 223lbs (101kg)
4427NP-12M
4432NP-12M 245lbs (111kg)
4448NP-6
316lbs (143kg)
4448NP-8
4448NP-12
4448NP-18M
4460NP-8
411lbs (186kg)
4460NP-12
4460NP-12M
4460NP-18M
4460NP-24M
4464NP-8
421lbs (191kg)
4464NP-12
4464NP-12M
4464NP-16
4464NP-18M
4464NP-24M
4472NP-12
461lbs (209kg)
4472NP-18
4472NP-18M
4472NP-24M
4472NP-30M
Refrigerated Front Breathers With Drawers
D4427NP-6 245lbs (111kg)
D4427NP-8 240lbs (109kg)
D4427NP-9M 245lbs (111kg)
D4427NP-12M 245lbs (111kg)
D4432NP-12M 293lbs (133kg)
D4448NP-8
398lbs (181kg)D4448NP-12
D4448NP-18M
D4460NP-8
495lbs (225kg)
D4460NP-12
D4460NP-12M
D4460NP-18M
D4460NP-24M
D4464NP-8
522lbs (237kg)
D4464NP-12
D4464NP-12M
D4464NP-16
D4464NP-18M
D4464NP-24M
D4472NP-12
545lbs (247kg)
D4472NP-18
D4472NP-18M
D4472NP-24M
D4472NP-30M
Model Ship Weight
Refrigerated Front Breathers With Doors & 4” S/S Backsplash
ST4427NP-6 240lbs (109kg)
ST4427NP-8
ST4448NP-6 316lbs (143kg)
ST4448NP-8
ST4460NP-8
411lbs (186kg)
ST4460NP-12
ST4460NP-12M
ST4460NP-18M
ST4464NP-8
421lbs (191kg)
ST4464NP-12
ST4464NP-12M
ST4464NP-18M
ST4472NP-12
461lbs (209kg)ST4472NP-18M
ST4472NP-24M
Refrigerated Front Breathers With Drawers & 4” S/S Backsplash
STD4427NP-6 240lbs (109kg)
STD4427NP-8
STD4448NP-6 398lbs (181kg)
STD4448NP-8
STD4460NP-8
495lbs (225kg)
STD4460NP-12
STD4460NP-12M
STD4460NP-18M
STD4464NP-8
522lbs (237kg)
STD4464NP-12
STD4464NP-12M
STD4464NP-18M
STD4472NP-12
545lbs (247kg)STD4472NP-18M
STD4472NP-24M
Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table
4448RP 316lbs (143kg)
4472RP 461lbs (209kg)
4496RP 
Refrigerated Front Breathers w/ Drawers & Raised Rail Prep Table
D4448RP 316lbs (143kg)
D4472RP 461lbs (209kg)
D4496RP 

8 Part Number: 9295093 07/20
Installation Section 2
Clearance Requirements
• Keep the vents clean and free of obstruction.
• Casters or optional legs must be used and not removed.
• Provide good air circulation inside and outside the
cabinet.
• Do not pack refrigerator so full that air cannot circulate.
• Avoid hot corners and locations near stoves and ovens.
• These cabinets have Delfield’s “front-breathing” design.
They may be installed flush against a wall or built into a
counter as required.
,Caution
Any restriction of the proper air flow outlined above,
total or partial, will void the warranty on the cabinet.
Dimensions
Model Length Depth Work Height
Refrigerated Front Breathers With Doors
4427NP-6
27” (69cm) 31.50” (80cm) 36.00” (91cm)
4427NP-8
4427NP-9M
4427NP-12M
4432NP-12M 32” (81cm) 31.50” (80cm) 36.00” (91cm)
4448NP-6
48” (122cm) 31.50” (80cm) 36.00” (91cm)
4448NP-8
4448NP-12
4448NP-18M
4460NP-8
60” (152cm) 31.50” (80cm) 36.00” (91cm)
4460NP-12
4460NP-12M
4460NP-18M
4460NP-24M
4464NP-8
64” (163cm) 31.50” (80cm) 36.00” (91cm)
4464NP-12
4464NP-12M
4464NP-16
4464NP-18M
4464NP-24M
4472NP-12
72” (183cm) 31.50” (80cm) 36.00” (91cm)
4472NP-18
4472NP-18M
4472NP-24M
4472NP-30M
Refrigerated Front Breathers With Drawers
D4427NP-6
27” (69cm) 31.50” (80cm) 36.00” (91cm)
D4427NP-8
D4427NP-9M
D4427NP-12M
D4432NP-12M 32” (81cm) 31.50” (80cm) 36.00” (91cm)
D4448NP-6
48” (122cm) 31.50” (80cm) 36.00” (91cm)
D4448NP-8
D4448NP-12
D4448N-18M
Model Length Depth Work Height
D4460N-8
60” (152cm) 31.50” (80cm) 36.00” (91cm)
D4460NP-12
D4460NP-12M
D4460NP-18M
D4460NP-24M
D4464NP-8
64” (163cm) 31.50” (80cm) 36.00” (91cm)
D4464NP-12
D4464NP-12M
D4464NP-16
D4464NP-18M
D4464NP-24M
D4472NP-12
72” (183cm) 31.50” (80cm) 36.00” (91cm)
D4472NP-18
D4472NP-18M
D4472NP-24M
D4472NP-30M
Refrigerated Front Breathers With Doors & 4” S/S Backsplash
ST4427NP-6 27” (69cm) 31.50” (80cm) 36.00” (91cm)
ST4427NP-8
ST4448NP-6 48” (122cm) 31.50” (80cm) 36.00” (91cm)
ST4448NP-8
ST4460NP-8
60” (152cm) 31.50” (80cm) 36.00” (91cm)
ST4460NP-12
ST4460NP-12M
ST4460NP-18M
ST4464NP-8
64” (163cm) 31.50” (80cm) 36.00” (91cm)
ST4464NP-12
ST4464NP-12M
ST4464NP-18M
ST4472NP-12
72” (183cm) 31.50” (80cm) 36.00” (91cm)ST4472NP-18M
ST4472NP-24M
Refrigerated Front Breathers With Drawers & 4” S/S Backsplash
STD4427NP-6 27” (69cm) 31.50” (80cm) 36.00” (91cm)
STD4427NP-8
STD4448NP-6 48” (122cm) 31.50” (80cm) 36.00” (91cm)
STD4448NP-8
STD4460NP-8
60” (152cm) 31.50” (80cm) 36.00” (91cm)
STD4460NP-12
STD4460NP-12M
STD4460NP-18M
STD4464NP-8
64” (163cm) 31.50” (80cm) 36.00” (91cm)
STD4464NP-12
STD4464NP-12M
STD4464NP-18M
STD4472NP-12
72” (183cm) 31.50” (80cm) 36.00” (91cm)STD4472NP-18M
STD4472NP-24M

Part Number: 9295093 07/20 9
Section 2 Installation
Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table
4448RP 48” (122cm) 31.50” (80cm) 36.00” (91cm)
4472RP 72” (182cm) 31.50” (80cm) 36.00” (91cm)
4496RP 96” (244cm) 31.50” (80cm) 36.00” (91cm)
Refrigerated Front Breathers w/ Drawers & Raised Rail Prep Table
D4448RP 48” (122cm) 31.50” (80cm) 36.00” (91cm)
D4472RP 72” (182cm) 31.50” (80cm) 36.00” (91cm)
D4496RP 96” (244cm) 31.50” (80cm) 36.00” (91cm)
Capacity
Model 1/6 Pan
Capacity Shelf Area Base Volume
Refrigerated Front Breathers With Doors
4427NP-6 6
3.17ft(2945cm) 8.20ft(232L)4427NP-8 8
4427NP-9M 9
4432NP-12M 12 3.88ft(3605cm) 10.10ft(286L)
4448NP-6 6
5.48ft(5091cm) 16.00ft(453L)
4448NP-8 8
4448NP-12 12
4448NP-18M 18
4460NP-8 8
7.19ft(6680cm) 20.20ft(572L)
4460NP-12 12
4460NP-12M 12
4460NP-18M 18
4460NP-24M 24
4464NP-8 8
7.76ft2 (7209cm) 21.60ft(612L)
4464NP-12 12
4464NP-12M 12
4464NP-16 16
4464NP-18M 18
4464NP-24M 24
4472NP-12 12
8.22ft(7637cm) 24.80ft(702L)
4472NP-18 18
4472NP-18M 18
4472NP-24M 24
4472NP-30M 30
Refrigerated Front Breathers With Drawers
D4427NP-6 6
NA 8.20ft(232L)
D4427NP-8 8
D4427NP-9M 9
D4427NP-12M 12
D4432NP-12M 12 NA 10.10ft(286L)
D4448NP-6 6
NA 16.00ft(453L)
D4448NP-8 8
D4448NP-12 12
D4448NP-18M 18
D4460NP-8 8
NA 20.20ft(572L)
D4460NP-12 12
D4460NP-12M 12
D4460NP-18M 18
D4460NP-24M 24
D4464NP-8 8
NA 21.60ft(612L)
D4464NP-12 12
D4464NP-12M 12
D4464NP-16 16
D4464NP-18M 18
D4464NP-24M 24
Model 1/6 Pan
Capacity Shelf Area Base Volume
D4472NP-12 12
NA 24.80ft(702L)
D4472NP-18 18
D4472NP-18M 18
D4472NP-24M 24
D4472NP-30M 30
Refrigerated Front Breathers With Doors & 4” S/S Backsplash
ST4427NP-6 6 3.17ft(2945cm) 8.20ft(232L)
ST4427NP-8 8
ST4448NP-6 6 5.48ft(5091cm) 16.00ft(453L)
ST4448NP-8 8
ST4460NP-8 8
7.19ft(6680cm) 20.20ft(572L)
ST4460NP-12 12
ST4460NP-12M 12
ST4460NP-18M 18
ST4464NP-8 8
7.76ft2 (7209cm) 21.60ft(612L)
ST4464NP-12 12
ST4464NP-12M 12
ST4464NP-18M 18
ST4472NP-12 12
8.22ft(7637cm) 24.80ft(702L)ST4472NP-18M 18
ST4472NP-24M 24
Refrigerated Front Breathers With Drawers & 4” S/S Backsplash
STD4427NP-6 6 NA 8.20ft(232L)
STD4427NP-8 8
STD4448NP-6 6 NA 16.00ft(453L)
STD4448NP-8 8
STD4460NP-8 8
NA 20.20ft(572L)
STD4460NP-12 12
STD4460NP-12M 12
STD4460NP-18M 18
STD4464NP-8 8
NA 21.60ft(612L)
STD4464NP-12 12
STD4464NP-12M 12
STD4464NP-18M 18
STD4472NP-12 12
NA 24.80ft(702L)STD4472NP-18M 18
STD4472NP-24M 24
Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table
4448RP 6 5.48ft(5091cm) 17.96ft(509L)
4472RP 9 8.22ft(7637cm) 27.80ft(787L)
4496RP 12 11.64ft
(10814cm)
37.65ft(1066L)
Refrigerated Front Breathers w/ Drawers & Raised Rail Prep Table
D4448RP 6 N/A 17.96ft(509L)
D4472RP 9 N/A 27.80ft(787L)
D4496RP 12 N/A 37.65ft(1066L)

10 Part Number: 9295093 07/20
Installation Section 2
Electrical Service
DANGER
Check all wiring connections, including factory terminals,
before operation. Connections can become loose during
shipment and installation.
nWarning
This appliance must be grounded and all field wiring must
conform to all applicable local and national codes. Refer
to rating plate for proper voltage. It is the responsibility of
the end user to provide the disconnect means to satisfy
the authority having jurisdiction.
• The Danfoss control can be used to power down and shut
off the unit.
• All electrical work, including wire routing and grounding,
must conform to local, state and national electrical codes.
• The equipment must be grounded.
• A separate fuse/circuit breaker must be provided for each
unit.
• The maximum allowable voltage variation is ±10% of the
rated voltage at equipment start-up (when the electrical
load is highest).
• Check all green ground screws, cables and wire
connections to verify they are tight before start-up.
GROUND FAULT CIRCUIT INTERRUPTER
Ground Fault Circuit Interrupter (GFCI/GFI) protection is a
system that shuts down the electric circuit (opens it) when it
senses an unexpected loss of power, presumably to ground.
Welbilt does not recommend the use of GFCI/GFI circuit
protection to energize our equipment. If code requires the
use of a GFCI/GFI then you must follow the local code. The
circuit must be dedicated, sized properly and there must
be a panel GFCI/GFI breaker. We do not recommend the
use of GFCI/GFI outlets to energize our equipment as they
are known for more intermittent nuisance trips than panel
breakers.
RATED AMPERAGES, HORSEPOWER, VOLTAGE & POWER
CORD CHART
Maximum 6ft (1.8m) cord with three-pronged plug. Plug
into a three-pronged wall outlet for proper grounding of the
cabinet to begin operation. Do not use an adapter to connect
to a two-pronged outlet.
Model Amp H.P. Voltage, Cycle,
Phase
NEMA
Plug
Refrigerated Front Breathers With Doors
4427NP-6
4 .3 115, 60, 1 5-15P
4427NP-8
4427NP-9M
4427NP-12M
4432NP-12M 4 .3 115, 60, 1 5-15P
4448NP-6
4 .3 115, 60, 1 5-15P
4448NP-8
4448NP-12
4448NP-18M
4460NP-8
6 .35 115, 60, 1 5-15P
4460NP-12
4460NP-12M
4460NP-18M
4460NP-24M
4464NP-8
6 .35 115, 60, 1 5-15P
4464NP-12
4464NP-12M
4464NP-16
4464NP-18M
4464NP-24M
4472NP-12
6 .35 115, 60, 1 5-15P
4472NP-18
4472NP-18M
4472NP-24M
4472NP-30M
Refrigerated Front Breathers With Drawers
D4427NP-6
4 .3 115, 60, 1 5-15P
D4427NP-8
D4427NP-9M
D4427NP-12M
D4432NP-12M 4 .3 115, 60, 1 5-15P
D4448NP-6
4 .3 115, 60, 1 5-15P
D4448NP-8
D4448NP-12
D4448NP-18M
D4460NP-8
6 .35 115, 60, 1 5-15P
D4460NP-12
D4460NP-12M
D4460NP-18M
D4460NP-24M
D4464NP-8
6 .35 115, 60, 1 5-15P
D4464NP-12
D4464NP-12M
D4464NP-16
D4464NP-18M
D4464NP-24M

Part Number: 9295093 07/20 11
Section 2 Installation
Model Amp H.P. Voltage, Cycle,
Phase
NEMA
Plug
D4472NP-12
6 .35 115, 60, 1 5-15P
D4472NP-18
D4472NP-18M
D4472NP-24M
D4472NP-30M
Refrigerated Front Breathers With Doors & 4” S/S Backsplash
ST4427NP-6 4 .3 115, 60, 1 5-15P
ST4427NP-8
ST4448NP-6 4 .3 115, 60, 1 5-15P
ST4448NP-8
ST4460NP-8
6 .35 115, 60, 1 5-15P
ST4460NP-12
ST4460NP-12M
ST4460NP-18M
ST4464NP-8
6 .35 115, 60, 1 5-15P
ST4464NP-12
ST4464NP-12M
ST4464NP-18M
ST4472NP-12
6 .35 115, 60, 1 5-15PST4472NP-18M
ST4472NP-24M
Refrigerated Front Breathers With Drawers & 4” S/S Backsplash
STD4427NP-6 4 .3 115, 60, 1 5-15P
STD4427NP-8
STD4448NP-6 4 .3 115, 60, 1 5-15P
STD4448NP-8
STD4460NP-8
6 .35 115, 60, 1 5-15PSTD4460NP-12M
STD4460NP-18M
STD4464NP-8
6 .35 115, 60, 1 5-15P
STD4464NP-12
STD4464NP-12M
STD4464NP-18M
STD4472NP-12
6 .35 115, 60, 1 5-15PSTD4472NP-18M
STD4472NP-24M
Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table
4448RP 4.0 .3 115, 60, 1 5-15P
4472RP 6.0 .35 115, 60, 1 5-15P
4496RP 6.0 .35 115, 60, 1 5-15P
Refrigerated Front Breathers w/ Drawers & Raised Rail Prep Table
D4448RP 4.0 .3 115, 60, 1 5-15P
D4472RP 6.0 .35 115, 60, 1 5-15P
D4496RP 6.0 .35 115, 60, 1 5-15P
Drain Connections
nWarning
Moisture collecting from improper drainage can create a
slippery surface on the floor and a hazard to employees.
It is the owner’s responsibility to provide a container or
outlet for drainage.
Self-contained models are standard with a condensate
evaporator. If, for some reason, a cabinet does not have a
condensate evaporator, or the evaporator fails, the cabinets
drain must have an outlet to an appropriate drainage area or
container.

12 Part Number: 9295093 07/20
Installation Section 2
Refrigeration
Model BTU/Hour
Capacity
Heat of
Rejection R290 Charge
Refrigerated Front Breathers With Doors
4427NP-6
2038 716 60g
4427NP-8
4427NP-9M
4427NP-12M
4432NP-12M 2038 883 60g
4448NP-6
2038 1299 60g
4448NP-8
4448NP-12
4448NP-18M
4460NP-8
2973 1645 72g
4460NP-12
4460NP-12M
4460NP-18M
4460NP-24M
4464NP-8
2973 1664 72g
4464NP-12
4464NP-12M
4464NP-16
4464NP-18M
4464NP-24M
4472NP-12
2973 2042 72g
4472NP-18
4472NP-18M
4472NP-24M
4472NP-30M
Refrigerated Front Breathers With Drawers
D4427NP-6
2038 716 60g
D4427NP-8
D4427NP-9M
D4427NP-12M
D4432NP-12M 2038 883 60g
D4448NP-6
2038 1299 60g
D4448NP-8
D4448NP-12
D4448NP-18M
D4460NP-8
2973 1645 72g
D4460NP-12
D4460NP-12M
D4460NP-18M
D4460NP-24M
D4464NP-8
2973 1664 72g
D4464NP-12
D4464NP-12M
D4464NP-16
D4464NP-18M
D4464NP-24M
D4472NP-12
2973 2042 72g
D4472NP-18
D4472NP-18M
D4472NP-24M
D4472NP-30M
Model BTU/Hour
Capacity
Heat of
Rejection R290 Charge
Refrigerated Front Breathers With Doors & 4” S/S Backsplash
ST4427NP-6 2038 716 60g
ST4427NP-8
ST4448NP-6 2038 1299 60g
ST4448NP-8
ST4460NP-8
2973 1645 72g
ST4460NP-12
ST4460NP-12M
ST4460NP-18M
ST4464NP-8
2973 1664 72g
ST4464NP-12
ST4464NP-12M
ST4464NP-18M
ST4472NP-12
2973 2042 72gST4472NP-18M
ST4472NP-24M
Refrigerated Front Breathers With Drawers & 4” S/S Backsplash
STD4427NP-6 2038 716 60g
STD4427NP-8
STD4448NP-6 2038 1299 60g
STD4448NP-8
STD4460NP-8
2973 1645 72g
STD4460NP-12
STD4460NP-12M
STD4460NP-18M
STD4464NP-8
2973 1664 72g
STD4464NP-12
STD4464NP-12M
STD4464NP-18M
STD4472NP-12
2973 2042 72gSTD4472NP-18M
STD4472NP-24M
Refrigerated Front Breathers w/ Doors & Raised Rail Prep Table
4448RP 1756 1084 60g
4472RP 2899 1636 72g
4496RP 2899 2093 72g
Refrigerated Front Breathers w/ Drawers & Raised Rail Prep Table
D4448RP 1756 1084 60g
D4472RP 2899 1636 72g
D4496RP 2899 2093 72g

Part Number: 9295093 07/20 13
Section 2 Installation
Level & Stable
After the cabinet has been placed in the desired location,
cabinets with legs must be leveled. Level units from front to
back and from side to side. Leveling will insure proper door
operation and removal of condensate. It is very important
that all legs are properly adjusted to keep the cabinet level,
evenly distribute the weight and to make sure the unit will
not rock, lean or be unstable.
Cabinets with casters must have the caster brake set so the
cabinet cannot move.
Leg & Caster Installation
DANGER
Legs or casters must be installed and the legs or casters
must be screwed in completely to prevent bending. When
casters are installed the mass of this unit will allow it to
move uncontrolled on an inclined surface. These units
must be tethered/secured to comply with all applicable
codes.
nWarning
The unit must be installed in a stable condition with
the front wheels locked. Locking the front casters after
installation is the owner’s and operator’s responsibility.
nWarning
Use a jack to lift the refrigeration unit off the ground
just far enough to remove the leg/caster. Place blocking
underneath the unit. Do not work underneath a raised
unit without proper blocking. Do not lift the unit more
than necessary to remove the leg/caster. Lifting the unit
too far can make the unit unstable.
,Caution
All single-section units require that the swivel casters be
mounted on the front and rigid casters be mounted on
the rear.
Changing Pan Height
If additional pan temperature cooling ability is desired,
especially in higher ambient temperature conditions and/
or if pan covers are open or off for extended time periods
improved cooling of pans can usually be achieved by utilizing
the lower position of the dual level pan guides.
When utilizing the lower position on a model with drawers,
only 4” deep pans can be used in the top. When utilizing the
lower position on a door model, 4” or 6” deep pans may be
used.
1. Remove all pans, pan dividers, front and rear support bars.
2. Remove the upper side support brackets by pulling them
up and off.
3. Reinstall all components removed in step one.
Use side support alone
to lower pans 1”
Remove upper side
support bracket
If the lower pan position is desired for models 4427N-8 or
4427N-12M, model specific brackets must be ordered. They
will replace all other brackets.
Shelf Installation Instructions
1. Notice the shelves have four alignment pins on the
underside and a backstop on the top back.
2. Insert the shelves into the cabinet.
• The backstop should be at the top back.
• The alignment pins should be in front and back of the
shelf supports.

14 Part Number: 9295093 07/20
Installation Section 2
Optional Overshelf Installation Instructions
If the unit is ordered to have the overshelf:
1. Remove the three screws from each top side of the
cabinet (total six screws).
2. Set the overshelf in-place on the top of the cabinet.
3. Line up the overshelf holes with the unit holes.
4. Secure with three screws per side of the cabinet (total
six screws).
If the overshelf was not ordered with the unit:
1. Set the overshelf in-place on the top of the cabinet.
2. Secure with three screws per side of the cabinet (total
six screws).

Part Number: 9295093 07/20 15
Section 2 Installation
Standard Heavy Duty Cutting Board Bracket
Mounting
Supplies Needed
• #3 Phillips Screwdriver
Parts Included For 27” & 32” Units
Qty Description Part No.
1 Left Bracket Varies
1 Right Bracket Varies
1 Silicone 9291311
2 Screw, pan head 9321519
2 Screw, flat head 9324092
2 Fender Washer 9324043
Parts Included For 48” Units
Qty Description Part No.
1 Left Bracket Varies
1 Center Bracket Varies
1 Right Bracket Varies
1 Silicone 9291311
3 Screw, pan head 9321519
3 Screw, flat head 9324092
3 Fender Washer 9324043
Parts Included For 60”, 64” & 72” Units
Qty Description Part No.
1 Left Bracket Varies
2 Center Bracket Varies
1 Right Bracket Varies
1 Silicone 9291311
4 Screw, pan head 9321519
4 Screw, flat head 9324092
4 Fender Washer 9324043
Left Bracket
Center Bracket
Right Bracket

16 Part Number: 9295093 07/20
Installation Section 2

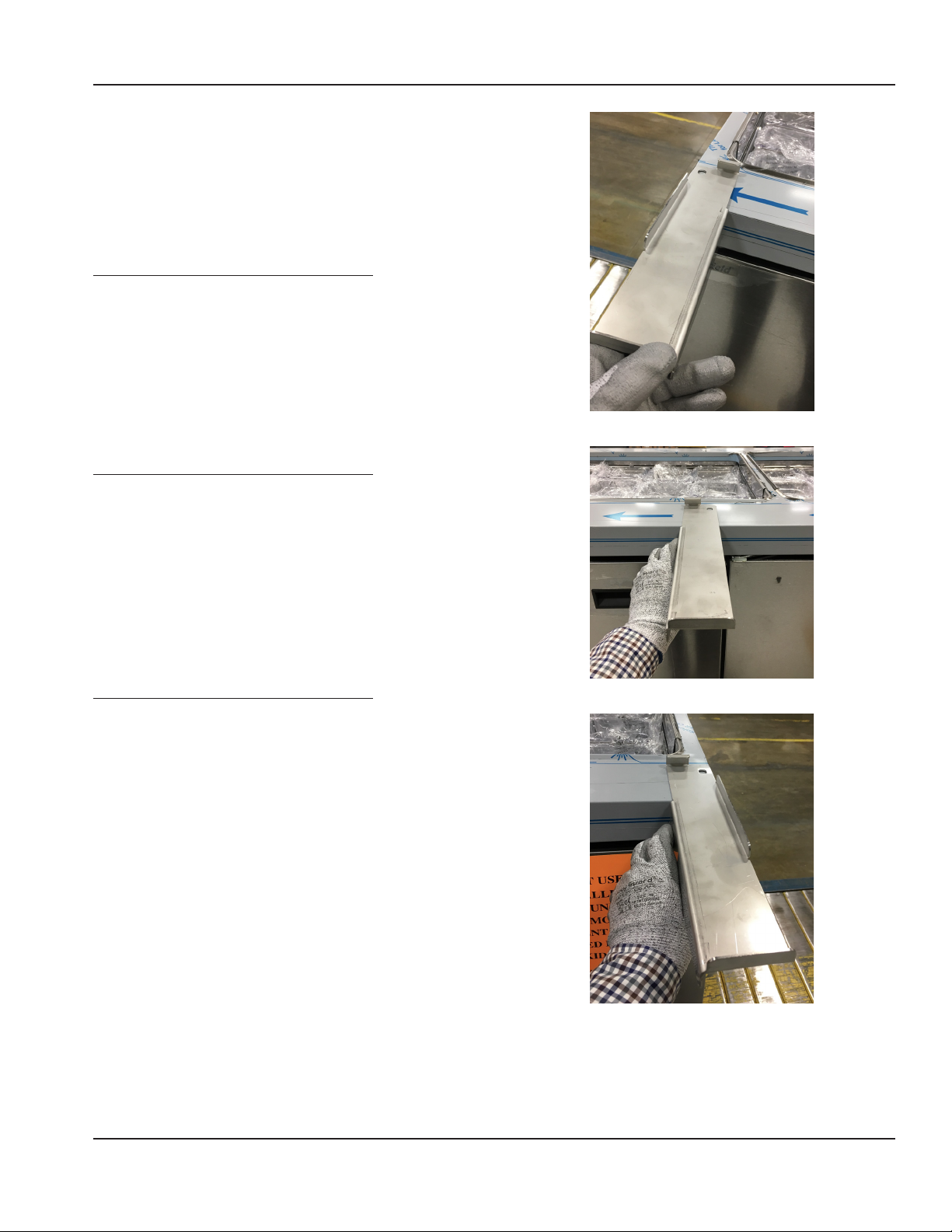

Heavy Duty Cutting Board Bracket Mounting Instructions
1. Attach each bracket to the top of the unit with one flat
head screw (9324092).
Top
2. Attach each bracket to the face of the unit with one
fender washer (9324043) and one pan head screw
(9321519).
• Some adjustment to align the brackets may be
necessary once the cutting board is installed.
• Do not over tighten the screws.
Face
3. Install the cutting board onto the brackets.
• Make final bracket adjustments so the cutting board
sits flush in the brackets.
• Tighten screws.
4. Silicone (9291311) each bracket anyplace it touches the
top or face of the unit. This prevents foreign objects
from getting between the brackets and the unit.

Part Number: 9295093 07/20 17
Section 2 Installation
THIS PAGE INTENTIONALLY LEFT BLANK

18 Part Number: 9295093 07/20
DANGER
The on-site supervisor is responsible for ensuring that
operators are made aware of the inherent dangers of
operating this equipment.
DANGER
Do not operate any appliance with a damaged cord or
plug. All repairs must be performed by a qualified service
company.
DANGER
Never stand on the unit! They are not designed to hold
the weight of an adult, and may collapse or tip if misused
in this manner.
nWarning
Do not contact moving parts.
nWarning
All covers and access panels must be in place and properly
secured, before operating this equipment.
nWarning
The operator of this equipment is solely responsible
for ensuring safe holding temperature levels for all
food items. Failure to do so could result in unsafe food
products for customers.
nWarning
Overloading shelves can damage equipment or cause
bodily injury.
nWarning
Damp or wet hands may stick to cold surfaces.
nWarning
Do not block the supply and return air grills or the air
space around the air grills. Keep plastic wrappings,
paper, labels, etc. from being airborne and lodging in
the grills. Failure to keep the air grills clear will result in
unsatisfactory operation of the system.
,Caution
Do not throw items into the storage area. Failure to
heed this recommendation could result in damage to the
interior of the cabinet or to the blower coil.
Section 3
Operation

Part Number: 9295093 07/20 19
Section 3 Operation
Power To Cool
• After the cabinet is connected to the power source it will
automatically begin operating.
• With the covers and doors closed, the temperature of the
cabinet should reach 36°F to 40°F (2°C to 4°C) in about
one hour.
• Temperature on salad top will maintain 33°F to 41°F (1°C
to 4°C) with pans recessed 2.5” (6.5cm) at 86°F ambient
room temperature for a period of four hours, meeting
NSF-7 requirements.
Temperature Control
• The temperature control on all sald top units is located in
the rear of the unit.
• The factory setting for the control is 37.5°F and maintains
about 34°F(1°C) to 40°F (2°C) inside the box.
• There is also an optional display that can be added to the
front nosing of the unit. The control (without display)
would be mounted on the back of the unitl with a cable
connecting to the display.
Temperature Control Error Codes
Sensor 1 defect E01 Air sensor
Sensor 2 defect E02 Coil sensor
High Temp Alarm Hi 
switching at 2
second rate
Low Temp Alarm Lo
Line Voltage too
high
uHi
Ling voltage too
low
uLo
Control calls for
cooling for more
than 24 hours
straight
LEA Time includes
defrost. Error will
go away if the

the compressor
or if the power is

Efficient Operation
• Cabinets with pans should be operated with pans in
place. Operating the cabinet without all pans in place
may damage the cabinet.
• Continuous opening and closing of the door will hamper
the cabinet’s ability to maintain optimum refrigeration
temperature.
• Top section is not intended for overnight storage. Product
should be removed from pans. Pans can remain in
cabinet while empty.
Defrost
The electronic temperature controller monitors evaporator
temperature and compressor run time to determine the
proper time for a positive defrost cycle. A defrost cycle
can occur as often as every 45 minutes under extremely
heavy usage. When the controller enters the defrost mode
the compressor is shut off and will remain off until the
evaporator coil temperature exceeds 41°F or the controller
reaches a time limit of 50 minutes. The defrost cycle can last
from a minimum of 2 minutes to a maximum of 50 minutes.
Evaporator Fan Operation
Salad and mega top refrigerator units under 60” wide have
one evaporator and one axial fan. 60”, 64” and 72” wide units
have one large evaporator and two axial fans.
Cooling Cycle Defrost Cycle
Compressor On Compressor Off Compressor Off
Evaporator Fan Evaporator Fan Evaporator Fan
On On three minutes
the off three
minutes
On
During normal operation the evaporator fan may cycle
and/or pulse independently of the compressor. Consult
the service manual or contact Technical Support at
1-844-724-CARE if you are unsure of the proper
function.

20 Part Number: 9295093 07/20
DANGER
It is the responsibility of the equipment owner to perform
a Personal Protective Equipment Hazard Assessment
to ensure adequate protection during maintenance
procedures.
DANGER
Failure to disconnect the power at the main power supply
disconnect could result in serious injury or death. The
power switch DOES NOT disconnect all incoming power.
DANGER
Disconnect electric power at the main power disconnect
for all equipment being serviced. Observe correct polarity
of incoming line voltage. Incorrect polarity can lead to
erratic operation.
nWarning
Never use sharp objects or tools to remove ice or frost. Do
not use mechanical devices or other means to accelerate
the defrosting process.
nWarning
When using cleaning fluids or chemicals, rubber gloves
and eye protection (and/or face shield) must be worn.
nWarning
When cleaning interior and exterior of unit, care should
be taken to avoid the front power switch and the rear
power cord. Keep water and/or cleaning solutions away
from these parts.
nWarning
Never use a high-pressure water jet for cleaning or hose
down or flood interior or exterior of units with water. Do
not use power cleaning equipment, steel wool, scrapers
or wire brushes on stainless steel or painted surfaces.
,Caution
Maintenance and servicing work other than cleaning as
described in this manual must be done by an authorized
service personnel.
,Caution
Over shelves and other items mounted to the top of the
counters should never be installed in the field due to the
potential damage to the refrigeration system.
Responsibility
You are responsible for maintaining the equipment
in accordance with the instructions in this manual.
Maintenance procedures are not covered by the warranty.
Maintenance Daily Weekly Monthly After Prolonged Shutdown At Start-Up
Interior X X X
Gasket X X X
Exterior X X X
Drain X X X
Condenser Coil X X X
Casters X X X
Interior Cleaning
The interior can be cleaned using soap and warm water. If
this isn’t sufficient, try ammonia and water or a nonabrasive
liquid cleaner.
GASKETS
Gaskets require regular cleaning to prevent mold and mildew
build up and also to retain the elasticity of the gasket. Clean
them with water and mild soap (not citrus based). Avoid full
strength cleaning products on gaskets as this can cause them
to become brittle and crack. Never use sharp tools or knives
to scrape or clean the gasket. Gaskets can be easily replaced
and do not require the use of tools or an authorized service
person. The gaskets are dart style and can be pulled out of
the groove in the door. Place gasket in warm water to make
the material more pliable for installation. Dry and press into
place.
Section 4
Maintenance
