Well mPBX-U110R User manual

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
How to Install mPBX-U110R
in A 1U 19-Inch Rack
Version: V1.0
Date: September, 2012
1/8

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
Contents
INTRODUCTION......................................................................................................................3
CASE 1: INSTALLING ONE MPBX-U110R.....................................................................4
1.INSTALLATION EQUIPMENT .................................................................................................... 4
2.INSTALLATION STEPS ............................................................................................................. 4
CASE 2: INSTALLING TWO MPBX-U110R....................................................................6
1.INSTALLATION EQUIPMENT .................................................................................................... 6
2.INSTALLATION STEPS ............................................................................................................. 6
2/8

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
Introduction
This Guide would show you how to install one or two half-width mPBX-U110R in a single 1U
19-inch rack.
Before installation, please verify that you get the following accessories in one U300
package (See Figure 1-1):
1* mounting ear A
1* mounting ear B
1* mounting ear C
9* M3 screws
-
Figure 1-1
Mounting ear C M3 screws
mPBX-U110R
Mounting ear A
Mountin
g
ear B
3/8

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
Case 1: Installing one mPBX-U110R
1. Installation Equipment
To install one mPBX-U110R in the 1U rack, you need the following equipment:
1*mPBX-U110R
1*mounting ear A
1*mounting ear B
8*M3 screws
4*rack mount screws (not provided in the package)
1*screwdriver (not provided in the package)
2. Installation Steps
Step 1: Attach mounting ear A to one side of mPBX-U110R using four M3 screws.
Step 2: Attach mounting ear B to the other side of the mPBX-U110R using four M3 screws.
(See Figure 2-1& Figure 2-2)
Mounting ear A
mPBX-U110R
Mounting ear B
Figure 2-1
4/8

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
Figure 2-2
Step 3: Install the ears to the rack using four rack mount screws. (See Figure 2-3)
Rack mount screws
Figure 2-3
5/8

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
6/8
Case 2: Installing two mPBX-U110R
1. Installation Equipment
To install two mPBX-U110R in the 1U rack, you need the following equipment:
2*mPBX-U110R
2*mounting ear B
2*mounting ear C
18*M3 screws
4*rack mount screws (not provided in the package)
1*screwdriver (not provided in the package)
2. Installation Steps

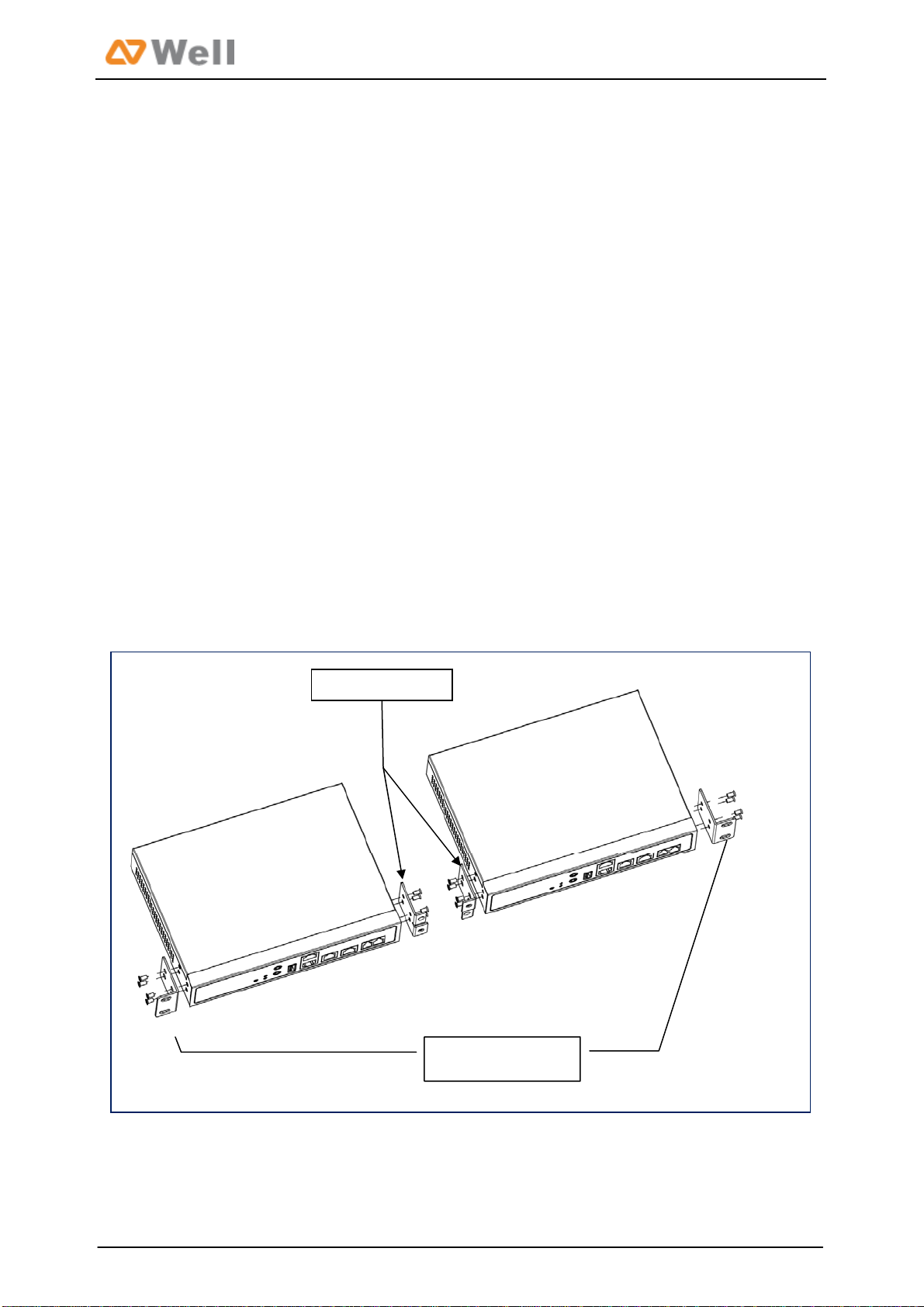

Step 1: Attach one mounting ear B to the left side of U300 A and one mounting ear C to
the right side.
Step 2: Attach one mounting ear C to the left side of U300 B and one mounting ear B to
the right side. (See Figure 3-1)
Figure 3-1
Step 3: Joint mPBX-U110R A and B. (See Figure 3-2)
Mounting ear C
U110R A
U110R B
Mounting ear B

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
7/8
Figure 3-2
Step 4: Secure the joint using two M3 screws. (See Figure 3-3)
Figure 3-3
Insert two M3 screws
U110R A
U110R B
Joint

How to Install WELL mPBX-U110R in A 1U 19-Inch Rack
Step 5: Install the ears to the rack using four rack mount screws. (See Figure 3-4)
Figure 3-4
<The End >
Rack mount screws
8/8
