Wenger Legacy User manual

©Wenger Corporation 2017 Printed in USA 06/17 Part #186G186-05
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
Contents
Visit the Legacy Classic web page at www.wengercorp.com for more details.
Note: Please read and understand the instructions before operating the Acoustical Shell.
Note: If you need additional information, contact Wenger Corporation using the information below.
Owner’s Manual
Legacy®Classic Acoustical Shell
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General ......................................2
Manufacturer ..................................2
Intended Use ..................................2
Warranty .....................................2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General ......................................3
Set Up and Usage..............................3
Product Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Required Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Storing the Shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Moving the Shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Arranging the Shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Raising the Shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Lowering the Shell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

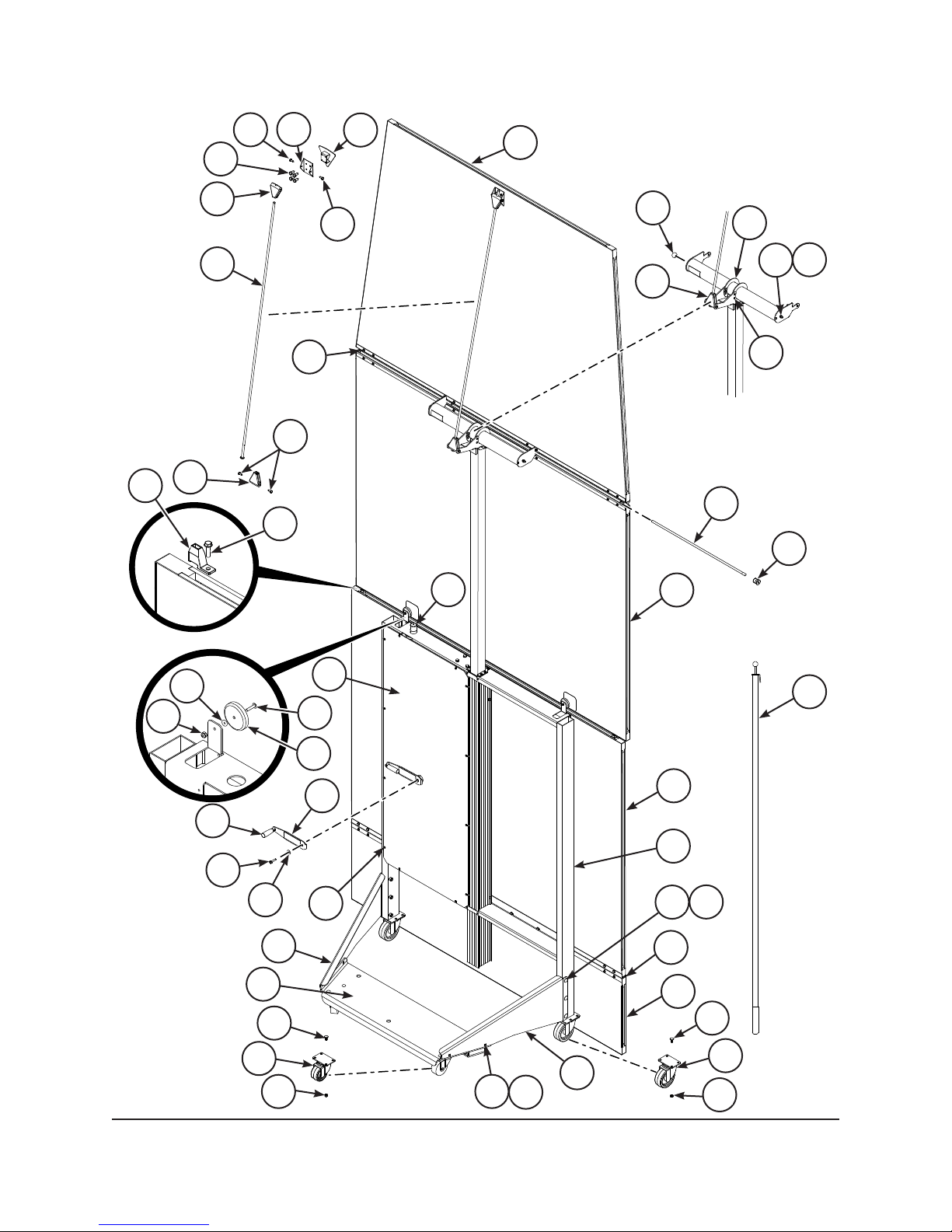

Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Cleaning .....................................16
Mechanical Check ..............................16
Panel Repair ..................................16

2
Important User Information
General
Copyright © 2017 by Wenger Corporation
All rights reserved. No part of the contents of this manual may be reproduced, copied, or transmitted
in any form or by any means including graphic, electronic, or mechanical methods or photocopying,
recording, or information storage and retrieval systems without the written permission of the publisher,
unless it is for the purchaser’s personal use.
Printed and bound in the United States of America.
The information in this manual is subject to change without notice and does not represent a commitment
on the part of Wenger Corporation. Wenger Corporation does not assume any responsibility for any
errors that may appear in this manual.
In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for
direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this
manual.
The information in this document is not intended to cover all possible conditions and situations that might
occur. The end user must exercise caution and common sense when assembling or installing Wenger
Corporation products. If any questions or problems arise, call Wenger Corporation at 1-800-887-7145.
Manufacturer
The Legacy® Classic Acoustical Shell is manufactured by:
Wenger Corporation
555 Park Drive, Owatonna, MN 55060
800-4WENGER (493-6437) • 1-507-455-4100 www.wengercorp.com
Intended Use
• This product is designed to be an acoustical reector for vocal or instrumental groups.
Towers may also be used as a backdrop or as a screen for other functions such as speeches
and ceremonies.
• This product is intended for indoor use in normal ambient temperature and humidity conditions —
it must not be exposed to outside weather conditions.
• This product is intended to be assembled only as described in these instructions.
Warranty
This product is guaranteed free of defects in materials and workmanship for ve full years from date of
shipment. A full warranty statement is available upon request.

3
Safety Precautions
Failure to comply with
Warnings and Cautions in this
document can result in damage
to property or serious injury.
!CAUTION
Always observe and comply
with the Warnings and
Cautions posted on the system
equipment.
!CAUTION
Never use the Legacy Classic
Acoustical Shell to support
scenery, signs, lighting, etc.
!CAUTION
Never move the Legacy
Classic Acoustical Shell more
than a few feet when it is in
the Performance Position.
!CAUTION
General
Throughout this manual you will nd CAUTIONS and WARNINGS which are dened as follows.
•WARNING means that failure to follow the instruction may result in serious injury or death.
•CAUTION means that failure to follow the instruction may result in serious injury or damage to
property.
Read all of these safety instructions before setting up the Legacy Classic Acoustical Shell components.
Set Up and Usage
Always have the Legacy
Classic Acoustical Shell in
the Storage Position when
moving to dierent locations.
!CAUTION
Never use the Legacy Classic
Acoustical Shell outdoors.
!CAUTION
Do not force the crank handle
or the crank mechanism
could be damaged.
!CAUTION
Make sure that anyone operating
the Legacy Classic Acoustical
Shell has read and understands
this manual.
!CAUTION
Do not move the shell if the
Canopy panel is raised and
unlocked.
!CAUTION
To prevent damage, fold the
crank handle in before storing
or transporting shells.
!CAUTION
To prevent damage, transport
shells individually and never
nested in a group.
!CAUTION
Do not use a powered device
such as a fork lift to transport
the shells.
!CAUTION

4
A Legacy Classic Acoustical Shell includes a counter-weighted base on casters,
a support frame, and four acoustical reector panels.
The following terms are used throughout these instructions:
Shell - One complete unit.
Base - The assembly that supports the frame and panels.
Canopy Panel - The highest panel. Can be either tapered or
rectangular shaped.
Upper Panel - The higher of the two middle panels.
Lower Panel - The lower of the two middle panels.
Filler Panel - The panel closest to the ground.
Raising - Setting up a shell.
Lowering - Taking down a shell.
Storage Position - When a shell is folded down.
Performance Position - When a shell is fully raised.
Shell
Performance Position
Canopy
Panel
Upper
Panel
Lower
Panel
Filler
Panel
Storage Position
Product Terminology
Base

5

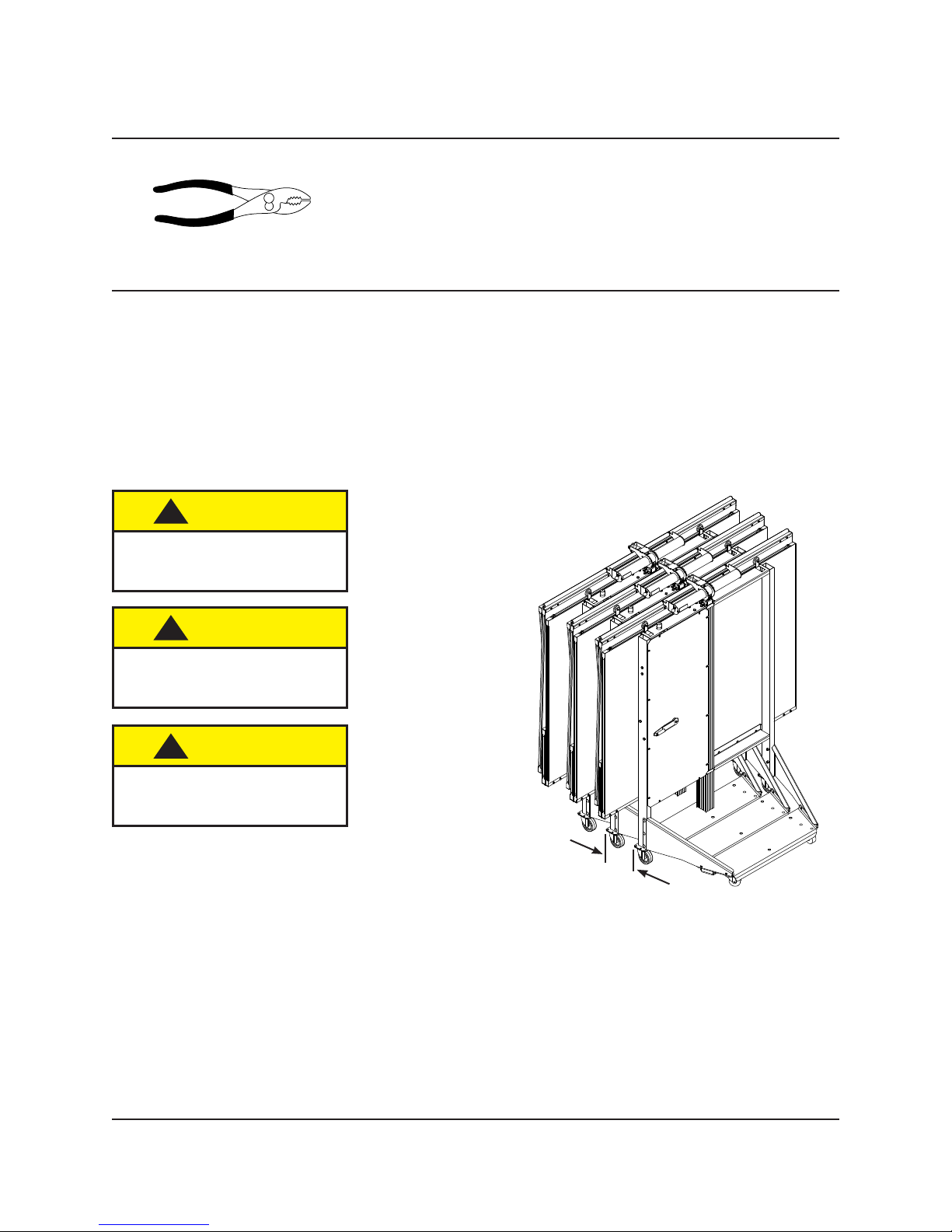

In their Storage Position, the shells can pass through a 35” x 79” opening (a typical 36” door).
A single shell unit is 72” wide x 78½” high x 34½” deep (183 x 199 x 88 cm).
Each additional shell will “nest” with the others as shown, requiring an additional 10⅝” (27 cm)
of depth per unit.
Store the shells in a space that is clean and dry. Avoid spaces with high heat, extreme cold,
or very humid conditions.
Never leave a shell in the Performance Position for more than a week at a time. Always lower
the shells to their Storage Position between events and rehearsals.
Storing the Shells
10⅝”
(27 cm)
Pliers
A pliers may be required to adjust the Legacy Classic Acoustical Shell.
Required Tools
To prevent damage, fold the
crank handle in before storing
or transporting shells.
!CAUTION
To prevent damage, transport
shells individually and never
nested in a group.
!CAUTION
Do not use a powered device
such as a fork lift to transport
the shells.
!CAUTION

6
One person can move and steer a single shell. All four wheels are swivel casters, so steering the shell
requires special attention.
If a shell is nested with other shells, prevent damage by having two people move the shell away from
the other shells and through any door openings.
If a shell must be moved more than a few feet to the performance space, carefully roll it sideways at a
slow pace. Slow down for corners and when moving through doorways.
The swivel casters are heavy-duty, but moving the shells over thresholds should be done carefully and
at a slow speed. Use a ramp to move the shells over curbs or steps. Always move the shells sideways
when going up or down a ramp.
To avoid ngerprints on the panels, have clean hands or wear clean gloves.
Moving the Shells
Never move the Legacy
Classic Acoustical Shell more
than a few feet when it is in
the Performance Position.
!CAUTION
Always have the Legacy
Classic Acoustical Shell in
the Storage Position when
moving to dierent locations.
!CAUTION
Do not move the shell if the
Canopy panel is raised and
unlocked.
!CAUTION

7
Each shell is 72” (183 cm) wide. The canopy panels on the shell can be tapered to provide a “tight”
enclosure when the shell is set up on a 19 foot radius and the canopy is set at a 45° angle — the
most common arrangement for choral groups. Shells with rectangular canopies can be used for other
arrangements to accomplish desired effects.
While they are still in the Storage Position, arrange the shells as desired, in a row or arc.
Check for overhead clearance and for t with risers and other equipment in the performance space.
Roll the shells about 6” (15 cm) apart, to allow clearance for raising them to the Performance Position.

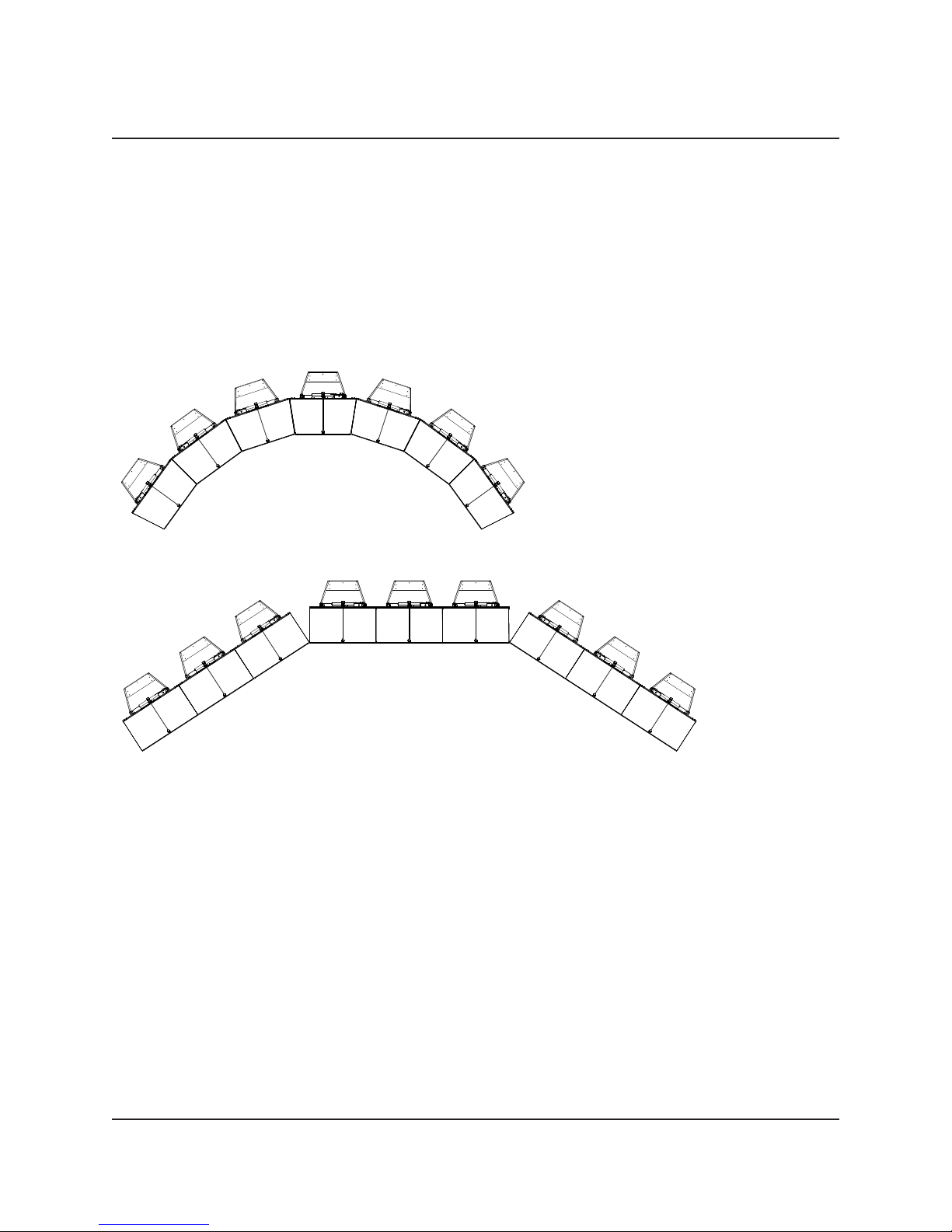

Arranging the Shells
Arc Conguration
Tapered Canopy Panels
Row Conguration
Rectangular Canopy Panels

8
Raise the shells to the Performance Position in a well-lit area.
Raise the shells to the Performance Position one at a time.
It is recommended that one person stand behind the shell to serve as a spotter, to prevent raising the
shell into an obstacle or another shell.
1. Roll the shell as close to the nal Performance Position as possible.
2. Pull out on the bottom of the Upper Panel and unfold the Filler Panel.
2. Move the Canopy Lock Knob to the “RAISE” position.
Raising the Shell
Make sure that anyone
operating the Legacy Classic
Acoustical Shell has read and
understands this manual.
!CAUTION
Never move the Legacy
Classic Acoustical Shell
more than a few feet when
it is in the Performance
Position.
!CAUTION
Always have the Legacy
Classic Acoustical Shell
in the Storage Position
when moving to dierent
locations.
!CAUTION
Upper
Panel
Filler
Panel
Canopy
Lock Knob

9

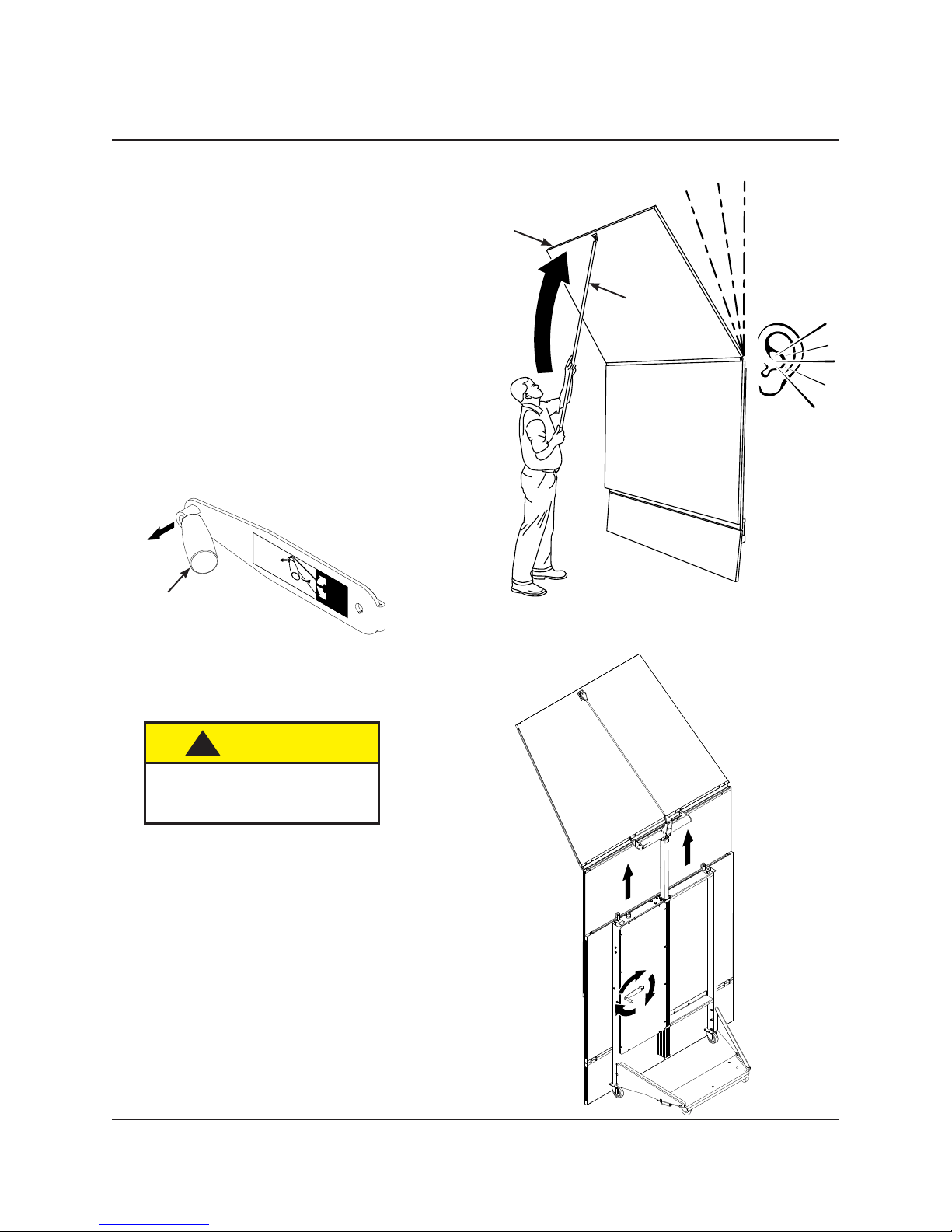

Raising the Shell (continued)
I
II III IIII
3. Lift the Canopy Panel and use the Canopy Tool
to raise it to one of the four set position angles.
The tool ts into the triangular hole in the
top edge of the Canopy Panel.
There will be a slight “click” sound as the
Canopy Panel reaches each of the set
positions.
NOTE: One Canopy Tool is supplied with each
Legacy Classic Acoustical Shell set.
It may be stored on the frame of any shell.
4. Pull out and unfold the Crank Handle located
on the back side of the shell.
5. Turn the Crank Handle clockwise slowly to raise the panels.
The Crank will stop when the panels reach the shell’s
maximum height.
PULL
HANDLE
OUT AND
FOLD IN
FOR STORAGE
RAISE
LOWER
PULL
HANDLE
OUT AND
FOLD IN
FOR STORAGE
RAISE
LOWER
45°=38.5” (98 cm) Deep
60°=27” (69 cm) Deep
75°=14” (36 cm) Deep 90°=0” (0 cm) Deep
Do not force the crank handle
or the crank mechanism
could be damaged.
!CAUTION
Crank
Handle
Canopy
Tool
Canopy
Panel

10

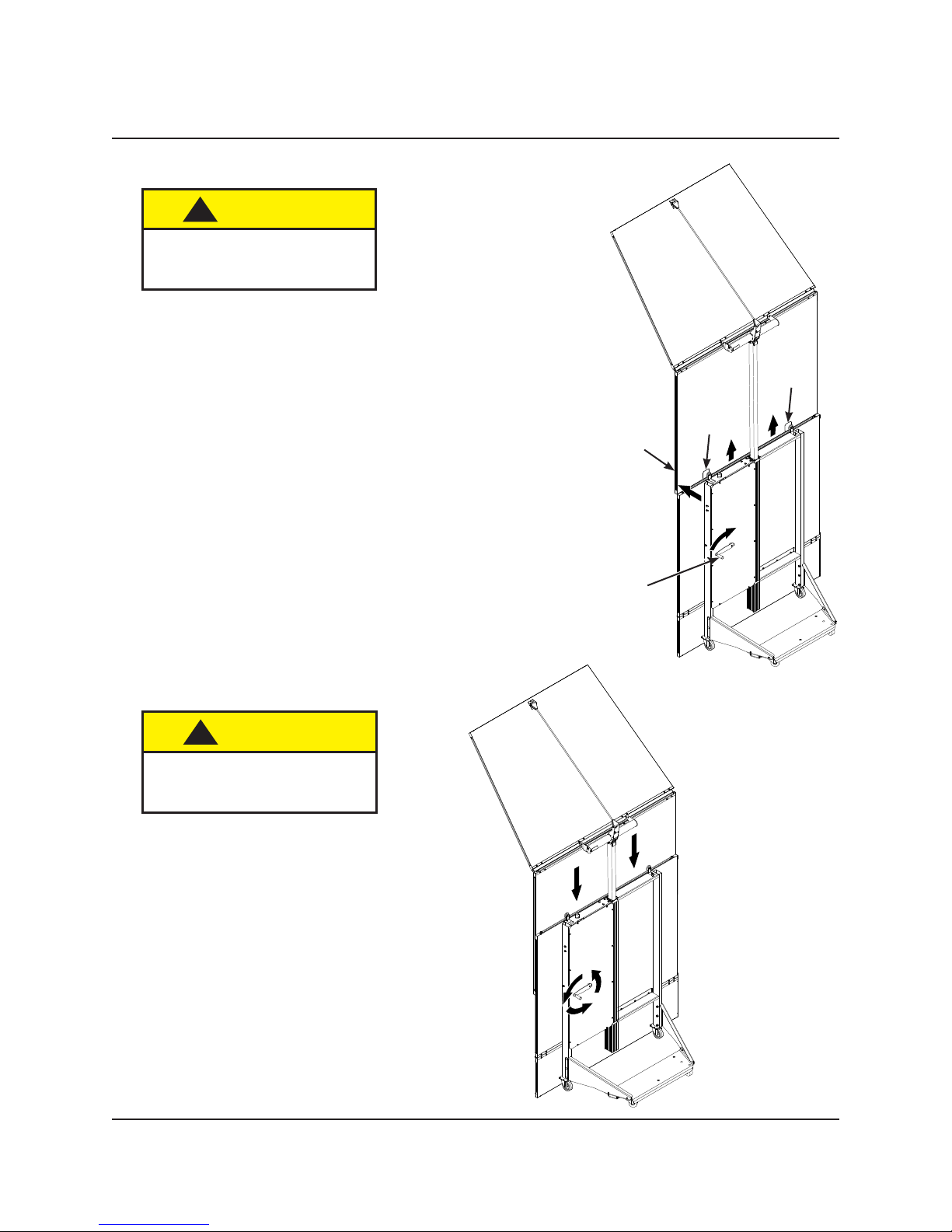

6. Push the Upper Panel against the magnets.
Turn the Crank Handle counter-clockwise to lower the Upper Panel
until it rests on the Lower Panel in the Performance Position.
NOTE: This is the shell’s normal performance height.
If the shell is used at less than the maximum
height, it cannot be guaranteed that the
Upper and Canopy Panels will stop and
precisely remain at any other specic height.
Some amount of drift downward may occur
when the upper hinged panel is fully raised.
This is normal and is due to variables in the
weight and internal spring tension, especially
in units with the rectangular canopy.
7. To make minor adjustments in the Canopy Panel angle (to align the canopies on
adjacent shells), turn the Adjustment Rod with a pliers.
Up
Down
Raising the Shell (continued)
Upper
Panel
Upper
Panel
Magnet
Magnet

11
Lowering the Shell
1. Turn the Crank Handle ¼ turn Clockwise to slightly raise the Upper Panel.
2. Push out on the bottom of the Middle Panel to separate it from the magnets.
3. Turn the Crank Handle counter-clockwise until the
shell is completely lowered.
Do not force the crank handle
or the crank mechanism
could be damaged.
!CAUTION
The Middle Panel must be
disengaged before the shell
can be lowered.
!CAUTION
Crank
Handle
Magnet
Upper
Panel
Magnet

12
4. Pull out and fold in the Crank Handle located on the back side of the shell.
5. Move the Canopy Lock Knob to the “LOWER” position.
6. With the Canopy Tool, raise the Canopy Panel
slightly (A) to release it, then lower it (B) to the
Storage Position. There will be a slight “click”
sound as the Canopy Panel is released.
NOTE: One Canopy Panel is fully vertical,
it may have to be pushed back slightly
to release it and then pulled forward
gently to start the forward rotation.
Lowering the Shell (continued)
A
B
Shell could tip if a locked
Canopy Panel is pulled on.
!CAUTION
Always allow the Canopy
Panel to lower under it’s own
weight.
!CAUTION
PULL
HANDLE
OUT AND
FOLD IN
FOR STORAGE
RAISE
LOWER
Canopy
Lock Knob
Canopy
Tool
Canopy
Panel

13
7. Pull out the bottom of the Upper Panel and fold the Filler Panel up to its Storage Position
(between the Upper and Lower Panels).
Lowering the Shell (continued)
Upper
Panel
Filler
Panel

14
Replacement Parts List
Item Description Qty. Item Description Qty.
1COVER/BASE, COUNTERWEIGHT SET 123 WASHER, LOCK, 5/16, ZP, HELICAL 1
2 NUT,LOCK,NY.IN,FULL,ZP,5/16-18 12 24 NUT, LOCK, NY .IN, FULL, ZP, 1/4-20 1
3 CASTER,PLATE,SWIV,3 D,250 CAP 2 25 ROD,PAWL RELEASE 1
4 BOLT,CARR,5/16-18X3/4,ZP 12 26 KNOB,BLK. 1”DIA,1/4-20 1
5 COVER,LIFT MECHANISM 127 TAPERED CANOPY PANEL,CARRIER ASSY or
RECTANGULAR CANOPY PANEL,CARRIER ASSY 1
6SCREW,SM,PTH,#8 X 5/8,BLK.ZN 12 28 PIN, MAIN 2
7 SCREW,SELF DRILLNG,NO.10-16,.75 629 PIVOT BEARING,PANEL 6
8 HINGE, LOWER PANEL 1MIDDLE PANEL,CARRIER ASSY 1
9 HANDLE,FOLD,PLASTIC,2.91 131 LEGACY CANOPY TOOL 1
10 CAPSCREW,GD2,ZP,1/4-20X1 1/4 132 PANEL ASSY,MIDDLE 1
11 HANDLE,CRANK 133 MAIN FRAME,PAINTED 1
12 COG,ALIGNMENT 2 34 BOLT, CARRIAGE, 3/8-16X2 1/4, ZP 6
13 PIVOT WLDMT, MID PANEL 135 NUT,LOCK,NY.IN,FULL,ZP,3/8-16 10
14 SCREW,SELF TAP, HWH, 1/4-20X3/4 4 36 PANEL ASSY,LOWER 1
15 ROD END, CANOPY, LOWER 137 CASTER,PLATE,SWIVEL,4D,250 CAP 2
16 CANOPY ROD 138 BOLT, CARRIAGE, 3/8-16X1, ZP 4
17 ROD END,CANOPY,UPPER 139 FRAME, LEFT HAND SIDE BASE 1
18 BRACKET, ROD END 140 FRAME, RIGHT HAND SIDE BASE 1
19 RECEIVER WLDMT 141 MAGNET, CERAMIC CUP 2
20 RATCHET WLDMT 142 SCREW, MACHINE, TH, #8-32X 3/4, ZP 2
21 RING, CATCHPLATE 2 43 O-RING, .449 OD X .171 ID 2
22 RIVET,BLIND,3/16,GRIP.251/.375 4 44 NUT, LOCK, NYLON INSERT, #8-32 2
45 CAP, SHAFT 1

15
1
2
3
4
5
6
23
9
10
11
13
15
14
16
8
17
7
14
18 19
14
20
21
26
27
28
29
30
31
32
33
34
36
4
37
2
38
35
22
35
25
24
39
40
7
12
43
44
41
42
45

16
Cleaning
Use a soft, damp cloth to clean all surfaces. Never hose down the shells or soak any components.
For smudges or ngerprints, dampen a cloth with any standard non-abrasive household cleaner
and wipe clean.
Mechanical Check
Periodically (every three or four uses) check for loose or damaged parts and for loose fasteners.
Replace or repair damaged parts promptly. Refer to the Replacement Parts List.
Panel Repair
Panels are of lightweight composite construction and made of durable materials. If accidentally
damaged, repairs can be made with common llers and paint.
Maintenance
Do not make adjustments
to the lift mechanism.
Contact Wenger Customer
Service for repair options.
!CAUTION
Do not remove the canopy
or middle panels.
Contact Wenger Customer
Service for repair options.
!CAUTION
