WePresent WiPG-2000 User manual

wePresent WiPG-2000
WiPG-2000 User’sManual
(Model Name: WiPG-2000)
VERSION: 0.3
DATE: FEBRUARY 1, 2013
P)0$.) 0/$1' <)0. &+1)'$
!! ! "!#$ %#&#'() *+*", - .
-H1&$D&21<123
4AA;$6$666=$??88
US, Canada, South America:
[phone]
South Africa:
[phone]
© WP Technologies, Inc. 2015
WP1000-Manual
Europe, UK, Middle East:
[phone]
For more information
www.wePresentWiFi.com
Asia Pacific:
[phone]

2
Table of Contents
1 OVERVIEW ............................................................................................................................... 6
2 PACKAGE CONTENTS ................................................................................................................... 9
3 USB TOKEN CONTENTS............................................................................................................... 9
4 PHYSICAL DETAILS .................................................................................................................... 10
5 WHAT YOU MIGHT NEED .......................................................................................................... 11

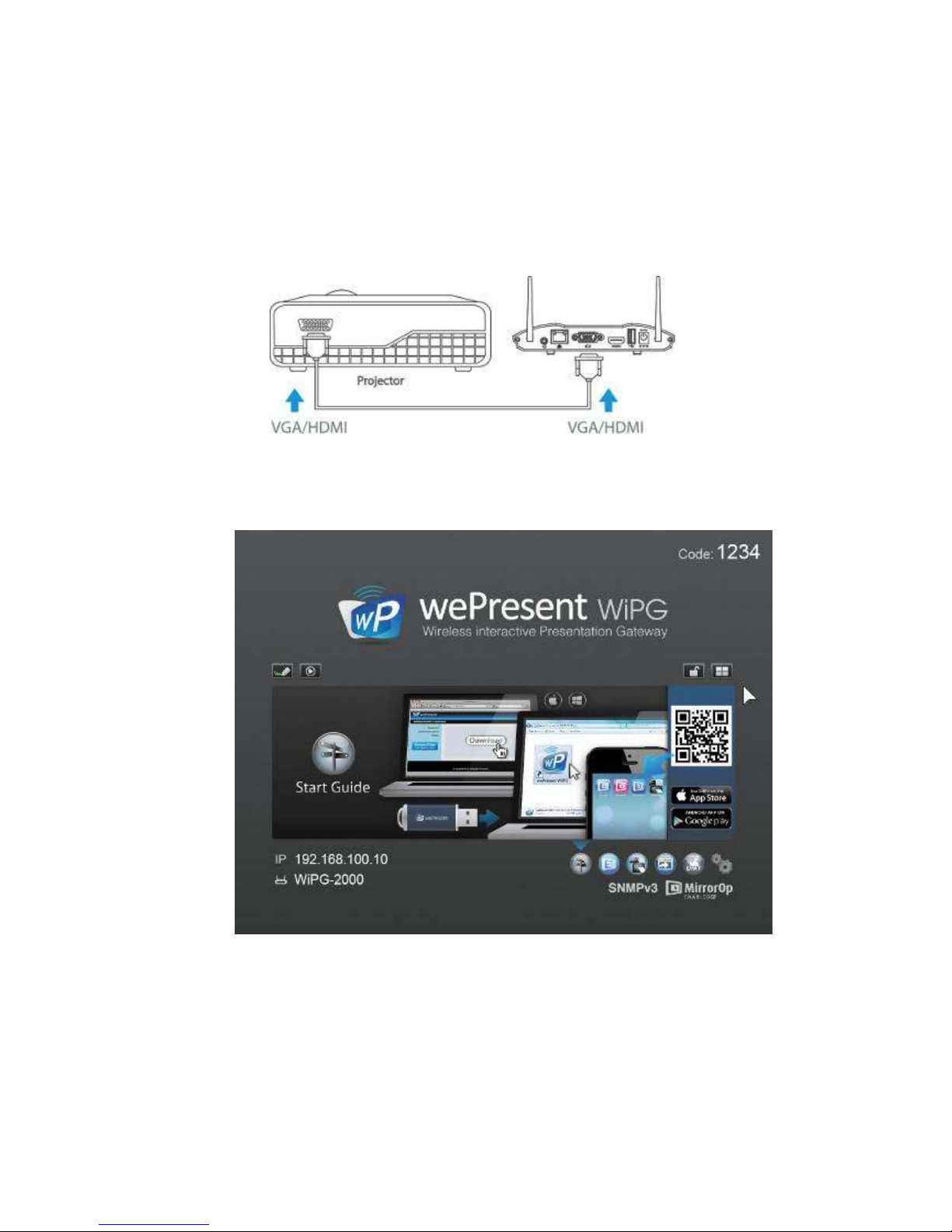

6 QUICK INSTALLATION ................................................................................................................ 12
7 WIPG-2000 START/STANDBY PAGE ............................................................................................ 13
7.1 QUICK GUIDE / USER-LIST ......................................................................................................... 13
7.2 FEATURE ICONS ....................................................................................................................... 13
7.3 REMOTE TOUCH CONTROL (UMT) .............................................................................................. 15
7.4 CONFERENCE CONTROL MODE ................................................................................................... 15
7.5 SPLIT SCREEN MODE ................................................................................................................. 16
7.6 DIRECT DRAW ......................................................................................................................... 16
7.7 PEN MENU FUNCTION UNDER PROJECTING MODE. ....................................................................... 17
7.8 USB PLAYER FUNCTION ............................................................................................................ 18
8 DOWIFI FOR WINDOWS ........................................................................................................... 19
8.1 INSTALL THE APPLICATION .......................................................................................................... 19
8.2 START THE APPLICATION ............................................................................................................ 21
8.3 RECENT CONNECTION ............................................................................................................... 21
8.4 CONNECT TO RECEIVER DEVICE ................................................................................................... 22
8.5 LOGIN .................................................................................................................................... 23
8.6 CHANGE TO ANOTHER WIFI NETWORK ........................................................................................ 23
8.7 MAIN USER INTERFACE ............................................................................................................. 24
8.8 SCREEN PROJECTION ................................................................................................................ 24
8.9 CONNECTED RECEIVER LIST ........................................................................................................ 25
8.10 VIDEO STREAMING ................................................................................................................... 25
8.11 MENU ................................................................................................................................... 27
8.11.1 LAUNCH SIDEPAD .................................................................................................................... 27
8.11.2 LAUNCH WEBSLIDES ................................................................................................................ 28
8.11.3 REMOTE CONTROL ................................................................................................................... 30
8.11.4 PROJECTION SOURCE ................................................................................................................ 30
8.11.5 ADVANCED PROJECTION OPTION ................................................................................................ 31
8.11.5.1 ADVANCED SCREEN CAPTURE ..................................................................................................... 31
8.11.5.2 PROJECTION ASPECT RATIO ........................................................................................................ 32
8.11.5.3 SELECT PROJECTION MODE ........................................................................................................ 32
8.11.5.4 RESOLUTION SETTINGS ............................................................................................................. 33
8.11.5.5 PROJECTION QUALITY ............................................................................................................... 33

3
8.11.5.6 SCREEN ENCODING FORMAT ...................................................................................................... 33
8.11.6 OTHERS ................................................................................................................................. 34
8.11.6.1 AUTO POWER MANAGER .......................................................................................................... 34
8.11.6.2 MAKE USB PNS TOKEN ............................................................................................................ 35
8.11.6.3 COPY APPLICATION TO DESKTOP .................................................................................................. 35
8.11.6.4 HOT KEY ................................................................................................................................ 36
8.11.7 DISCONNECT ........................................................................................................................... 36
8.11.8 ABOUT .................................................................................................................................. 36
8.11.9 EXIT ...................................................................................................................................... 36
9 DOWIFI FOR MAC ................................................................................................................... 37
9.1 INSTALL THE APPLICATION .......................................................................................................... 37
9.2 START THE APPLICATION ............................................................................................................ 38
9.3 RECENT CONNECTION ............................................................................................................... 38
9.4 LOGIN .................................................................................................................................... 39
9.5 CHANGE TO ANOTHER WIFI NETWORK ........................................................................................ 40
9.6 MAIN USER INTERFACE ............................................................................................................. 41
9.7 SCREEN PROJECTION ................................................................................................................ 41
9.8 CONNECTED RECEIVER LIST ........................................................................................................ 42
9.9 VIDEO STREAMING ................................................................................................................... 42
9.10 MENU ................................................................................................................................... 43
9.10.1 LAUNCH SIDEPAD .................................................................................................................... 43
9.10.2 LAUNCH WEBSLIDES ................................................................................................................ 45
9.10.3 REMOTE DESKTOP.................................................................................................................... 47
9.10.4 SELECT PROJECTION DESKTOP .................................................................................................... 47
9.10.5 ADVANCED SETTINGS ................................................................................................................ 47
9.10.5.1 PROJECTION ASPECT RATIO ........................................................................................................ 47
9.10.5.2 SELECT PROJECTION MODE ........................................................................................................ 48
9.10.5.3 RESOLUTION SETTINGS ............................................................................................................. 48
9.10.5.4 PROJECTION QUALITY ............................................................................................................... 48
9.10.5.5 SCREEN ENCODING FORMAT ...................................................................................................... 49
9.10.6 OTHERS ................................................................................................................................. 49
9.10.6.1 MAKE USB PNS TOKEN ............................................................................................................ 49
9.10.6.2 HOT KEY ................................................................................................................................ 50
9.10.7 DISCONNECT ........................................................................................................................... 50
9.10.8 ABOUT .................................................................................................................................. 50
9.10.9 EXIT ...................................................................................................................................... 50
10 WEB MANAGEMENT ................................................................................................................ 51
10.1 HOME PAGE ........................................................................................................................... 51
10.2 DOWNLOAD............................................................................................................................ 51

4
10.3 CONFERENCE CONTROL ............................................................................................................. 52
10.4 ADMIN .................................................................................................................................. 53
10.5 SYSTEM STATUS ....................................................................................................................... 54
10.6 DEVICE SETUP ......................................................................................................................... 55
10.7 NETWORK SETUP ..................................................................................................................... 56
10.8 WIFI SETUP ............................................................................................................................ 58
10.9 SNMP SETUP ......................................................................................................................... 60
10.10 OSD SETUP ............................................................................................................................ 61
10.11 WEBSLIDES SETUP ................................................................................................................... 62
10.12 CHANGE PASSWORDS ............................................................................................................... 63
10.13 RESET TO DEFAULT ................................................................................................................... 64
10.14 FIRMWARE UPGRADE ............................................................................................................... 64
10.15 REBOOT SYSTEM ...................................................................................................................... 65
10.16 LOGOUT ................................................................................................................................. 66
10.17 WEBSLIDES ............................................................................................................................ 67
11 USB PLAYER ........................................................................................................................... 68
11.1 PHOTO VIEWER ....................................................................................................................... 69
11.2 VIDEO PLAYER ......................................................................................................................... 69
11.3 MUSIC PLAYER ........................................................................................................................ 70
11.4 OFFICE VIEWER ....................................................................................................................... 71
11.5 SETUP ................................................................................................................................... 72

5
Safety
1. Compliance IC
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the AWIND Wireless Device is below the Industry
Canada (IC) radio frequency exposure limits. The AWIND Wireless Device should be
used in such a manner such that the potential for human contact during normal
operation is minimized.
WiPG-1500 IC No.: 11600A-WIPG1500S
Antenna Information and Compliance:
This radio transmitter (IC:11600A-WIPG1500S, or WiPG-1500 if Category II)
has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Antenna Part Number:AN2400-5791RS, Antenna Type (Dipole), Gain 2.55dBi,
Impedance 50 ohms[Main]
Antenna Part Number:AN2400-5791RS, Antenna Type (Dipole), Gain 2.55dBi,
Impedance 50 ohms[Aux]
Caution: Exposure to Radio Frequency Radiation
To comply with RSS 102 RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this device
and all persons.

6
1Overview
WiPG-2000 is a spectacular wireless presentation device which connects
multi-platform devices (Windows/Mac/Pad/Smartphone/AirPad) for engaging
interactive presentations by supporting finger-touch technology, virtual whiteboard
and Win 7/8 HID compatible remote devices.
WiPG-2000 Highlight Features:
Icon
Feature
Description
DoWiFi
Wireless presentation for Windows and Mac
Win: XP/Vista/7/8,
Mac: 10.7/10.8/10.9
MirrorOp for Galaxy
MirrorOp sender for Samsung Galaxy series devices
Support. Users can project any contents from their
Samsung Galaxy devices.
MirrorOp Presenter
High quality presentation and annotation via
iPhone/iPad or Android devices (Word, Excel, PPT, PDF ,
Photo , Browser, Live Camera, Screenshot)
Video Streaming
Network Video/Music streaming for Windows and Mac.
WiFi-Doc
High quality presentation via iPhone/iPad or Android
devices (Word, Excel, PPT, PDF , Photo , Screenshot)
SidePad
Control the projecting screen on PC or Mac via
iPhone/iPad or Android devices
WebSlides
Broadcast slides to your devices with WiFi and web
browser
Audience can save the projecting slides for taking
notes
Webslides can be secured by password.
Direct Draw
Make free drawing on virtual
whiteboard/blackboard without any computer
connected

7
Make annotation on any projecting content. It
allows you to annotate on the screen during the
presentation
Annotating, writing and drawing can be done using
touch screen, AirPad or any other USB HID device
4-to-1 projection
Project four PC/Mac screens or WiFi-Doc content to one
projector/display at once.
One to Many Projection
Project the screen to up to four receiver devices at the
same time.
Conference Control /
OSD User-List
Control projection from WiPG's web page, or use
mouse/keyboard to select a PC from the standby screen.
Conference control function can be secured by
password
Moderator can control who is projecting.
Moderator can compare 4 screens side by side.
SNMP V3
Manage WiPG devices across the corporate network
through enhanced SNMP V3 protocol
UMT
Driverless remote touch control through network.
(Support standard Win 7/8 compatible USB HID touch
device)
Key Features
High performance screen/audio projection for Windows/Mac (Windows 7/8
and Mac 10.7/10.8/10.9)
Remote desktop control from AirPad, Touch Screen or Mouse/Keyboard for
Windows/Mac
Plug&Show: launching the projection application from a USB Token without
installation. Extra USB tokens with the PlugandShow function can be easily
created in the wePresent software.
High performance 4-to-1 Quadrant Screen Projection
Support up to 64 concurrent login users
Conference Control: Mediator function through the device web page or
standby screen
Support Wireless Multi-touch control (Win7/8 standard HID compatible device)
Support drawing feature for projecting sender screen, or drawing on

8
whiteboard without PC
Changeable Customized Image of full size Splash/standby screen.
-Replace entire start screen with background image. SNMP V3:
manage/configure multiple WiPGs through SNMP V3 protocol
-Firmware upgrade via FTP
-Enhance the remote SNMP manageability to higher security level
Wi-Fi Enterprise encryption support
Support MSI installer for Windows software deployment and execute
application from command line
Extended desktop support for both Windows and Mac
Security design: Session Login Code, WEP/WPA/WPA-Enterprise WiFi Security,
and GateKeeper
HDMI and VGA dual video interfaces
WiFi AP, Station and AP-Client mode: Make WiPG-2000 a part of your wired
or wireless network. Allowing internet access to all connected users and
presentation from network computers.
WiFi 802.1b/g/n

9
2Package Contents
wePresent WiPG-2000 Box
wePresent WiPG-2000 USB Token
AirPad device
Power Adapter (DC +5V, 2.6A)
2 WiFi Antenna
Quick Installation Guide
Wall Mount Kit
Warranty Card
3USB Token Contents
Windows Installer (WiPG-2000 Windows Installer)
MAC Installer (WiPG-2000 Mac Installer)
VAC Driver (For Windows XP Audio Projection)
VDD Driver (For Windows XP/Vista Virtual Extended Screen)
User Manual
wePresent WiPG Execution File
SVS Driver (For Mac Extended Screen)
Utility
PtG Converter (For MobiShow PtG function)
SNMP Manager (For SNMP Management)

10
4Physical Details
Front Panel
Description
Power Button and LED
Power on/off button.
LED Indicator: System Loading(Red), Ready(Blue)
USB Port (Front)
2 USB ports for USB mouse and keyboard
Rear Panel
Description
Antenna
WiFi Antenna
USB Port (Rear)
USB port for USB Thumb drive or Touch Device
RJ-45
10/100/1000M RJ-45 port
VGA Connector
VGA connector
HDMI
HDMI Connector
Audio Jack
Audio Jack (3.5mm)
Power Jack
Power Jack (5V/2.5A)
The USB port can support up to 5V/0.5A touch device and USB drive.

11
Bottom Side
Description
Screw Hole
Screw Hole for Wall Mount Kit
Reset Button
Press reset button and power on the device to execute
Hardware Reset.
5What You Might Need
Projector/display with VGA/HDMI interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod-touch device
Android Phone or Tablet device
Speaker (Optional, for audio projection feature)
USB Mouse and Keyboard (Optional, for remote desktop feature)
USB HID Touch Screen/IWB Device (Optional, for UMT feature)

12
6Quick Installation
1) Connect wePresent WiPG-2000 device to Projector/display through VGA/HDMI
port and turn on projector/display power.
2) Connect the power adaptor to WiPG-2000 device and press the power button to
turn on WiPG-2000 device. System will be ready when the LED light turns to blue.
It will show the default standby screen as below when system is ready.
3) Insert the speaker cable to WiPG-2000 audio jack for audio output
4) Insert the USB mouse or keyboard/AirPad or USB touch device to WiPG-2000
front/rear USB port for On-Screen Display (OSD) control. (Optional)

13
7WiPG-2000 Start/Standby Page
7.1 Quick Guide / User-List
The device will show the quick guide on the screen when there is no user connected.
When there is any new user connected to WiPG-2000, the user name will be show on
the user-list area. WiPG-2000 allows multiple user connection. See below image for
detail.
7.2 Feature Icons
1) You can also click on the feature Icons on the right hand bottom to view the Quick
Guide for each highlight feature.
(1)Quick Guide: Click on Quick icon , it describes that WiPG-2000 can support
Windows, Mac and Mobile devices. If your Smartphone has QR code scan App, you
can scan the QR code image on the screen with your Smartphone which will lead
you to the corresponding place to download all the available Apps.

14
(2)WiFi-Doc(TBD): Click on WiFi-Doc icon , it describes the wireless
presentation for Mobile using WiFi-Doc. If your Smartphone has QR code scan App,
you can scan the QR code image on the screen with your Smartphone which will
lead you to the corresponding place to download all the available Apps.
(3)SidePad: Click on SidePad icon , it describes WiPG-2000 support SidePad
feature which allow users control the projecting screen on PC or Mac via
iPhone/iPad or Android devices. If your Smartphone has QR code scan App, you
can scan the QR code image on the screen with your Smartphone which will lead
you to the corresponding place to download all the available Apps.
(4) WebSlides: Click on WebSlides icon . It describes WiPG-2000 support
WebSlides feature which can broadcast slides to audience’s web browser through
network.
(5)UMT: Click on UMT icon . It describes WiPG-2000’s UMT(Universal
Multi-Touch) feature which can support standard touch device without installing
driver.

15
(6) Setup: click on Setup icon , you can find the Firmware (FW) version,
resolution, WiFi channel and AP-client status information on the screen.
Meanwhile, you can also click on the “Calibration” function to calibrate the
projecting screen to an optimization mode.
7.3 Remote Touch Control (UMT)
WiPG-2000 can support standard Win7/8 compatible HID touch device. By
connecting the HID touch screen/IWB device, users can control the standby screen,
direct draw and the projecting screen remotely from the Touch Screen/IWB device.
Note:
1. The UMT can only support standard USB HID touch device, it can’t support the
touch device required installing additional driver.
2. It will process the touch event and send the mouse event to sender when the
sender is Windows XP, 7 and Mac.
3. The USB port on WiPG-2000 can supply up to 5V/0.5A power, the additional
power supply is required if the attached HID device required more power.
7.4 Conference Control Mode
1) Click to enable conference control mode and the sender will be blocked
when they try to overtake the screen from the sender application. The moderator
can only manage the projecting sender through web conference control page or the
OSD PC-List.

16
2) Click to disable conference control mode, the sender can overtake the
screen freely by pressing the button on the sender application
7.5 Split Screen mode
1) Click on the “Split Screen” button on the start page to enter “Split Screen”
page. You can see the connected sender list and press the “add” icon to
choose them to the selected quadrant area.
7.6 Direct Draw
1) Click on the “direct draw” button on the start page to enter “direct draw”
function page. You can make the free drawing on device screen through Mouse,
AirPad, Touch Screen or IWB device.

17
Click on the “direct draw” icon, the menu will pop up as below image.
Pen Menu Function
Button
Description
Open/Minimize all Pen menu bar.
Home, Go back to wePresent home standby screen.
Clear all of the drawing/writing on the screen.
Erase part of drawing/writing.
Select the pen color. (Red, Green, Blue)
Select the size of the pen. (Small, Medium, Big)
Click to use the blackboard. (All the drawing/writing will be
cleared when changes to different mode)
Click to use the whiteboard. (All the drawing/writing will be
cleared when changes to different mode)
7.7 Pen Menu Function Under Projecting Mode.
1) When users are projecting through Windows, Mac, Android and iOS application,
any Win7/8 standard HID compatible device (i.e AirPad/Mouse/IWB/Touch Screen)
can be used for Pen feature. Users can do free drawings/writings and annotation
on the projecting screen.

18
Item
Description
Home, Go back to wePresent home standby screen.
Enable/Disable the conference control mode.
The tool for PowerPoint presentation.
PageUp/PageDn, this button to go to previous/next page.
SlideShow, When the user is projecting a PPT file, press this
button to enable Slide Show function.
ESC, When the user is projecting a PPT file, press this button
to quit Slide Show mode.
Clear all of the drawing/writing on the screen.
Erase part of drawing/writing.
Enable the magnifier function.
Change to Mouse mode for remote control function.
Select the color and size for Pen mode. (Red, Green, Blue)
Select the size of the pen. (Small, Medium, Big)
Change to Pen mode for drawing/writing function.
Change to Pointer Mode.
7.8 USB Player function
1) Click on the “USB Player” button on the start page to enter “USB Player”
function. You can playback the Photo/Music/Video/Office files from the attached
USB drive. Details please see the USB Player section.

19
8DoWiFi for Windows
(Do Not Support Windows Phone, Windows RT)
8.1 Install the application
1) Make sure your PC WiFi is enabled already, and connect your PC to wePresent
WiPG-2000 box through WiFi. You can find the WiFi name of your WiPG box
information on the start/standby page.
2) Launch your browser and enter the Device Host Name (SSID) or IP address in the
browser. You can find the IP address and Host Name (SSID) on the
projector/display screen. (Default Host Name (SSID) is WiPG-2000-xxx, Default IP
is 192.168.100.10)
3) Download the wePresent software for “XP/Vista/Windows 7 / 8” and install on your
PC. (Ps. You can also launch the application from USB token directly.)

20
4) When the download is completed, follow the wePresent WiPG Setup wizard to
execute the software.
(Make sure your WiFi have connected to WiPG-2000-xxx and your PC’s personal
firewall allows wePresent WiPG-2000 software to pass through.)
