WePresent WiPG-1500 User manual

wePresent WiPG-1500
WiPG-1500 User’sManual
(Model Name: WiPG-1500)
VERSION: 3.0
DATE: APRIL 15, 2013
P)0$.) 0/$1' <)0. &+1)'$
!! ! "!#$ %#&#'() *+*", - .
-H1&$D&21<123
4AA;$6$666=$??88
US, Canada, South America:
[phone]
South Africa:
[phone]
© WP Technologies, Inc. 2015
WP1000-Manual
Europe, UK, Middle East:
[phone]
For more information
www.wePresentWiFi.com
Asia Pacific:
[phone]

2
Table of Contents
1 Overview............................................................................................................... 5
2 Package Contents .............................................................................................. 7
3 USB Token Contents.......................................................................................... 8
4 Physical Details ................................................................................................... 9
5 AirStick.................................................................................................................12
6 What You Might Need ....................................................................................13
7 Quick Installation .............................................................................................14
8 WiPG-1500 Receiver Device .........................................................................16
8.1 PC-List ..................................................................................................................16
8.2 Setup Page .........................................................................................................17
8.3 Remote Touch Control (UST/UoIP).............................................................18
8.4 Whiteboard ........................................................................................................18
8.5 Pen drawing.......................................................................................................19
9 DoWiFi for Windows........................................................................................20
9.1 Install the application.....................................................................................20
9.2 Start the application .......................................................................................21
9.3 Quick Connect...................................................................................................22
9.4 Connect to WiFi Network ..............................................................................22
9.5 Connect to Receiver Device.........................................................................23
9.6 Login.....................................................................................................................23
9.7 Main User Interface.........................................................................................24
9.8 Screen Projection.............................................................................................24
9.9 Audio Projection ..............................................................................................25
9.10 Menu ....................................................................................................................25
9.10.1 Show Receiver Information..........................................................................26
9.10.2 Web Admin.........................................................................................................26
9.10.3 Search Receiver Device..................................................................................26
9.10.4 Launch SidePad ................................................................................................27
9.10.5 Enable WebSlides.............................................................................................28
9.10.6 Select Projection Desktop ............................................................................28
9.10.7 Projection Quality............................................................................................29
Table of Contents

3
Table of Contents
9.10.8 Select Projection Mode..................................................................................29
9.10.9 Resolution Settings .........................................................................................29
9.10.10 Projection Aspect Ratio .................................................................................29
9.10.11 Enable USB IWB Bridge ..................................................................................30
9.10.12 Advanced Screen Capture............................................................................30
9.10.13 Send Audio to Display....................................................................................31
9.10.14 Auto Power Manager......................................................................................31
9.10.15 Auto WiFi Connect...........................................................................................31
9.10.16 Make wePresent WiPG-1500 Token ...........................................................32
9.10.17 Copy Application to desktop.......................................................................33
9.10.18 Hot Key ................................................................................................................33
9.10.19 About....................................................................................................................33
9.10.20 Exit.........................................................................................................................33
10 DoWiFi for Mac..................................................................................................34
10.1 Install the application.....................................................................................34
10.2 Start the application .......................................................................................34
10.3 Quick Connect...................................................................................................35
10.4 Connect to WiFi Network ..............................................................................35
10.5 Connect to Receiver Device.........................................................................36
10.6 Login.....................................................................................................................37
10.7 Main User Interface.........................................................................................37
10.8 Screen Projection.............................................................................................38
10.9 Audio Projection ..............................................................................................38
10.10 Menu ....................................................................................................................39
10.10.1 Show Receiver Information..........................................................................40
10.10.2 Web Admin.........................................................................................................40
10.10.3 Search Receiver Device..................................................................................40
10.10.4 Launch SidePad ................................................................................................40
10.10.5 Enable WebSlides.............................................................................................41
10.10.6 Select Projection Desktop ............................................................................41
10.10.7 Projection Quality............................................................................................42
Table of Contents

4
Table of Contents
10.10.8 Select Projection Mode..................................................................................42
10.10.9 Resolution setting............................................................................................42
10.10.10 Projection Aspect Ratio .................................................................................43
10.10.11 Send Audio to Display....................................................................................43
10.10.12 Auto WiFi Connect...........................................................................................43
10.10.13 Hot Key ................................................................................................................43
10.10.14 About....................................................................................................................44
10.10.15 Exit.........................................................................................................................44
11 Web Management...........................................................................................45
11.1 Home Page.........................................................................................................45
11.2 Download ...........................................................................................................46
11.3 Conference Control.........................................................................................46
11.4 WebSlides ...........................................................................................................47
11.5 Admin...................................................................................................................48
11.5.1 System Status ....................................................................................................49
11.5.2 Device Setup......................................................................................................50
11.5.3 System Status ....................................................................................................50
11.5.4 OSD Setup ..........................................................................................................54
11.5.5 Change Passwords...........................................................................................54
11.5.6 Reset to Default................................................................................................55
11.5.7 Firmware Upgrade...........................................................................................56
11.5.8 WebSlides Setup ..............................................................................................57
11.5.9 Reboot System..................................................................................................58
11.5.10 Logout..................................................................................................................58
12 Appendix ............................................................................................................59
12.1 Wall-mount Instructions................................................................................59
Table of Contents

5 Chapter 1
Overview
→Back
Overview 1
1.
wePresent WiPG-1500 is professional wireless presentation gateway. By enabling
the Revolutionary “interactive” and “UST/UoIP” functions, you can throw your
presentations wirelessly from a PC, Mac, iPad, iPhone, or Android devices to a
projector, and use the touch screen/IWB, mobile phone or Pad to control the
presentation remotely.
» WiPG-1500 Features Highlight:
Icon Feature Description
DoWiFi
Wireless Display-over-WiFi for Windows and Mac
WiFi-Doc
High quality presentation via iPhone/iPad or Android
devices (Word, Excel, PPT,PDF , Photo , Screenshot)
SidePad
Control the presentation on PC or Mac via
iPhone/iPad or Android devices
WebSlides
Broadcast slides to your devices with WiFi and web browser
AirStick
Advanced 3D presentation controller
Drawing /
Whiteboard
Free drawing on projecting content or interactive whiteboard
4-to-1 projection
Project four PC/Mac screens to one projector at once.
Conference
Control / PC-List
Control projection from WiPG’s web page, or use mouse/
keyboard to select a PC from the standby screen.
SNMP V3
Manage WiPG devices across the corporate network
through enhanced SNMP V3 protocol

6 Chapter 1
Overview
→Back
• BasicFeatures
▪High performance screen/audio projection for Windows/Mac (Windows8 and
Mac Mountain Lion)
▪Remote desktop control from USB AirStick, Touch Screen or Mouse/Keyboard
for Windows/Mac
▪Plug&Show: launching the projection application from a USB thumb drive
without installation
▪High performance 4-to-1 Quadrant Screen Projection
▪Support up to 64 concurrent login users
▪Conference Control: Mediator function through the device web page or
standby screen
▪Support Wireless Multi-touch control (Win7/8 standard HID compatible
device)
▪Support drawing feature for projecting sender screen, or drawing on
whiteboard without PC
▪SNMP V3: manage/congure multiple WiPGs through SNMP V3 protocol
▪Security design: Session Login Code, WEP/WPA/WPA-Enterprise WiFi Security,
and GateKeeper
▪HDMI and VGA dual video interfaces
▪WiFi AP and AP-Client mode support
▪WiFi 802.1b/g/n information

7 Chapter 2
Package Contents
→Back
Package Contents 2
2.
t wePresent WiPG-1500 Box
t wePresent WiPG-1500 USB Token
t Power Adapter (DC +5V, 2.5A)
t 2 WiFi Antenna
t AirStick
t Quick Installation Guide
t Wall Mount Kit
t Warranty Card
APD-G-1
APD-K-1
APD-U-1 APD-N-1
WiPG-1500
Quick Installation Guide

8 Chapter 3
USB Token Contents
→Back
USB Token Contents 3
3.
t Windows Installer (WiPG-1500 Windows Installer)
t MAC Installer (WiPG-1500 Mac Installer)
t VAC Driver (For Windows XP Audio Projection)
t VDD Driver (For Windows XP/Vista Virtual Extended Screen)
t USBoIP Driver (For USB IWB Bridge)
t Utility
t PtG Converter (For MobiShow PtG function)
t SNMP Manager (For SNMP Management)

9 Chapter 4
Physical Details
→Back
Physical Details 4
4.
t Front Panel
Description
Power Button and LED
Power on/obutton.
LED Indicator: System Loading(Red), Ready(Yellow)
USB Port (Front)
USB port for USB mouse and keyboard
Power Button and LED USB Port

10 Chapter 4
Physical Details
→Back
t Rear Panel
Description
Antenna WiFi Antenna
USB Port (Rear) USB port for USB IWB device (HID type)
RJ-45 10/100M RJ-45 port
VGA Connector VGA connector
HDMI HDMI Connector
Audio Jack Audio Jack (3.5mm)
Power Jack Power Jack (5V/2.5A)
Antenna AntennaPower Jack
Audio Jack
HDMI
USB Port
RJ-45 VGA Connector

11 Chapter 4
Physical Details
→Back
t Bottom Side
Description
Screw Hole
Screw Hole for Wall Mount Kit
Reset Button
Press reset button and power on the
device to execute Hardware Reset.
Screw hole
(Optional kit for Wall Mount)
Reset Button

12 Chapter 5
AirStick
→Back
AirStick 5
5.
AirStick USB device is wireless remote controller. It can control the WiPG-1500 device
and projecting PC/Mac remotely.
ESC Key
Power
switch
Down Key
Up Key
Mouse
Left Key
Page Up
Page Down
Micro USB
charging port
Mouse
Right Key
Mouse Function (Short press)
Home Key (Long press for 1 sec)
Enable Pen (Short press)
Open Pen Menu (Long press for 1 sec)

13 Chapter 6
What You Might Need
→Back
What You Might Need 6
6.
t Projector or HDTV with VGA/HDMI interface
t Windows or Mac PC/Laptop
t Apple iPhone, iPad or iPod-touch device
t Android Phone or Tablet device
t Speaker (Optional, for audio projection feature)
t USB Mouse and Keyboard (Optional, for remote desktop feature)
t USB HID Touch Screen/IWB Device (Optional, for UST or IWB over IP feature)

14 Chapter 7
Quick Installations
→Back
Quick Installation 7
7.

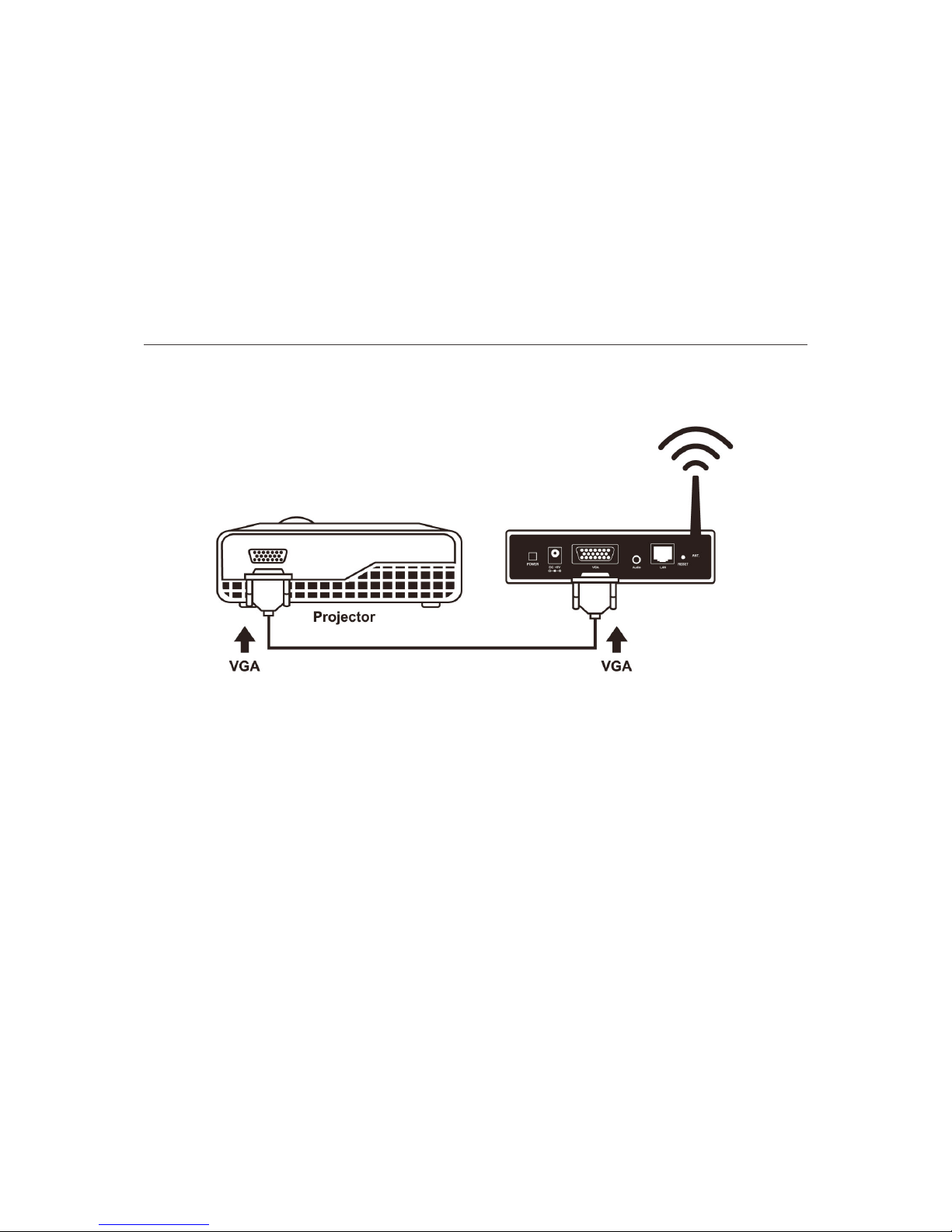

1. Connect wePresent WiPG-1500 device to Projector through VGA/HDMI port and
turn on projector power.

15 Chapter 7
Quick Installations
→Back
2. Connect the power adaptor to WiPG-1500 device and press the power button to
turn on WiPG-1500 device.
t It will show the default standby screen as below when system is ready.
3. Attach the speaker cable to WiPG-1500 phone jack for audio output
4. Attach the USB mouse and keyboard to WiPG-1500 front USB port for OSD control
and remote desktop control
5. Attach the USB IWB/Touch Screen cable to WiPG-1500 rear USB port for UST/IWB
remote touch control

16 Chapter 8
WiPG-1500 Receiver Device
→Back
WiPG-1500 Receiver Device 8
8.
8.1 PC-List
1. If there are sender connected to WiPG-1500 device, it will show the available PC-
List on standby screen, conference moderator can use the USB mouse/keyboard/
Touch Screen/IWB to select the PC and control it remotely.

17 Chapter 8
WiPG-1500 Receiver Device
→Back
2. You can also click the feature Icon to browse the Quick Guide for each highlight
feature.
8.2 Setup Page
Click the “Setup” icon, you can nd the FW version, resolution and WiFi security
information. Meanwhile, you can also calibrate the attached Touch Screen/IWB
screen coordination by “Calibration” function.

18 Chapter 8
WiPG-1500 Receiver Device
→Back
8.3 Remote Touch Control (UST/UoIP)
WiPG-1500 can support standard Win7/8 compatible HID touch device. By attaching
the HID touch screen/IWB device, you can operate the standby screen, White Board
feature and the projecting PC/mobile remotely from the Touch Screen/IWB device.
8.4 Whiteboard
Click on the “Whiteboard” button to enable the virtual Whiteboard feature, you can
make the free drawing on device screen through USB AirStick, Mouse, Touch Screen
or IWB device.

19 Chapter 8
WiPG-1500 Receiver Device
→Back
8.5 Pen drawing
When user are projecting through Windows, Mac, Android and iOS sender
application, you can use the AirStick/Mouse/IWB/Touch Screen to enable the Pen
feature and add free drawing on top of projecting screen.

20 Chapter 9
DoWiFi for Windows
→Back
DoWiFi for Windows 9
9.
9.1 Install the application
1. Make sure your PC WiFi is enabled already, and connect your PC to wePresent
WiPG-1500 box through WiFi.
2. Open your browser and enter the Device Host Name (SSID) or IP address in the
browser. You can nd the IP address and Host Name (SSID) on the projector
screen.
(Default Host Name (SSID) is WiPG-1500, Default IP is 192.168.100.10)
