Wesco WS8820U User manual

Grass shear 2 in 1 EN
WS8820U
(CGS72WT)
2

5
6
12
3
4
7

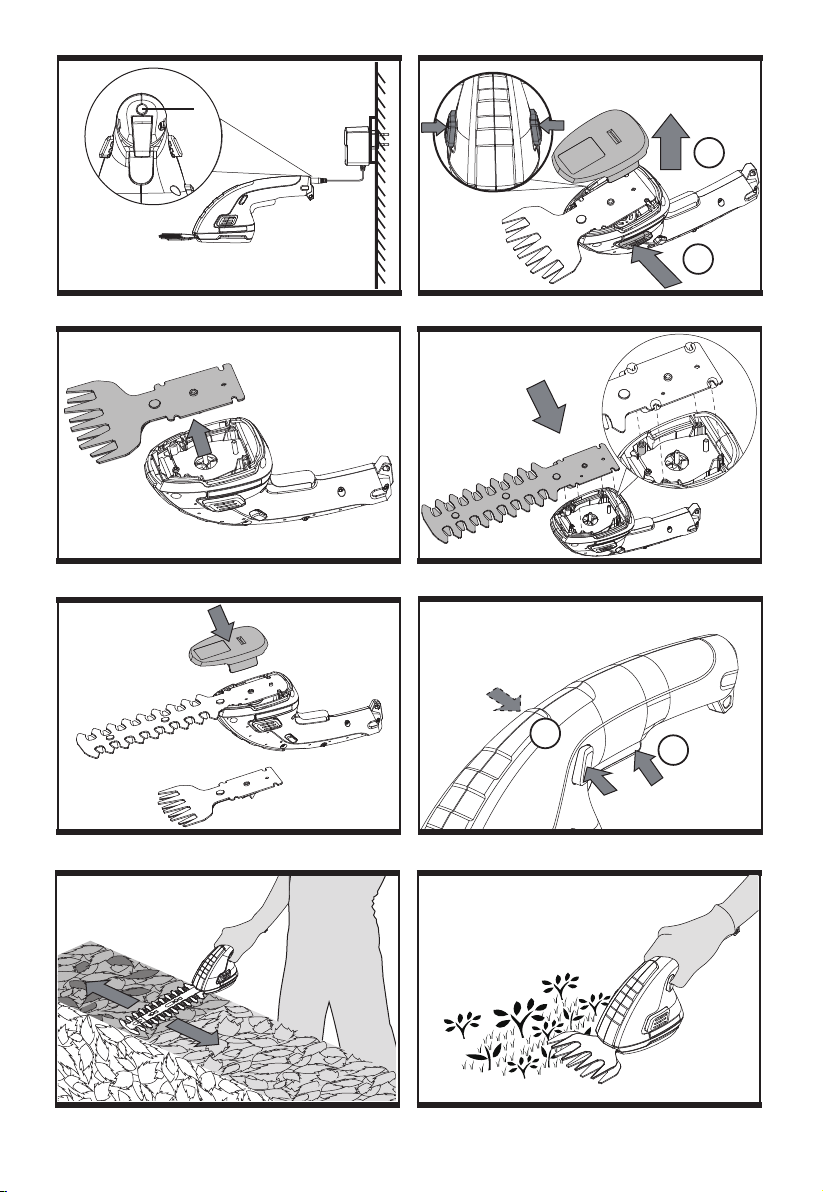

Fig.A Fig.B1
Fig.B2 Fig.C1
Fig.C2 Fig.D
Fig.E1 Fig.E2
8
1
2
2
1

4EN
PRODUCT SAFETY
WARNING: This product can expose you to
chemicals including lead and Di(2-ethylhexyl)
phthalate (DEHP) which are known to the State of
California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mains-operated electric (corded) power tool or battery-
operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you to
lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not

5
EN
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool for
operations different from those intended could result in
a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5. BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
b) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
e) Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 265°F (130 °C ) may cause
explosion.
g) Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk
of fire.
6. SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
HEDGE TRIMMER SAFETY WARNINGS
a) Keep all parts of the body away from the blade. Do
not remove cut material or hold material to be cut
when blades are moving. Blades continue to move
after the switch is turned off. A moment of inattention
while operating the hedge trimmer may result in serious
personal injury.
b) Carry the hedge trimmer by the handle with the
blade stopped and taking care not to operate any
power switch. Proper carrying of the hedge trimmer
will decrease the risk of inadvertent starting and
resultant personal injury from the blades.
c) When transporting or storing the hedge trimmer,
always fit the blade cover. Proper handling of the
hedge trimmer will decrease the risk of personal injury
from the blades.
d) When clearing jammed material or servicing the
unit, make sure all power switches are off and
the lock-off is in the locked position. Unexpected
actuation of the hedge trimmer while clearing jammed
material or servicing may result in serious personal
injury.
e) Hold the hedge trimmer by insulated gripping
surfaces only, because the blade may contact
hidden wiring. Blades contacting a “live” wire may

6EN
make exposed metal parts of the hedge trimmer “live”
and could give the operator an electric shock.
f) Keep all power cords and cables away from cutting
area. Power cords or cables may be hidden in hedges
or bushes and can be accidentally cut by the blade.
g) Do not use the hedge trimmer in bad weather
conditions, especially when there is a risk of
lightning. This decreases the risk of being struck by
lightning.
h) Check the hedges and bushes for foreign objects,
e.g. wire fences and hidden wiring.
i) Hold the hedge trimmer properly, e.g. with both
hands if two handles are provided.
j) The hedge trimmer is intended to be used by the
operator at ground level and not on ladders or any
other unstable support.
k) Before operating the hedge trimmer, the user
should make sure the locking device(s) of any
moving elements (e.g. the extended shaft and
pivoting element), if any, are in the locked position.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
FOR ALL APPLIANCES:
1) Avoid Dangerous Environment - Don’t use appliances
in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept at a
distance from work area.
4) Dress Properly - Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber
gloves and substantial footwear is recommended
when working outdoors. Wear protective hair covering
to contain long hair.
5) Use Safety Glasses - Always use face or dust mask if
operation is dusty.
6) Use Right Appliance - Do not use appliance for any job
except that for which it is intended.
7) Don’t grasp the exposed cutting blades or cutting
edges when picking up or holding the appliance.
8) Don’t Force Appliance - It will do the job better and
with less likelihood of a risk of injury at the rate for
which it was designed.
9) Don’t Overreach - Keep proper footing and balance at
all times.
10) Stay Alert - Watch what you are doing. Use common
sense. Do not operate appliance when you are tired.
11) Store Idle Appliances Indoors - When not in use,
appliances should be stored indoors in dry, and high or
locked-up place - out of reach of children.
12) Maintain Appliance With Care - Keep cutting edge
sharp and clean for best performance and to reduce
the risk of injury. Follow instructions for lubricating and
changing accessories. Keep handles dry, clean, and
free from oil and grease.
13) Check Damaged Parts - Before further use of the
appliance, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other condition that may affect its operation. A guard or
other part that is damaged should be properly repaired
or replaced by an authorized service center unless
indicated elsewhere in this manual.
FOR ALL BATTERY – OPERATED
GARDENING APPLIANCES
1. Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to battery pack,
picking up or carrying the appliance. Carrying the
appliance with your finger on the switch or energizing
appliance that have the switch on invites accidents.
2. Recharge only with the charger specified by the
manufacturer .A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
3. Use appliances only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
4. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
5. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
6. Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified batteries
may exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
7. Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130 °C ) may cause explosion.

7
EN
8. Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature
range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may
damage the battery and increase the risk of fire.
9. Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
10. Do not modify or attempt to repair the appliance or the
battery pack (as applicable) except as indicated in the
instructions for use and care.
ADDITIONAL SAFETY RULE FOR GRASS
SHEAR
1. Keep hands away from blades.
SAVE THESE INSTRUCTIONS
SAFETY WARNINGS FOR BATTERY CELLS
INSIDE THE TOOL
a) Do not dismantle, open or shred cells.
b) Do not expose power tool to heat or fire. Avoid
storage in direct sunlight.
c) Do not short-circuit charging terminal. Do not store
power tool haphazardly in a box or drawer where
charging terminal may short-circuit each other or
be short-circuited by conductive materials. When
power tool is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a connection
from one charging terminal to another. Shorting the
battery terminals together may cause burns or fire.
d) Do not remove power tool from its original
packaging until required for use.
e) Do not subject power tool to mechanical shock.
f) In the event of battery leaking, do not allow the
liquid to come in contact with the skin or eyes. If
contact has been made, wash the affected area
with copious amounts of water and seek medical
advice.
g) Observe the plus (+) and minus (–) marks on the
equipment and ensure correct use.
h) Keep power tool out of the reach of children.
i) Seek medical advice immediately if a cell has been
swallowed.
j) Keep power tool clean and dry.
k) Wipe the charging terminals with a clean dry cloth
if they become dirty.
l) Power tool need to be charged before use.
Always use the correct charger and refer to the
manufacturer’s instructions or equipment manual
for proper charging instructions.
m) Do not leave power tool on prolonged charge when
not in use.
n) After extended periods of storage, it may be
necessary to charge and discharge the power tool
several times to obtain maximum performance.
o) Battery gives its best performance when it is
operated at normal room temperature (20 °C ± 5 °C
(68 °F ± 9° F) )
p) When disposing of cells, keep cells of different
electrochemical systems separate from each
other.
q) Recharge only with the charger specified by
manufacture. Do not use any charger other
than that specifically provided for use with the
equipment. A charger that is suitable for one type of
battery may create a risk of fire when used with another
battery.
r) Retain the original product literature for future
reference.
s) Dispose of properly.
SAFETY WARNINGS FOR BATTERY
CHARGER
Information for radiated emission
This device complies with Canadian ICES-001.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
- NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.

8EN
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Do not expose to rain
DANGER – Keep hands away from blade
Li-I on
Li-Ion battery, battery must be recycled
Do not burn
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as unsorted
municipal waste.
POSITEC Inc. has established a
partnership with the RBRC Corporation
to recycle any Positec batteries with
the RBRC-call2recycle seal. For
environmental protection, please do
not discard batteries in the trash. After
the batteries’ life cycle is ended, then
please call 1-800-822-8837 for a free
service that will properly dispose of the
battery.

9
EN
COMPONENT LIST
1. Lock-off button
2. Hand grip area
3. On/Off switch
4. Tool-free drive cover release button
5. Tool-free drive cover
6. Edging shear blade
7. Shrub shear blade
8. Charger socket (See Fig. A)
* Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WS8820U (CGS72WT) (88 - designation of machinery, representative of grass shear)
Rated voltage 7.2 V
No load speed 2000 /min
Max.cutting diameter 5/16”
Shrubber blade length 6”
Grass blade length 4”
Battery capacity 0.8Ah
Charging input 120V~60Hz, 4W
Charging output 7.2 V 0.25A
Charging time 3-5 hrs
Tool weight 1.3 lbs (0.59kg)
ACCESSORIES
Charger(WS9931U) 1
Shrubber blade 1
Shear blade 1
Blade sheath 2
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory
packaging for further details. Store personnel can assist you and offer advice.

10 EN
OPERATION INSTRUTIONS
NOTE: Before using the tool, read the instruction book carefully.
BEFORE OPERATION
1. CHARGING THE BATTERY
The battery charger supplied matches to the Li-ion
battery installed in the machine. Do not use other
battery chargers.
The Li-ion battery is protected against deep discharging.
When the battery is empty, the machine is switched off
by means of a protective circuit: the blade no longer
move.
In a warm environment or after heavy use, the battery
pack may become too hot to permit charging. Allow time
for the battery to cool down before recharging.
2. CHARGING PROCEDURE (SEE FIG. A)
Plug charger plug into a suitable power outlet and
afterwards plug your tool into the battery charger, the
charging indicator (red) will illuminate at this time.
The charger indicator will turn into green when charging
is complete, then unplug the charging plug from the
wall socket and then remove the tool from the battery
charger.
IMPORTANT:
During the charging procedure, the handle of the
machine warms up. This is normal.
When not using for extended periods, disconnect the
battery charger from the socket.
Do not use the machine during the charging procedure.
ASSEMBLY
1. FITTING/CHANGING THE BLADE
WARNING: Wear gloves when changing
the blade.
Removing (See Fig. B1, B2)
Press the tool-free blade cover release button from both
side.
Remove the tool-free drive cover.
Lift the blade out.
Fitting (See Fig. C1, C2)
Fit the blade as shown aligning the holes in the blade
onto the drive pins.
Press the blade cover back to the housing.
OPERATION
1. STARTING AND STOPPING (SEE FIG. D)
Starting:
1. Push in the lock-off button and depress the on/off
switch at the same time. The lock-off button can be
depressed from left side or right side.
2. Release the lock-off button.
Stopping:
1. Release the on/off switch.
WARNING: DO NOT OPERATION THE MACHINE
WHEN CHARGING!
2. WORKING INSTRUCTIONS
NOTE: Hold the machine away from yourself. Stand in a
secure and stable position.
a. Shrub shear (See Fig. E1)
Cutting hedges
Before cutting check the hedge for foreign objects e. g.
wire fences.
Cut stems up to 8 mm in thickness. When cutting,
move steadily along the line of cut, so that stems are
fed directly into the cutter blades. The double edge of
the cutting blade enables cutting to either direction, or
with a side to side motion. After use replace the blade
transport guard.
Recommended cutting/trimming times:
– Cut hedges with deciduous leaves in June and
October.
– Cut evergreen hedges in April and August.
– Cut conifer and other fast growing shrubs approx.
every six weeks from May onwards.
b. Grass shear (See Fig. E2)
Guide the machine along the edge of the lawn. Do not
allow the blade to contact paved surfaces, stones or
garden walls, since this will wear the blade rapidly.
After use replace the blade transport guard.
MAINTENANCE
NOTE: To ensure long and reliable service, carry out the
following maintenance regularly.
Check for obvious defects such as loose, dislodged or
damaged blade, loose fixings and worn or damaged
components.
Check that covers and guards are undamaged and
correctly fitted. Carry out necessary maintenance or
repairs before using.

11
EN
For Battery tools
The ambient temperature range for the use and storage
of tool and battery is 0 oC (44.6 oF)-45 oC (113 oF).
The recommended ambient temperature range for the
charging system during charging is 0 oC (44.6 oF)-40 oC
(104 oF).
BLADE MAINTENANCE
Always clean the cutting blades after operation and
periodically lubricating the cutting blade.
Visually check the condition of the cutting edges of the
cutting blade.
Ensure that the blade is covered with the blade guard
supplied when not in use.
WARNING: Wearing of gloves is recommended
when changing the blades.
CLEANING/STORAGE
Clean the exterior of the machine thoroughly using a soft
brush and cloth. Do not use water, solvents or polishes.
Remove all debris, especially from the ventilation slots.
Store the machine in a secure dry place out of reach of
children. Do not place other objects on top of the
machine.
FCC PART 15
Supplier’s Declaration of Conformity
Product Description: Battery charger
Model Number: WS9931U
Trade Name: WESCO
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Responsible Party :
Positec USA, Inc.
10130 Perimeter Parkway, Charlotte, NC 28216 USA
Tel.: [phone]
Fax: [phone]
