Weslo PURSUIT S 2.8 User manual

®
Model No. 83t .2t800.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
• Assembly
•Operation
•Maintenance
•Part List and Drawing
BIKE EXERCISER
User's Manual
Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE EXERCISE CYCLE ....................................................... 10
MAINTENANCE AND TROUBLESHOOTING ................................................... 13

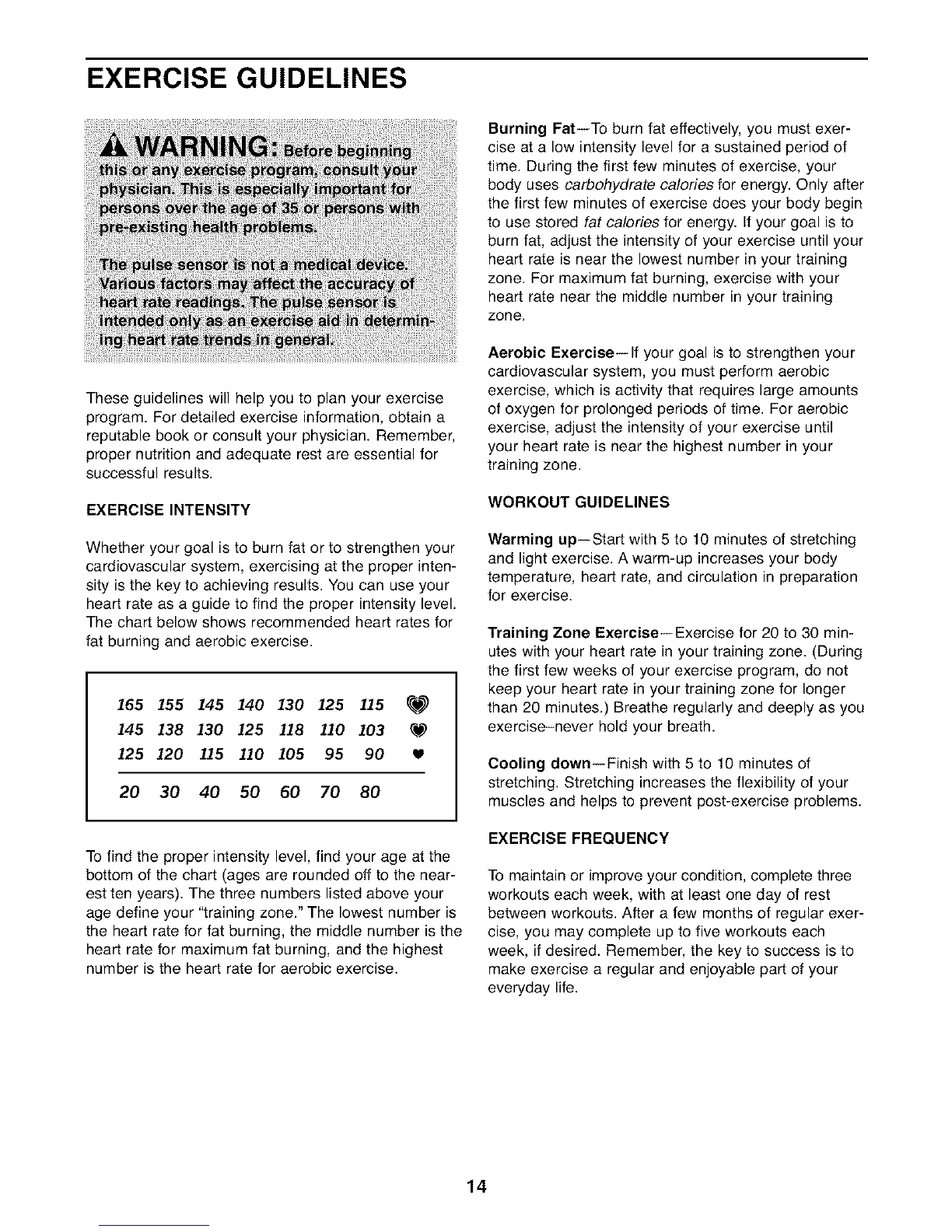

EXERCISE GUIDELINES ................................................................... 14
PART LIST .............................................................................. 18
EXPLODED DRAWING .................................................................... 19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, call
1-866-699-3756 and request a free replace-
ment decal. Apply the decal in the location
shown. Note: The decal(s) may not be shown at
actual size.
• Misuseof this machine
may result in serious
injury,
•Do not allow children
Onoraround machine.
•Pedals continue to
spin when you stop
pedaling.
• Spinning pedals can
cause injury.
•Reduce pedal speed
ina controlledmanner.
•User weight must not
exceed 250 pounds.
•Replace label if
damaged, illegible, or
removed.
2

IMPORTANT PRECAUTIONS
3

BEFORE YOU BEGIN
Congratulations for selecting the new WESLO ®
PURSUIT S 2.8 exercise cycle. Cycling is one of the
most effective exercises for increasing cardiovascular
fitness, building endurance, and toning the body. The
PURSUIT S 2.8 exercise cycle offers a selection of
features designed to let you enjoy this healthful exer-
cise in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the back cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Handlebar
Thumb Pulse Sensor
Seat
Seat Knob
7
Console
Resistance Knob
Pedal/Strap
4

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires a Phillips screwdriver _, two adjustable
wrenches Co_, and pliers _.
As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parentheses below each drawing is the key number of the part, from the PART LiST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small
parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been pre-
assembled. If a part is missing, call t-866-699-3756.
M8 Split M4 x 16mm M8 x 15mm Button
Washer (42)-9 Screw (46)-4 Screw (34)-3
M8 Locknut
(10)-6
M8 x 60mm Button
Screw (30)-4 M8 x 65mm Button Bolt (50)-2
M8 x 73ram Button
Screw (33)-2
5

1.
Insert the Rear Stabilizer (6) into the Frame (1).
Attach the Rear Stabilizer with four M8 x 60mm
Button Screws (30).
30
6
2. Orient the Front Stabilizer (2) with the large
holes facing the Frame (1). Attach the Front
Stabilizer to the Frame with two M8 x 73mm
Button Screws (33).
2
33
3, Attach the Seat (12) to the Seat Post (5) with
four M8 Split Washers (42) and four M8
Locknuts (10). Note: The Split Washers and
the Locknuts may be preattached to the
underside of the Seat.
10
6

4. 4
Turn the Seat Knob (9) counterclockwise and
remove it from the Frame (1). Next, insert the
Seat Post (5) into the Frame. Adjust the Seat
Post to the desired height and insert the Seat
Knob through the indicated hole in the Frame
into one of the adjustment holes in the Seat
Post. Then, turn the Seat Knob clockwise until it
is tight. Make sure that the Seat Knob is firm-
ly engaged in one of the adjustment holes in
the Seat Post.
5, While another person holds the Upright (13)
near the Frame (1) as shown, connect the
Extension Wire (23) to the Reed Switch Wire
(39). Next, connect the Resistance Cable (19)
to the Lower Cable (29) in the following way:
•See drawing A. Pull up on the metal bracket
on the Lower Cable (29), and insert the tip of
the Resistance Cable (19) into the wire clip
inside of the metal bracket as shown.
• See drawing BFirmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
• See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the Wires (23, 39) and the Cables (19, 29)
downward into the Frame (1).
Tip: Do not pinch the wires and cables. Next,
insert the Upright (13) into the Frame (1). Attach
the Upright with three M8 x 15mm Button
Screws (34) and three M8 Split Washers (42).
5
A
13-__
19/!t,'_ 39
._ .'(_['"_. 4_29-_'!_'/ 34
34 42
--1
=-__Metal
/-- _ Bracket
19 _
_--29
Do not pinch the
wires and cables
during this step
Bii
J
C
Metal J
Bracket _
7

6. 6
Attach the Handlebar (49) to the Upright (13)
with two M8 x 65mm Button Bolts (50), two M8
Split Washers (42), and two M8 Locknuts (10).
42
7. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the battery cover, insert the
batteries into the battery compartment, and
reattach the battery cover. Make sure to orient
the batteries as shown by the diagram
inside the battery compartment.
Screw---- 1 Battery
_;,j_Cover
16
i
Batteries
8. While a second person holds the Console (16)
near the Upright (13), connect the console wire
to the Extension Wire (23). Then, insert the
wires downward into the Upright.
Tip: Do not pinch the wires. Attach the
Console (16) to the Upright (13) with four M4 x
16ram Screws (46).
8
46
16
Wire
--13 Do not pinch
the wires
during this step
8

9. 9
Identify the Left Pedal (24), which is marked
with a "Left" sticker. Using an adjustable
wrench, firmly tighten the Left Pedal counter-
clockwise intothe left arm of the Crank (21).
Tighten the Right Pedal (not shown) clockwise
into the right arm of the Crank. IMPORTANT:
Tighten both Pedals as firmly as possible.
After using the exercise cycle for one week,
retighten the Pedals. For best performance,
keep the Pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the side of the Left Pedal.
Adjust the strap on the Right Pedal (not shown)
in the same way.
Tab 24
21
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9

HOW TO USE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT POST
For effective exer-
cise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the height of the
seat, first turn the
seat knob counter-
clockwise and
remove it. Next,
Seatd?
Seat Post /
Hole_ _\
Seat Knob_
slide the seat post upward or downward and align one
of the adjustment holes in the seat post with the indi-
cated hole in the frame. Then, insert the seat knob into
the frame and the seat post, and turn the seat knob
clockwise until it is tight. Make sure that the seat
knob is inserted through one of the adjustment
holes in the seat post.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resis-
tance, turn the
resistance knob
counterclockwise.
IMPORTANT: Stop
turning the knob
when turning
becomes difficult,
or you may dam-
age the exercise
cycle.
Resi_ance
Knob
