EBK 340 / EBK 341
Electric Power Nozzle
Operating Manual
Wessel-Werk USA, Inc.
118 Overhill Drive
Mooresville, NC 28117
704-658-0502
www.wessel-werk.com
Distributed By: Shair Sales Ltd.
Surrey, BC

IMPORTANT SAFEGUARDS
When using an electric appliance, basic precautions should always
be followed, including the following:
Read all instructions before using this Motorized Nozzle.
WARNING
To reduce the risk of fire, electric shock or injury:
Do not use outdoors or on wet surfaces.
Do not leave nozzle when plugged in. Turn off the switch, place
handle in up position and unplug the electric cord when not in
use and before servicing. If the nozzle is not working as it
should, return it to place of purchase.
Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
Use only as described in this manual. Use only manufacturer's
recommended attachements
Do not use with damaged cord or plug. If nozzle is not working
as it should because it has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center
before using.
Do not: pull or carry by cord, use cord as a handle, close a door
on cord, or pull cord around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord away from heated
surfaces.
Do not use extention cords or outlets with inadequate current
carrying capacity.
Turn off all controls before unplugging.
Do not unplug by pulling cord. To unplug, grasp the plug, not
the cord.
Do not handle plug or nozzle with wet hands.
2

Do not put any object into vacuum intake openings. Do not use
with any opening blocked. Keep vacuum intake openings free of
dust, lint, hair or any anthing that may reduce airflow.
This nozzle creates suction and contains a revolving brush
roll. Keep hair, loose clothing, fingers and all parts of body
away from openings and moving parts.
Do not place motorized nozzle on furniture or stairs as the
brush roll may cause damage. Place nozzle on floor with the
handle in storage position while using attachments.
Do not pick up anything that is burning or smoking such as
cigarettes, matches or hot ashes.
Belt pulleys can become hot during normal use. To prevent
burns, avoid touching the belt pulley when servicing the drive
belt.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or conbustible liquids such as
gasoline, or use in areas when they may be present.
Store your nozzle indoors in a cool, dry area.
Keep your work area well lighted.
Unplug electrical appliances before vacuuming them.
EBK 341
SAVE THESE INSTRUCTIONS
3

Operation
To achieve the best results when cleaning carpet, slowly pass
the power nozzle back and forth over the area to be cleaned.
To clean hard surfaces simply move the power nozzle over the
area to be cleaned with the vacuum on and the power nozzle
on or off.
It is best to avoid cleaning carpet fringes. When it is
unavoidable, place the power nozzle over the carpet and pull it
over the fringe onto the floor.
EBK 340
The green lamp indicates that the nozzle is on and operating
normally.
The red warning lamp will light if the brush rotation is restricted.
This can occur if an object causes brush speed reduction, thus
overloading the drive motor. If this occurs:
Turn off the vacuum cleaner and disconnect the power
supply cord.
Remove the object that is preventing the brush from
rotating.
Press the red reset button. (See illustration page 6)
Reconnect the nozzle. Return to cleaning.
EBK 341
The auto-shut off feature will activate should rotation of the
brushroll become restricted. If this occurs:
Turn off the vacuum cleaner and disconnect the power
supply cord.
Remove the object that is preventing the brush from
rotating.
Reconnect the nozzle. Return to cleaning.
4

Cleaning
It may happen that your agitator brush becomes blocked or less
effective. This may be caused by excessive hairs and threads
wrapped around the brush roller.
Always unplug the nozzle from the power supply first.
Cleaning the brush roller
Insert the points of a pair of scissors into the brush roller slot
(see illistration page 7). Move the scissors to catch the
threads and hairs in the scissors.
Cut the threads of hairs and remove them manually or using
a small sized pair of pliers.
Should your nozzle cease to pick-up debris:
This can be caused by an obstruction in the intake and or neck
of the power nozzle. This can be caused when excessively
large or long debris, like paper or a sock, is lodged in the intake
and/or neck area of the nozzle.
Always unplug the nozzle from the power supply first.
Clearing an Obstruction
Remove the wand from the nozzle by depressing the button
on the nozzle neck and pulling the nozzle and wand apart.
Look into the neck and remove any visable debris.
Look into the intake area of the nozzle and remove any
visable debris. (See Illustration Page 7)
5

Identify Parts
A) Quick Disconnect -
Locking
Pivot / Swivel Neck (optional)
B) Wand Release Pedal (340)
C) Indicator Lights (340) D) Handle Release Pedal
E) Optional Florescent Headlight (340)
F) Wrap-A-Round Bumper
6

H) 4 Soft Rubber Wheels D) Reset Button (340)
J) Chevron Brush
K) Brush Roller/Brush Roller
Slot for cutting string/hair
L) Dry Wiper For Hard Floor Cleaning
M) Vacuum Intake
7

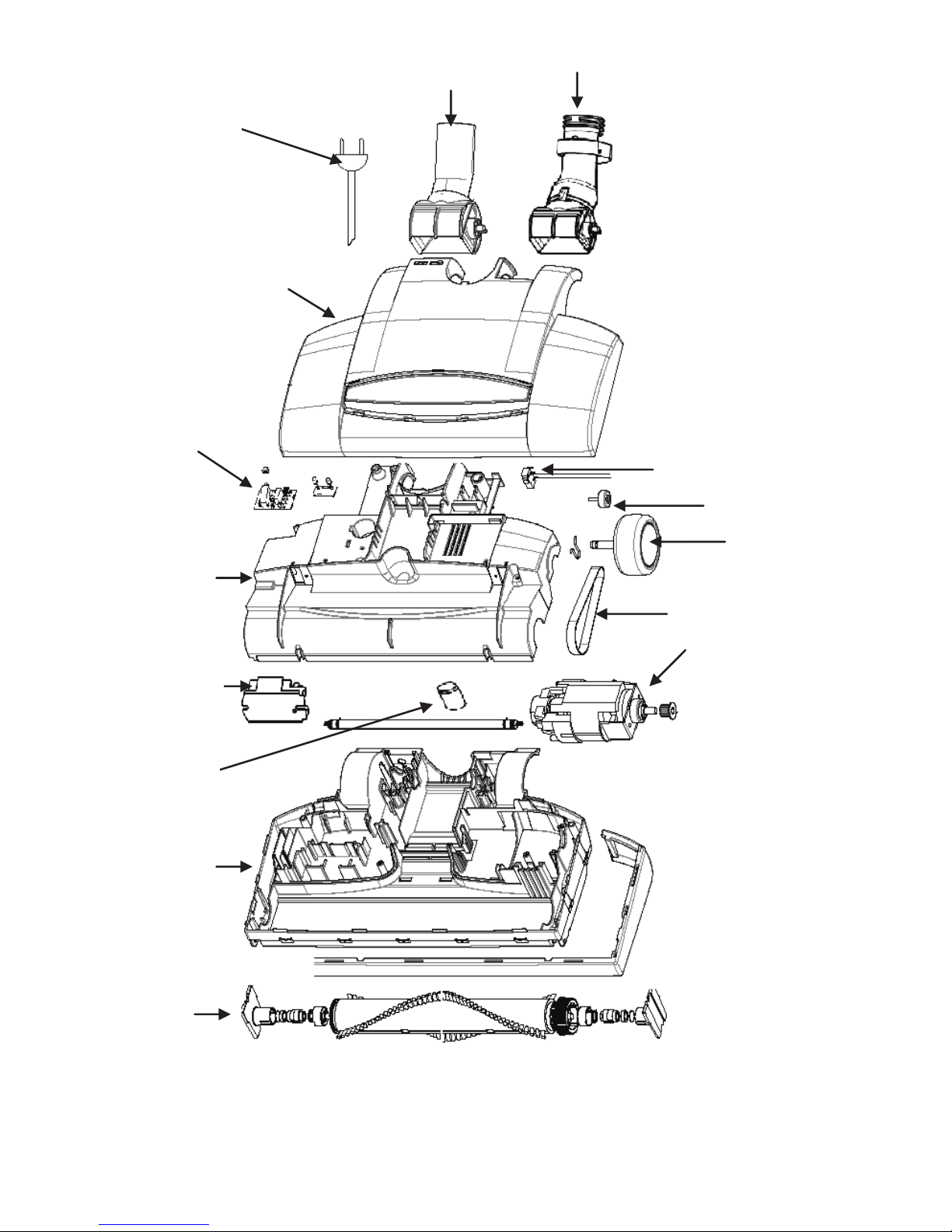

Replacement Parts
8
ID Description Part #
1 Cord- Coiled 10.1 163-300
1 Cord- Straight EBK 341 10.1 135-303
2 Cover-No Light-Black 10.9 011-336
2
Cover-No Light-Lt Gray
10.9 011-335
2
Cover -w/Light-Black
10.9 011-315
2
Cover- EBK 341
10.9 011-382
3 Circuit Board 120V 250W 10.9 011-314
3 Circuit Board-EBK 341 10.9 011-383
4 Brush Roll complete 10.9 011-323
4 Brush Roll-Twisted-EBK 341 10.9 011-371
5
Ballast 120V
19.1 005-300
6
Base Complete - Black
10.9 011-300
7
Std. Neck w/button hole
10.9 011-316
8 QDC Neck 10.7 028-300
9 Belt - Cogged 19.1 016-300
10 Light Starter and Tube 10.9 011-317
11 Motor Cover (with light) 10.9 011-318
11
Motor Cover (no light)
10.9 011-304
12
Micro Switch
10.4 015-300
13 Wheel - Rear w/Axle 10.9 011-308
14 Wheel - Front w/Axle 10.9 011-309
NA Motor Hardware 10.9 011-310
15 Motor EBK 340 -120V 250W 10.9 011-319
15
Motor EBK 341-120V 120W
10.9 011-301
NA
Long Screw
9.2 720-04

9
5
1
6
10
11
7
8
4
9
3
2
12
13
14
15

Rating Plate
The model number is indicated on the rating plate which is located
on the bottom of the nozzle. For prompt and complete service,
always refer to these numbers when contacting your place of
purchase.
Model No. EBK 340/EBK 341
Date of Purchase: _____________
Where Purchased: __________________________________
Company
__________________________________
Address
__________________________________
_________________________________
City
__________________________________
State Zip Code
_________________________________
Phone
10

Also Available
D 320 –12“ and 14“
Hardwood Floor Brush
PT 160
Stair and UpholsteryTool
HEB 160 Hand Electric
Stair and UpholsteryTool
Universal Elongated
Dusting Brush
D 330 Hard Floor Brush with
Fully articulatied
EBK 280
Compact Electric Brush
Telescopic Wand with Cord Management
