Wessel-Werk EBK 360 User manual

12/09
Wessel-Werk
EBK 360
Electric Power Nozzle
Operating Manual
Wessel-Werk GmbH
Im Bruch 2
D-51580 Reichshof
Germany
www.wessel-werk.com

IMPORTANT SAFEGUARDS
When using an electric appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this Motorized
Nozzle.
WARNING
To reduce the risk of fire, electric shock or injury:
Do not use outdoors or on wet surfaces.
Do not leave nozzle when plugged in. Turn off the
switch, place handle in up position and unplug the
electric cord when not in use and before servicing. If the
nozzle is not working as it should, return it to place of
purchase.
Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
Use only as described in this manual. Use only
manufacturer's recommended attachments
Do not use with damaged cord or plug. If nozzle is not
working as it should because it has been dropped,
damaged, left outdoors, or dropped into water, return it
to a service center before using.
Do not: pull or carry by cord, use cord as a handle, close
a door on cord, or pull cord around sharp edges or
corners. Do not run vacuum cleaner over cord. Keep
cord away from heated surfaces.
Do not use extention cords or outlets with inadequate
current carrying capacity.
Turn off all controls before unplugging.
Do not unplug by pulling cord. To unplug, grasp the
plug, not the cord.
Do not handle plug or nozzle with wet hands.
Do not put any object into vacuum intake openings. Do
not use with any opening blocked. Keep vacuum intake
openings free of dust, lint, hair or any anthing that may
reduce airflow. 2
Also Available
11
D 320 –12“ and 14“
Hardwood Floor Brush
PT 160
Stair and UpholsteryTool
HEB 160 Hand Electric
Stair and UpholsteryTool
Universal Elongated
Dusting Brush
RD 264 Combination
Carpet/Hard Floor Tool
EBK 280
Compact Electric Brush
Telescopic Wand with Cord Management

Rating Plate
The model number is indicated on the rating plate which is
located on the bottom of the nozzle. For prompt and
complete service, always refer to these numbers when
contacting your place of purchase.
Model No. EBK 360
Date of Purchase: _____________
Where Purchased: ________________________________
Company
_______________________________
Address
______________________________
______________________________
City
_______________________________
State Zip Code
_______________________________
Phone
10
This nozzle creates suction and contains a revolving
brush roll. Keep hair, loose clothing, fingers and all
parts of body away from openings and moving parts.
Do not place motorized nozzle on furniture or stairs as
the brush roll may cause damage. Place nozzle on floor
with the handle in storage position while using
attachments.
Do not pick up anything that is burning or smoking such
as cigarettes, matches or hot ashes.
Belt pulleys can become hot during normal use. To
prevent burns, avoid touching the belt pulley when
servicing the drive belt.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or conbustible liquids
such as gasoline, or use in areas when they may be
present.
Store your nozzle indoors in a cool, dry area.
Keep your work area well lighted.
Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
Operation
Getting Started
Depress the neck release pedal to place the power
nozzle into the operating position (see Illustration page
6).
The power nozzle will start when power is supplied.
Height Adjustment
Your power nozzle has a 5-setting height adjustment.
Setting #1 is the lowest setting. Setting #5 is the highest
setting. (see Illustration page 6).
To change the height of the nozzle simply apply
pressure to the height adjustment pedal with your toe.
(see Illustration page 6).
For best results use the lowest possible height setting.
(see Illustration page 6). 3

If the nozzle is deemed too ’hard’ to push accross the
carpet move the height adjustment setting up one
position and review the ease of operation. Continue this
operation one step at a time until the ease of operation
is acceptable.
Note: It is possible to raise the nozzle too high where
effective cleaning will cease.
Cleaning
To achieve the best results when cleaning carpet, slowly
pass the power nozzle back and forth over the area to
be cleaned.
To clean hard surfaces simply move the power nozzle
over the area to be cleaned set the nozzle to #1 height
position, leave the vacuum on and have the power
nozzle on or off.
It is best to avoid cleaning carpet fringes. When it is
unavoidable, place the power nozzle over the carpet and
pull it twoard you over the fringe.
Overload Protection
Your nozzle is equipped with overload protection (circuit
breaker). The circuit breaker will activate when the the
nozzle consumes more power than planned or an
obstruction makes the brush hard to turn. If this occurs:
Turn off the vacuum cleaner and disconnect the
power supply cord.
Remove the object that is preventing the brush from
rotating.
Please note: 30-60 seconds of cool-down time may
be required for the circuit breaker to automatically
reset.
Reconnect the nozzle and proceed to clean.
4 9

Replacement Parts
8
Cleaning Brush Roll
It may happen that your agitator brush becomes blocked or
less effective. This may be caused by excessive hairs and
threads wrapped around the brush roller.
Always unplug the nozzle from the power supply first.
Cleaning the brush roller
Insert the points of a pair of scissors under the
hair/debris wrapped around the brush roller (see
Illustration page 7). Move the scissors to catch the
threads and hairs in the scissors.
Cut the threads of hairs and remove them manually
or using a small sized pair of pliers.
Should your nozzle cease to pick-up debris:
This can be caused by an obstruction in the intake and
or neck of the power nozzle. This can be caused when
excessively large or long debris, like paper, a tooth pick
or a sock, is lodged in the intake and/or neck area of the
nozzle.
Always unplug the nozzle from the power supply first.
Clearing an Obstruction
Remove the wand from the nozzle by depressing the
button on the nozzle neck and pulling the nozzle and
wand apart.
Look into the neck and remove any visable debris.
Look into the intake area of the nozzle and remove
any visable debris. (See Illustration Page 7)
5
Description Part Number
Cover Complete-Light Grey 10.9 048-312
Cover Complete-Black 10.9 048-318
QDC Neck Complete 10.7 028-302
Brush Roll Complete 10.9 048-302
Height Adjustment Assembly 10.9 048-309
Base Assembly Complete -
Black 10.9 048-319
Base Assembly Complete –
Light Gray 10.9 048-313
Wiper Blade 12.1 848-06
Motor Complete 120V 10.9 048-314
Front Wheels with Stirrup 10.9 048-315
Wire Coupler 19.1 063-300
Noise Reducer / anti-
interference capacitor 19.1 041-301
Circuit Protector 19.1 071-301
LED Light Bar Complete 10.4104-300
Axle - Rear 10.1 388-300
Wheel - Rear 10.4-105-301
Belt - Cogged 19.1 016-300
Motor Cover 10.1 367-300

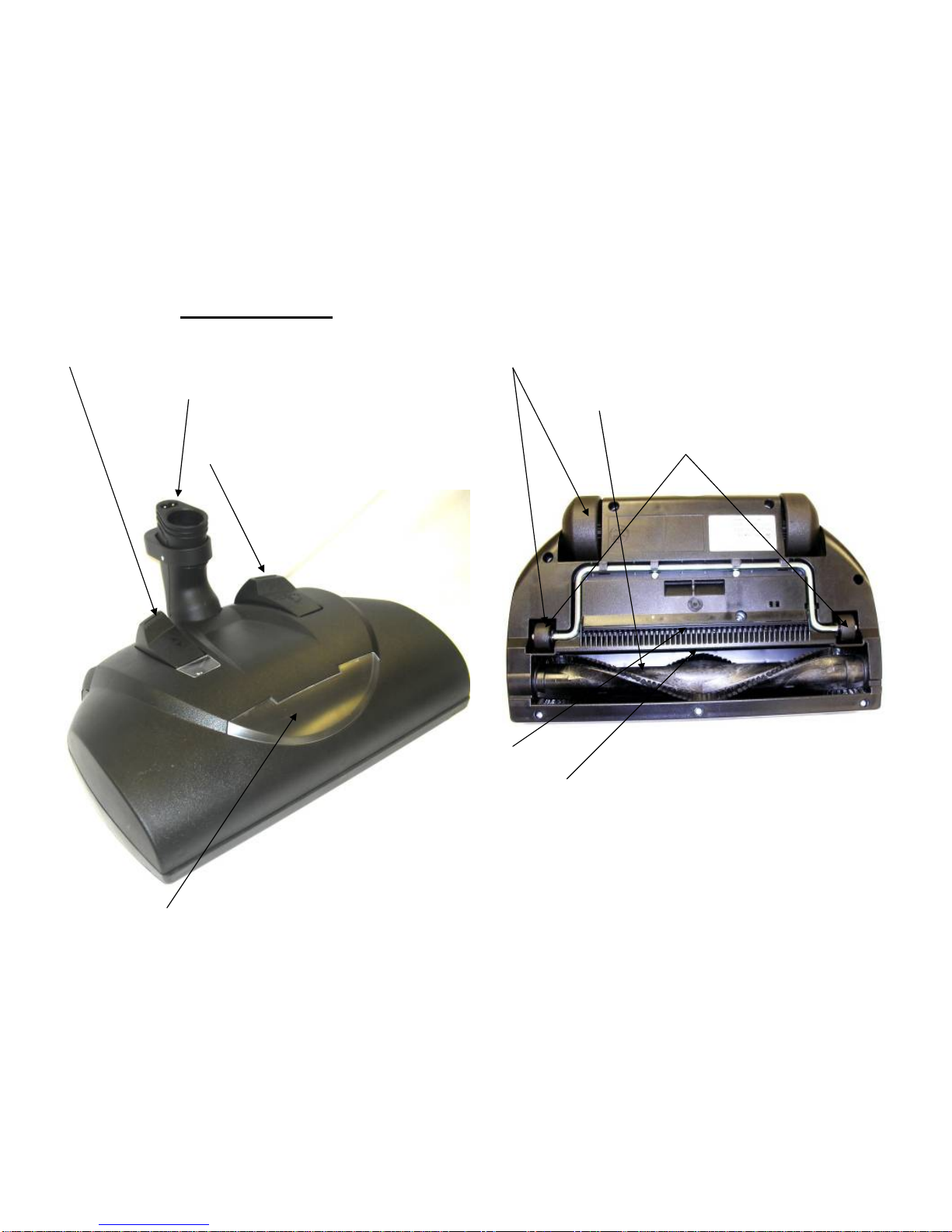

Identify Parts
A) Height Adjustment Pedal
B) Quick Disconnect - Locking Pivot
Swivel Neck
C) Handle Release Pedal
D) Optional LED Headlight
6
H) 4 Soft Rubber Wheels
J) Sculpted Chevron Brush
K) Height Adjustable wheels
L) Air-Flow Control Blade For Hard Floor Cleaning Dry
M) Vacuum Intake
7
