West Mountain Radio RIGblaster Plug & Play User manual

1
RIGblaster plug & play Owners Manual
Revision 1.4
Oct 2008
Thank for purchasing a RIGblaster plug & play. The plug & play is designed to be
absolutely as easy as possible to set up while still providing full compatibility with each
and every ham radio sound card software program.
Unlike the other RIGblasters, the plug & play is designed to work only through a radio’s
rear panel data jack or auxiliary connector. This it makes it easy to plug in but there are
trade offs due to the design of various radio manufacturer’s data and auxiliary jacks.
If your data jack was designed to work the way you might want, you will be pleased with
the operation of the RIGblaster plug & play. West Mountain Radio did not design the
data jack on your radio, therefore we do not control how that system operates. We only
take sound in and out of the jack and control PTT through the jack.
Some jacks support operation on all modes and on all the bands that the radio may
provide, some do not. Some jacks may mute the microphone whenever PTT is
activated through the jack or they may leave the mic hot when using the jack. Your jack
may not function at all unless you turn it on from the radio’s menus or controls. Other
RIGblasters connect through the mic jack so we can control switching between the mic
and a computer. The RIGblaster plug & play cannot. If your radio’s data jack does not
function the way you wish a RIGblaster plus or pro is the solution.
We are sure that if your radio’s rear panel jack works the way you wish, the RIGblaster
plug & play will provide many hours of amateur radio enjoyment.

2
TABLE OF CONTENTS
SOUND CARD OPERATION, INSTALLATION AND SETUP Page 3
Step 1: Windows®plug and play installation Page 3
Step 2: Connect the computer audio cables and radio data/aux jack Page 4
Step 3: Receiving Page 5
Step 4: Check transmit audio tones Page 5
Step 5: PTT Setup Page 6
Step 6: Set the transmit audio to your radio Page 7
Step 7: Work lots of DX and have fun Page 7
CW OPERATION, INSTALLATION AND SETUP Page 8
Step 1a: Connect CW keying cable Page 8
Step 2a: Configure the computer and radio for CW operation Page 8
Step 3a: Work lots of DX and have fun Page 8
RIG CONTROL CAT/CIV, INSTALLATION AND SETUP Page 9
Step 1b: Connecting a CAT or CIV interface Page 9
Step 2b: Setting up the radio for rig control Page 9
Step 3b: Setting up rig control software for rig control Page 9
TROUBLESHOOTING Page 11
WARRANTY Page 12

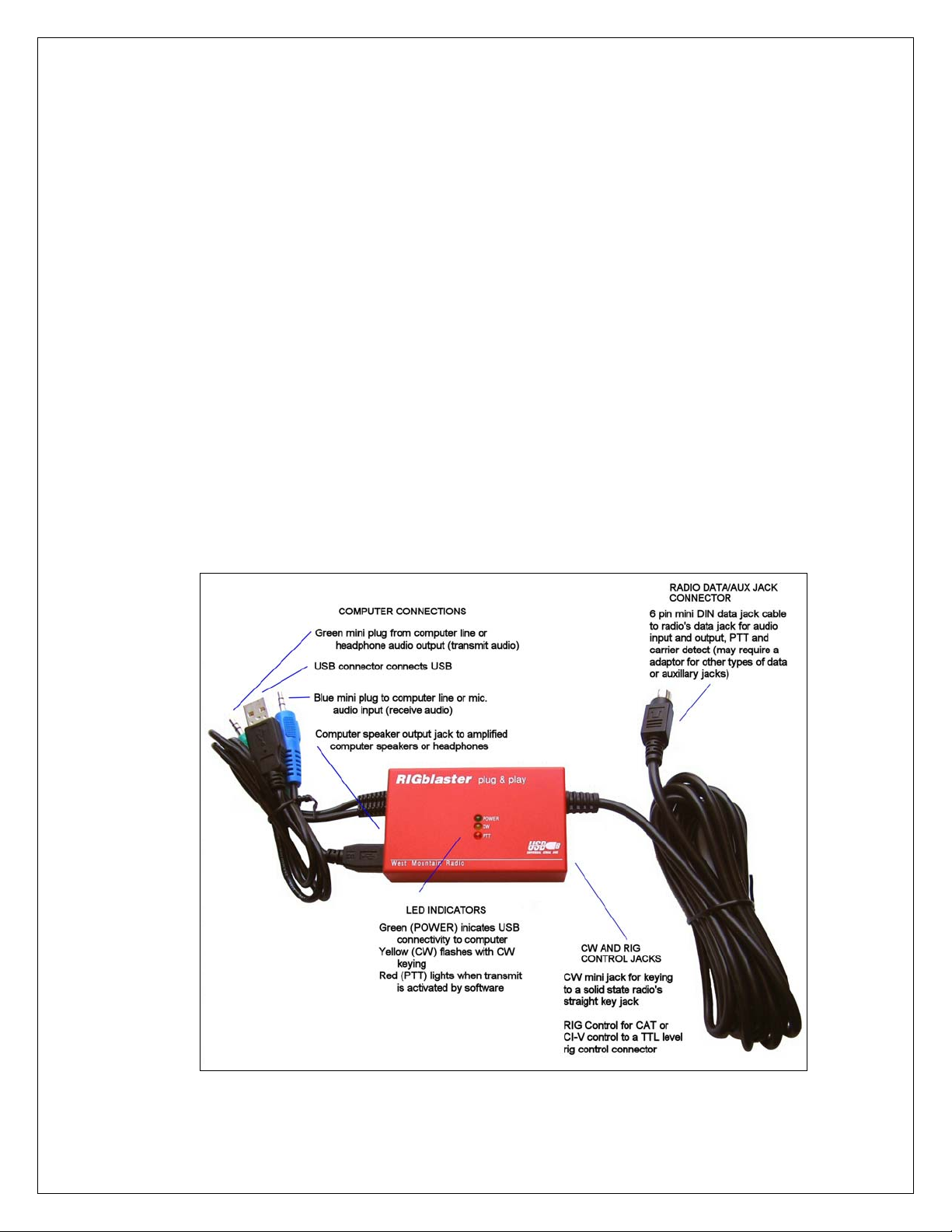

RIGblaster plug & play connections and indicators

3
SOUND CARD OPERATION, INSTALLATION AND SETUP
(READ CAREFULLY; PROCEED IN ORDER, STEP BY STEP!)
These instructions only explain how to use and setup the RIGblaster. Refer to the
manual for your radio and read the help files for your computer or third party ham
radio software for the other necessary information.
Step 1: Windows®plug and play installation
Plug the RIGblaster plug & play USB cable into the USB socket that you plan to use for
your RIGblaster. Wait until Windows® pops up a message saying: “Found New
Hardware”.
Windows® will ask you what you want to do. The ONLY option that will work is to “tell
it” you have an installation disk and to put the West Mountain Radio CD in your
computer, if you do not already have it in.
After selecting you have a CD disc then “Browse” to the CD and select the “Drivers
RIGblaster P_P” folder and complete two sets of driver installations, USB serial device
and serial emulator.
Once the drivers are installed by Windows®, the green “POWER” LED on the
RIGblaster Plug & Play will illuminate.
The driver installation is complete if Windows® indicates “Your Hardware is Ready to
Use” and the RIGblaster green POWER LED comes on. This will not happen if you
have stopped, cancelled or aborted the installation at any point for any reason, or if you
have let Windows® recommend or search for the correct driver.
Continue to the next step only if the driver installation completed correctly. See
tip below.
Tip: To confirm that the driver installation has completed correctly first check that you
have the green RIGblaster LED lit. You may then also check the Windows®device
manager. To do this, right click “My Computer” and then left click “Properties”. Click
“Hardware” then “Device manager”. Scroll down and click the “+” symbol next to
“Universal Serial Bus controllers” and also click + for “Ports (COM and LPT)”. You
MUST see the WMR RIGblaster under both these categories of installed hardware. If
not the RIGblaster installation was not completed successfully.
Tip: While you are looking at “Ports (COM and LPT)” note which COM port number was
assigned to your RIGblaster by Windows®. Later when you set up your ham radio
software you will need to know the COM port number for software configuration.

4
Step 2: Connect the computer audio cables and radio data/aux jack
Plug the RIGblaster’s mini plug stereo sound card audio input and output cables into
your computer’s sound connectors. Usually the sound card jacks on the back of a
desktop computer will be color coded correctly, so just match the colors.
If you have a desktop computer with rear panel jacks that are not color coded, plug the
green RIGblaster plug into the sound card line output . Plug the blue RIGblaster
plug into the sound card line input (you may use the mic input but it will be more
difficult to adjust and may not work as well).
If you have a laptop computer, or you wish to use the front panel connectors on a
desktop computer, they will not be color-coded. Plug the RIGblaster’s green plug into
the headphone output and plug the RIGblaster’s blue plug into the mic input.
Note it is preferable to use a line input if available.
Plug the RIGblaster’s data jack cable into the correct jack of your radio. You may need
to use a RIGblaster data/aux jack adaptors, if required with your radio. The plug &
play’s standard 6-pin mini-DIN plug will only work with certain radios. For example it will
work with an Icom IC746 data jack but not with an IC706 data jack.
You should connect amplified (wall supplied power) computer speakers to the
RIGblaster plug & play’s “COMPUTER” “spkr” jack. Normally you must use amplified
speakers so as not to load down the sound card output! If you do not have computer
speakers you may use 40 ohm, or higher, computer headphones. Speakers or
headphones are needed to be able to hear the computer and to tell if transmit or receive
audio is present!
Continue to the next step only if all the connections were identified and
connected properly.

5
Step 3: Receiving
From the RIGblaster CD’s “Software Collection”, or from a web download, install ham
radio sound card software. We recommend a PSK31 program to start with, such as
WinPSK.
From our CD, select “Software Collection” then select PSK31. From the PSK31
program list select and install “WinPSK”, assuming you have a Windows®PC. This is
an easy program and mode to use and there is a great deal of activity on the air. Other
modes and programs are usually more difficult, especially, Packet, RTTY and the
EchoLink®system.
Tip: From our CD select “Operating Information” and listen to the sound of PSK31 from
the recorded sounds. Use the frequency table for frequencies to operate on the various
modes.
Besides tuning in signals with your radio you will have tune in with the software. Read
the program’s help files to learn how to tune in and decode signals.
You must select and turn up the mic or line input (whichever you are using) of your
sound card using the Windows® sound card “Recording Control Panel”.
Tip: If you do not know how to access your “Recording Control Panel” read your
Windows help and/or the Oct 2003 QST article entitled “The In’s and Out’s of a Sound
Card”. The article is available on the West Mountain Radio web page and is linked from
the RIGblaster CD ROM.
Adjust your sound card input to achieve the proper receive audio signal as seen on the
software’s waterfall, or similar, display. To decode the signals that you are now feeding
to the software, remember to consult the software’s help documentation to tune in and
decode signals.
Continue to the next step only if you were able to receive and decode signals
correctly.
Step 4: Check transmit audio tones
Check that your software will generate transmit audio tones. Make sure that your radio
is off or into a dummy load and put the software in transmit. You should hear transmit
audio sound (tones) coming from the computer speakers or headphones that are
connected to the RIGblaster. If you do not hear sound, check that the sound card’s
“Volume Control” panel has the “Volume” and “Wave” sliders up half way or more. If it
is too loud from your speakers, turn down the volume on the speakers, NOT the sound
card.

6
This is an important test of the computer and software operation. Weak or no transmit
sound will make it impossible to transmit!
Tip: If you do not know how to access your “Volume Control” panel read your Windows
help and/or the article in the Oct 2003 QST, entitled “The In’s and Out’s of a Sound
Card”.
Continue to the next step only after you have confirmed that you can hear
transmit audio tones.
Step 5: PTT Setup
If you have not previously done so, right click the “My Computer” icon on your desktop
and then left click “Properties”. Click “Hardware” then “Device manager”. Scroll down
and click the + next to “Ports (COM and LPT)”. Check which COM port number was
assigned to your RIGblaster by Windows®. Remember this number, you will need it to
set up every ham radio sound card program.
No matter which program you are using you must setup and configure the program for
PTT operation by “telling” it which COM port number that Windows®assigned to the
RIGblaster.
If the program gives you a choice of using RTS or DTR for PTT: select RTS. DTR
should only be used for CW keying (see CW setup later in this manual).
Turn on your radio and enable, activate, or turn on your radio’s data or aux jack, if
necessary. The jack on the back of your radio may normally be disabled. If so, you
must refer to your radio’s manual to enable the jack.
Be sure to have your radio on and set for data/aux jack operation. Then test PTT
operation by activating transmit with the software. Set the mode to USB, assuming you
are using a PSK31 program. The radio should be connected to a dummy load as you
may transmit a signal upon PTT activation. The RIGblaster’s red PTT indicator should
come on and your radio should indicate PTT (transmit) activation. The radio may or
may not indicate power output depending on how the sound card is set, see the next
section.
Continue to the next step only after you have confirmed that you have PTT
activation on both the RIGblaster and the radio.

7
Step 6: Set the transmit audio to your radio
Check the manual for your radio to see if the microphone is disabled when the rear
panel data/aux jack is used. If your mic is NOT disabled you should disconnect the mic
or turn down the mic gain. If the radio’s data/aux jack is controlled by the mic gain you
will have to disconnect the mic and leave the mic gain set to a normal level.
With the radio’s RF power adjustment (drive) control set to maximum power, activate
the software transmit. You should hear transmit tones coming from your computer
speakers or headphones. Open your sound card “Volume Control” panel and adjust the
sound card master (left hand) “Volume” slider and the “Wave”, slider up or down
together until your radio indicates just less than full power output.
Note: Driving to full power, and activating ALC, especially with the radio’s power control
turned down will result in a distorted signal that is difficult or impossible to copy. Always
set the audio drive from the computer to less than full power even though the radio’s
power/drive control is set to maximum.
Tip: Once you have the audio transmit power set correctly you may then adjust your
computer speaker volume knob for a comfortable level. You may find these sound
adjustments are sensitive depending on your sound card and/or radio. Once you have
arrived at a correct setting you may use either turn down sound card or the transmit
power knob to further reduce the power. Do not turn down the radio’s power setting and
turn up the sound card.
Step 7: Work lots of DX and have fun
You are on the air!

8
CW OPERATION, INSTALLATION AND SETUP
(READ CAREFULLY; PROCEED IN ORDER, STEP BY STEP!)
Step 1a: Connect CW keying cable
You may have purchased a CW cable from West Mountain radio or you may use any
shielded stereo and/or mono 1/8” mini phone plug to 1/8” or 1/4” phone plug (depending
on your radio’s CW jack) cable,
Connect the cable from the RIGblaster’s “RADIO” “CW OUT” jack to the radio’s straight
key jack. A paddle input jack will NOT work! You must use a straight key jack.
Continue to the next step only if you have connected the CW cable to a straight
key jack.
Step 2a: Configure the computer and radio for CW operation
Obviously you must install and use CW software and you must set the radio to the CW
mode of operation. After installing CW software set it up as outlined in step 6 above.
Make sure that you have configured the software for the correct COM port and It is
configured for CW keying on DTR.
NOTE: If your data/aux jack does not support PTT control when the radio is in the CW
mode you will have to set the radio for break-in or semi-break-in CW operation. This
works great, exactly how you would want a key to work.
Test CW operation by transmitting with the CW software. The radio should transmit CW
and the RIGblaster’s yellow CW keying LED indicator should flash.
Step 3a: Work lots of DX and have fun
You are on the air with CW. You can now type CW with your keyboard! Keyboard CW
operation is great for CW contesting but nothing beats a real key for regular CW QSOs.

9
RIG CONTROL CAT/CIV, INSTALLATION AND SETUP
(READ CAREFULLY; PROCEED IN ORDER, STEP BY STEP!)
Step 1b: Connecting a CAT or CIV interface
The RIGblaster plug & play has a built in USB to Serial converter with TTL (5 volt logic)
output. It may be used with any radio that requires an RS232 to TTL level converter.
This includes most Icom, Ten Tec and certain Yaesu radios. If your radio has a DB9
RS232 control jack on the back, you DO NOT need nor can you use the RIG CONTROL
interface inside the RIGblaster plug & play.
You may order a pre-wired cable from West Mountain Radio for rig control via the
RIGblaster plug & play’s interface. If you wish to make your own cable you may look on
our support page for instructions.
Assuming you have a correctly wired cable connect it between the RIGblaster’s
“RADIO” “RIG CONTROL” jack and the radio’s jack.
Caution: When interfacing electronics between various products that are connected to
the outside world you must be careful to avoid damage due to ground loops. A
computer with a case grounded through its line cord and a radio grounded to an
antenna system can have tremendous AC leakage between these two grounds. During
a thunderstorm with a near by lightning strike, not a direct hit, several thousand volts
can be induced into the loop antenna formed by this type of ground loop. It is important
that every piece of equipment in your ham station is connected with a star ground
system to a SINGLE POINT GROUND (NO LOOPS).
Step 2b: Setting up the radio for rig control
Most radios have settings for the rig control communications interface, which may
include baud rate, parity, stop bits and CI-V addresses.
It is best to double check that the radio has all of these are set to the default or standard
settings. Consult the owner’s manual for your radio to be sure it is set correctly to the
defaults and make a note of what these settings are.
Step 3b: Setting up rig control software for rig control
Since radios have settings for the rig control communications it makes sense that the
software MUST be set to match those settings EXACTLY. Most rig control programs
will use the radio default settings when you select the exact model radio. Be aware, for
example, that if you have an IC706MKIIG and you set your software to an IC706MKII
(NO “G”) the rig control will not work, at all! This is true of other series of radio models
also.

10
Regardless of which rig control program you have installed, you will have to “tell” the
program the COM port number for the RIGblaster, and you will have to make an exact
match for the communications settings.
Any one item set incorrectly will totally prevent rig control from working! You must have
every communication setting in the software exactly match the settings for the radio and
in the radio.
With rig control set up and modern logging software you will never have to type your
frequency into your computer log again and you can jump to a DX cluster spot instantly.
Yaesu 6 pin DIN CAT control cable wiring
Yaesu 8 pin mini DIN CAT control cable wiring
Icom or Ten Tec CI-V remote cable wiring

11
TROUBLESHOOTING
If you have installed the RIGblaster step by step from this manual you need not go back
to a previous step. The problem is isolated to the step that you found a problem on.
If you contact us for support please be sure you know which step of this manual you are
stuck on before calling or writing.
Most RIGblaster plug & play problems usually have nothing to do with the RIGblaster or
how it is connected. They are almost always software related and can only be fixed
with a mouse. Make sure you have your sound card set properly and that you
understand the operation of the over forty virtual controls. Also be sure that you have
the COM port settings in your ham radio program correct. If you cannot get a new
program to work try another program, there are over 100 ham radio programs.
TYPICAL PROBLEMS:
1) The software has no receive signal displayed because the sound card input is not
turned on or up. Use the Windows® sound card “Recording Control” panel not the
playback “Volume Control” panel, duplex sound cards cannot be adjusted for receive
from the Windows® playback “Volume Control” panel.
2) The ham radio software is not set to the correct serial port for PTT control. All
programs must be configured to control PTT, they will not work unless you do this.
3) The sound card wave and volume outputs are set too low because the computer
speakers are too loud. Turn down or turn off your computer speakers and turn your
sound card up.
4) The RF power / Drive control on the radio is not set to maximum causing the
computer not to have enough audio to drive the radio even to half output.
5) Low impedance headphones or speakers are loading down the RIGblaster's audio
output from the sound card. Disconnect them or replace them with computer
headphones or speakers.
If you would like further help, see our support page, for the latest help and suggestions:
http://www.westmountainradio.com/supportno.htm
Please understand that the RIGblaster will not work if the software and computer do not
work. Make sure that you have your software operating properly and your sound card
adjusted properly if you expect the RIGblaster to work. You must read the
documentation that comes with the software! Software instructions are not included in
this manual. We did not write the software and we cannot properly support the
software. The best thing to do if you have software problems is to try a different
software package. If you have audio problems with two or more sound card programs

12
you may have a problem with your Windows sound card software installation, not your
sound card hardware.
For additional support information go to:
http://www.westmountainradio.com/supportpnp.htm
NOTE: If you contact us for support we must have the step number of this manual
that you ran into a problem on. We may not be able to help you without this
information.
It is best to call us while you are at your station rather than try to communicate
with us by email. Our support desk is available 10 AM to 5 PM Eastern Time
Zone, Monday through Friday.
West Mountain Radio
westmountainradio.com
34 Smith Street, Norwalk, CT 06851 tel [phone] fax [phone]

13
RIGblaster plug & play Warranty
RIGblaster plug & play is warranted against failure due to defects in workmanship or materials
for one year after the date of purchase from West Mountain Radio. Warranty does not cover
damage caused by abuse, accident, misuse, improper or abnormal usage, failure to follow
instructions, improper installation, alteration, lightning, or other incidence of excessive voltage
or current. If failure occurs within this period, return the RIGblaster plug & play or accessory to
West Mountain Radio at your shipping expense. The device or accessory will be repaired or
replaced, at our option, without charge, and returned to you at our shipping expense. Repaired or
replaced items are warranted for the remainder of the original warranty period. You will be
charged for repair or replacement of the RIGblaster plug & play or accessory made after the
expiration of the warranty period.
The Compact Disc of Radio Amateur Software Collection is excluded from any and all
warranties by West Mountain Radio. Note that the programs have been provided as shareware or
freeware by the software authors to the amateur radio community for their use and enjoyment.
The CD-ROM is to be used at your own risk.
West Mountain Radio shall have no liability or responsibility to customer or any other person or
entity with respect to any liability, loss, or damage caused directly or indirectly by use or
performance of the products or arising out of any breach of this warranty, including, but not
limited to, any damages resulting from inconvenience, loss of time, data, property, revenue, or
profit, or any indirect, special incidental, or consequential damages, even if West Mountain
Radio has been advised of such damages.
Except as provided herein, West Mountain Radio makes no express warranties and any implied
warranties, including fitness for a particular purpose, are limited in duration to the stated duration
provided herein.
West Mountain Radio
westmountainradio.com
34 Smith Street, Norwalk, CT 06851 tel [phone] fax [phone]
