USER MANUAL
WGen3600
Portable Generator
3600 Running Watts
4650 Peak Watts
WGen3600v
Portable Generator
3600 Running Watts
4650 Peak Watts
WGen2000
Portable Generator
2000 Running Watts
2500 Peak Watts
FOR MODELS:

2 | Westinghouse Portable Power
DISCLAIMERS:
All information, illustrations and specications in this manual are based on the latest information available at
the time of publishing. The illustrations used in this manual are intended as representative reference views only.
Moreover, because of our continuous product improvement policy, we may modify information, illustrations and/or
specications to explain and/or exemplify a product, service or maintenance improvement. We reserve the right
to make any change at any time without notice. Some images may vary depending upon which model is shown.
ALL RIGHTS RESERVED:
No part of this publication may be reproduced or used in any form by any means – graphic, electronic or
mechanical, including photocopying, recording, taping or information storage and retrieval systems – without the
written permission of MWE Investments LLC.
DANGER
This manual contains important instructions for operating this generator. For your safety
and the safety of others, be sure to read this manual thoroughly before operating the
generator. Failure to properly follow all instructions and precautions can cause you and
others to be seriously hurt or killed.
California
Proposition 65 Warning
The engine exhaust from this product
contains chemicals known to the state
of California to cause cancer, birth
defects or other reproductive harm.
California
Proposition 65 Warning
Certain components in this product and its
related accessories contain chemicals
known to the state of California to cause
cancer, birth defects or other reproductive
harm. Wash hands after handling.
Model
Number
Running
Watts
Peak
Watts
Fuel
Tank
Size
(L/G)
Rated
Speed
(RPM)
Ignition
Type
Spark
plug
Engine
Disp (cc)
Stroke X
Bore
Oil
Capacity
(L) Oil Type THD
WGen2000 2000 2500 15/4.0 3600 TCI F7TC 212 55X70 0.60 10W30 <23%
WGen3600 3600 4650 15/4.0 3600 TCI F7TC 212 55X70 0.60 10W30 <23%
WGen3600v 3600 4650 15/4.0 3600 TCI F7TC 212 55X70 0.60 10W30 <23%
NOTICE
Even with a carburetor modication, engine horsepower will decrease about 3.5% for each 300 meter (1,000 foot) increase in altitude.
The eect of altitude on horsepower will be greater if no carburetor modication is made. A decrease in engine horsepower will de-
crease the power output of the generator.
WGen TECHNICAL SPECIFICATIONS
HAVE QUESTIONS?
Email us at [e-mail]
or call 1-855-944-3571

Westinghouse Portable Power | 3
FOR YOUR RECORDS:
Date of Purchase:
Generator Model Number:
Purchased from Store/Dealer:
Generator Serial Number:
IMPORTANT: KEEP YOUR PURCHASE RECEIPT TO ENSURE TROUBLE-FREE WARRANTY
COVERAGE.
PRODUCT REGISTRATION
To ensure trouble-free warranty coverage, it is important you register your Westinghouse generator.
You can register your generator by either:
1. Filling in the product registration form below and mailing to:
Product Registration
MWE Investments LLC
777 Manor Park Drive
Columbus, Ohio 43228
2. Registering your product Online at www.westinghouseportablepower.com/register-your-product/
To register your generator you will need to locate the following information:
WESTINGHOUSE PRODUCT REGISTRATION FORM
PERSONAL INFORMATION GENERATOR INFORMATION
First Name: _______________________________________ Model Number: _____________________________________
Last Name: _______________________________________ Serial Number:______________________________________
Street Address: ___________________________________ Date Purchased: ____________________________________
Street Address: ___________________________________ Purchased From:____________________________________
City, State, ZIP:____________________________________
Country: __________________________________________
Phone Number: ___________________________________
E-Mail: ___________________________________________
此60x20mm的条 形
(此 大小65x20mm)
Made in China/ Fabriqu é en Chine
CSA Master Contract
Number :
Numéro de contrat
principa l de CSA
MWE Investments LLC
Columbus Ohio 43228 USA
Con u à columbus , Ohio,tats-Unis
MWE Investments LLC
Columbus Ohio 43228 Etats-Unis
Par t N0.
Numéro de
pièc e
Designed in Columbus , Ohio USA
268850
268850

4 | Westinghouse Portable Power
TABLE OF CONTENTS
WGEN TECHNICAL SPECIFICATIONS............2
PRODUCT REGISTRATION.....................3
For Your Records: ..........................3
Product Registration .......................3
Product Registration Form ...................3
SAFETY.....................................5
Safety Denitions ..........................5
Safety Symbol Denitions ...................5
General Safety Rules ........................6
Safety Labels and Decals ....................7
UNPACKING.................................9
What Comes in the Box......................9
Wheel Kit Accessories Box (WGen3600) ........9
ASSEMBLY -WGen3600 .......................10
Installing Wheels and Feet....................10
FEATURES .................................11
Generator Features .........................11

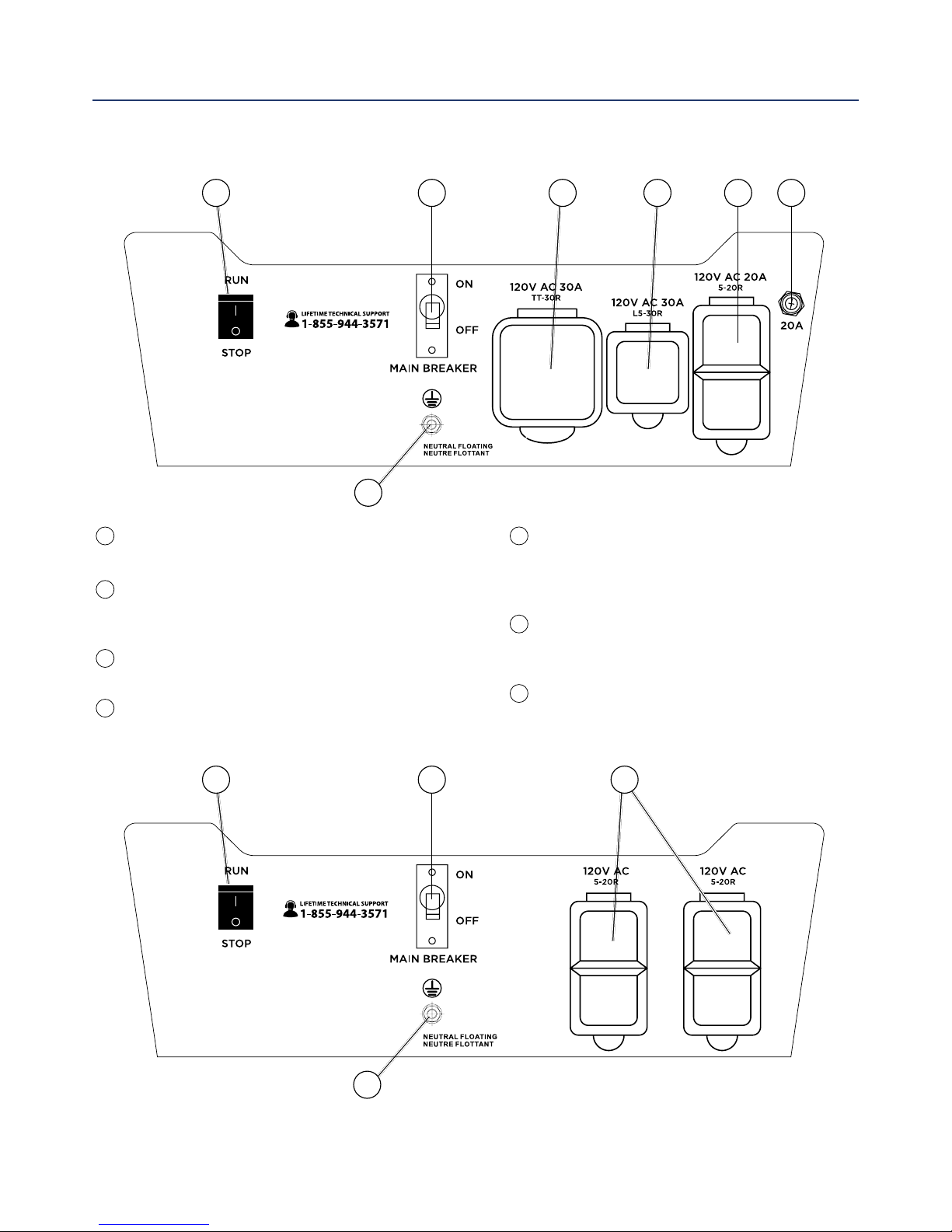

Control Panel Features .....................13
OPERATION .................................14
Before Starting the Generator .................14
Engine Fluids and Fuel.......................15
Adding Gasoline to the Fuel Tank ...........16
Starting the Generator ......................17
Manually Starting the Generator ............17
Stopping the Generator ......................18
Normal Operation .......................18
During an Emergency ....................18
MAINTENANCE ..............................19
Maintenance Schedule ......................19
Engine Oil Maintenance .....................20
Engine Oil Specication ...................20
Checking Engine Oil .....................20
Adding Engine Oil .......................20
Changing Engine Oil .....................21
Air Filter Maintenance .......................21
Cleaning the Air Filter ....................21
Spark Plug Maintenance .....................22
Cleaning the Generator ......................23
Storage ..................................23
Checking and Adjusting Valve Lash. . . . . . . . . . . . . 23
TROUBLE SHOOTING .........................24
EXPLODED AND ENGINE VIEWS................26
WGen2000 Engine View .....................26
WGen2000 Exploded View ...................27
WGen3600 Engine View .....................28
WGen3600 Exploded View ...................29
WGen3600v Engine View.....................30
WGen3600v Exploded View ..................31
SCHEMATICS................................32
WGen3600/WGen3600v Schematic ............32
WGen2000 Schematic .......................33

Westinghouse Portable Power | 5
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION and
NOTICE are used throughout this manual to highlight
important information. Be certain that the meanings of
these alerts are known to all who work on or near the
equipment.
This safety alert symbol appears
with most safety statements. It
means attention, become alert, your
safety is involved! Please read and
abide by the message that follows
the safety alerts symbol.
DANGER
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which can cause damage
to the generator, personal property and/or the
environment, or cause the equipment to operate
improperly.
NOTE: Indicates a procedure, practice or condition
that should be followed in order for the
generator to function in the manner
intended.
SAFETY
SAFETY SYMBOL DEFINITIONS

6 | Westinghouse Portable Power

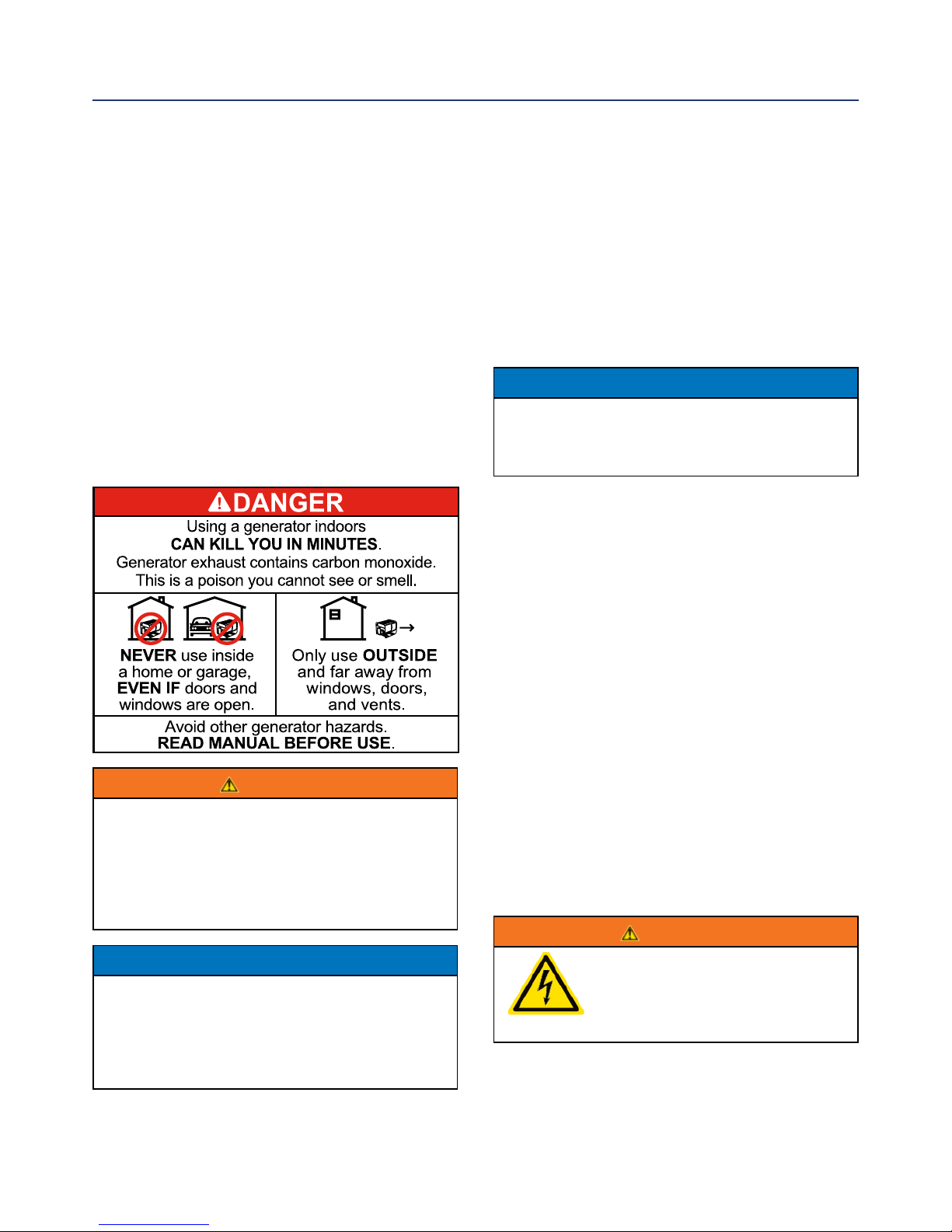

DANGER
Never use the generator in a location that is wet or damp. Never expose the generator to rain,
snow, water spray or standing water while in use. Protect the generator from all hazardous weather
conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.
Never operate the generator in an enclosed area. Engine exhaust contains carbon monoxide. Only
operate the generator outside and away from windows, doors and vents.
WARNING
Voltage produced by the generator could result in death or serious injury.
• Never operate the generator in rain or a ood plain unless proper precautions are taken to avoid
being subject to rain or a ood.
• Never use worn or damaged extension cords.
• Always have a licensed electrician connect the generator to the utility circuit.
• Never touch an operating generator if the generator is wet or if you have wet hands.
• Never operate the generator in highly conductive areas such as around metal decking or steel
works.
• Always use grounded extension cords. Always use three-wire or double-insulated power tools.
• Never touch live terminals or bare wires while the generator is operating.
• Be sure the generator is properly grounded before operating.
WARNING
Gasoline and gasoline vapors are extremely ammable and explosive under certain conditions.
• Always refuel the generator outdoors, in a well-ventilated area.
• Never remove the fuel cap with the engine running.
• Never refuel the generator while the engine is running. Always turn engine o and allow the
generator to cool before refueling.
• Only ll fuel tank with gasoline.
• Keep sparks, open ames or other form of ignition (such as match, cigarette, static electric
source)away when refueling.
• Never overll the fuel tank. Leave room for fuel to expand. Overlling the fuel tank can result in a
sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose
of rag properly. Allow area of spilled fuel to dry before operating the generator.
• Wear eye protection while refueling.
• Never use gasoline as a cleaning agent.
• Store any containers containing gasoline in a well-ventilated area, away from any combustibles or
source of ignition.
• Check for fuel leaks after refueling. Never operate the engine if a fuel leak is discovered.
WARNING
Never operate the generator if powered items overheat,
electrical output drops, there is sparking, ames or smoke
coming from the generator, or if the receptacles are
damaged.
Never use the generator to power medical support
equipment.
Always remove any tools or other service equipment used
during maintenance from the generator before operating.
NOTICE
Never modify the generator.
Never operate the generator if it
vibrates at high levels, if engine
speed changes greatly or if the
engine misres often.
Always disconnect tools or
appliances from the
generator before starting.
GENERAL SAFETY RULES
SAFETY

Westinghouse Portable Power | 7
SAFETY

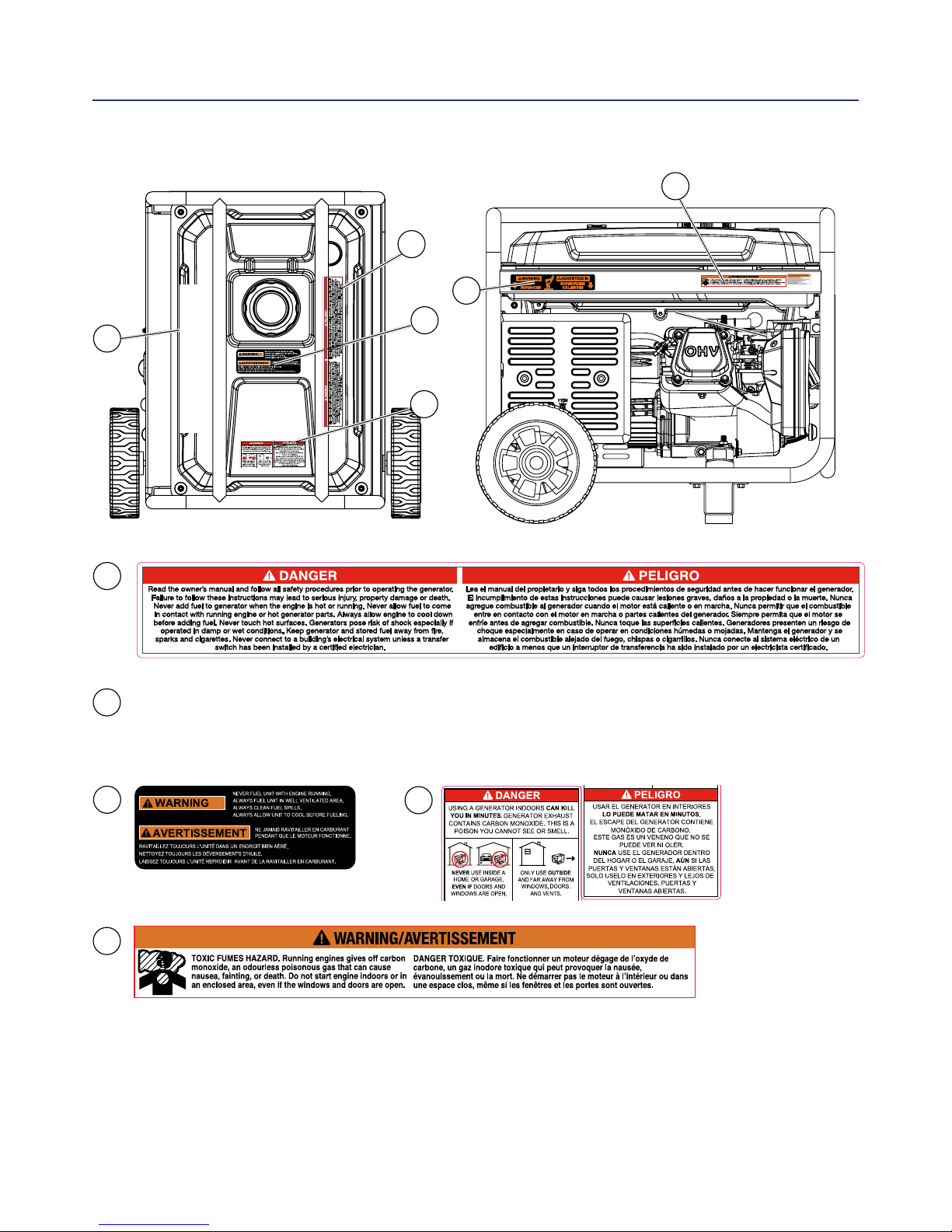

SAFETY LABELS AND DECALS
4
1
1
3
3
4
2
Made in China/ Fabriqu é en Chine
CSA Master Contract
Number :
Numéro de contrat
principa l de CSA
MWE Investments LLC
Columbus Ohio 43228 USA
Con u à columbus , Oh io,tats-Unis
MWE Investments LLC
Columbus Ohio 43228 Etats-Unis
Par t N 0.
Numéro de
pièc e
Designed in Columbus , Ohio USA
4
2
5
5
Made in China/ Fabriqu é en C hine
CSAMaster Contract
Number :
Numéro de c ontrat
principa l de CSA
MWEInvestments LLC
Columbus Ohio 43228 USA
Con u à columbus , O hio,tats-Unis
MWE InvestmentsLLC
ColumbusOhio 43228 Etats-Unis
Part N0.
Numéro de
pièce
Designed in Columbus ,Ohio USA
WGen3600 WGen3600

8 | Westinghouse Portable Power
SAFETY
SAFETY LABELS AND DECALS
8
9
7
10
89
268850
268850
Sample from WGen5500
6
7
6
Sample from WGen5500
10
5
WGen3600 WGen3600

Westinghouse Portable Power | 9
1. Washer (2 used)
2. Flange Bolt M8 x16mm (4 used)
3. Hairpin Cotter Pin (2 used)
4. Wheel Axle Pin (2)
CAUTION
Always have assistance when lifting
the generator. The generator is heavy;
lifting it could cause bodily harm.
Avoid cutting on or near staples
to prevent personal injury.
Tools required – box cutter or similar device.
1. Carefully cut the packing tape on top of the carton.
2. Fold back top aps to reveal the manual.
3. Remove the Wheel Kit Accessories (WGen3600
only) cardboard box.
4. Carefully cut two sides of the carton to
remove the generator.
WHAT COMES IN THE BOX
Manual
Quick Start Guide/Maintenance Schedule
0.6 Liter Bottle of SAE 10W30 Oil (1)
Spark Plug Socket Wrench (1)
Wheel Kit Accessories Box (WGen3600 Only)
Funnel (1)
WHEEL KIT ACCESSORIES BOX
(WGEN3600 ONLY)
Open the Wheel Kit Accessories box and verify the
contents against the list right. If any parts are missing,
please locate an authorized Westinghouse Generator
dealer at [e-mail] or call
1-855-944-3571.
UNPACKING
Figure 1 - (WGen3600 only) Wheel
and Feet Kit Hardware
1
2
3
4

10 | Westinghouse Portable Power
WGen3600
INSTALLING WHEELS AND FEET
BEFORE ASSEMBLING THE
GENERATOR, REVIEW THE SAFETY
SECTION STARTING ON PAGE 5.
CAUTION
Never lift the generator without
assistance. The generator is heavy
and lifting without assistance could
result in personal injury.
Never use the handles as a lifting point
to support the entire weight of the
generator. Only use the handles to move
the generator by lifting the handles and
using the wheels to move the generator.
Use caution when collapsing the
handles. Hands and ngers could get
caught and pinched.
NOTICE
Assembling the generator will require lifting the unit
on one side. Make sure all engine oil and fuel are
drained from the unit prior to assembling. Once
assembled, the wheel kit is not intended for on-
road use. The wheel kit is designed for use on this
generator only.
INSTALLING FEET TO FRAME
(WGen3600 Only)
1. Place generator on a at surface.
2. Place a piece of cardboard or other soft material to
tip the generator onto, to protect the frame paint
and prevent the generator from sliding. Tip the
generator onto the side.
3. Install the mounting foot to the frame using M8
ange bolts.
1 - Mounting Feet
2 - Flange Bolts M8
INSTALLING WHEELS TO FRAME
(WGen3600 Only)
1. Insert axle pin through washer and wheel.
2. Install the wheel with axle pin through the axle
bracket on the frame. The eye of the bolt should be
facing toward the inside of the generator.
21
3
Figure 3 - Assemble Wheel to Frame
3. Install the hairpin cotter through the axle pin to lock
it in place.
1 - Axle Bracket
2 - Hairpin Clip
3 - Axle Pin
4. Repeat previous steps on other wheel.
ASSEMBLY - WGen3600
Figure 2 -Wheel Assembly
Figure 1 - Assemble Mounting Feet to Frame

Westinghouse Portable Power | 11
WGen3600
Engine Control Switch: Allows fuel to ow to
engine and energizes the ignition system.
Fuel Cap: Close until clicking sound is heard.
Control Panel: Contains the circuit breakers
and outlets.
Oil Fill Plug/Dipstick: Must be removed to add
and check oil.
Oil Drain Plug: Must be removed to drain
engine oil
FEATURES
Never Flat Wheels (WGen3600 Only): For easy
portability
Fuel Shut o Valve: Controls the ow of fuel
to the engine.
Manual Choke: Choke must be set manually by
adjusting choke lever.
Single Piece Handle (WGen3600 Only): Includes
rubber grip. Allows you to easily push or pull unit
with one hand.
1
5
6
7
8
9
2
3
4
3
6
54
9
8
7
2
1
WGen2000
1
2
3
4
5
8
7
WGen3600v
1
2
3
4
5
8
7

12 | Westinghouse Portable Power
Fuel Gauge: Indicates fuel level.
Spark Plug Boot (Wire): Must be removed
when servicing the engine or the spark plug.
CARB Canister: Required for models sold into
and used in California.
Muer and Spark Arrester: Avoid contact
until engine is cooled down. Spark arrestor
prevents sparks from exiting the muer. It must
be removed for servicing.
FEATURES
1
2
3
4
4
1
2
3
WGen2000 | WGen3600v
WGen3600
1
2
3
4

Westinghouse Portable Power | 13
120-Volt, Duplex Outlets (NEMA 5-20R): Each
outlet is capable of carrying a maximum of 20 (18
amps WGen2000) amps on a single receptacle or
a combination of both receptacles.
20-Amp Circuit Breakers: This circuit breaker
limits the current that can be delivered through
the 120-volt duplex outlets to 20amps.
Ground Terminal: The ground terminal is used to
ground the generator.
Engine Control Switch: Allows fuel to ow to
engine and energizes the ignition system.
Main Circuit Breaker: The main circuit breaker
controls total output of all outlets to protect the
generator.
120-Volt 30 Amp TT-30R Outlet: Travel Trailer outlet
can supply a maximum of 30 amps and 120 volts.
120-Volt, 30 Amp Twistlock Outlet (L5-30R ):
Outlet can supply 120V output.
CONTROL PANEL FEATURES
1
6
7
2
3
4
5
2
2
34 5 61
1
7
7
FEATURES
WGen2000 | WGen3600v
WGen3600
WGen2000
2000 Running Watts | 2500 Peak Watts
WGen3600
3600 Running Watts | 4650 Peak Watts
5

14 | Westinghouse Portable Power
Weather – Never operate your generator outdoors during
rain, snow or any combination of weather conditions that
could lead to moisture collecting on, in or around the
generator.
Dry Surface – Always operate the generator on a dry
surface free of any moisture.
No Connected Loads – Make sure the generator has no
connected loads before starting it. To ensure there are no
connected loads, unplug any electrical extension cords
that are plugged into the control panel receptacles.
NOTICE
Starting the generator with loads already applied
to it could result in damage to any appliance being
powered o the generator during the brief start-up
period.
Grounding the Generator – The National Electric Code
(NEC), as well as many local electrical codes, may require
the generator to be connected to earth ground. The
most common application that requires a ground rod is
when you are using the generator as a separately derived
system to provide back up power to your house. Typically
this is when a transfer switch has a switched neutral.
As the generator application has many variables that
cannot be determined by the manufacturer of the
generator, a licensed electrician will need to determine if a
grounding rod is needed.
If a licensed electrician has determine the application
requires a ground rod, make sure it is connected to earth
ground by connecting the ground terminal on the control
panel to earth ground using copper wire (minimum 10
AWG). Consult a qualied electrician for local grounding
requirements.
Floating Neutral (WGen2000, WGen3600 & WGen3600v):
The generator (stator winding) is isolated from the frame
and from the AC receptacle ground pin.
WARNING
Be sure the generator is properly
connected to earth ground before
operating. The generator must be
grounded to prevent electrical shock
due to faulty appliances.
BEFORE STARTING THE GENERATOR
BEFORE STARTING THE GENERATOR,
REVIEW SAFETY SECTION STARTING
ON PAGE 5.
Location Selection – Before starting the generator,
avoid exhaust and location hazards by verifying:
• You have selected a location to operate the generator
that is outdoors and well ventilated.
• You have selected a location with a level and solid
surface on which to place the generator.
• You have selected a location that is at least 6 feet
(1.8 m) away from any building, other equipment or
combustible material.
• If the generator is located close to a building, make
sure it is not located near any windows, doors and/
or vents.
WARNING
Always operate the generator on a
level surface. Placing the generator
on non level surfaces can cause the
generator to tip over, causing fuel
and oil to spill. Spilled fuel can ignite
if it comes in contact with an ignition
source such as a very hot surface.
NOTICE
Only operate the generator on a solid, level surface.
Operating the generator on a surface with loose
material such as sand or grass clippings can cause
debris to be ingested by the generator that could:
• Block cooling vents
• Block air intake system
OPERATION

Westinghouse Portable Power | 15
Once the generator is started and the engine gets
warm, it is not safe to add gasoline to the fuel tank or
engine oil to the engine while the engine is running or
the engine and muer are hot.
CHECKING AND / OR ADDING ENGINE OIL
WARNING
Internal pressure can build in the
engine crankcase while the engine
is running. Removing the oil ll plug/
dipstick while the engine is hot can
cause extremely hot oil to spray out
of the crankcase and can severely
burn skin. Allow engine oil to cool for
several minutes before removing the
oil ll plug/dipstick.
The unit as shipped does not contain oil in the engine.
You must add engine oil before starting the generator
for the rst time. See Checking Engine Oil and Adding
Engine Oil on page 20 for instructions on checking
engine oil level and the procedure for adding engine oil.
NOTICE
The engine does not contain engine oil as shipped.
Attempting to start the engine can damage
engine components. The owner of the generator
is responsible to ensure the proper oil level is
maintained during the operation of the generator.
Failure to maintain the proper oil level can result in
engine damage.
ADDING / CHECKING ENGINE
FLUIDS AND FUEL
BEFORE ADDING/CHECKING ENGINE
FLUIDS AND FUEL, REVIEW SAFETY
SECTION STARTING ON PAGE 5.
DANGER
Filling the fuel tank with gasoline while
the generator is running can cause
gasoline to leak and come in contact
with hot surfaces that can ignite the
gasoline.
Before starting the generator, always check the level of:
• Engine oil
• Gasoline in the fuel tank
OPERATION
Figure 5

16 | Westinghouse Portable Power
ADDING GASOLINE TO THE FUEL TANK
WARNING
Never refuel the generator while the
engine is running.
Always turn the engine o and allow
the generator to cool before refueling.
Required Gasoline – Only use gasoline that meets the
following requirements:
• Unleaded gasoline only
• Gasoline with maximum 10% ethanol added
• Gasoline with an 87 octane rating or higher
Filling the Fuel Tank – Follow the steps below to ll the
fuel tank:
1. Shut o the generator.
2. Allow the generator to cool down so all surface
areas of the muer and engine are cool to the
touch.
3. Move the generator to a at surface.
4. Clean area around the fuel cap.
5. Remove the fuel cap by rotating counterclockwise.
6. Slowly add gasoline into the fuel tank. Be very
careful not to overll the tank. The gasoline level
should NOT be higher than the ller neck (see
Figure 6).
7. Install the fuel cap by rotating clockwise until
you hear a click, indicating the cap is completely
installed.
CAUTION
Avoid prolonged skin contact with
gasoline. Avoid prolonged breathing of
gasoline vapors.
BEFORE STARTING THE GENERATOR
BEFORE STARTING THE GENERATOR,
REVIEW SAFETY SECTION STARTING
ON PAGE 5.
Before attempting to start the generator,
verify the following:
• The engine is lled with engine oil. See Checking
Engine Oil on page 20.
• The generator is situated in a proper location
(Location Selection on page 14).
• The generator is on a dry surface (Weather and Dry
Surface on page 14).
• All loads are disconnected from the generator (No
Connected Loads on page 14).
• The generator is properly grounded the Generator
(page 14).
DANGER
Never use the generator in a location
that is wet or damp. Never expose the
generator to rain, snow, water spray or
standing water while in use. Protect
the generator from all hazardous
weather conditions. Moisture or ice
can cause a short circuit or other
malfunction in the electrical circuit.
Never operate the generator in an
enclosed area. Engine exhaust
contains carbon monoxide. Only
operate the generator outside and
away from windows, doors and vents.
NOTICE
The engine is equipped with a low oil shutdown
switch. If the oil level becomes low, the engine may
shut down and not start until the oil is lled to the
proper level. Poor oil quality may interfere with the
operation of the low oil shutdown switch.
The owner of the generator is responsible to ensure
the proper oil level is maintained during the operation
of the generator. Failure to maintain the proper oil
level can result in engine damage.
OPERATION
Figure 6 - Maximum Gasoline Fill Level

Westinghouse Portable Power | 17
MANUALLY STARTING THE GENERATOR
1. Check oil levels (see Adding Engine Oil page 20)
2. Make sure the circuit breakers are properly set (see
Figure 7 below).
240/120VMain Circuit Breaker Operating Position
240/120V Main Circuit Breaker Tripped Position
120V Circuit Breaker Operating Position
120V Circuit Breaker Tripped Position
3. Move the fuel shut o valve to the ON position (see
Figure 8 below).
ON
OFF
Figure 8 - Fuel Shut O - ON
4. Move the choke lever to the “ON” position (see
Figure 9 below).
Figure 9 - Choke Lever - ON
5. Push the engine control switch into the RUN
position (see Figure 10 below).
6. Firmly grasp and pull the recoil handle slowly until
you feel increased resistance. At this point, apply
a rapid pull while pulling up and slightly away from
the generator (see Figure 11).
7. As the engine starts and stabilizes, gradually move
the choke lever back to the OFF position (see
Figure 12 below).
OPERATION
Figure 7 - Breakers
Figure 10 - Engine Control Switch - RUN
Figure 11 - Engine Recoil Handle - PULL
Figure 12 - Choke Lever - OFF
1
2
3
4

18 | Westinghouse Portable Power
STOPPING THE GENERATOR
Normal Operation
During normal operation, use the following steps to
stop your generator:
1. Remove any connected loads from the control
panel receptacles.
2. Allow the generator to run at “no load” to reduce
and stabilize engine and alternator temperatures.
3. Position the engine control switch to STOP or if you
plan to store the generator after use, turn the fuel
shuto valve to the OFF position and allow the fuel
to be consumed from the carburetor. (see gure 13)
During an Emergency
If there is an emergency and the generator must be
stopped quickly, position the engine control switch to
the STOP position immediately.
WARNING
Internal pressure can build in the
engine crankcase while the engine
is running. Removing the oil ll plug/
dipstick while the engine is hot can
cause extremely hot oil to spray out
of the crankcase and can severely
burn skin. Allow engine oil to cool for
several minutes before removing the
oil ll plug/dipstick.
Always perform maintenance in a well-
ventilated area. Gasoline fuel and fuel
vapors are extremely ammable and
can ignite under certain conditions.
WARNING
Avoid accidentally starting the
generator during maintenance by
removing the spark plug boot from
the spark plug. For electric start
generators, also disconnect the
battery cables from the battery
(disconnect the black negative (-)
cable rst) and place the cables away
from the battery posts to avoid arcing.
Allow hot components to cool to
the touch prior to performing any
maintenance procedure.
OPERATION
MAINTENANCE
Figure 13 - Move engine switch to STOP
BEFORE PERFORMING MAINTENANCE ON THE GENERATOR, REVIEW THE
SAFETY SECTION STARTING ON PAGE 5, AS WELL AS THE FOLLOWING
SAFETY MESSAGES.

Westinghouse Portable Power | 19
MAINTENANCE SCHEDULE
WARNING
Failure to perform periodic
maintenance or not following
maintenance procedures can cause
the generator to malfunction and
could result in death or serious injury.
NOTICE
Periodic maintenance intervals vary depending
on generator operating conditions. Operating the
generator under severe conditions, such as sustained
high-load, high-temperature, or unusually wet or
dusty environments, will require more frequent
periodic maintenance. The intervals listed in the
maintenance schedule should be treated only as a
general guideline.
MAINTENANCE
TABLE 1: MAINTENANCE SCHEDULE - OWNER PERFORMED
Maintenance Item
Before Every
Use
After First 20
Hours or First
Month of Use
After 50 Hours
of Use or Every
6 Months
After 100 Hour
of Use or Every
6 Months
After 300 Hours
of Use or Every
Year
Engine Oil Check Level Change Change - -
Cooling Features Check/Clean - - - -
Air Filter Check -Clean* - Replace
Spark Plug - - - Check/Clean Replace
Spark Arrestor - - - Check/Clean -
*Service more frequently if operating in dry and dusty conditions
TABLE 2: MAINTENANCE SCHEDULE - AUTHORIZED WESTINGHOUSE
SERVICE DEALER PERFORMED
Maintenance Item
Before Every
Use
After First 20
Hours or First
Month of Use
After 50 Hours
of Use or Every
6 Months
After 100 Hour
of Use or Every
6 Months
After 300 Hours
of Use or Every
Year
Valve Clearance - - - - Check/Adjust
Fuel Filter - - - Check/Clean -
Idle Speed - - - - Check/Adjust
CAUTION
Avoid skin contact with engine
oil or gasoline. Prolonged
skin contact with engine oil
or gasoline can be harmful.
Frequent and prolonged
contact with engine oil may
cause skin cancer. Take
protective measures and
wear protective clothing and
equipment. Wash all exposed
skin with soap and water.
Following the maintenance schedule is important
to keep the generator in good operating condition.
The following is a summary of maintenance items by
periodic maintenance intervals.

20 | Westinghouse Portable Power
ENGINE OIL MAINTENANCE
Engine Oil Specication
1. Only use the engine oil specied in Figure 14.
2. Only use 4-stroke/cycle engine oil. NEVER USE
2-STROKE/CYCLE OIL. Synthetic oil is an
acceptable substitute for conventional oil.
Figure 14 - Recommended Oil
CHECKING ENGINE OIL
NOTICE
Always maintain proper engine oil level. Failure to
maintain proper engine oil level could result in severe
damage to the engine and/or shorten the life of the
engine. Always use the specied engine oil. Failure
to use the specied engine oil can cause accelerated
wear and/or shorten the life of the engine.
Engine oil level should be checked before every use.
1. Always operate or maintain the generator
on a at surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. With a damp rag, clean around the
oil ll plug/dipstick.
5. Remove oil ll plug/dipstick (see Figure 15 below).
Figure 15 - Oil Fill Plug/Dipstick
6. Check oil level: When checking the engine oil,
remove the oil ll plug/dipstick and wipe it clean.
Thread the oil ll plug/dipstick all the way back in
and then remove and check the oil level on the oil
ll plug/dipstick.
• Acceptable Oil Level – Oil is visible on the
crosshatches between the H and L lines on the oil
ll plug/dipstick (see Figure 16).
• Low Oil – Oil is below the L line on the oil ll
plug/ dipstick.
Figure 16 - Checking Oil Level
ADDING ENGINE OIL
1. Always operate or maintain the generator
on a at surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. Thoroughly clean around the oil ll plug/dipstick.
5. Remove oil ll plug/dipstick and wipe clean.
6. Select the proper engine oil as specied
in Figure 14.
7. Using the supplied funnel and tube, slowly add
engine oil to the engine. Stop frequently to check
the level to avoid overlling.
8. Continue to add oil until the oil is at the correct level
(see Figure 16).
MAINTENANCE
