Westinghouse LTV-40w1 HDC User manual

KW-32w4t_!DC
_V-4Owl /,IDC
Wi@scteenDYDCombo
Jo LO/8C/8/ _
1111 ; 4! i: :1
x;]]Zi] ¸:¸¸ L

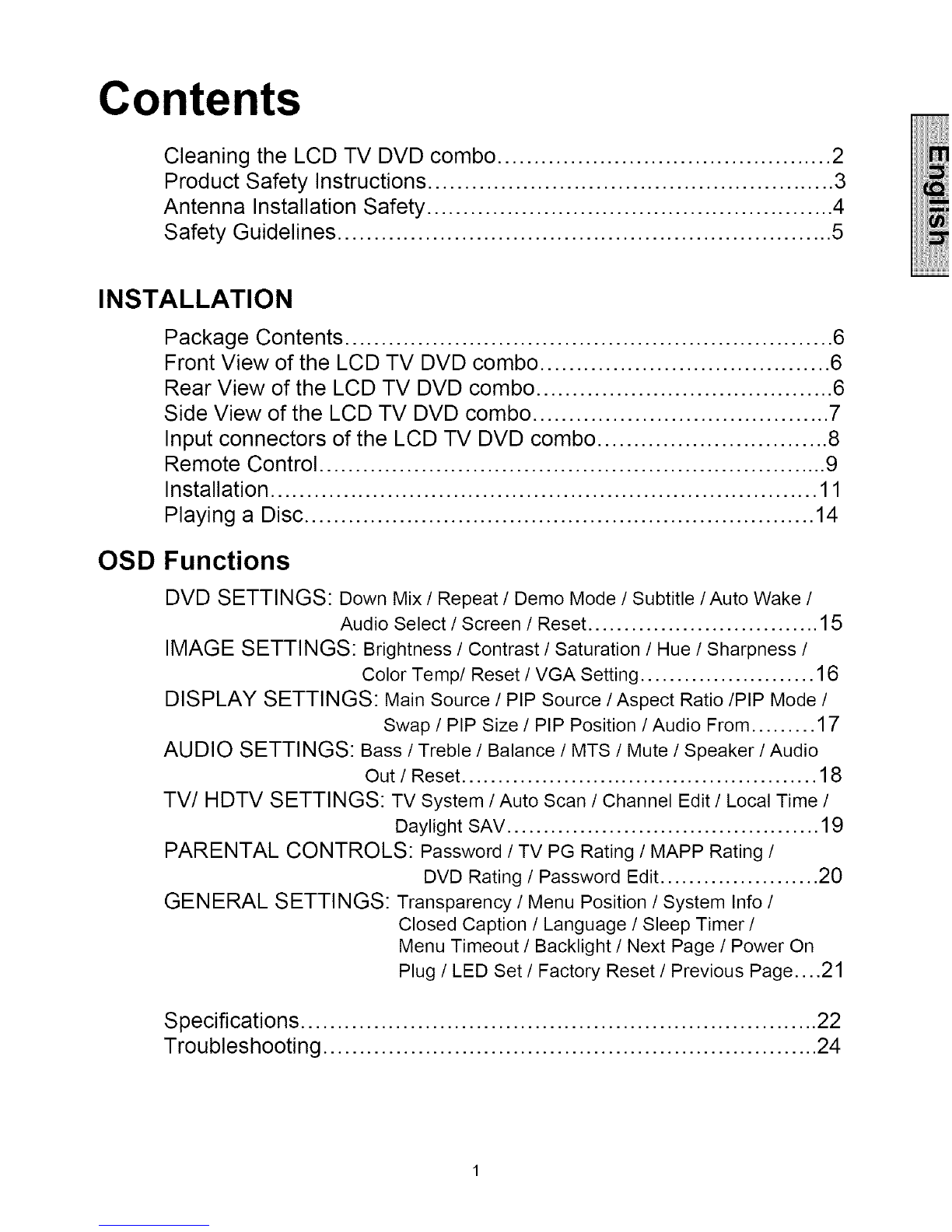

Contents
Cleaning the LCD TV DVD combo .............................................. 2
Product Safety Instructions ........................................................ 3
Antenna Installation Safety ........................................................ 4
Safety Guidelines .................................................................... 5
INSTALLATION

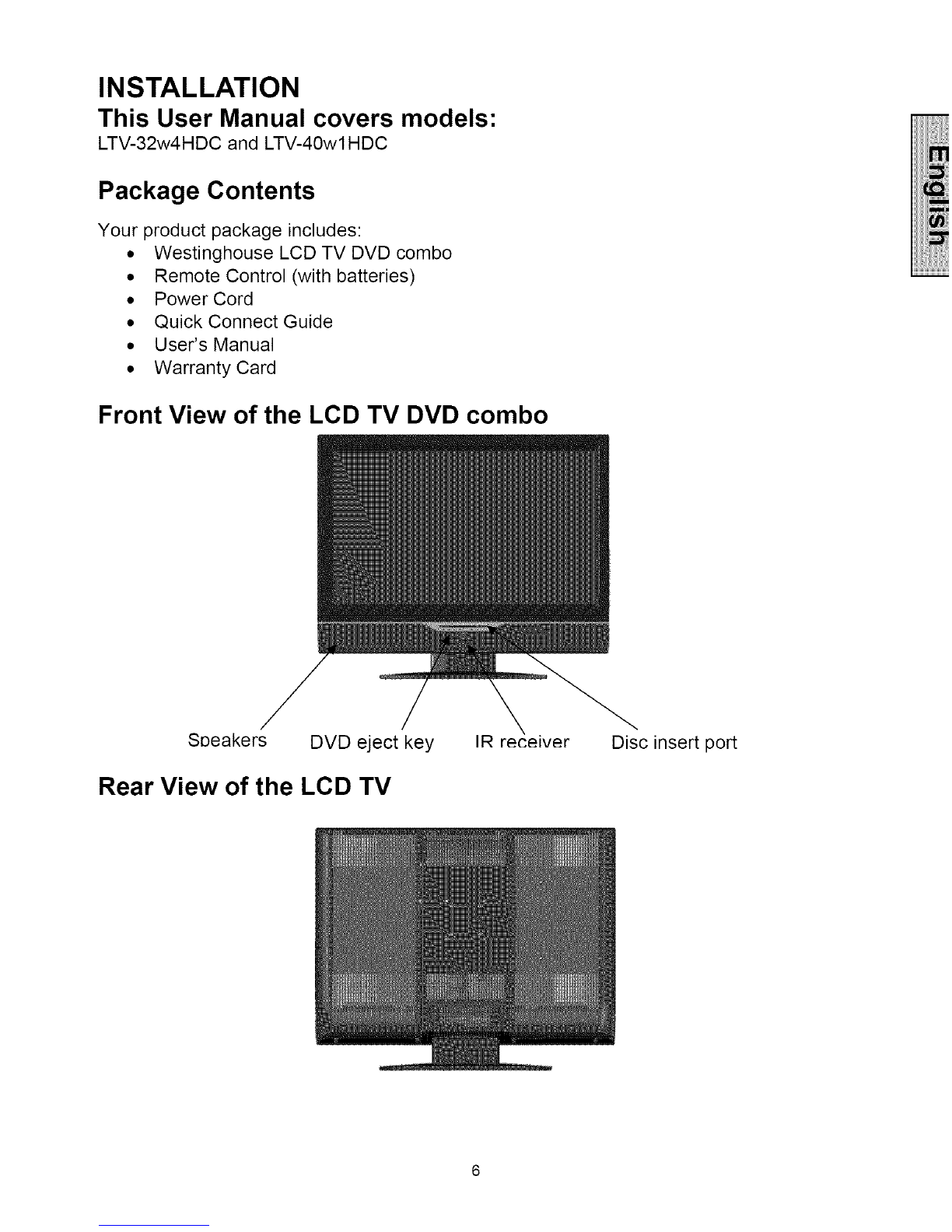

Package Contents ................................................................... 6
Front View of the LCD TV DVD combo ........................................ 6
Rear View of the LCD TV DVD combo ......................................... 6

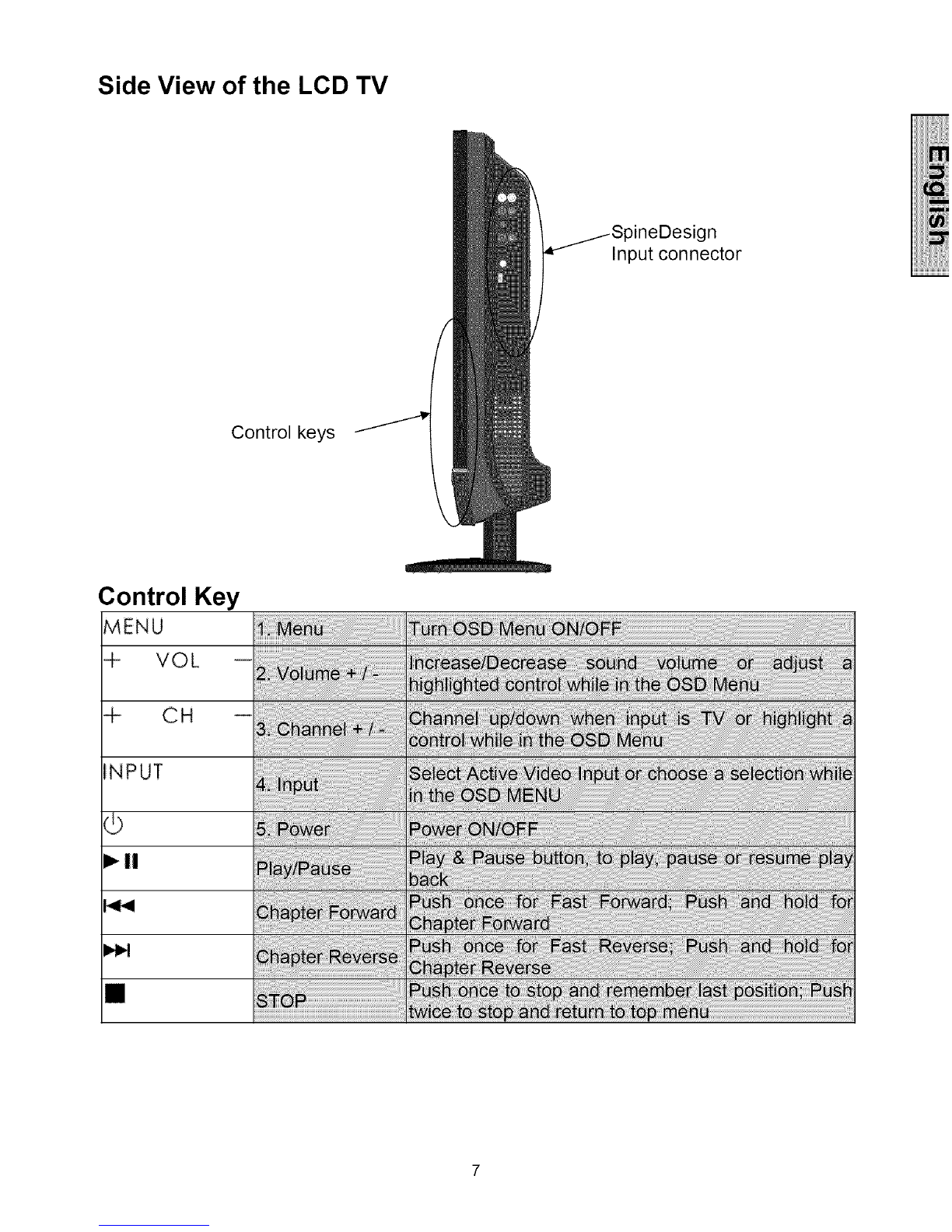

Side View of the LCD TV DVD combo ......................................... 7

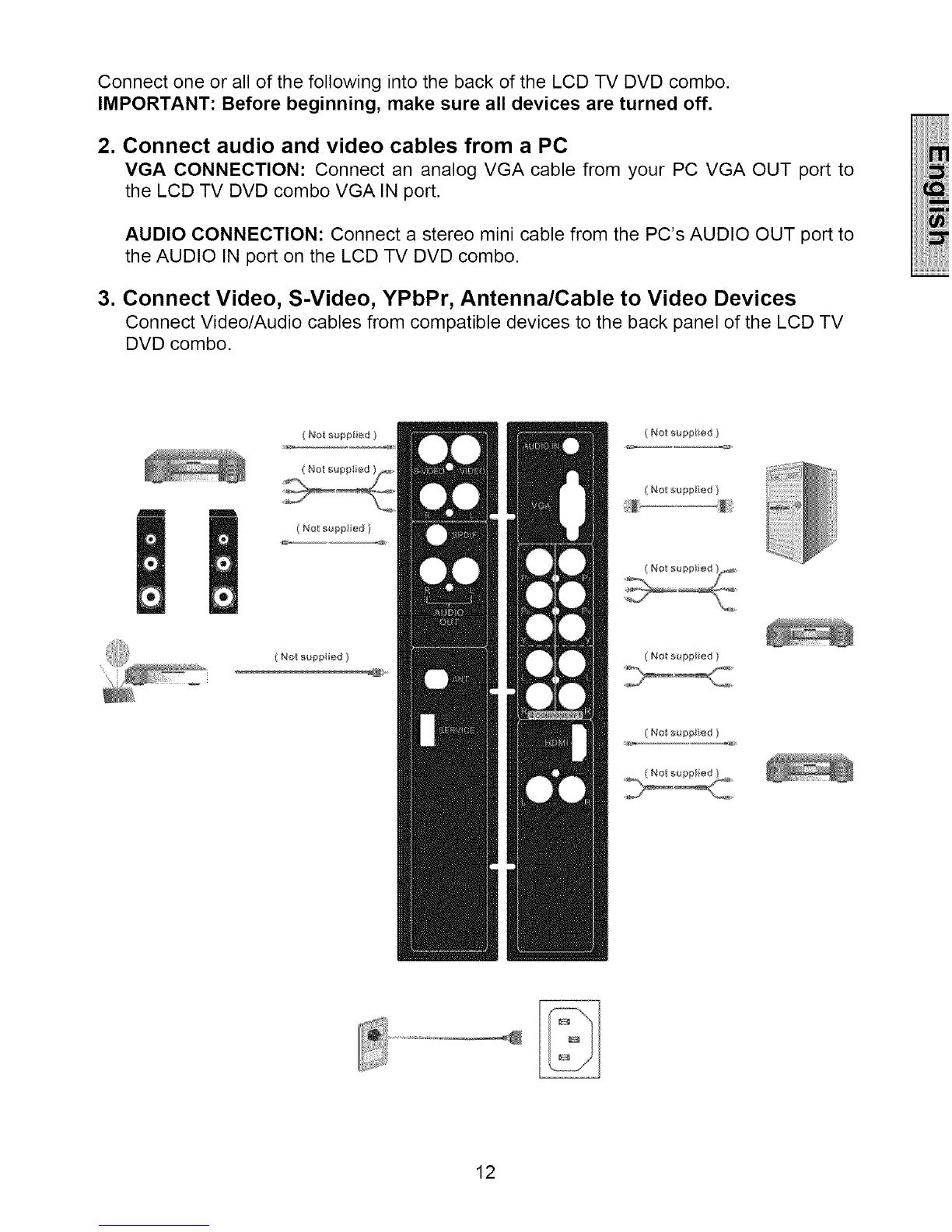

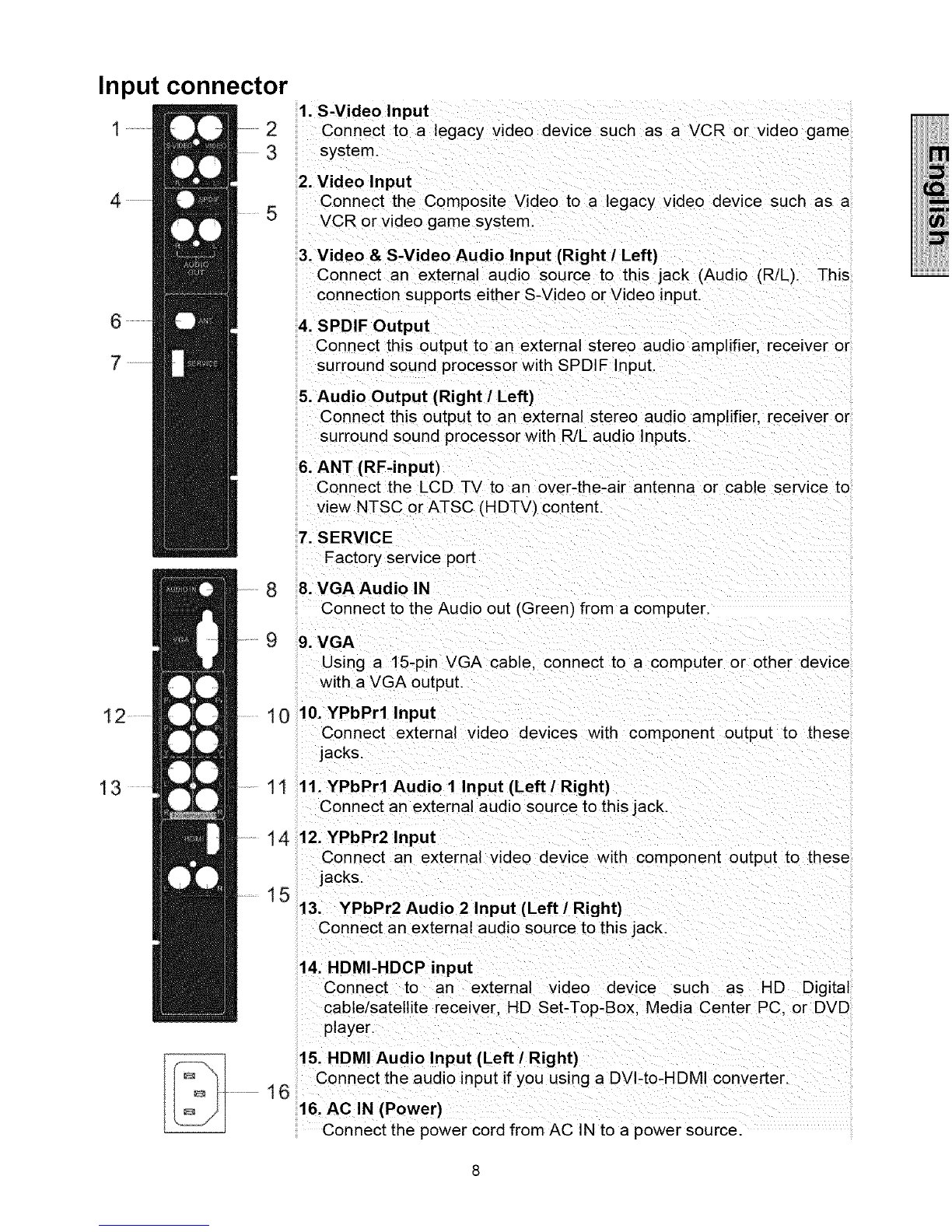

Input connectors of the LCD TV DVD combo ................................ 8

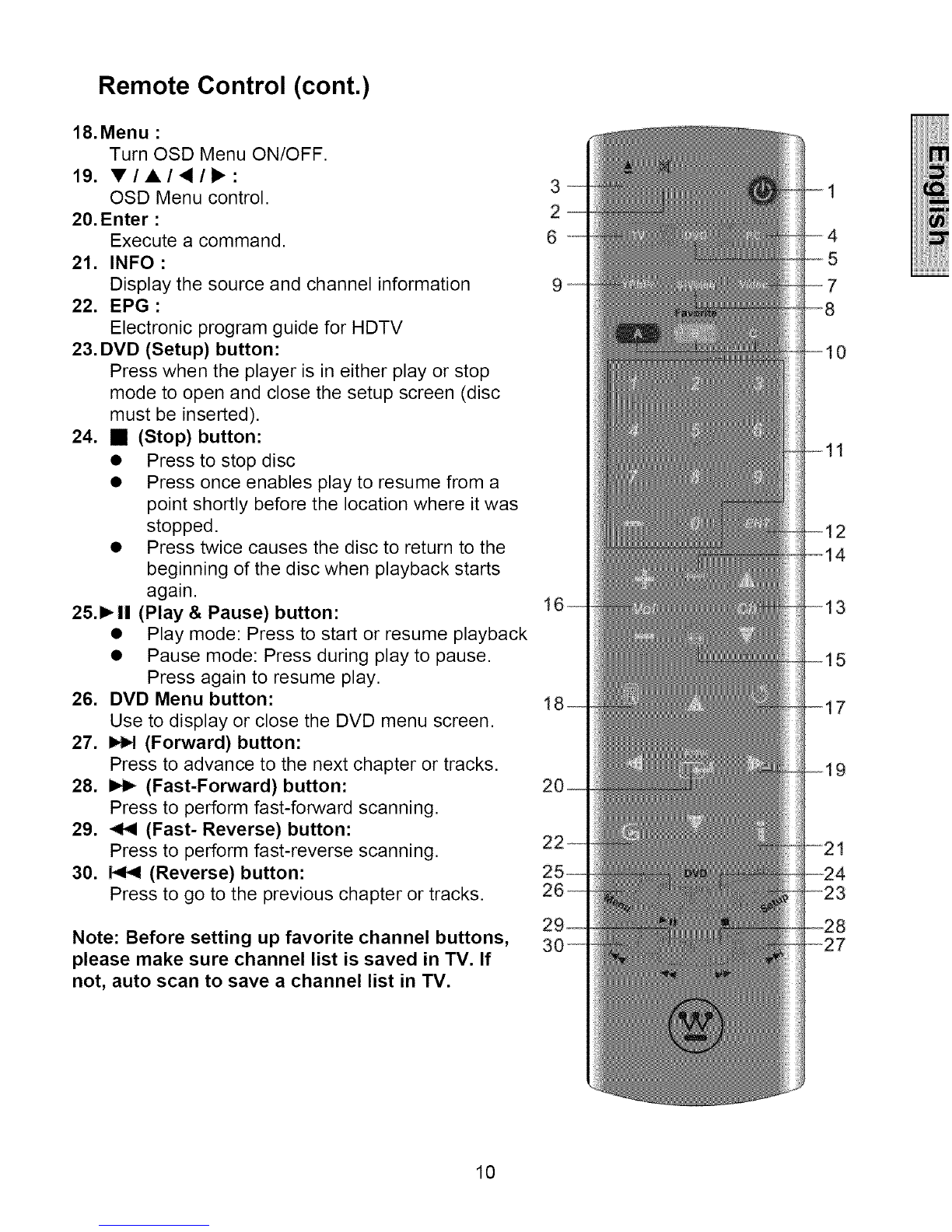

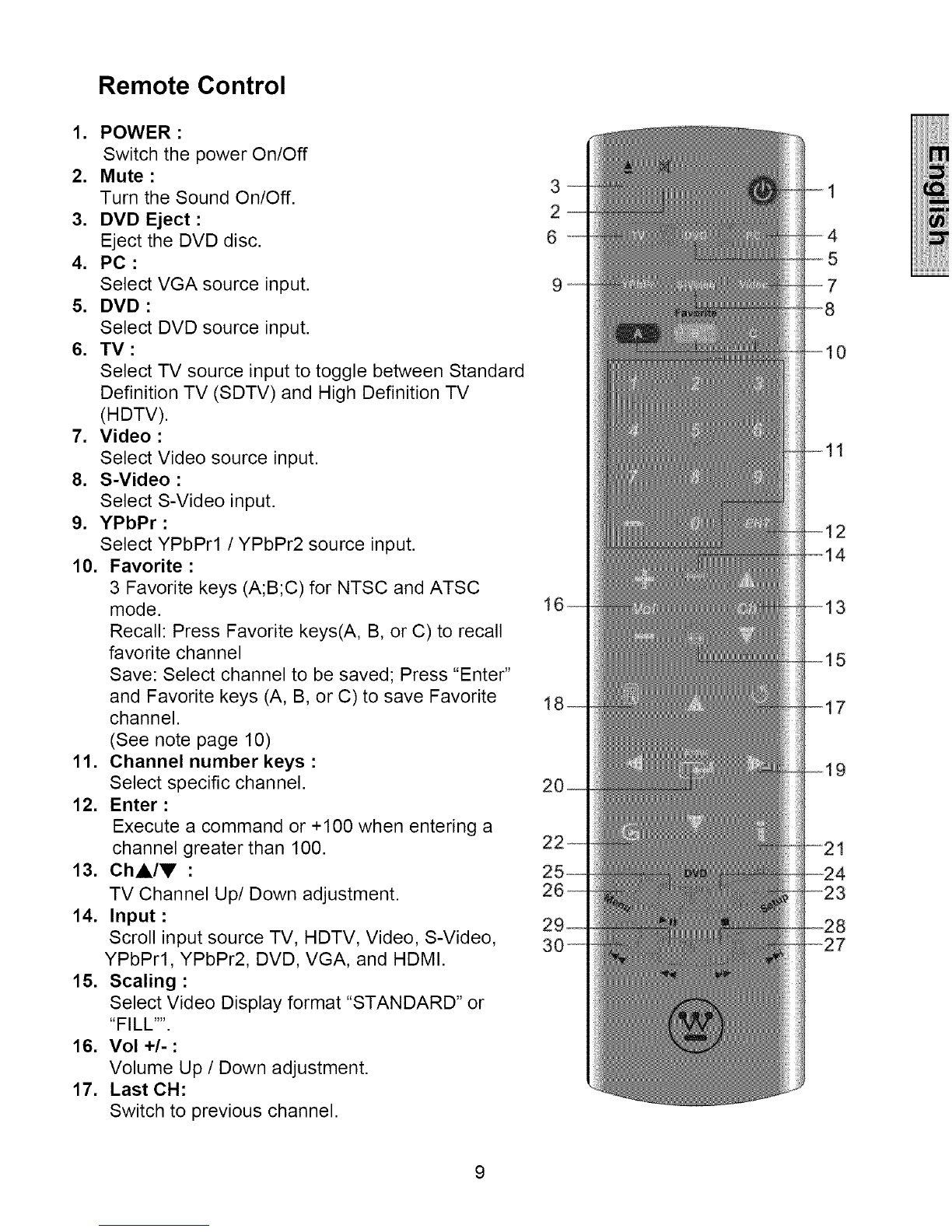

Remote Control ...................................................................... 9

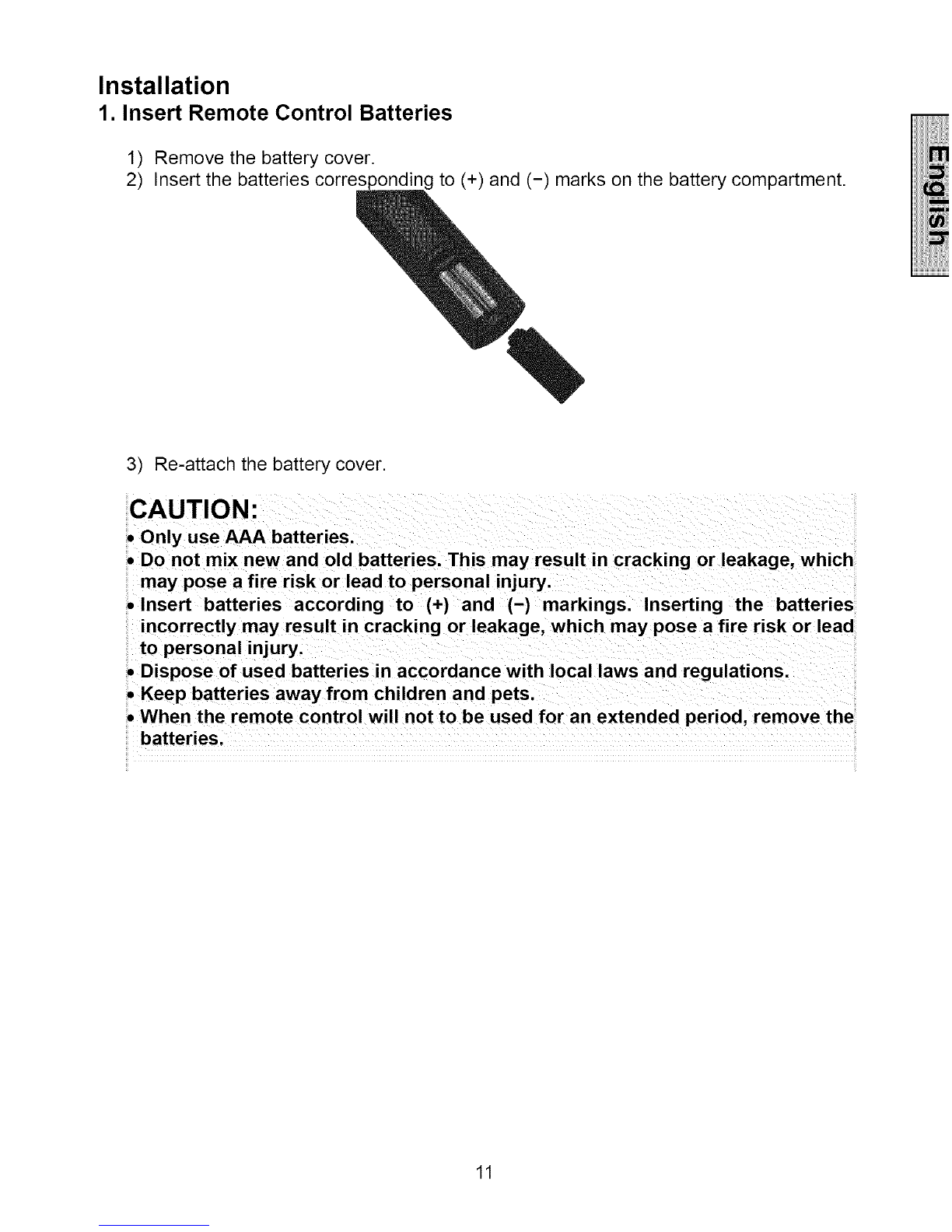

Installation ........................................................................... 11

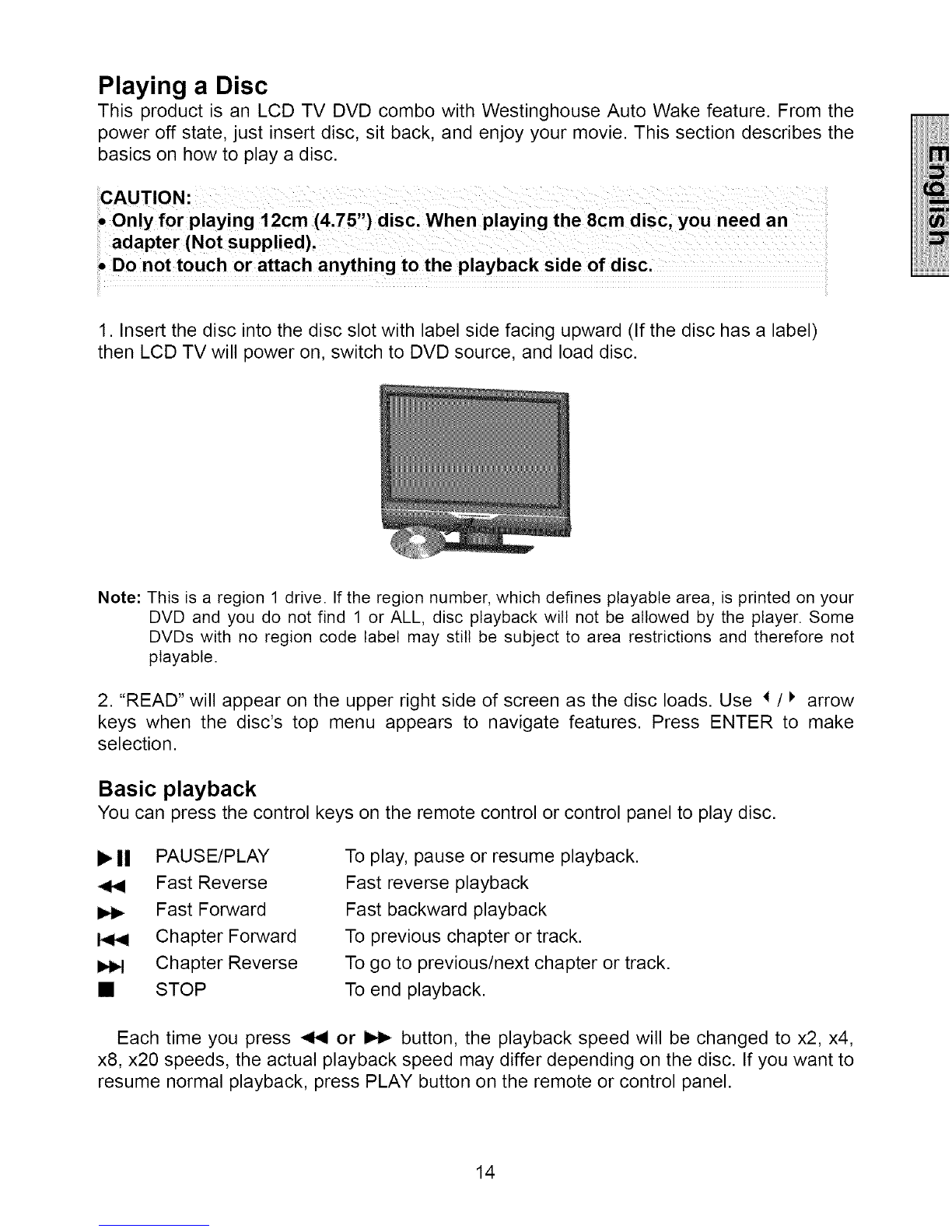

Playing a Disc ...................................................................... 14
OSD Functions

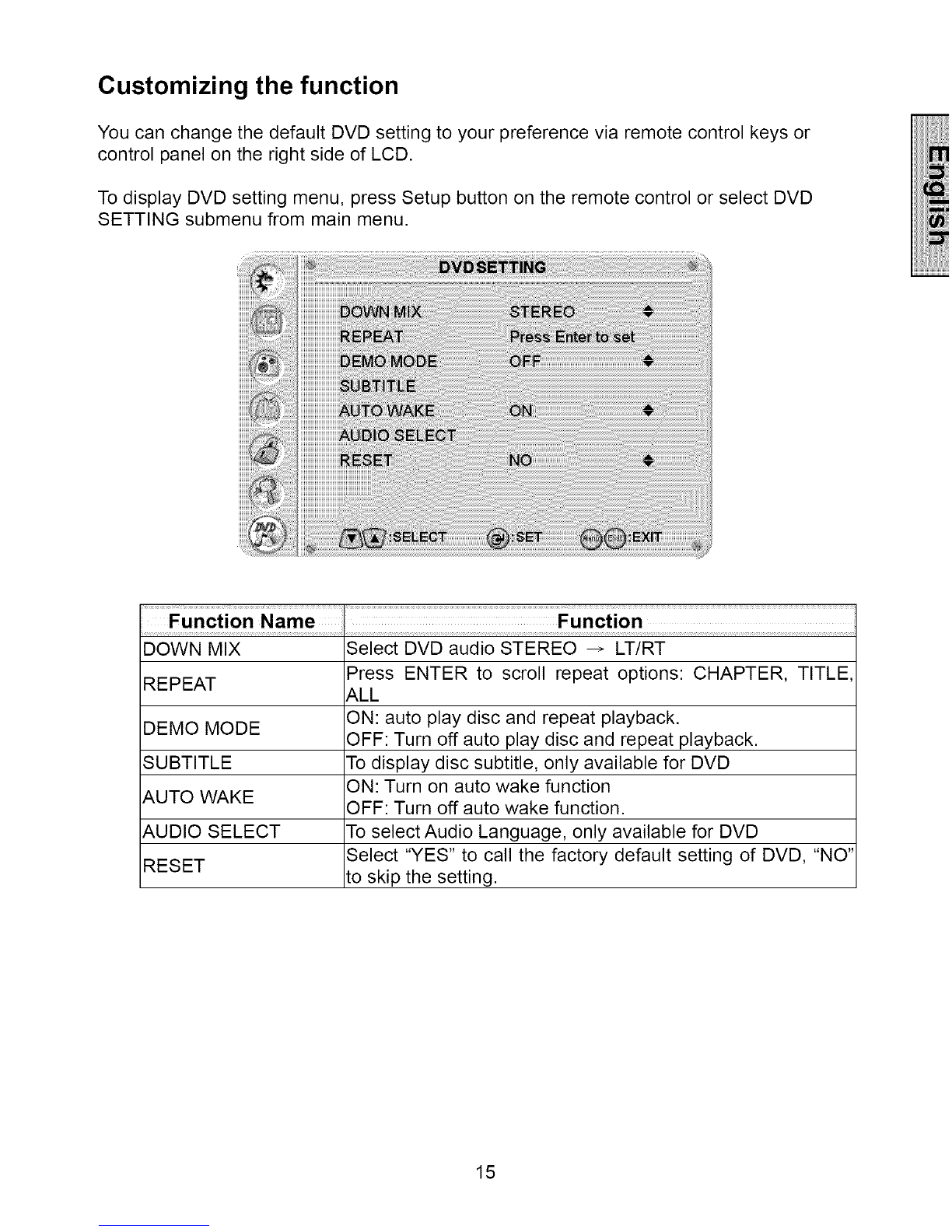

DVD SETTINGS: Down Mix/Repeat/Demo Mode /Subtitle/Auto Wake /
Audio Select /Screen /Reset ................................ 15

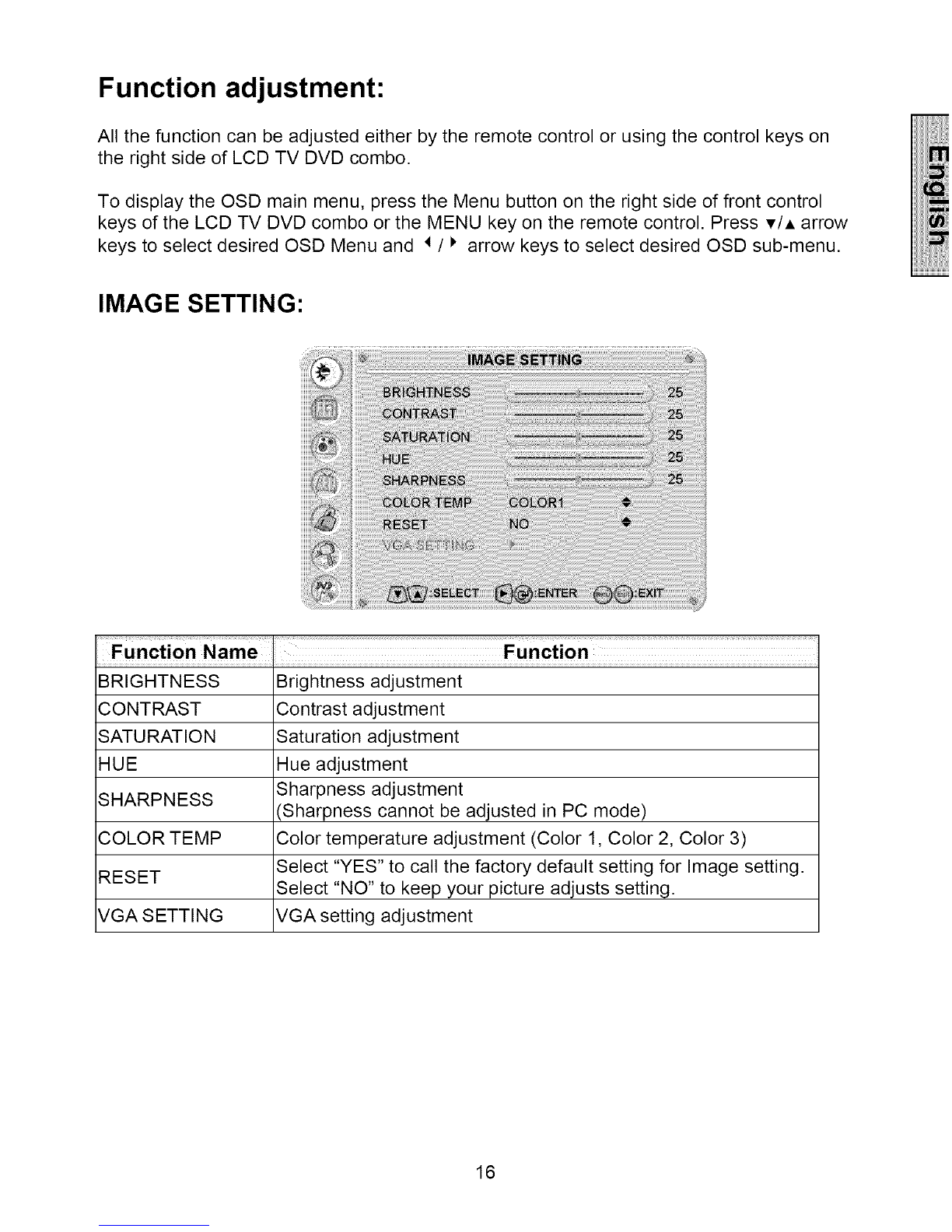

IMAGE SETTINGS: Brightness /Contrast /Saturation /Hue /Sharpness /
Color Temp/Reset /VGA Setting ........................ 16

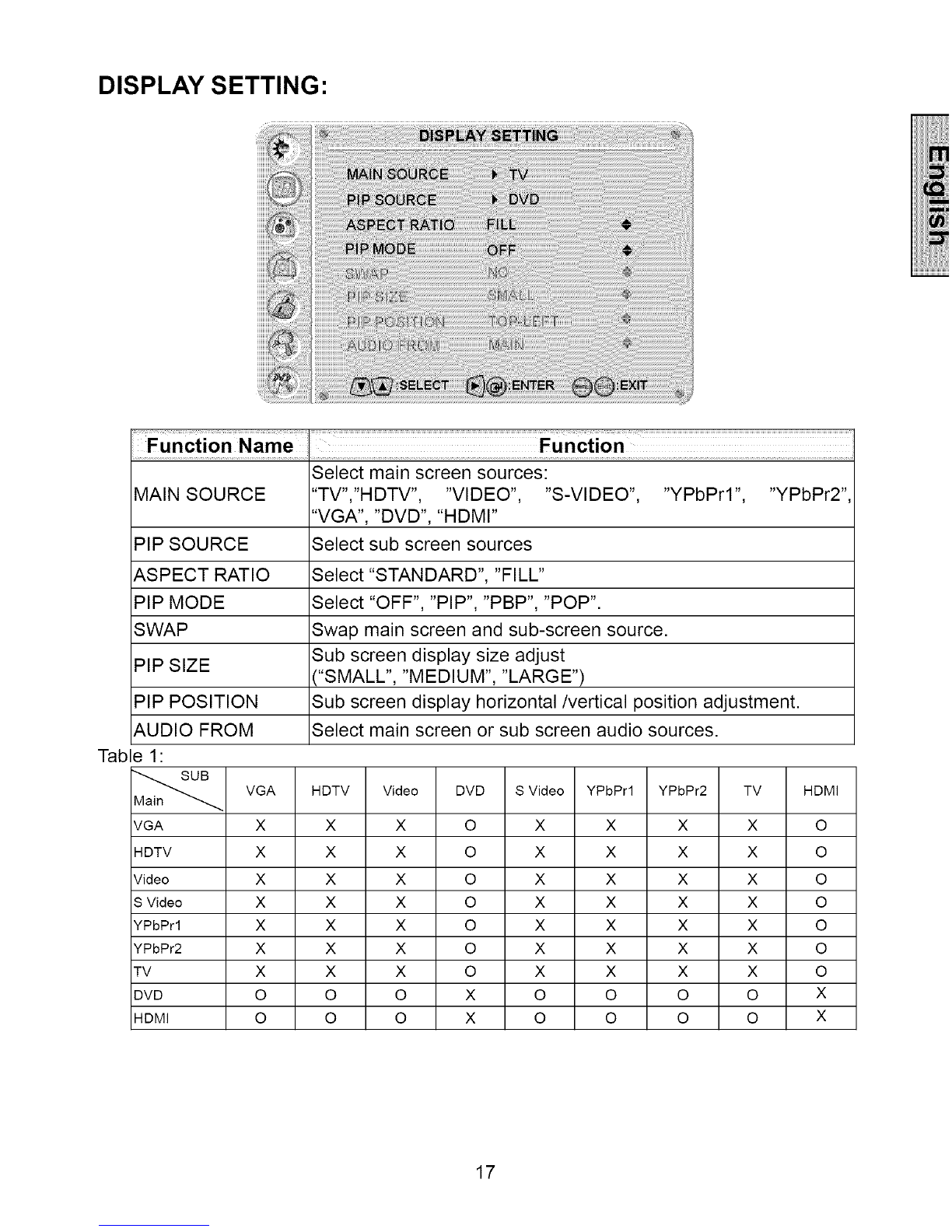

DISPLAY SETTINGS: Main Source /PIP Source /Aspect Ratio/PIP Mode /
Swap /PIP Size /PIP Position /Audio From ......... 17
AUDIO SETTINGS: Bass /Treble /Balance /MTS /Mute /Speaker /Audio
Out /Reset ................................................. 18
TV/HDTV SETTINGS: TV System /Auto Scan /Channel Edit /Local Time /
Daylight SAV ........................................... 19
PARENTAL CONTROLS: Password /TV PG Rating /MAPP Rating /
DVD Rating /Password Edit ...................... 20
GENERAL SETTINGS: Transparency /Menu Position /System Info /
Closed Caption /Language /Sleep Timer /
Menu Timeout /Backlight /Next Page /Power On
Plug /LED Set /Factory Reset /Previous Page .... 21
Specifications ....................................................................... 22
Troubleshooting .................................................................... 24

Explanations of required symbols :
SYMBOL SYMBOL DEFINITION
DANGEROUS VOLTAGE :
The iightn}ng flesh with arrowhead symbol i#side an equiia|erel
tr_ong]e is teiended to oleo the user to the presence of
_nies_ieted %ongerous voitoge" within the prod_ct s enciesore
that may be of sufficient rnagnltude to ¢enetitute a risk of
e_eetric_ shock to persons_
SA 1965
iNSTRUCTiONS ;
The exeSema_ion pointinside an equilateral triangle i_intende_
to etea the user to the presence of Important operet_ng and
moUnteRer_ee ( servicing ) instructions frl the literature
oecomponying the _pplian_e_
SA 1966
Cleaning the LCD TV DVD combo
•MAKE SURE THE LCD TV DVD combo IS TURNED OFF
•NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE
To clean the screen:
1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If it still is not clean, apply a small amount of non-ammonia, non-alcohol based glass
cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
1. Use a soft, dry cloth.
2. If it still is not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-
abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
Disclaimer
Westinghouse Digital does not recommend the use of any ammonia or alcohol-based cleaners on
the LCD TV DVD combo screen or case. Some chemical cleaners have been reported to damage
the screen and/or LCD TV DVD combo case. Westinghouse Digital will not be liable for damage
resulting from the use of any ammonia or alcohol-based cleaners.
Thank you for purchasing a Westinghouse LCD TV
www.westing housedigital.com

PRODUCT SAFETY INSTRUCTIONS
Follow and obey all warnings and instructions marked on the LCD TV DVD combo. For
your safety, please read all the safety and operating instructions before you operate the
LCD TV DVD combo. Keep this user's manual for future reference.
Overloading
Do not overload wall outlets, extension cords, or power strips. This can result in fire or
electronic shock.
Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them. Periodically inspect the cords and each end of the
cords for damage. The LCD TV DVD combo shall be installed near a wall socket outlet
and the plug on power cord shall be readily accessible.
Ventilation
Slots and openings on the cabinet are provided for ventilation purposes. To ensure reliable
operation of the LCD TV DVD combo and to protect it from overheating, these openings
must not be blocked or covered.
•Do not block the openings by placing the LCD TV DVD combo on a bed, sofa, rug
or other similar surface.
• Do not place the LCD TV DVD combo in a built-in installation such as a bookcase
or rack unless proper ventilation is provided and the manufacturer's instruction have
been adhered to.
Other Notices
Avoid exposing the LCD TV DVD combo to direct sunlight or high temperatures.
Avoid exposing the LCD TV DVD combo to moisture or high humidity.
Do not attempt repairs yourself. Your warranty does not cover repairs or attempted
repairs by anyone not authorized by Westinghouse Digital.
If your LCD TV DVD combo will not be used for a long period of time, unplug the
LCD TV DVD combo and remove the batteries from the remote control.
Precautions
• Avoid touching the screen. Skin oils are difficult to remove.
• Never remove the rear cover. Your LCD TV DVD combo contains high-voltage parts.
You may be seriously injured if you touch them.
• Avoid exposing your LCD TV DVD combo to direct sunlight or another heat source.
Orient your LCD TV DVD combo away from direct sunlight to reduce glare.
• Always handle your LCD display with care when moving it.
• Place your LCD TV DVD combo in a well-ventilated area; don't place the LCD TV
DVD combo in airtight compartments. Do not place anything on your LCD TV DVD
combo that prevents heat dissipation.
• Ensure that the area around the LCD TV DVD combo is clean and free of moisture.
• Do not place heavy objects on the LCD TV DVD combo, audio/video cables, or
power cord.
• If the LCD TV DVD combo emits smoke, abnormal noise, or a strange odor,
immediately turn it off and contact the Westinghouse Service Center.
WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose
The LCD TV DVD combo To Rain Or Moisture! The LCD TV DVD combo shall
not be exposed to dripping or splashing and objects filled with liquids, such as
vases, shall not be placed on the TV.

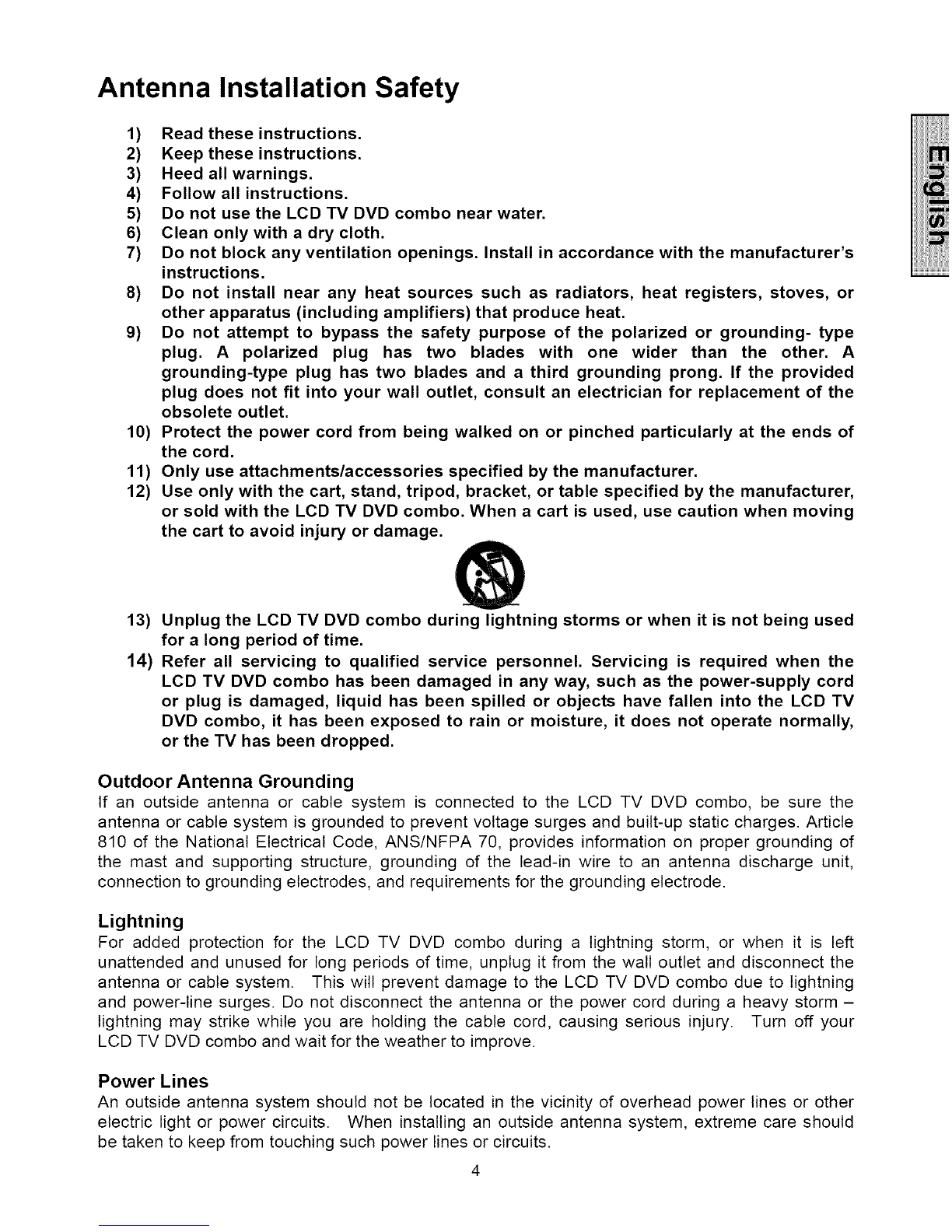

Antenna Installation Safety
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use the LCD TV DVD combo near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not attempt to bypass the safety purpose of the polarized or grounding- type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. If the provided
plug does not fit into your wall outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at the ends of
the cord.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the LCD TV DVD combo. When a cart is used, use caution when moving
the cart to avoid injury or damage.
13) Unplug the LCD TV DVD combo during lightning storms or when it is not being used
for a long period of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
LCD TV DVD combo has been damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the LCD TV
DVD combo, it has been exposed to rain or moisture, it does not operate normally,
or the TV has been dropped.
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the LCD TV DVD combo, be sure the
antenna or cable system is grounded to prevent voltage surges and built-up static charges. Article
810 of the National Electrical Code, ANS/NFPA 70, provides information on proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
Lightning
For added protection for the LCD TV DVD combo during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the LCD TV DVD combo due to lightning
and power-line surges. Do not disconnect the antenna or the power cord during a heavy storm -
lightning may strike while you are holding the cable cord, causing serious injury. Turn off your
LCD TV DVD combo and wait for the weather to improve.
Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits. When installing an outside antenna system, extreme care should
be taken to keep from touching such power lines or circuits.
4
