Westinghouse WRC604WC Instruction Manual

WRC604WC
CANOPY RANGEHOOD

CONGRATULATIONS
Dear Customer,
Congratulations and thank you for choosing our canopy
rangehood. We are sure you will find your new rangehood
a pleasure to use. Before you use your rangehood,
we recommend that you read through the whole user
manual, which provides the description of the rangehood
and its function.
To avoid the risks that are always present when you use
an electrical appliance it is important that the
rangehood is installed correctly and that you read the
Safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the hood please check it is not damaged.
If in doubt, do not use appliance but contact your local
Electrolux Service centre.
Conditions of use
This appliance is intended to be used in household and
similar applications such as:
Staff kitchen areas in shops, offices and working
environments
Farm houses
By clients in hotels, motels and other residential type
environments
Bed and breakfast type environments
Catering and similar non-retail applications
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here
Model number:
Serial number:
PNC:
CONTENTS
CONTENTS
Important safety instructions
Description of your rangehood
Components list
Please read the user manual carefully and store in a handy
place for later reference.
Technical specifications
Rangehood dimensions
Installation
Using your rangehood
Care & maintenance
Troubleshooting
Warranty
The symbols you will see in this booklet have
these meanings:
This symbol indicates information concerning your
personal safety.
This symbol indicates tips and information about use
of the appliance.
This symbol indicates information on how to avoid
damaging the appliance.
This symbol indicates tips and information about
economical and ecological use of the appliance.
IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to
strictly adhere to the requirements in this manual may
result in personal injury, property damage and affect
your ability to make a claim under the Westinghouse
manufacturer’s warranty provided with your product.
Products must be used, installed and operated in
accordance with this manual.
You may not be able to claim on the Westinghouse
manufacturer’s warranty in the event that your product
fault is due to failure to adhere this manual.
7
10
10
3
5
5
5
6
12
15

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS(CONTINUED)
Electrical connection
Check that the mains voltage matches with the voltage
on the data plate inside the canopy rangehood.
Check that the installation complies with standards of local
building, gas and electrical authorities. Before connecting
to the mains supply ensure that the mains voltage
corresponds to the voltage on the rating plate inside the
cooker hood.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.
Safety warnings - for the installer
When installing the cooker hood, make sure you adhere
to the minumum and maximum distances from the cooker
hood base to the hob surface (refer to page 7).
Exhaust flue installation: The following rules must be
strictly followed to obtain optimal air extraction.
Keep exhaust flue short and straight.
Do not reduce the size or restrict exhaust flue.
Keep bends in the exhaust flue to a minimum.
When using flexible flue always install duct with helix
pulled taut to minimise pressure loss.
Failure to observe these basic instructions will
drastically reduce the performance and increase the
nosie levels of the cooker hood.
Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for that purpose. The
exhaust from the cooker hood must not be discharged
into any heating flue, which may carry combustion
products from other sources.
NOTE: Some installations may require the telescopic
exhaust cover to be cut to length. Cut with sharp tin snips
or a fine-tooth hack saw blade, taking care not to distort
or dent the exhaust cover.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
There is a fire risk if cleaning is not carried out in accordance
with the instructions.
The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels
(not applicable to appliances that only discharge the air
back into the room)
Regulations concerning the discharge of air have to be fulfilled.
CAUTION: Accessible parts may become hot when used with
cooking appliances.

WRC604WC
Flue cover mounting bracket
PRODUCT DESCRIPTION
Top flue cover
Bottom flue cover
Exhaust duct (source locally)
Damper
Hood body
2 Filter
Additional items required for installation
Fixings required to attach rangehood body and
anti tilt brackets
Fixings required to attach flue cover
mounting brackets
Worm drive clamps, duct tape or cable ties
Technical specification
Power supply: AC 220~240V 50Hz. Connects to 10 A
power point
Lights: 2 2 watt, 240V E14 LED
MODEL WRC604WC
Height 623-1003mm
Width 600mm
Depth 450mm
Max absorbed power 200W
The manufacturer reserves the right to make technical changes.
Outlet diameter 150mm
Electrical connection 220-240V, 50Hz
Lighting 2 2W E14 LED
PRODUCT DESCRIPTION 5
Fig.3
Exhaust ducting, 150mm diameter

RANGEHOOD DIMENSIONS
DIMENSIONS
Fig.4

INSTALLATION
Pre-installation
Before installing the rangehood, peel off any protective
coating and remove the filters.
Location
The hood is to be mounted on the wall. When installed,
the hood must be not less than 60cm above electric
burners or 65cm above gas or mixed-fuel burners.
DISTANCE FROM HOOD BAST TO TOP OF HOB
HOB TYPE
If the instructions of the hob specify a greater distance
than the minimum above, then that shall be the minimum
height for installation.
Bottom mounting bracket for flue cover
(Required where ceiling cornice is in place)
Rangehood mounting points
Anti tilt fixing points
Min 650mm
Max 800mm
192
130
350
55
273
Min 600mm
Max 800mm
140
Installation

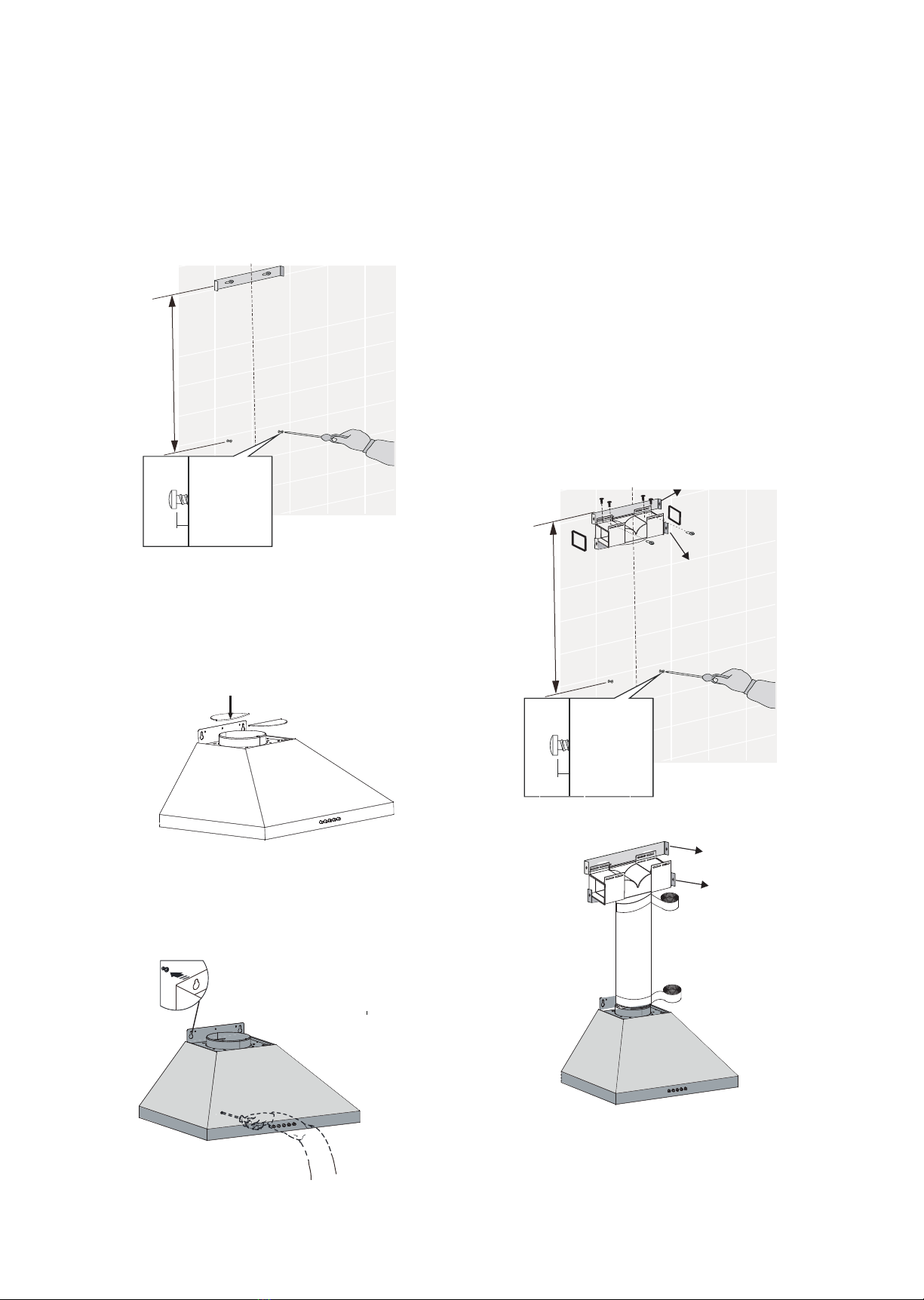

Using a spirit level mark a vertical centre line on
the wall where the hood is to be positioned, and a
horizontal line at the hood base position.
NOTE: The height of the underside of the hood body
must be a minimum of 600mm* to a maximum height
of 800mm.
*If the instructions of the hob specify a greater distance
than the minimum above, then that shall be the minimum
height for installation.
Mark the location for the flue cover wall mounting
brackets and rangehood mounting points and anti-tilt
fixing points above the hood base using the hood
base as a reference point.
Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
INSTALLATION 7
Fig.5
1.
2.
Top mounting bracket for T-piece(Optional part)
30

INSTALLATION
Install flue cover wall mounting brackets with
suitable fasteners. Suitable fasteners must be used for
rangehood mounting points . Refer to Fig.5 for dimensions.
If installation is for recirculation mode refer to Item 6a and
Fig.9.
3.
Fit the dampers to the exhaust air outlet.
Slight bending of the dampers will be required
for the fitment.
4.
Recirculating mode(Fig.9)
6a.
INSTALLATION
Hang the body hood on the mounting screws then
secure at the anti-tilt locations(2 places) as indicated in Fig 8.
5.
8
Fig.6
Fig.8
Fig.7
Depending on the preferred installation/ducting mode,
follow step 6a or 6b below.
Fix the T-piece to the top mounting bracket by
using the 4 screws supplied as dimension indicated Fig 5.
Adhere two sponge to the outlet of T-piece.
Using the centre line, install the recirculating T-piece and
mounting bracket to the wall.
Install flexible pipe between T- piece and air outlet
Use cable ties or suitable duct tape to secure flexible pipe
to T-piece and outlet of the hood.(Fig.10)
Fig.9
Fig.10
NOTE: When installed in recirculating mode, it is
recommended to use a charcoal filter to prevent odours
being emitted back into the room.
For instructions on fitting charcoal filter, please refer to
page 11.
T-piece mounting bracket
Flue cover mounting bracket
T-piece mounting bracket
Flue cover mounting bracket

INSTALLATION
INSTALLATION
Insert the flue cover section to the body hood.
8.
Slide flue cover to upper position and fix with
screws provided .
9.
Insert the power cord to the power outlet.
7.
Install the filters to the hood.
10.
9
Fig.12
Fig.14
Fig.15
Fig.13
Ducted mode (Fig.11) insert flexible pipe and secure flue
tape to air outlet with suitable duct tape.
6b.
Fig.11
NOTE:f
pipe through the roof cladding(with appropriate flashing)
to an external roof cowl, venting the exhaust externally.
or ducted mode we recommended to extend the flue
To ensure optimum performance of the rangehood, the use
of bends should be avoided. Straight, rigid and short ducting is
recommended to use. All ducting must be fire retardant.
Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.

USING YOUR RANGEHOOD
Best results are obtained by using a low speed for
normal conditions and high speed when odours are
concentrated.
Turn on the hood on a few minutes before you start
cooking.
The hood should be left on for a minimum of 5
minutes after cooking or until all odours have
dispersed.

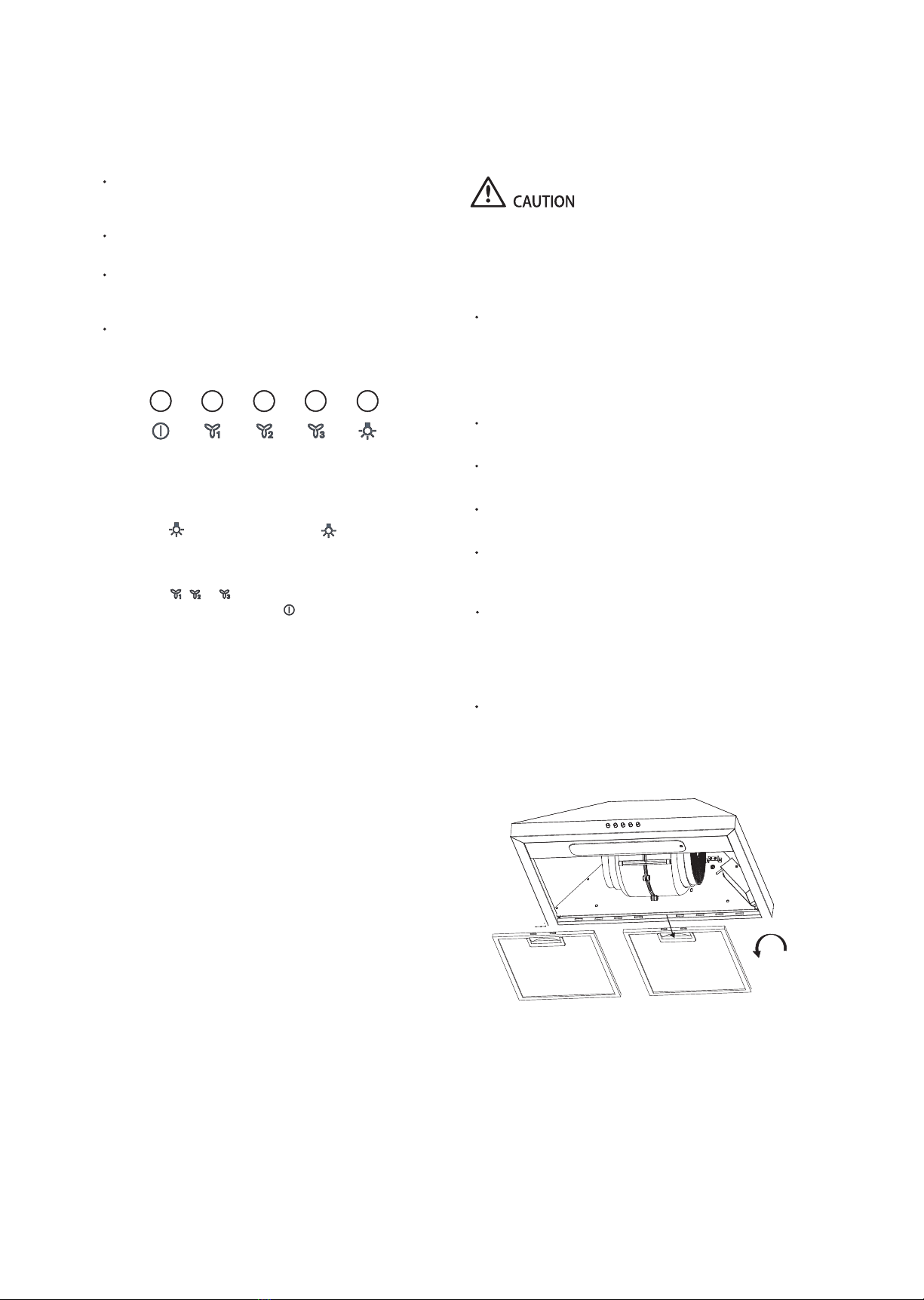

The control switch are located on the front of
the unit. See below
Turning on/off the lamp
Press button to turn on the lamp, press once again
to turn off the lamp.
Turning on/off the fan
Press button , or to choose different fan speed according
to cooking conditions, press button to turn off the fan
NOTE: This product is fitted with a safety cutout device.
If the cooker hood is installed too close to the cooktop,
flambe cooking, operating the cooktop without cooking
utensils and blocked filters may activate the safety cutout
device.
CARE & MAINTENENCE
External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage.
Clean the outside of the hood using a damp cloth and
a solution of water and mild washing up liquid. Clean
the surfaces using non-abrasive cleaning products.
Use of a soft cloth reduce the risk of scratching. If
the cloth is wet ensure that a dry soft cloth is used
to wipe down the surface.
Cleaning the hood
Never use corrosive, abrasive or flammable cleaning
products or products containing bleach.
Never insert pointed objects in the motors protective
grid.
Only ever clean the switch panel and filter grill using a
damp cloth and mild washing up liquid.
It is extremely important to clean the unit and change
the filters at the recommended intervals. Failure to do
so will cause grease deposits that could cause a fire.
Removing the metal grease filters
Push the grease filter and then pull it down and out.
USING YOUR RANGEHOOD
10
Clean regularly after use to remove any residues from
cooking, especially residues from acidic fruits,
yoghurts & milk based products.
Fig.16

CARE & MAINTENANCE
Changing the LED lamps
If LED lamps need replacing, they must be replaced by
lamps as stated in the technical specifications.
Remove the lamp cover by releasing the screw and replace
the new E14 LED lamps.
Ensure that the appliance is switched off before carrying
out maintenance to avoid any possibility of electric shock.
Suitable lamp for replacement
Lamp type: LED
Fixing type: E14
Voltage: 220~240V AC
Power: 2W
Hand washing
Soak grease filter for about one hour in hot water with
a grease-loosening cleaner, then rinse off thoroughly
with hot water. Repeat the process if necessary. Refit
the grease filters when they are dry.
Dish washer
Place grease filters in the dishwasher. Select the most
powerful washing program and highest temperature,at
least 65℃. Repeat the process. Refit the grease filters
when they are dry. When washing the metal grease filter
in the dishwasher a slight discolouration of the filter can
occur, this does not have any impact on it’s performance.
Note: The metal grease filters must be removed and
washed, either by hand or in the dishwasher, every four
weeks minimum.
Clean the inner housing using warm water and grease
loosening cleaner(never use caustic detergents,
abrasive powders or brushes).
Charcoal filter
The charcoal filter should only be used if you want to
use the hood in the recirculation function.
This filter cannot be cleaned or re-used and as a
general rule, the activated charcoal filter should be
changed once every four months.
Fitting charcoal filter
Fit one charcoal filter on the left and one on the right so
as to cover the plastic grids that protect the fan wheel as
indicated Fig.17.
Always specify the hood model code number and
serial number when ordering replacement filters.This
information is shown on the registration plate located
on the inside of this unit.
Replacement charcoal filters can be ordered from
your local service centre.
CARE AND MAINTENANCE 11
Ensure that the appliance is switched off before cleaning
inner housing to avoid any possibility of electric shock.
Fig.17

TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
The cooker hood has switched off
during operation
Poor extraction
The cooker hood does not start
The safety cut-out device has been tripped.
Check that the hood is connected to an electrical supply
Check that a fan speed has been selected
Check that a fan speed is set high enough for the task
The kitchen is adeqeuatly vented to allow the entry of fresh air
The grease filters are clean
If set up for recirculation, check that charcoal filter is still effective
If set up for extraction, check the ducting and outlets are not blocked
If you have completed all of the above checks and are still experiencing difficulty, please contact your local Electrolux
Service Centre.
TROUBLESHOOTING GUIDE
12
Do not operate cooktop without pots/pans
Do not flamb e under the cooker hood
Check and clear filters
Check the installation height should follow the installation instructions

13

14

and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation.
Used under license. All Rights Reserved.
© 2020 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
HYT08VN18041
WMAN FAC WRC604WC MAY 20
AUSTRALIA
phone: 13 13 49
email: [e-mail]
web: westinghouse.com.au
NEW ZEALAND
phone: [phone]
email: [e-mail]
web: westinghouse.co.nz
For more information onall Westinghouse
appliances,or for dimension and installation
information, call into your retailer, phone or email
our customer care team or visit our website:
