Westinghouse WWT6041 User manual

Model: WWT6041
Washing Machine

3
3
4
4
5
6
6
6
6
7
7
8
8
9
9
Choose the water level
10
Choose the wash water temperature
10
Choose the soak time
To start the wash cycle/program, Machine in pause mode, Wash cycle in progress,
13Rinse option
Information and guidance feature
What to do after you have finished your washing
Cleaning the lint filter
Cleaning stains in the wash bowl
Avoiding build up of undissolved detergent
For your safety
Yellowing or greying clothes, Stained clothes
Do not call for service until you have checked these points
Other diagnostic help and a guide for when you should call for service
Warranty and Service Centres
A guide to stain removal
11
12
14
14
15
15
15
16
17
18
19
23
End of program, Lid lock feature, Enabling/Disabling end of wash beep
Conditions of use
Control panel
About your washing machine

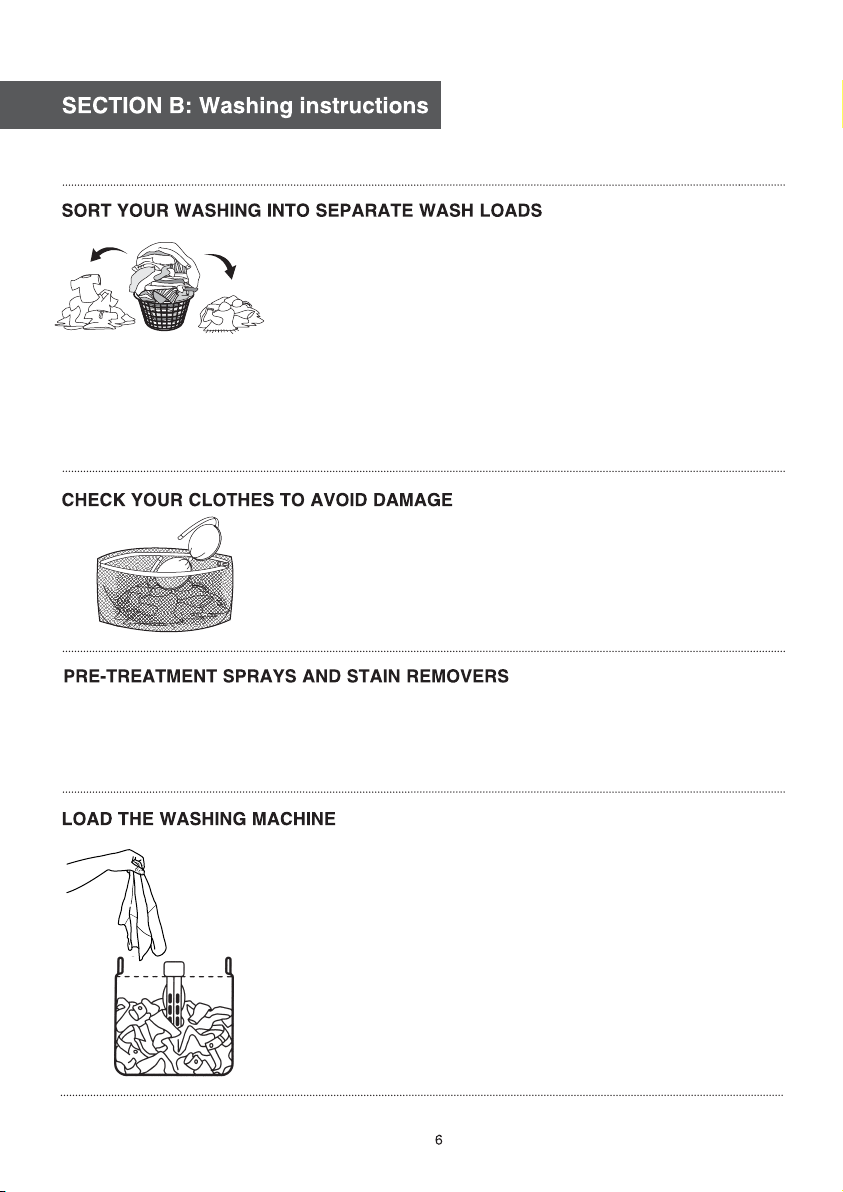

Sort your washing into separate wash loads
Check your clothes to avoid damage
Pre-treatment sprays/stain removers
Load the washing machine
Add the detergent
Adding fabric softener
Adding bleach
Choose the wash program
Your program guide
Parts of the washing machine
Saving water and energy
The difference between the Deep Rinse and Eco Rinse options
3
Cleaning your washing machine 14

3
SECTION A: Knowing your washing machine
PARTS OF THE WASHING MACHINE
CONDITIONS OF USE
SAVING WATER AND ENERGY
This booklet talks about different parts of your washing machine. The main ones you need to know are
shown on the diagrams below.
This washing machine features water and energy saving options.
Your machine is most water efficient when Eco Rinse is used as the rinse option.
This appliance is intended to be used in household and similar applications such as:
- Farm Houses.
- By clients in serviced apartments, holiday apartments and other residential type environments.
It must not be used for purposes other than those for which it was designed.
Control Panel
To save energy, the wash time can be shortened for a load of less dirty clothes by selecting the appropriate wash
program e.g. Fast Wash.
The washing machine is energy efficient and most water efficient when used with a full load of clothes and with
Eco Rinse selected. You should use Eco Rinse (where available) instead of Deep Rinse to reduce the amount of
water used for rinsing clothes.
Each time you switch on your washing machine the machine will select most suitable rinse option for the selected
program. You can change rinse option if you wish. See page 13 for more detail. The difference between Deep
rinse and Eco rinse is explained on the next page.
FRONT BACK INSIDE
1
Machine Lid
2
Safety Glass
3
Front Feet
4
Water Inlet Hose
- RED fittings (Hot Water)
- BLUE fittings (Cold Water)
5
Mains Cable
6
Outlet Hose/Drain Hose (See
installation instructions to fit & position
drain hose)
7
Back Feet
8
Bleach Dispenser, See Page 8
9
Wash Bowl
10
Fabric Softener Dispenser,
See Page 7
11
Frame Filter
12
Lint Filter, See Page 14
13
Agitator
14
11
12
13
14
9 10
5
6
7
84
1
2
3

4
(See page 13 for rinse option instructions)
Eco Rinse Option
Normally the machine will go through a series of six pulse sprays and short spin cycles in this manner,
followed by the final long spin that removes the water from the clothes to complete the wash.
Deep Rinse Option
For the same wash cycle settings, Deep rinse uses up to 40% more water than Eco rinse but it
will take less time to complete a full wash.
CONTROL PANEL
THE DIFFERENCE BETWEEN THE DEEP RINSE AND ECO RINSE OPTIONS.
The diagrams on this page show what you will find on the control panel of your washing machine and what
the different touchpads, knobs and lights are for.
In some wash programs, the series of pulses, sprays and short spins may be less than six, e.g. Fast Wash has
only 3 eco sprays for both Eco rinse and Fast rinse.
By selecting Eco rinse instead of Deep rinse, considerably less water will be used to remove detergent and
dirty water from your clothes. However, the wash cycle will take longer to complete with Eco rinse. As a guide,
Deep rinse uses approx. 40% more water than Eco rinse.
When Deep rinse is used, rinse water enters the washing machine filling up to the wash water level
selected. The machine will then agitate and finally empty the water through the drain hose.
When Eco rinse is used, rinse water is sprayed into the wash bowl in pulses. After each pulse the wash
bowl will spin to remove detergent laden water from the clothes.
Eco rinse is not available with the Woollens or Bedding wash programs. When you choose these two programs,
Deep rinse is automatically selected for you.
Program selector Knob (See page 8)
1
Water Level Touchpad (See page 9)
2
Temperature Touchpad (See page 10)
3
Soak Time Touchpad (See page 10)
4
Rinse Option Touchpad (See page 13)
5
Start/Hold To Pause Touchpad (See page 11)
6
Display (See page 11)
7
1 2 3 4 5 76

5
ABOUT YOUR WASHING MACHINE
Out of balance interruption
The display will show “ ” and you will hear a short beep every second.
Closing the lid will start the machine and continue the spin stage of the wash.
Touchpad response and lights
Always press touchpads gently.
NOTE:
The washing machine can stop during the spin stage of a wash because of an out of balance condition.
Out of balance during spin is caused by an uneven distribution of clothes in the wash bowl.
To rectify the out of balance condition, open the lid and redistribute the clothes evenly in the space between the
agitator and wall of the wash bowl.
If you have frequent out of balance interruptions, it may be due to your washing machine not standing firm and
level on the floor.
This can be corrected by adjusting the washing machine legs as described in the Installation Instructions supplied
with your machine.
Watch the lights on the control panel to see the effect pressing a touchpad or turning a program selector knob
has, and listen for ‘BEEPS’.
When you press a touchpad you will get a short ‘BEEP’ to acknowledge the entry. If the option is not available
at the time, the machine will not allow you to select it. After the machine has started, the entire wash option
touchpad will be disabled and machine will show “ ” on the display with three short beeps to indicate the
touchpad is disabled. The Start/Hold To Pause touchpad is still active but you need to press and hold the
touchpad for minimum 1.2 seconds to pause machine. This is to confirm that you really want to pause the
machine. When in pause mode, all options will be able to be changed again.
All functions of the washing machine will stop when the lid is open, except for pump out before spin.

Follow the instructions in this section for the best washing results.
Each load of washing should contain clothing which needs the same washing
conditions. For example, you should not wash delicate clothes with very dirty work
clothes.
Some fabrics are lint collectors and can pick up lint, dirt and colour from other
fabrics, which are lint producers. Some example are listed below:
Make sure that you wash lint collectors separately from lint producers.
Empty all pockets. Close all hooks and zippers to avoid snagging clothes.
Wash bras, pantyhose and other delicates in a mesh laundry bag which you can
purchase from your supermarket.
Pre-treatment sprays and stain removers can damage plastic components in your
washing machine.
If you use pre-treatment sprays or stain removers, apply them to the clothing well
away from your washing machine.
When loading the clothes into your washing machine, there are four things to
remember:
Clothes must be loaded evenly around the agitator. For best results load
small items first, followed by large items.
LINT COLLECTORS
Corduroy
Synthetics
Permanent press fabrics
LINT PRODUCERS
Towels
Nappies
Chenille/Candlewick
IMPORTANT:
1.
The washing machine must not be overloaded. Clothes must be able to move
during the washing cycle.
3.
The load should contain only three or four large items, for example sheets.
The rest of the load should be small items. A mixed load of large and small
items will wash cleaner than a load of all large items.
4.
Clothes must not be wrapped around the agitator.
2.

ADD THE DETERGENT
1. Measure the correct amount of powder or liquid detergent by
following the recommendations on the package.
2. Mix detergent in one litre of hot or warm water.
3. Add the pre-mixed detergent to the wash load.
Don’t do these things:
* Using too little detergent will give you a poor wash result.
* Use soap based products in your washing machine.
ADD FABRIC SOFTENER
ADDING BLEACH
Turn Program Selector to a Regular Wash position.
Press the Start/Hold To Pause touchpad to commence water fill.
7
Using excessive detergent will create too much suds and may cause
overloading of the motor during the spin stage of the wash cycle. To avoid
excessive suds, reduce the amount of detergent you use. It is best to use
detergent labelled low sudsing. Good quality, front load detergent will
perform well in this machine.
*
Oxygen type - This is generally a powder type bleach. Mix the required quantity
with water and pour down the hole in the top panel during the fill when there is
some water in the wash bowl. Refer to the instructions on the bleach container.
NOTE: Bleach should NOT be used on silk, wool, rayon or drip dry clothes.
Chlorine type - This type of bleach should NOT be mixed with detergent. Mix
the bleach with water as per the instructions on the container.
Pour the bleach solution down the hole in the top panel during fill when there
is some water in the wash bowl.
Allow the machine to agitate for a few minutes, then let it stand for the required
time by pressing and holding the Start/Hold To Pause touchpad for 1.2
seconds to pause machine.
Turn Program Selector to Drain & Spin position and press the Start/Hold To
Pause touchpad to empty the wash bowl.
You can now wash the clothes load using detergent and your selected wash
program.
Bleaching of clothes can help to remove stains, heavy soiling and to kill bacteria.
1. Measure the correct amount of fabric softener by following the
recommendations on the package.
4. Do not spill fabric softener on the clothes as it may stain them.
NOTE: You do not have to use fabric softener, your washing machine
will wash the clothes perfectly well without it.
Pour the mixed softener into the cup in the top of the agitator. Do not
overfill the cup.
3.
Mix softener with an equal amount of warm water but only mix enough to fill
to the line marked inside the cup. The softener cup holds 75ml.
IMPORTANT: If you are going to use fabric softener, you must select
the Deep Rinse option, i.e deselect the Eco Rinse option. Also if
softener is used frequently the machine must be flushed out
regularly refer Page 15.
2.

8
CHOOSE THE WASH PROGRAM
2.
NOTE:
When you choose the Woollens and Bedding program, the Deep Rinse option is automatically selected for you.
You will not be able to select and use Eco Rinse and Fast Rinse with these two programs.
When you select the Drain+Spin program, there will be a delay of at least 2 minute before the washing machine
starts to spin. This delay is a pump out (Drain) period to ensure the bowl is empty of water, which is necessary before
spin commences. Even though you may have only put wet clothes into an empty bowl, the delay before spin will still
occur to be safe and to protect your washing machine.
The table “YOUR PROGRAM GUIDE” shown on page 9 will help you in selecting the right program.
You can turn the Program Selector Knob to a new program position at any time. If you do move the Program Selector
Knob the effect will be different depending on the status of the machine at the time you do this, as follows:
The Program Selector knob is not a timer. Once you select a wash program, the Program Selector knob
will stay at that position for the whole wash cycle.
Your washing machine is now in STAND-BY-MODE and ready to wash your clothes. If the settings shown on the
control panel are what you want to use and the Program Selector is set to the correct wash program for your clothes
load, press the Start/Hold To Pause touchpad to start your wash.
When the machine is in pause mode, moving the Knob to a new position will result in the machine resetting to the
start of the new program. (For pause mode, see “Machine in pause mode” page 11)
When the machine is running, moving the Knob to a new position will result in the machine continuing the wash
and it will show “ ” on the display with 3 consecutive short beeps to remind you that this option is not
allowed. (For machine running, see “Wash cycle in progress” page 11)
1.
2.
1. Turn on the taps and turn power on at the power point.
3. Turn the Program Selector knob to choose the
wash program you want.
Close the lid.

9
YOUR PROGRAM GUIDE
Default Setting
Program
Off
Regular Wash
Cold Wash
Fast Wash
Delicates
Heavy Duty *
Colours
Woollens
Handwash
Bedding
Drain + Spin **
Rinse + Spin
***
Water
Level
Select this Program
For a heavily soiled cotton wash load.
For colours item of mixed fabrics.
For very wet clothes to remove the water.
Temp. Soak Rinse***
Option
**
*
CHOOSE THE WATER LEVEL
Choose the water level by pressing Water Level touchpad.
You can select:
Full, High, Medium and Low
Use only the amount of water you need for the wash load.
Drain & Spin has a built-in pump out period of approx. 2 minutes prior to spin. (See “Choose the wash program” page 8).
Heavy Duty has a built-in Soak period of 6 minutes.
Add Rinse to Deep Rinse uses up to 40% more water than Eco to rinse clothes, but Deep takes less time than Eco. Your
wash cycle will be longer using Eco rinse. (See pages 4 and 13).
For lingerie, lace, trimmed and embroidered items.
For synthetic or mixed fabrics, underwear, coloured garments,
non-shirnk shirts, blouses.
For normally soiled cotton load at rated load capacity.
To reset a program and to switch off the
machine. - -
Warm
Cold
Warm
Cold
Warm
Cold
Cold
Warm
Hot
-
Cold
- -
Eco RinseNo Soak
No Soak
No Soak
No Soak
No Soak
No Soak
No Soak
15 Min.
No Soak
Deep Rinse
Deep Rinse
Deep Rinse
Deep Rinse
Deep Rinse
Deep Rinse
Deep Rinse
Deep Rinse
Deep Rinse
-
-
-
High
High
Medium
High
High
High
High
High
High
Full
High
For a very small load of mixed fabrics.
For woollen fabrics labelled “Machine Washable”.
For articles of clothing whose label indicates that they must be
hand-washed.
For bedding fabrics labelled “Machine Washable”.
For items that you want to rinse and spin eg. clothes items
you have hand washed in a wash tub.
If the water level you have is high and you wish to reduce this level for the following Deep
Rinse cycle or for your next wash program, press and hold the Start/Hold To Pause
touchpad for 1.2 seconds to pause machine then press the Water Level touchpad to the
new lower level. The washing machine will use this new lower level for next fill of water.
NOTE: Flood diagnostic is explained on page 19. You should refer to this if you have water
pouring onto the floorThe display will show “ ” and you will hear rapid short beep
continuously to remind you about this problem.
If you want to add more water after wash cycle has started, press and hold the Start/Hold
To Pause touchpad for 1.2 seconds to pause machine and press the Water Level touchpad
to the new higher level that you want, press the Start/Hold To Pause touchpad again to
continue your wash cycle. The machine will add water up to the new level selected and
continue the wash program.
1.
2.
3.

10
CHOOSE THE WASH WATER TEMPERATURE
All rinse water temperatures are cold.
NOTE:
IMPORTANT: Components in the washing machine are designed to be used with water no hotter than 70°C. If your
water supply is too hot, you should have a temperature limiting valve fitted by a qualified plumber.
Very Hot
Temp.
Water Temperatures
Descriptions How to machine mix water
from hot valve from cold valve
Hot
Warm
Cold
for normally soiled, colourfast garments (e.g. shirts, night dresses,
pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled
white cotton (e.g.underwear).
for delicate items (e.g. net curtains), mixed laundry including
synthetic fibres and woollens bearing the label pure new wool,
machine washable, non-shrink.
for normally soiled white cottons and linen (e.g. teacloths, towels,
tablecloths, sheets...). 90 % 10 %
60 % 40 %
40 % 60 %
0 % 100 %
CHOOSE THE SOAK TIME
This option allows you to soak heavily soiled clothes at the beginning of the wash.
To do this, select the wash program you want to use, then press the “Soak Time” touchpad.
You have four soak times to choose from No Soak, 15 min, 30 min and 45 min.
For each wash program your washing machine automatically selects a suitable fill water
temperature.
If you want to use a different wash water temperature, press the Temperature touchpad
repeatedly. The water temp lights will tell you the temperature for each press of the touchpad.
The temperature of warm water will depend on the temperature and pressure of your hot and
cold water supplies. The recommended temperature for warm is 35°C. You can adjust the flow
rate of the water supplies to adjust the Warm temperature.
If you have selected the Woollens program, you will NOT be able to select Hot and Very
Hot wash water temperature.
You have four temperatures to choose from Very Hot, Hot, Warm and Cold.
If you have a cold water connection ONLY and the hot inlet valve is capped off (refer
installation instructions) you must select Cold washes only. Otherwise the machine will stop
the operation and Eco rinse light will be flashing.

TO START THE WASH CYCLE / PROGRAM
MACHINE IN PAUSE MODE
You can tell when your washing machine is in pause mode.
Press the Start/Hold To Pause touchpad.
Start/Hold To Pause is used to Start, Stop and Continue the wash.
If you have started your wash and you wish to stop it for some reason,
press the Start/Hold To Pause touchpad and hold it for 1.2 seconds to enter
pause mode
The time remaining is shown then “ ”.
11
WASH CYCLE IN PROGRESS
END OF PROGRAM
After selecting a program, the duration is displayed in hours and
minutes (for example 2.05).
The duration is calculated automatically on the basis of the maximum
recommended load for each type of fabric.
After the program has started, the time remaining is updated every
minute.
When the program is completed the 3 zeros will flash.
SP
ENABLING/DISABLING END OF WASH BEEP
To enable/disable end of wash beep, while the machine is in Pause mode touch
and hold Start/Pause touchpad for approximately 3 seconds. You’ll hear an
acknowledgment beep and display will show “ ” (Beep ON). Within 5
seconds touch Rinse touchpad to toggle between “ ” (Beep ON) and
“ ” (Beep OFF). Then wait 5 seconds for the machine to automatically go
back to Pause mode or switch the machine OFF in order to save this setting in
the memory.
“Beep ON”
“Beep OFF”

12
INFORMATION AND GUIDANCE FEATURE
Additional features on your washing machine are described in this section.
The washing machine will give you information by using the control panel display and “beeping” function.
SECTION C: Features of your washing machine
Time remaining is shown then “ ”.
Display will show “ ” and “FLASHING”
Wash option touchpad is touched while the
washing cycle is in progress. You can only
change wash option when machine is paused or
before you start the program.
The machine is informing you of a fault with the
washing machine which you need to address.
Refer to page 18 and 19 for further
information, and what you should do before
calling for service.
Indicates the machine has gone out of balance
during the spin cycle. Open lid, redistribute load
and close lid.
Lid is in the open position.
Close lid.
and you get 4 fast “beeps” every 1 minute.
Display will show “ ” and “FLASHING”
and you get 4 fast “beeps” every 1 minute.
Display will show “ ” and “FLASHING”
and you get 4 slow “beeps” every 4 minutes.
Display will show “ ” and “FLASHING”
and you get 3 fast “beeps”.
Other codes
and you get 4 fast “beeps” every 1 minute.
and what to do to continueLights and “beeps”
The machine is in PAUSE mode.
Press Start/Hold To Pause to continue.
The wash program has finished.
Start a new wash or turn off your machine.
SP
0.00

RINSE OPTION
13
Pressing the “Rinse Option” touchpad allows you to change the rinse type. For most washes the machine
automatically selects “Deep Rinse” for you.
Extra:
Deep:
Eco:
Fast:
There are four rinses to choose from… Fast rinse, Eco rinse, Deep rinse and Extra rinse.
Extra rinse, the machine fills twice, giving you two deep rinses.
Deep rinse the machine fills once, giving you one deep rinse.
Fast rinse uses less time then Eco rinse by performing only 3 Eco sprays but the
amount of water in each spray is increased.
Eco rinse is a spray rinse giving you maximum water saving.
When Eco Rinse is used, rinse water is sprayed into the washbowl in pulses. After each pulse the washbowl will spin
to remove detergent laden water from the clothes.
The machine will go through a series of maximum six pulse spray and short spin cycles in this manner, depending
on program selection, followed by a final long spin that removes the water from the clothes to complete the full
wash program.
Compare this with deep rinse where much more water is used.
For deep rinse, water enters the machine filling up to the wash water level selected. The washer agitates and finally
empties the rinse water through the drain hose.
Extra rinse, this is special option for those people who suffer from allergies, this extra rinse will provide two deep rinses
to ensure all detergent residue has been removed.
Eco Rinse and Fast Rinse cannot be selected with Woollens and Bedding program.
How does Eco Rinse work ?
We strongly recommend you use Eco rinse for your washes whenever you can. There is considerable saving of
water when Eco is used instead of Deep or Extra to rinse clothes.
Eco rinse is not designed to be used with fabric softener. Select Deep or Extra rinse if you are going to use
fabric softener. Deep rinse ensures the fabric softener is correctly dispensed and thoroughly removed from your
clothes during rinsing.
Pulse spray of rinse water
Spin up Spin down Final long spin

14
Rotate Selector knob to “Off” position.
1.
Remove the softener dispenser cup and filter column from the centre of the agitator.
To clean the inside and outside of your washing machine you should:
Never use solvents, aerosol cleaners, spray pack cleaners, glass cleaners, metal polishes,
caustic materials, scourers or general household cleaners on or near top panel and lid,
control panel or other parts of your washing machine.
IMPORTANT:
1.
Unclip the filter bag from the column.2.
Wipe the surface with a mild dishwashing detergent and warm water.1.
Wipe dry with a soft cloth.2.
Turn the bag inside out and remove the lint.3.
Wash the filter bag and dispenser cup in hot water.4.
Reassemble the filter to the column and place it back in the centre of the agitator.5.
How to clean the lint filter
Switch off the electricity at the power point.
2.
Turn off the water taps.
3.
Leave lid open for a while to allow moisture inside washing machine to evaporate.
4.
Your washing machine will give you long and trouble-free service, if you follow the instructions in this sections.
These instructions show you how to care for your washing machine.
Lint is a collection of threads and fluff which comes off your clothes during washing. Your washing machine collects
this lint in the lint filter. It is important to clean out this lint filter preferably after each wash.
Squeeze tabs
together and
push out.

15
IMPORTANT: If the electrical cord of this appliance is damaged, it
must be replaced by the Manufacturer, Authorised
Service Agent or similarly qualified person in order
to avoid a hazard.
CLEANING STAINS IN THE WASH BOWL
Stains in the wash bowl can be caused by: metal objects such as bobby pins, dressmaking pins and nails.
salt
IMPORTANT:
How to clean the stainless steel wash bowl
Wipe with a cleaning product which is marked suit able for stainless steel.
IMPORTANT: Never use bleach cleaners or steel wool.
AVOIDING BUILD UP OF UNDISSOLVED DETERGENTS
If you only wash with cold water, undissolved detergent and body oils will build up in the washing machine.
This build-up can cause spotting on your clothes.
To avoid this build-up:
do not use too much fabric softener with cold water
select a hot water wash at least once a month
always dissolve the detergent in one litre of warm water.
What to do if there is spotting on your clothes
1. Put 250 grams of Epsom Salts into the wash bowl.
2. Fill the washing machine with HOT water and agitate for one minute.
3. Leave the water in the washing machine for 3 hours.
4. Agitate for 5 minutes.
5. Pump the water out.
6. Rinse the washing machine twice with cold water.
FOR YOUR SAFETY:
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the
appliance.
If this appliance is supplied from an extension cord or portable electrical outlet
device, the extension cord or portable electrical outlet device must be positioned so
that it is not subject to splashing or entry of moisture.
If you have a mains pressure hot water service and it has not been used for two or
three weeks:
Before using the washing machine it is recommended that a hot water tap close to
the washing machine be turned on and the water allowed to flow for a couple of
minutes. This will allow any gas pressure that has built up over the period of non
use to be discharged.
For further details refer to your hot water service installation instruction and owners
guide.
Check all pockets before loading clothes into your washing machine. Don’t leave wet
clothing (especially swimwear) in the bowl for too long before you wash it.

16
Section E: Handy Washing Hints
YELLOWING OR GREYING CLOTHES
Problem
GREYNESS
YELLOWING
STAINED CLOTHES
Hints for removing stains
Treat all stains as soon as possible. The longer you leave a stain the harder it
will be to remove.
Try soakers and stain removers first.
IMPORTANT: Pre-treatment sprays and stain removers can damage plastic
components on your washing machine.
If you use pre-treatment sprays or stain removers, apply them to the clothes items
in a well ventilated area away from your washing machine.
Avoid the use of hot water on stains as hot water will set stains.
Use light strokes and don’t rub the stain remover into the fabric.
If you use a chlorine bleach, follow the instructions on the bottle and dilute it
before putting it on clothing.
Test coloured fabrics on an inside seam for colour fastness before using any
stain removers or bleaches.
Test synthetic fabrics on an inside seam before using any chemicals or
bleaches.
IMPORTANT: Do not use dry cleaning fluids near your washing machine. These
fluids will damage your washing machine and may cause an explosion.
•Incorrect wash times and using
insufficient detergent which can
cause redepositing of detergent
on clothes.
•Using too much detergent can
cause poor rinsing and poor spin
performance.
•Mixing whites with very dirty
clothes, eg work clothes.
•Using soap flakes instead of
laundry detergent.
1. Add three quarters of a cup of water
softener, eg Calgon to the water with
one cup of ammonia or oxygen bleach.
2. Wash the load through a normal wash
program using hot water.
If the water is very dirty or very sudsy,
repeat 1 and 2 above.
•A build-up of oils in clothes that
comes into close contact with the
skin, eg underwear, T-shirts, etc.
•Ageing of clothes.
•Iron deposits in the wash water.
•Use of chlorine bleaches on
fabrics with resin finishes.
•Incorrect drying.
•Incorrect water temperatures
ie too hot or too cold.
1. Add three quarters of a cup of water
softener, eg Calgon to the water with
half to one cup of oxygen bleach.
2. Wash the load through a normal wash
program using hot water.
If the water is very dirty or
very sudsy, repeat 1 and 2 above.
Synthetics which have been washed in
very hot water will not respond to any
treatment.
What to doPossible causes
This section gives you some help in dealing with washing problems. Chemicals referred to on this
page and page 20 are available from your local supermarket, hardware store or the chemist.

17
Treat stains as soon as possible. The longer they are the harder they are to remove. The following information
may assist you in stain removal.
CREAM and MILK

18
IMPORTANT: If you call for service and there is nothing wrong with your washing machine,
you will have to pay for the service call. You will have to pay even when your washing machine is
under warranty.
Before you call for service, check the points in the table below.
Problem
Machine not working.
Machine has washed
load but will not spin.
Water in washbowl.
Will not fill with water.
Water flowing into
washbowl
indefinitely.
Machine goes out of
balance or vibrates
excessively when
spinning.
Water on floor.
Clothes still dirty
after wash program.
Scraping noise
on spin.
Humming, clicking
and other noises.
SECTION F: Do not call for service until you have checked these points
Possible CausesDisplay Code
Water taps not turned on.
Out of balance switch off.
Lid not fully closed.
Out of balance.
Lid not fully closed.
Drain hose blocked.
Too much suds causing
motor temperature
overload.
Water taps not turned on
Inlet hoses blocked.
Drain hose too low.
Machine not level.
Levelling feet not adjusted.
Clothes not evenly
distributed.
Too much water for load
size.
Loose inlet hose
connections.
Incorrect water level for
size of load.
Condensation from hot
water.
Not enough or no detergent.
Too many clothes in load.
Incorrect wash program or
temperature selected.
Incorrect water level
selected.
Bra wire or other thin items
caught between inner and
outer washbowls.
Bowl rotation at start of
wash.
Brake activation when
stopping after spin.
What to do
Switch on power point.
Check power point with
another appliance.
Turn on taps.
Open lid, redistribute load
and close lid.
Close lid.
Open lid, redistribute load,
close lid.
Close lid.
Check drain hose for blockage.
Wait a short while, the wash
will continue.
In future, reduce detergent
dose or use low sudsing
(front load) detergent.
Turn taps on.
Clean tap filters/washers.
Raise drain hose or fit a
syphon break.
Refer to installation
instructions for correct
positioning of hose.
Make the machine level.
Adjust feet to touch the floor.
Redistribute clothes evenly.
Check connections at taps
and rear of machine.
Use low water level.
Check detergent use and
rewash clothes.
Remove some clothes and
rewash.
Reselect program or
temperature and rewash.
Use a higher water level.
If the item is visible, remove
it with pliers.
Use a wash bag in future.
Normal noise.
Normal noise.
Power not switched on.
No electricity supply through
the power point.

19
OTHER DIAGNOSTIC HELP AND A GUIDE FOR WHEN YOU SHOULD CALL FOR SERVICE
If you are having a problem with your washing machine, make sure you have followed ALL of
the instructions on page 18 in the “What to do” column before calling for service.
Description
Not filling with
water.
Flood.
Draining problem.
Loss of water,
while washing.
Water level
problem.
Motor fault.
Customer action (Summary)
Display Code
Wait a few minutes to see if the fault is corrected.
If not, press the Start/Hold To Pause touchpad and
hold it for 1.2 second to enter pause mode then
check the drain hose for blockage.
If the water is pouring onto the floor, turn OFF both
wall taps.
Make sure both wall taps are on and hose filters are
not blocked.
Press Start/Hold To Pause to re-start wash.
If problem remains, call Service.
Raise drain hose if water is flowing out of drain hose.
Wait a few minutes to see if the fault is corrected.If
not, call Service.
Press Start/Hold To Pause to continue the wash.
If problem remains, call Service.
If water level in wash bowl is low and water is flooding
the floor, turn Program Selector Knob to Drain & Spin
position, then press Start/Hold To Pause.
Should this make things worse, turn off the machine
and call Service.
Wait, this fault may clear itself.
If not, turn Program Selector Knob to Drain & Spin
position, then press Start/Hold To Pause to drain the
wash bowl.
If not, turn Program Selector Knob to Drain & Spin
position to drain the wash bowl.
You may have to press Start/Hold To Pause to
commence draining.
If this problem is repeated, call Service.
Wait, this fault may clear itself.
If this problem is repeated, call Service.
Otherwise, press Start/Hold To Pause to continue the
wash.

NOTE
20
