Wet Sounds WW-8CH-LD User manual

WW-8CH-LD
8 Channel Line Driver
OWNER’s Manual
WETSOUNDS.COM HIGH PERFORMANCE AUDIO

THANK YOU FOR CHOOSING WET SOUNDS
FOR YOU HIGH PERFORMANCE
AUDIO SYSTEM
The WW-8CH-LD is a device that allows you to expand a 2
channel input into 4 zones of adjustable output and 2 of these
zones can be adjusted at anytime using the wired remote.
Please take a moment to read the instruction manual &
connection guide before starting the installation. If you have
any questions or concerns, please contact a certied Wet
Sounds dealer or Wet Sounds Tech Support.
THANK YOU
FEATURES
4 pairs of adjustable outputs
Remote level adjustments of Ch 5/6 and Ch 7/8
via Carling style wired remote.
Dual color LEDs for signal level monitoring and setup
Sealed Construction designed for Marine Applications

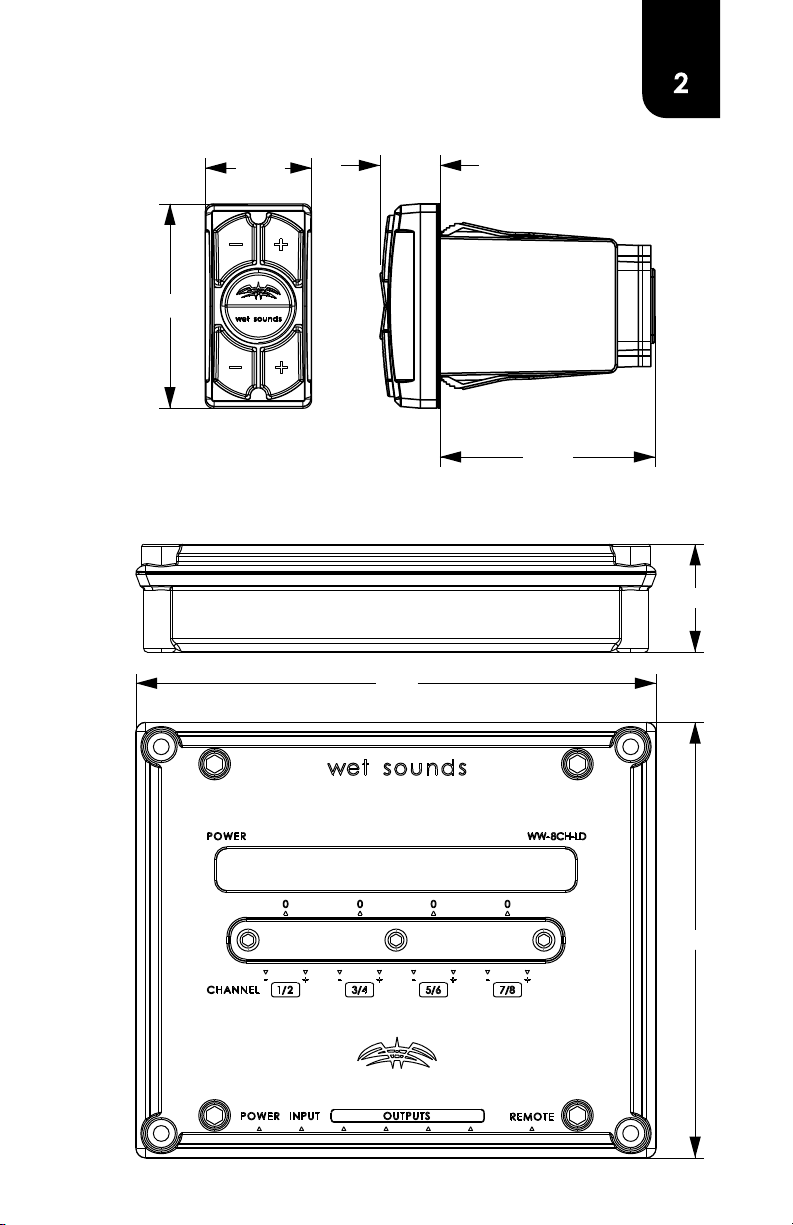

DIMENSIONS
1.93"
1.00"
2.03"
0.56"
1.20"
5.82"
4.87"

CUT OUT
DIMENSIONS
MOUNTING INSTRUCTIONS
REMOTE
MAIN UNIT
STEP 1: Locate desired location. Please refer to
dimensions and check for clearance prior to
cutting or drilling.
STEP 2: Cut hole using the supplied cut out
dimensions.
STEP 3: Route wires through hole and snap in place.
TIP: It is good practice to cut the hole smaller than
needed, then enlarge using a le as needed. This
will ensure a secure t.
STEP 1: Locate desired location. Please refer to dimensions and check
for clearance prior to cutting or drilling.
STEP 2: Use supplied screws to secure unit.
0.86"
1.41"

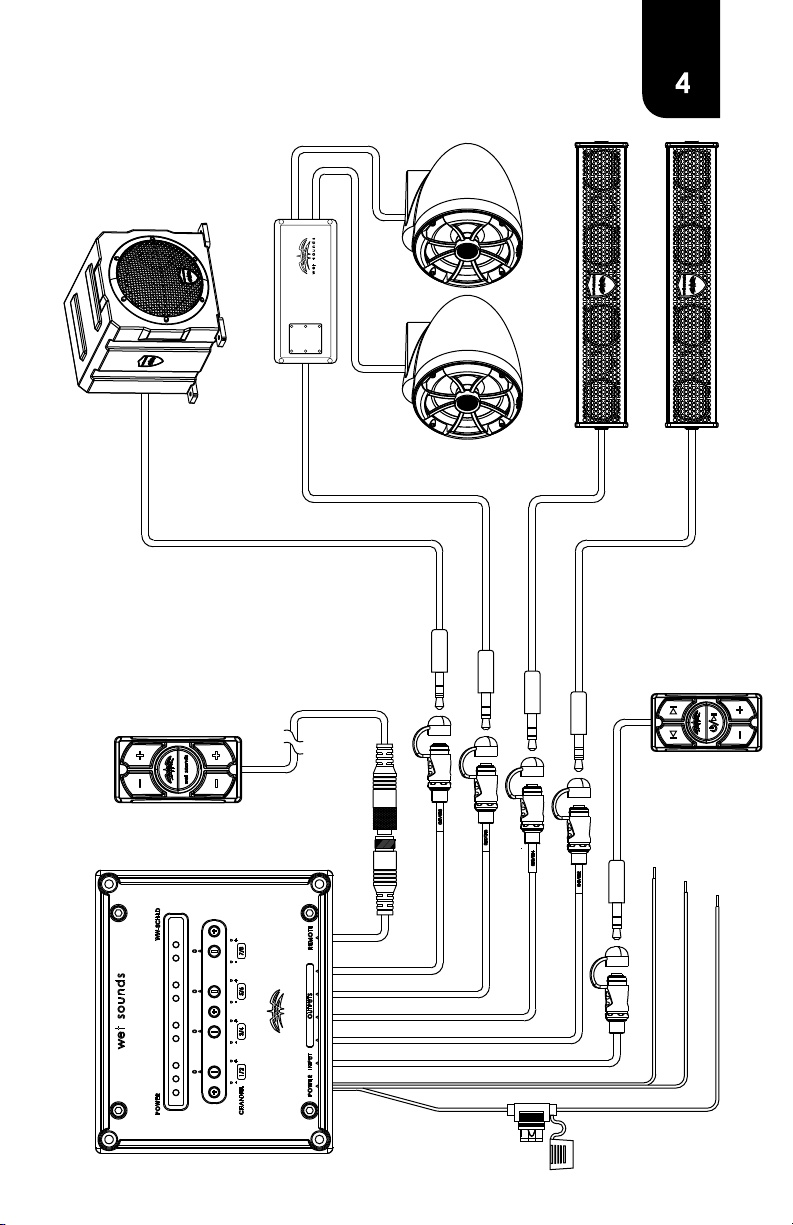

WIRING DIAGRAM
EXAMPLE SYSTEM LAYOUT
REMOTE CONNECTOR
3.5MM(CH7/CH8 OUTPUT)
3.5MM(CH5/CH6 OUTPUT)
3.5MM(CH3/CH4 OUTPUT)
3.5MM(CH1/CH2 OUTPUT)
3.5MM(INPUT)
+12V SWITCHED (RED)
SOURCE UNIT
WWX-BT-RS
(SOLD SEPARATELY)
FRONT SPEAKERS
STEALTH SURGE 6 (SOLD SEPARATELY)
REAR SPEAKERS
STEALTH SURGE 6 (SOLD SEPARATELY)
TOWER SPEAKERS
ICON 8 (SOLD SEPARATELY)
SUBWOOFER
STEALTH AS-10
(SOLD SEPARATELY)
AMPLIFIER FOR TOWER SPEAKERS
STX MICRO-4 (SOLD SEPARATELY)
+12V CONSTANT (YELLOW)
-12V GROUND (BLACK)
MODE

SETUP INSTRUCTIONS
OPERATING INSTRUCTIONS
+/- LEVEL CONTROL FOR CHANNELS 5/6
MIDDLE BUTTON HAS NO FUNCTION
POWER
INDICATOR
SIGNAL VOLTAGE
INDICATORS
SIGNAL VOLTAGE
INDICATORS
No light - Signal level low
Blue light - Ideal Signal level
Red light - Signal level is too high
SENSITIVITY ADJUSTMENTS
+/- LEVEL CONTROL FOR CHANNELS 7/8
For setup, be sure that the output cables of the WW-8CH-LD are disconnected.
STEP 1: The sensitivity adjustments are found under a cover plate that is secured in
place with three screws. For setup, remove these screws and cover plate.
STEP 2: Connect source unit to input cable and begin playing music. Increase volume
on source unit to the maximum usable output. You will now use the signal voltage
indicators to set the sensitivity adjustments.
STEP 3: Watch the signal voltage indicator lights as you make adjustments. The blue
lights represent the ideal sensitivity setting. If you do not see any lights, the level should
be increased. If you see any ashes of the red light, the level should be decreased.
After all 4 zones have been set, turn volume down, pause music and
connect output cables.
STEP 4: With all components connected, play system. To balance system components,
turn down the adjustment of the components that appear louder. Keep in mind that
if at any point, you are seeing a red signal voltage indicator light ash, you are over-
driving WW-8CH-LD and possibly the component connected to that zone. Once system
is setup, replace the cover plate for the adjustments.
