WFI 1-43 Series User manual

Mounting instructions

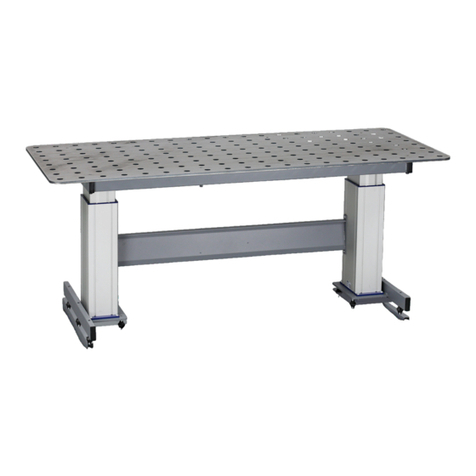

Welding table
1-43X-X

A B
AB
Mounting instructions
Insert the T-nuts in the rear slots
of the legs before attaching the foot.
2 on each leg.
Screw M6x35 mm Washer M6
Cable outlet
Left Right

C
D
C
D
Mounting instructions
Attach the crossbar using the T-nuts on each side.
Washer M6
Screw M6x10 mm

E
E
Mounting instructions
Top frame
Plastic sheet
Plastic sheet
Screw M6x35
Washer M6

Mounting instructions
Screw M10x80 mm
Washer M10
Table top
Use a spirit level to make sure the table are flush.
Adjust height of feets if necessary.

F
F
Mounting instructions
Attach the control box holder to the frame
using the magnet.
Slide the control box into the holder and
use the screw to lock the control box
Use attached Cable clips to
attach the cables to the underside of the frame.
