User Warnings
Quick Start Guide
About Your Loudspeaker
Servicing Your Loudspeaker
Quality Assurance
Certificate of Quality Assurance
Systems and Driver Unit est Reports
Wharfedale History Book
Gilbert Briggs Loudspeaker Book
Single Wiring Links, 2 ypes
4 x White Cotton Gloves
CONTENTS
WITHIN THIS PACK
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 1

Please read the following notes carefully. hey will help you to install your loudspeakers correctly and safely.
Switch off the amplifier and all sources before making connections to your sound system. When you switch
on the system or change sources, set the volume control to minimum and turn up the level gradually.
he position of your Volume Control is NO a reliable guide as to the maximum capabilities of your system.
Playing the system with extreme settings of volume and tone controls may damage the amplifier and
loudspeakers.
Do not connect loudspeaker terminals to the mains supply.
Ensure that your loudspeakers are correctly wired and are in phase.
Do not subject your loudspeakers to excessive cold, heat or sunlight.
WARNING: o reduce the risk of fire or electrical shock do not expose this product to rain or moisture.
he product must not be exposed to dripping and splashing and no object filled with liquids – such as a vase
of flowers – should be placed on the product.
No naked flame sources – such as candles – must be placed on the product.
Do not place heavy objects on top of loudspeaker cabinets. If you play them with the grilles removed be
careful to protect the drive units from children and pets.
Do not use makeshift stands. Always fit a manufacturer’ approved stand using the instructions and the
fixings provided. Your dealer will advise you.
Do not attempt to dismantle the loudspeaker. here are no user serviceable parts inside and you will
invalidate the warranty.
Site your loudspeaker at least 0.5m away from V sets and magnetic storage media.
USER WARNINGS
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 2

QUICK SETUP GUIDE
(Airedale Heritage)
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 1

Setting Up the Airedale Heritage
Safely unpacking
Check you have
Positioning the speakers
Connection options
Looking after your loudspeaker
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 2

Always take care when lifting heavyobjects.
Lift the speakers out by their sides.
SAFELY UNPACKING
If possible, keep the packaging in case you
need to move your speakers.
Lay the contents on a smooth surface to
avoid accidental damage before installation.
Your Airedale Heritage speakers are heavy. ake
care when removing them from their packaging.
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 3

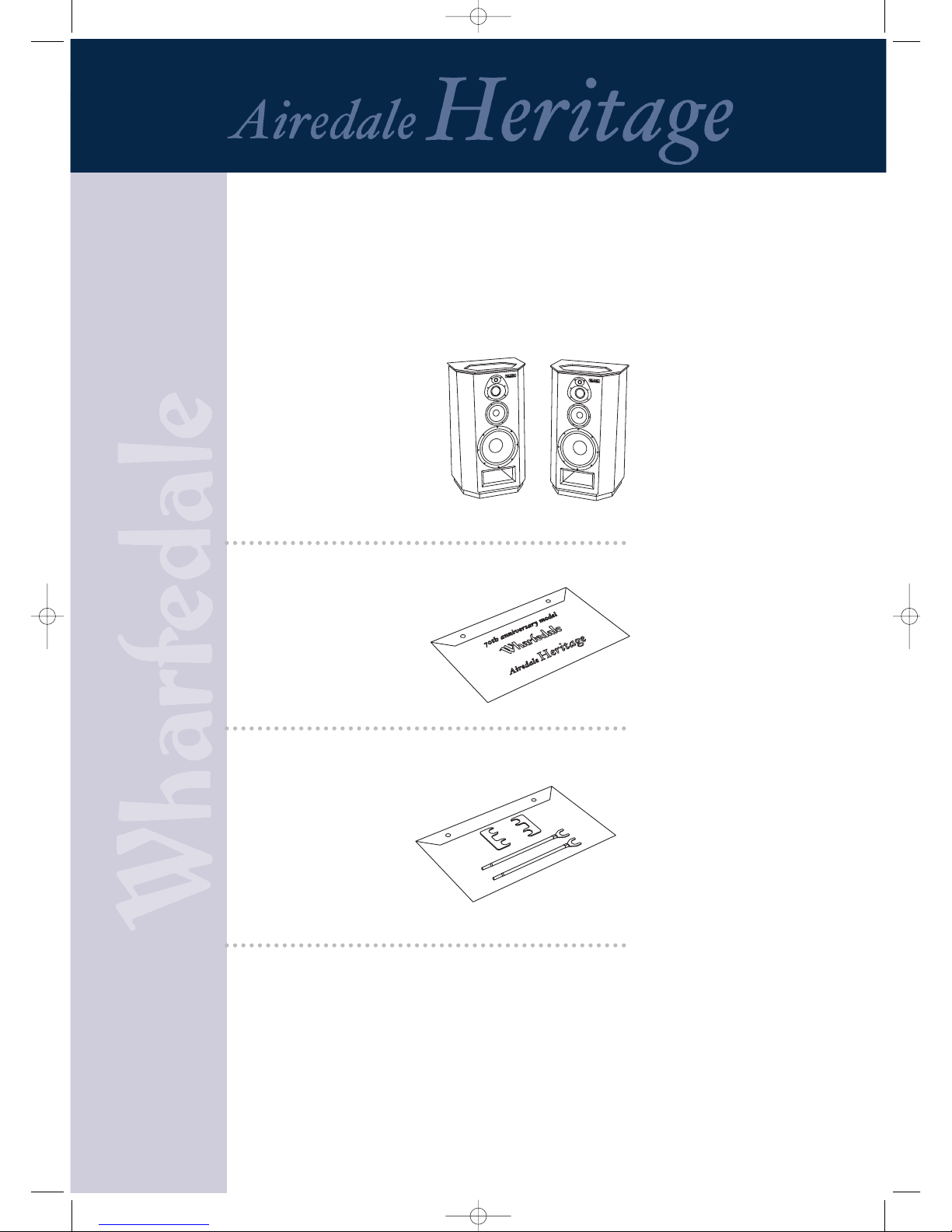

CHECK YOU HAVE
2 Speakers
User pack
Accessories
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 4

POSI IONING HE SPEAKERS
Angle speakers inward by 5º to 10º for a
clearer, more tuneful mid range.
Positioning the speakers. Place the
speakers so that you are the same
distance from each. he distance
between the speakers should be the
same as between you and the speakers.
For best results the speakers should
be 4 – 12 inches (10 – 30cm) in front of
a wall and at least 18 inches (45cm)
from any corner.
5º to 10º
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 5

CONNEC ION OP IONS
Single wired - a single cable from one amplifier
drives each speaker. Note: hese speakers are
supplied in single wire configuration
Bi- wired - a single amplifier, with separate
wires to drive the bass/ mid unit and the
treble unit.
Bi- amplified - two amplifiers. One drives
the bass/ mid unit. he other drives the
treble unit.
I portant Note, please make sure that heavy multi-standard cables
are well connected and clamped. Single loose strands arcing can
cause noise in the 15” woofer like a faulty speaker.
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 6

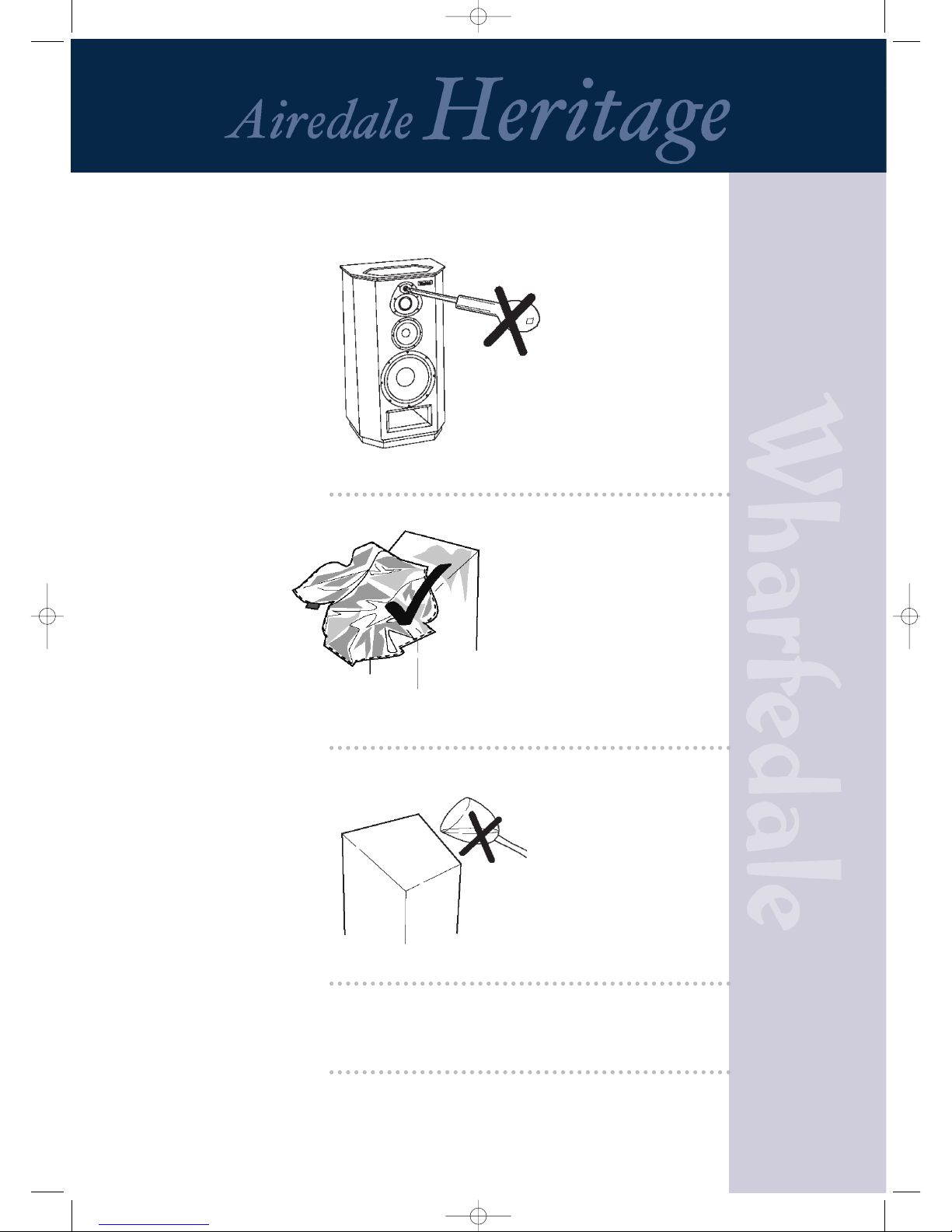

LOOKING AF ER YOUR LOUDSPEAKER
Do not open the speakers; there are no user
serviceable parts inside.
Remove marks from the cabinet and polish it
with a soft, slightly damp cloth.
Avoid getting any liquid behind the grille.
o enable you to maintain the superb finish of your loudspeakers,
the original matching walnut wax is available from your dealer.
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 7

For technical support, product queries and information please contact either
your local retailer or the offices below.
TECHNICAL SUPPORT AND INFORMATION
UK
Wharfedale International Ltd.
IAG House, Sovereign Court,
Ermine Business Park,
Huntingdon. PE29 6XU
England
el : [phone]
Fax : [phone]
www.wharfedale.co.uk
USA
IAG America, Inc.
15 Walpole Park South,
Walpole,
MA 02081
USA
el: [phone]
Fax: [phone]
www.wharfedale.com
ASIA
Room 2310 - 2311 Press Building,
Shennan Road C,
Shenzhen,
China
el: 0086 -755-82091200
Fax: [phone]
AIREDALE HERITAGE MANUAL 21/01/03 11:02 am Page 8

ABOUT YOUR LOUDSPEAKER
About Your Loudspeaker 21/01/03 11:06 am Page 1

The Airedale Heritage is the largest of the new series of speakers, it is a large format loudspeaker,
utilising 5 drive units per speaker in a 4 way configuration.
The loudspeaker meets the demands of the highest level of hi-fi audiophiler.
The audio range is covered by four ways so that no compromise is made in each section in the
following areas
Very low distortion across the entire audio band.
Low excursion requirement of the cone drivers.
High flux magnet systems enabling good dynamic response and impulse control.
Broadband dispersion for excellent stereo image and staging.
General time coincident alignment of the drivers at the IEC listening position.
Careful attention to all the component design, operation, integration and acoustics.
THE CABINET
Retro styled similar to the 1960’s Wharfedale ‘Airedale’. It is period furniture finished in classic oiled
walnut real wood finish with antique gold/brown matching grille and trims. Solid walnut edging is used
on the top and bottom edges, as well as the plinth, and the port and terminal panel edging.
The cabinet is a total internal volume of 178 litres, with a mid chamber of 14 litres. It is constructed
entirely of 25mm MDF boards. The front baffle is tilted back to achieve the best average of acoustic
centre to the IEC prime setup position, it is also angled back at the sides as the optimum for smooth
edge refraction, per olsen. It is additionly internally braced. A large transfer volume, low velocity port
is utilised.
LOW FREQUENCY EXTENSION
The low frequency 380mm 15” driver has an Fs of 20Hz. The system Fb is 30Hz.
MIDRANGE COVERAGE
The bass to middle range is handled by a 200mm 8” driver, this is contained in a sealed chamber of 14
litres. The driver Fs is 50Hz and the system Fb is 80Hz.
The upper midrange is reproduced by a studio monitor quality 75mm 3” soft textile dome. The
midrange is mounted in an aluminium fascia providing slight forward loading. Also in the same fascia
plate is the 25mm soft dome tweeter.
HIGH FREQUENCY TWEETERS
The unit has a forward facing high output 25mm textile soft dome. An additional upward directed
second tweeter may be selected via switch, to enhance the ambient effect of the highest frequencies.
‘THE AIREDALE HERITAGE’
About Your Loudspeaker 21/01/03 11:06 am Page 2

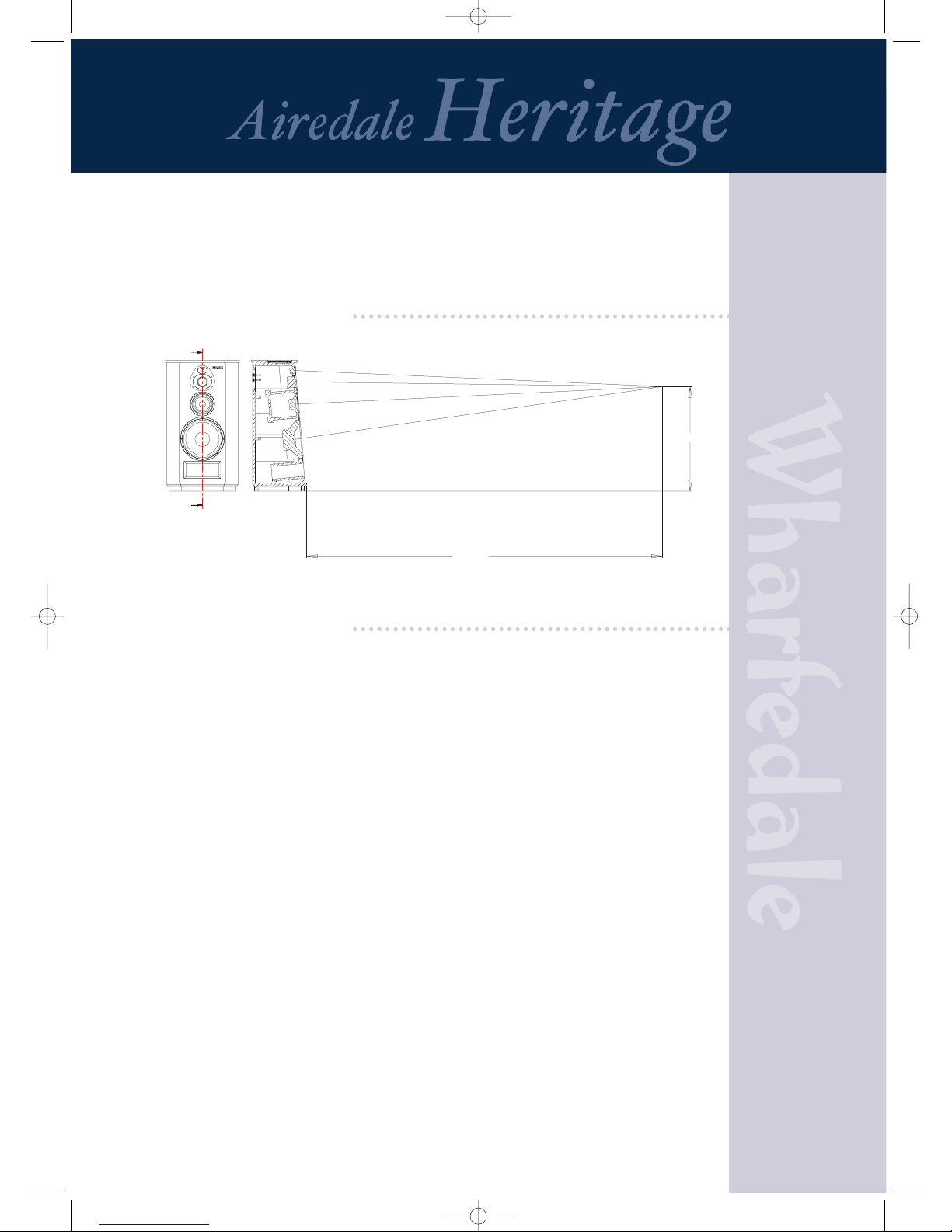

COINCIDENT DRIVER ALIGNMENT
THE DRIVE UNITS
3000
m
m
97
0
m
m
A
-
A
THE 380mm 5” BASS DRIVER
The bass driver incorporates a new design of cone, it is a sandwich cone combination of glass fibre/carbon
fibre/glass fibre, it is very stiff and rigid. Energy losses in the cone transfer mechanism will be low. The cone edge
is rim stiffened also.
Similarly, the lateral voice coil strength is very high being a combination of half hard aluminium and resin bond-
ed to glass fibre. The dust cap/cover is of the same material as the cone. As the 15” operates only over the LF
range it is only used over its pistonic range. The cone surround is a large half roll of synthetic butyl rubber, it has
good inherent damping quality and has an integral trim ring. The chassis used and indeed on the 8” midrange
also, is an open design, where narrow ‘legs’ and largest openings are used to minimise back reflections.
A dual spider configuration is used to extend the stable performance life of the driver and mechanical damping.
A high performance traditional alnico magnet system is used. This features a flux stabilisation ring at the base of
the yoke assembly. The magnet system is also fully vented throughout.
A real problem with high output bass systems is motional noise from the speakers particularly the bass driver.
Careful assessment has eliminated pressure ‘air noise’ there are vents in the cone, in the spider, in the coil, in the
magnet system, and in the chassis.
THE 200mm 8” UPPER BASS TO MID-RANGE DRIVER
The driver utilises a lightweight kevlar cone, a very rigid and responsive cone choice. A solid composition dust
dome is used. The voice coil is wound on a vented aluminium former, and is also very rigid. The cone is
terminated with a conventional half roll SBR surround with integral. A high performance alnico magnet is used.
This also features a flux stabilisation ring at the base of the yoke assembly. The magnet system is also vented
through.
About Your Loudspeaker 21/01/03 11:06 am Page 3

THE 75mm 3” SOFT DOME MIDRANGE
A studio monitor quality large dome midrange is used over the crucial midband frequencies, 800Hz to 3.7kHz.
A feature of this driver is very low distortion over its entire working range, it is typically less than 1% at 100dB
at 1 metre.
It is mounted in a custom matched fascia plate to provide partial horn loading, giving a broad angle of dispersion
to its upper crossover point. The fascia plate is of die cast aluminium, it is designed to place the units as close as
possible for the best integration and point source effect. Both the units are loaded by elliptical horns to reduce
the diffraction effects found with symmetrical openings. The edge of the fascia itself also has the same elliptical
assymetry. It has a large 75mm 3” voice coil again based on a rigid half hard aluminium former. The dome is
pressure equalised by an underside baffle and chamber.
THE 25mm ” SOFT DOME TWEETER
The highest frequencies are handled also by soft domes, these are a better choice than the metallic based domes
that seem to add there own character to the treble. Again a feature of the tweeters as with the mids, is wide
dispersion and very low distortion typically less than 1% at 100dB at 1 metre.
The forward unit features a high flux alnico magnet structure and is typically 93dB 1W@1M. This unit has a
frequency response extending way over 20kHz to 45kHz.
The ambient effect of the highest frequencies can be enhanced by switching on the up firing tweeter, it is a
complementary design to the front tweeter and forward sensitivity is not increased. It too is a 25mm soft dome
but on a neodynium magnet system.
THE CROSSOVER AND WIRING
Monster Cable XP is used throughout the internal wiring. All inter-connections between wires and
crossover/drivers are made by mechanical crimping. Soldering or iron parts are used within the crossover. No
printed circuit boards are used. All inductors used are air cored and use large gauge wire for very low insertion
loss. All capacitors used are either, low loss, low ECR polypropylene or high quality audio grade reversible
electronics.
GENERAL
The reflex system uses a very large port. This has a large transfer volume and ensures low air speed within the port.
Thiele – Small recommend 5-10% of the speed of sound and length approx to the diameter. The mach number for
the Airedale Heritage port is M.N. 0.025. Very low. This is confirmed by the results, the Airedale Heritage port
seeming virtually airless.
About Your Loudspeaker 21/01/03 11:06 am Page 4

SPECIFICATIONS
Specifications 21/01/03 11:21 am Page 1

Transducer Complement
Bass driver
Bass/Mid
Mid-range
Tweeter
Super tweeter
Nominal impedance
Impedance variation
Frequency response +/- dB
Useable low frequency limit - dB
Low frequency limit -10dB
Upper frequency limit -10dB
SPL 1W@1m
Distortion 20 – 600Hz
600 – 50kHz
Power Handling
Continuous weighted white noise
Peak
Max peak spl
Nominal coverage horizontal
Nominal coverage vertical
Enclosure type bass/mid
Volumes bass/mid
System Fb
Crossover frequencies
Construction material
Finish
Shape
Component part numbers
Bass driver
Bass/mid driver
Midrange speaker
Tweeter
Super tweeter
Product dimensions H x W x D
Net weight
Crate dimensions H x W x D
Gross weight
4 way 5 drivers
15” 80mm alnico
8” 200mm alnico
” 75mm soft dome
1” 25mm soft dome alnico
1” 25mm soft dome
6 ohm
4.0 – 17.0 ohms
25Hz – 45kHz
25Hz – 45kHz
25Hz
45kHz
90dB
> % 100dB@1M
>1% 100dB@1M
100 Watts
400 Watts
114dB
90 degrees to 12 kHz
0 degrees to 12 kHz
ported/sealed
178L/14L
0Hz & 80Hz
180Hz/700Hz/ .5Khz/9kHz
entirely 25mm MDF
Hard Oiled & Waxed Walnut Veneer
5º angled trapezoidal
80mm 15” D. 86
200mm 8” D.401
75mm ” D. 89
25mm 1” D. 90
25mm 1” D.424
1215 x 688x 514
80kg
1482 x 818 x 6 0
110kg
SYSTEM SPECIFICATIONS
Specifications 21/01/03 11:21 am Page 2

Frame material
Cone & dome material
Surround
Spiders
Coil size & type
Winding spec
Magnet
Magnet weight
Gap flux density
Top plate thickness
Pistonic range
Venting
Thiele/small parameters
Effective cone diameter
Re
Fs
Qms
Qes
Qts
Mms
Cms
Va s
BL
Die cast aluminium
Glass/carbon/glass sandwich
Half roll sb rubber
Dual spaced at 10mm
51mm resin bond glass
2 layer round cu x 15mm
120 dia x 90 dia x 60 alnico
22 2 grm
1.2T
15mm
Up to 00Hz
Cone, coil, pole, spiders, chassis and magnet cavity.
0mm
5.7 ohm
20Hz
18.22
0. 1
0. 0
1 gm
0.48 mm/N
490L
17.5 T/M
3 0MM 15” SPECIFICATIONS
Frame material
Cone & dome material
Surround
Spider
Coil size & type
Winding spec
Magnet D1 x D2 x H
Magnet weight
Gap flux density
Top plate thickness
Optimum working range
Venting
Thiele/small parameters
Effective cone diameter
Re
Fs
Qms
Qes
Qts
Mms
Cms
Va s
BL
Die cast aluminium
Kevlar/paper
s b r single roll
single
25mm aluminium
2 layer round cu x 10mm
86 dia x 62 x 44 alnico
868 gm
1.0 T
6mm
80Hz – 250 Hz
Cone, coil, pole
165mm
5.2 ohm
50Hz
8. 1
1.01
0.90
19 gm
0.48 mm/N
1 L
5.69 T/M
200MM ” SPECIFICATIONS
Specifications 21/01/03 11:22 am Page 3

Part number
Dome material & size
Coil size & type
Magnet d1 x d2 x h
Magnet weight
SPL 1w @ 1m
Fs
Frequency range - dB
Distortion at 100dB @ 1m
D. 89
75mm textile
75mm aluminium
70 x 2 x 15
248 gm
9 dB
500Hz
400Hz – 5kHz
typically <1%
MIDRANGE SPECIFICATIONS
FRONT TWEETER
Part number
Dome material & size
Coil size & type
Magnet d1 x d2 x h
Magnet weight
SPL 1w @ 1m
Fs
Frequency range - dB
Upper frequency limit -10dB
Distortion at 100dB @ 1m
TOP TWEETER
Part number
Dome material & size
Coil size & type
Magnet d x h
Magnet weight
SPL 1w @ 1m
Fs
Frequency range - dB
Upper frequency limit -10dB
Distortion at 100dB @ 1m
D. 90
25mm textile
25mm aluminium
50 x 7 x 0 alnico
115 gm
92 dB
1kHz
800Hz – 40kHz
45kHz
typically <1%
D.424
25mm textile
25mm aluminium
24 x 4 neodynium
14 gm
92 dB
1kHz
800Hz – 40kHz
45kHz
typically <1%
TWEETER SPECIFICATIONS
Crossover sections
Ty p e
Wiring
Connections
Crossover points at -6dB
Bass
Bass/mid low
Bass/mid high
Midrange low
Midrange high
attentuation
Tweeter
attentuation
Super tweeter
4 way
Butterworth
Monster cable XP
Mechanical Crimp
180Hz at 12dB/oct
180Hz at 12dB/oct
700Hz at 12dB/oct
7000Hz at 12dB/oct
.5kHz at 12dB/oct
-2dB
.5kHz at 12dB/oct
-1. dB
9kHz at 12dB/oct
CROSSOVER SPECIFICATIONS
Specifications 21/01/03 11:22 am Page 4

SERVICING YOUR LOUDSPEAKER
Servicing your Loudspeaker 21/01/03 11:09 am Page 1
