Whirlpool ACE 010 IX User manual

1
ACE 010
www.whirlpool.com

2
INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulso-
ry. The manufacturer will accept no re-
sponsibility for injury to persons, ani-
mals or damage to objects arising from
the non-observance of this requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a
damaged mains cord or plug, if it is not
working properly, or if it has been dam-
aged or dropped. Do not immerse the
mains cord or plug in water. Keep the
cord away from hot surfaces. Electrical
shock, fire or other hazards may result.
CHECK THAT THE VOLTAGE on the rating
plate corresponds to the voltage in your
home.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
THIS APPLIANCE IS DESIGNED TO WORK
in ambient temperatures above
freezing point of water (0°C).
If residual water is allowed to
freeze, the appliance may be
damaged.

3
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE LIQUIDS in or
near the appliance. Fumes can create a
fire hazard or explosion.
DONOT LEAVE THE APPLIANCE UNATTENDED
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the appliance
without adult supervision after adequate
instructions have been given, so that the
child is able to use the appliance in a safe
way and understands the hazards of im-
proper use.
The appliance is not intended for use by
young children or infirm persons without
supervision. Young children should be su-
pervised to ensure that they do not play
with the appliance.
Children should only use the appliance un-
der adult supervision due to the high tem-
peratures generated.
DONOT USE corrosive chemicals or vapors
in this appliance. This type of appliance
is specifically designed to heat water. It
is not designed for industrial or labora-
tory use.
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent
burns, when touching hot parts.
THIS APPLIANCE IS DESIGNED TO MAKE COFFEE or heat
drinks. Be careful to avoid being scalded by
sprays of water or steam or due to improper
use of the appliance.

4

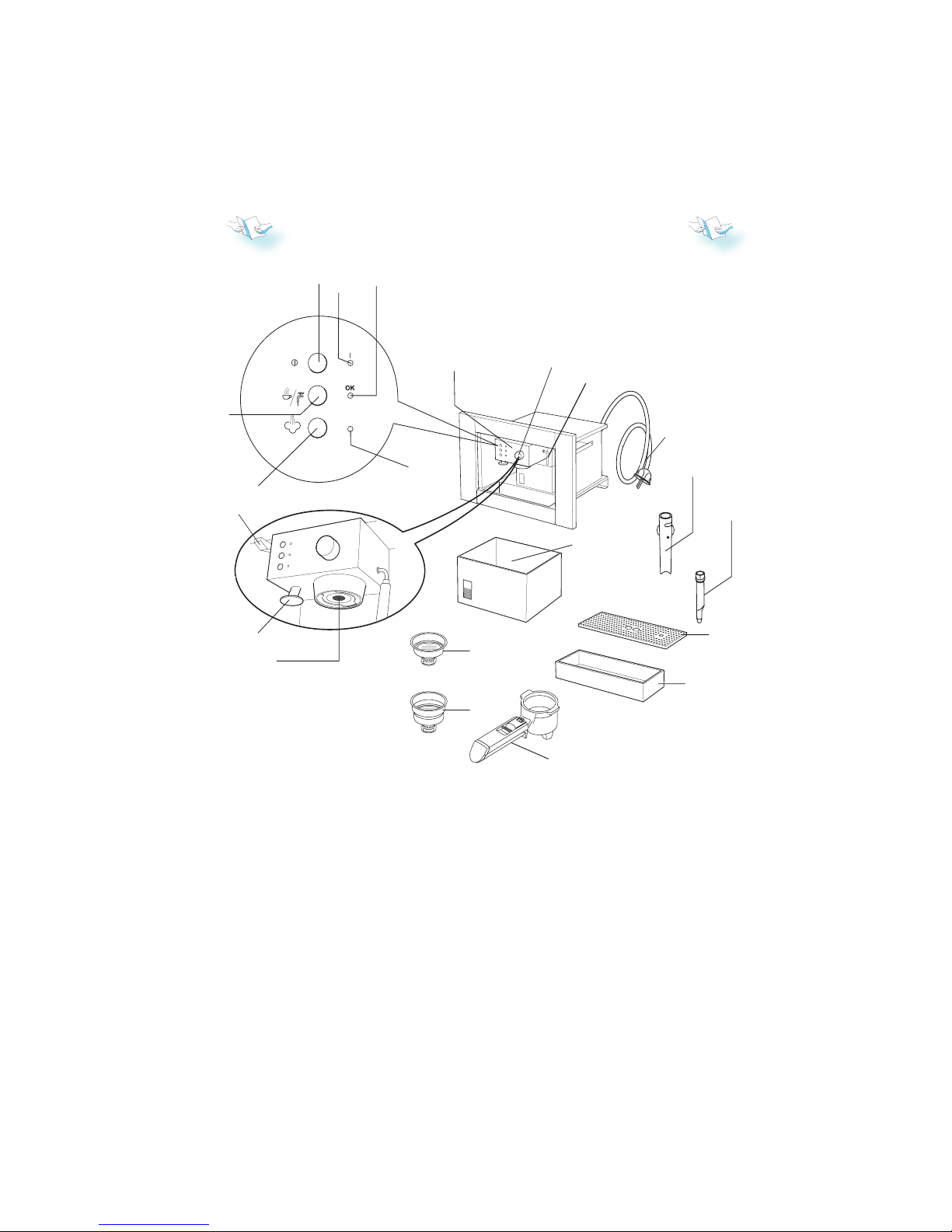

ACCESSORIES & PARTS
q CONTROL PANEL
w STEAM KNOB
e WATER TANK
r POWER CABLE
t STEAM/HOT WATER TUBE
y DRIP MESH
u DRIP TRAY
i CAPPUCCINO MAKER
o NOZZLE
a BOILER OUTLET
s PRESSER
d FILTER HOLDER
1# LARGE TWO-CUP FILTER
g SMALL ONE-CUP OR POD FILTER
h STEAM SELECTOR BUTTON
j COFFEE/HOT WATER BUTTON
k ON/OFF BUTTON
l ON LIGHT
1( TEMPERATURE OK LIGHT (COFFEE
OR HOT WATER)
2) STEAM INDICATOR LIGHT
2! LIGHT SWITCH
qw
e
r
t
y
u
i
o
a
s
d
f
g
h
j
kl1(
2)
2!

5
1
2

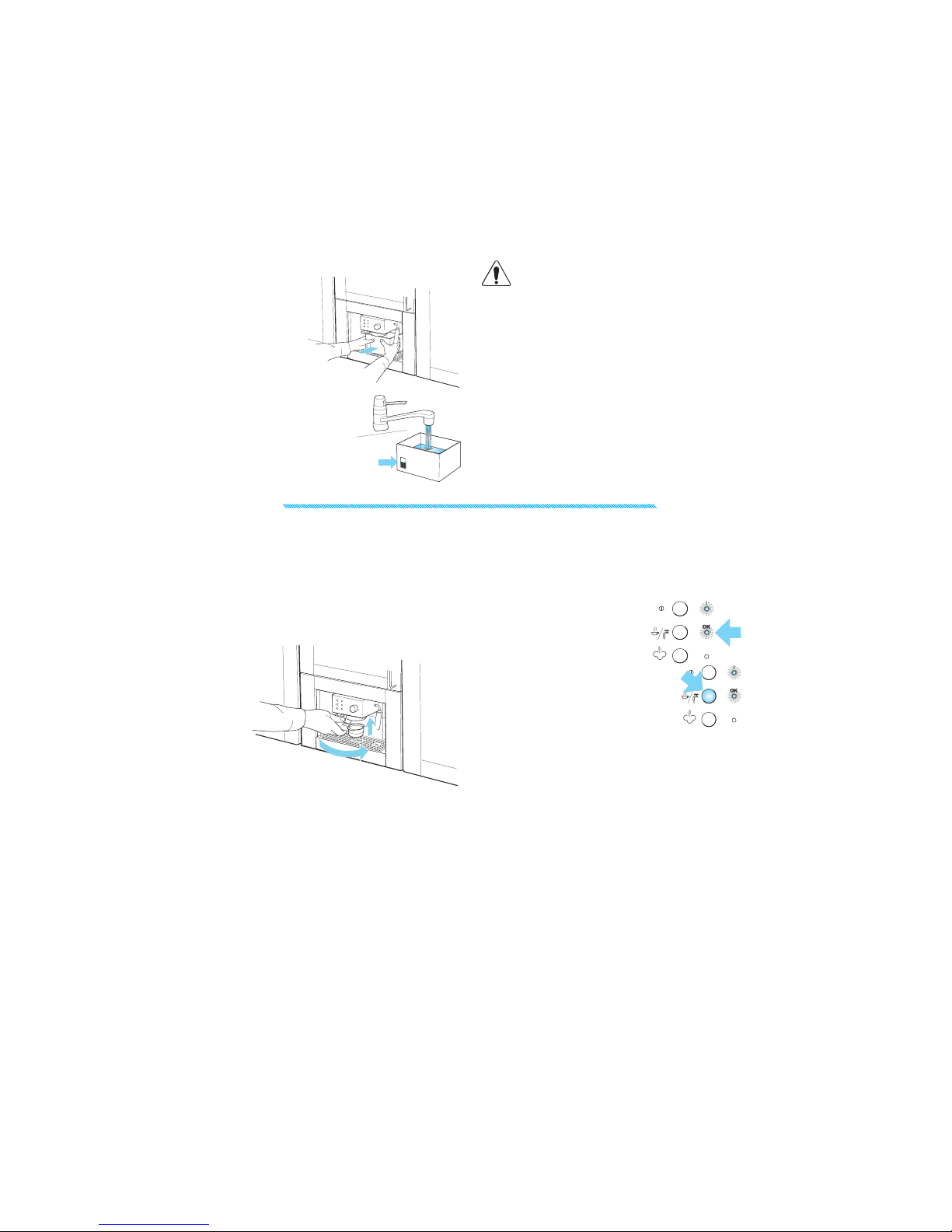

FILLING THE WATER TANK
1. TURN THE APPLIANCE on by pressing the ON/OFF
BUTTON AND ATTACH THE FILTER HOLDER TO THE APPLI-
ANCE WITHOUT ADDING GROUND COFFEE.
q REMOVE THE WATERTANK by pulling it out (to-
wards the front).
NEVER USE THE APPLIANCE WITHOUT WATER IN
THE TANK and always remember to top up
when the level drops to a couple of cen-
timetres from the bottom.
w FILL THE TANK with fresh
clean water taking care
not to exceed the MAX
level. Refit the tank.
PREHEATING THE COFFEE UNIT
TOATTACH THE FILTER HOLDER, position it under the
boiler outlet
with the han-
dle towards
the left,
push it
upwards
and at the
same time rotate the
handle firmly towards the right.
Check that the steam knob is closed.
2. PLACE ACUP UNDER THE FILTER HOLDER. Use the
same cup as will be used to prepare the coffee
in order to preheat it.
3. WAIT FOR THE OK INDICATOR
LIGHT to come on, then imme-
diately press the coffee knob.
Run the water off until the OK
indicator light goes out, then inter-
rupt delivery by pressing the coffee
button again.
4. EMPTY THE CUP. Wait until the OK
indicator light comes on again then repeat the
same operation. (It is normal for a small and
harmless puff of steam to be given off when
removing the filter holder).

6
1
2
1. AFTER PREHEATING the appliance as described
above, place the ground coffee filter
in the filter holder, making sure the
projection is correctly inserted in
the slot. Use the smaller filter to
make one coffee or the larg-
er filter to make two coffees.
HOW TO PREPARE ESPRESSO COFFEE USING THE
FILTER HOLDER FOR GROUND COFFEE
2. TOMAKE ASINGLE COFFEE ONLY, place one level
measure (about 7 g) of ground cof-
fee in the filter. To prepare two cof-
fees, place two loosely filled
measures (about 6+6 g)
of ground coffee in the fil-
ter. Fill the filter a little at a time to prevent the
ground coffee from overflowing.
IMPORTANT: for correct operation, before
adding the ground coffee to the filter holder,
clean the filter from residues of ground coffee
from the previous infusion.
5. PLACE THE CUP or cups under the filter holder
spouts.
You are rec-
ommended to
heat the cups
before mak-
ing the cof-
fee by rinsing
them with a little
hot water.
6. MAKE SURE THE OK LIGHT IS ON
(if off, wait until it comes on),
then press the coffee button.
When the required quantity of
coffee has been run off, press
the same button again. (You should
not run off coffee for more than 45
seconds at a time).
7. TOREMOVE THE FILTER HOLDER, rotate the handle
from right to left.
IMPORTANT: to avoid splashes, never remove
the filter holder while the appliance is deliver-
ing coffee.
8. TOELIMINATE THE USED COFFEE GROUNDS, block
the filter in place using the lever incor-
porated in the handle and empty
the coffee by turning the fil-
ter holder upside down and
tapping.
9. TOTURN THE COFFEE MACHINE OFF,
press the ON/OFF button.
IMPORTANT: the first time the
appliance is used, all accessories
and the internal circuits must be
washed through by making at least
five coffees without using ground coffee.
3. DISTRIBUTE THE GROUND COFFEE evenly and press
lightly with the
presser
NB: Correct
pressing of the
ground coffee
is essen-
tial to
obtain a
good espresso. If pressing is ex-
cessive, coffee delivery will be slow and the
froth will be dark. If pressing is too light, coffee
delivery will be too rapid and the froth will be
skimpy and light coloured.
4. REMOVE ANY
EXCESS COFFEE
from the rim
of the fil-
ter hold-
er and
attach the fil-
ter holder to the appli-
ance. Rotate firmly to avoid leaks of
water.

7
1
2

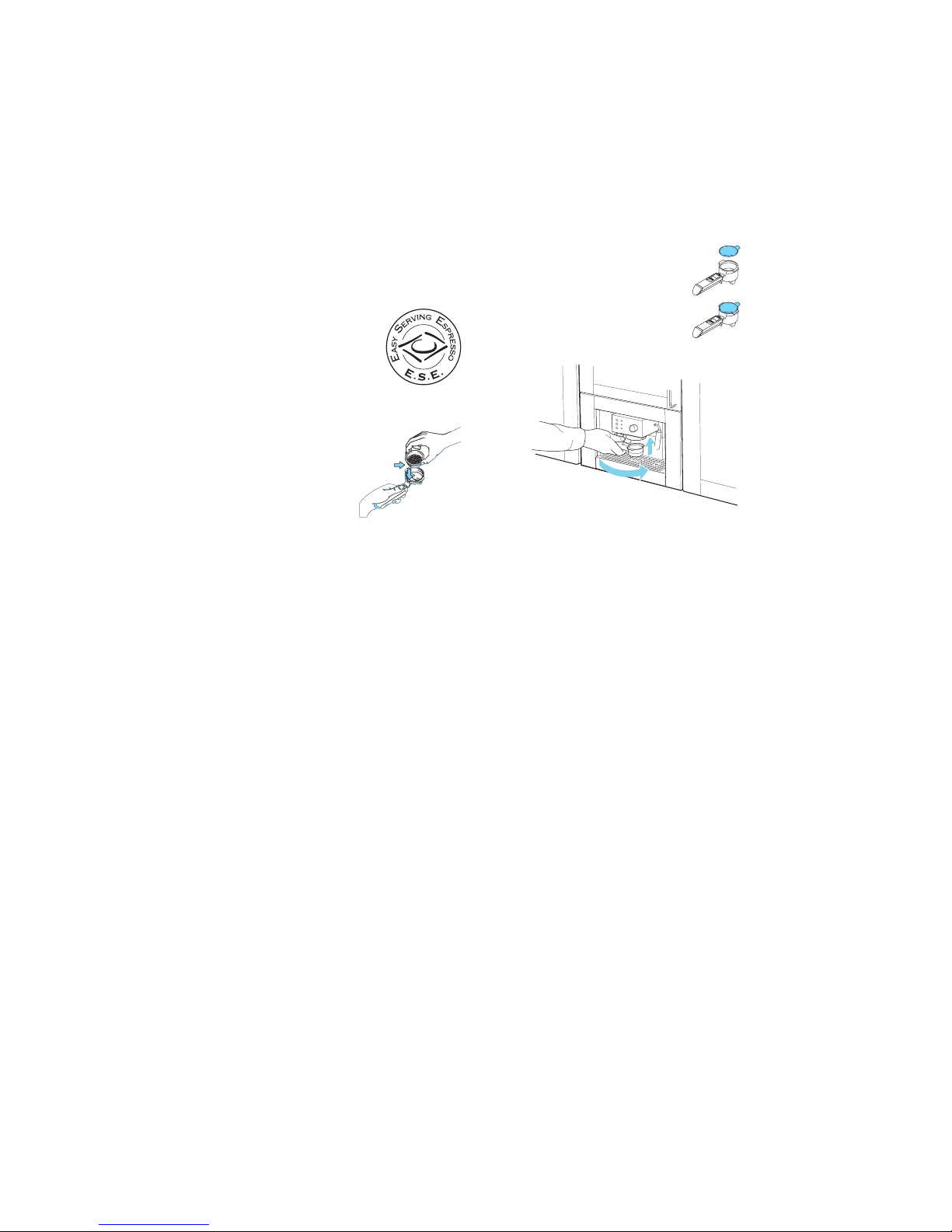

HOW TO PREPARE ESPRESSO COFFEE USING PODS
1. PREHEAT THE APPLIANCE as described in the sec-
tion “PREHEATING THE COFFEE UNIT”, making
sure the filter holder is attached. This obtains a
hotter coffee.
NB: Use pods conforming to the
ESE standard indicated on the
pack with the following logo:
THE ESE STANDARD is a system ac-
cepted by leading pod producers
and enables espresso coffee to be prepared
simply and cleanly.
2. PLACE THE SMALL FILTER (1 cup or pods)
in the filter holder, making sure the
projection is correctly inserted in
the slot.
3. INSERT APOD, centring it as far as possible
on the filter. Always follow the instruc-
tions on the pod pack to position the
pod on the filter correctly.
4. ATTACH THE FILTER HOLDER to the appliance. Al-
ways rotate
as far as it will
go.
5. PROCEED AS in points 5, 6 and 7 in the previ-
ous paragraph.

8

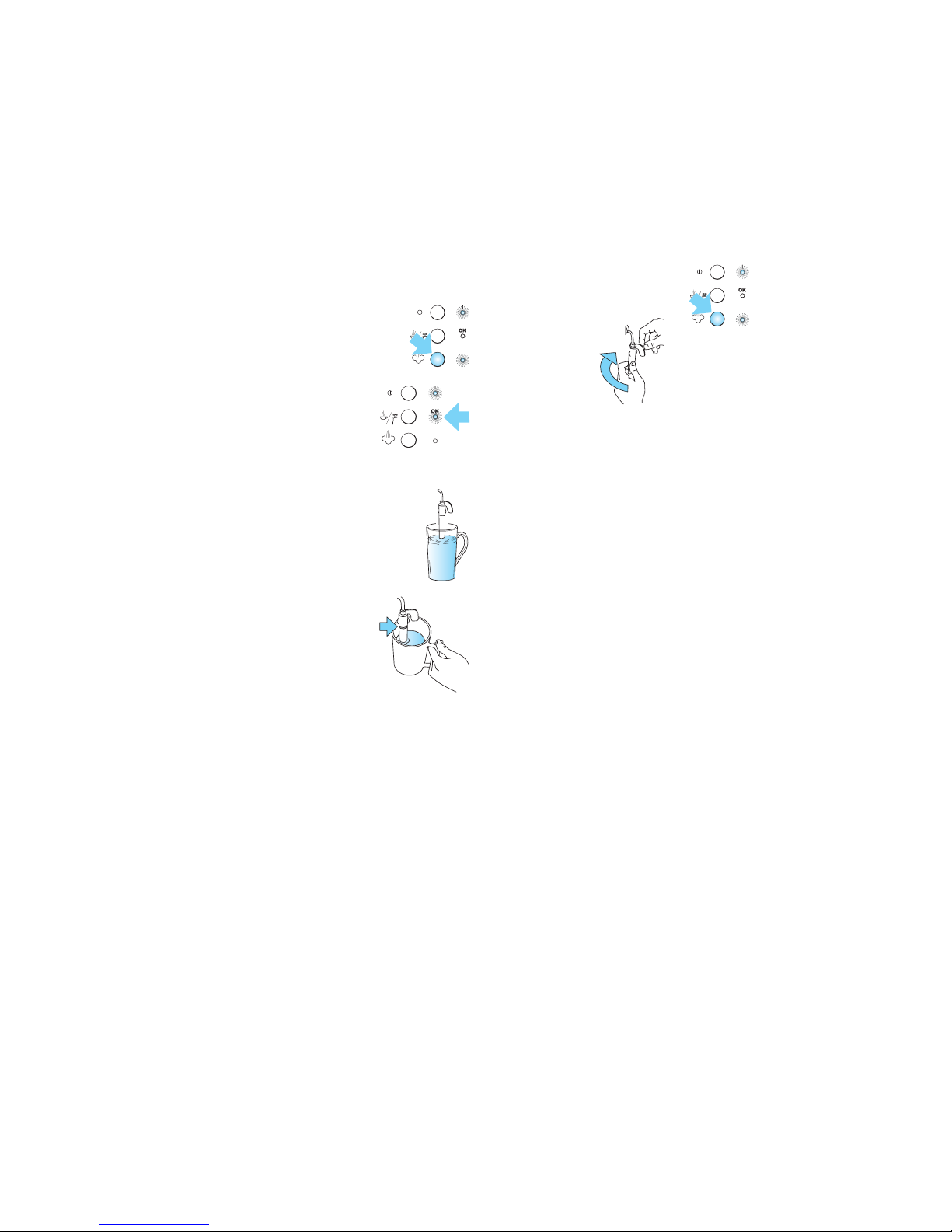

HOW TO MAKE CAPPUCCINO COFFEE
1. PREPARE THE ESPRESSO COFFEES as described in
the previous paragraphs, using sufficiently
large cups.
2. PRESS THE STEAM BUTTON and wait
for the OK light to come on. This in-
dicates that the boiler has reached
the ideal temperature for steam
production.
3. INTHE MEANTIME, fill a recipi-
ent with about 100 grams of
milk for each cappuccino to be
prepared. The milk must be at
refrigerator temperature (not
hot!). In choosing the size of the recipient, bear
in mind that the milk doubles or triples
in volume.
NB: YOU ARE RECOMMENDED TO USE
SEMISKIMMED MILK AT REFRIGERATOR
TEMPERATURE.
4. PLACE THE RECIPIENT containing the
milk under the cappuccino maker.
7. POUR THE FROTHED MILK into the cups contain-
ing the espresso coffee prepared previously.
The cappuccino is ready. Sweeten to taste and,
if desired, sprinkle the froth with a little cocoa
powder.
NB: To prepare more than one cappuccino,
first make all the coffees then at the end pre-
pare the frothed milk for all the cappuccinos.
NB: to make coffee again after the milk has
been frothed, cool down the boiler first or the
coffee will be burnt. To cool it, place a contain-
er under the boiler outlet, press the steam but-
ton and run off water until the OK light goes
out. Make the coffee as described in the previ-
ous paragraphs.
5. DIP THE CAPPUCCINO MAKER into
the milk for about 5 mm and
turn the steam knob anti-
clockwise, taking care not to
immerse the raised line on the
cappuccino maker (indicated by
the arrow).
Turn the steam knob at least a half turn anti-
clockwise. Steam is discharged from the cap-
puccino maker, giving the milk a creamy frothy
appearance. To obtain a creamier froth, dip the
cappuccino maker into the milk and rotate the
container with slow movements from the bot-
tom upwards.
6. WHEN THE REQUIRED TEMPERATURE
IS REACHED (60°C is ideal), interrupt
steam delivery by rotating the
steam knob clockwise and at the
same time pressing
the steam button.

9

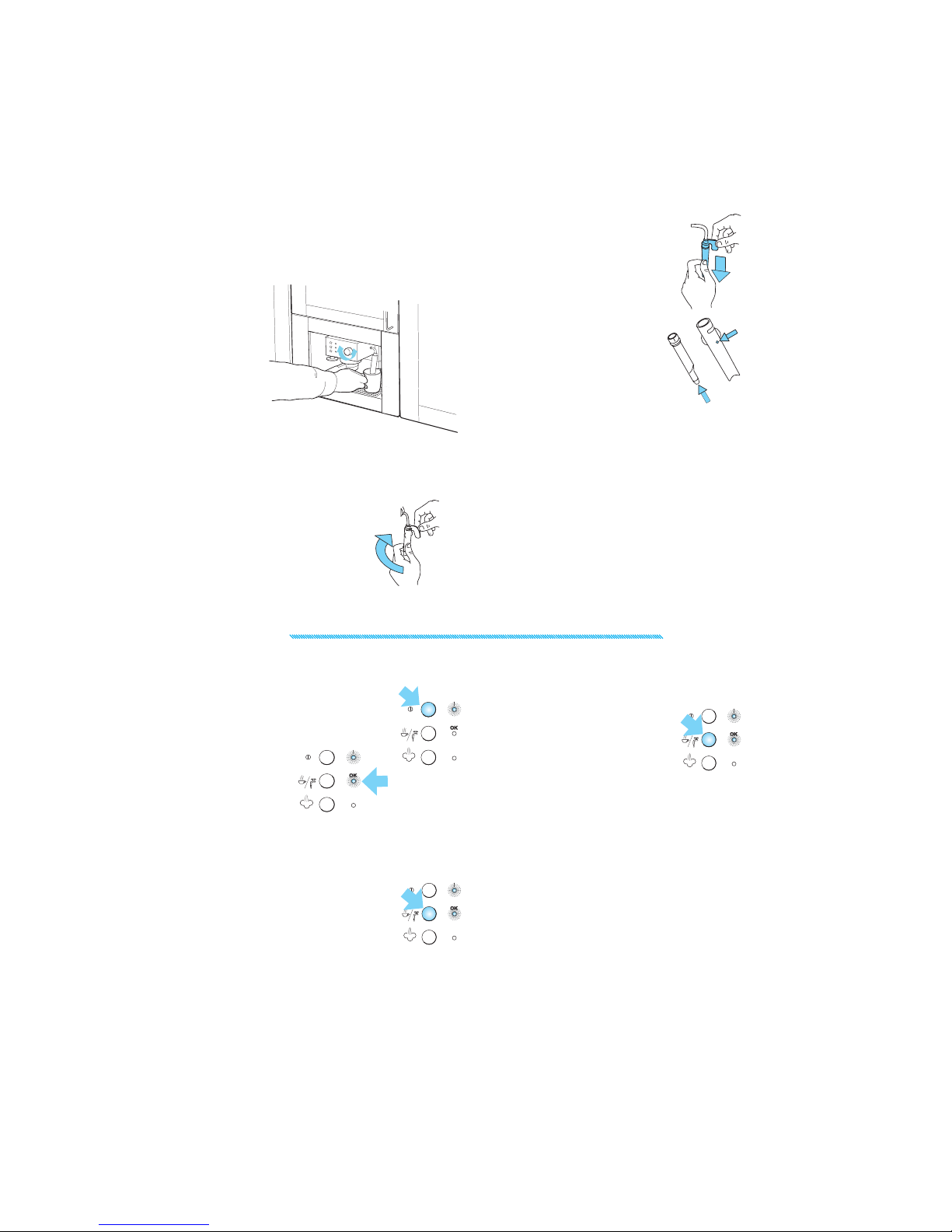

IMPORTANT: always clean the cappuccino
maker after use. Proceed as follows:
1. DISCHARGE ALITTLE STEAM for a few seconds by
rotat-
ing the
steam
knob.
This
emp-
ties any
milk left
inside the
steam spout.
IMPORTANT: To ensure hy-
giene, you are recommended to follow
this procedure each time you make cappucci-
no to avoid milk stagnating in the milk circuit.
3. REMOVE THE NOZZLE from the steam
tube by pulling it downwards.
4. WASH THE CAPPUCCINO MAKER and
steam nozzle thoroughly with
warm water.

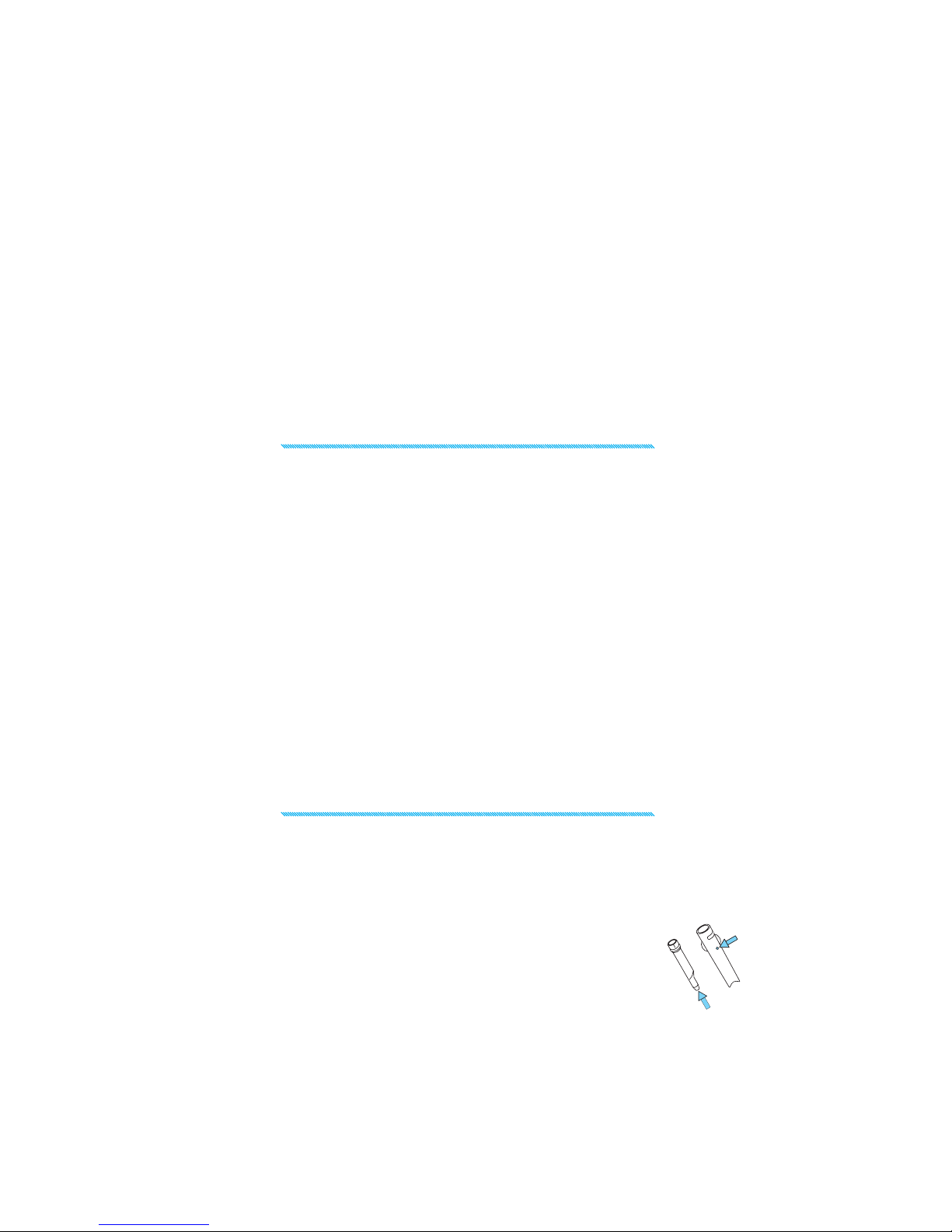

5. MAKE SURE the two holes shown
in are not blocked. If necessary,
clean with a pin.
6. REPLACE THE STEAM NOZZLE by in-
serting it onto the steam tube
and rotating firmly towards the
top of the tube.
7. REPLACE THE CAPPUCCINO MAKER by
inserting it and rotating anticlockwise.
HOT WATER PRODUCTION
1. TURN THE APPLIANCE ON by pressing
the ON/OFF button. Wait until the
OK indicator light comes on.
2. PLACE ARECIPIENT under the cappuccino mak-
er.
3. PRESS THE COFFEE BUTTON and at the same time
turn the steam knob anticlockwise.
Water comes out of the cappucci-
no maker;
4. TOINTERRUPT DELIVERY OF HOT WATER, close the
steam knob by rotating clockwise
and press the coffee button again.
(You should not run off hot water
for more than 45 seconds at a time).
2. WITH ONE HAND, HOLD THE CAP-
PUCCINO TUBE FIRMLY and with the
other unscrew the cappuccino
maker itself by rotating clock-
wise and extracting downwards.

10
CLEANING AND MAINTENANCE
1. BEFORE PERFORMING ANY CLEANING operations,
leave the appliance to cool down and unplug
from the mains socket.
2. DONOT USE SOLVENTS OR ABRASIVE cleaning
products to clean the appliance. A soft, damp
cloth is sufficient.
3. EMPTY AND WASH the drip tray and drip mesh
frequently.
4. CLEAN THE WATER TANK regularly.
IMPORTANT: Never immerse the appliance in
water. It is an electrical appliance.
CLEANING THE FILTER HOLDER
ABOUT EVERY 200 COFFEES, clean the filter holder
for ground coffee as follows:
Remove the filter with frother.
Clean the inside of the filter holder. Never
wash in a dishwasher.
Unscrew the cap of the frother
by turning anticlockwise.
Remove the frother from
the container by pushing it
from the cap end.
Remove the gasket.
RINSE ALL COMPONENTS and clean
the metal filter thoroughly in
hot water using a brush.





MAKE SURE the holes in the metal filter are not
blocked. If necessary, clean with a
pin.
Replace the filter and gasket on
the plastic disk. Make sure to in-
sert the pin on the plastic disk into
the hole in the gasket indicated by
the arrow.
Replace the assembly in the steel
filter container, making sure the
pin is inserted in the hole in the
support.


Finally, screw on the cap by
turning clockwise. Failure to
clean as described above in-
validates the guarantee.

