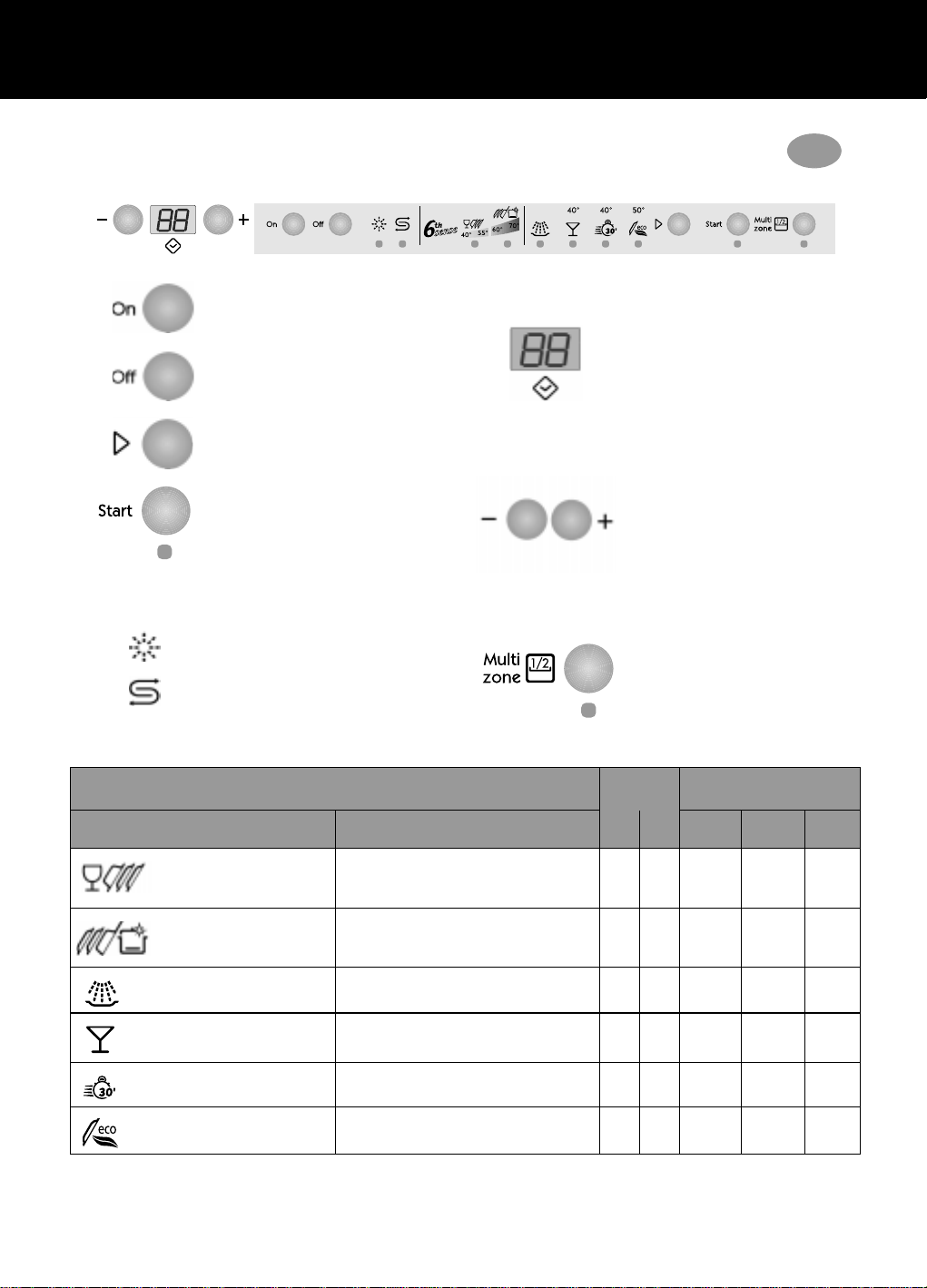

ADG 4966 Quick Reference Guide
Before using the dishwasher, read the user instructions!
WH/I/FD/GB
(We reserve the right to make technical modifications)
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
Time and failure display 3)
Indicates in hours the time
remaining until the start of the wash
cycle. Switches off when the
programme has started. Toward the
end of the programme, during the
drying cycle, the display will indicate
the time remaining in minutes.
“F...” Identification of faults for
service technician
“Delayed start” buttons
The wash cycle can be programmed
to start after 1 - 24 hours. With each
successive touch of the button, the
delayed start indicator increases by
1 hour, and after 24 returns to 00.
Then press the Start button. The
dishwasher will start at the set time.
“Half load” button
This function can be used with any
programme. The indicator lamp
switches on. The wash cycle is
activated for theupper or lower rack
only.
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
3) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15°C - as well as water
hardness and power supply voltage, etc.
On button
Off button
Programme selection button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Indicators
Options
Programme chart Detergent 2) Consumption 3)
Programmes Loading instructions A B Litres kWh Minutes
Sensor Normal 40-55°C Automatic programme recommended for
routine washes, with no dried-on or burnt
food (not for EN 50242). X X 10.0-13.0 0.80-1.05 50-110
Sensor Intensive 60-70°C Automatic programme recommended for
heavily soiled crockery with dried-on or burnt
food, for example pans and saucepans. X X 13.0-20.0 1.10-2.00 90-140
Pre-Rinse cold Crockery to be washed later. - - 4.0 0.03 14
Glass 40°C Light soiling, for example glasses and cups. X - 10.0 0.80 55
Quickwash 40°C Lightly soiled crockery, with no dried-on
food. X - 10.0 0.65 30
Eco-Normal 1) 50°C Normally soiled crockery. X X 13.0 1.05 120

WH/II/FD/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Press the ON button.
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator lamp C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator lamp D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the button until the desired programme lights up.
If necessary (and if provided)
the corresponding indicator lamp lights up.
Theselected programmeis then
memorised (even in the event
of power failure).
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the OFF button.
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Open the door,
switch on the appliance
How to fill the
detergent dispenser AB C
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Select options
Press the Start button
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
Turn on the water tap
close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks

WH/III/GB
Dishwasher loading instructions and racks provided
Upper rack: depending on the model
Multi-purpose support (A): 1)
Depending on the position, for
long-handles utensils, cups and
glasses. May be used in three
different positions.
Crockery holders (B):
Depending on the position,
for example plates, cups and
long-stemmed glasses.
Revolving glass support (C): 2)
Depending on the position, for
example small or long-stemmed
glasses.
Half Load:
Load the upper rack only.
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment
(also when loaded):
•Lower adjustment: pull out the
two rack handles outwards (E)
and lower the rack.
•Upper adjustment: pull the two
handles(E)upwardsuntil the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Lower rack:
Depending on the model with fixed
or tilting plate holders (F).
Half Load:
Load the lower rack only.
Greater washing power,
particularly for plates and
saucepans.
Cutlery basket (G) or (H):
Some models are provided with a
grid (I) that can be fitted onto the
cutlery basket to keep items
separated. Cutlery basket (D) for
appliances with half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the handles
positioned upwards.
Do not use the appliance for items not suitable for washing in a dishwasher, for example wooden items, aluminium,
plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.
Spare parts which are sold separately:
1) Multi-purpose support (A) - N. AMH 369 series.
2) Revolving glass support (C) - N. WGH 1000 series.

WH/IV/GB
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working • No water supply. • Open the tap.
• The appliance does not load
sufficient water. • Clean the water supply tap filter. • Ensure there are no kinks in the water hose.
• There is a power failure. • Insert the plug into the mains socket.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
• Starting the selected programme. • The programme can be set to “0” to start.
If crockery is not
perfectly dry • Insufficient rinse aid. • Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean • The water jet does not reach
the crockery. • Arrange crockery so that items do not touch each other.
Load crockery upside down.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
Sandy or grainy residues • Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
Colour of plastic parts
faded • Tomato/carrot juice,... • Depending on the material, if necessary use a
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
calcium deposits. • Change water hardness setting, if necessary add salt *.
Opaque glasses/ glasses
not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.
Rust on cutlery • Not made of stainless steel. • Use suitable cutlery.
Identifying appliance
faults • The START indicator lamp flashes. • Ensure that the filter assembly is not clogged and
if necessary clean it *.
Start the programme again. Press the Start button for
2 seconds, until the Start indicator lamp switches
off. Select a new programme and press the Start
button again.
• Indicator F... (if provided). • Call the After-Sales Service.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating
plate) inside the door on the right-hand side.
