Whirlpool ADG 644 User manual

Whirlpool is a registered trademark of Whirlpool USA 5019 396 98141
GB
ADG 644 Quick Reference Guide
Before using the dishwasher, read the user instructions!
WH/I/B/GB
(We reserve the right to make technical modifications)
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
3) Programme data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, options, water temperatures - above or
below 15°C - as well as water hardness and power supply
voltage, etc.
Programme selector knob
ON / OFF button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Programme chart Detergent 2) Consumption 3)
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold Crockery to be washed later. - - 5.0 0.02 10
Quickwash 40°C Lightly soiled crockery with no dried-on food. X - 13.0 0.70 30
Eco 1) 50°C Normally soiled crockery. X X 19.0 1.24 133
Intensive 70°C Recommended programme for heavily soiled
crockery, especially suitable for pans and
saucepans. X X 17.0 1.65 145
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected]”.

WH/II/B/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Press the ON/OFF button.
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
If using combined action dishwasher
tabs, follow the user instructions!
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
Only after the START button has switched off: Press the ON/OFF button.
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Switch on the appliance
How to fill the
detergent dispenser ABC
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Select options
Press the Start button
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and press
the START button again.
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks

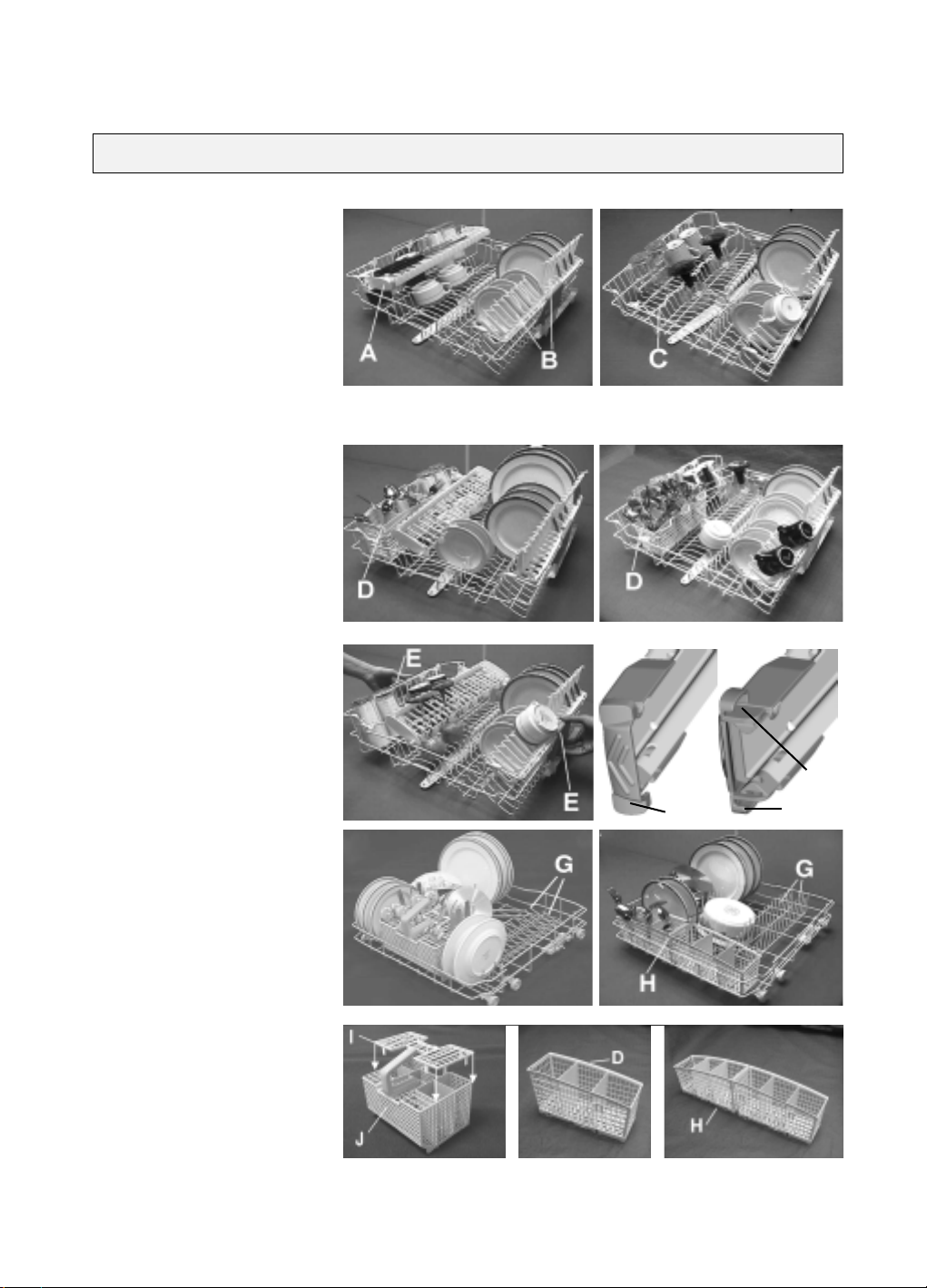

Dishwasher loading instructions and racks provided
Upper rack: depending on the model
Multi-purpose support (A): 1)
Depending on the position, for long-
handles utensils, cups and glasses. May
be used in three different positions.
Crockery holders (B):
Depending on the position, for example
plates, cups and long-stemmed glasses.
Revolving glass support (C): 2)
Depending on the position, for example
small or long-stemmed glasses.
Long-handled utensils (e.g. carving
forks, knives) must be arranged
with the sharp end facing in
towards the appliance.
Half Load:
Load the upper rack only.
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment
(also when loaded):
•Lower adjustment: pull out the
two rack handles outwards (E)
and lower the rack.
•Upper adjustment: pull the two
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guideretainers (F) on the
right and left and remove the top rack.
When the upper rack is in place the
retainers must always be closed.
Lower rack:
Depending on the model with fixed or
tilting plate holders (G).
Half Load:
Load the lower rack only.
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models are provided with a grid
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D), if provided, for
appliances with half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the sharp end
facing downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a dishwasher,
for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.
Spare parts which are sold separately:
1) Multi-purpose support (A) - N. AMH 369 series.
2) Revolving glass support (C) - N. WGH 1000 series.
FF
Retainer
closed Retainer
open

WH/IV/GB
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working • No water supply. • Open the tap.
• The appliance does not load
sufficient water. • Clean the water supply tap filter. • Ensure there are no kinks in the water hose.
• There is a power failure. • Insert the plug into the mains socket.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
• Starting the selected programme. • The programme can be set to “0” to start.
If crockery is not
perfectly dry • Insufficient rinse aid. • Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean • The water jet does not reach
the crockery. • Arrange crockery so that items do not touch each other.
Load crockery upside down.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
Sandy or grainy residues • Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
Colour of plastic parts
faded • Tomato/carrot juice,... • Depending on the material, if necessary use a
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
calcium deposits. • Change water hardness setting, if necessary add salt *.
Opaque glasses/
glasses not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.
Rust on cutlery • Not made of stainless steel. •Usesuitablecutlery.
Identifying appliance
faults • The START indicator lamp flashes.
• Indicator F... (if provided). • Ensure the filter assembly is not clogged and that there is no interruption to the water supply
(if necessary, clean the filters *). Start the programme
again. Press the START button for 2 seconds, until the
START indicator lamp switches off. Select a new
programme and press the Start button again.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
