Whirlpool brand appliances are designed to give you the unmatched efficiency and performance
that makes us the time-tested leader in the industry. Our appliances demonstrate our passion for
innovation through advanced technology and intuitive design. With nearly 100 years of appliance
experience, we're devoted to our ongoing pursuit of perfection.
Our dishwashers offer consistent cleaning, larger capacity and the industry's best resource efficiency,
so you can clean even more dishes in fewer loads while saving money on utility bills.

whirlpool.com 3
4Efficiency
6Whirlpool Gold®Dishwashers
12 Whirlpool®Dishwashers
18 Portable Dishwasher,
Garbage Disposers &
Trash Compactors
20 Accessories
22 Glossary
24 Specifications

4
CONSERVATION REALLY IS THIS EASY
Whirlpool brand is leading the way in providing efficient appliances that
deliver excellent cleaning results while using less water and less energy.
Our commitment to making eco-friendly appliances continues with a
full lineup of ENERGY STAR®qualified dishwashers and innovations like
the Resource Saver™wash system and the Eco cycle. Not only that, we’re
dedicated to providing advanced solutions that save one of the most
precious resources—your time.

whirlpool.com
EFFICIENCY
5
HOW RESOURCE SAVER™DISHWASHERS SAVE
Resource Saver
dishwasher
TM
A
B
C
RESOURCE SAVER™
WASH SYSTEM
Dishwashers with this system
feature spray arms equipped
with specially designed
pressurized nozzles that provide
focused cleaning to every dish.
These fan-shaped jets distribute
cleaning power more efficiently,
saving more water and energy
than ever before.
POWERSCOUR™OPTION
This smart cleaning option uses 36
targeted spray jets in a designated
wash area to tackle your toughest
dishes without using an additional
drop of water.
FILTRATION
The three-stage filtration system in a
Resource Saver™dishwasher strains water
through a filter plate (A), coarse filter
(B) and fine mesh filter (C) to remove
food particles and other soils.
This unparalleled filtration system is
essential to providing an outstanding
clean while using less water and energy.
Model: GU2800XTVQ

6
*Compared to dishwashers manufactured before 2000. **The CEE Tier system is based on the Consortium for Energy Efficiency qualified product listings.
Model: GU2475XTVY
POWERSCOUR™OPTION
Targeted spray jets scour away
baked-on food without soaking
or scrubbing. The PowerScour™
option uses 36 spray jets and
a designated wash area to tackle your
toughest dishes without using an additional
drop of water. No scrubbing by hand. No
more dishes soaking in the sink.
RESOURCE SAVER™WASH SYSTEM
Deep cleans a full load
of dishes using
1⁄3
less
water and energy.*These
dishwashers exceed
ENERGY STAR®guidelines with an
eco-friendly CEE Tier I** qualification
making Whirlpool Gold®dishwashers with
the Resource Saver™wash system our most
efficient ever. (Learn how it works on page 5.)
Resource Saver
dishwasher
TM

whirlpool.com 7
ANYWARE™PLUS SILVERWARE BASKET
Designed to fit in three places for maximum
flexibility. Put it on the front of the rack or in
the door for 100% usable rack space, or use
it in the bottom rack.

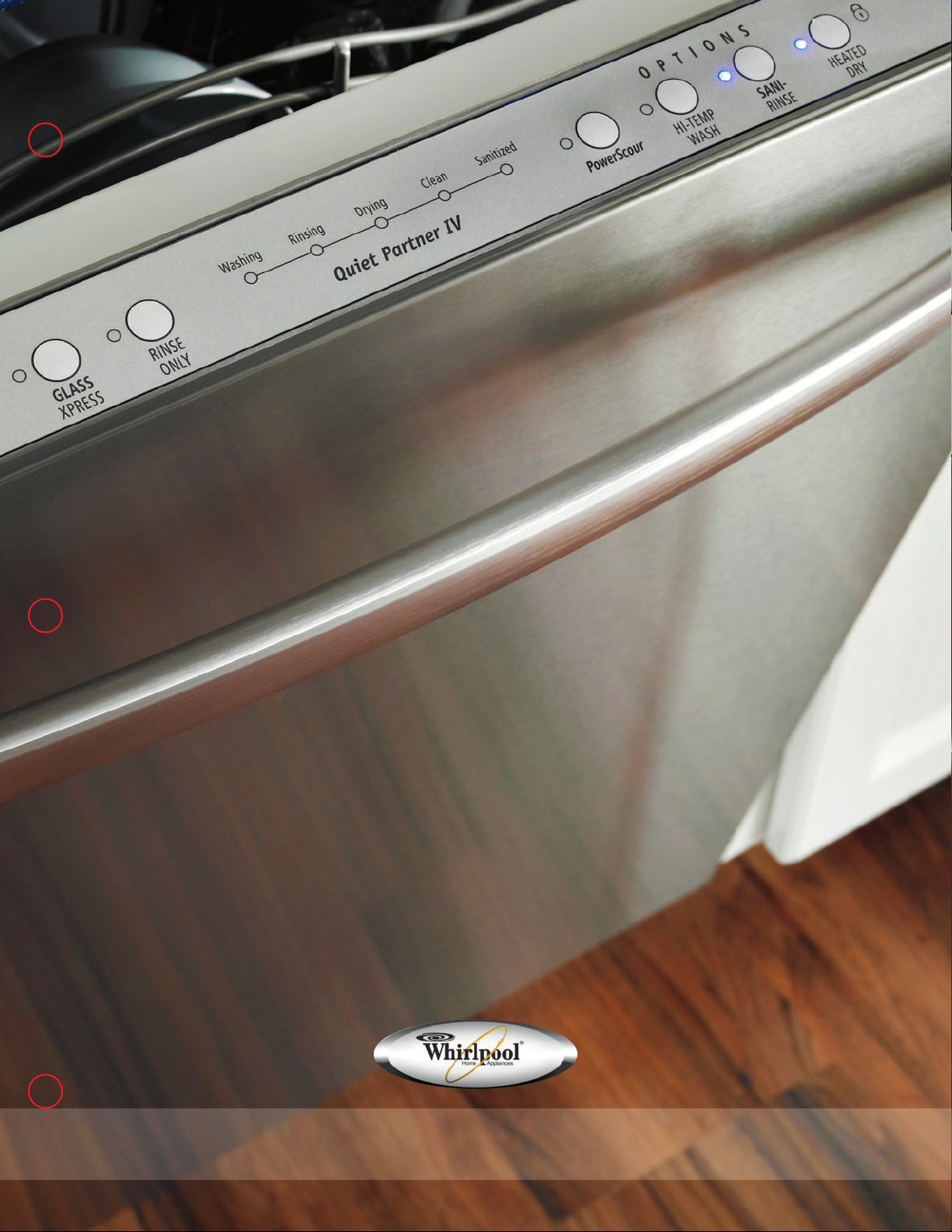

FULLY INTEGRATED CONTROLS
Get the ultimate integration of style and
function. Fully integrated electronic controls
add a modern accent to your kitchen. The
control panel is hidden away to provide a
sleek exterior while preventing unwanted
cycle changes or accidental operation.
WHIRLPOOL GOLD®DISHWASHER INNOVATION
NOTE: Not all features are available on all models.

8
All Whirlpool Gold®dishwashers are
guaranteed to clean better and operate
more quietly than your previous model. If
you are not satisfied, Whirlpool Corporation
will take it back and refund the full price.*
Learn more at whirlpool.com.
WHIRLPOOL GOLD®DISHWASHER FEATURES
*Must be returned within 30 days of the purchase date.
Model: GU2475XTVY

whirlpool.com
EFFICIENCY WHIRLPOOL GOLD®
DISHWASHERS WHIRLPOOL®DISHWASHERS PORTABLE DISHWASHER,
DISPOSERS & COMPACTORS ACCESSORIES GLOSSARY SPECIFICATIONS
9
NOTE: Not all features are available on all models.
**According to a leading consumer magazine.
NYLON DISH RACKS
Durable nylon rack coating resists rust and
helps prevent scratching. These long-lasting
nylon racks stand the test of time and
help keep dishes from being chipped.
QUIET PARTNER™SOUND PACKAGES
Whirlpool brand dishwashers offer many levels
of sound-reducing insulation. The Quiet Partner™
V
sound package minimizes dishwasher noise for
our quietest dishwashers ever.
GLASS XPRESS™
& SPEED WASH CYCLES
Wash glassware or lightly soiled items in just
30 minutes with the Glass Xpress™cycle. When
you need clean dishes in a hurry, use the Speed
Wash cycle and run a full load in just one hour—
less than half the time of other wash cycles.
ADAPTIVE WASH CYCLE
Uses dual sensors to determine the size of
the load and the dirtiness of the dishes. It
automatically selects the appropriate cleaning
level and cycle duration to save both time
and water.
EZ-2-LIFT™ADJUSTABLE
UPPER RACK
Easily adjust the upper rack 2 " up or down to
fit larger items in the lower or the upper rack.
NSF CERTIFIED SANI RINSE OPTION
Makes sure dishes are thoroughly disinfected
with a high temperature rinse. This option is
certified by NSF International for sanitization,
eliminating 99.999% of food soil bacteria.
TALL TUB DESIGN
Lets you load tall and odd-shaped items in
both racks. An additional 3
" of interior space
compared to standard tub models makes room
for extra-large items in the lower rack and
plates or sports bottles in the upper rack.
FEWEST REPAIRS
Whirlpool®dishwashers are designed to
endure repeated use so you can save money
on maintenance and repairs. No one has fewer
dishwasher repairs 13 years in a row.**

10
GU2475XTV Q | B | Y
Quiet Partner™IV sound package
Fully integrated electronic controls
ENERGY STAR®qualified
Slate plastic Tall Tub
5-level SheerClean™direct feed wash system
Adaptive Wash cycle
Glass Xpress™cycle
PowerScour™option
NSF Certified Sani Rinse option
Nylon racks
Adjustable upper rack
AnyWare™Plus silverware basket
GU2300XTV Q | B | T | S
PowerScour™option
ENERGY STAR®qualified
Slate plastic Tall Tub
Quiet Partner™III sound package
5-level SheerClean™direct feed wash system
Adaptive Wash cycle
Glass Xpress™cycle
NSF Certified Sani Rinse option
Nylon racks
Adjustable upper rack
AnyWare™Plus silverware basket
WHIRLPOOL GOLD®DISHWASHERS
All Whirlpool Gold® dishwashers
are ENERGY STAR®qualified to
help conserve natural resources
and save money on utility bills.
The Sani Rinse option is certified by NSF
International for sanitization, eliminating
99.999% of food soil bacteria.
If you are not completely satisfied that your
new Whirlpool Gold®dishwasher is quieter
and cleans better than your previous model,
Whirlpool Corporation will take it back
within 30 days of the date of purchase and
refund the full price to you.
All Whirlpool Gold®dishwashers feature electronic controls and control locks.
GU2275XTV Q | B | Y
ENERGY STAR®qualified
Slate plastic Tall Tub
Quiet Partner™III sound package
5-level SheerClean™direct feed wash system
Fully integrated electronic controls
Adaptive Wash cycle
Glass Xpress™cycle
NSF Certified Sani Rinse option
Nylon racks
Adjustable upper rack
AnyWare™Plus silverware basket
Feature descriptions can be found in the glossary on pages 22–23.
Blue highlight denotes a step-up feature.
