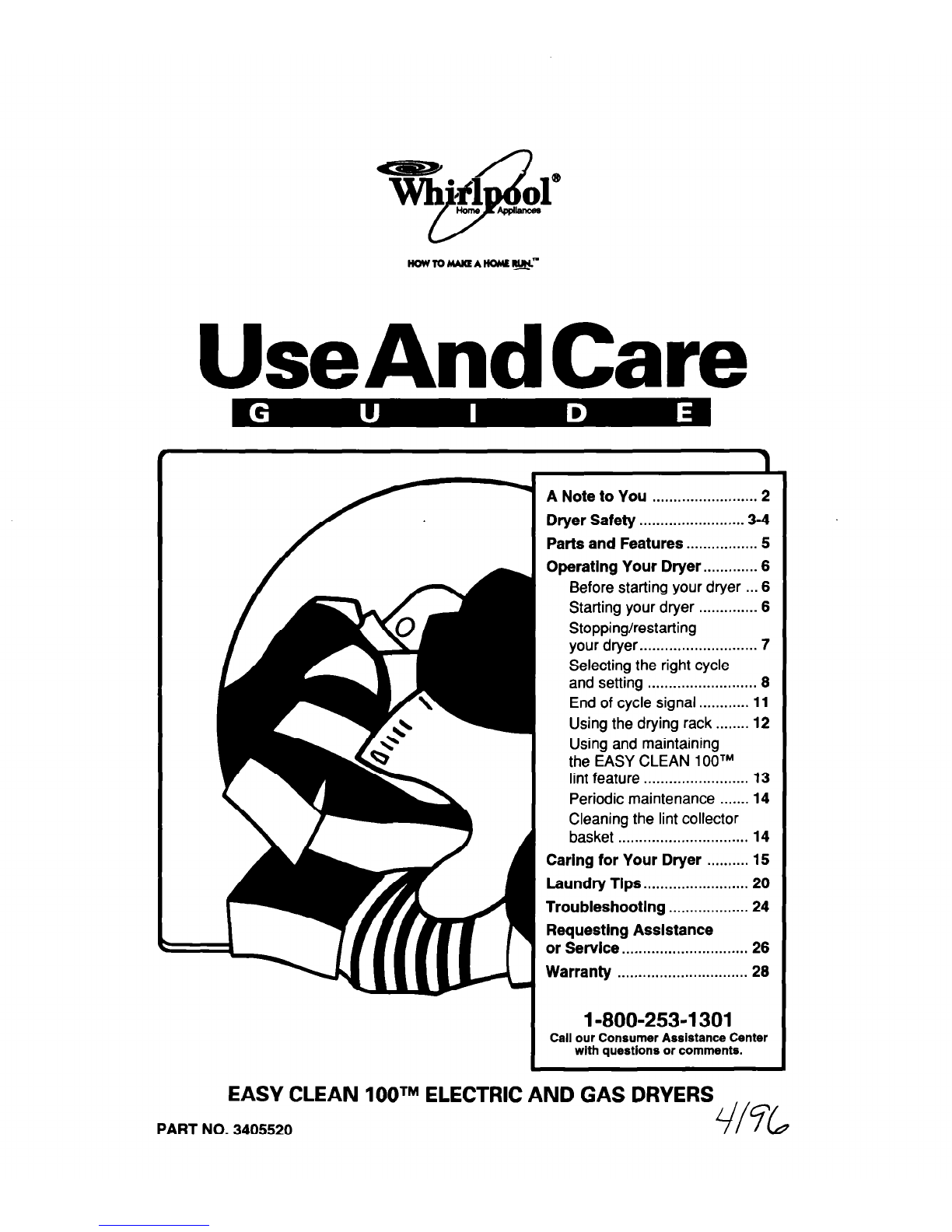

A Note to You ......................... 2
Dryer Safety ......................... 3-4
Parts and Features.. ............... 5
Operatlng Your Dryer.. ........... 6
Before starting your dryer ...6
Starting your dryer .............. 6
Stopping/restarting
your dryer.. .......................... 7
Selecting the right cycle
and setting .......................... 6
End of cycle signal ............ 11
Using the drying rack ........ 12
Using and maintaining
the EASY CLEAN 100TM
lint feature ......................... 13
Periodic maintenance ....... 14
Cleaning the lint collector
basket ............................... 14
Caring for Your Dryer .......... 15
Laundry Tips.. ....................... 20
Troubleshootlng ................... 24
Requestlng Assistance
or Service .............................. 26
Warranty ............................... 26
EASY CLEAN 100TMELECTRIC AND GAS DRYERS
PART NO. 3405520
I-800-253-1 301
Call our Consumer Assistance Center
with questions or comments.

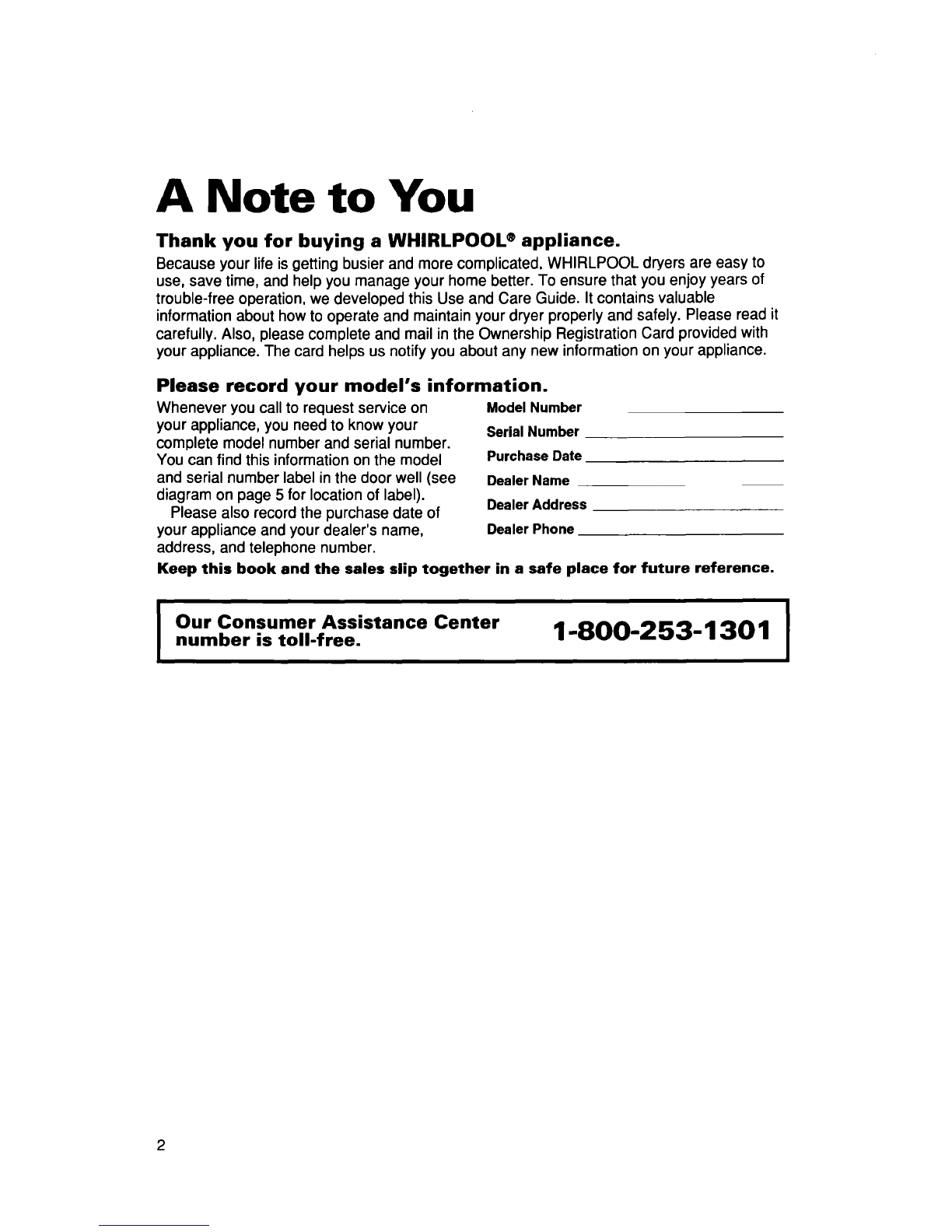

A Note to You
Thank you for buying a WHIRLPOOL@ appliance.
Because your life is getting busier and more complicated, WHIRLPOOL dryers are easy to
use, save time, and help you manage your home better. To ensure that you enjoy years of
trouble-free operation, we developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your dryer properly and safely. Please read it
carefully. Also, please complete and mail in the Ownership Registration Card provided with
your appliance. The card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service on
Model Number
your appliance, you need to know your
complete model number and serial number.
Serial Number
You can find this information on the model
Purchase Date
and serial number label in the door well (see
Dealer Name
diagram on page 5 for location of label).
Please also record the purchase date of
your appliance and your dealer’s name,
address, and telephone number.
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
I
Our Consumer Assistance Center
number is toll-free.
1-800-253-1301 1

Dryer Safety
Your safety is important to us.
This guide contains safety statements under
warning symbols. Please pay special
attention to these symbols and follow any
instructions given. Here is a brief explana-
tion of the use of the symbol.
This symbol alerts you to
hazards such as fire,
electrical shock, or other
injuries.
WARNING: For your safety, the information in this manual must be
followed to minimize the risk of fire or explosion, or to prevent prop-
erty damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS:
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in
your building.
l Clear the room, building, or area of all occupants.
l Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
l If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
continued on next page

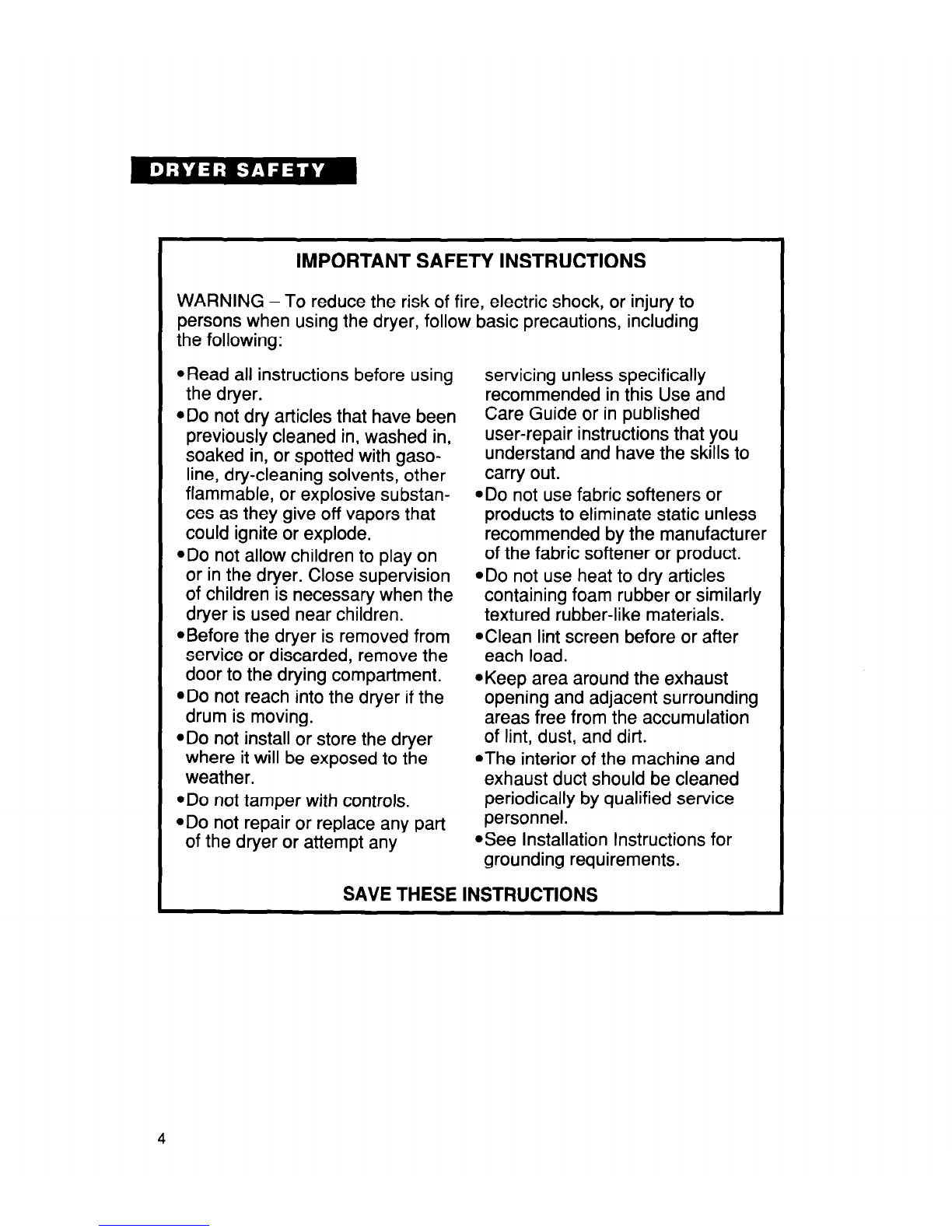

IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of fire, electric shock, or injury to
persons when using the dryer, follow basic precautions, including
the following:
*Read all instructions before using servicing unless specifically
the dryer. recommended in this Use and
*Do not dry articles that have been Care Guide or in published
previously cleaned in, washed in, user-repair instructions that you
soaked in, or spotted with gaso- understand and have the skills to
line, dry-cleaning solvents, other carry out.
flammable, or explosive substan- ADO not use fabric softeners or
ces as they give off vapors that products to eliminate static unless
could ignite or explode. recommended by the manufacturer
@Do not allow children to play on of the fabric softener or product.
or in the dryer. Close supervision *Do not use heat to dry articles
of children is necessary when the containing foam rubber or similarly
dryer is used near children. textured rubber-like materials.
*Before the dryer is removed from *Clean lint screen before or after
service or discarded, remove the each load.
door to the drying compartment. aKeep area around the exhaust
.Do not reach into the dryer if the opening and adjacent surrounding
drum is moving. areas free from the accumulation
~DO not install or store the dryer of lint, dust, and dirt.
where it will be exposed to the *The interior of the machine and
weather. exhaust duct should be cleaned
@Donot tamper with controls. periodically by qualified service
*Do not repair or replace any part personnel.
of the dryer or attempt any aSee Installation Instructions for
grounding requirements.
SAVE THESE INSTRUCTIONS
4

Parts and Features
The parts and features of your dryer are illustrated below. Become familiar with all parts and
features before using your dryer. Page references are included next to some features. Refer
to those pages for more information about the features.
NOTE: The drawings in this book may vary from your dryer model. They are designed
to show the different features of all models covered by this book. Your model may not
Include all features.
Temperature
Selector
(P. 7) \
Cycle Control
;;:I
start Rllttrm
-.-.. --..-..
/
(P. 7)
Model and serial
number label -
(P. 2)
Dryer drum -
EASY CLEAN 100T”
b lint storage lid
Lint indicator
/ window
(P. 13)
(P- 13)
EASY CLEAN 100TM
‘lint collector basket
(P. 13)
Wide-opening
Additional features your
dryer may have:
FINISH GUARD@ optlon (p. 9)
End of cycle signal (p. 11)
Drying rack (p. 12)
Drum light (p. 16)
5

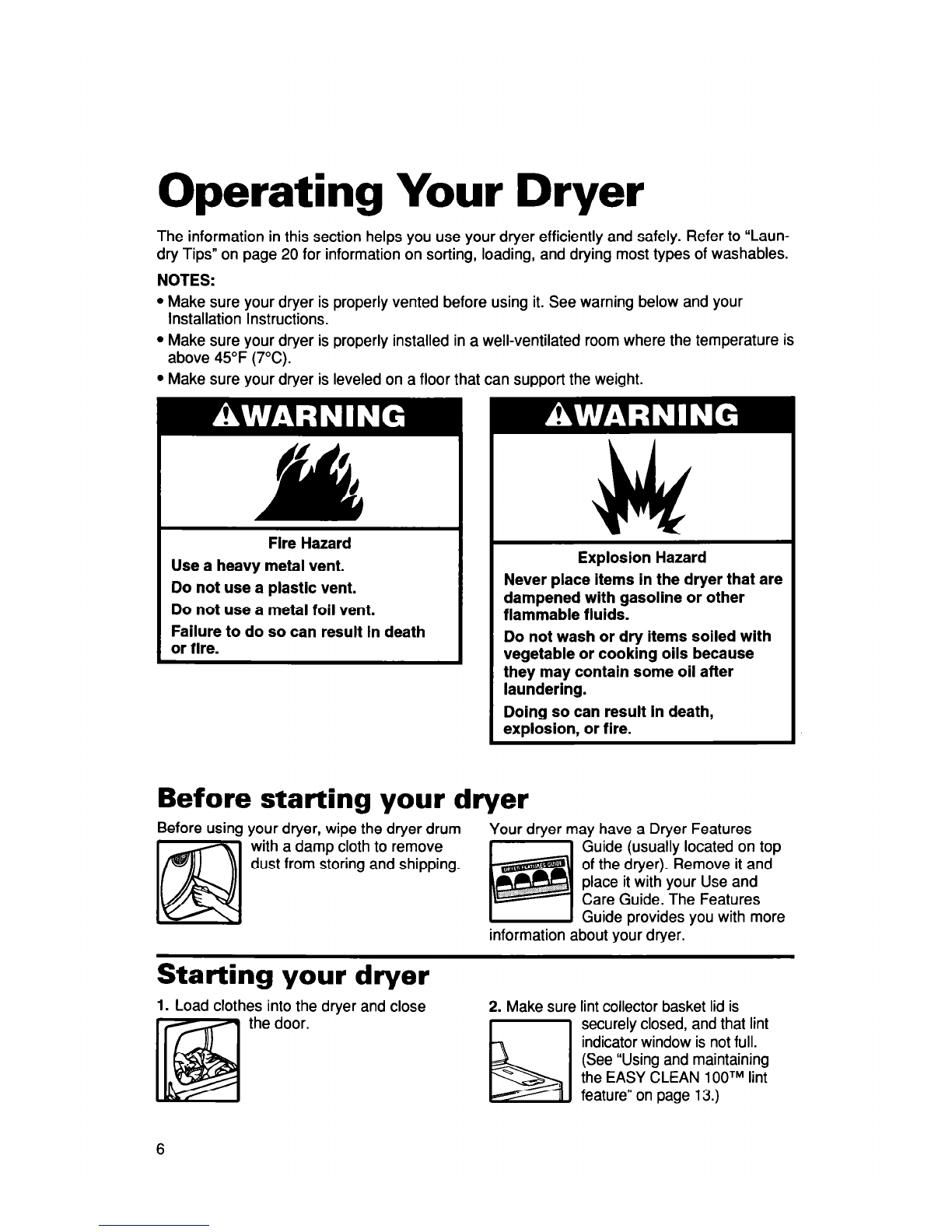

The information in this section helps you use your dryer efficiently and safely. Refer to “Laun-
dry Tips” on page 20 for information on sorting, loading, and drying most types of washables.
NOTES:
l Make sure your dryer is properly vented before using it. See warning below and your
Installation Instructions.
l Make sure your dryer is properly installed in a well-ventilated room where the temperature is
above 45°F (7°C).
l Make sure your dryer is leveled on a floor that can support the weight.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to do so can result In death
or fire.
Explosion Hazard
Never place Items In the dryer that are
dampened with gasoline or other
flammable fluids.
Do not wash or dry items soiled with
vegetable or cooking oils because
they may contain some oil after
laundering.
Doing so can result In death,
explosion, or fire.
Before starting your dryer
Before using your dryer, wipe the dryer drum Your dryer may have a Dryer Features
with a damp cloth to remove Guide (usually located on top
dust from storing and shipping. of the dryer). Remove it and
place it with your Use and
Care Guide. The Features
Guide provides you with more
information about your dryer.
Starting your dryer
1. Load clothes into the dryer and close
the door. 2. Make sure lint collector basket lid is
securely closed, and that lint
indicator window is not full.
(See “Using and maintaining
the EASY CLEAN 1OOTMlint
feature” on page 13.)
6

3. Turn the Cycle Control Knob to the
desired cycle. Use the Energy
Preferred Automatic Setting (*)
to dry most loads (see page 8).
4. Set the Temperature Selector to the
desired setting. Refer to drying
cycles charts on pages 1O-l 2.
5. Push the Start Button.
NOTES:
l Your dryer stops automatically when a
cycle ends.
l Higher air flow from your new dryer may
blow out accumulated lint from the existing
exhaust system.
Stopping/restarting your dryer
You can stop your dryer anytime during a cycle.
To stop the dryer, elther: To restart the dryer:
l Open the dryer door.
1. Close the door.
2. Select a new cycle and temperature
(if desired).
3. Push the Start Button.
OR
l Turn the Cycle Control Knob
to Off.
NOTE: The Cycle Control Knob
should point to an Off area
when the dryer is not in use.

Selecting the right cycle and setting
The following pages describe the cycles
on your dryer. Refer to the charts on pages
1O-l2 for help in selecting drying cycles.
Drying guidelines
l Always follow care label directions when
they are available.
l Use the Fluff Air cycle, or line dry rubber,
plastic, delicate, and heat-sensitive fabrics
(see page 11).
l The last few minutes of all cycles are without
heat to make the load cooler to handle.
l To help reduce wrinkling, remove the load
from the dryer as soon as tumbling stops.
This is especially important for permanent
press, knits, and synthetic fabrics.
l Overdrying can cause shrinkage, static
cling, and damage to some fabrics.
l Check the EASY CLEAN 1OOTMlint
indicator window. If full, refer to page
for cleaning.
l Refer to pages 20-23 for information
about:
- sorting clothes for drying
- choosing load sizes
- drying tips
- using dryer fabric softeners
- saving energy
- drying special-care items.
13
Cycle descriptions
Electronic DRY-MISER”
(Automatic) Cycle
Dry most loads uslng the Energy Pre
ferred Automatic
Setting (B). Your
Automatic cycle(s)
shuts off when the
selected dryness is
reached. The Cycle
Control Knob may not
move until the load is
almost dry. After the
cool-down, the Knob
continues to slowly turn to an Off area and
tumbling stops, unless FINISH GUARD@is
running (see page 9).
l If the load is drier than you like, select a
setting closer to Less Dry the next time
you dry a similar load.
l If the load is not as dry as you like, com-
plete drying using a Timed cycle. Select a
setting closer to Very Dry the next time you
dry a similar load.
Some models offer high heat and low heat
Automatic cycles (see page 10).
NOTES:
l Some Automatic cycles use an electronic
DRY-MISER control that senses the
amount of moisture in the load.
l Other Automatic cycles use an automatic
DRY-MISER control that senses the
exhaust temperature and determines the
dryness of the load.
Towels Feature
(on some models)
When you have large loads of towels to dry,
you may want to use
the Towels feature in
the Automatic Cycle.
The Towels setting
allows for more drying
time and automatically
shuts off the dryer
when the selected
dryness is reached.
The Towels feature
also can be used for extra heavy items such
as mattress pads and quilts.
8

FINISH GUARD@ Option
(on some models)
When you are unable to remove a load from
the dryer as soon as it
stops, wrinkles can form.
The FINISH GUARD
option tumbles the load
without heat every few
minutes up to 45
minutes after the cycle
ends. This tumbling
rearranges and fluffs the
load to avoid wrinkles.
On some models you can turn the FINISH
GUARD option on or off. You do not have to
set the Cycle Control Knob for the FINISH
GUARD option. If you do not open the dryer
door within a few minutes after the cycle
stops, the FINISH GUARD option takes over
to protect the load.
A signal sounds every few minutes when
FINISH GUARD is running. The signal and
cycle stop when you open the dryer door.
Timed Drying Cycle
Use the Timed Drying cycle to complete
drying if some items
are damp after Auto-
matic drying. Timed
drying is also useful for:
l Delicate items and
small loads that need
a short drying time.
l Bulky items and large
loads that require a
long drying time.
Heavy Dry Feature
(on some models)
Use Heavy Dry and a high heat setting to
dry large items or
items that are thicker
or heavier than a
regular load (such as
heavy cotton bath
sheets or robes).
Damp Dry Feature
Use Damp Dry to dry items to damp level or
to dry items that do
not require an entire
drying cycle. Two
examples are heavy
cottons, such as
jeans, which you do
not want to become
stiff, or cotton clothes
which are easier to
press when damp.
TUMBLE PRESS@ Feature
The TUMBLE PRESS feature removes wrin-
kles from clothes that
have been packed
in a suitcase or closet,
or from items not
removed from the
dryer at the end of a
cycle. As soon as the
dryer stops, fold or put
the items on hangers.
Fluff Air Cycle
The Fluff Air cvcle has no heat. Use this un-
heated cycle to fluff or
air dry bedding, plastic
tablecloths, foam
pillows, sneakers, etc.
See page 11 for more
information about the
Fluff Air cycle.
9

Drying cycles chart
Use the chart below to help you make
drying selections. The chart suggests heat
settings and drying times for various loads.
NOTES:
l Use an Automatic cycle to dry most loads.
l Use a Timed cycle only if the recom-
mended Automatic cycle is not available.
l The check mark (J) in the chart below
denotes recommended temperature
settings. If some types of loads in the
chart have more than one suggested
temperature setting, choose the lowest
setting available on your dryer.
l Always follow care label directions when
they are available.
TYPE OF LOAD AUTOMATIC CYCLE TIMED CYCLE
(heat settings) (minutes)
Extra
High Medium* Low Low* High Low
COlTONS AND LINENS
Extra Heavy
Bedspreads, mattress pads, quilts
Heavyweight
Towels, jeans, corduroys, work clothes
Medlumwelght
Sheets, cotton underwear, diapers
Llghtweight
Batistes, organdies, lingerie
J 70-80
J 50-60
J J 40-50
/ 20-30
PERMANENT PRESS,
SYNTHETICS, AND BLENDS
Heavyvelght
Work clothes, jackets, raincoats
Medlumweight
Shirts, play clothes, sheets, slacks
Llghtweight
Lingerie, blouses, dresses
J 40-50
J J 30-40
J 20-30
KNITS
Heavyweight
Cottons, rayons, blends, T-shirts, J 40-50
slacks, shirts
Medlumweight
Synthetics (polyester, acrylic, etc.), J 30-40
dress slacks, skirts, sweaters
Llghtwelght
Synthetics (polyester, acrylic, etc.) and J J 20-30
blends, lingerie, blouses, dresses
DELICATES**
Sheer curtains (2 or 3 panels), gauze,
lace, etc. J J 15-20
l Settings available only on dryer models with separate Temperature Selector.
** If you don’t have low or extra low heat, use Fluff Air cycle (if available). Line drying is also
recommended for delicate fabrics.
10

Fluff Air cycle or line drying
The chart below includes examples of items
that require drying without heat. Use the
Fluff Air cycle, or place the items on a line
or rack to air dry.
NOTES:
l Heat-sensitive fabrics should not be dried
in the dryer.
l Line dry bonded or laminated fabrics.
l Always follow care label directions when
they are available.
Fire Hazard
Use Fluff Alr Cycle to dry Items listed
below.
Do not use heat to dry these items.
’ Failure to do so can result In death
or fire.
TYPE OF LOAD
RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS
Foam Rubber - Pillows, padded bras, stuffed toys
. Make sure coverings are securely stitched.
l Shake and fluff pillows by hand several times during the Fluff
Air cycle.
l Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.
Plastic - Shower curtains, tablecloths
Rubber-backed rugs
Olefin, polypropylene, sheer nylon
COTTON AND CANVAS SHOES
l Place several bath towels in the dryer to act as a buffer, or
place shoes on a drying rack if your dryer has one.
l Remove shoes from dryer while still damp.
l Stretch shoes and allow to air dry.
l Reset cycle as needed to complete drying.
FLUFF AIR CYCLE*
(minutes)
20-30
20-30
40-50
10-20
30-40
End of cycle signal
The dryer sounds a signal to let you know
when the cycle is finished. The
signal is helpful when you are
drying permanent press,
The end of cycle signal can be turned on
or off on some models.
synthetics, and other items
that should be removed from
the dryer as soon as it stops.
11

Using the drying rack
(available as an option on
some models)
To order the drying rack (Part #%92990),
call: l-800-253-1301. You will hear a record-
ing. Follow the steps to place an order.
The drying rack lets you dry items that you
may not want to tumble. The rack does not
move, but the drum turns.
1. Fit rear legs of the rack into indentations
in the back wall of the dryer.
Lower the front so the legs
rest on the dryer opening.
2. Put wet items on top of the rack. Leave
space between the items so air
can reach all surfaces.
NOTE: Make sure nothing
hangs over the edge of the
rack.
3. Close the door.
4. Select the Timed Drying cycle (and
temperature, if desired), or the Fluff Air
cycle (see page 9). Drying time depends
on the amount of moisture in the items.
5. Push the Start Button.
I 4
NOTES:
l See the chart below for suggested cycles
and settings for the different types of items
that might best be rack dried.
l The rack must be removed for normal
tumbling.
l Drying time will depend on how much
moisture the items hold. The following
chart suggests drying times.
l Automatic cycles do not work with the
drying rack.
RACK DRY CYCLE TEMPERATURE TIME’
(minutes)
Wool sweaters Timed Low or Ex Low 60
(Block to shape and lay flat on the rack) Drying
Stuffed toys or pillows
(Cotton or polyester fiber filled)
Stuffed toys or pillows Fluff Air None; cycle is unheated. 90
(Foam rubber filled)
Sneakers or canvas shoes 30-40
* Reset cycle as needed to complete drying.
12

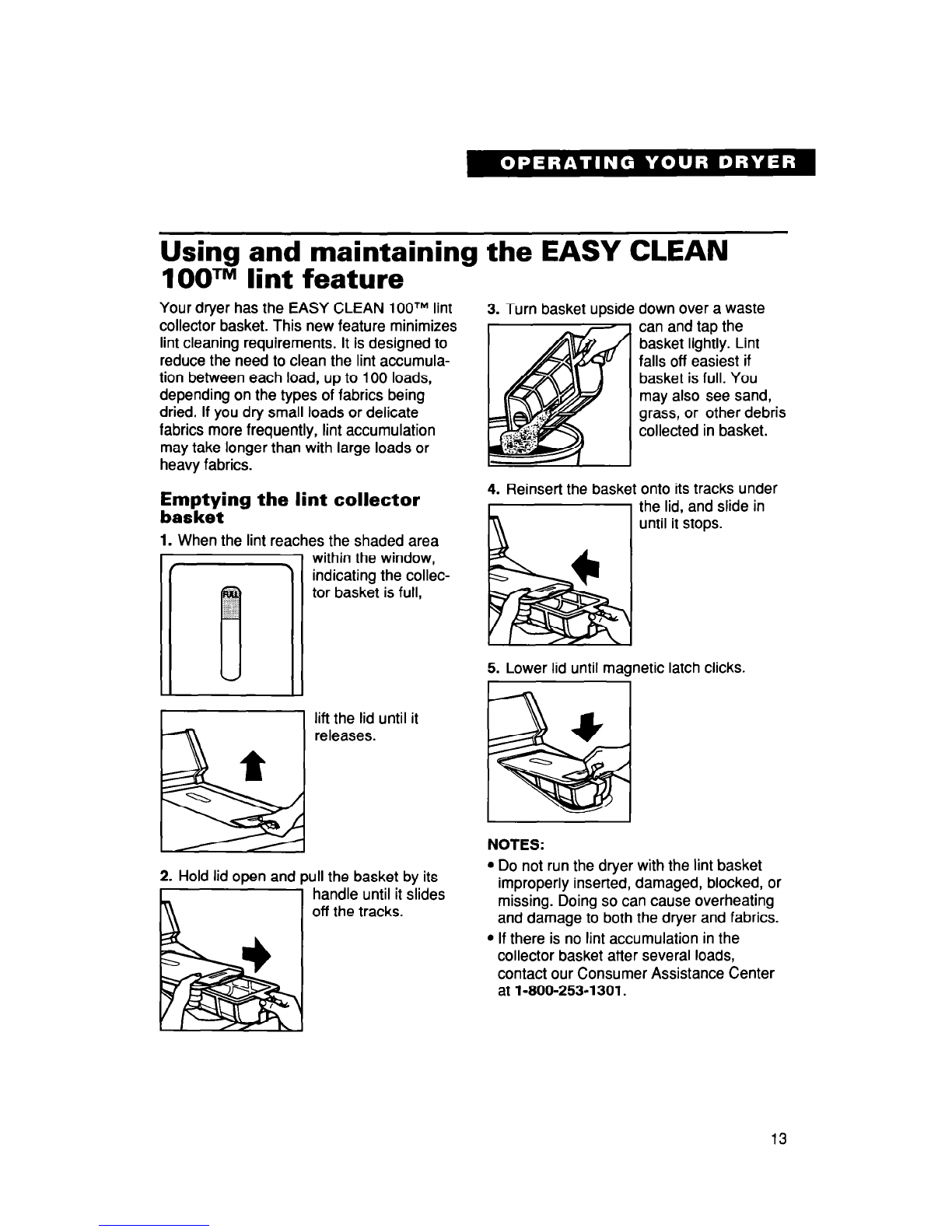

Using and maintaining the EASY CLEAN
100TM lint feature
Your dryer has the EASY CLEAN 100TMlint
collector basket. This new feature minimizes
lint cleaning requirements. It is designed to
reduce the need to clean the lint accumula-
tion between each load, up to 100 loads,
depending on the types of fabrics being
dried. If you dry small loads or delicate
fabrics more frequently, lint accumulation
may take longer than with large loads or
heavy fabrics.
Emptying the lint collector
basket
1. When the lint reaches the shaded area
within the window,
indicating the collec-
tor basket is full,
7 lift the lid until it
releases.
2. Hold lid open and pull the basket by its
$;fFt;;rtitiL slides
3. Turn basket upside down over a waste
can and tap the
basket lightly. Lint
falls off easiest if
basket is full. You
may also see sand,
grass, or other debris
collected in basket.
4. Reinsert the basket onto its tracks under
the lid, and slide in
until it stops.
5. Lower lid until magnetic latch clicks.
I I
NOTES:
l Do not run the dryer with the lint basket
improperly inserted, damaged, blocked, or
missing. Doing so can cause overheating
and damage to both the dryer and fabrics.
l If there is no lint accumulation in the
collector basket after several loads,
contact our Consumer Assistance Center
at l-800-253-1301.
13

Periodic maintenance
You may find it necessary to clean the lint
collector basket tray, and the transport tube
opening, indicated by arrow.
1. Lift lid all the way and hold open.
2. Suction lint in tray and transport tube
opening with vacuum cleaner.
Basket
Transport tube
opening
\\>>
Collector basket tray
Cleaning the lint collector basket
Laundry detergents and fabric softeners can
cause a residue buildup on the lint collector
basket. Clean it with a nylon brush if it
becomes clogged due to a residue buildup.
Use the followlng method:
1. Wet both sides of the lint collector basket
with hot water.
2. Wet a nylon brush with hot water and
liquid detergent; brush lint collector
basket gently to avoid damage while
removing residue buildup.
3. Rinse lint collector basket with hot water.
4. Thoroughly but gently dry lint collector
basket with a clean towel; replace in
dryer.
14

Caring for Your Dryer
Proper care of your dryer can extend its life. This section explains how to care for your dryer
properly and safely.
Cleaning the dryer interior
Garments which contain unstable dyes,
such as denim blue jeans or brightly colored
cotton items, may discolor the dryer interior.
These stains are not harmful to your dryer
and will not stain future loads of clothes.
To clean dryer drum:
1. Make a paste with powdered detergent
and very warm water.
2. Apply paste to a soft cloth and scrub area
until all excess dye is removed.
OR
Apply liquid nonflammable
household cleaner to the
stained area and rub with a
Explosion Hazard
Use nonflammable cleaners only.
Failure to do so can result in death,
explosion, or fire.
cloth until all excess dye is removed.
3. Wipe thoroughly with a damp cloth.
4. Tumble a load of clean cloths, using air
cycle, to dry.
15

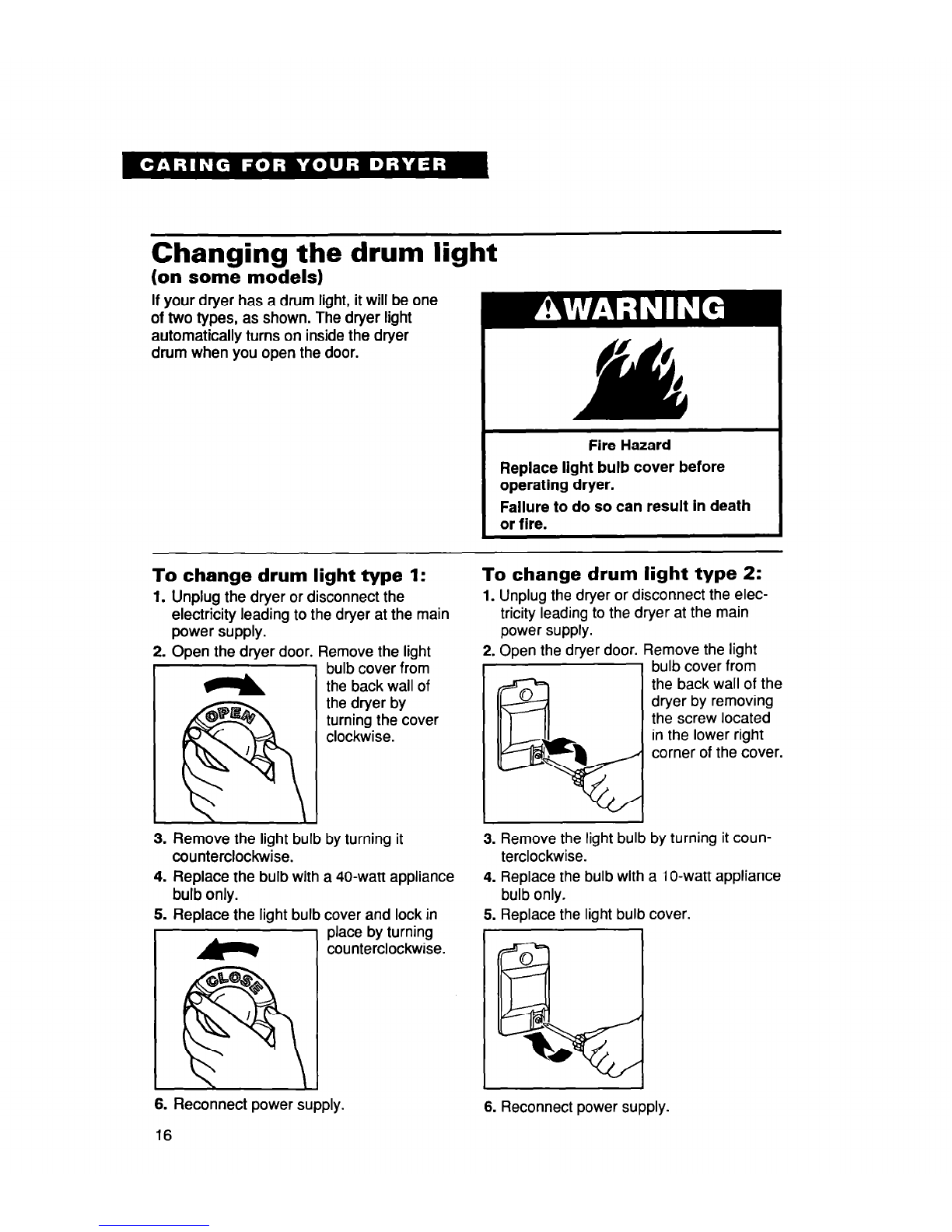

Changing the drum light
(on some models)
If your dryer has a drum light, it will be one
of two types, as shown. The dryer light
automatically turns on inside the dryer
drum when you open the door.
I
Fire Hazard
Replace light bulb cover before
operating dryer.
Fallure to do so can result in death
or fire.
To change drum light type 1:
1. Unplug the dryer or disconnect the
electricity leading to the dryer at the main
power supply.
2. Open the dryer door. Remove the light
I I bulb cover from
the back wall of
the dryer by
turning the cover
clockwise.
1 4
3. Remove the light bulb by turning it
counterclockwise.
4. Replace the bulb with a 40-watt appliance
bulb only.
5. Replace the light bulb cover and lock in
place by turning
counterclockwise.
6. Reconnect power supply.
To change drum light type 2:
1. Unplug the dryer or disconnect the elec-
tricity leading to the dryer at the main
power supply.
2. Open the dryer door. Remove the light
bulb cover from
0
Eizlx
the back wall of the
dryer by removing
the screw located
m in the lower right
corner of the cover.
3. Remove the light bulb by turning it coun-
terclockwise.
4. Replace the bulb with a 1O-watt appliance
bulb only.
5. Replace the light bulb cover.
6. Reconnect power supply.
16

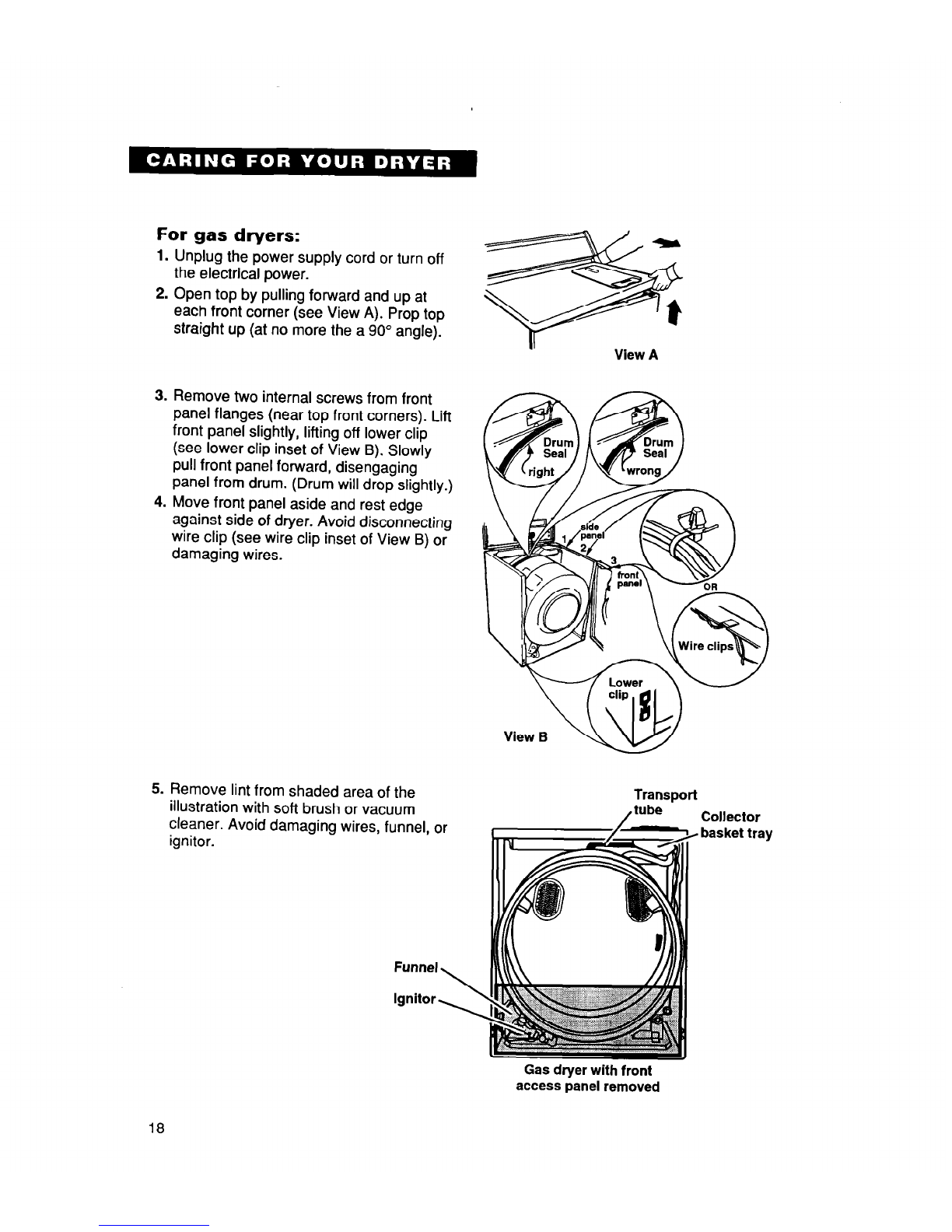

Removing accumulated lint inside the dryer
cabinet
Lint can gather inside the dryer cabinet and
be a fuel for fire. Lint should be removed
every two to three years, or more often,
depending on dryer usage. Cleaning should
be done by a qualified person. If you have
any questions or comments, please call
our Consumer Assistance Center at
1-800-253-l 301.
For electric dryers:
1. Unplug the power supply cord or turn off
the electrical power.
2. Remove back panel. See the Installation
Instructions.
3. Remove lint from shaded area in illustra-
tion with a soft brush or vacuum cleaner.
Avoid damaging wires or thermostats.
4. Replace panel.
5. Reconnect and level dryer again, if
necessary.
Electrical Shock Hazard
Disconnect power before cleaning.
Replace all panels before operating.
Failure to do so can result in death
or electrlcal shock.
Outlet
duct -
Transport
ltube
Heater
/ box
Blower housing
17

For gas dryers:
1.
2.
3.
Unplug the power supply cord or turn off
the electrical power.
Open top by pulling forward and up at
each front corner (see View A). Prop top
straight up (at no more the a 90” angle).
Remove two internal screws from front
panel flanges (near top front corners). Lift
front panel slightly, lifting off lower clip
(see lower clip inset of View B). Slowly
pull front panel forward, disengaging
. _
panel Worndrum. (Drum will drop slightly.)
4. Move front panel aside and rest edge
against side of dryer. Avoid disconnecting
wire clip (see wire clip inset of View B) or
damaging wires.
5. Remove lint from shaded area of the
illustration with soft brush or vacuum
cleaner. Avoid damaging wires, funnel, or
ignitor.
View A
Transport
/ tube Collector
R basket tray
Funnel,
lgnitor
Gas dryer with front
access panel removed
18

Before reassembling, read these
instructions carefully.
6. Make sure transport tube is reinserted
into the collector tray as shown. If the
tube is not reinserted correctly, it may rub
against the dryer drum creating a noise.
7. Reassemble in reverse order. Before
closing the top, check the following:
-Drum seal must be flared out (see
drum seal insets of View B) and prop-
erly positioned against panel at back of
drum. Rotate drum counterclockwise
one full turn to check drum seal.
-Belt should be centered and tight on
dryer drum.
-Wire clip which holds the door switch
wires must be anchored in slot in top
of front panel (see wire clip inset of View
B). Door wires must not touch drum
when dryer is operating.
8. Replace top panel. Top and front panels
must be securely in place before operat-
ing dryer.
9. Reconnect power and level dryer again.
Lint collector tray
Transport tube
I
For more information, call our
Consumer Assistance Center. I
1 1-800-253-1301 1
19

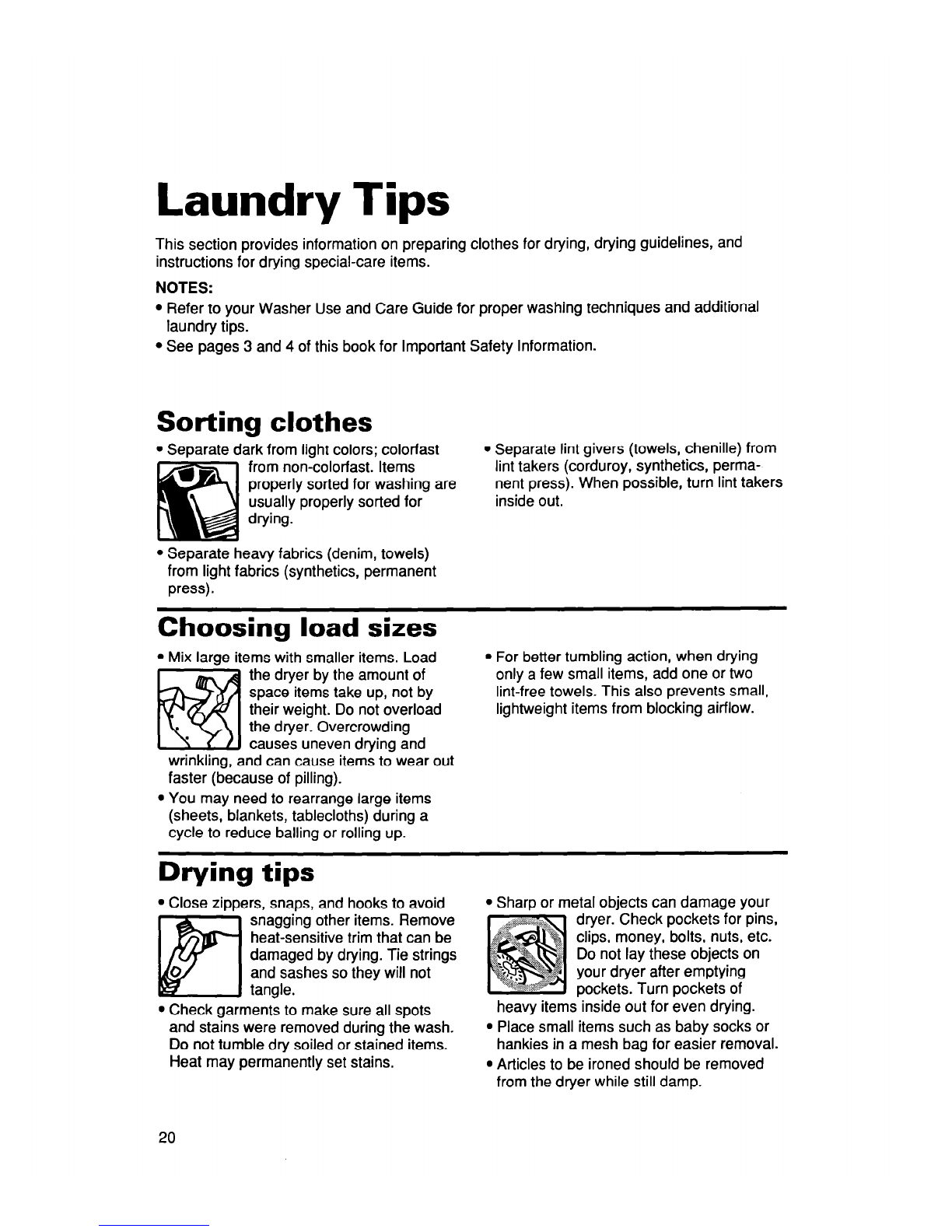

Laundry Tips
This section provides information on preparing clothes for drying, drying guidelines, and
instructions for drying special-care items.
NOTES:
l Refer to your Washer Use and Care Guide for proper washing techniques and additional
laundry tips.
l See pages 3 and 4 of this book for Important Safety Information.
Sorting clothes
l Separate dark from light colors; colorfast
l Separate lint givers (towels, chenille) from
a
hia
from non-colorfast. Items lint takers (corduroy, synthetics, perma-
properly sorted for washing are nent press). When possible, turn lint takers
usually properly sorted for inside out.
drying.
l Separate heavy fabrics (denim, towels)
from light fabrics (synthetics, permanent
press).
Choosing load sizes
l Mix large items with smaller items. Load
the dryer by the amount of
space items take up, not by
their weight. Do not overload
the dryer. Overcrowding
causes uneven drying and
l For better tumbling action, when drying
only a few small items, add one or two
lint-free towels. This also prevents small,
lightweight items from blocking airflow.
wrinkling, and can cause items to wear out
faster (because of pilling).
l You may need to rearrange large items
(sheets, blankets, tablecloths) during a
cycle to reduce balling or rolling up.
Drying tips
l Close zippers, snaps, and hooks to avoid
snagging other items. Remove
heat-sensitive trim that can be
damaged by drying. Tie strings
and sashes so they will not
tangle.
l Check garments to make sure all spots
and stains were removed during the wash.
Do not tumble dry soiled or stained items.
Heat may permanently set stains.
l Sharp or metal objects can damage your
dryer. Check pockets for pins,
clips, money, bolts, nuts, etc.
Do not lay these objects on
your dryer after emptying
pockets. Turn pockets of
heavy items inside out for even drying.
l Place small items such as baby socks or
hankies in a mesh bag for easier removal.
l Articles to be ironed should be removed
from the dryer while still damp.
20
