Whirlpool LE6685XP User manual

&ti SERIES
AUTOMATIC
DRYERS
Electric Model
LE6685XP
and
Gas Model
LG6686XP
Dwave Ovens. Trash Compaclors. Room AM Condltloners, Oehumldlflers. Aulomatlc Washers, Clothes Dryers, Freezers, Refrlgeralor-Freeze

Parts and features
CYCLE CONTROL KNOB
\ TEMPERATURE SELECTOR
\ \--,-LAUNDRY INFORMATION CENTER
-77 I--
MODEL
AND SERIAL
NUMBER PLATE
DRYER DRUM
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready.
Complete Model Number
1. Complete Model and Serial Numbers
(from’the plate located as shown)
2. Purchase date from sales slip
Complete Serial Number
Copy this information rn these spaces
Keep this book, your warranty, sales slip
Purchase Date
and “Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer
Service Company and
console Telephone Number
There is no warranty regrstratron to return Proof-of-purchase is all
that is required for in-warranty service.
Contents
PARTS AND FEATURES..
YOUR RESPONSIBILITIES.
SAFETY FIRST.
SELECTING A CYCLE AND
STARTING YOUR DRYER
OPERATING INSTRUCTIONS
Automatic Cycles
Timed Drying
DRYING TIPS. :.
FLUFFAIR Setting
TUMBLE PRESS@Setting
Drying Times
Mixed Loads
End-of-Cycle Signal
Page
2
i CARING FOR YOUR DRYER.
Cleaning Dryer Interior
Vacation Care
Changing the Drum Light
IF YOU NEED SERVICE OR
ASSISTANCE...............
I. Before Calling far
Assistance
2. If You Need Assistance
3. If You Need Service
4. If You Have a Problem
Page
9
9
10
10
10
11
12
12
13
13
13
2 01985 Whirlpool Corporation

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l IS installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
l is located in an area where the tem-
perature is above 45’F (7.2 C).
l is connected to the right kind of out-
let, electric supply and grounding.’
l is properly connected to fuel and
exhaust systems.’
l is used only for jobs normally ex-
pected of home clothes dryers.
l is not run where there may beexplo-
sive fumes.
l is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
,hat can support the weight. complete information
l FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
l FOR YOUR SAFETY l
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.

TYPE OF LOAD SUg%f;ED SUGGESTED
TEMPERATURE
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress padsquilts. HEAVY
HEAVYWEIGHT FABRICS - Towels,
jeans, corduroys. work clothes AUTOMATIC HIGH
MEDIUMWEIGHT COTTONS - REGULAR
Sheets, pillowcases, cotton PERM’T PRESS
underwear, diapers MED
LIGHTWEIGHT COTTONS - Batistes.
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
KNITS GENTLE
LOW
HEAVYWEIGHT FABRICS -Work clothes, AUTOMATIC PERM’T PRESS
jackets, raincoats PERMANENT MED
MEDIUMWEIGHT FABRICS - Shirts, play PRESS
clothes, sheets, slacks
LIGHTWEIGHT FABRICS - Lingerie, KNITS GENTLE
blouses, dresses LOW
KNITS
HEAVYWEIGHT - Cottons, rayons, AUTOMATIC PERM’T PRESS
blends, T-shirtsslacks. shirts
LIGHTWEIGHT - Synthetics (polyester. PERMANENT MED
acrylic, etc.) and blends, lingerie, PRESS KNITS GENTLE
blouses, dresses LOW
LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC
Sheer Curtains (2 or 3 panels) PERMANENT KNITS GENTLE
Gauze,lace,etc. PRESS LOW
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS TIMED
FOAM RUBBER - Pillows, bras, DRYING
stuffed toys 20-30 MINS. FLUFF
PLASTIC - Shower curtains, AIR
tablecloths 20-30 MINS.
RUBBER-BACKED RUGS 40-50 MINS.
OLEFIN. POLYPROPYLENE. SHEERNYLON 15-20 MINS.
A

Select a
I. CYCLE
Turn the Control Knob either way to
point to the cycle and seftlng you
want See page 6 for InformatIon on
the cycles
Push the
3. ST.ART Button
The dryer WIII start tumbling when
you push the START Button
Set TEMPERATURE
2. SELECTOR
Turn the Temperature Selector to the
needed drying temperature
To stop and restart
the dryer
To stop the dryer, open the door [or
turn the Control Knob to OFF)
To restart the dryer, close the door,
select cycle, II necessary, and pus1
START
The Cycle Control Knob should point to OFF when the dryer is not in use.
5

Operating instructions
The automatic cycles
The automatic cycles allow You
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops.
weight cotton items. The load tum-
bles without heat during the last 5
minutes.This helps make the load
easier to handle.
Use
AUTOMATIC
PERMANENT
PRESSto dry
permanent
press, knits and other synthetic fab-
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in.
For the first few loads, set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feet the dried items.
9 If items are drierthan you like, use
a setting to the right of the* the next
time you dry a similar load.
l If items are not as dry as you like,
use a setting to the left of the * the
next time you dry a similar load.
Timeddrying
Use the TIMED DRYING Cycle for
any load You want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted
with the FLUFFAIR heat setting.
l Turn the Control Knob to the number
of minutes you want - from 10 to 60.
l The last 5 minutes of this cycle are
without heat - a cool-down time. This
helps make the load easier to
handle.
6

TUMBLEPRESS" Setting
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase. closet, or items not
removed from the dryer.
The dryer does not heat when the
Temperature Selector ISset on FLUFF
AIR. Thussettina can be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, sneakers,
etc
1. Turn the Temperature Selector to
FLUFFAIR.
2. Turn the Control Knob to the num-
ber of minutes you want in the
TIMED DRYING Cycle.
1. Set Control Knob to TUMBLE PRESS.
2. Set Temperature Selector to PERM’r
PRESS/ MED.
3. Push the STARTButton. 3. Push STARTButton.
The load will tumble in heated air
for 10 minutes. The heat shuts off and
the dryer continues to tumble the
load for 5 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
7

Drying times Mixed loads
Dryrng times will vary dependrng on
l amount of moisture in the clothes
l type and weight of the fabrrc
l stze of the load
l room temperature around the
dryer
l temperature of the wash rrnse
water
l amount of lent rn the lint screen
. dryer temperature selection
See page 6 in your”Dryer Guide’
for more information
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest fab-
rics. When the dryer stops, remove
dry items and reset the control
To reduce wrinkling, take the load
horn dryer as soon as tumbling stops
This is important for permanent press,
knits and synthetic fabrics.
End-of-cycle signal The dryer sounds a signal to let you know
when the cycle ISfintshed The srgnal cannot be
turned off and IS not adjustable
The signal IS helpful when you are dryrng
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIRE HA2
Lint removal
Lint can gather inside Ihe dryer and create CIfire hazard.This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
-
- =i;;_ _-
=/ --~ i. -
-- --
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING:
l Avoid electrical shock
hazard -unplug power
supply cord or turn off
electrical power.
l Avoid injury or damage-do not
put hands inside cabinet.
l Make sure dryer is cool.
1. Remove back panel (electric)
or lower access panel (gas).
2. Avoid damaging wires,
thermostats, tunnel or igniter.
3. Remove lint from shaded area -
see art - with a sott brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.

Remove all loose and sharp objects
from pockets and cuffs before drying -
pins, buckles, etc. Close metal
zippers.
Some pretreatment products can
damage dials, consoles and finish.
Do not-use these products on or
near vour dryer.
Wipe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc
10
Cleaning dryer interior
0
Before cleaning interior,
unplug power supply cord
or turn off electrical
power to avoid electrical
shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to a
soff cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. - OR -
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas valve.
l Clean lint screen.

2. Remove the light bulb by turning
it counterclockwise.
1. Open the dryer door and remove
light bulb cover by turning it
clockwise.
Changing the drum light
3. Replace the bulb only with a 4. Replace the light bulb cover
40-watt appliance bulb from most
hardware, grocery or varietv stores. and lock it in place by turning
counterclockwise.
CAUTION: The bulb cover must be securely in place during dryer opem-
tion to prevent overheatlng and possible damage to fabrics. Opemtlng
the dryer wlth the bulb cover removed can cause the dryer to fall or
create a FIRE HAZARD.

If you need service or assistance, we suggest

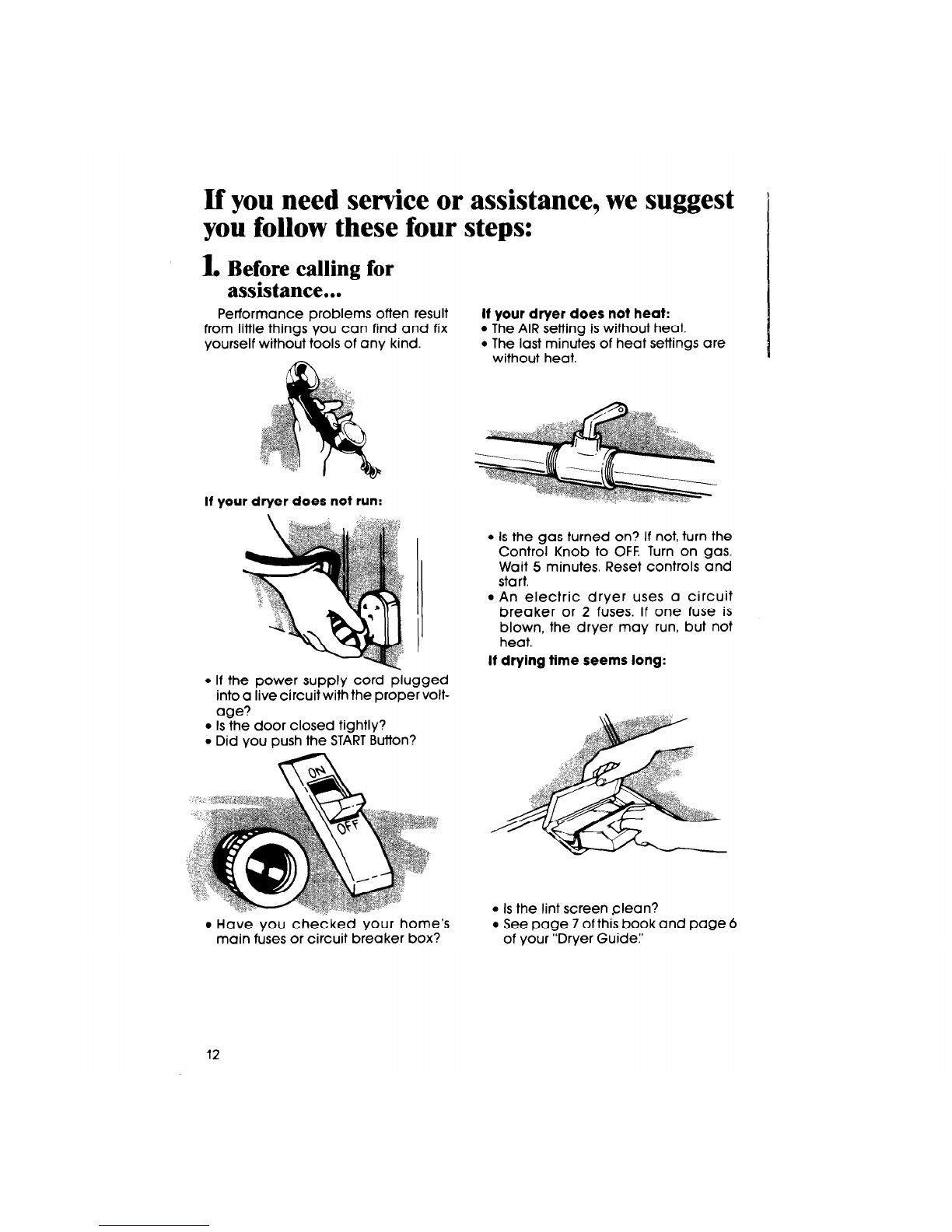

you follow these four steps:
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l If the power supply cord plugged
into a live circuit with the proper volt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Have you checked your home’s
main fuses or circuit breaker box?
l Is the lint screen clean?
l See page 7 of this book and page 4
of your “Dryer Guide:’
12

2. If you need
assistance*...
Call Whirlpool COOL-LINE’ serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our trained Con-
sultants The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE ’
Service Compa-
nies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
‘If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.
FSP is a registered trademark
0
of Whirlpool Corporation for
quality parts. look for this
FSP symbol of quality whenever
you need a replacement parl
8 for your Whirlpool appliance.
FSP replacement parts
will fit right and work right, because they are
made to the same exacting specifications
used to build every new Whirlpool appliance.

Notes
14

Notes
15

Making your world a little easier
Part No. 696223
01985 Whirlpool Corporation Printed in U.S.A.
matlc Washers, Clothes Dryers. Freezers. Refrigerator-Freezers. Ice Makers, Dishwashers, Built-In Ovens and Surlace Umts. Ranges, Mw
