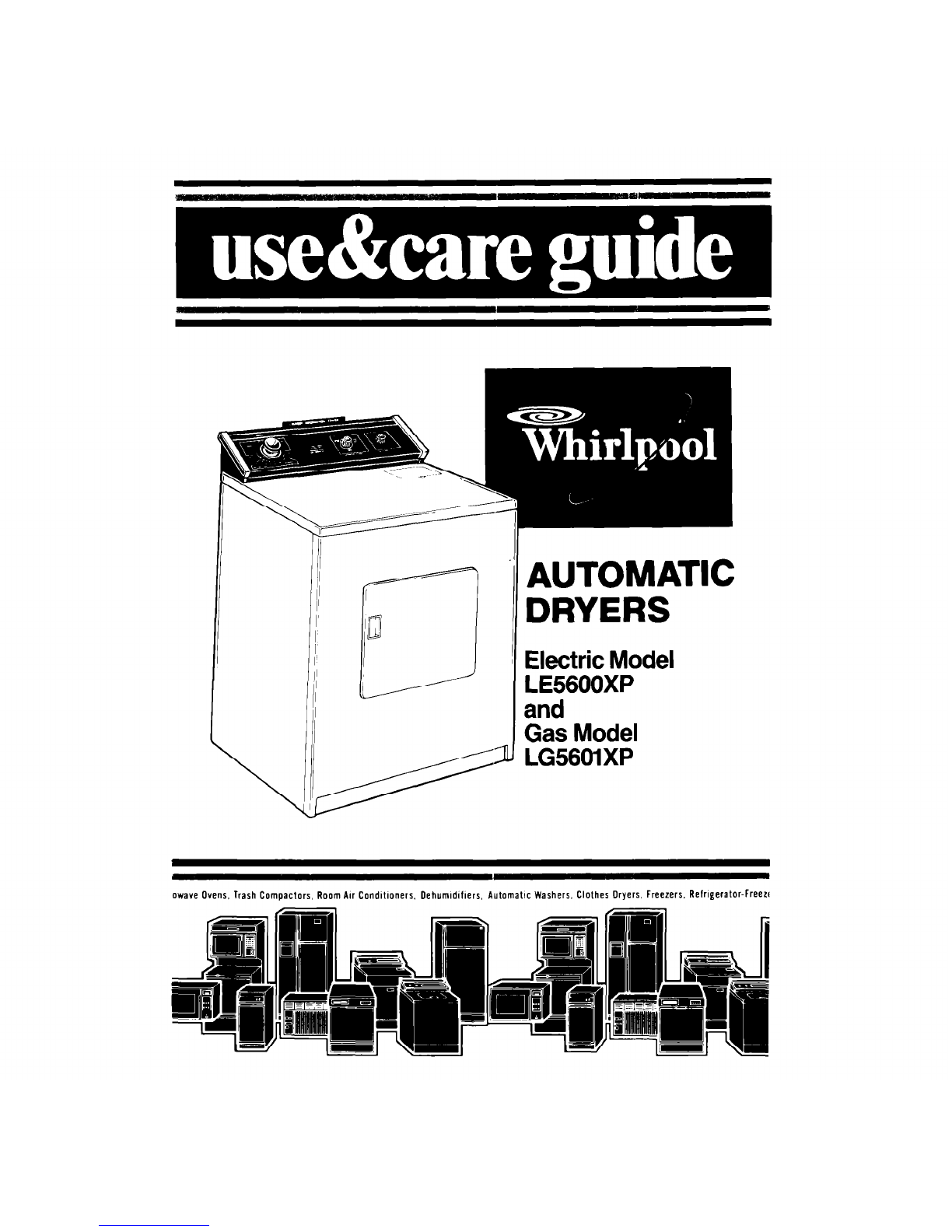

Whirlpool LE5600XP User manual

\
I------I
a
AUTOMATIC
DRYERS
Electric Model
LE5600XP
and
Gas Model
LG56olXP
Owave OvenS. Trash Compactors, Room Air Conditioners. Oehumldlflers, Automatic Washers, Clothes Dryers, Freezers. Refrigerator-Free21

Parts and features
CYCLE CONTROL KNOB
\ TEMPERATURE SELECTOR
S
2
Contents
PARTS AND FEATURES . . . . . . . . 2
YOUR RESPONSIBILITIES. . . . . . 3
SAFETY FIRST. . . . . , . . . . . . . . . . , 3
SELECTING A CYCLE AND
STARTING YOUR DRYER. . . . . . . 4
OPERATING INSTRUCTIONS . . 6
Dryer Cycles and Settings . . 6
Cool Down Times . . . . . . 6
DRYING TIPS. . . . . . . . . . . . . 7
FLUFFAIR Setting . . . . . . . . 7
Mixed Loads . 7
TUMBLE PRESS@Setting . . . . . 7
LAUNDRY
;. INFORMATION CENTER
START BUTTON
DRYER DRUM
LOADING DOOR
NUMBER PLATE
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Complete Model Number
4. Complete Model and Serial Numbers
(from-the plate located as shown).
2. Purchase date from sales slip.
Complete Serial Number
Copy this information in these spaces.
Keep this book, your warranty, sales slip
Purchase Date
and “Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer
Service Company and
console. Telephone Number
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
Page Page
Drying Times. . . . . . . . . . . . . 7
LINT SCREEN . . . . . . . . . . . . . . . B
LINT REMOVAL . . . . . . . . . . . . 8
CARING FOR YOUR DRYER. . . . 9
Vacation Care. . . . . . . . . 9
IF YOU NEED SERVICE OR
ASSISTANCE. . . . . . . . . . . . . 10
1. Before Calling for
Assistance . . . . . . . . . . 10
2. If You Need Assistance . . 11
3. IfYouNeedService . . . . . . 11
4. If You Have a Problem . . 11
1
01984 Whirlpool Corporation

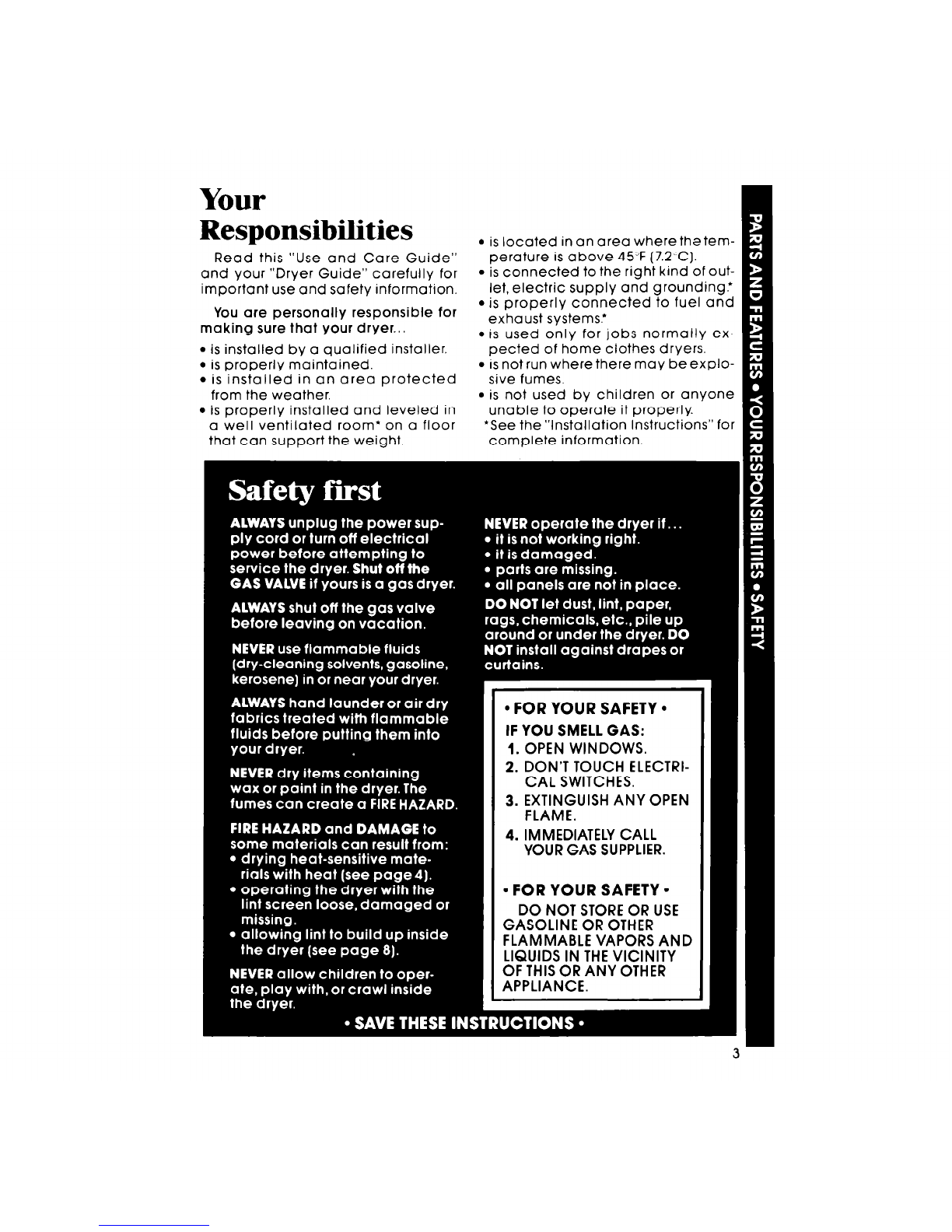

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
that can support the weight.
l is located in an area where the tem-
perature is above 45°F (7.2‘CJ.
l is connected to the right kind of out-
let, electric supply and grounding.*
l is properly connected to fuel and
exhaust systems.’
l is used only for jobs normally ex-
pected of home clothes dryers.
l ISnot run where there may beexplo-
sive fumes.
l is not used by children or anyone
unable to operate it properly.
*See the “Installation Instructions” for
complete information.
l FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
. FOR YOUR SAFETY l
DO NOT STOREOR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER
APPLIANCE.

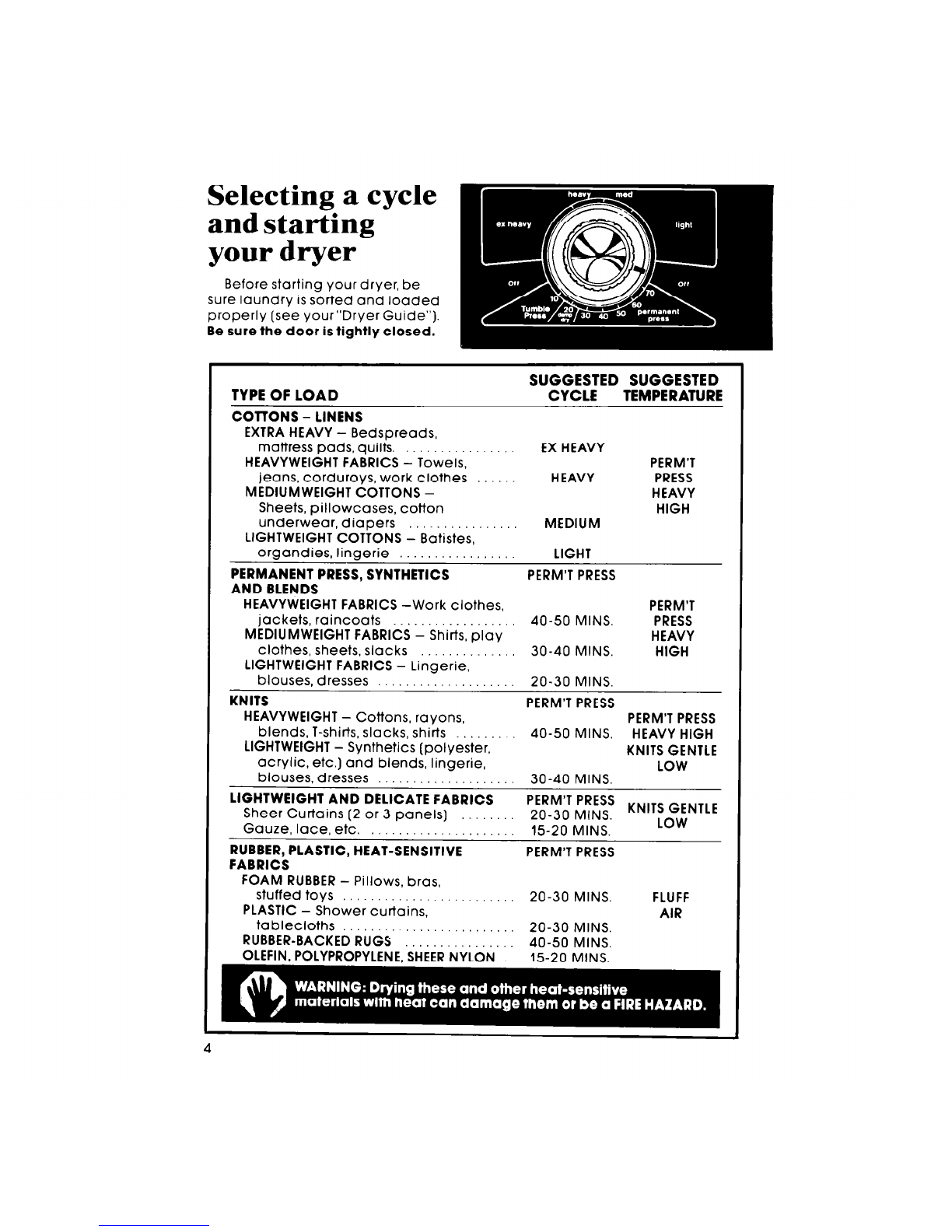

SUGGESTED SUGGESTED
TYPE OF LOAD CYCLE TEMPERATURE
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress pads, quilts. EX HEAVY
HEAVYWEIGHT FABRICS - Towels, PERM’T
jeans, corduroys, work clothes HEAVY PRESS
MEDIUMWEIGHT COTTONS - HEAVY
Sheets, pillowcases, cotton HIGH
underwear, diapers MEDIUM
LIGHTWEIGHT COTTONS - Batistes,
organdies, lingerie LIGHT
PERMANENT PRESS, SYNTHETICS PERMIT PRESS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes, PERMIT
jackets, raincoats 40-50 MINS. PRESS
MEDIUMWEIGHT FABRICS - Shirts, play HEAVY
clothes, sheetsslacks _. _. 30-40 MINS. HIGH
LIGHTWEIGHT FABRICS - Lingerie,
blouses, dresses 20-30 MINS.
KNITS PERM’T PRESS
HEAVYWEIGHT - Cottons, rayons, PERMIT PRESS
blends, T-shirts, slacks, shirts _. 40-50 MINS. HEAVY HIGH
LIGHTWEIGHT - Synthetics (polyester, KNITS GENTLE
acrylic, etc.) and blends, lingerie, LOW
blouses, dresses 30-40 MINS.
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels] PERM’T PRESS KNITS GENTLE
20-30 MINS.
Gauze, lace, etc. 15-20 MINS. LOW
RUBBER, PLASTIC, HEAT-SENSITIVE PERMIT PRESS
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys 20-30 MINS. FLUFF
PLASTIC - Shower curtains, AIR
tablecloths 20-30 MINS.
RUBBER-BACKED RUGS 40-50 MINS.
OLEFIN, POLYPROPYLENE, SHEERNYLON 15-20 MIN.%
4

Select a
1. CYCLE
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for informatlon on
the cycles.
Push the
3. START Button
2. SELECTOR
needed drying temperature
To stop and restart
the dryer
The dryer will start tumbling when
you push the START Button. To stop the dryer. open the door [or
turn the Control Knob to OFF).
To restart the dryer, close the door,
select cycle, if necessary, and push
START.
The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions
Dryer cycles and settings
The PERMANENT PRESS Cycle helps
provide the special care that perma-
nent press and synthetic fabrics
need...0 period of heated drying
followed by a IO minute cool down.
The chart on page 4 suggests time
and temperature settings for different
kinds of loads.
The EX HEAVY, HEAVY, MEDIUM and
LIGHT cycles describe the loads
they are designed to dry The chart
on page 4 tells what is meant by
EX HEAVY, HEAVY, MEDIUM and LIGHT
loads.
At each setting, the dryer will run
about long enough to dry the load
described by the setting. Example:
The HEAVY Cycle is deslgned to be
long enough to dry a load of heavy
fabrics (towels, jeans, corduroys, etc.)
when the Temperature Selector is set
on PERM’T PRESS/HEAVY HIGH.
f MORE TlhlE LESS ll:.lE -b
If the load is not as dry as you want,
set the dial more to the left the next
time you dry that kind of load.
If the load is dryer than you want,
set the dial more to the right the next
time you dry that kind of load.
Cool down times
In all cycles, the heat shuts off
before the dryer stops tumbling. This
cool down time helps:
l keep wrinkles from setting in.
l make handling the hot load items
easier.
The PERMANENT PRESS Cycle has
10 minutes of cool down time at the
end of the cycle.
All other cycles have 5 minutes of
cool down time.
6

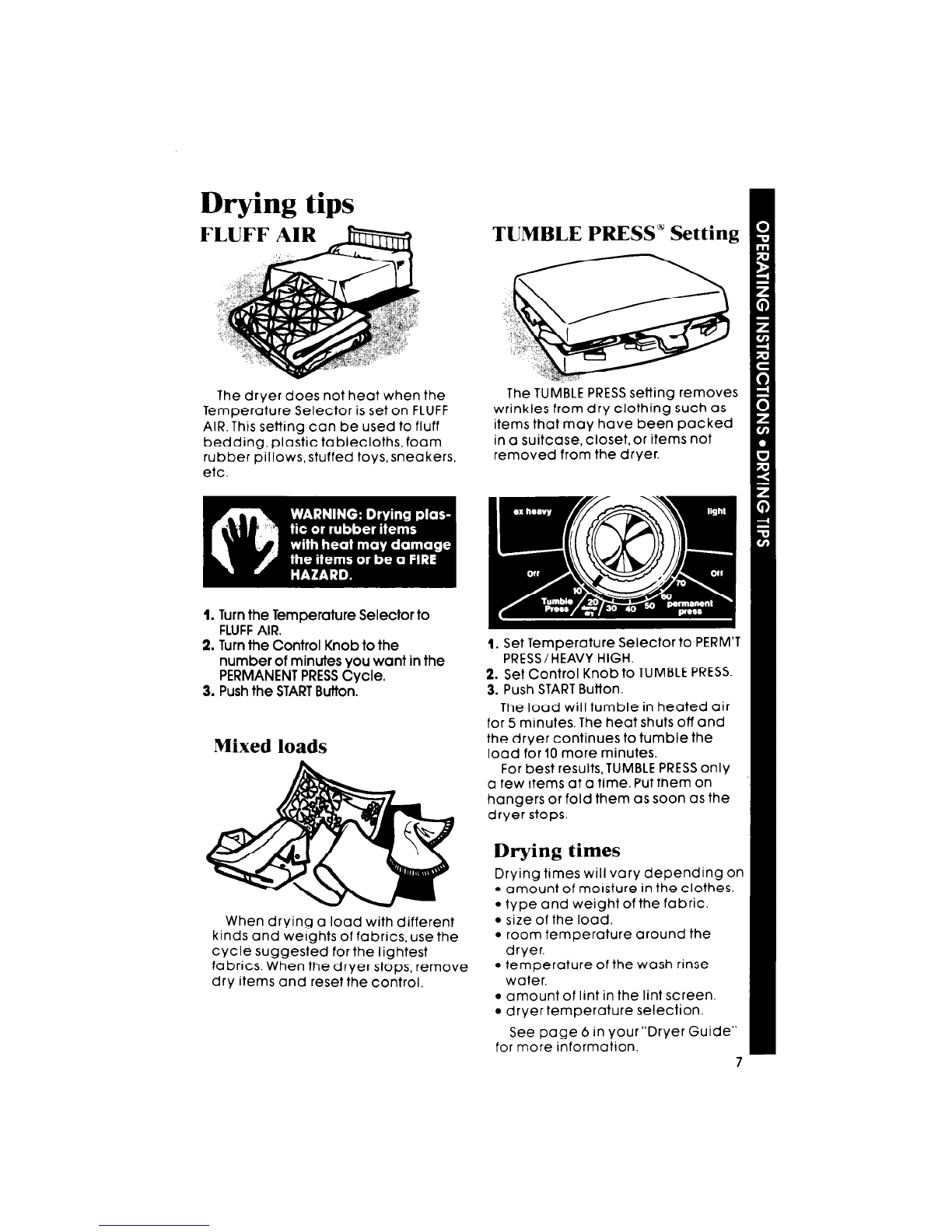

Drying tips
FLUFF AIR
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting con be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, snea kers,
etc.
1. Turn the Temperature Selector to
FLUFFAIR.
2. Turn the Control Knob to the
number of minutes you want in the
PERMANENT PRESSCycle.
3. Push the STARTButton.
Mixed loads
When drying a load with different
kinds and weights of fabrics. use the
cycle suggested for the lightest
fabrics. When the dryer stops. remove
dry items and reset the control.
TUMBLE PRESS” Setting
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may hove been pocked
in a suitcase, closet. or items not
removed from the dryer.
1. Set Temperature Selector to PERM’T
PRESS/HEAVY HIGH.
2. Set Control Knob to TUMBLE PRESS.
3. Push START Button.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load for 10 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
Drying times
Drying times will vary depending on
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lint screen.
l dryer temperature Selection.
See page 6 in your”Dryer Guide”
for more information.

Lint screen
Clean the lint screen before each load. A screen blocked by lint con
increase drying time and may be Q FIRE HAZARD.
Open the lid and pull the lint screen
straight out. ROLL the lint off the screen
with your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly bock into
place.
Lint removal
Lint can gather inside the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
0
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
l Avoid injury or damage - do not
put hands inside cabinet.
l Make sure dryer is cool.
1. Remove back panel (electric)
or lower access panel [gas].
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art- with a sofl brush or
vacuum cleaner.
4, Replace panel; reconnect and
re-level dryer.
8

Caring for your dryer
Remove sharp objects from clothing
before drying - pins, buckles, etc.
Close metal zippers.
Wipe off all spills with a damp.soft
clothSpills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry in
your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
Non-colorfast items can stain the
drum. Wipe carefully after drying to
make sure there is no dye to be
transferred to items in the next load.
Vacation care
Some pretreatment products can
damaae dials, console and finish. D
not usethese products on or near
your dryer.
Unplug power cord or For gas dryers, close Clean lint screen.
turn off electrical power. gas valve.

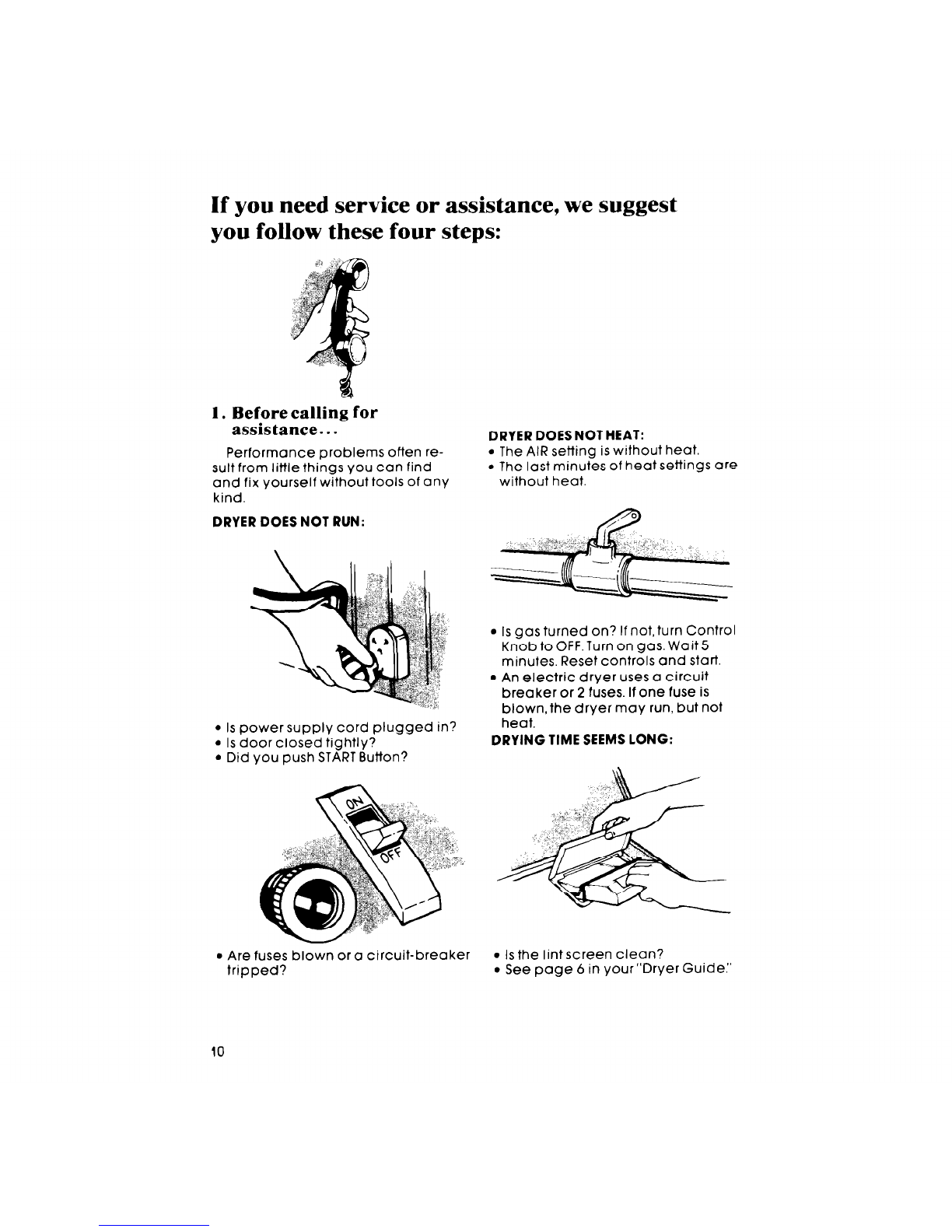

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for
assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind.
DRYER DOES NOT RUN:
l Is power supply cord plugged in?
l Is door closed tightly?
l Did you push START Button?
DRYER DOES NOT HEAT:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is gas turned on? If not, turn Control
Knob to OFF. Turn on gas. Wait 5
minutes. Reset controls and start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
DRYING TIME SEEMS LONG:
l Are fuses blown or a circuit-breaker
Mooed?
l Is the lint screen clean?
l See page 6 in your”Dryer Guide:’
10

2. If you need assistance*. ..
Call Whirlpool COOL-LINE@ serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of ourtrained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in your
area.
3. If you need service*. ..
r
Whirlpool has
a nationwide net-
work of franchised
1 TECH-CARE@ Serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service,anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look in
your telephone directory Yellow
Pages under:
4. If you have a problem*...
Call our COOL-LINE service as-
sistance telephone number [see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Robert F.Gunts. Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide. model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter resDond to your request for
assistance
0
FSP
8
FSPISo registered trademark
of Whirlpool Corporation for
quaMy parts Look for thts
symbol of quality whenever
you need a replacement part
for your Whlrlpcol appliance
FSPreplacement parts
WIIIfit right and work right. because they are
made to the same exacting speclflcatlons
used to build every new Whirlpool appliance

Maklng your world a little easier
Part No. 693691
01984 Whirlpool Corporation Printed in U.S.A
., .- .I -:,, I Id _- a*)y3L,ag
)matlc Washers. Clothes Dryers. Freezers Relrlgerator-Freezers. Ice Makers Dishwashers. Built-In Ovens and Surface Un~ls. Ranges. Mlr
