Whirlpool LE9500XT User manual

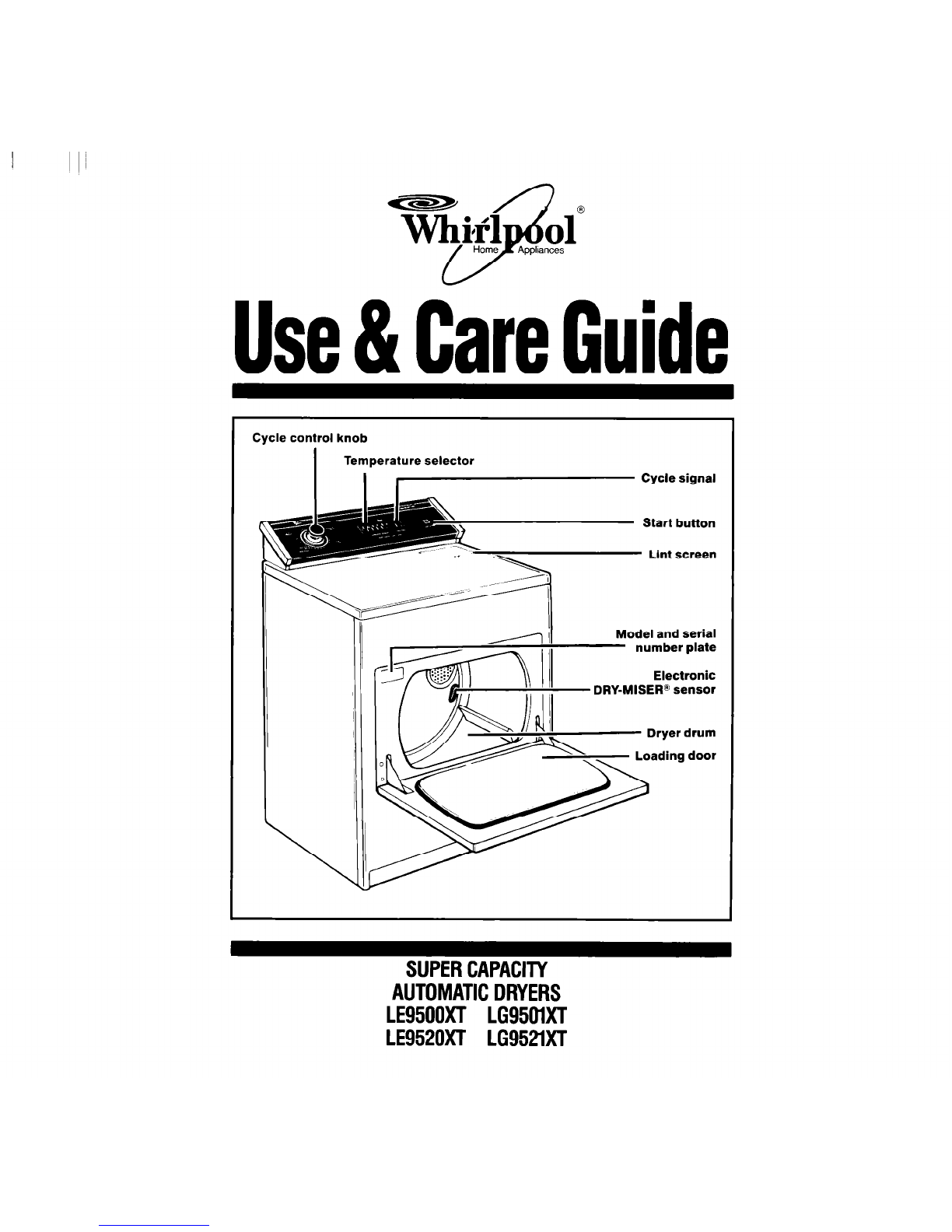

Use& CareGuide
Cycle control knob
‘emperature selector
I I Cycle signal
Start button
Lint screen
Model and serial
Electronic
DRY-MISEW sensor
SUPERCAPACITY
AUTOMATICDRYERS
LE9500XT LG95OlXT
LE9520XT LG952lXT

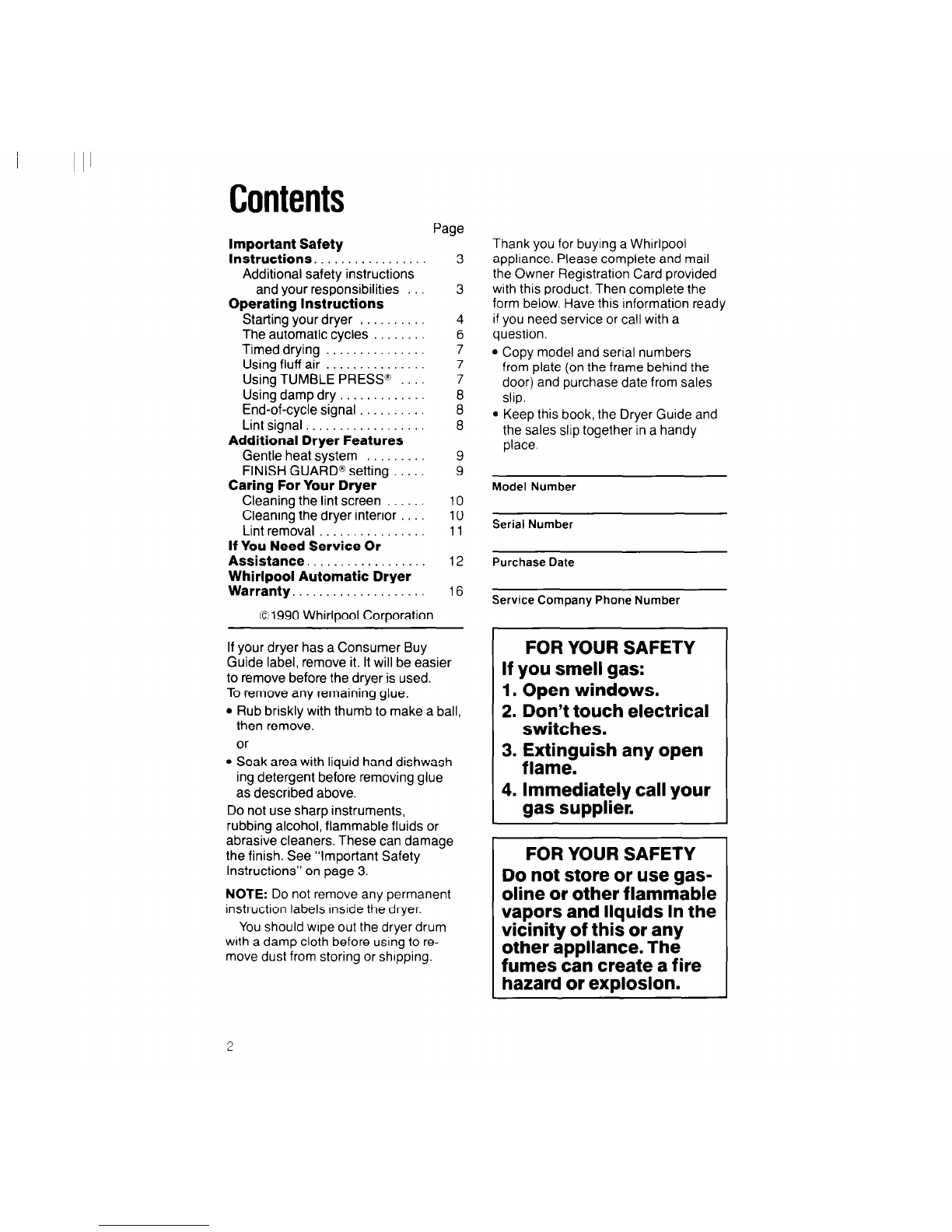

Contents
Page
Important Safety
Instructions.
Additional safety instructions
and your responsibilities
Operating Instructions
Starting your dryer
The automatic cycles .
Timed drying .
Using fluff air
Using TUMBLE PRESS@
Using damp dry
End-of-cycle signal
Lint signal.. .
Additional Dryer Features
Gentle heat system
FINISH GUARD@ setting
Caring For Your Dryer

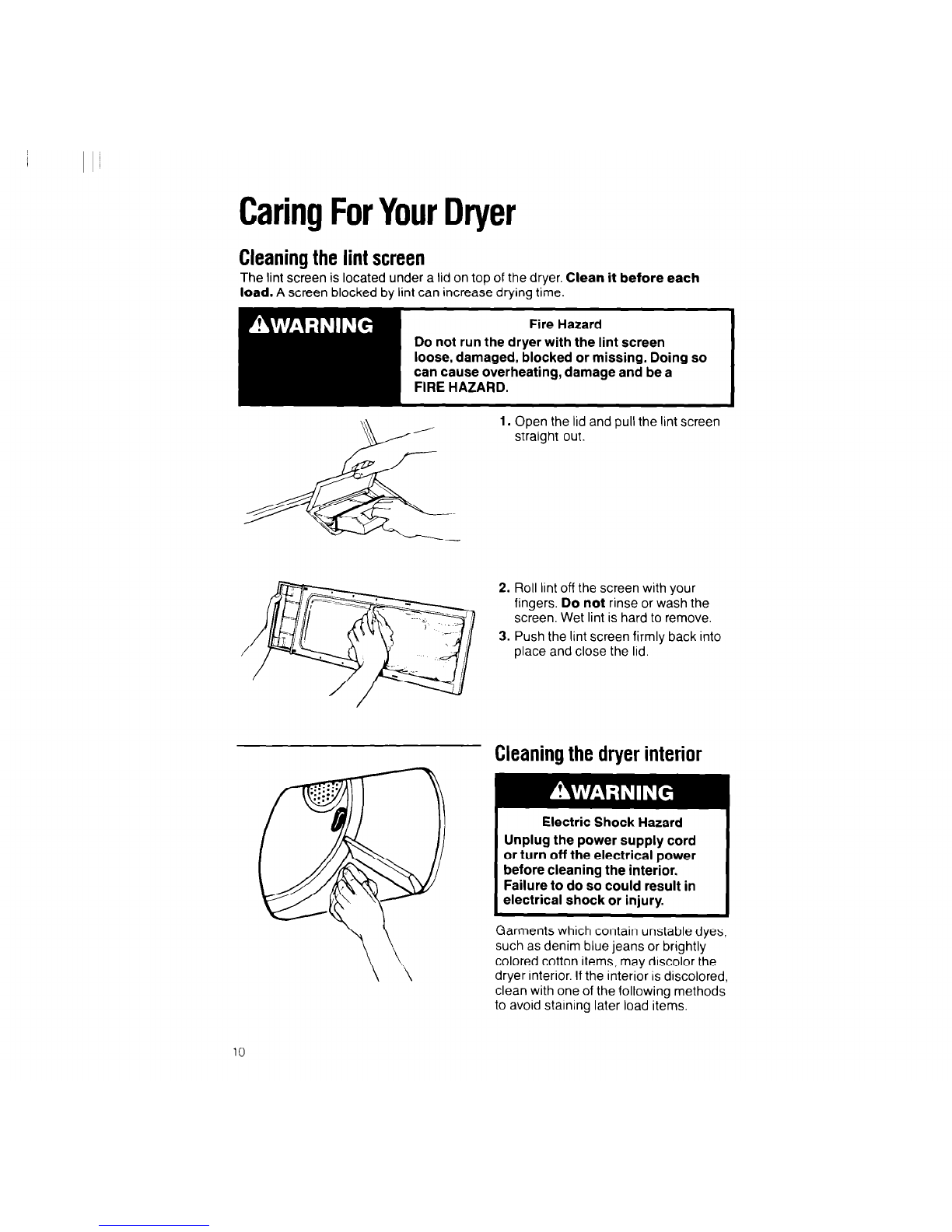

Cleaning the lint screen
Cleaning the dryer interior

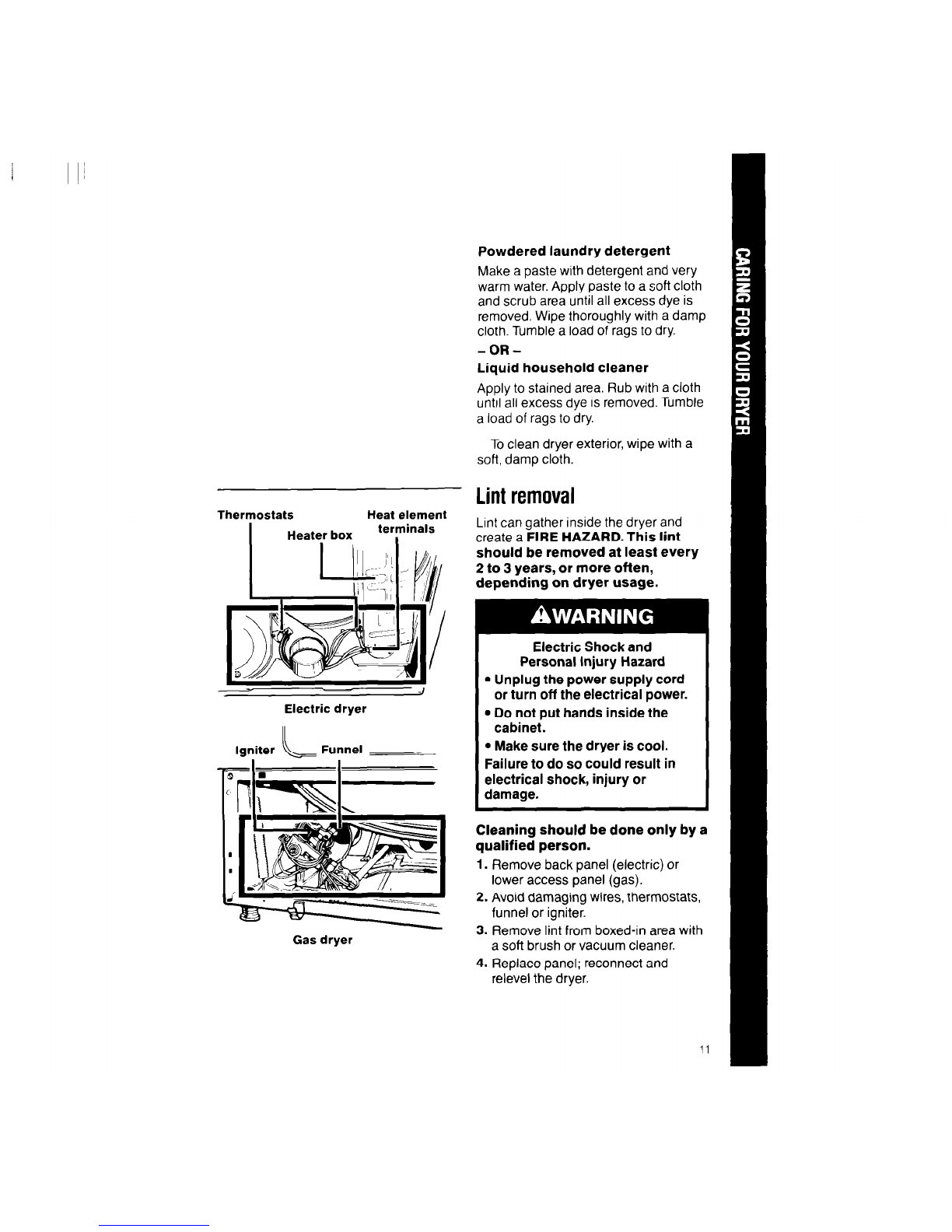

Lint removal

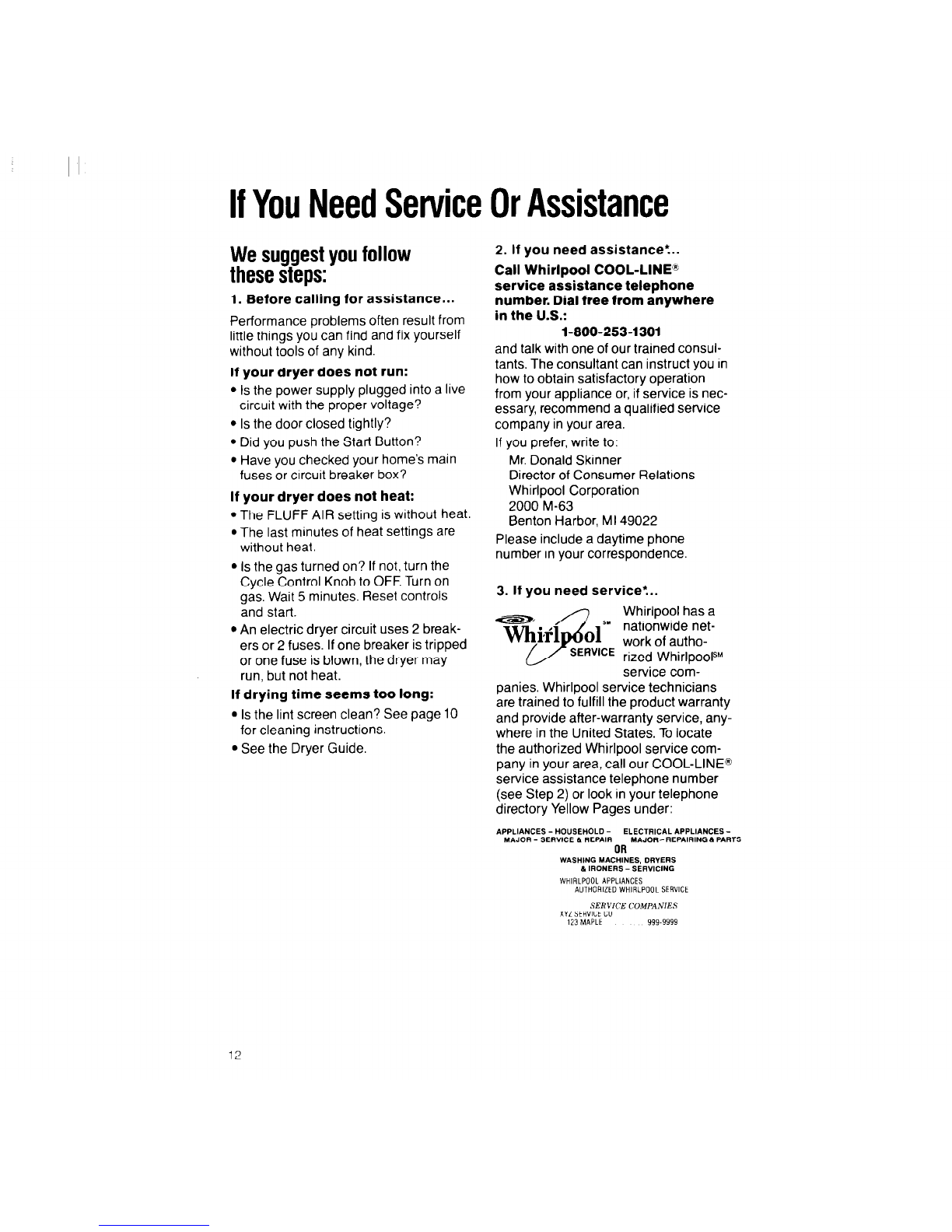

If You Need Service Or
Assistance.

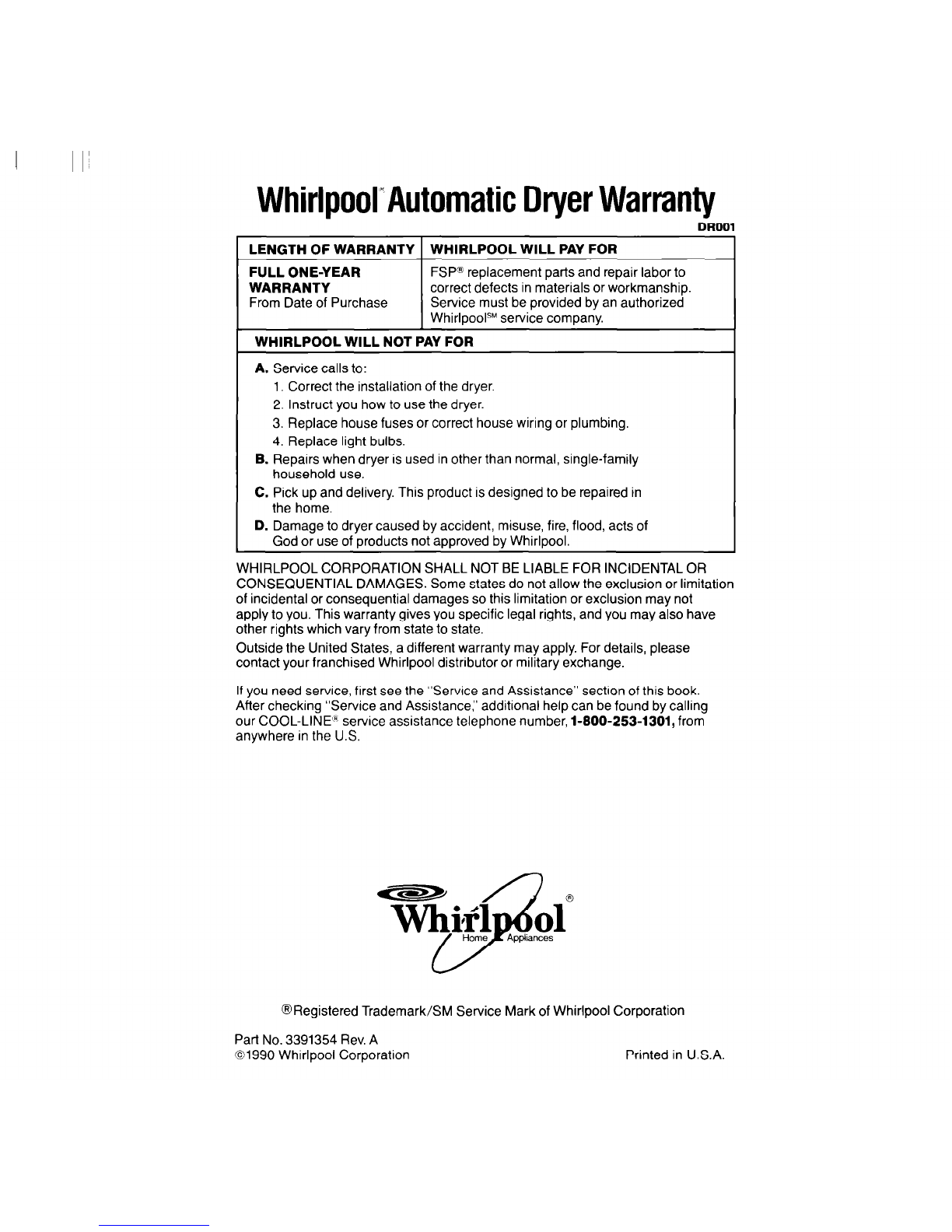

Whirlpool Automatic Dryer
Warranty....................
01990 Whirlpool Corporation
3
3
Thank you for buying a Whirlpool
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information ready
if you need service or call with a
question.
9
9
l Copy model and serial numbers
from plate (on the frame behind the
door) and purchase date from sales
slip.
l Keep this book, the Dryer Guide and
the sales slip together in a handy
place.
Model Number
10
10
11
Serial Number
12
Purchase Date
16 Service Company Phone Number
If your dryer has a Consumer Buy
Guide label, remove it. It will be easier
to remove before the dryer is used.
To remove any remaining glue:
l Rub briskly with thumb to make a ball,
then remove.
or
l Soak area with liquid hand dishwash-
ing detergent before removing glue
as described above.
Do not use sharp instruments,
rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage
the finish. See “Important Safety
Instructions” on page 3.
NOTE: Do not remove any permanent
instruction labels Inside the dryer.
You should wipe out the dryer drum
with a damp cloth before using to re-
move dust from storing or shipping.
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don’t touch electrical
switches.
3. i;zeguish any open
.
4. Immediately call your
gas supplier.
FOR YOUR SAFETY
Do not store or use gas-
oline or other flammable
vapors and liquids in the
vicinity of this or any
other appliance. The
fumes can create a fire
hazard or explosion.

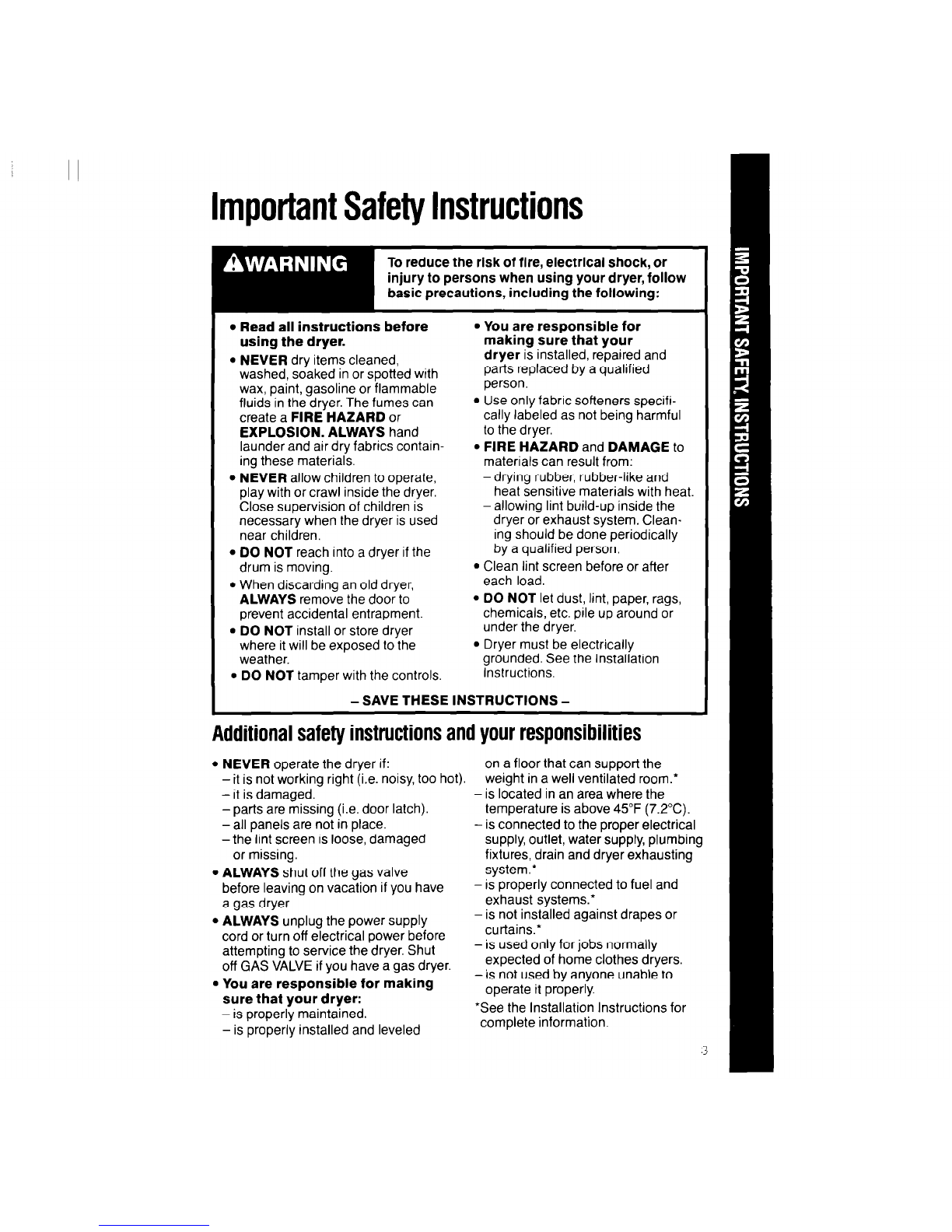

ImportantSafetyInstructions
l Read all instructions before
l You are responsible for
using the dryer. making sure that your
l NEVER dry items cleaned, dryer is installed, repaired and
washed, soaked in or spotted with parts replaced by a qualified
wax, paint, gasoline or flammable person.
fluids in the dryer. The fumes can
l Use only fabric softeners specifi-
create a FIRE HAZARD or tally labeled as not being harmful
EXPLOSION. ALWAYS hand to the dryer.
launder and air dry fabrics contain- * FIRE HAZARD and DAMAGE to
ing these materials. materials can result from:
l NEVER allow children to operate, -drying rubber, rubber-like and
play with or crawl inside the dryer. heat sensitive materials with heat.
Close supervision of children is - allowing lint build-up inside the
necessary when the dryer is used dryer or exhaust system. Clean-
near children. ing should be done periodically
l DO NOT reach into a dryer if the by a qualified person.
drum is moving.
l Clean lint screen before or after
l When discarding an old dryer, each load.
ALWAYS remove the door to
l DO NOT let dust, lint, paper, rags,
prevent accidental entrapment. chemicals, etc. pile up around or
l DO NOT install or store dryer under the dryer.
where it will be exposed to the
l Dryer must be electrically
weather. grounded. See the Installation
l DO NOT tamper with the controls. Instructions.
-SAVE THESE INSTRUCTIONS -
Additionalsafetyinstructionsandyourresponsibilities
l NEVER operate the dryer if: on a floor that can support the
-it is not working right (i.e. noisy, too hot). weight in a well ventilated room.*
- It is damaged. is located in an area where the
-parts are missing (i.e. door latch). - temperature is above 45°F (7.2%).
- all panels are not in place. - is connected to the proper electrical
-the lint screen is loose, damaged supply, outlet, water supply, plumbing
or missing. fixtures, drain and dryer exhausting
l ALWAYS shut off the gas valve system.’
before leaving on vacation if you have - is properly connected to fuel and
a gas dryer. exhaust systems.*
l ALWAYS unplug the power supply - is not installed against drapes or
cord or turn off electrical power before curtains.*
attempting to service the dryer. Shut - is used only for jobs normally
off GAS VALVE if you have a gas dryer. expected of home clothes dryers.
l You are responsible for making -is not used by anyone unable to
sure that your dryer: operate it properly.
- is properly maintained. ‘See the Installation Instructions for
- is properly installed and leveled complete information.
,3

i I

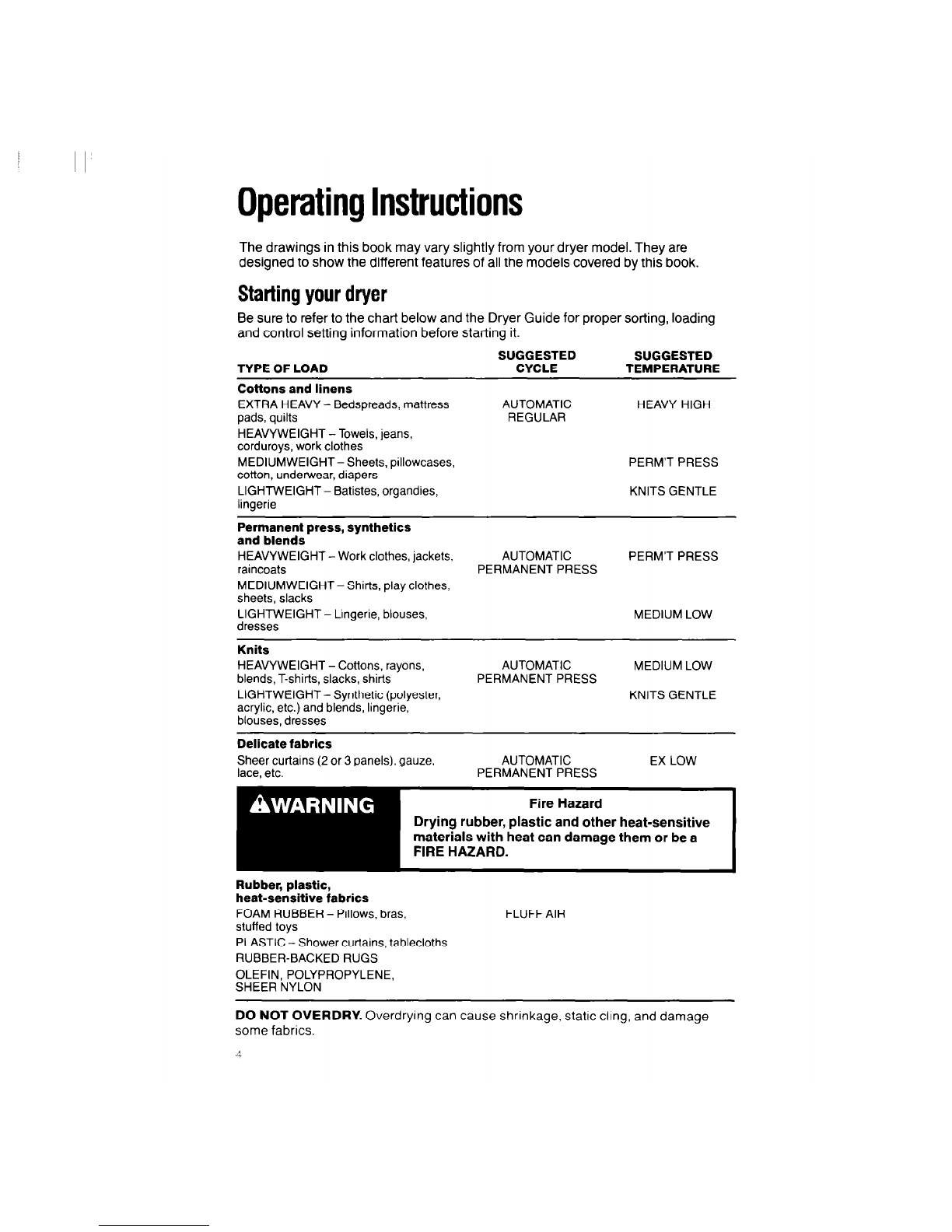

OperatingInstructions
The drawings in this book may vary slightly from your dryer model. They are
designed to show the different features of all the models covered by this book.
Startingyourdryer
Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading
and control setting information before starting it.
TYPE OF LOAD
Cottons and linens
EXTRA HEAVY - Bedspreads, mattress
pads, quilts
HEAVYWEIGHT - Towels, jeans,
corduroys, work clothes
MEDIUMWEIGHT- Sheets, pillowcases,
cotton, underwear, diapers
LIGHTWEIGHT - Batistes, organdies,
lingerie
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
AUTOMATIC HEAVY HIGH
REGULAR
PERM’T PRESS
KNITS GENTLE
Permanent press, synthetics
and blends
HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC PERM’T PRESS
raincoats PERMANENT PRESS
MEDIUMWEIGHT - Shirts, play clothes,
sheets, slacks
LIGHTWEIGHT - Lingerie, blouses, MEDIUM LOW
dresses
Knits
HEAVYWEIGHT - Cottons, rayons,
blends, T-shins, slacks, shirts
LIGHTWEIGHT - Synthetic (polyester,
acrylic, etc.) and blends, lingerie,
blouses, dresses
AUTOMATIC MEDIUM LOW
PERMANENT PRESS KNITS GENTLE
Delicate fabrics
Sheer curtains (2 or 3 panels), gauze,
lace, etc. AUTOMATIC EX LOW
PERMANENT PRESS
Rubber, plastic,
heat-sensitive fabrics
FOAM RUBBER - Pillows, bras,
stuffed toys
PLASTIC - Shower curtains, tablecloths
RUBBER-BACKED RUGS
OLEFIN, POLYPROPYLENE,
SHEER NYLON
FLUFF AIR
DO NOT OVERDRY. Overdrying can cause shrinkage, static cling. and damage
some fabrics.

II

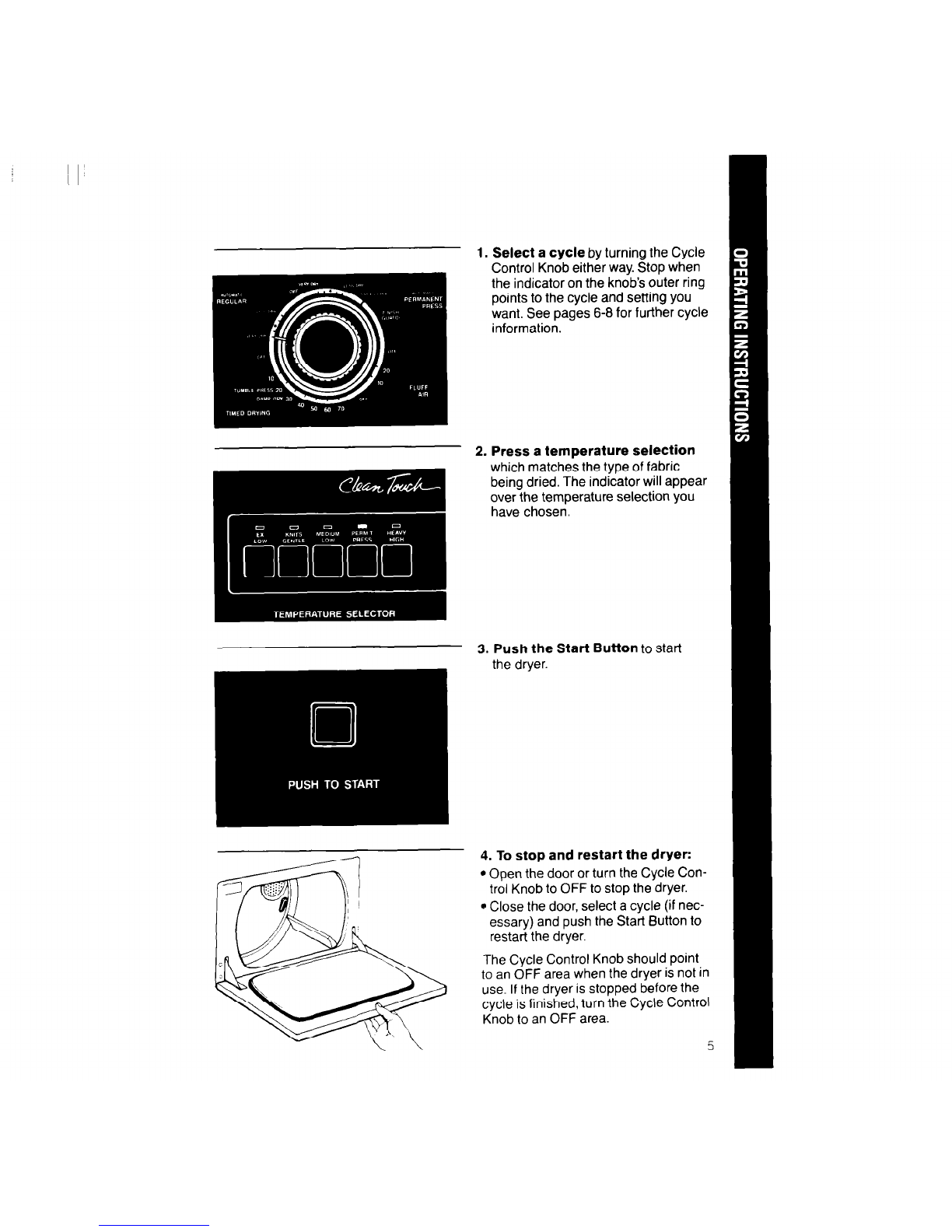

1. Select a cycle by turning the Cycle
Control Knob either way. Stop when
the indicator on the knob’s outer ring
points to the cycle and setting you
want. See pages 6-8 for further cycle
information.
2. Press a temperature selection
which matches the type of fabric
being dried. The indicator will appear
over the temperature selection you
have chosen.
3. Push the Start Button to start
the dryer.
4. To stop and restart the dryer:
l Open the door or turn the Cycle Con-
trol Knob to OFF to stop the dryer.
0 Close the door, select a cycle (if nec-
essary) and push the Start Button to
restart the dryer.
The Cycle Control Knob should point
to an OFF area when the dryer is not in
use. If the dryer is stopped before the
cycle is finished, turn the Cycle Control
Knob to an OFF area.
5

Operating Instructions
Continued

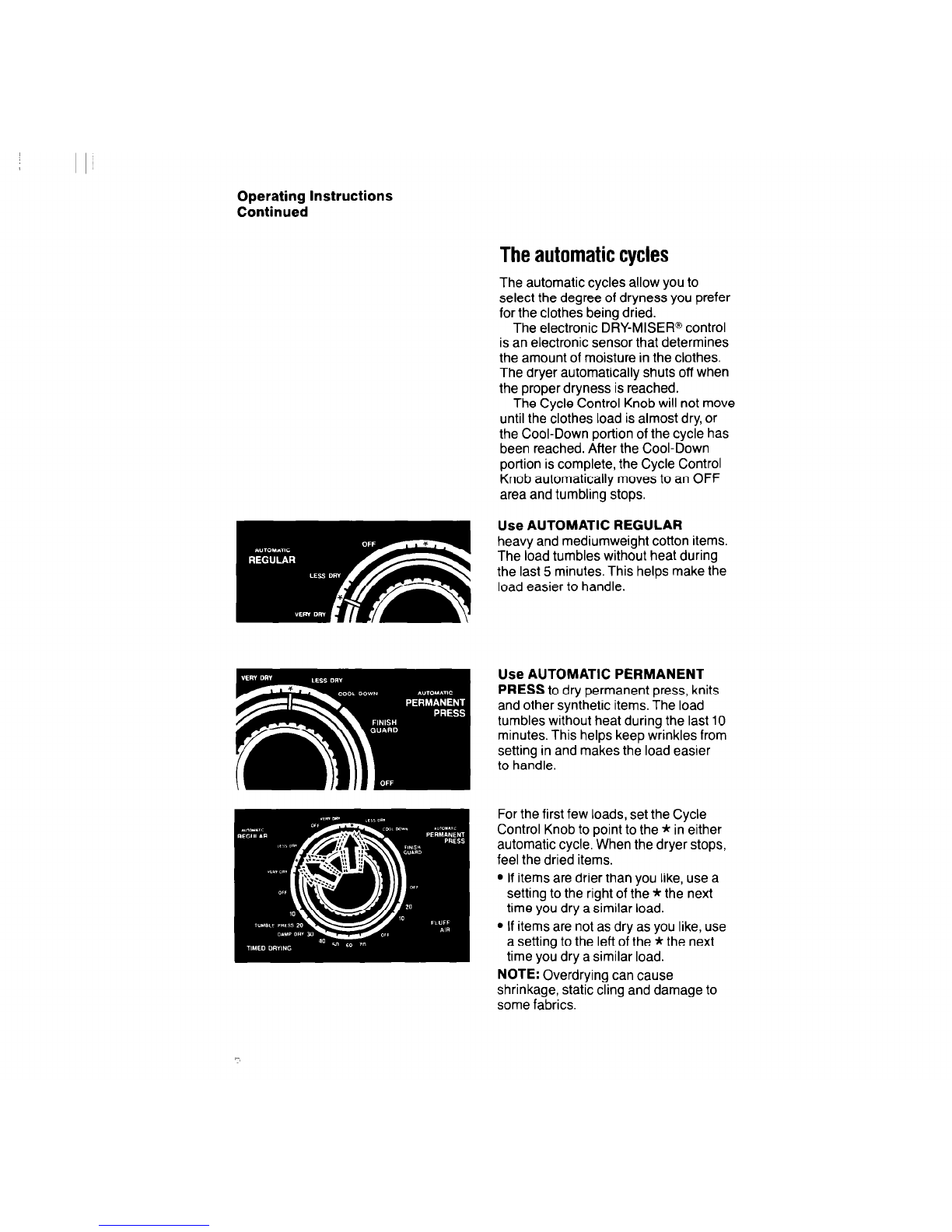

Theautomaticcycles
The automatic cycles allow you to
select the degree of dryness you prefer
for the clothes being dried.
The electronic DRY-MISER@ control
is an electronic sensor that determines
the amount of moisture in the clothes.
The dryer automatically shuts off when
the proper dryness is reached.
The Cycle Control Knob will not move
until the clothes load is almost dry, or
the Cool-Down portion of the cycle has
been reached. After the Cool-Down
portion is complete, the Cycle Control
Knob automatically moves to an OFF
area and tumbling stops.
NOTE: Overdrying can cause
shrinkage, static cling and damage to
some fabrics.

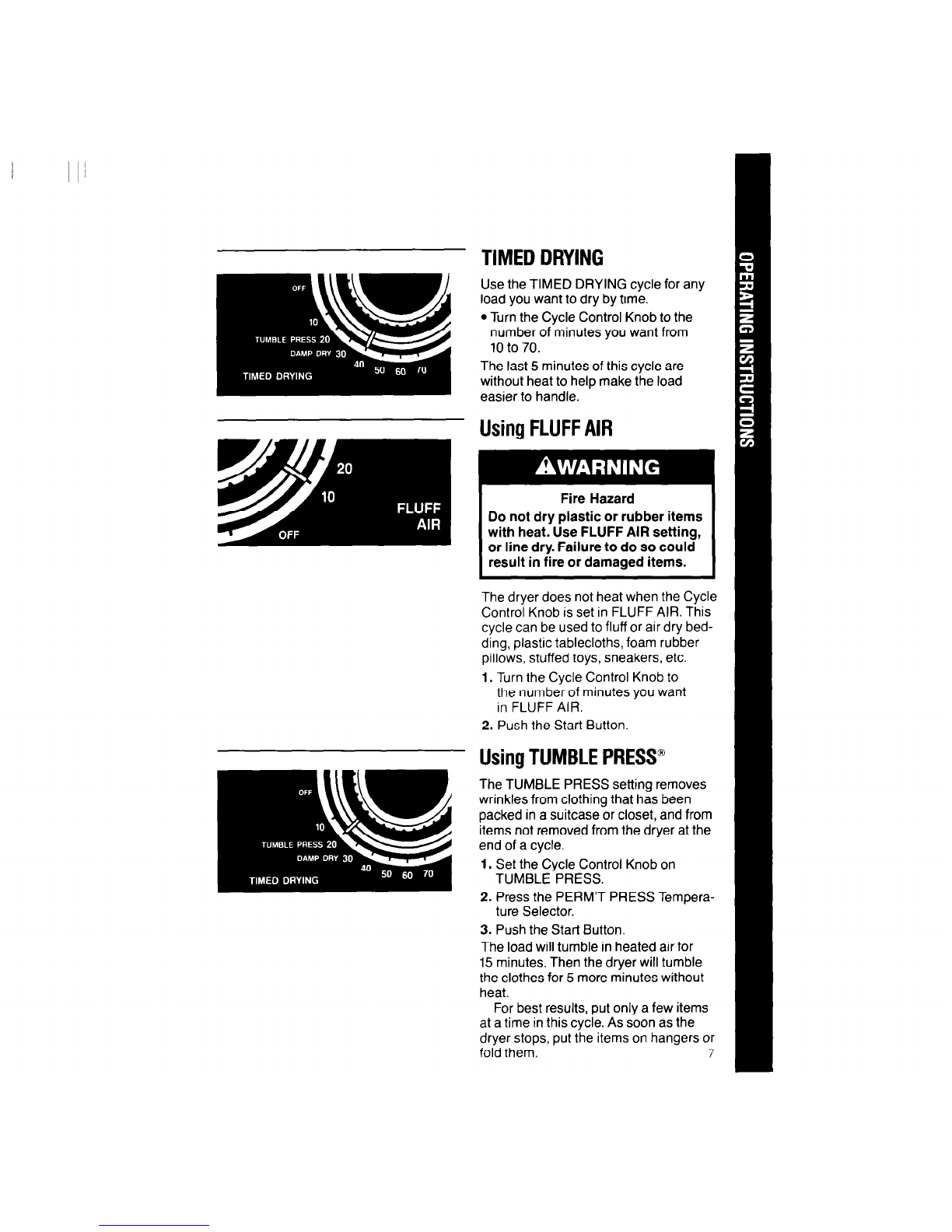

TIMEDDRYING
UsinaFLUFFAIR
Fire Hazard
Do not dry plastic or rubber items
with heat. Use FLUFF AIR setting,
or line dry. Failure to do so could
result in fire or damaged items.
The dryer does not heat when the Cycle
Control Knob is set in FLUFF AIR. This
cycle can be used to fluff or air dry bed-
ding, plastic tablecloths, foam rubber
pillows, stuffed toys, sneakers, etc.
1. Turn the Cycle Control Knob to
the number of minutes you want
in FLUFF AIR.
2. Push the Start Button.
UsingTUMBLEPRESS”
The TUMBLE PRESS setting removes
wrinkles from clothing that has been
packed in a suitcase or closet, and from
items not removed from the dryer at the
end of a cycle.
1. Set the Cycle Control Knob on
TUMBLE PRESS.
2. Press the PERM’T PRESS Tempera-
ture Selector.
3. Push the Start Button.
The load will tumble in heated air for
15 minutes. Then the dryer will tumble
the clothes for 5 more minutes without
heat.
For best results, put only a few items
at a time in this cycle. As soon as the
dryer stops, put the items on hangers or
fold them.
7

Operating Instructions
Continued
UsingDAMPDRY
Use this setting to dry damp items that
do not require an entire drying cycle, or
to dry items to damp level. (Two exam-
ples are heavy cottons, such as jeans,
which you do not want to become stiff,
or cotton clothes which are easier to
press when damp.)
1. Set the Cycle Control Knob on
DAMP DRY in the TIMED DRYING
cycle.
2. Push the Start Button.
The dryer tumbles the load with heat
for 25 minutes, then without heat for
5 minutes.
End-of-cyclesignal
The dryer sounds a signal to let you
know when the cycle is finished. The
signal can be turned on or off.
The signal is helpful when you are
drying permanent press, synthetics and
other items that should be taken out as
soon as the dryer stops. To use the
Cycle Signal:
l Press the Cycle Signal ON pad before
a cycle starts. The ON indicator will
show. The signal will sound when the
cycle is finished.
l If no signal is desired, press the Cycle
Signal OFF pad. Make sure the OFF
indicator is showing.
Lintsignal
Clean the lint screen before each
load. If you neglect to clean your lint
screen, a signal will sound. The (whistle
tone) signal lets you know the air flow is
being restricted. Restricted air flow
reduces drying efficiency.
Turn off the dryer and clean the lint
screen as shown on page 10.

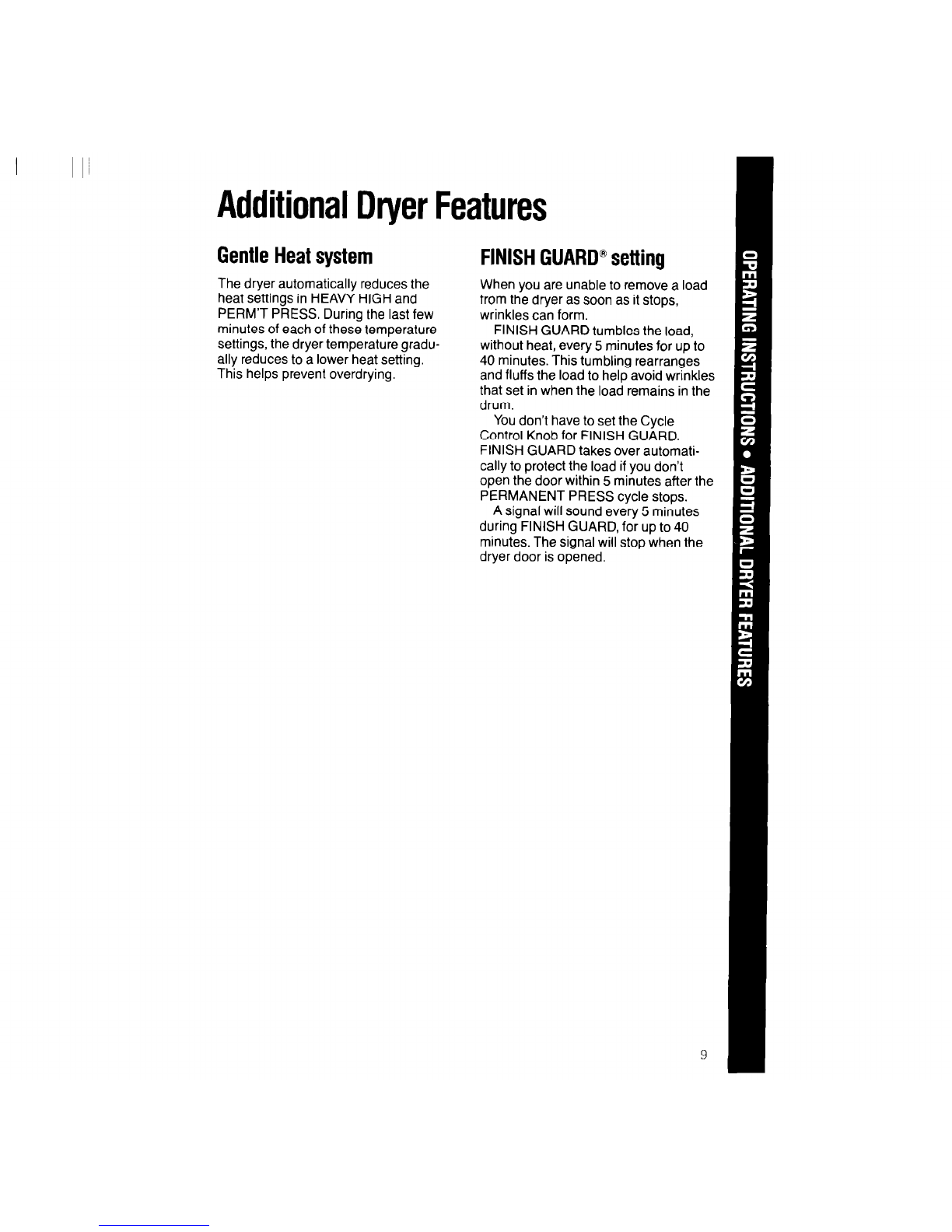

AdditionalDryerFeatures
GentleHeatsystem FINISHGUARD@setting
The dryer automatically reduces the
heat settings in HEAVY HIGH and
PERM’T PRESS, During the last few
minutes of each of these temperature
settings, the dryer temperature gradu-
ally reduces to a lower heat setting.
This helps prevent overdrying.
When you are unable to remove a load
from the dryer as soon as it stops,
wrinkles can form.
FINISH GUARD tumbles the load,
without heat, every 5 minutes for up to
40 minutes. This tumbling rearranges
and fluffs the load to help avoid wrinkles
that set in when the load remains in the
drum.
You don’t have to set the Cycle
Control Knob for FINISH GUARD.
FINISH GUARD takes over automati-
cally to protect the load if you don’t
open the door within 5 minutes after the
PERMANENT PRESS cycle stops.
A signal will sound every 5 minutes
during FINISH GUARD, for up to 40
minutes. The signal will stop when the
dryer door is opened.

CaringForYourDryer
Cleaningthelint screen
The lint screen is located under a lid on top of the dryer. Clean it before each
load. A screen blocked by lint can increase drying time.
1. Open the lid and pull the lint screen
straight out.
2. Roll lint off the screen with your
fingers. Do not rinse or wash the
screen. Wet lint is hard to remove.
3. Push the lint screen firmly back into
place and close the lid.
\ \
Cleaningthedryerinterior
Electric Shock Hazard
Unplug the power supply cord
or turn off the electrical power
before cleaning the interior.
Failure to do so could result in
electrical shock or injury.
Garments which contain unstable dyes,
such as denim blue jeans or brightly
colored cotton items, may discolor the
dryer interior. If the interior is discolored,
clean with one of the following methods
to avoid staining later load items.
10

Powdered laundry detergent
Make a paste with detergent and very
warm water. Apply paste to a soft cloth
and scrub area until all excess dye is
removed. Wipe thoroughly with a damp
cloth. Tumble a load of rags to dry.
-OR-
Liquid household cleaner
Apply to stained area. Rub with a cloth
until all excess dye is removed. Tumble
a load of rags to dry.
To clean dryer exterior, wipe with a
soft, damp cloth.
Lintremoval
Thermostats Heat element
I _
Heater box terminals Lint can gather inside the dryer and
I create a FIRE HAZARD. This lint
should be removed at least every
2 to 3 years, or more often,
depending on dryer usage.
Electric Shock and
Personal Injury Hazard
l Unplug the power supply cord
or turn off the electrical Dower.
Electric dryer
l Do not put hands inside the
L
cabinet.
Igniter Funnel ~-
l Make sure the dryer is cool.
Failure to do so could result in
electrical shock, injury or
damage.
Cleaning should be done only by a
qualified person.
1. Remove back panel (electric) or
lower access panel (gas).
2. Avoid damaging wires, thermostats,
funnel or igniter.
Gas dryer 3. Remove lint from boxed-in area with
a soft brush or vacuum cleaner.
4. Replace panel; reconnect and
relevel the dryer.
11

II
IfYouNeedServiceOrAssistance
Wesuggestyoufollow
thesesteps:
1. Before calling for assistance...
Performance problems often result from
little things you can find and fix yourself
without tools of any kind.
If your dryer does not run:
l Is the power supply plugged into a live
circuit with the proper voltage?
l Is the door closed tightly?
l Did you push the Start Button?
l Have you checked your home’s main
fuses or circuit breaker box?
If your dryer does not heat:
l The FLUFF AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Cycle Control Knob to OFF. Turn on
gas. Wait 5 minutes. Reset controls
and start.
l An electric dryer circuit uses 2 break-
ers or 2 fuses. If one breaker is tripped
or one fuse is blown, the dryer may
run, but not heat.
If drying time seems too long:
. Is the lint screen clean? See page 10
for cleaning instructions.
l See the Dryer Guide.
2. If you need assistance:..
Call Whirlpool COOL-LINE@
service assistance telephone
number. Dial free from anywhere
in the U.S.:
1-800-2531301
and talk with one of our trained consul-
tants. The consultant can instruct you In
how to obtain satisfactory operation
from your appliance or, if service is nec-
essary, recommend a qualified service
company in your area.
If you prefer, write to:
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
Please include a daytime phone
number in your correspondence
3. If you need service’...
service com-
panies. Whirlpool service technicians
are trained to fulfill the product warranty
and provide after-warranty service, any-
where in the United States. To locate
the authorized Whirlpool service com-
pany in your area, call our COOL-LINE@
service assistance telephone number
(see Step 2) or look in your telephone
directory Yellow Pages under:
APPLIANCES-HOUSEHOLD - ELECTRlCAL AWLlANCES -
MAJOR - SERVICE L REPAIR MAJOR-REPAIRING.4 PARTS
OR
WASHING MACHINES. DRYERS
(L IRONERS - SERWClNt
WHIRLPOOL APPUANCES
AUTHORIZED WHIRLPOOL SERVICE
12

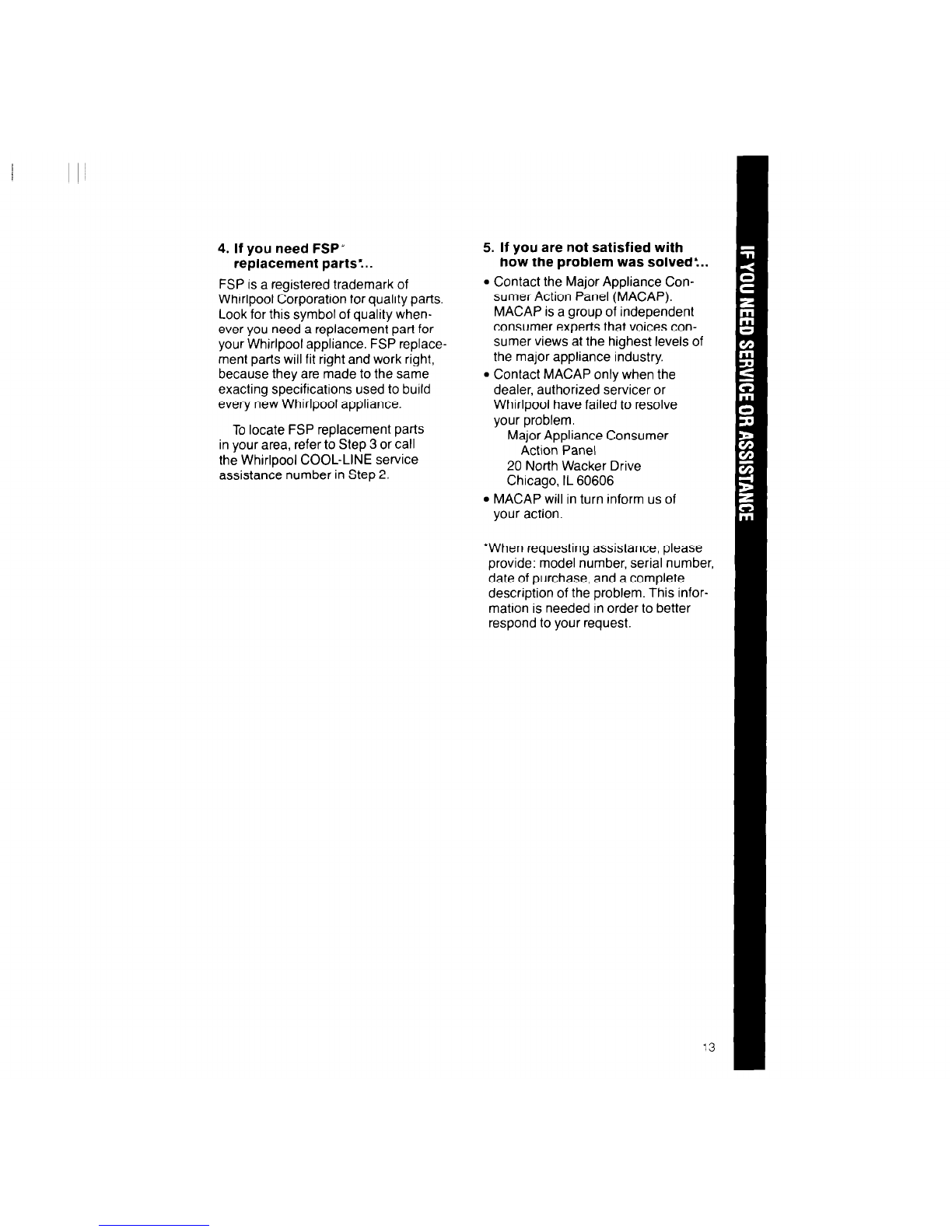

4. If you need FSP’
replacement parts’...
FSP is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of quality when-
ever you need a replacement part for
your Whirlpool appliance. FSP replace-
ment parts will fit right and work right,
because they are made to the same
exacting specifications used to build
every new Whirlpool appliance.
To locate FSP replacement parts
in your area, refer to Step 3 or call
the Whirlpool COOL-LINE set-vice
assistance number in Step 2.
5. If you are not satisfied with
how the problem was solved*...
. Contact the Major Appliance Con-
sumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices con-
sumer views at the highest levels of
the major appliance industry.
9 Contact MACAP only when the
dealer, authorized servicer or
Whirlpool have failed to resolve
your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of
your action.
‘When requesting assistance, please
provide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better
respond to your request.

I
I’

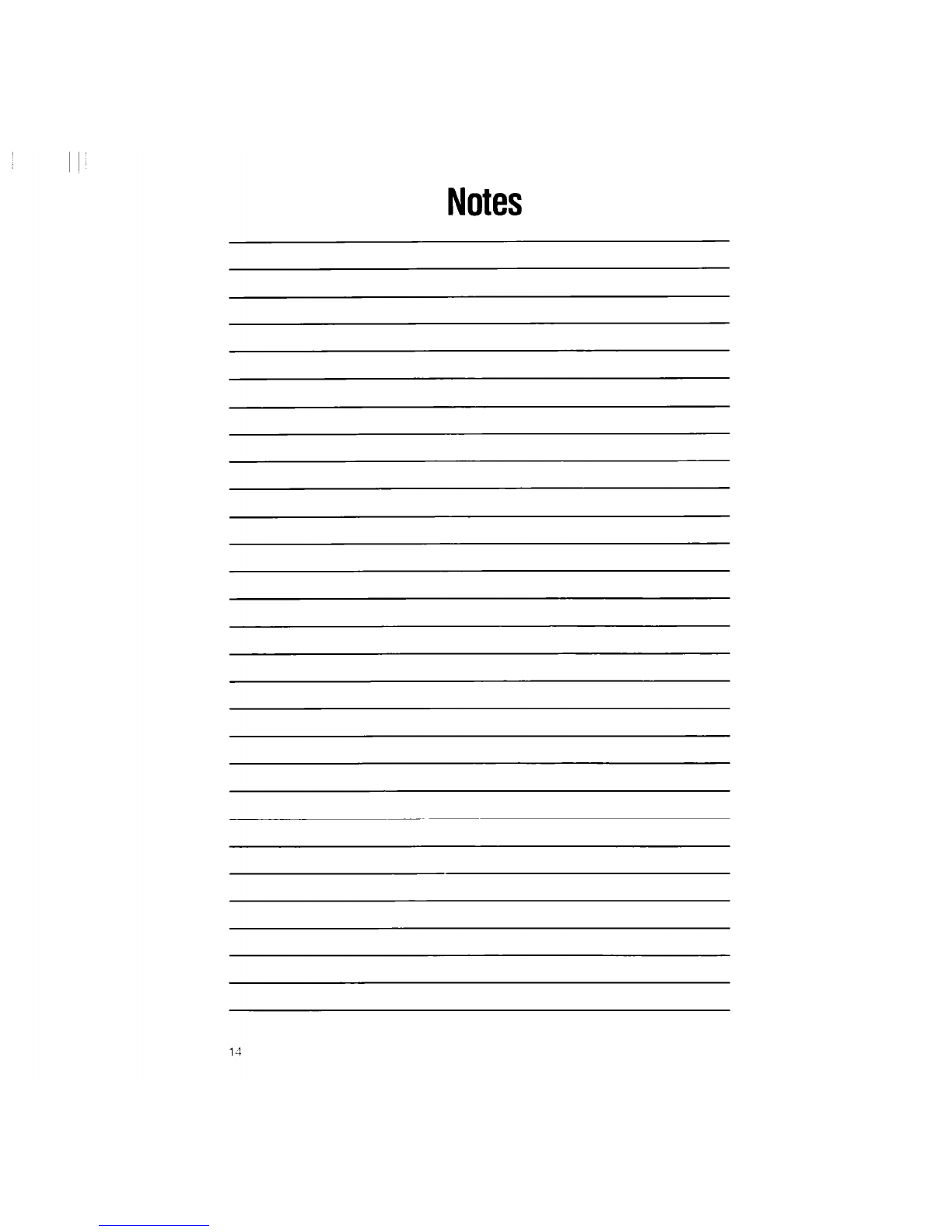

Notes
14

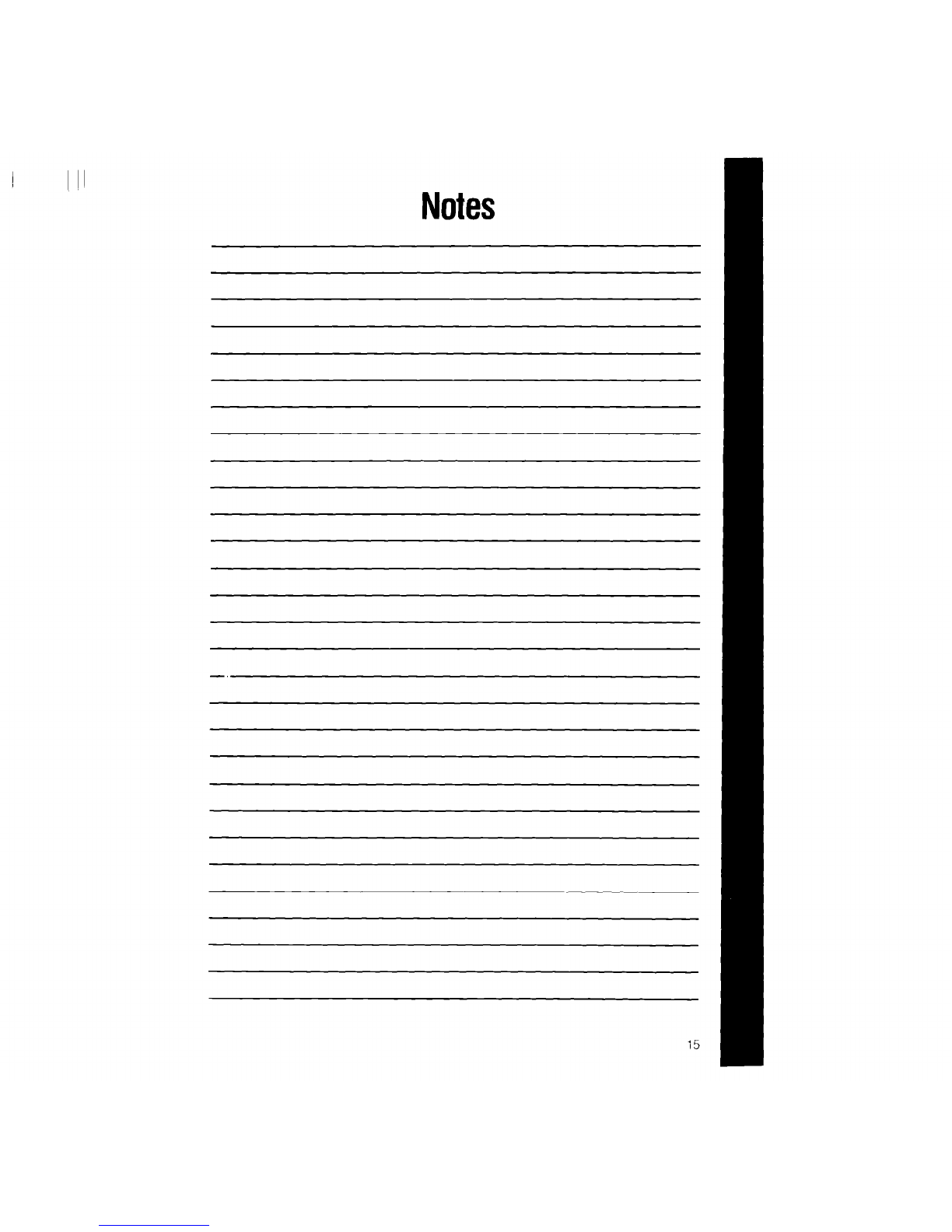

Notes
-.
15

I
I
I’
Whirlpool’AutomaticDryerWarranty
DROO
LENGTH OF WARRANTY 1 WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR FSP@ replacement parts and repair labor to
WARRANTY correct defects in materials or workmanship.
From Date of Purchase Service must be provided by an authorized
WhirlpoolSM service company.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the dryer.
2. Instruct you how to use the dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
B. Repairs when dryer is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in
the home.
D. Damage to dryer caused by accident, misuse, fire, flood, acts of
God or use of DrOdUCtS not aooroved bv WhirlDool.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation
of incidental or consequential damages so this limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
If you need service, first see the “Service and Assistance” section of this book.
After checking “Service and Assistance:’ additional help can be found by calling
our COOL-LINE@ service assistance telephone number, I-800-253-1301, from
anywhere in the U.S.
@Registered Trademark/SM Service Mark of Whirlpool Corporation
Part No. 3391354 Rev. A
01990 Whirlpool Corporation Printed in U.S.A.
