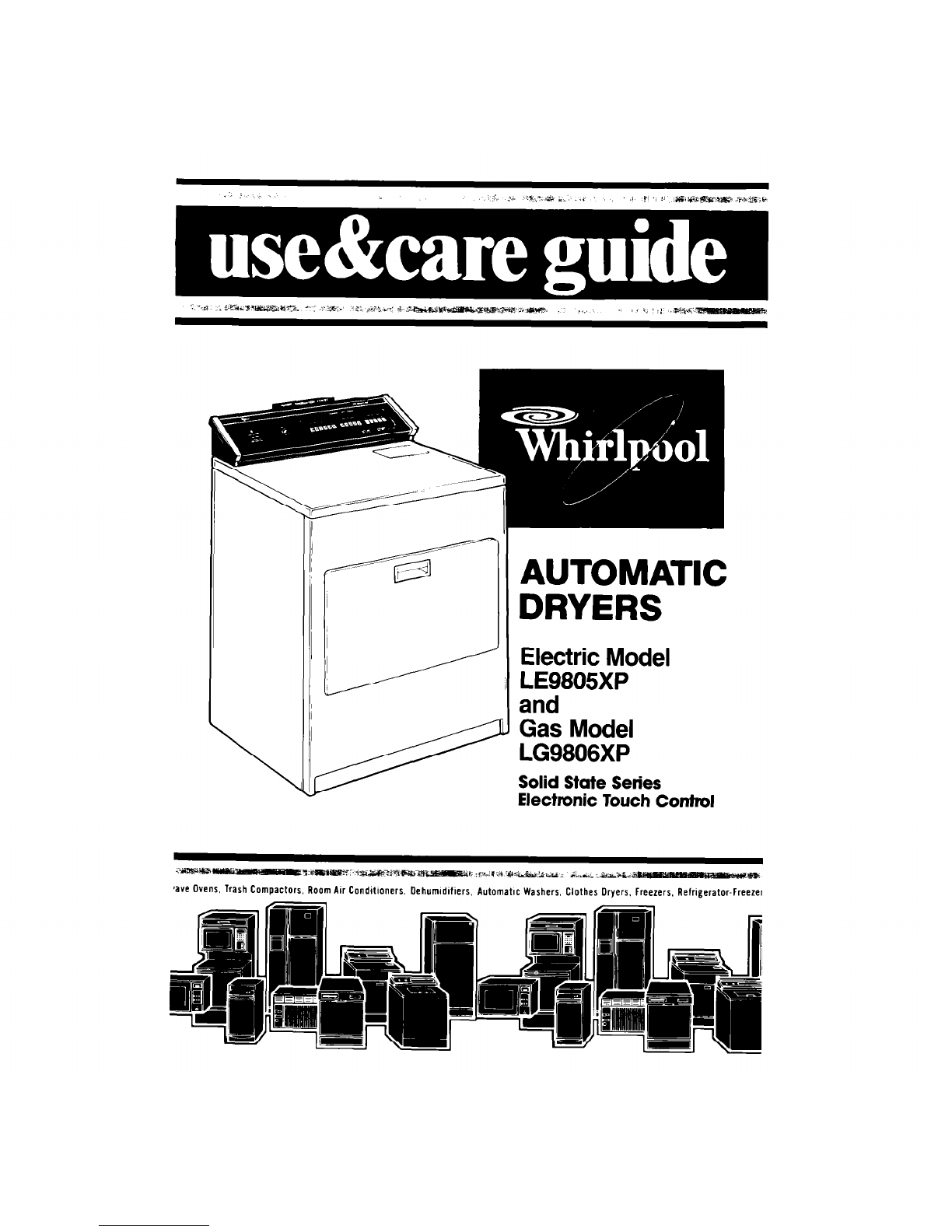

Whirlpool LE9805XP User manual

AUTOMATIC
DRYERS
Electric Model
LE9805XP
and
_ Gas Model
LG9806XP
Solid State Series
Electronic Touch Control
?aswaY 3:--Y’. i*a%yfm$*’ LscMmwAl::~-d”~ld~~~.‘~iZil iLka&
‘ave Ovens, Trash Compactors. Room Au Condltloners. Oehum~d~f~ers. Automatic Washers, Clothes Dryers. Freezers, Relrlgerator-Freezer

Parts and features
POWER LAUNDRY
ON /OFF INFORMATION CENTER
SOLID STATE ELECTRONIC
TOUCH CONTROL
LINT SCREEN
, ELECTRONIC
DRYNESS c
SENSOR
\
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Cops, your Model and Serial Numbers here
When you need service or call with a
questlon, have this InformatIon ready
Complete Model Number
1. Complete Model and Serial Numbers
(from-the plate located as shown)
2. Purchase date from sales slop
Complete Serlol Number
Copy this InformatIon in these spaces
Keep this book, your warranty, sales slip Purchase Date
and “Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer Se,v,ce Company and
console Telephone Number
There IS no warranty reglstratlon to return Proof-of-purchase ISall
that IS required for In-warranty service
Contents
Page
PARTS AND FEATURES. 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST. 3
STARTING YOUR DRYER AND
SELECTING A CYCLE 4
OPERATING INSTRUCTIONS 6
CUSTOM DRY Controls 6
TIMED DRY Controls 6
FINISH GUARD” Control 7
DRYING TIPS.. . 7
FLUFFAIR Setting 7
TUMBLE PRES&etting 7
Drying Times 8
Mixed Loads 8
End-of-Cycle Signal 8
Lint Signal ...
Using the Drying Rack
LINT SCREEN.
LINT REMOVAL.

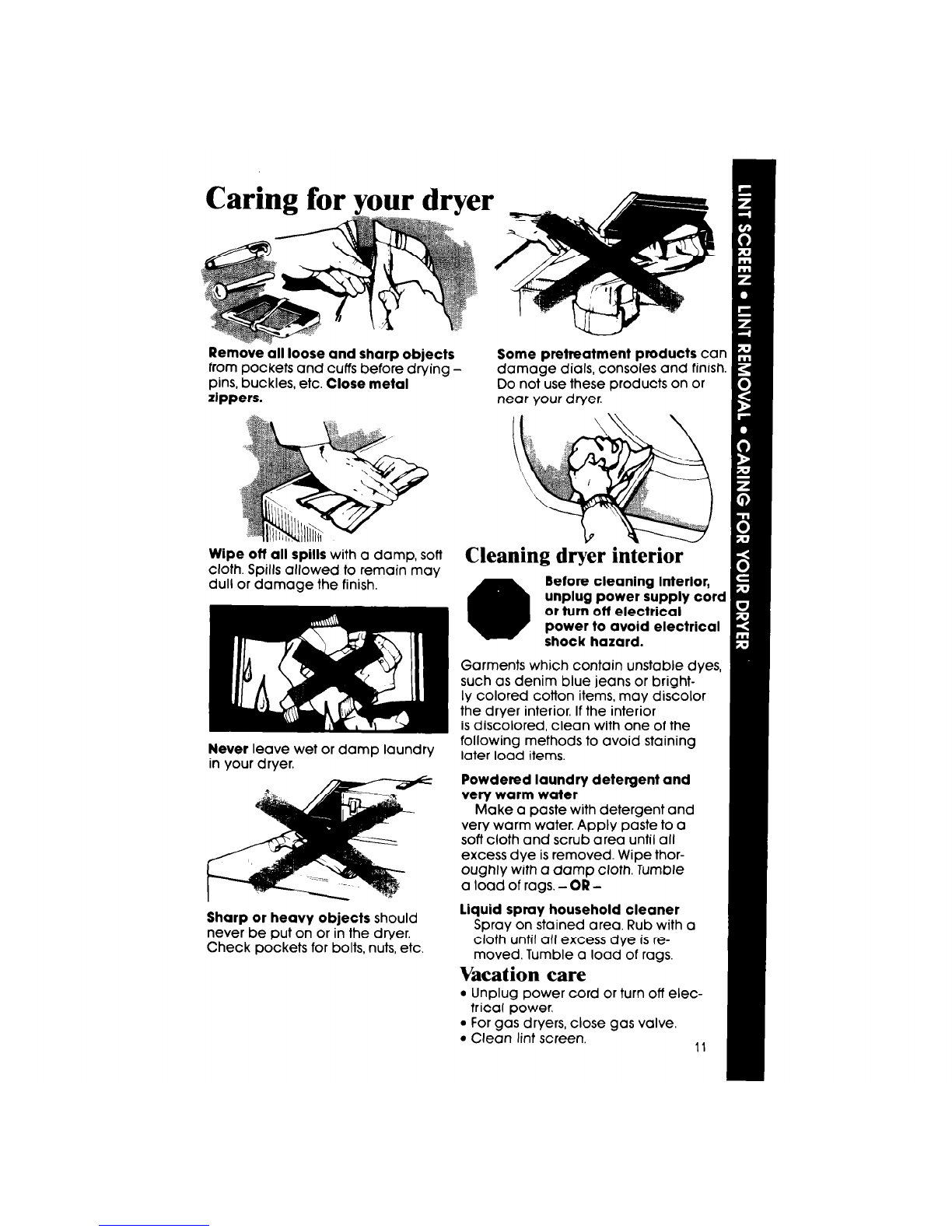

CARING FOR YOUR DRYER.
Cleaning Dryer Interior
Vacation Care

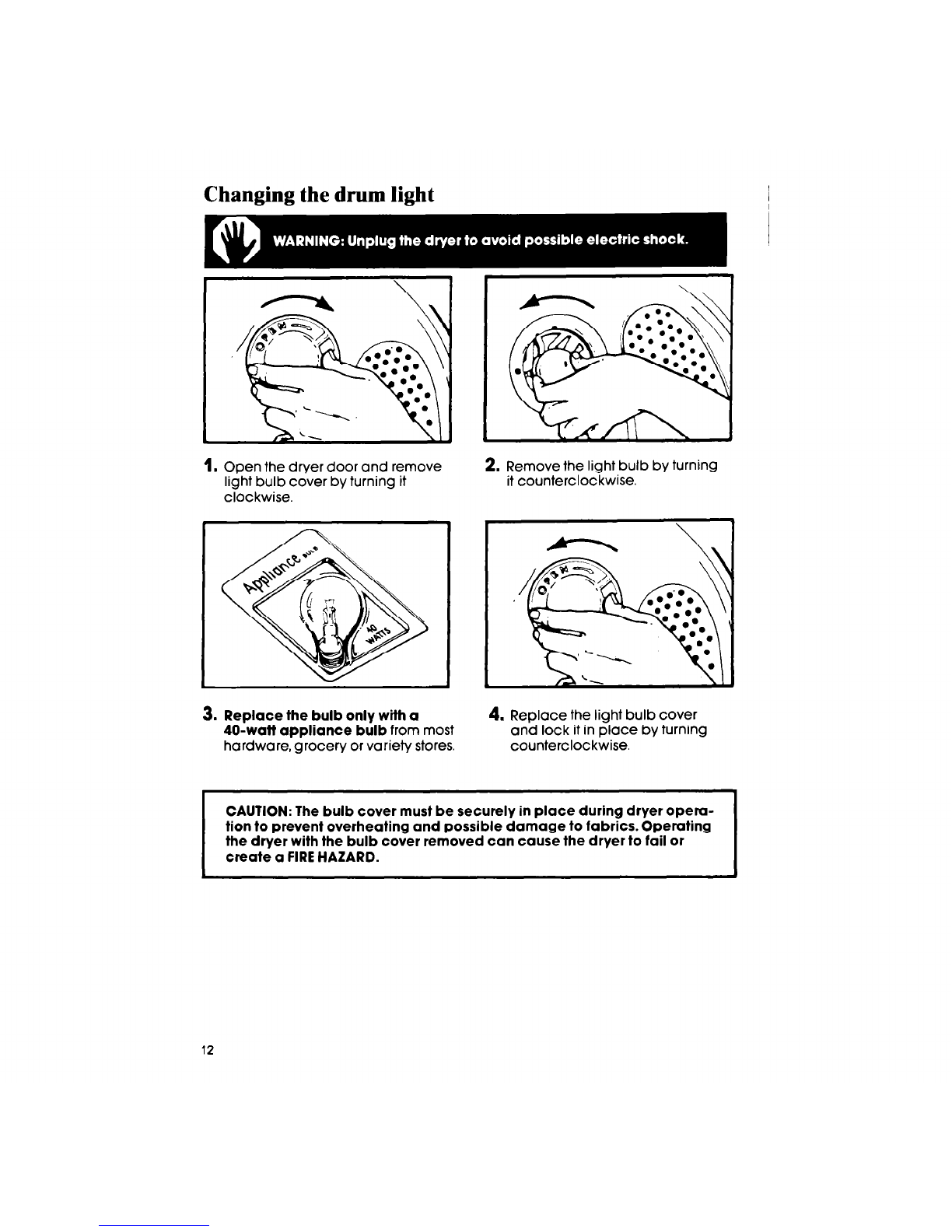

Changing the Drum Light
IF YOU NEED SERVICE OR
ASSISTANCE.
I. Before Calling for
Assistance .
2. If You Need Assistance
3. If You Need Service
4. If You Have a Problem
Page
8
9
10
10
11
11
11
12
13
13
13
14
14
! 01985 Whirlpool Corporation

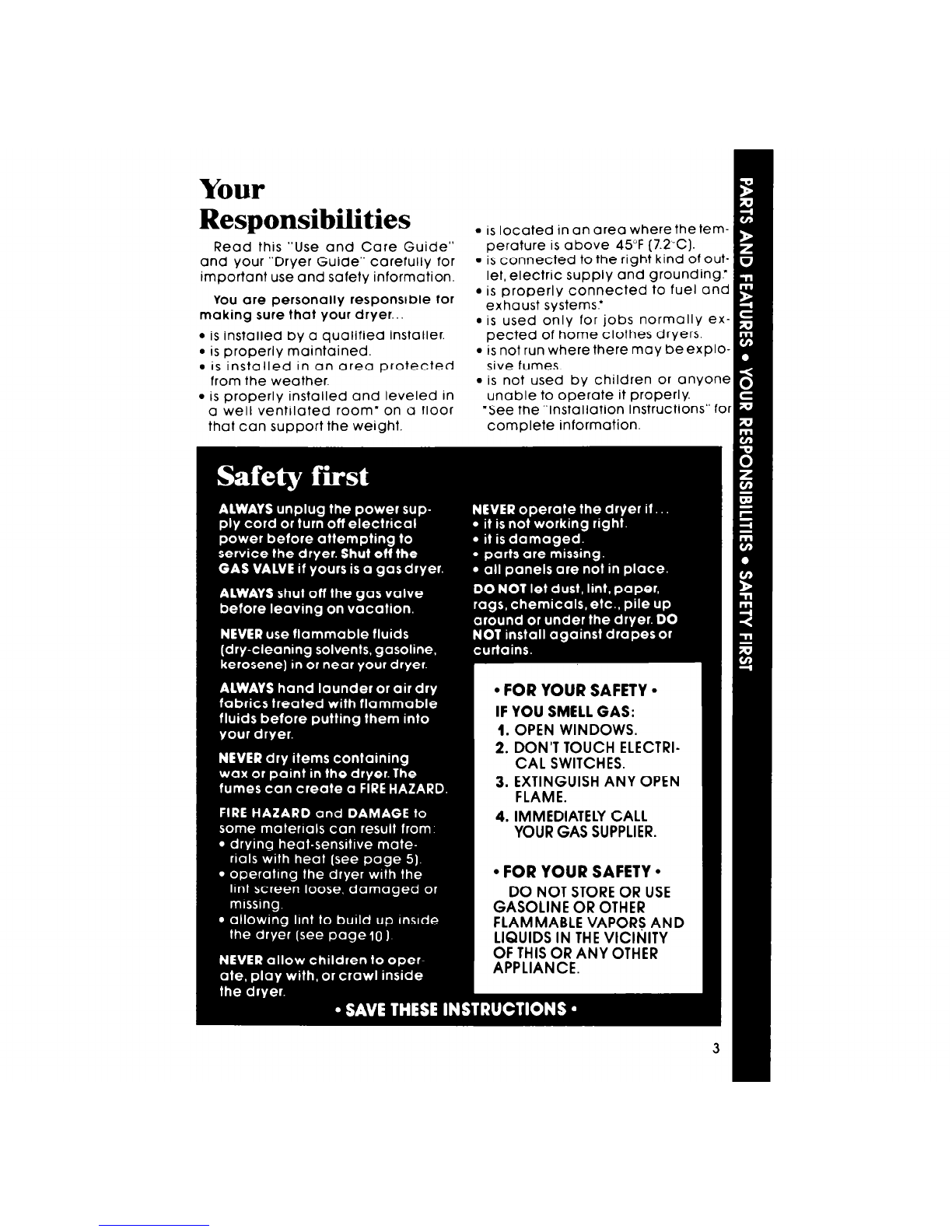

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
9 is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
l is located in an area where the tem-
perature is above 45°F (7.2’C).
l is connected to the right kind of out-
let, electric supply and grounding:
l is properly connected to fuel and
exhaust systems.’
l is used only for jobs normally ex-
pected of home clothes dryers.
l is not run where there may be explo-
.
we fumes.
Iport the weight. complete information
l FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. ;;T$$U’SH ANY OPEN
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
l FOR YOUR SAFETY l
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.
l is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for

I
Turn Touch FABRIC-TEMP
. power on
2. Selector
Move the POWER SWITCH up.
You will have 8 seconds to touch
a FABRIC-TEMP Selector.
Within 8 seconds, touch the lower
part of a FABRIC-TEMP Selector. The
dryer will not operate if you touch the
upper half of the selector.
You may change the dryer setting
at any time dunng any cycle by
touching the desired selector or
selectors.
Touch a CUSTOM DRY
3. or TIMED DRY Control
IMPORTANT: If you do not touch a
CUSTOM DRY or TIMED DRY Control,
the dryer will automatically select
NORMAL DRY.
If this is not the dryness you.like,
you must touch one of the other
dryness Controls. See page 6 of this
book for more details.
4
l To stop the dryer
1. Open the door, or...
2. Move POWER SWITCH to OFF.
l To check the load
1. Open door.
2. The dryer will remember where it
was in the cycle it you restart the
dryer within 2 minutes. Touch
selector with the blinking light to
restart.

SUGGESTED
TYPE OF LOAD FABRIC-TEMP SELECTOR
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress pads, quilts.
HEAVYWEIGHT FABRICS - Towels,
jeans, corduroys, work clothes REG
MEDIUMWEIGHT COTTONS -
Sheets, pillowcases, cotton
underwear, diapers
LIGHTWEIGHT COTTONS -‘Batrstes:
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVY
HIGH
HEAVYWEIGHT FABRICS -Work clothes,
jackets, raincoats
MEDIUMWEIGHT FABRICS - Shirts, play
clothes, sheets, slacks
LIGHTWEIGHT FABRICS - Lrngerie.
blouses, dresses
KNITS
PERMIT
PRESS
MED
HEAVYWEIGHT - Cottons, rayons,
blends T-shirts, slacks, shirts
LIGHTWEIGHT - Synthetics (polyester,
acrylic, etc.) and blends, lingerie,
blouses, dresses
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains [2 or 3 panels]
Gauze,lace,etc.
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys ,,., ,,...................
PLASTIC - Shower curtains tablecloths
RUBBER-BACKED RUGS
OLEFIN, POLYPROPYLENE, SHEER NYLON
KNITS
GENTLE
LOW
KNITS
GENTLE
LOW
FLUFF
AIR

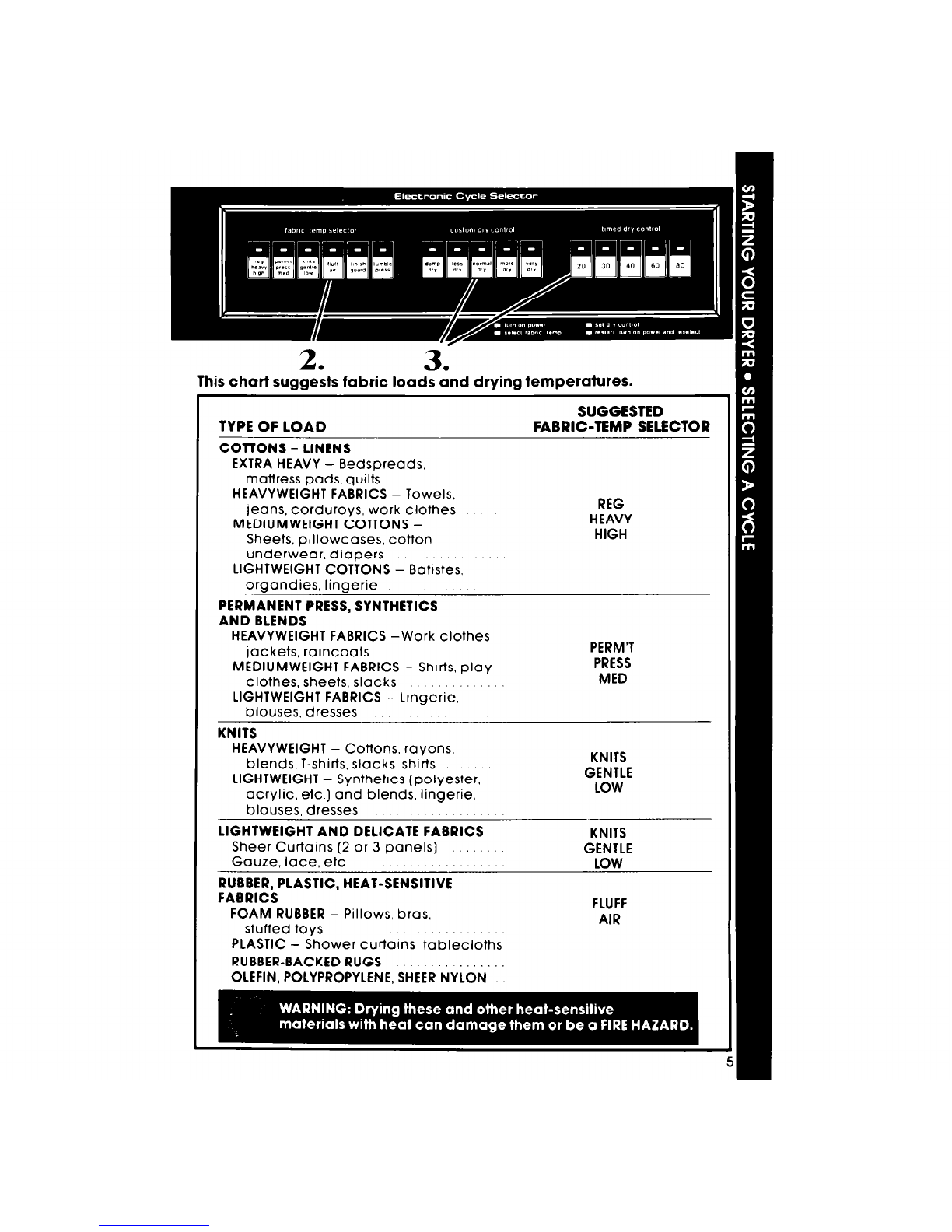

This chart suggests fabric loads and drying temperatures.

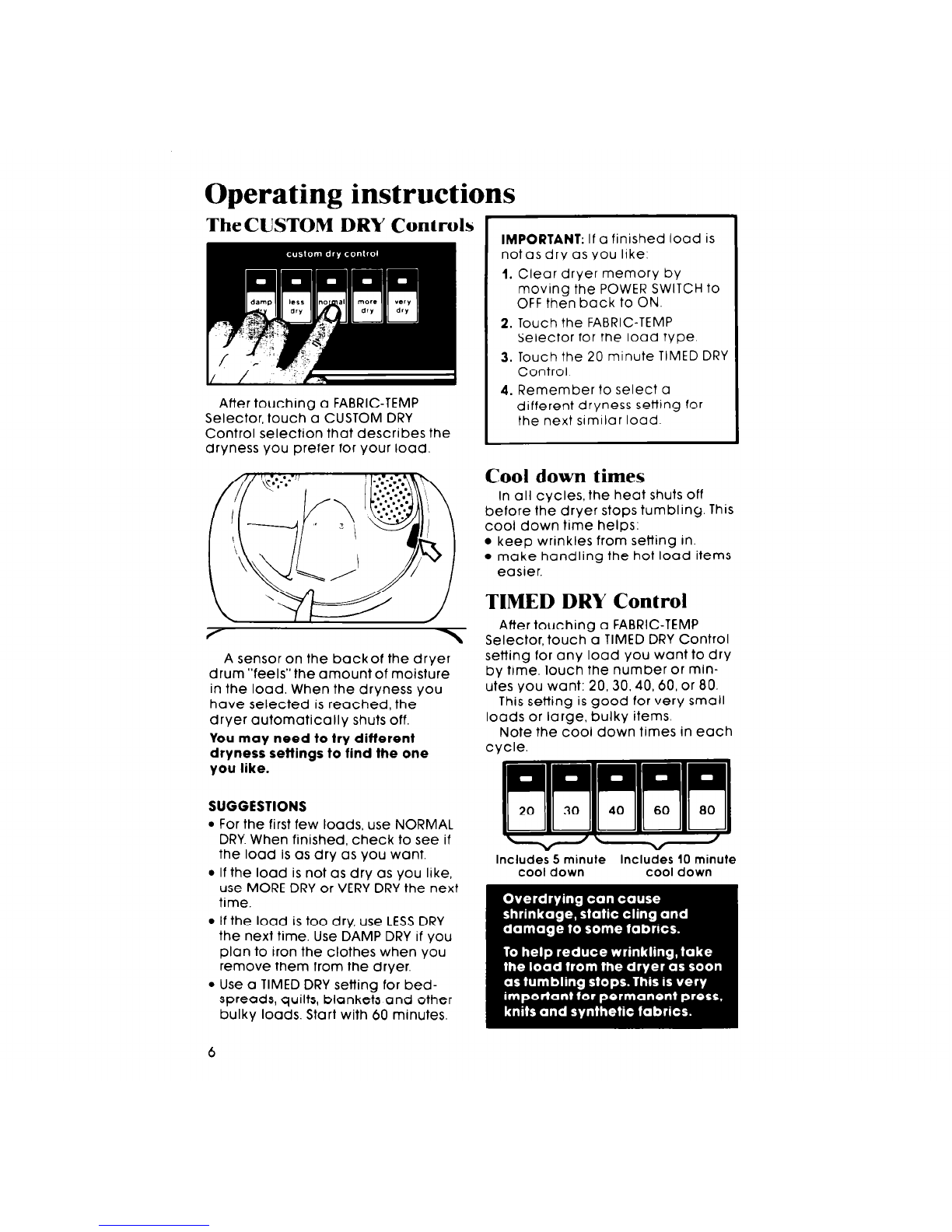

Operating instructions
TheCUSTOM DRY Controls IMPORTANT: If a finished load is
1
After touching a FABRIC-TEMP
Selector, touch a CUSTOM DRY
Control selection that describes the
dryness you prefer for your load.
/
A sensor on the backof the dryer
drum “feels” the amount of moisture
in the load. When the dryness you
have selected is reached, the
dryer automatically shuts off.
You may need to try different
dryness settings to find the one
you like.
SUGGESTIONS
l For the first few loads, use NORMAL
DRY. When finished, check to see if
the load is as dry as you want.
l If the load is not as dry as you like,
use MORE DRY or VERY DRY the next
time.
l If the load is too dry, use LESSDRY
the next time. Use DAMP DRY if you
plan to iron the clothes when you
remove them from the dryer.
l Use a TIMED DRY setting for bed-
spreads, quilts, blankets and other
bulky loads. Start with 60 minutes.
not as dry as you like:
1. Clear dryer memory by
moving the POWER SWITCH to
OFF then back to ON.
2. Touch the FABRIC-TEMP
Selector for the load type.
3. Touch the 20 minute TIMED DRY
Control
4. Remember to select a
different dryness setting for
the next similar load.
Cool down times
In all cycles, the heat shuts off
before the dryer stops tumbling. This
cool down time helps:
0 keep wrinkles from setting in.
l make handling the hot load items
easier.
TIMED DRY Control
After touching a FABRIC-TEMP
Selector, touch a TIMED DRY Control
setting for any load you want to dry
by time. Touch the number or min-
utes you want: 20,30.40,60, or 80.
This setting is good for very small
loads or large, bulky items.
Note the cool down times in each
cycle.
fli
Includes 5 minute Includes 10 minute
cool down cool down
6

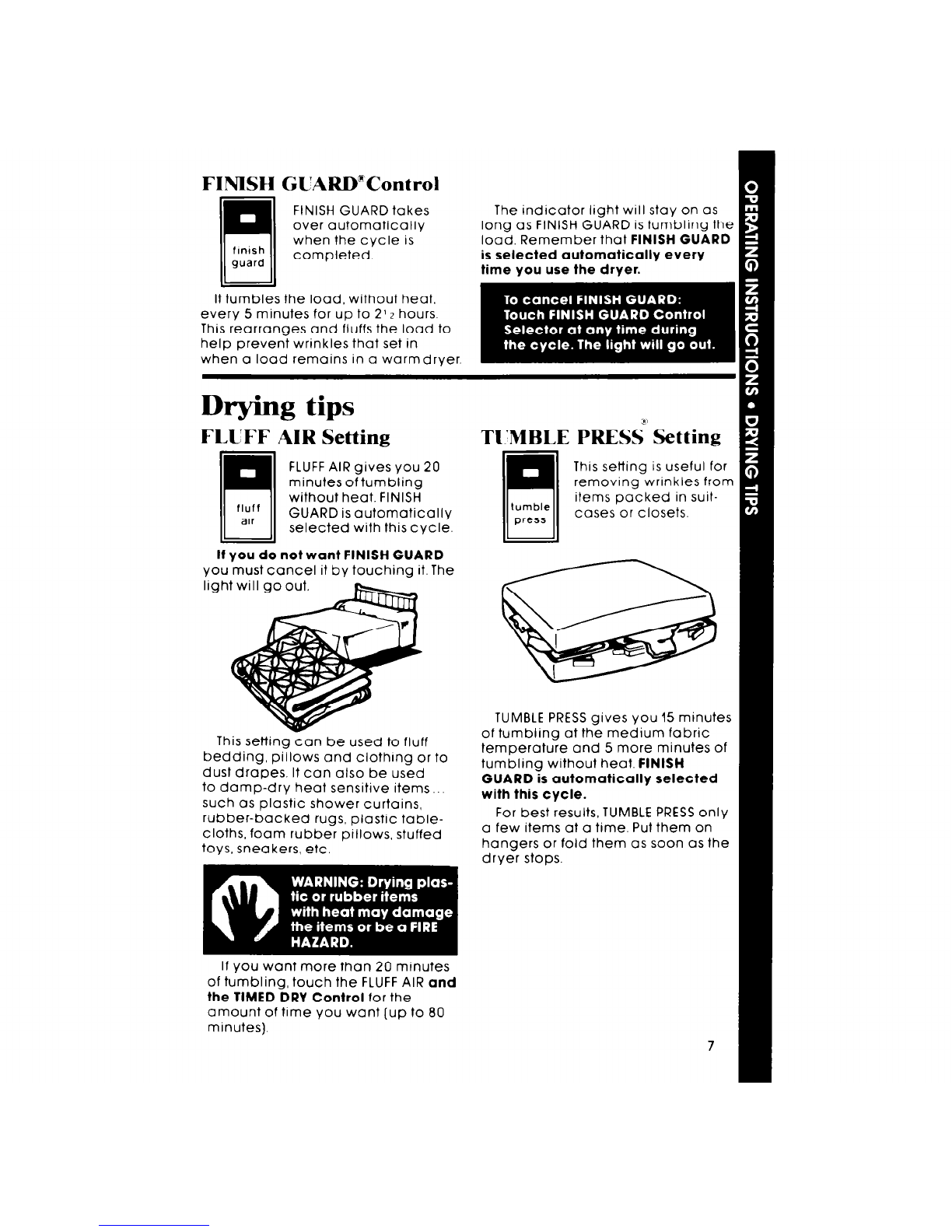

FINISH GUARD”Control
FINISH GUARD takes
11 over automatically when the cvcle is
flnlsh
II II
guard
completed:
It tumbles the load, without heat,
every 5 minutes for up to 2’2 hours.
This rearranges and fluffs the load to
help prevent wrinkles that set in
when a load remains in a warmdryer.
Drying tips
FLUFF AIR Setting
B
FLUFFAIR gives you 20
minutes of tumbling
without heat. FINISH
fluff
air GUARD is automatically
selected with this cycle.
If you do not want FINISH GUARD
you must cancel it by touching it. The
light will go out.
This setting can be used to fluff
bedding, pillows and clothrng or to
dust drapes. It can also be used
to damp-dry heat sensitive items,.
such as plastic shower curtains,
rubber-backed rugs, plastic table-
cloths, foam rubber pillows, stuffed
toys, sneakers, etc.
If you want more than 20 minutes
of tumbling, touch the FLUFF AIR and
the TIMED DRY Control for the
amount of time you want (up to 80
minutes).
The indicator light will stay on as
long as FINISH GUARD is tumbling the
load. Remember that FINISH GUARl
is selected automatically every
time you use the dryer.
TL’MBLE PRESS Setting
This setting is useful for
removing wrinkles from
items packed in suit-
cases or closets.
TUMBLE PRESS gives you 15 minutes
of tumbling at the medium fabric
temperature and 5 more minutes of
tumbling without heat. FINISH
GUARD is automatically selected
with this cycle.
For best results, TUMBLE PRESS only
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.

Drying times Mixed loads
Drying times will vary depending on:
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lint screen.
l dryer temperature selection.
See Paqe 6 in Your “Drver Guide”
for more informaiion.
End-of-cycle signal
3 P ‘/
/? \’
\
The dryer will beep 5 times to let you know
when the cycle is finished. It will also beep after
each FINISH GUARD tumbling. The signal cannot
be turned off and is not adjustable.
The signal is helpful when you ore drying per-
manent press, synthetics and other items that
should be taken out as soon as the dryer stops.
When drying a load with different
kinds and weights of fabrics, use the
setting suggested for the lightest
fabrics.
Lint signal
Clean lint screen before each load. If you
neglect to clean your lint screen, the signal will
sound. The (whistle tone] signal lets you know
the air flow is being restricted. Restricted air flow
reduces drying efficiency.
Turn off the dryer and clean the lint screen as
shown on page 10.

Using the drying rack
The drying rock lets you dry items that You may not wont to tumble; for
example, sneakers, stuffed toys, knitted wool, etc.
The rack does not move, but the drum turns. Make sure nothing hangs I
over the edges of the rack.
1. Fit rear legs of the rack into indents 3. Put wet items on top of the rock.
in bock wall of dryer. leave space between them so air
2. Lower the front so legs rest on dryer can reach all surfaces. I
opening. 4. Close the door; touch a TIMED DRY
Control selection.
Control selection
Drying time will depend on how much moisture the items hold. The following
chart suggests temperature settings for different kinds of items that might best
be rack dried.
I
To rack dry... Use Temperature setting...
Wool sweaters KNITS GENTLE /LOW
(Block to shape and lay
flat on the rack.)
Stuffed toys or pillows
(Cotton or polyester
fiber filled.)
PERM’T PRESVMED
Stuffed toys or pillows*
(Foam rubber filled) FLUFFAIR
Sneakers or canvas shoes’ FLUFFAIR
Be sure to take the rack out for normal tumble drying.
9

Lint screen
Clean the lint screen before each 1oad.A screen blocked by lint con
increase drying time and may be o FIREH
Ooen the lid and DUII the lint screen ROLL the lint off the
kreen
Lint removal
Lint con gather inside the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more often, depending on
dryer usage.
Heat Element
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING:
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
l Avoid injury or damage -do not
put hands inside cabinet.
l Make sure dryer is cool.
1. Remove bock panel (electric)
or lower access panel (gas).
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art - with Q soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.
10

Remove bll loose and sharp objects
from pockets and cuffs before drvina -
pins. buckles, etc. Close metal -
zippers.
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or
near your dryer.
Wipe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
Cleaning dryer interior
Before cleaning interior,
unplug power supply con
or turn off electrical
power to avoid electrical
shock hazard.
Garments which contain unstable dyes
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to a
soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. -OR -
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas valve.
l Clean lint screen. 11

Changing the drum light
1. Open the dryer door and remove
light bulb cover by turning it
clockwise.
2. Remove the liaht bulb by turning
it countercloc%wise.
3. Replace the bulb only with a 4. Replace the light bulb cover
40-watt appliance bulb from most and lock it in place by turning
hardware, grocery or variety stores. counterclockwise.
CAUTION: The bulb cover must be securely in place during dryer opera-
tion to prevent overheating and possible damage to fabrics. Operating
the dryer with the bulb cover removed can cause the dryer to fail or
create a FIRE HAZARD.
12

If you need service or
we suggest you follow
l. Before calling for
assistance,
these four steps:
assistance.. ’
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l If the power supply cord plugged
into a live circuit with the proper volt-
age?
l Is the door closed tightly?
l Did you touch the lower half
of a FABRIC-TEMP Selector?
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, move
POWER SWITCH to OFF.Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Is the lint screen clean?
l See page 7 of this book and page 6
of your “Dryer Guide:’
2. If you need
assistance*...
Call Whirlpool COOL-LINE r/ serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our trained Con-
sultants The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, it serv-
ice is necessary, recommend a
qualified service company in your
area. 13

3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE i
Service Compa-
nies. TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
‘If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in orderto better re-
spond to your request for assistance.
0
FSP
@J
FSP 1sa regisIered trademark
of Whirlpool Corporation for
quality parts. look for this
symbol of quality whenever
you need o replacement part
for your Whirlpool appliance.
FSP replacement parts
will fit right and work right, because they are
made lo the same exacting specifications
used to build every new Whirlpool appliance.
14

Making your world a llttle easier.
Part No. 696211
01985 Whirlpool Corporation Printed in U.S.A.
-.-L?r, j . ...,. ,:.-I a, .. ,r*- -2#qi. --5 <I ,.*j ~u~~*~ ~Lgc&&+~2,--* N r~~*&u.ji4.wni, L
nat~c Washers, Clothes Dryers, Freezers, Refngerator-Freezers. Ice Makers. Dishwashers. BullI-In Ovens and Surface Unlts, Ranges, MIC
