Whirlpool SDRY60 User manual

Model:SDRY60
SENSOR TUMBLE DRYER
OPERATION MANUAL

INSTALLATION INSTRUCTIONS
INVERTED WALL MOUNTING
STACKING INSTALLATION
INSTALL THE FLEXIBLE HOSE
TABLE OF CONTENTS
INSTALLATION INSTRUCTIONS
IDENTIFICATION OF PARTS 3
IMPORTANT SAFETY INSTRUCTIONS 1
4
5
7
10
OPERATING INSTRUCTIONS
CONTROL PANEL 11
OPERATING INSTRUCTIONS 11
CLEANING AND MAINTENANCE 14

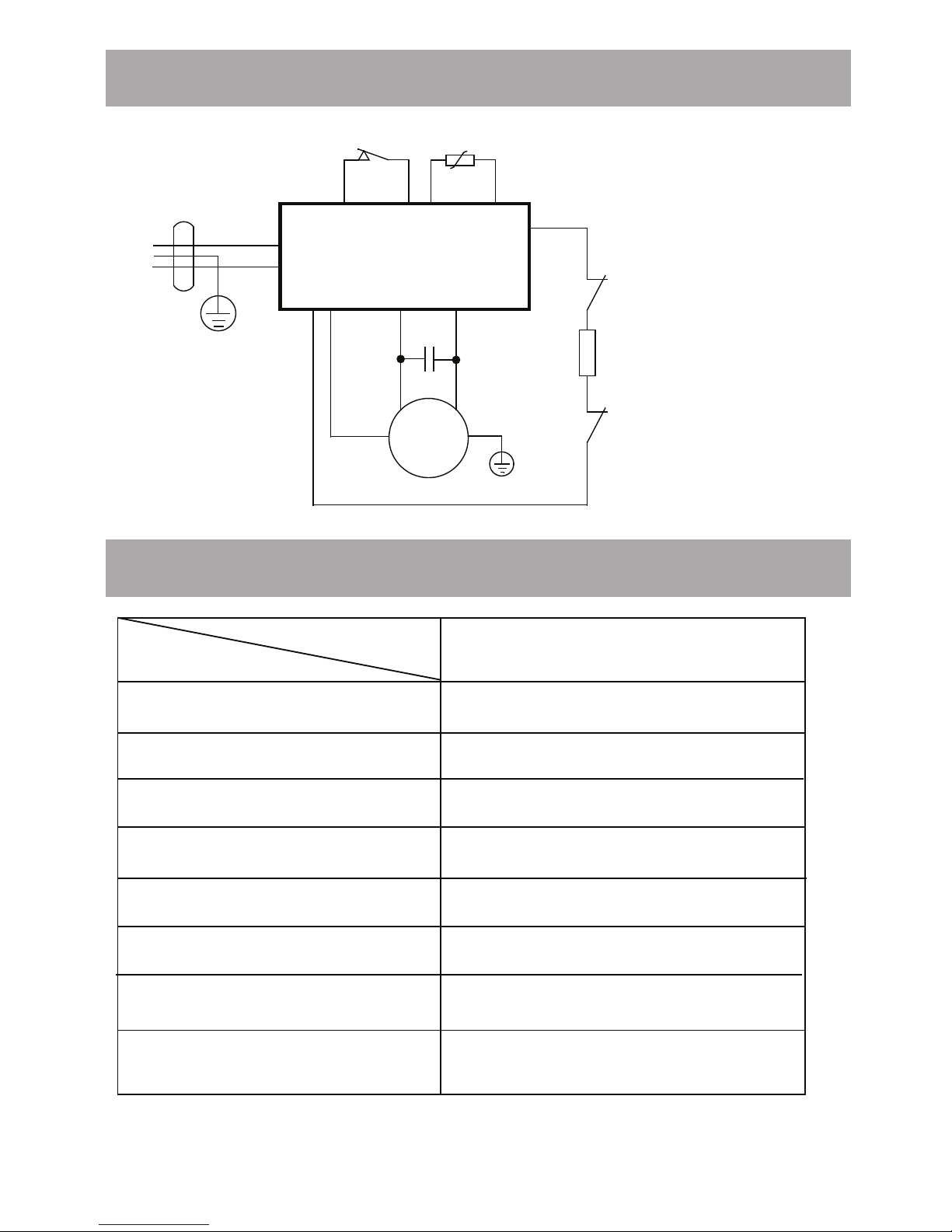

WIRING CIRCUIT 16
SPECIFICATIONS 16
TROUBLESHOOTING AND SPECIFICATIONS
TROUBLESHOOTING GUIDE 17
BEFORE USING THE DRYER PLEASE READ THE
INSTRUCTIONS
FRONT VENTING
REAR VENTING
9
9

1 Read all instructions before using this dryer.
2 The interior of the dryer should be cleaned periodically by qualified service
personnel. An excessive amount of lint build up in the interior of the dryer could
result in inefficient drying and pose a possible fire hazard.
3 The appliance must not be installed behind a lockable door, a sliding door or a door with
a hinge on the opposite side to that of the tumble dryer in such a way that a full opening
of the tumble dryer is restricted.
4 Attention - rear panel can be hot.
5 The tumble dryer should not be used if industrial chemicals have been used to
6 The dryer must only be used for its intended purpose.
7 Clean lint screen before or after each load.
8 This appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
9 Do not operate the dryer if any parts are missing or broken.
10 To avoid fire hazard or electrical shock do not use an adaptor plug or extension
cord or remove grounding prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.
11 To avoid fire hazard or electrical shock do not reach into the drum while the drum is
12 Do not attempt to modify or repair the controls.
13 The final part of a tumble dryer cycle occurs without heat (cool down cycle) to cool
items to a temperature that ensures that they will not be damaged. Never stop a
tumble dryer before the end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
14 Do not dry items that have been previously cleaned in, washed in, soaked in, or
spotted with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine,waxes and wax removers, etc. Do not store or use these items
on or in the vicinity of the dryer. Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may contribute to a chemical reaction that
could cause a load to catch fire. Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer. The items become warm,
causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fire. Piling, stacking or storing
oil-affected items can prevent heat from escaping and create a fire hazard. If it is
unavoidable that fabrics that contain vegetable or cooking oil or have been
moving. Wait until the dryer has stopped completely before reaching into the drum.
1
clean the dryer.
IMPORTANT SAFETY INSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or personal
injuries, the following basic precautions should be followed:

15 Do not dry unwashed items in the tumble dryer.
16 Fabric softeners, or similar products, should be used as specified by the fabric
softener instructions.
17 To To prevent fire, do not use heat to dry items containing plastic, foam rubber or
similarly textured rubber-like materials, or items containing feathers or down. Items
such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed
articles and clothes or pillows fitted with foam rubber pads should not be dried in the
tumble dryer.
18 This dryer must be properly installed in accordance with the installation instructions
before it is used.
19 Do not install or store this dryer where it will be exposed to water
and /or the weather. Keep surrounding areas free from the accumulation of lint, dust
and dirt.
20 To prevent shock hazard and assure stability during operation, the dryer must be
installed and electrically grounded by a qualified service person in accordance with
local codes.
21 Do not sit on top of the dryer.
22 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
23 Always disconnect dryer from electrical supply before attempting any service.
Disconnect power cord by grasping the plug, not the cord. Do not repair or replace any
part of the dryer or attempt any servicing unless specifically recommended in the
user-maintenance instructions.
24
25 Before the dryer is removed from service or discarded, remove the dryer door to
prevent accidental entrapment.
2
Caution, risk of fire - this is a safety symbol. Failure to follow the warnings
outlined in these user instructions can cause a fire hazard.
26 Remove all objects from pockets such as lighters and matches.
contaminated by hair care products be placed in a tumble dryer they should first be
washed in hot water with extra detergent - this will reduce, but not eliminate, the
hazard.
IMPORTANT SAFETY INSTRUCTIONS

Service label
3
Power supply cord
Model number
and Serial number
Back plate
Air intake grill
Control panel
Door switch
Outlet cover
Lint filter
Top panel
Door latch
Door
Read all instructions before using this dryer.
This dryer has been designed for domestic use only.
SAVE THESE INSTRUCTIONS.
This diagram may be slightly different from the layout of the dryer you have just
purchased due to technical improvements.
IDENTIFICATION OF PARTS
Warning
Exhaust grill
Door airproof strip
Program selector

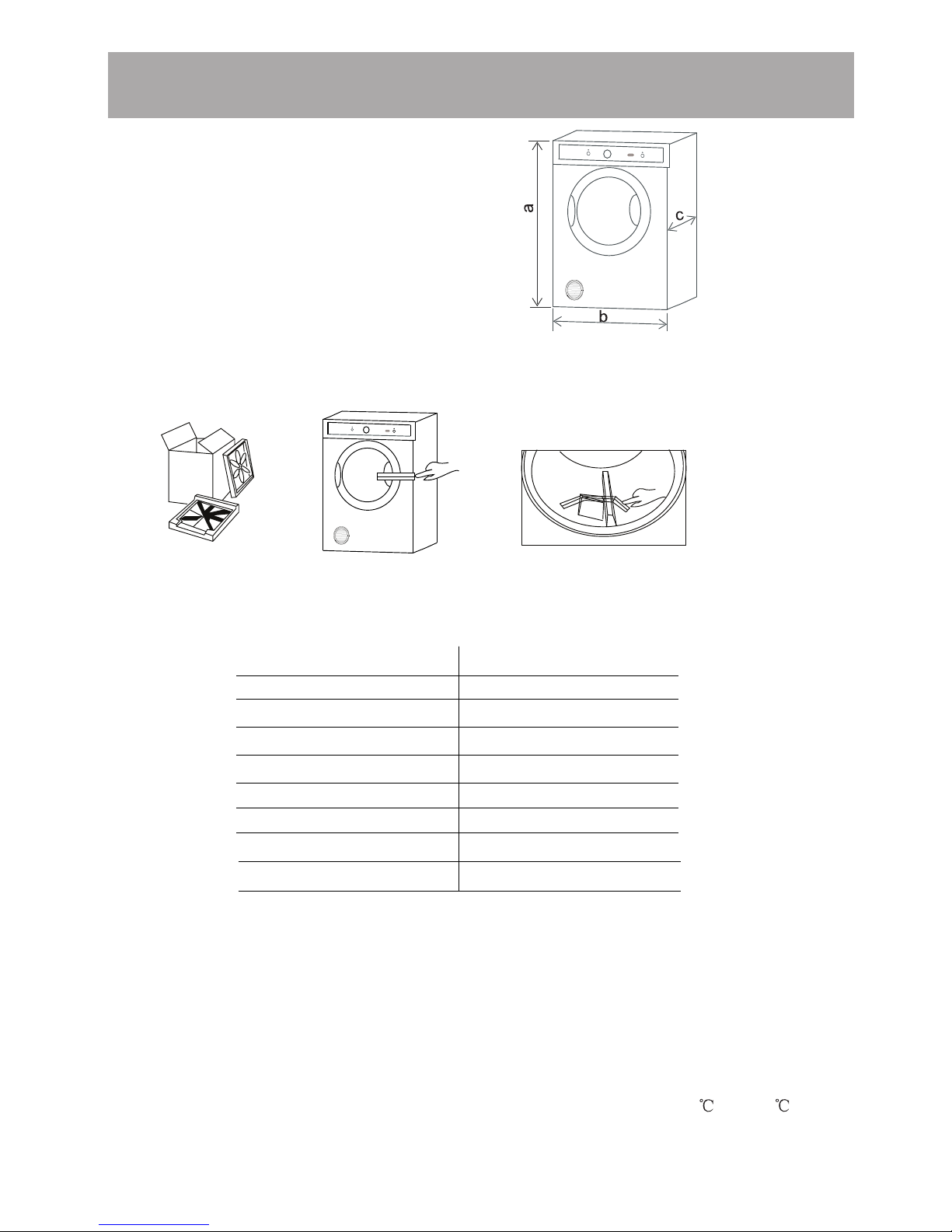

Remove the transport packaging (fig.1)
Remove the tape on the door (fig.2), the wall mounting kit and the inverted panel
film attached to the inside of the drum (fig.3) before starting the dryer.
Packing accessories
Check list of the accessories and materials provided with the machine:
To ensure the dryer operates normally, attention must be paid to the
following:
1. The rear of the dryer must not have any restriction to the intake of fresh air.
fig.1 fig.2
Dimensions
a=830 mm
b=600 mm
c=560 mm
Weight=30 kg
2. Check the dryer for any damage. If any damage is found do not operate
and contact your supplier or Whirlpool Customer Service.
3. The dryer must be kept away from flammable substances.
4. The surrounding environment must be dry and ventilated.
5. For best results, the ambient temperature should be between 10 and 35 .
4
fig.3
Name Quantity
User manual 1
Wall mounting kit 1
Inverted panel film 1
Flexible hose 1
Flexible hose clip 1
Hose connector 1
Unpacking your dryer
Stacking kit 2
Warranty card 1
INSTALLATION INSTRUCTIONS

5
Tools required
For plaster/ Drill & 3mm Bit 1
Wooden wall Philips head screwdriver
1
Wall mounting kit includes
Plastic spacers 2
Wall hanging brackets 2
Hanging hook 2
Wood screws, 12gx50mm 4
Screws for hanging hooks 6
and plastic spacers.

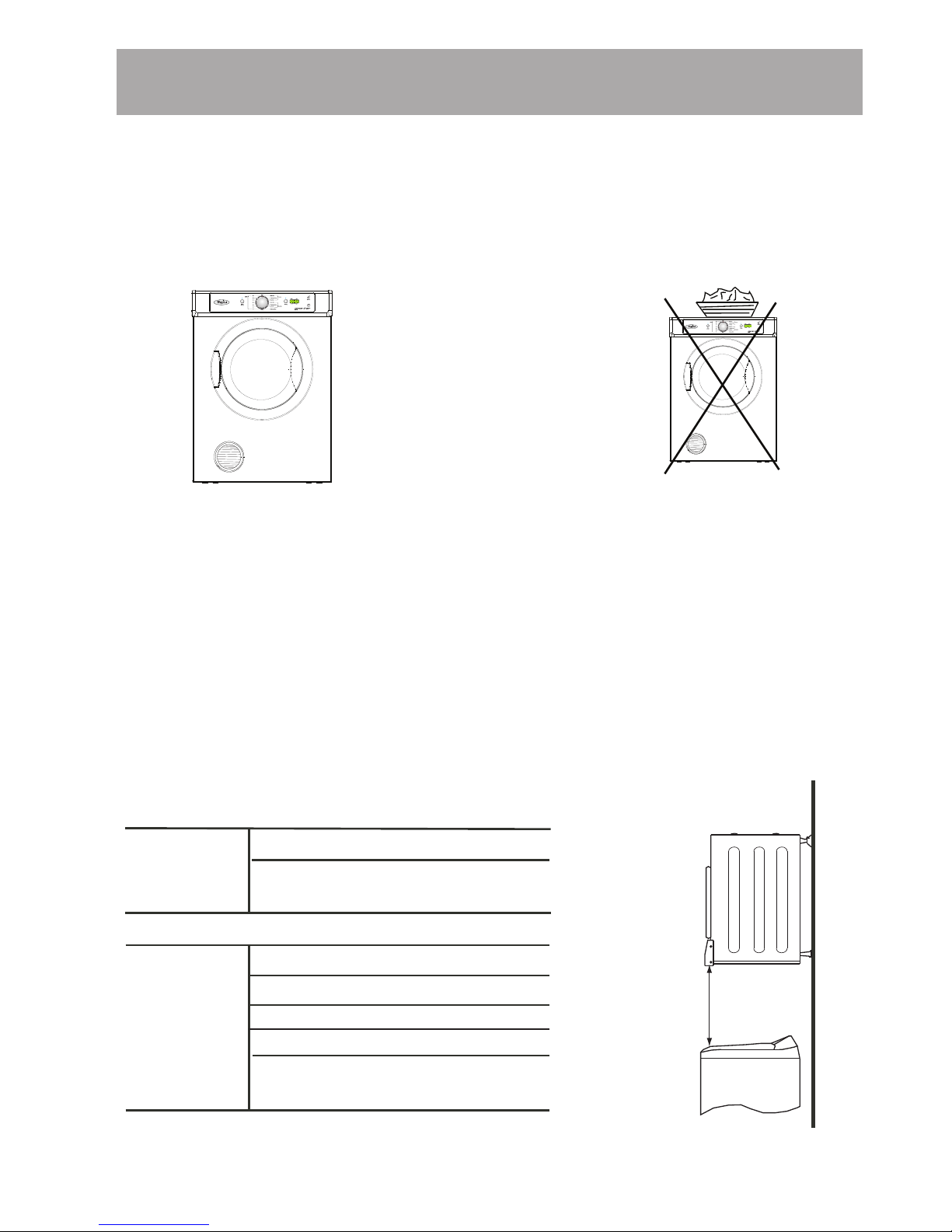

Description
Free standing
The dryer stands on the floor and can easily be moved into position. Ensure
that it is placed on a level floor. Also ensure there is at least 50 mm air
clearance between the back of the dryer and the wall to allow fresh air flow
for efficient operation even using the front venting option.
Attention:
Please don’t put a heavy
load on the dryer’s top panel,
such as a basketry full of
wet laundry.
Inverted wall mounting
The dryer can be mounted on the wall in the inverted position only by following
these instructions.
Invert the dryer so that the control panel is at the bottom (see figure 4) this
allows easier access to the controls.
1. Determine the location of the dryer on the wall and mark the bracket
position.
A minimum 50 mm is needed between the top of the dryer and the ceiling
for ease of installation;
If mounting above a washing machine, allow sufficient room to open the lid
of the washer.
Minimum lid
clearance
INSTALLATION INSTRUCTIONS

6
2.Fix the wall hanging brackets to the wall securely (eg. into the stud).
If the studs are too far apart, fit a timber slat to the studs then mount the
brackets onto the slat. The distance between each is 553 mm as per
diagram (Fig.1).
Wood screw
553 mm
3. Keep the exhaust grill at front of the dryer, then install the hooks
to the dryer, in the inverted position. Remove the 2 screws and
2 plastic plugs as indicated in Fig.2.
Fig.1
2 plastic plugs
2 screws
Fig.2
4. Align the hooks as shown in fig.3 and refit screws tightly. Install the
spacers provided in Fig.3.
2 hooks
3 screws
2 spacers
Fig.3
Warning: Ensure that the screw and nut of the Wall Hanging Brackets are
tightened during installation, if required. Regularly check all the
screws and nuts and tighten, if required. Do not overtighten.
INSTALLATION INSTRUCTIONS

5.With assistance, mount dryer on wall brackets. See Fig.4.
6. A second control panel film with inverted symbols is supplied. To fit this film,
pull off the knob and then remove the old film.
Peel the release paper from the back of inverted film, then place new control
panel film on the surface so that the writing is the correct way around.
7
Fig.4
Caution:
Plug must be accesible after installation.
Stacking installation
You can use a stacking kit (included as an accessory) if you want to mount your
dryer on the top of a Whirlpool front load washing machine, ensure the washer is
the same width as the dryer.
1. Remove 4 screws among screws on the bottom panel (see fig.1), and install
the stacking kit on the bottom panel (see fig.2).
4 Screws stacking kit
Fig.1 Fig.2
7. Press the Start/Pause button and hold it in the pressed position, and at the
same time, turn the program dial knob from the OFF position to any other
program, until the inversion is displayed.
INSTALLATION INSTRUCTIONS

2. Install the dryer with stacking kit on the top of the front load washing
machine (Fig.3). Drill two holes on both sides of washer with 2.9mm
diameter drill. Detailed drill position as shown on the stacking kit. Make
sure the included screws are used. Fix the stacking kit on the top
cover of washing machine, as shown on Fig.4.
8
Dryer
Washer
Stacking kit
Fig.3 Fig.4
INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

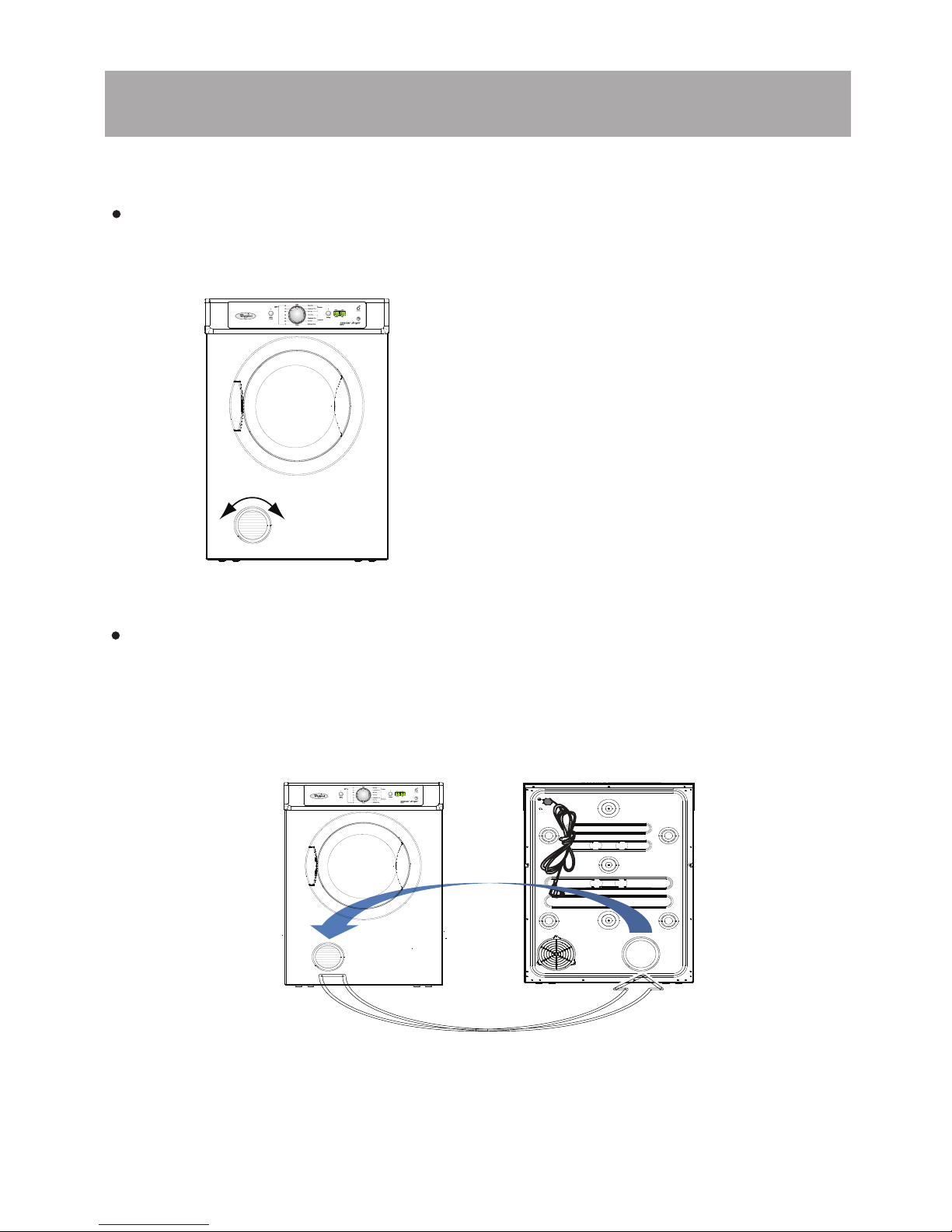

Change the venting mode
There are three venting options:
Front venting
The exhaust grill has a range of positions, which allows you to select the optimum
exhaust air angle. Simply hold the grill and rotate it until you reach the desired position.
Note: If the dryer is mounted on the wall you must use the front venting option.
Rear venting
If you want to choose the rear venting mode, the exhaust grill at the front of the dryer
needs to be replaced with the outlet cover from the back panel of the dryer. Gently
open the grill, using a thin tool such as a key. Next, remove the cover from the
back panel and clip it into the grill space at the front panel. The exhaust grill is not
required when using a flexible hose.
9
Note: If the dryer used rear venting option without the flexible hose, it must be keeped
away from the wall not less than 50cm.

10
INSTALL THE FLEXIBLE HOSE( optional Flexible hose)
Duct hole
Outdoor
Flexible hose
Flexible connector
Flexible hose clip
Connect the narrow end of the
connector to the dryer duct pipe
mouth at the back of the dryer.
Then connect the flexible hose to
the wide end of the connector.
Use the clip to fasten connection
point between the flexible hose
and connector (fasten clip with a
screwdriver). Extend the flexible
hose through the duct hole, make
sure the flexible hose is not twisted to
allow the air to be vented outside.
Notes: If duct hole is not available at user's home, make sure the flexible hose
is vented through a window.
Correct fixing mode:
Fig.1 Fig.2 Fig.3
(diameter ＞100mm)
The flexible hose should be angled or ensure a vent cap is fitted when
vented outside to avoid water running back into the dryer.
Vent cap
INSTALLATION INSTRUCTIONS

A - Start/Pause button
After selecting your desired drying program, press this button to start the dryer. To
pause the dryer while in operation, press this button again.
11
B - Program control knob
Turn this knob to choose the drying program you desire. This dryer has 15 program
options available for you to choose.
C - Delay button
You may choose to start the dryer after a preset time. The delay range is between
1 and 12 hours. Gently touch the delay button before a program starts, each touch
will add one hour. When in excess of 12 hours, the remaining time will be re-displayed.
After a delay time is set, touch the Start/Pause button to start the delay operation
and the indicator light will flash.
CONTROL PANEL
D
BC
AEE
D- LED screen
This screen displays the remaining time for a program and the delay time.
E- Indicator light
OPERATING INSTRUCTIONS
1. Power up
Insert the power plug into an appropriate power outlet that is properly installed and
grounded. Operating power supply: 220-240V~50Hz.
2. Laundry loading
Open the door and load the laundry into the drum of the dryer. For a more energy
efficient and better drying result, make sure the load has been spun dry. Try to
loosen the load when placing in the dryer.
Note: Check labels on clothing before placing them in the dryer. Some articles are not
suitable for machine dry. High temperature may damage the fabric.
Maybetumble dried
Donottumble dry
Normal drying(hightemperature)
Airdry or delicate drying (low temperature)

3. Selecting programme
Turn the program knob to set your desired drying program.
5. Program operation
After a program is set, press the “START/PAUSE” button to start the program. If you
want to change the programme after the program has started, first you must press
the “START/PAUSE” button, and then you can choose the program. If you want to
add or remove laundry in standby mode, you can operate directly and the press the
the “START/PAUSE” button to start the dryer.
Drum reversal: The dryer is designed to rotate in each direction, clockwise
and anti-clockwise in a certain period to minimize tangling and ensure clothes
dry efficiently.
12
4. Delay setting
You may choose to start the dryer after a preset time. The delay range is between
1 and 12 hours.
OPERATING INSTRUCTIONS
a. Sensor Programs
When sensor program is selected, dryness of the load will be sensed and dryer will
automatically turn itself off while the clothes have dried to the dryness level selected.
Programme D ry in g le ve l T yp e o f te xtile F ab rics
Max.
load
kg
Approximate
drying
times
(in minutes)
E xtra D ry*
Multi-layered, thick laundry such as: terry
towels, dishcloths and dry towels, bed linen,
underwear, terry towelling bath robes.
C u pb oa rd d ry**
Similar types of laundry which do not require
ironing such as: dry towels, bed linen
underwear, baby clothes, T-shirts, cotton
socks.
Iron d ry**
Laundry which requires ironing such as: bed
and table linen, dry towels, T-shirts, polo
shirts, work clothes.
E xtra D ry* * Laundry with thick, multi-layer areas such
as: bed and table linen, track suits, anoraks,
blankets.
C u pb oa rd d ry** Laundry which does not require ironing such
as: shirts, blouses, T-shirts, sportswear.
Iron d ry** Laundry which requires ironing such as:
trousers, dresses, skirts, shirts, blouses.
Delicate
plus C up bo ard d ry**
Low drying intensity for delicates and items
labelled with , such as: trousers,
dresses, shirts, blouses.
Laundry made
from synthetic
fibres, such as
polyamide, nylon,
polyacrylic, etc.
2.5
*) Te st prog ra m m e in accord an ce AS/N ZS 2 442 .2
**) Te st prog ra m m e in accord an ce EN 6112 1
C o tton
Syn thetics
Cotton or linen
hot
wash/coloured
laundry
6.0
3.0
Synthetic,
mixed fibre or
cotton easy
care (ironing
not required)
laundry
165'
150'
110'
70'
60'
45'
55'
b. Timer Programs
It is suitable for all fabrics, completes drying for Min. 3-5 full size textiles.
c. Airing Program
Laundry is aired and refreshed for 30 minutes without heating.

Attention:
1.Before operation, clean off any dust and dirt inside the drum of the dryer with
a damp towel.
2.Clean off any debris on the lint filter and in the duct to increase the drying efficiency.
Turning on power
Before turning on the power of the dryer, check:
- Whether the supply voltage is in accordance with the value indicated on the name plate.
- The dryer must be grounded securely.
Treatment of laundry to be dried
- The dryer can only dry laundry which has been spun dry. Do not put in laundry
which is still dripping wet or has excess water.
- Make sure all pockets are empty before placing laundry in the dryer.
- Pull up zippers, mend loosened fasteners and tie up ribbons to prevent the
laundry from being entangled. If necessary, put small items in a laundry bag.
-To achieve a better drying result, ensure sort your laundry according to their
types and thicknesses. Dry the same types of items together.
Warning：
1. Laundry items with metal attachments
may damage your dryer.
2. Do not dry items such as woollen,
silk and nylon stockings, delicate
embroidered fabrics in the machine.
3. Do not put an excess amount of
laundry into the dryer to avoid
damage to the dryer or laundry.
4. Do not dry shoes or other rubber
items in the dryer.
13
- Check whether the laundry to be dried is suitable to be placed in the dryer.
OPERATING INSTRUCTIONS
Reference weight of fabrics for drying
Overalls
(cotton appr 950g)
Jeas (800g)
Pajamas
(appr 200g)
T-Shirt
(appr 300g)
Shirts
(appr 300g)
Blended fabric
clothes
(appr 800g)
Woollen blankets
(appr 3000g)
Jackets (cotton
appr 800g)
Single bed sheets
(cotton appr 800g)
Underwear
(appr 70g)
Socks
(blended fabrics)
appr 50g)
7. Turning off the dryer
Turn the program knob to the “OFF” position and turn the power off at the wall.
Note: Clean the filter after each load.
6. Program completion
If the display screen display “0.09”, the program comes into the cool phase. After the
program is complete, the dryer will stop tumbling and the display screen will
display “End”. Open the door and remove the laundry.
If the laundry is not removed, the dryer will automatically commence an
"anti-crease" protection cycle to keep your laundry from settling in one position
and creasing. This cycle will last an hour unless the door is opened. The dryer
will run with cool air at set intervals. To stop the anti-crease cycle press the
start button or open the door, empty the dryer and turn off as shown below.

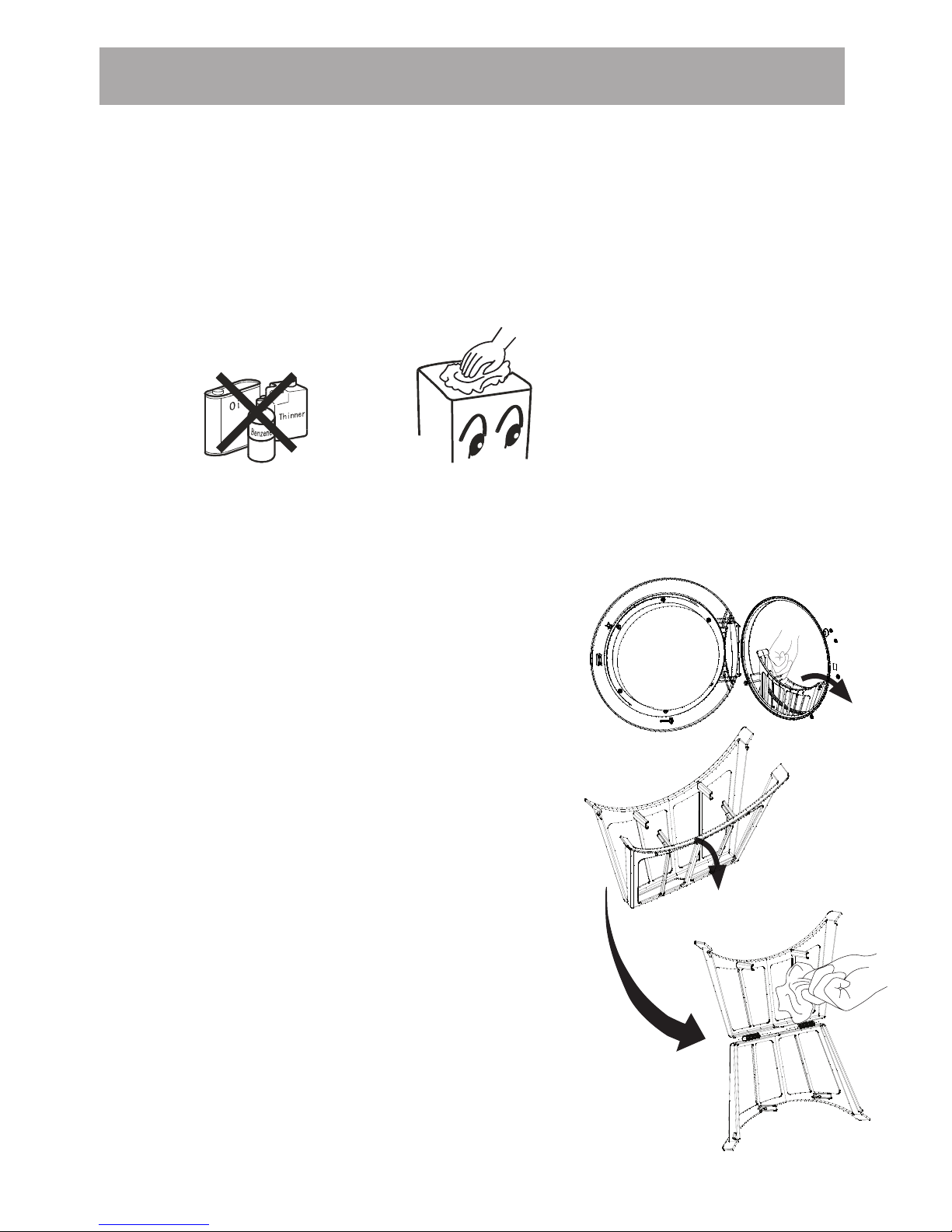

CLEANING AND MAINTENANCE
WARNING! Unplug the power cord prior to any cleaning
Cleaning the surface
Wipe off any dust or dirt.
Note: Do not use excessive water, a damp cloth is fine.
Do not use solvent.
Do not use spray cleaners when cleaning the interior.
Do not use harsh or abrasive cleaners.
Cleaning the filter screen
To ensure good ventilation during drying, the filter screen must be cleaned before
or after each use.
1. Remove the filter
Gently pull out the filter screen towards yourself.
2.Cleaning the filter
Remove the lint with a soft brush or vacuum
cleaner. Be careful not to damage the filters.
3. Re-installing the filter
After cleaning filters, put the screen back in place.
Note: Never operate your dryer without the lint filter.
14

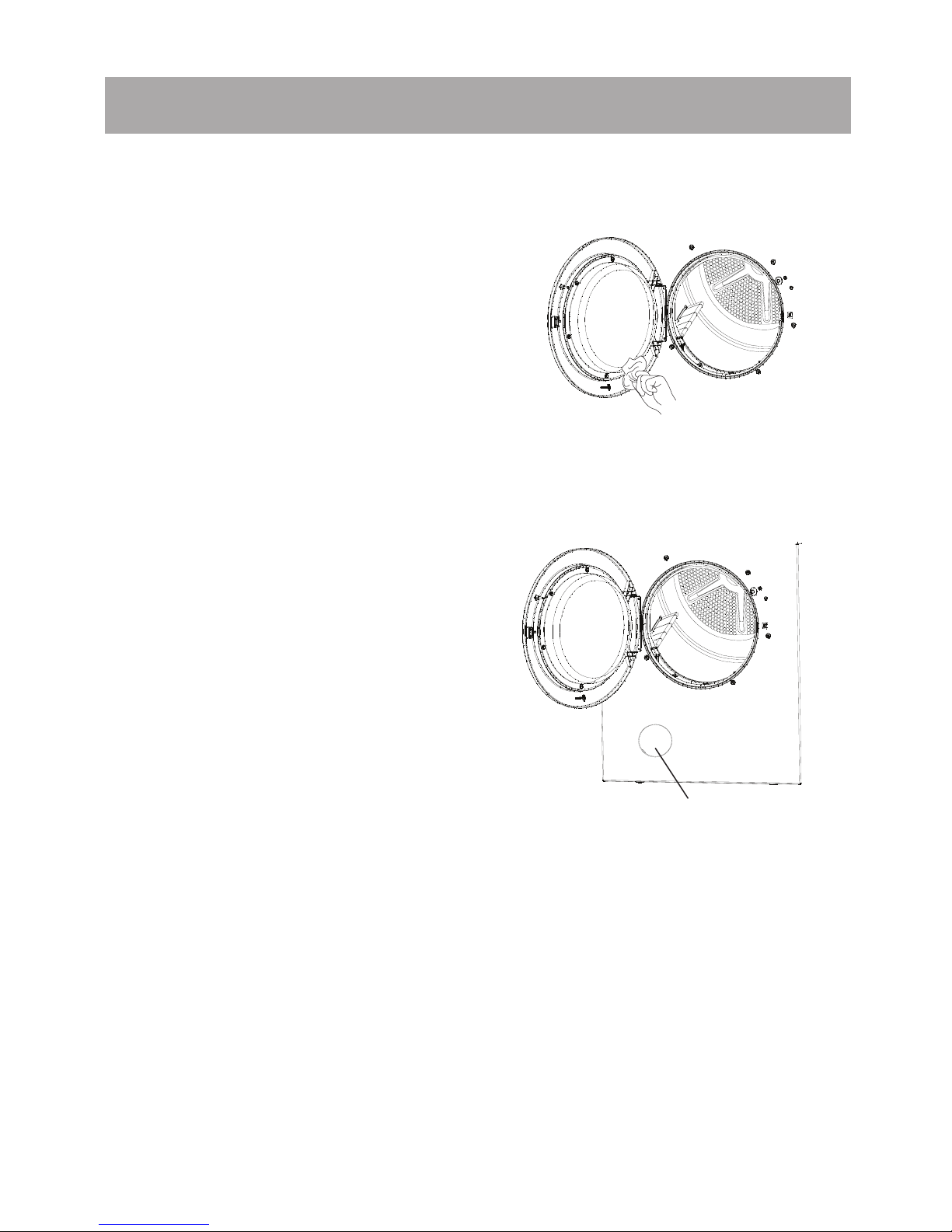

Cleaning the door airproof strip
Remove the lint with a soft brush or a wet cloth.
Be careful not to damage the airproof strip.
Remove any remaining lint from the lint screen
on the door at the same time.
CLEANING AND MAINTENANCE
15
Cleaning the lint in the exhaust conduit
1. Remove the outlet cover or the exhaust
grill in the trunk.
Note: The door airproof strip must be cleaned
before or after each use, or the dryer
may be aleak from the door in the
operation.
4. Clean the lint in the area of the exhaust
conduit with a soft brush from the hole.
Note: If there is too much lint in the exhaust conduit, it could
result in inefficient drying, it must be cleaned periodically.
3. Clean the lint on the Sensor inner the
exhaust conduit with a tool.
hole
2. Take off the filter.

WIRING CIRCUIT
16
Power supply
Maximum operating current (A)
Rated load (kg)
Drying program
Maximum power (W)
Dimensions (HxDxW) mm
Weight (kg)
（220-240)V~ · 50Hz
10
6
15
2100
830x560x600
30
IPX4
Waterproof degree
ITEM TYPE SDRY60
Capacitor
Motor
Heater
Door switch Sensor
L
NPCB
Thermostat
Thermal cut-out
~
M
SPECIFICATIONS

17
If a fault occurs, before contacting Whirlpool customer service,
make the following checks to try and remedy the problem:
Machine does not
switch on, or the
programme does
not start
Problem Explanation / Suggestion
Cause
The product may not have been
plugged in, or turned on
Door is not closed properly
Programme may not have been set
Start/Pause button may not
have been pressed
Make sure the power cord is plugged
in and machine is turned on
Ensure that the loading door is properly closed
Check the programme has been selected
Ensure Start/Pause button has been pressed
Laundry is still wet at
the end of cycle
The filter may need cleaning Clean filter after each load
The machine may be overloaded Check the load does not exceed the
maximum capacity for the product
The programme has been
selected is not correct
Select a suitable programme
according to programme chart
The laundry before being loaded
into machine is not spum dry
Do not put in laundry which is
still dripping wet or has excess water
Drying process takes
too long
The filter may need cleaning Clean filter after each load
Programme has been
interrupted without
any cause
The loading door may be ajar. Ensure the loading door is properly closed
The power supply may have
been cut off to the machine
Ensure there is no power failure,
check the power cord is plugged in
Laundry has shrunk,
become felted, or
deteriorated
A programme not suitable for the
type of laundry may have been used
Select a suitable programme after
checking the care label on your laundry
Indicator light
blink rapidly
A fault occurs Switch off power and check
Noises It's normal to hear wind sound
and rubbing nose during drying
process
The dryer is not
placed horizontal
Place the dryer in horizontal floor
F3
F4
The NTC is failure
The heater is failure
Replace the NTC
Switch off power and replace the heater
TROUBLESHOOTING GUIDE

Whirlpool Customer Service
Before contacting Whirlpool customer service:
1. Try to remedy the problem yourself (see “Troubleshooting Guide”).
2. Restart the programme to check whether the problem solved itself.
3. If the dryer machine continues to function incorrectly, call Whirlpool customer service.
Specify:
The nature of the problem.
The dryer machine model.
Serial number.
Service
Model:SDRY60
Serial No.:
The Whirlpool customer service sticker can be found inside the door.
Your full address.
Your telephone number and area code.
Whirlpool customer service phone number is given on the guarantee card.
Alternatively, consult the dealer where you purchased the appliance.
version number: SDRY60-A
