Whirlpool AKT 809 User manual

AKT 809 PRODUCT DESCRIPTION SHEET
GB
5019 319 01890/A
DIMENSIONS OF THE HOB (mm)
2
1
3
5
4
1. Radiant cooking zone Ø 180
2. Radiant cooking zone Ø 210
3. Radiant cooking zone Ø 145
4. Radiant cooking zone Ø 145
5. Display
Be careful:
To avoid permanently damaging the glass-
ceramic top, do not use:
- Pots with bottoms that are not perfectly
flat.
- Metal pots with enamelled bottom.
Any aesthetic defects (scratches, surface
marks, etc.) must be reported immediately
upon installation.
Type PLEAT 230-240 V ~ 50/60 Hz 5.7 kW

B
E
A
C
D
IMPORTANT: The hob’s safety features include an automatic switching off function. Prolonged use of the
same heat setting triggers automatic switch-off of the cooking zone (for example, after around 1 hour at
maximum heat setting, the cooking zone switches off).
AOn/Off C-E Heat setting increase and decrease
BCooking zone and timer selection DKey lock
Upon first installation, the control panel performs a functional test for about 1 second, after which
it automatically switches to the “Key lock” function.
To deactivate the function, press and hold button “D”; an acoustic signal will sound and the
corresponding led will turn off.
NOTE: If a reset occurs, repeat the procedure described above.
To switch the hob on, keep button “A” pressed for approx. 2 seconds. The 4 cooking zone displays
show “0”. If within 20 seconds none of the cooking zones is activated, the hob switches off
automatically as a safety precaution.
Press one of the buttons “B” corresponding to the cooking zone you intend to use.
Select the heat setting required with buttons “E” or “C”. The other selectable cooking settings go
from 1 to 9. Press buttons +/- at the same time to cancel all settings.
Pressing button “+” when level 9 is reached, the “Booster” function is activated and the letter “A”
appears on the display.
IMPORTANT: the control is deactivated 10 seconds after the heat setting has been selected. To
change the heat setting, first press the selection button “B” again, then proceed to change the
setting, using buttons “E” or “C”.
To set the Timer function, select the desired cooking zone and power setting then press the cooking
zone key again and a luminous dot will appear on the display of the timer-controlled cooking zone.
The indication “00” blinks on the 2 displays. Press buttons “C” or “E” to set the time from 1 to 99.
IMPORTANT: after 10 seconds the timer displays will show the power setting of the other cooking
zones.
To view the remaining cooking time, press the timer-controlled cooking zone key twice.
The KEY LOCK function is switched on by holding down button “D” until a dot lights up above the
function button. The Key lock function locks all the hob’s other functions, with the exception of the
On/Off button “A”. The function remains on even after the hob is switched off and on again and can
be deactivated by pressing button “D” again until the dot above the function button goes off.
H
RESIDUAL HEAT INDICATOR
When the cooking zone is switched off, the residual heat indicator “H” remains on or flashes
alternating with “0” until the temperature of the hob returns within safety levels.

2
INSTRUCTION FOR USE
BEFORE USING THE GLASS CERAMIC
HOB
INSTALLATION
ELECTRICAL CONNECTIONS
ENERGY SAVING TIPS
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOB ACCESSORIES
CARE AND MAINTENANCE OF THE
GLASS-CERAMIC HOB
TROUBLESHOOTING GUIDE
AFTER SALES SERVICE

3
BEFORE USING THE GLASS CERAMIC HOB
•To make the most of your new appliance,
please read the user instructions carefully and
keep them handy for future consultation.

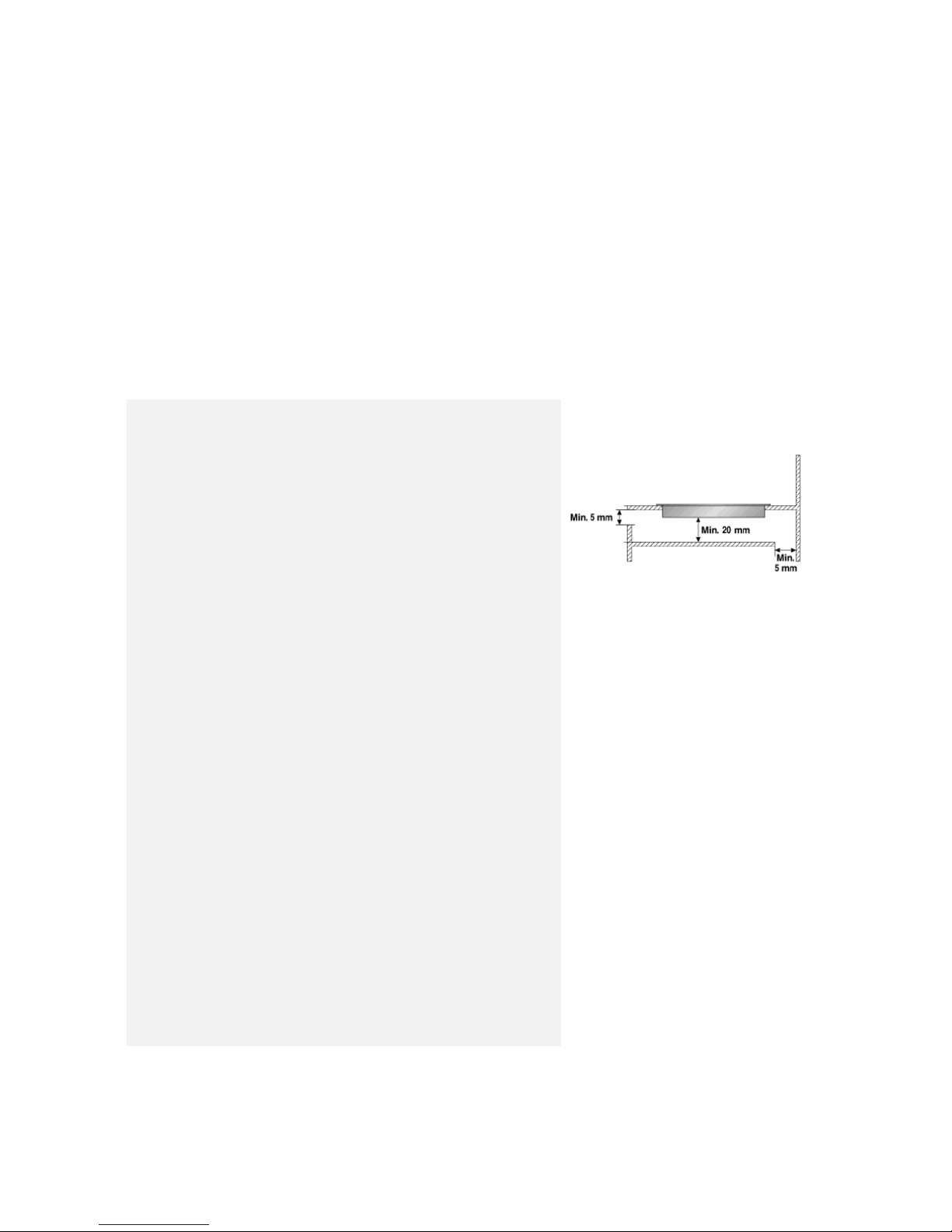

INSTALLATION
Cooktop
• The cooktop must be set into a worktop between 20
mm and 50 mm deep
• There must be nothing between the cooktop and the
oven (cross rails, brackets, etc.).
• The distance between the lower face of the glass
ceramic hob and the cupboard or separating panel
must be at least 20 mm.
• If the cooktop is to be installed next to a column unit,
leave a distance of at least 100 mm from the edge of the
cooktop to the side of the column unit.
•Make an opening in the worktop, respecting the dimensions
indicated in the enclosed product description sheet.
•Apply the supplied gasket to the cooktop (unless it has already
been fitted), after having cleaned its surface.
Important
In order to prevent the electronic circuits from overheating, and
therefore from being damaged, we recommend the following:
• Do not install the cooktop near a dishwasher or
washing machine, so that the electronic circuits do not
come into contact with steam or moisture, which could
damage them.
If an oven (from our range of ovens) is installed beneath the
cooktop, make sure that it is equipped with a cooling system.
If the temperature of the electronic circuits exceeds the
maximum permitted temperature, the cooktop will switch off
automatically; in this case, wait for a few minutes until the
internal temperature of the electronic circuits reaches a tolerable
level, at which point it will be possible to switch the hob on again.
• Switch the hob off after use.
Rear wall
Front

4

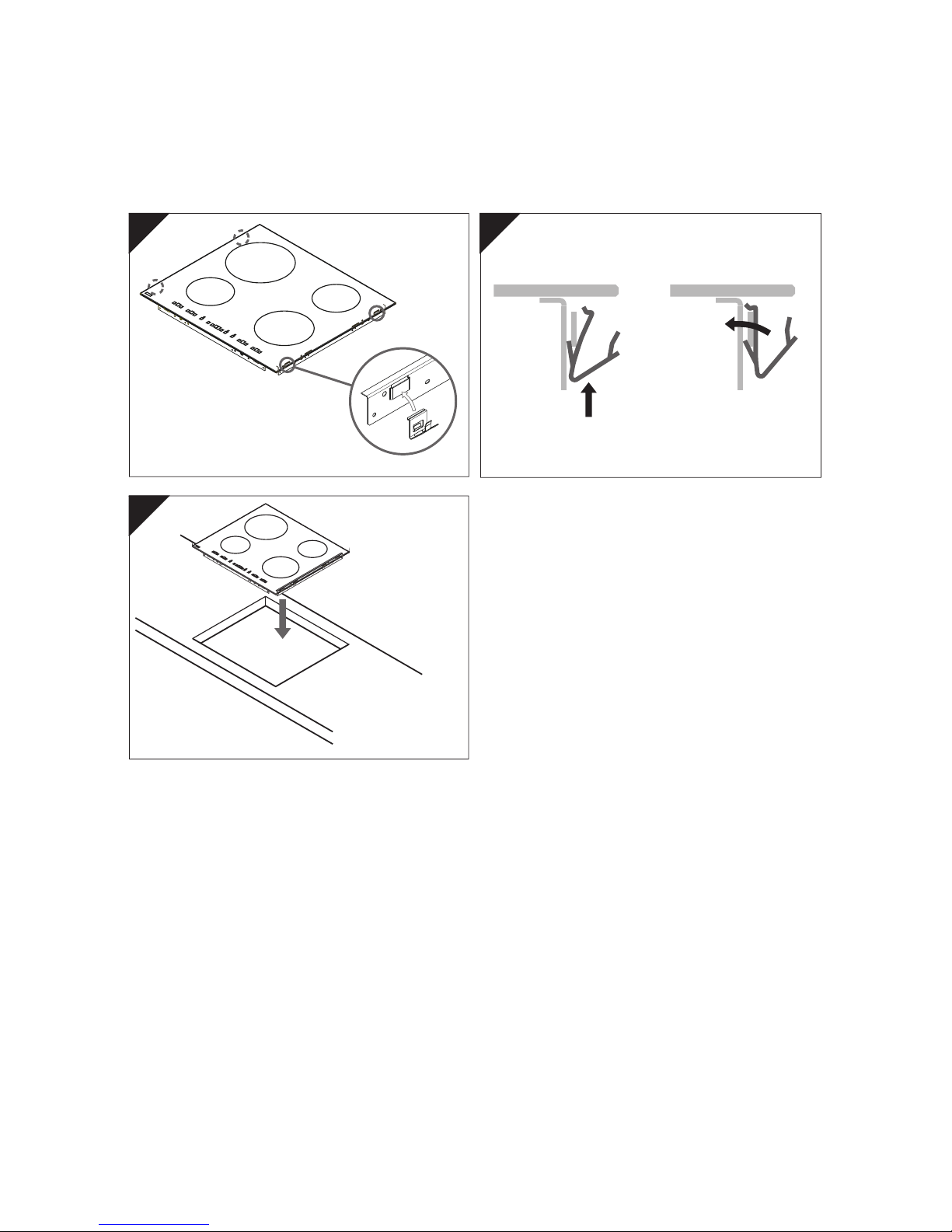

INSTALLATION
12
3
4 x

5
ELECTRICAL CONNECTIONS
Electrical connection must be made before connecting the
appliance to the electricity supply. The appliance must be
installed by a qualified electrician who is fully aware of current
safety and installation regulations. Specifically, installation must be
carried out in compliance with the regulations of the local
electricity supply company. Make sure that the voltage shown on
the rating plate is the same as the power supply voltage in your
home. Regulations require that the appliance be earthed: use
conductors (including the earth conductor) of the appropriate
size only. The manufacturer declines all liability for injury to
persons or animals and for damage to property resulting from
failure to observe the above regulations. For the electrical
connection use a H05RR-F type cable as indicated in the table
below:
Power supply voltage.
The appliance must be connected to the electricity supply
by means of an all-pole disconnect switch with minimum
contact gap of 3 mm.
Attention: the power supply cable must be long enough to allow
the cooktop to be removed from the worktop and must be
positioned so as to avoid damage or overheating caused by
contact with the base.
Connecting to the terminal board
Note: the yellow/green earth wire must be connected to the
terminal with the symbol and must be longer than the other
wires.
•Remove approx. 70 mm of the cable sheath from the power
supply cable (B).
•Strip approx. 10 mm of sheath from the wires. Then insert the
power supply cable into the cable clamp and connect the
wires to the terminal block as indicated in the connection
diagram placed close to the terminal block itself.
•Secure the power supply cable (B) by means of the cable
clamp.
•Close the terminal board with the cover (A) securing it with
the screw provided.
•After the electrical connection, fit the hob from the top and
hook it to the support springs, according to the illustration.
Conductors Amount x size
230-240V ~ + 3 X 4 mm2

6
ENERGY SAVING TIPS
SAFEGUARDING THE ENVIRONMENT
1. Packing
•The packaging material can be 100% recycled,
as confirmed by the recycling symbol ( ).
2. Products
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health.
The symbol on the product, or on the
documents accompanying the product,
indicates that this appliance may not be treated
as household waste. Instead it shall be handed
over to the applicable collection point for the
recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance
with local environmental regulations for waste
disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local authority,
the household waste disposal service or the
shop where you purchased the product.
Declaration of conformity CE
•This cooktop is suitable for contact with
foodstuffs and complies with EEC (CE)
Regulation n. 1935/2004.
•The appliances are designed solely for use as
cooking appliances. Any other use of the
appliances (e.g. for room heating) is considered
as improper use and potentially dangerous.
•The appliances are designed, built and sold in
compliance with:
•safety objectives of the “Low Voltage”
Directive 2006/95/EC (which replaces
73/23/EEC and subsequent amendments);
•the protection requirements of Directive
“EMC” 2004/108/EC;
•the requirements of Directive 93/68/EEC.

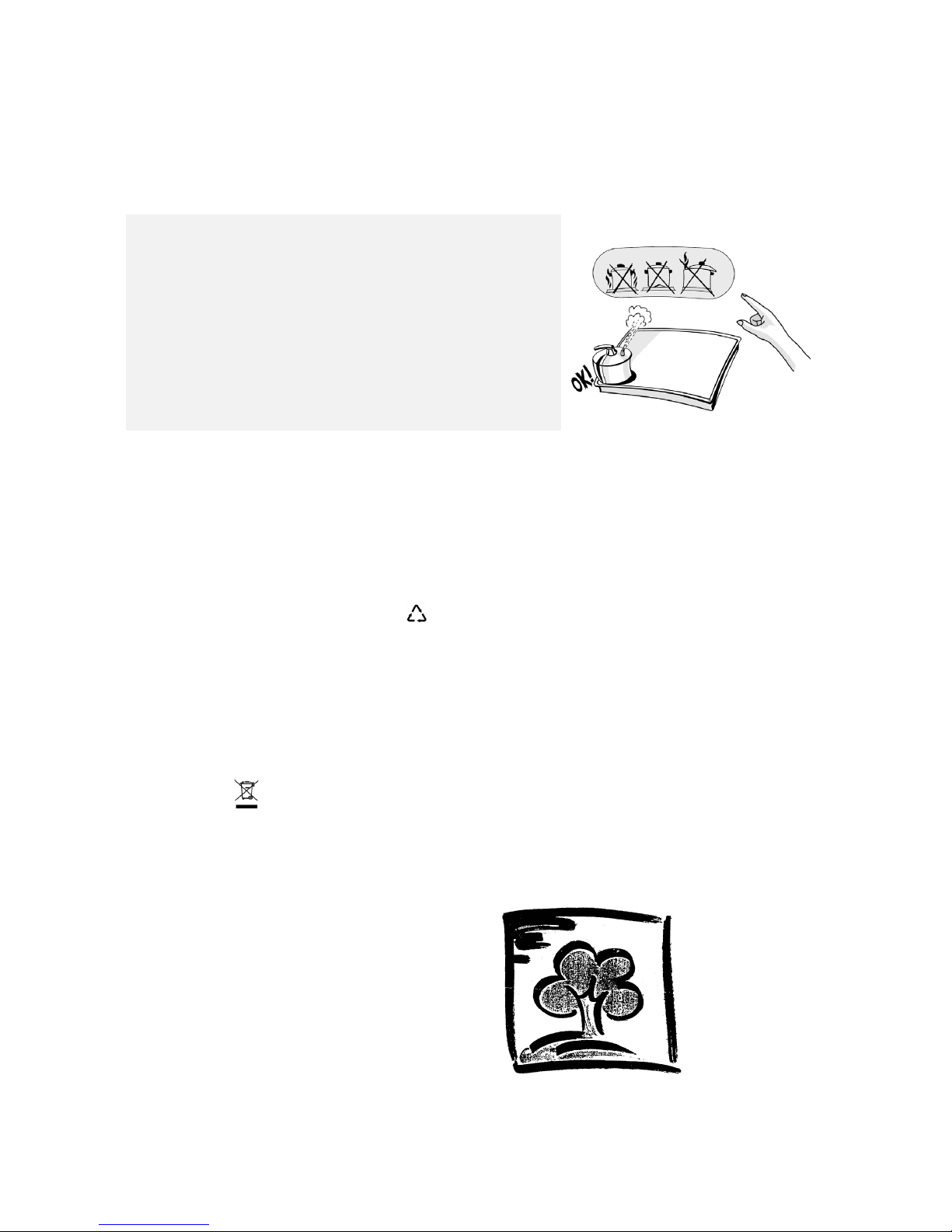

•Use pots and pans whose bottom diameter is equal to that of
the cooking zone or slightly larger.
•Only use flat-bottomed pots and pans.
•If possible, keep pot lids on when cooking.
•Cook vegetables, potatoes, et. with little water in order to cut
down cooking time.
•A pressure cooker allows you to save even more energy and
time.
NO!

7
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
Warning: Accessible parts become very hot
when the equipment is in operation. Keep
children away from the appliance in order to
avoid the risk of scalding and burns.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge unless they
have been given initial supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
Make sure children do not play with the
appliance.
•Before any maintenance on the appliance,
disconnect it from the electrical power supply.
•Keep children away form the appliance when it
is in use and also when it has been just switched
off.
•The appliances must be repaired or adjusted
exclusively by a qualified technician.
•Make sure that the electrical wires of other
electrical appliances near the hob do not come
into contact with hot parts.
• Do not switch on the hotplates/cooking
zones when there is no pan in position.
•Avoid the use of high pressure water or steam
cleaning equipment.
•If liquid spills or boils over, the hob may switch
off: to enable it to be switched back on again,
carefully dry the controls zone.
•The cooktop features different size hotplates/
cooking zones. Use pots whose base diameter
is the same as that of the hotplate/cooking
zone.
To avoid permanently damaging the glass
ceramic cooktop, do not use:
- pots with bottoms that are not perfectly
flat;
- Metal pots with enamelled bottom.
- When finished cooking, press
button .
•Do not use the cooktop as a work surface or a
support surface.
•Do not leave the appliance unattended when
frying food -risk of fire.
•If the glass ceramic surface should break or
crack due to violent impact (falling objects, etc.)
do not use it and call the After-Sales Service
immediately.
•Do not place food wrapped in aluminium foil,
plastic containers or cloths on the hot cooking
zones.
•Do not drag pans across the glass-ceramic
surface - risk of scratches.
•Avoid spilling sugar and similar substances on
the cooktop. If necessary, clean the cooktop
immediately following the care and
maintenance instructions in this handbook.
•If the hob is fitted with halogen lamps, do not
stare at the bulbs directly.
•The appliance is not intended to be operated by
means of an external timer or separate remote-
control system.
HOB ACCESSORIES

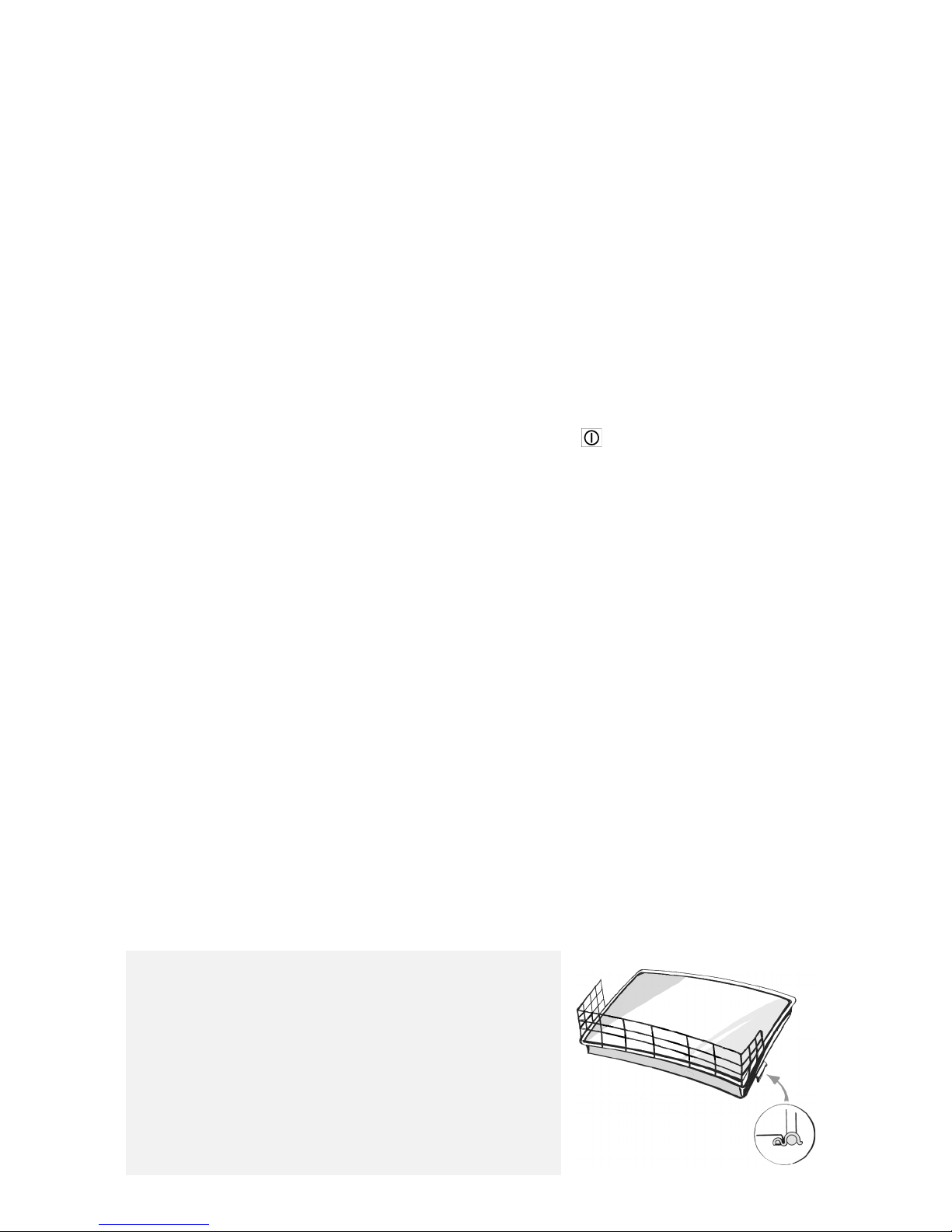

Child guard accessory AMH 122
This accessory can be obtained from the After-Sales Service
under Part N° 4819 310 18436.

8
CARE AND MAINTENANCE OF THE GLASS-
CERAMIC HOB
TROUBLESHOOTING GUIDE
Cooktop not working
• When pressing the control buttons, did you
follow the instructions in the section “Using
the hob” in the enclosed ”Product
Description Sheet”?
• Is there perhaps a power failure?
• Did you dry the hob carefully after cleaning it?
1. If a cooking zone has been selected and an “F”
or an “ER” appear on the display followed
by a number, contact the After Sales
Service and inform them.
- With the exception of the message “F03”
or “ER03” that identifies the incorrect
cleaning of the controls area.
- To solve the problem follow the instruction
in the “Cleaning and maintenance of the
glass-ceramic hob” paragraph.
2. If the hob does not work following intensive
use, the hob internal temperature is too high.
Wait a few minutes until the hob cools down.
AFTER SALES SERVICE
Before contacting After Sales Service
1. Try to solve the problem (see
“Troubleshooting Guide”).
2. Turn off the appliance and restart it to see if the
fault is repeated.
If after the above checks the fault still occurs,
get in touch with the nearest After Sales
Service.
Please give: a short description of the fault,
•the precise type and model of the appliances,
•the service number (the number after the word
“Service” on the data plate), located under the hob
or on the Product Description Sheet. The service
number is also indicated on the warranty booklet,
•your complete address and phone number.
If any repairs are required, please contact an
authorized After-sales Service as indicated in the
warranty.
In the unlikely event that an operation or repair is
carried out by an unauthorised technician,
always request a certification of the job carried out
and insist on the use of original spare parts.
Failure to comply with these instructions may
compromise the safety and quality of the
product.

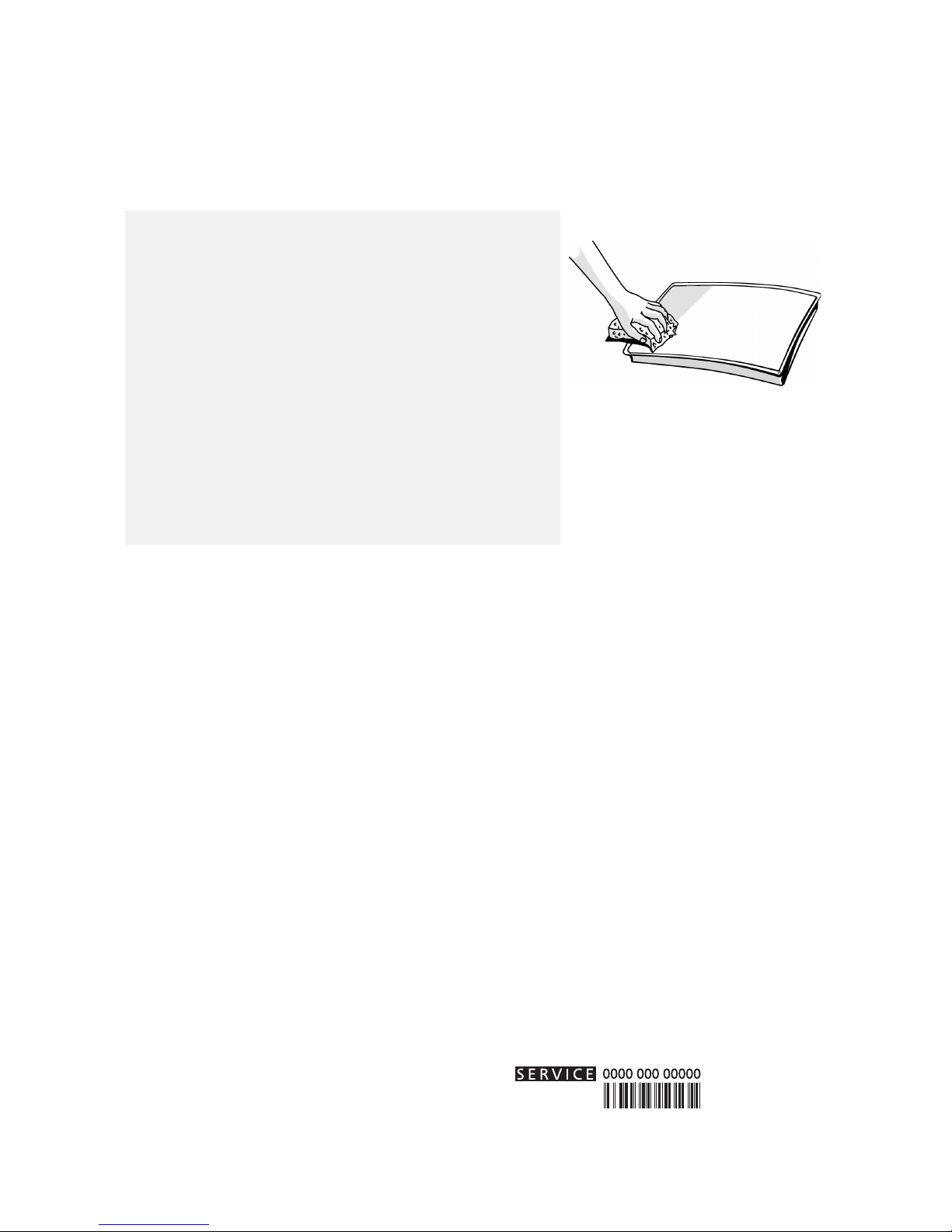

Clean the cooktop, when it is cool, after each use. This will
prevent the build-up of dirt and make cleaning easier.
Important: at all costs avoid the use of high pressure water or
steam cleaning equipment.
•Use a clean cloth, absorbent kitchen wipes and washing up
liquid or a specific glass ceramic cleaner.
•Remove baked-on dirt with the special scraper tool
(if provided) and specific cleaning products.
•Food spills should be cleaned off before they bake onto the
glass ceramic surface.
•Foods with high sugar content (toffee, fruit juice, jam, etc.)
that boil over while cooking, or spattered sugar stains must be
immediately removed using a scraper.
•Do not use abrasive products, bleach, oven-cleaner spray or
pan scourers.
The cooktop should be treated periodically with a proprietary
brand of protective wax for glass-ceramic hobs.
