Whirlpool GSC309PV Series User instructions

PRODUCT MODEL SERIES PRODUCT DIMENSIONS
CABINET OPENING DIMENSIONS
GSC309PV RMC275PV
RMC305PV
Electrical: Oven must be connected to the proper
electrical voltage and frequency as specified on the
model/serial number rating plate. The model/serial
number rating plate is located at the bottom of the
right-hand mounting rail. See the following
illustration.
Models rated from 7.3 to 9.6 kW at 240 volts
(5.5 to 7.2 kW at 208 volts) require a separate
40-amp circuit. Models rated at 7.2 kW and below
at 240 volts (5.4 kW and below at 208 volts)
require a separate 30-amp circuit.
A circuit breaker is recommended. Connect directly
to the circuit breaker (or fused disconnect)
through flexible, armored or nonmetallic, sheathed
copper cable (with grounding wire).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10192051B
09-05-08
27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN
MICROWAVE/OVEN COMBINATION
®
A
B
D
E
C

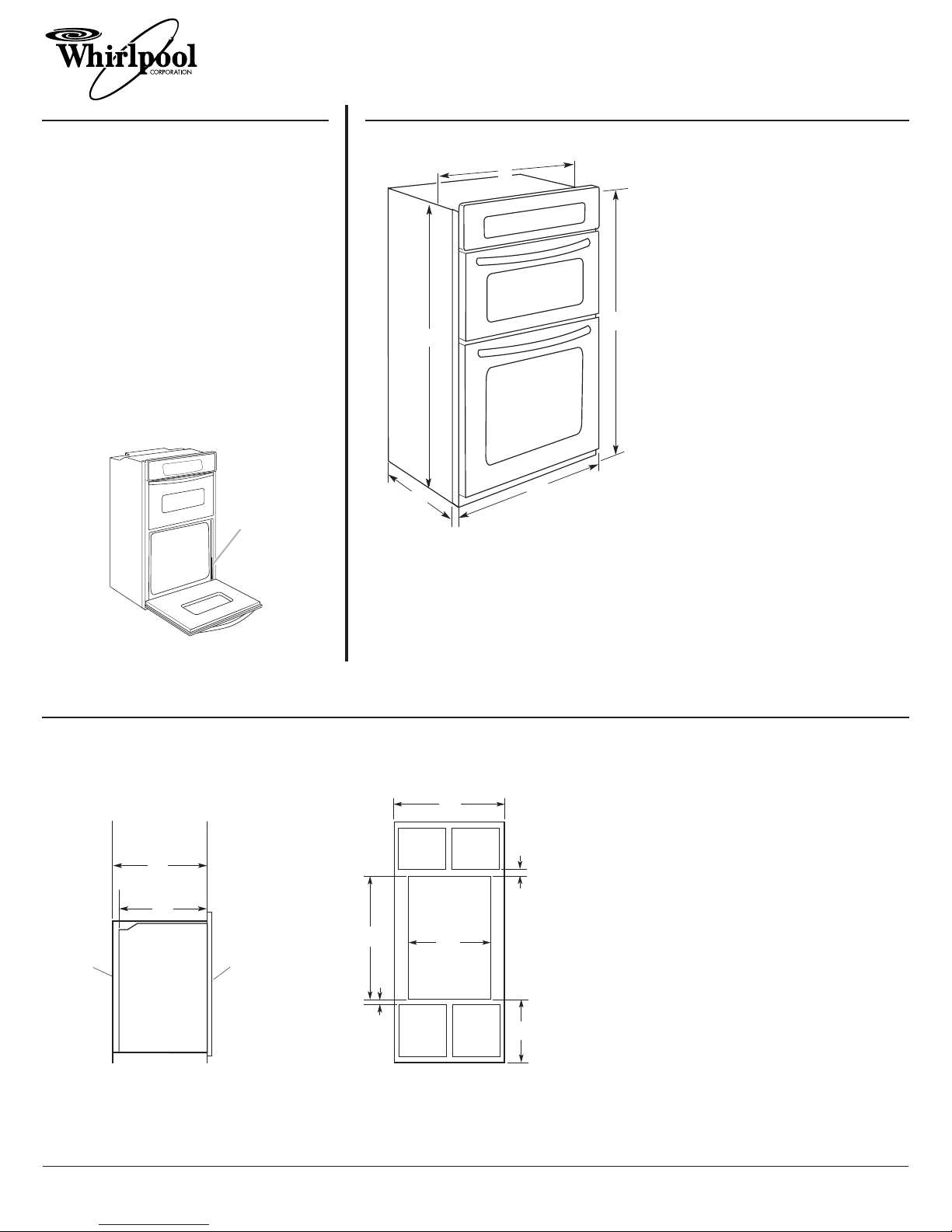

27" (68.6 cm) models
A. 25-5/16" (64.3 cm) recessed width
B. 42-3/8" (107.6 cm) overall height
C. 26-3/4" (67.9 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 41" (104.1 cm) recessed height
30" (76.2 cm) models
A. 28-5/16" (71.9 cm) recessed width
B. 42-3/8" (107.6 cm) overall height
C. 29-3/4" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 41" (104.1 cm) recessed height
A
. Model/serial number plate
A
Front View
A
B
C
D
E
F
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of upper cabinet door
C. 19-1/4" (48.9 cm) bottom of cutout to floor
D. 25-1/2" (64.8 cm) cutout width
E. 1-1/2" (3.8 cm) min. bottom of cutout to top of cabinet door
F. 41-1/4" (104.8 cm) cutout height
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of upper cabinet door
C. 19-1/4" (48.9 cm) bottom of cutout to floor
D. 28-1/2" (72.4 cm) cutout width
E. 1-1/2" (3.8 cm) min. bottom of cutout to top of cabinet door
F. 41-1/4" (104.8 cm) cutout height
Side View
Cabinet Oven
Front
Recessed
Oven
A
B
A. 23-1/4" 59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
