Whirlpool 24" (61.0 CM) GAS SINGLEAND DOUBLE BUILT-IN... User manual

INSTALLATION INSTRUCTIONS
24" (61.0 CM) GAS SINGLE
AND DOUBLE BUILT-IN OVEN
BUILT-IN OVEN SAFETY
Table of Contents
BUILT-IN OVEN SAFETY.....................................................................1
INSTALLATION REQUIREMENTS......................................................3
Tools and Parts ..................................................................................3
Location Requirements......................................................................3
Electrical Requirements .....................................................................4
Gas Supply Requirements.................................................................5
INSTALLATION INSTRUCTIONS........................................................6
Prepare Built-In Oven.........................................................................6
Make Gas Connection .......................................................................6
Install Oven.........................................................................................7
Complete Installation .........................................................................8
GAS CONVERSIONS............................................................................9
LP Gas Conversion ............................................................................9
Natural Gas Conversion...................................................................10
IMPORTANT:
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
W10526072A
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

2
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
–Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
–WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
–Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
IMPORTANT: Do not install a ventilation system that blows air downward toward this gas cooking appliance. This type of
ventilation system may cause ignition and combustion problems with this gas cooking appliance resulting in personal injury or
unintended operation.
In the State of Massachusetts, the following installation instructions apply:
■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A flexible gas connector, when used, must not exceed 3 feet.

3
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
Parts needed
Check local codes and consult gas supplier. Check existing gas
supply and electrical supply. See “Electrical Requirements” and
“Gas Supply Requirements” sections.
Location Requirements
IMPORTANT: Observe all governing codes and ordinances. Do
not obstruct flow of combustion and ventilation air.
■It is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located at bottom front face
surface on the right-hand side of the oven frame.
■The oven should be located for convenient use in the kitchen.
■Recessed installation area must provide complete enclosure
around the recessed portion of the oven.
■All openings in the wall or floor where oven is to be installed
must be sealed.
■Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance with oven.
■Grounded electrical supply is required. See “Electrical
Requirements” section.
■Proper gas supply connection must be available. See “Gas
Supply Requirements” section.
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures of 194°F (90°C).
Product Dimensions - Single Oven
Cabinet Dimensions - Single Oven
Single Oven Installed in Cabinet
NOTE: For gas supply pipe, provide a 3" x 3" (7.6 cm x 7.6 cm)
opening in the back wall of the cabinet centered 7" (17.8 cm)
from the left rear corner and 3" above the bottom of the cabinet
cutout. Install a 120 volt electrical outlet in the back wall of the
cabinet centered 6" (15.2 cm) from the right rear corner and 4"
(10.2 cm) below the top of the cabinet cutout.
■Tape measure
■Phillips screwdriver
■Flat-blade screwdriver
■¹⁄₈" Flat-blade screwdriver
■Level
■Hand or electric drill
■Wrench or pliers
■Pipe wrench
■¹⁵⁄₁₆" combination wrench
■¹⁄₈" (3.2 mm) drill bit
(for wood floors)
■Marker or pencil
■Pipe-joint compound
resistant to LP gas
■³⁄₁₆" (4.8 mm) carbide-tipped
masonry drill bit (for
concrete/ceramic floors)
■Noncorrosive leak-detection
solution
For LP/Natural Gas
Conversions
■½" combination wrench
■7 mm nut driver
■Masking tape
A. 22¹⁄₄" (56.8 cm) max. recessed width
B. 39¹⁄₄" (99.7 cm) max. overall height
C. 23⁷⁄₈" (60.6 cm) overall width
D. 22⁵⁄₈" (57.5 cm) max. recessed depth
E. 37³⁄₄" (95.9 cm) recessed height
A. 24" (61 cm) min. cabinet width
B. 1¹⁄₂" (3.8 cm) top of cutout to bottom of upper cabinet
door
C. 14" (35.6 cm) min. bottom of cutout to floor
D. 22³⁄₈" (56.8 cm) cutout width
E. 1¹⁄₂" (3.8 cm) min. bottom of cutout to top of cabinet door
F. 38" (96.5 cm) cutout height
A
B
C
D
E
A
B
C
D
E
F

4
Product Dimensions - Double Oven
Cabinet Dimensions - Double Oven
Double Oven Installed in Cabinet
NOTE: For gas supply pipe, provide a 3" x 3" (7.6 cm x 7.6 cm)
opening in the back wall of the cabinet centered 7" (17.8 cm)
from the left rear corner and 3" (7.6 cm) above the bottom of the
cabinet cutout. Install a 120 volt electrical outlet in the back wall
of the cabinet centered 6" (15.2 cm) from the right rear corner
and 4" (10.2 cm) below the top of the cabinet cutout.
Cabinet Side View - Double or Single Oven
Electrical Requirements
IMPORTANT: The oven must be electrically grounded in
accordance with local codes and ordinances, or in the absence
of local codes, with the National Electrical Code, ANSI/NFPA 70
or Canadian Electrical Code, CSA C22.1.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
A. 22¹⁄₄" (56.8 cm) max. recessed width
B. 46⁵⁄₁₆" (117.6 cm) max. overall height
C. 23⁷⁄₈" (60.6 cm) overall width
D. 22⁵⁄₈" (57.5 cm) max. recessed depth
E. 44³⁄₄" (113.4 cm) recessed height
A. 24" (61 cm) min. cabinet width
B. 1¹⁄₂" (3.8 cm) top of cutout to bottom of upper
cabinet door
C. 14" (35.6 cm) min. bottom of cutout to floor
D. 22³⁄₈" (56.8 cm) cutout width
E. 1¹⁄₂" (3.8 cm) min. bottom of cutout to top of
cabinet door
F. 45³⁄₈" (115.3 cm) cutout height
A
B
D
E
C
A
B
C
D
E
F
A. 24" (60.9 cm) min. cutout depth
B. 22⁵⁄₈" (57.5 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
A
B
C
D
E
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING

5
■A 120 volt, 60 Hz., AC only, 15-amp fused, electrical circuit is
required. A time-delay fuse or circuit breaker is also
recommended. It is recommended that a separate circuit
serving only this oven be provided.
■Electronic ignition systems operate within wide voltage limits,
but proper grounding and polarity are necessary. Check that
the outlet provides 120-volt power and is correctly grounded.
■The wiring diagram is located in the upper control
compartment in a clear plastic bag.
Gas Supply Requirements
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes
and ordinances. In the absence of local codes, installation must
conform with American National Standard, National Fuel Gas
Code ANSI Z223.1 - latest edition or CAN/CGA B149 - latest
edition.
IMPORTANT: Leak testing of the oven must be conducted
according to the manufacturer’s instructions.
Type of Gas
Natural gas:
This oven is design-certified by CSA International for use with
Natural gas or, after proper conversion, for use with LP gas.
■This oven is factory set for use with Natural gas. See “Gas
Conversions” section. The model/serial rating plate located
behind the broiler drawer on the right-hand side oven front
frame has information on the types of gas that can be used. If
the types of gas listed do not include the type of gas
available, check with the local gas supplier.
LP gas conversion:
Conversion must be done by a qualified service technician.
No attempt shall be made to convert the appliance from the gas
specified on the model/serial rating plate for use with a different
gas without consulting the serving gas supplier. See “Gas
Conversions” section.
Gas Supply Line
■Provide a gas supply line of ¾" (1.9 cm) rigid pipe to the oven
location. A smaller size pipe on longer runs may result in
insufficient gas supply. Pipe-joint compounds that resist the
action of LP gas must be used. Do not use TEFLON®† tape.
With LP gas, piping or tubing size can be ½" (1.3 cm)
minimum. Usually, LP gas suppliers determine the size and
materials used in the system.
Flexible metal appliance connector:
■If local codes permit, a new CSA design-certified, 4 to 5 ft
(122 to 152.4 cm) long, ½" (1.3 cm) or ¾" (1.9 cm) I.D.,
flexible metal appliance connector may be used for
connecting oven to the gas supply line.
■A ½" (1.3 cm) male pipe thread is needed for connection
to the female pipe threads of the inlet to the appliance
pressure regulator.
■Do not kink or damage the flexible metal tubing when
moving the oven.
Rigid pipe connection:
The rigid pipe connection requires a combination of pipe
fittings to obtain an in-line connection to the oven. The rigid
pipe must be level with the oven connection. All strains must
be removed from the supply and fuel lines so oven will be
level and in line.
■Must include a shutoff valve:
The supply line must be equipped with a manual shutoff
valve. This valve should be located in the same room but
external to the oven opening, such as an adjacent cabinet. It
should be in a location that allows ease of opening and
closing. Do not block access to shutoff valve. The valve is for
turning on or shutting off gas to the oven.
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
A. Gas supply line
B. Shutoff valve “open” position
C. To range
†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.
A
B
C

6
Gas Pressure Regulator
The gas pressure regulator supplied with this oven must be used.
The inlet pressure to the regulator should be as follows for proper
operation:
Natural gas:
Minimum pressure: 5" WCP
Maximum pressure: 14" WCP
LP gas:
Minimum pressure: 11" WCP
Maximum pressure: 14" WCP
Contact local gas supplier if you are not sure about the inlet
pressure.
Burner Input Requirements
Input ratings shown on the model/serial rating plate are for
elevations up to 2,000 ft (609.6 m).
For elevations above 2,000 ft (609.6 m), the burner should be
reduced 4% for each 1,000 ft (304.8 m) above sea level (not
applicable for Canada).
Gas Supply Pressure Testing
Gas supply pressure for testing regulator must be at least
1" water column pressure above the manifold pressure shown on
the model/serial rating plate.
Line pressure testing above ½ psi gauge (14" WCP)
The oven and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of
that system at test pressures in excess of ½ psi (3.5 kPa).
Line pressure testing at ½ psi gauge (14" WCP) or lower
The oven must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than ½ psi (3.5 kPa).
INSTALLATION INSTRUCTIONS
Prepare Built-In Oven
1. Decide on the final location for the oven. Locate existing
wiring to avoid drilling into or severing wiring during
installation.
2. To avoid floor damage, set the oven onto cardboard prior to
installation. Do not use handle or any portion of the front
frame or trim for lifting.
3. Remove the shipping materials and tape from the oven.
4. Remove the hardware package from inside the bag
containing literature.
5. Remove and set aside racks and other parts from inside the
oven.
6. Move oven and cardboard close to the oven’s final location.
Remove Oven Door.
IMPORTANT: Use both hands to remove oven doors.
1. Open door to the broil stop position (about 4" to 6" [10.2 cm
to 15.2 cm]).
2. Grasp sides of the door at the middle. Slowly lift door straight
up.
3. While lifting the door up, very slightly open the door by pulling
it forward. Check that the latches swing down into the
notches on the hinge arms.
Make Gas Connection
Typical flexible connection
1. Apply pipe-joint compound made for use with LP gas to the
smaller thread ends of the flexible connector adapters (see B
and G in the following illustration).
2. Attach one adapter to the gas pressure regulator and the
other adapter to the gas shutoff valve. Tighten both adapters.
WARNING
Excessive Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.

7
3. Use a ¹⁵⁄₁₆" combination wrench and an adjustable wrench to
attach the flexible connector to the adapters. Check that
connector is not kinked.
4. Gas supply pipe must be located within clearance area as
shown in the “Cabinet Dimensions” illustration in “Location
Requirements” section.
Complete connection
1. Open the manual shutoff valve in the gas supply line. The
valve is open when the handle is parallel to the gas pipe.
2. Test all connections by brushing on an approved
noncorrosive leak-detection solution. If bubbles appear, a
leak is indicated. Correct any leak found.
3. Plug into a grounded 3 prong outlet.
Install Oven
1. Using 2 or more people, lift oven partially into cabinet cutout.
Use the oven opening as an area to grip.
NOTE: Push against seal area of oven front frame when
pushing oven into cabinet. Do not push against outside
edges.
2. Push oven completely into cabinet and center oven into
cabinet cutout.
A. Gas pressure regulator
B. Use pipe-joint compound.
C. Adapter (must have ½" male
pipe thread)
D. Flexible connector
E. Manual gas shutoff valve
F. ½" or ¾" g as pip e
G. Use pipe-joint compound.
H. Adapter
A. Gas pressure regulator
B. Gas supply line
C. Electrical disconnect
D. Serial plate
E. Manual oven valve
F. Burner rating pla te
G. Manifold pressure tap
A. Closed valve
B. Open valve
A
B
C
D
E
F
G
H
A B
C
D
E
F
G
A
B
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
WARNING
Excessive Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.

8
3. Securely fasten oven to cabinet using the 0.188 x 2.1" screws
(4 for single oven, 6 for double oven) provided. Insert the
screws through holes in decorative trim. To avoid cabinet
damage, use the 0.140" diameter (number 28) drill bit to
predrill the pilot holes before driving screws. Do not
overtighten screws.
4. Replace oven racks.
5. Grasp sides of the door and align slots in door with the hinge
arms.
6. Slightly pull the door open as you slide the door down onto
the hinge arms. The sliding action of the door will disengage
the latches on the hinge arms.
7. Gently push the door downward until the door rests evenly on
the hinges.
8. Close door.
9. Repeat for lower oven door.
10. Reconnect power.
11. Display panel will light briefly, and “PF” should appear in the
display.
12. If display panel does not light, please reference the
“Assistance or Service” section of the Use and Care Guide or
contact the dealer from whom you purchased your oven.
Complete Installation
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven use and cleaning, read the Use and Care Guide.
Initial lighting and gas flame adjustments
This oven is equipped with an electric control system as well as
an electric oven burner igniter. This control system requires no
adjustment. When the oven control is turned on a glow bar igniter
heats and ignites the gas.
Check Operation of Oven(s)
1. Turn power on. The time should flash in the display.
2. Check that the oven door(s) is closed
3. Turn on the oven(s) Broil function. See the Use and Care
Guide for instructions.
If oven(s) does not operate, check the following:
■Household fuse is intact and tight; or circuit breaker has
not tripped.
■Electrical supply is connected.
■See “Troubleshooting” section in the Use and Care Guide.
4. When oven has been on for 5 minutes, feel for heat.
If you do not feel heat or if an “F” followed by a number
appears in the display, turn off the oven and contact a
qualified technician.
5. Press CANCEL.
Check Operation of Bake/Broil Burner
Press BAKE. “BAKE” and temperatures will show in the display.
The igniter used to light the bake burner will glow. Once the
igniter is hot the oven bake burner should light. Under certain
conditions it may take up to 60 seconds for the bake burner to
light.
If burners do not light properly:
■Press CANCEL to turn off the oven.
■Check that the oven is plugged in and circuit breaker has not
tripped or the household fuse has not blown.
■Check that the gas shutoff valves are set to the “open”
position.
Repeat start-up. If burner does not light, press CANCEL to turn
off the oven and contact your dealer or authorized service
company for assistance.
If you need Assistance or Service:
Please reference the “Assistance or Service” section of the Use
and Care Guide or contact the dealer from whom you purchased
your built-in oven.
A. Decorative trim
B. Insert screw.
A
B

9
GAS CONVERSIONS
Gas conversions from Natural gas to LP gas or from LP gas to
Natural gas must be done by a qualified installer.
LP Gas Conversion
1. Turn manual shutoff valve to the closed position.
2. Unplug oven or disconnect power.

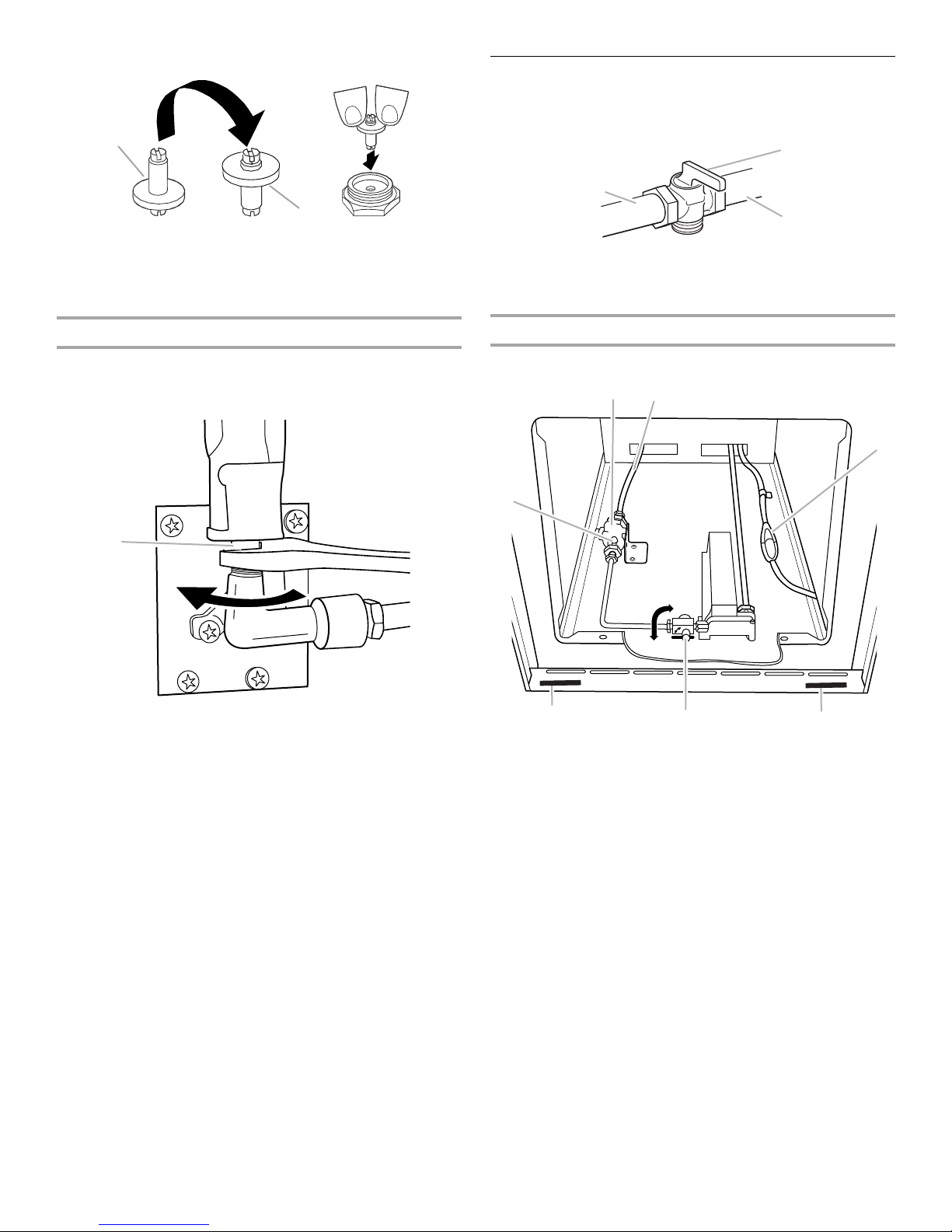

To Convert Gas Pressure Regulator
1. Locate gas pressure regulator in bottom compartment.
IMPORTANT: Do not remove the gas pressure regulator.
2. Unscrew the hex-shaped regulator cap from the regulator
and remove the regulator pin.
A. To oven
B. Shutoff valve (closed position)
C. Gas supply line
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
A
B
C
A. Gas pressure regulator
B. Gas supply line
C. Electrical disconnect
D. Serial plate
E. Manual oven valve
F. B u r n e r r at i n g p l a t e
G. Manifold pressure tap
A. Regulator pin
B. Regulator cap
A B
C
D
E
F
G
A
B

10
3. Flip the regulator pin over and snap pin firmly into place.
4. Screw the hex-shaped regulator cap securely back into
place. Do not overtighten.

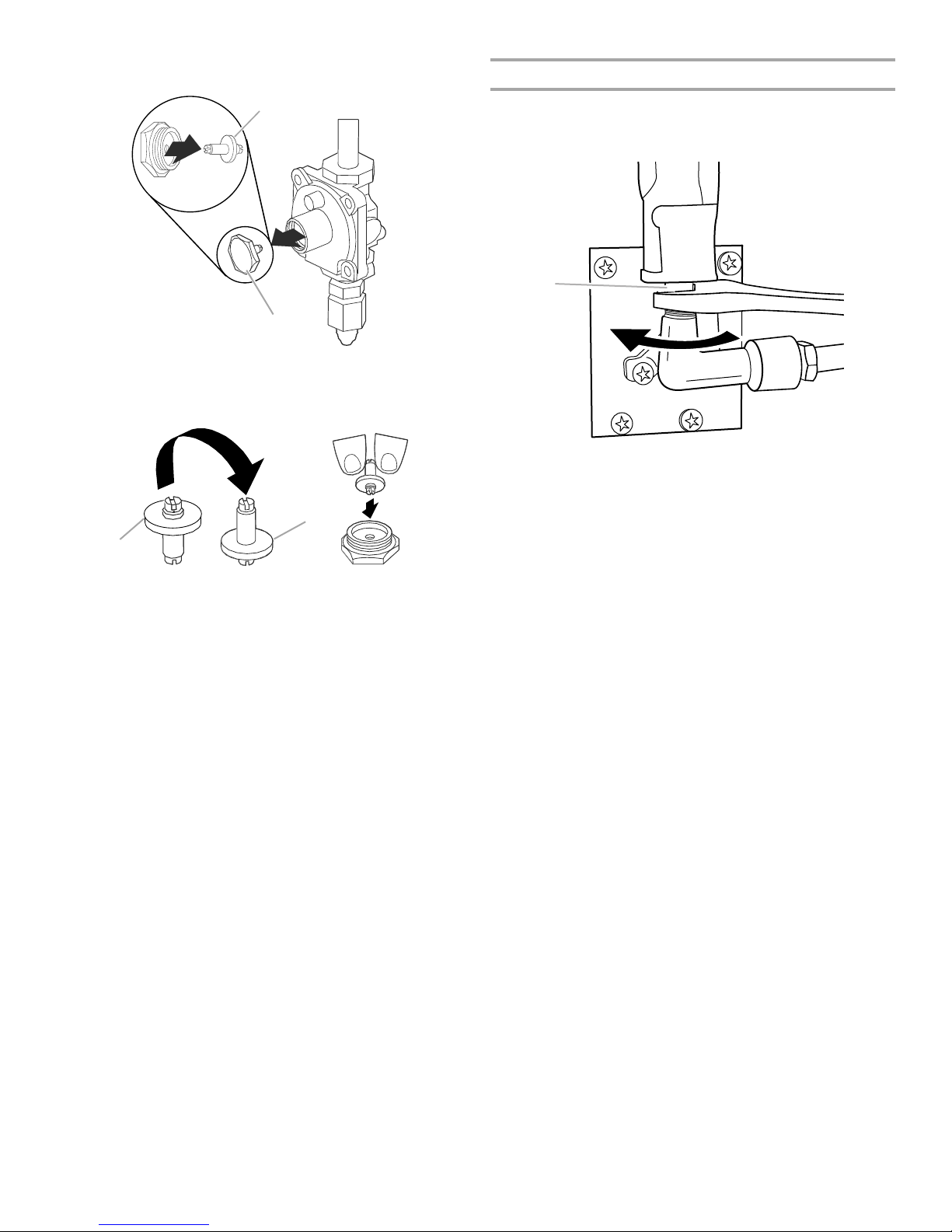

To Convert Bake/Broiler Burner
1. Remove racks from inside the broiler cavity.
2. Screw the burner orifice hood down tight against the pins. Do
not overtighten.
NOTE: On units using Eaton Oven Safety Valve, screw the
valve orifice hood down tight against the valve body. It is
important that the hood be turned down as far as it can go to
ensure complete conversion has occurred.
3. Adjust burner air shutter to the widest opening that will not
cause the flame to lift or blow off the burner when cold.
Natural Gas Conversion
1. Turn manual shutoff valve to the closed position.
2. Unplug oven or disconnect power.
To Convert Gas Pressure Regulator
1. Locate gas pressure regulator in bottom compartment.
IMPORTANT: Do not remove the gas pressure regulator.
A. Natural gas position
B. LP gas position
A. Burner orifice hood
A
B
A
A. To oven
B. Shutoff valve (closed position)
C. Gas supply line
A. Gas pressure regulator
B. Gas supply line
C. Electrical disconnect
D. Serial plate
E. Manual oven valve
F. Burner ra ting plate
G. Manifold pressure tap
A
B
C
A B
C
D
E
F
G

11
2. Unscrew the hex-shaped regulator cap from the regulator
and remove the regulator pin.
3. Flip the regulator pin over and snap pin firmly into place.
4. Screw the hex-shaped regulator cap securely back into
place. Do not overtighten.
To Convert Oven Bake/Broil Burner
1. Remove racks from inside the broiler cavity.
2. Screw the burner orifice hood away from the pins. There will
be approximately 1¹⁄₂ to 2 turns.
NOTE: On units using Eaton Oven Safety Valve, screw the
burner orifice hood away from the pin. There will be
approximately 1¹⁄₂ to 2 turns.
3. Adjust burner air shutter to the widest opening that will not
cause the flame to lift or blow off the burner when cold.
A. Regulator pin
B. Regulator cap
A. LP gas position
B. Natural gas position
A
B
A
B
A. Burner orifice hood
A

12

13

14

15

W10526072A
© 2012. Whirlpool Corporation.
All rights reserved. 7/12 Printed in U.S.A.
