JOB AID
Part No. 4322525
WHIRLPOOL
SELF-CLEANING
SLIDE-IN ELECTRIC RANGES

- ii -
WHIRLPOOL CORPORATION assumes no responsibility for any repair
made on our products by anyone other than Authorized Factory Service
Technicians.
Copyright 1999, Whirlpool Corporation, Benton Harbor, MI 49022
FORWARD
This Job Aid, “Self-Cleaning Slide-In Electric Ranges,” (Part No. 4322525), provides the techni-
cian with information on the installation, operation, and service of Whirlpool Self-Cleaning Slide-
In Electric Ranges. It is to be used as a training Job Aid and Service Manual. For specific informa-
tion on the model being serviced, refer to the “Use and Care Guide,” or “Tech Sheet” provided with
the range.
The Wiring Diagrams and Strip Circuits used in this Job Aid are typical and should be used for
training purposes only. Always use the Wiring Diagram supplied with the product when servicing
the unit.
GOALS AND OBJECTIVES
The goal of this Job Aid is to provide detailed information that will enable the service technician to
properly diagnose malfunctions and repair Self-Cleaning Slide-In Electric Ranges.
The objectives of this Job Aid are to:
• Understand and follow proper safety precautions.
• Successfully troubleshoot and diagnose malfunctions.
• Successfully perform necessary repairs.
• Successfully return the range to proper operational status.

- iii -
Table of Contents
SPECIFICATIONS .................................................................................................................. 1-1
INSTALLATION HIGHLIGHTS ................................................................................................ 2-1
Electrical Requirements ..................................................................................................... 2-1
Connecting The Range To An Electrical Supply................................................................ 2-3
Moving The Range ............................................................................................................ 2-6
PRODUCT OPERATION ........................................................................................................ 3-1
Air Flow — Rear Panel ...................................................................................................... 3-1
Cooling Fan Air Flow ......................................................................................................... 3-2
The Bimetal Switches ........................................................................................................ 3-3
The Surface Element Limiter ............................................................................................. 3-4
The Door Lock Solenoid & Door Latch Switch................................................................... 3-5
How The Self-Clean Cycle Works ..................................................................................... 3-6
COMPONENT ACCESS ......................................................................................................... 4-1
Component Locations ........................................................................................................ 4-1
Removing The Electronic Oven Control & The Control Panel ........................................... 4-2
Removing An Element Control (Infinite Switch) & A Surface Indicator Light ..................... 4-4
Removing A Bimetal Switch............................................................................................... 4-6
Removing The Ceran Glass Maintop................................................................................. 4-7
Removing A Surface Element & Hot Surface Indicator Light Assembly ............................ 4-8
Removing The Oven Bake & Broil Elements ................................................................... 4-10
Removing The Oven Light Assembly .............................................................................. 4-12
Removing The Oven Door Gasket................................................................................... 4-13
Removing The Oven Light Switch ................................................................................... 4-14
Removing The Cooling Fan ............................................................................................. 4-16
Removing The Oven Temperature Sensor &
The Door Latch Assembly Components ....................................................................... 4-18
Removing The Oven Door Glass ..................................................................................... 4-20
Removing The Outer Oven Glass.................................................................................... 4-22
Removing The Inner Oven Glass .................................................................................... 4-23
COMPONENT TESTING ........................................................................................................ 5-1
DIAGNOSIS & TROUBLESHOOTING.................................................................................... 6-1
WIRING DIAGRAMS & STRIP CIRCUITS.............................................................................. 7-1
TECH TIPS ............................................................................................................................. 8-1
PAGE

- iv -
WHIRLPOOL MODEL & SERIAL NUMBER DESIGNATIONS
SERIAL NUMBER
MODEL NUMBER
MODEL NUMBER
INTERNATIONAL SALES IND.
OR MARKETING CHANNEL
IF PRESENT
GY396LXGQ
PRODUCT GROUP:
R = ELECTRIC RANGES
S = GAS RANGES
G = WHIRLPOOL GOLD RANGE
PRODUCT IDENTIFICATION:
A = ACCESSORY K = KITS
B = BUILT-IN M = MV COMBO
C = COOKTOP S = SET-IN
E = EYE-LEVEL W = SLIDE-IN GAS
F = FREESTANDING Y = SLIDE-IN ELECTRIC
H = HOODS
MODEL SIZE:
3 = 30" SLIDE-IN
4 = 40" SLIDE-IN
5 = 36" SLIDE-IN
6 = 30" SET-IN RANGES
OVEN TYPE:
0 THRU 3 = STANDARD PORCELAIN
4 THRU 9 = PYROLYTIC SELF-CLEAN
FEATURE / VARIATIONS:
ELECTRIC
0, 1, 2, 5, 7 = COIL ELEMENTS
4 = STANDARD PATTERN CERAMIC
6, 8, 9 = DELUXE PATTERN CERAMIC
GAS
0, 1, 2, 3, 4, 6 = OPEN BURNER
5 & 7 = SEALED BURNER
DOOR TYPE:
B = SOLID BLACK GLASS
L = LARGE WINDOW
O = METAL OVEN DOOR
P = STANDARD WINDOW GLASS
FEATURE CODE:
E = ELECTRONIC IGNITION (GAS ONLY)
S = STANDING IGNITION (GAS ONLY)
C = COLOR COORDINATED GLASS (BEFORE 1998)
X = NOT DEFINED
YEAR OF INTRODUCTION:
G = 1998 H = 1999 J = 2000
COLOR CODE:
B = BLACK W = WHITE
N = ALMOND Z = ALMOND ON ALMOND
Q = WHITE ON WHITE
SERIAL NUMBER X H 0 7 1 2 3 4 5
OXFORD
YEAR OF INTRODUCTION
H = 1998, J = 1999, K = 2000
WEEK OF PRODUCTION (7t WEEK)
PRODUCT SEQUENCE NUMBER

- v -
MODEL & SERIAL NUMBER LABEL
AND WIRING DIAGRAM LOCATIONS
The Model/Serial Number label and Wiring Diagram locations are shown below.
MODEL/SERIAL
NUMBER LABEL
(behind top left side
of storage drawer)
WIRING DIAGRAM
(on back cover)

- vi -
IMPORTANT SAFETY INFORMATION
Your safety and the safety of others is very important.
Important safety messages have been provided in this Job Aid. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word
“WARNING.”
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.

1-1
SPECIFICATIONS
Brand Whirlpool Whirlpool ( Gold) Whirlpool ( Gold)
US ELECTRIC MODEL # RS310PXG W/N GY395LXG Q/Z/B GY396LXG Q/Z/B
CANADIAN ELECTRIC MODEL # --- YGY395LXG Q/Z YGY396LXG Q/B
GENERAL INFORMATION
Cleaning System Std. Clean Self Clean Self Clean
Burner Type Coil Coil Radiant
Drip Pans or Glass Pattern Chrome Porcelain Q Style
Oven Controls TOD/Timer EZ300 EZ300
DIMENSIONS
Height to Maintop 36" 36" 36"
Depth - Overall 24.5" 24.5" 24.5"
Door Swing 21.75" 21.75" 21.75"
Depth with Handle 26.75" 26.75" 26.75"
Approx Shipping Weight 180 lbs 180 lbs 180 lbs
CONTROL PANEL FEATURES
Control Panel Glass Color Blk - Glass Wht/Alm/Blk - Glass Wht/Alm/Blk - Glass
Control Panel Color Black Wht/Alm/Blk Wht/Alm/Blk
Panel Construction/Shape Glass-square Glass-square Glass-square
Oven Control Location Center Center Center
Oven Controls TOD/Timer EZ 300 EZ 300
Oven Light US Yes-manual rocker Yes-in control Yes-in control
Oven Light CND Yes-manual rocker Yes-manual rocker Yes-manual rocker
Oven Heating Indicator Light Mini-Red (1) in Oven Control in Oven Control
Surface Unit Indicator Light Mini Red (2) Mini Red (2) Mini Red (2)
Surface Unit Controls Inf Detent Hi/Off Inf Detent Hi/Off Inf Detent Hi/Off
COOKTOP FEATURES
Cooktop Type Porcelain Porcelain Ceran
Drip pans Chrome Porcelain Q Style
Burner Type Coil Coil Radiant
Burner Configuration #REF! #REF! 4 Radiant
R. Front (240V) 6"-1500W 6"-1500W 7"-1700W
L. Front (240V) 8"-2400W 8"-2600W 9"-2400W
R. Rear (240V) 6"-1500W 6"-1100W 8"-2100W
L. Rear (240V) 8"-2400W 8"-2600W 6"-1400W
Hot Surface Indicator None None 4
OVEN FEATURES
Oven Type Std. Clean Self Clean Self Clean
Broil Element 2500W- 4 pass 3000W 6 pass 3000W 6 pass
Bake Element 2500w 2500w 2500w
Top Heat No Yes Yes
Accubake System No Yes Yes
Broil Pan - Storage Rails No Yes Yes
Auto Oven Light No Yes Yes
Manual Oven Light Yes-manual rocker Auto Auto
Lower Storage Drawer Yes Yes Yes
LITERATURE
Tech Sheets/Wiring Diagrams Yes Yes Yes
OTHER SPECIFICATIONS
UL/CSA approval Yes Yes Yes
Anti-Tip Device w/ Unit Floor Bracket Floor Bracket Floor Bracket

1-2
— NOTES —

2-1
WARNING
Electrical Shock Hazard
Turn power supply off before connecting
wires.
Use 8-gauge solid copper wire.
Electrically ground the range.
Failure to follow these instructions can re-
sult in death, fire, or electrical shock.
INSTALLATION HIGHLIGHTS
ELECTRICAL REQUIREMENTS
A four-wire or three-wire, single-phase, 120/
240-volt, 60-Hz; 50-amp, AC-only, electrical
supply (or four-wire or three-wire 120/208-volt
if specified on the model/serial rating plate) is
required on a separate 50-ampere circuit, fused
on both sides of the line. A time-delay fuse or
circuit breaker is recommended. The model/
serial rating plate is located on the oven frame
behind the storage drawer panel (see page v).
Wire sizes and connections must conform to
the requirements of the National Electrical
Code, ANSI/NFPA 70—latest edition*, and all
local codes and ordinances for the kilowatt rat-
ing of the range.
This range should be connected directly to the
fused disconnect or circuit breaker box through
flexible, armored or nonmetallic sheathed, cop-
per cable (with ground wire). Locate the junc-
tion box to allow two to three feet of slack in
the line so that the range can be moved if ser-
vicing is ever necessary. Do Not cut the con-
duit. A U.L.-listed conduit connector must be
provided at each end of the power supply cable
(at the range and at the junction box).
This range is manufactured with a white (neu-
tral) power wire and a cabinet-connected bare
ground wire twisted together.
Remove the junction box cover.
Connect the range cable to the junction box
through a U.L.-listed conduit connector. Com-
plete the electrical connection according to lo-
cal codes and ordinances.
If codes permit and a separate ground wire
is used, it is recommended that a qualified
electrician determine that the ground path
and wire gauge are in accordance with local
codes.
Do not ground to a gas pipe.
Check with a qualified electrician if you are
not sure whether the range is properly
grounded.
Do not have a fuse in the neutral or ground
circuit.
The range must be connected with copper
wire only.
Wiring diagrams are provided in Section 7 of
this Job Aid. * National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269

2-2

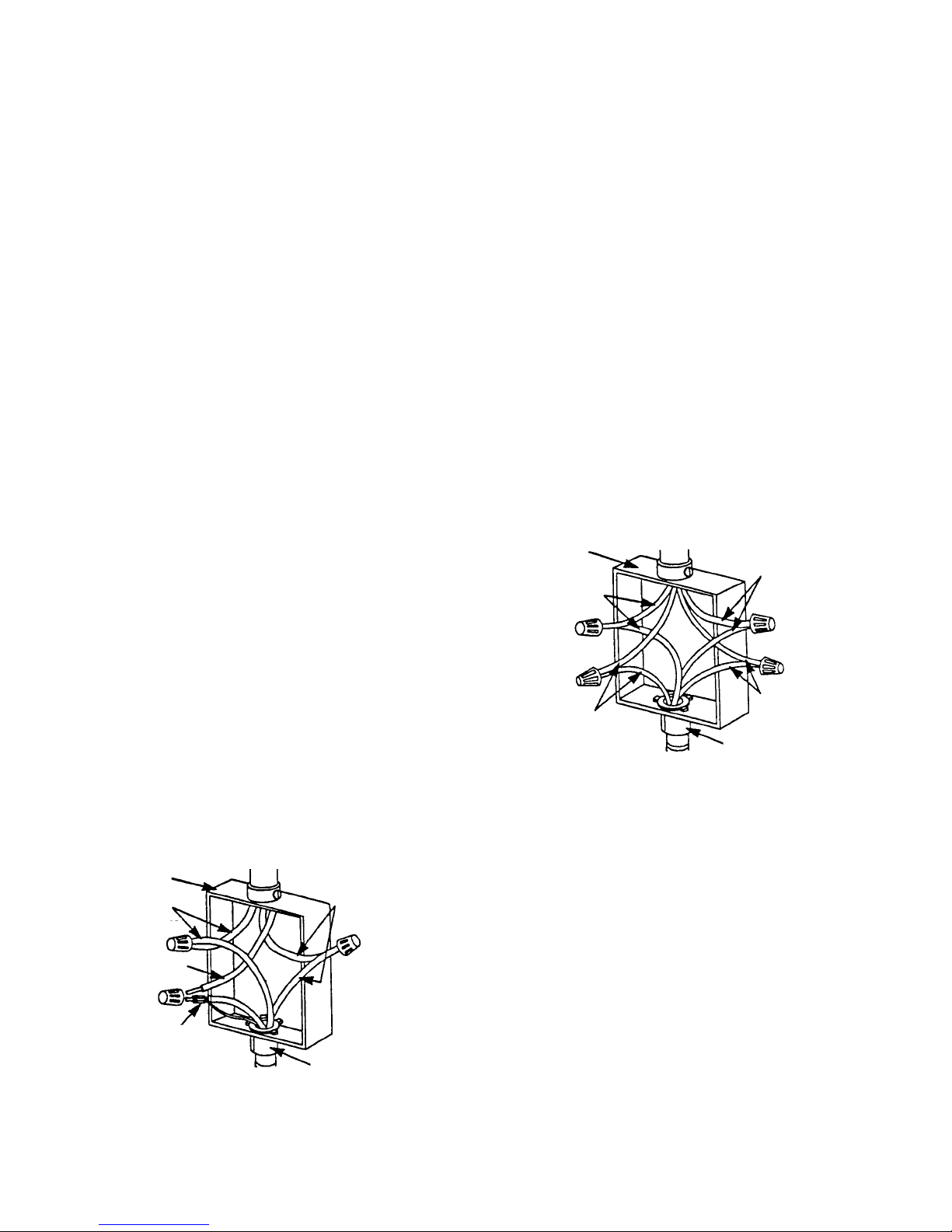

If connecting to a four wire electrical sys-
tem, do not connect the cabinet-ground
conductor to the white (neutral) junction
box wire (see Figure 2-2).
1. Disconnect the power supply.
2. Separate the green, (or bare), and the
white appliance cable wires.
3. Connect the white range cable wire to the
white (neutral) wire in the junction box.
4. Connect the two black wires together with
a twist-on connector.
5. Connect the two red wires together with a
twist-on connector.
6. Connect the green range wire to the green
ground wire in the junction box.
7. Replace the junction box cover.
Where local codes permit connecting the
cabinet-ground conductor to the white
(neutral) junction box wire (Figure 2-1):
1. Disconnect the power supply.
2. Remove the junction box cover.
3. Connect the green and white range cable
wires and the white (neutral) wire in the
junction box together with a twist-on con-
nector.
4. Connect the two black wires together with
a twist-on connector.
5. Connect the two red wires together with a
twist-on connector.
6. Replace the junction box cover.
Where local codes do not permit connect-
ing the cabinet-ground conductor to the
white (neutral) junction box wire (Figure
2-2):
1. Disconnect the power supply.
2. Separate the green and white appliance
cable wires.
3. Connect the white range cable wire to the
white (neutral) wire in the junction box with
a twist-on connector.
4. Connect the two black wires together with
a twist-on connector.
5. Connect the two red wires together with a
twist-on connector.
6. Connect the green or bare ground wire
from the range cable to a ground wire in
the junction box.
7. Replace the junction box cover.
cable from
power supply
junction
box
red
wires
white
wire
bare or green
wire
cable from
range
U.L.-listed
conduit
connector
black
wires
cable from
power supply
junction
box
red
wires
white
wires
black
wires
bare or green
wires
cable from
range
U.L.-listed
conduit
connector
Figure 2-1
Figure 2-2

2-3
CONNECTING THE RANGE
TO AN ELECTRICAL SUPPLY
IMPORTANT: Use a new 40-ampere power
supply cord. Local codes may permit the use
of a U.L.-listed, 250-volt, 40-ampere range
power supply cord (pigtail). The power supply
cord should be Type SRD or SRDT, and be at
least 4-feet long. The wires that connect to the
range must end with ring terminals. A 3/4 " (1.9
cm), U.L.-listed strain relief must be installed
where the power supply cord connects to the
range (see Figure 2-3).
This range is manufactured with ground con-
nected to cabinet for mobile home, or other 4-
wire installations. The ground must be revised
so the green grounding wire of the four-wire
power cord is connected to the cabinet.
For a 4-wire receptacle (NEMA Type 14-50R,
shown in Figure 2-4), a matching U.L.-listed,
4-wire, 250-volt, 40-ampere, range power sup-
ply cord (pigtail) must be used. This cord con-
tains four copper conductors with ring termi-
nals on the appliance end, and terminates in a
NEMA Type 14-50P plug on the supply end.
The fourth (grounding) conductor must be iden-
tified by a green, or green/yellow cover, and
the neutral conductor by a white cover. The cord
should be Type SRD or SRDT with a U.L.-listed
strain relief, and be at least 4-feet long.
The MINIMUM conductor sizes for the copper
4-wire power supply cord are:
• 40-ampere circuit
• 2) #8 conductors
• 1) #10 white neutral
• 1) #8 green grounding
The range can also be connected directly to a
fused disconnect, or to a circuit breaker box,
through flexible, armored or nonmetallic
sheathed, copper cable (with a grounding wire).
Do not use 2-wire cable with a bare grounding
wire. All current-carrying wires must be insu-
lated. A U.L.-listed conduit connector must be
provided at each end of the power supply cord
(at the appliance and at the junction box). USE
ONLY 8-GAUGE SOLID COPPER WIRE. DO
NOT USE ALUMINUM WIRE. Allow 2- or 3-
feet of slack in the line so the range can be
moved if servicing is ever necessary.
IMPORTANT: The metal chassis of the range
must be earth-grounded so that the control
panel will operate. If the chassis is not earth-
grounded, none of the keypads will operate.
Check with a qualified electrician if you are in
doubt as to whether the range is earth-
grounded.
THIS BLADE CONNECTED
TO THIS CONDUCTOR
NEUTRAL
RING TERMINALS
3/4" (1/9 cm) U.L.-LISTED
STRAIN RELIEF
NEUTRAL
(WHITE OR CENTER)
3-WIRE POWER SUPPLY CORD
NEMA 10-50P
4-WIRE POWER SUPPLY CORD
(MOBILE HOME OR OTHER 4-WIRE INSTALLATIONS)
NEMA 10-50P
NEUTRAL (WHITE)
3/4" (1/9 cm) U.L.-LISTED
STRAIN RELIEF
GROUNDING PRONG GROUNDING WIRE
(GREEN OR GREEN-YELLOW)
NEUTRAL
Figure 2-3
Power Supply Cords
The power supply cord must have three No.-10
copper wires to match a 3-wire receptacle of NEMA
Type 10-50R. (See Figure 2-4).
Figure 2-4
AC Receptacles
3-wire wall
receptacle
(10-50R)
4-wire wall
receptacle
(14-50R)

2-4
WARNING
Electric Shock Hazard
Do not use 2-wire cable with a bare
grounding wire. All current -carrying wires
must be insulated.
Failure to follow these instructions could
result in fire, electrical shock, or death.
To install the power supply cord to the terminal
block screws on the back of the range, per-
form the following steps.
1. Turn off the power supply.
2. If the power supply cord does not have
eyelets installed on the leads, prepare the
leads, as shown in Figure 2-5.
1" (2.5 cm)
3"
(7.6 cm) Hooked
Lead

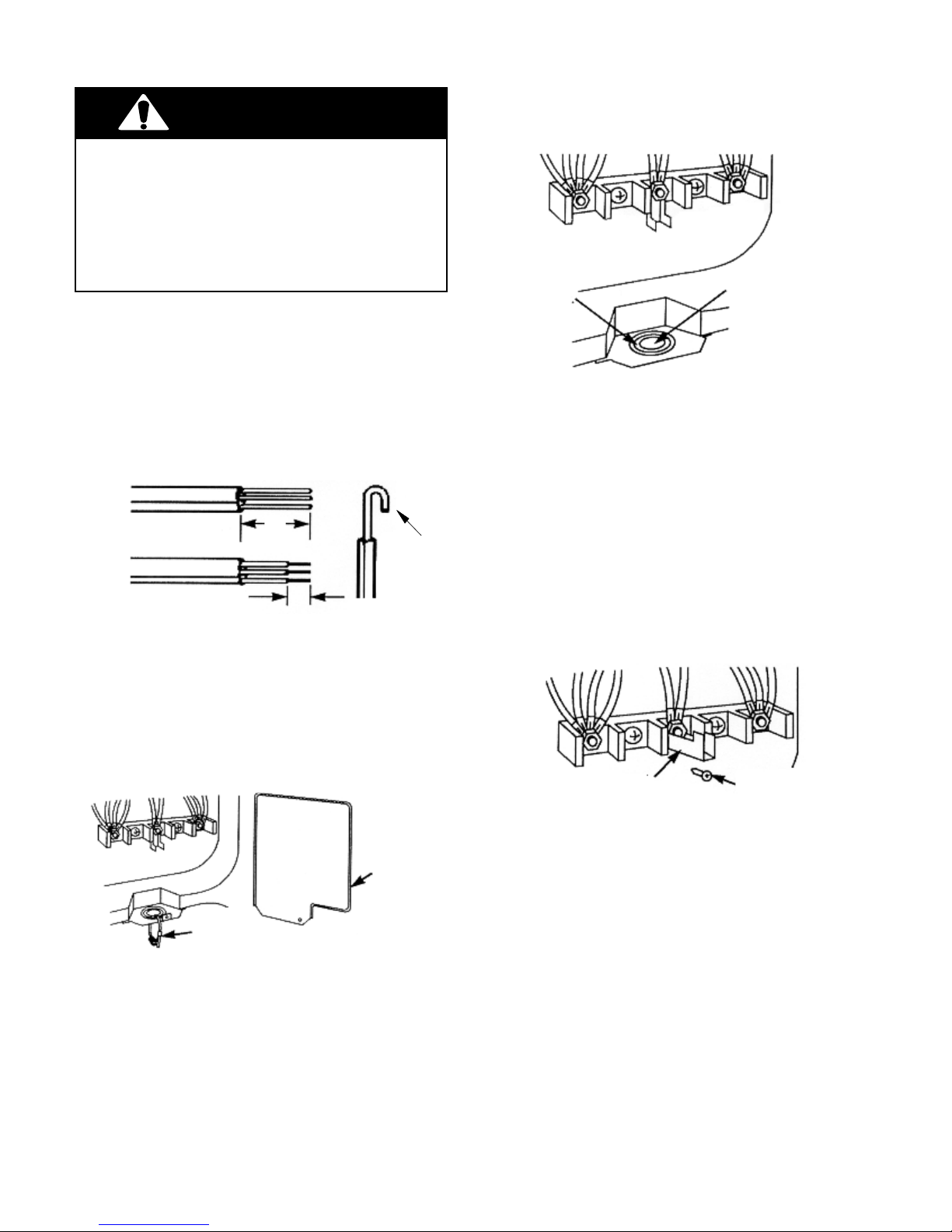

Figure 2-5
Preparing The Lead Ends
Brass
Terminal Nuts
Terminal
Block
Cover
3. Remove the terminal block cover from the
back of the range, and the brass terminal
nuts that are attached to the knockout (see
Figure 2-6).
Figure 2-6
Removing The Terminal Block Cover & Nuts
Figure 2-7
Mounting The Conduit Connector
Conduit
Connector
Opening
Do Not Remove
Knockout
5. Slide the lead end of the power supply
cord through the conduit connector and
tighten the strain relief clamp. Make sure
that you allow enough slack in the cord so
you can easily connect the lead ends to
the terminal block screws (see Figure
2-8).
6. Remove the grounding link screw from the
range frame (see Figure 2-8).
4. Attach a U.L.-listed conduit connector to
the knockout opening, but do not remove
the knockout (see Figure 2-7).
Figure 2-8
Removing The Grounding Link Screw
Grounding
Link Screw
Grounding Link

2-5
7. Mount the green ground lead from the
power cord to the grounding link with the
grounding link screw you just removed
(see Figure 2-9). This lead must be at-
tached first and must not contact any
of the other terminals.
White
(neutral)
Lead
Silver
Terminal
Green
(ground)
Lead
Strain Relief

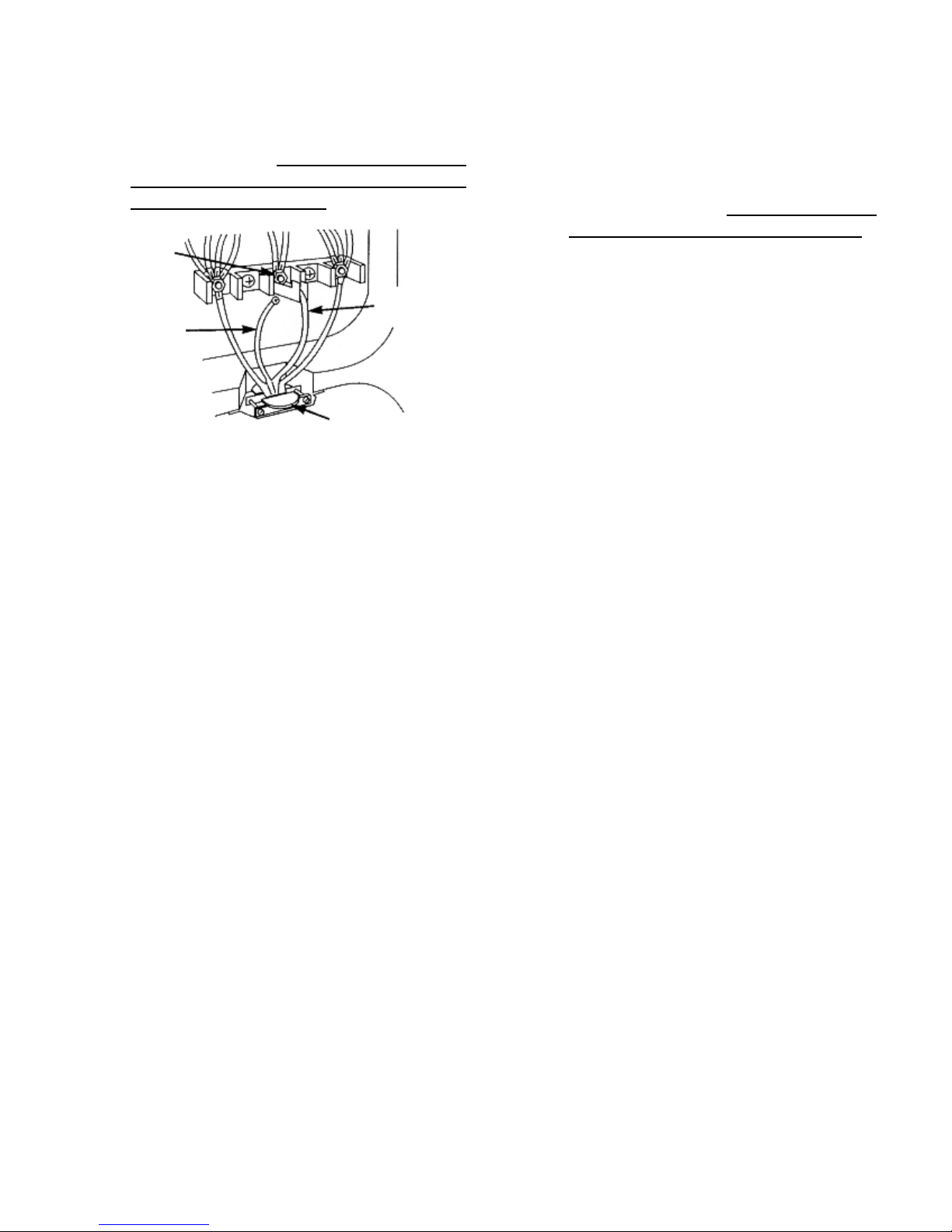

Figure 2-9
Connecting The Leads
8. Using the brass terminal nuts you re-
moved in step 3, connect the power supply
cord lead ends to the terminal screws as
follows (see Figure 2-9):
a) White (neutral) lead to the center (sil-
ver) terminal screw. This lead must be
connected to the center terminal.
b) Remaining two leads to the outer
screw terminals.
9. Make sure that the conduit strain relief is
tight, then mount the terminal block cover
to the range with the hardware you re-
moved in step 3.

2-6
Tip-Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can re-
sult in death or serious burns to children
and adults.
WARNING
Before moving the range, slide it onto a piece
of cardboard, or hardboard, to prevent dam-
aging the floor covering, and perform the fol-
lowing steps:
1. Disconnect the electrical supply.
2. Slide the range forward and disengage
the foot with the anti-tip bracket. IMPOR-
TANT: Make sure the anti-tip bracket is
securely attached to floor.
3. Slide range back so the rear foot engages
in the anti-tip bracket.
4. Check to see that the range is level.
5. Reconnect the electrical supply cord.
MOVING THE RANGE

3-1
(see Figure 3-1). When the range is installed,
these spacers should just come in contact with
the surface of the wall. If they are accidentally
bent in, proper spacing will be lost, and the
oven will not heat properly. Also, the front con-
trol panel may become overly warm, and cause
the bimetal switches to trip, shutting down the
operation. If any of these problems occur, it is
most likely because of air flow restrictions.
The electric range needs sufficient air to prop-
erly cool the oven. In addition, proper air flow
through the electric range also keeps the front
control panel from becoming too hot while the
elements are operating, and causing opera-
tional problems.
To help provide the proper air flow along the
back of the range, the rear panel of the range
has a spacer on each side toward the bottom
Figure 3-1
PRODUCT OPERATION
AIR FLOW — REAR PANEL
WALL
AIRFLOW
SPACER
REAR
PANEL
SIDE VIEW
EXTRUDED
SPACERS
ON REAR PANEL

3-2
COOLING FAN AIR FLOW
Refer to Figure 3-2 while you read this descrip-
tion.
The cooling fan is in series with the cooling fan
bimetal switch, which is located under the right
side of the control panel. When the tempera-
ture of the chassis reaches 40˚C (104˚F), the
bimetal switch closes, and turns on the cool-
ing fan.
The cooling fan draws air from inside the base
of the cabinet. It forces the air up the air chan-
nel, which is located under the left side panel,
to the opening at the end of the control panel.
Air then flows across the chassis below the
control panel, and cools it. Air enters through
the series of holes in front of the range top,
flows beneath it, and exits to the outside
through slots in the rear panel. When the con-
trol panel chassis temperature drops below
40˚C (104˚F), the bimetal switch opens, and
turns the cooling fan off.
Figure 3-2
COOLING FAN
AIR CHANNEL
AIR FLOWS FROM
CONTROL PANEL
UNDER RANGE TOP
OVEN VENT FOR
OVEN EXHAUST
AIR FLOWS
INTO
REAR PANEL
LOUVERS AIR INLETS
UNDER
CONTROL
PANEL
COOLING FAN
BIMETAL SWITCH
BROIL ELEMENT
BAKE ELEMENT
L1
BK
P
L2L1
H1 H2
BK 2A BK 2B
1A 1B
LF P
L2L1
H1 H2
Y2A Y2B
1A 1B
LR P
L1
H1 H2
BR 2A BR 2B
1A 1B
RF P
L2L1
H1 H2
R2A BU 2B
1A 1B
RR
LF LR RF RR
HOT SURFACE
IND. LIGHTS
R
W
R
BK
BK
SURF
IND.
LIGHT
P4-4 R
P4-5
P3-1
P3-2
P2-1
P2-4
P4-1
BR
BU
BU
BU
R
N.O.
COM
DOOR
LATCH SW.
DOOR LOCK
SOLENOID W
GND
OVE N LT.
P3-3
P3-4
P3-6
P3-7
P2-2
P2-3
OR P6
GND
GP3-5
P4-3
OVE N
TEMP
SENSOR
DOOR
SW.
OVEN CONTROL
V
V
SURF
IND.
LIGHT
W
BK
BU
W
L2
R
Y
Y
BK
M
BI - METAL SW FAN N.O.
BI-METAL SW
AMBIENT N.C.
BU
VVVV
BU
NN
P
L2
L1
H1 H2
N
(OPTIONAL)
COIL ELEMENT
YY W
BK
V
R
L2
BROIL RELAY
BAKE RELAY DLB RELAY
SUR.
IND.
LIGHT
INF. SWITCH
TRANSFORMER
OVEN LIGHT
RELAY
LATCH RELAY

3-3
THE BIMETAL SWITCHES
• Cooling Fan Bimetal Switch (N.O.)
(Inset #2) —This switch is located un-
der the right side of the control console.
It turns the cooling fan on if the console
temperature reaches 40˚C/104˚F.
There are two bimetal switches on the electric
range. The switches operate as follows:
• Ambient Bimetal Switch (N.C.)
(Inset #1)
—This switch is located un-
der the left side of the control console.
It opens the L1 circuit to the electronic
control board if the console temperature
reaches 95˚C/203˚F.
AMBIENT
BIMETAL SWITCH
COOLING
FAN BIMETAL
SWITCH
Figure 3-3
Inset #2
Inset #1
BROIL ELEMENT
BAKE ELEMENT
L1
BK
P
L2L1
H1 H2
BK 2A BK 2B
1A 1B
LF P
L2L1
H1 H2
Y2A Y2B
1A 1B
LR P
L1
H1 H2
BR 2A BR 2B
1A 1B
RF P
L2L1
H1 H2
R2A BU 2B
1A 1B
RR
LF LR RF RR
HOT SURFACE
IND. LIGHTS
R
W
R
BK
BK
SURF
IND.
LIGHT
P4-4 R
P4-5
P3-1
P3-2
P2-1
P2-4
P4-1
BR
BU
BU
BU
R
N.O.
COM
DOOR
LATCH SW.
DOOR LOCK
SOLENOID W
GND
OVEN LT.
P3-3
P3-4
P3-6
P3-7
P2-2
P2-3
OR P6
GND
GP3-5
P4-3
OVEN
TEMP
SENSOR
DOOR
SW.
OVEN CONTROL
V
V
SURF
IND.
LIGHT
W
BK
BU
W
L2
R
Y
Y
BK
M
BI - METAL SW FAN N.O.
BI-METAL SW
AMBIENT N.C.
BU
VVVV
BU
NN
P
L2
L1
H1 H2
N
(OPTIONAL)
COIL ELEMENT
YY W
BK
V
R
L2
BROIL RELAY
BAKE RELAY DLB RELAY
SUR.
IND.
LIGHT
INF. SWITCH
TRANSFORMER
OVEN LIGHT
RELAY
LATCH RELAY

3-4
THE SURFACE ELEMENT LIMITER
The surface element limiter is a safety device
that is mounted in the surface element circuit
(see Figure 3-4).
The limiter monitors the temperature of the
cooktop glass in two ways (see Figure 3-5):
a)Circuit 1A to 2A, which is a normally-
closed (N.C.) switch, opens at 1025˚F
and protects the ceran glass from heat
damage.
b)Circuit 1B to 2B, which is a normally-
open switch (N.O.) switch, closes and
turns on the hot surface indicator lights
if the temperature of the cooktop is
greater than 150˚F. This switch will re-
main closed until the ceran glass is
warm enough to touch.
2A 2B
1A 1B
2A 2B
1B
1A
MAINTOP SENSING ROD HEATING COIL
INSULATION LIMITER
ELEMENT
TERMINALS
LIMITER
TERMINALS
Figure 3-4 Figure 3-5
BROIL ELEMENT
BAKE ELEMENT
L1
BK
P
L2L1
H1 H2
BK 2A BK 2B
1A 1B
LF P
L2L1
H1 H2
Y2A Y2B
1A 1B
LR P
L1
H1 H2
BR 2A BR 2B
1A 1B
RF P
L2L1
H1 H2
R2A BU 2B
1A 1B
RR
LF LR RF RR
HOT SURFACE
IND. LIGHTS
R
W
R
BK
BK
SURF
IND.
LIGHT
P4-4 R
P4-5
P3-1
P3-2
P2-1
P2-4
P4-1
BR
BU
BU
BU
R
N.O.
COM
DOOR
LATCH SW.
DOOR LOCK
SOLENOID W
GND
OVE N LT.
P3-3
P3-4
P3-6
P3-7
P2-2
P2-3
OR P6
GND
GP3-5
P4-3
OVE N
TEMP
SENSOR
DOOR
SW.
OVEN CONTROL
V
V
SURF
IND.
LIGHT
W
BK
BU
W
L2
R
Y
Y
BK
M
BI - METAL SW FAN N.O.
BI-METAL SW
AMBIENT N.C.
BU
VVVV
BU
NN
P
L2
L1
H1 H2
N
(OPTIONAL)
COIL ELEMENT
YY W
BK
V
R
L2
BROIL RELAY
BAKE RELAY DLB RELAY
SUR.
IND.
LIGHT
INF. SWITCH
TRANSFORMER
OVEN LIGHT
RELAY
LATCH RELAY

3-5
THE DOOR LOCK SOLENOID & DOOR LATCH SWITCH
open) position. During the self-clean cycle, the
control board sends a 120-volt pulse to the so-
lenoid windings, which pulls the plunger in, and
moves the latch actuator rod to lock the oven
door (Figure 3-6B). The movement of the rod
also actuates the door latch switch and closes
it. When the self-clean cycle is over, the con-
trol board sends a 120-volt pulse to the sole-
noid, the plunger is pushed out, the latch ac-
tuator rod releases the door, and the door latch
switch opens.
The door lock solenoid operates on a 120-volt
pulse from the electronic control board. When
the door is in the unlocked position, (Figure
3-6A), the plunger is extended. When the door
latch switch is open, the control senses that
the door is unlocked. When the door latch
switch closes, the control senses that the door
is locked. The door latch switch, mounted on
the solenoid bracket, is in the N.O. (normally-
PLUNGER OUT
DOOR UNLOCKED
LATCH
ACTUATOR
ROD
LATCH
ACTUATOR
ROD
DOOR LATCH
SWITCH OPEN
SOLENOID
120 VAC
DOOR
UNLOCKED
PLUNGER IN
DOOR LOCKED
DOOR LATCH
SWITCH CLOSED
SOLENOID
120 VAC
DOOR
LOCKED
Figure 3-6A
The Door Lock Solenoid
(Door Unlocked)
Figure 3-6B
The Door Lock Solenoid
(Door Locked)
N
W
L1
BK
W
W
W
BK
BK
P4-4 R
P4-5
P3-1
P3-2
P2-1
P2-4
P4-1
BR
BU
BU
V
RBROIL IGNITOR
BAKE IGNITOR
BAKE VALVE
BROIL VALVE
N.O.
COM
DOOR
LATCH SW.
DOOR LOCK
SOLENOID W
GND
OVEN LT.
P3-3
P3-4
P3-6
P3-7
P2-2
P2-3/P6
GND
G
P3-5
P4-3
OVEN
TEMP
SENSOR
DOOR
SW.
OVEN CONTROL
V
V
SURFACE BURNER
IGNITION SWITCHES SPARK MODULE
Y
Y
R
BU
BK
M
BI - METAL SW FAN N.O.
BI-METAL SW
AMBIENT N.C.
YY W
BK
BK
TRANSFORMER
OVEN LIGHT RELAY
LATCH RELAY
BROIL RELAY
BAKE RELAY

3-6
HOW THE SELF-CLEAN CYCLE WORKS
The Self-Clean cycle uses high heat to burn
away soil and grease from inside the oven.
During this cycle, the oven will get much hot-
ter than it does under normal baking and broil-
ing conditions (see the following chart).
The oven is preset for a 3-1/2 hour Self-Clean
cycle. However, you can adjust this cycle time
to between 2-1/2 and 4-1/2 hours. The chart
shows a normal 3-1/2 hour Self-Clean cycle.
Note that although the heating turns off after
3-hours, the door will remain locked for an ad-
ditional 1/2 hour so the oven can cool suffi-
ciently.
During the Self-Clean cycle, the bake element
is on all the time (see Figure 3-7). If the door
latch switch is not activated during the clean
operation, the cycle is terminated and the dis-
play will show “close door.”
AFTER 30-MINUTES OF CLEAN
L1 L2
MICROCOMPUTER
P2-4P2-3
BAKE
ELEMENT DLB
RELAY
Figure 3-7
