Whirlpool 9753051 User manual

9753051
A Note to You ............2
Range Safety.............3
Parts and Features....5
Using Your Range .....6
Using the Self-
Cleaning Cycle ........24
Caring for Your
Range.......................28
Troubleshooting.......33
Index ........................35
Self-Cleaning
Slide-In
Gas Ranges

2
A NOTE TO YOU
You have purchased a quality product which was designed to make your life easier. To ensure that you enjoy
years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about
how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the “Parts and Features” section).
Please also record the purchase date of your appliance
and your dealer’s name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference. It is important for
you to save your sales receipt showing the date of purchase. Proof of purchase will assure
you of in-warranty service.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
– Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.

3
continued on next page
RANGE SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
wDANGER
wWARNING
You will be killed or seriously injured if you
don’t follow instructions.
You can be killed or seriously injured if you
don’t follow instructions.

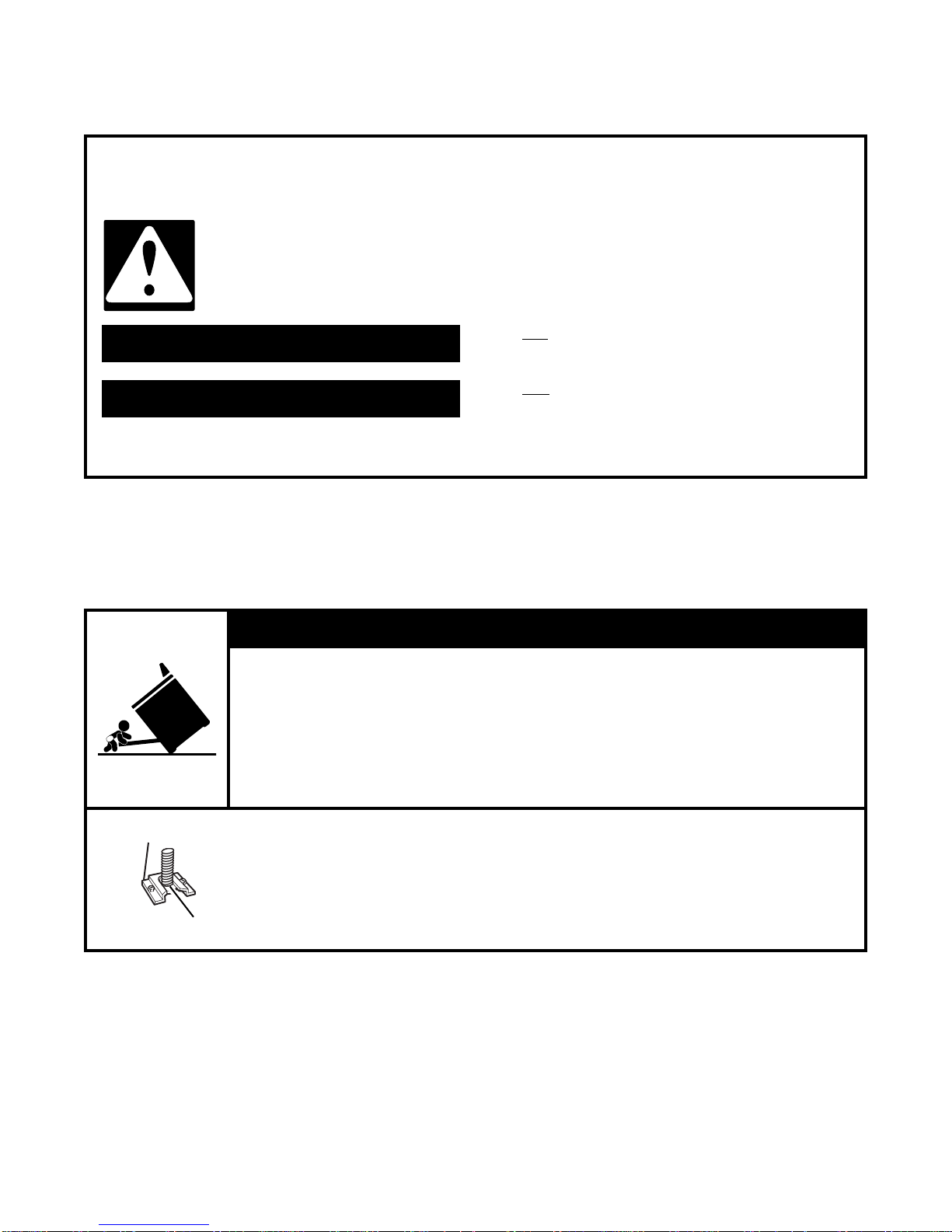

THE ANTI-TIP BRACKET
The range will not tip during normal use. However, tipping can occur if you apply too much force or weight to the
open door without the anti-tip bracket properly secured.
wWARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
Anti-Tip Bracket
Range Foot

4
RANGE SAFETY
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING – TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
•CAUTION – Do not store items of interest to
children in cabinets above a range or on the
backguard of a range – children climbing on the
range to reach items could be seriously injured.
•Proper Installation – The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70. Be
sure the range is properly installed and grounded
by a qualified technician.
•This range is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug.
IMPORTANT SAFETY INSTRUCTIONS
•Disconnect the electrical supply before servicing
the appliance.
•Never Use the Range for Warming or Heating the
Room.
•Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
•Maintenance – Keep range area clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
•Storage in or on the Range –
Flammable materials should not be stored in an
oven or near surface units.
•Top burner flame size should be adjusted so it
does not extend beyond the edge of the cooking
utensil.
For self-cleaning ranges –
•Before Self-Cleaning the Oven – Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.
– SAVE THESE INSTRUCTIONS –

5
H
I
M
E
D
M
E
D
M
E
D
L
O
L
I
T
E
H
I
L
O
H
I
M
E
D
M
E
D
M
E
D
L
O
L
I
T
E
H
I
L
O
H
I
M
E
D
M
E
D
M
E
D
L
O
L
I
T
E
H
I
L
O
H
I
M
E
D
M
E
D
M
E
D
L
O
L
I
T
E
H
I
L
O
PUSH TO TURNPUSH TO TURN
HEAT
DELAY
TIMED BAKE
BROIL
TIMER
LOCKED
COOK
ON
STOP
CLEAN
TIME
START?
BAKE BROIL CLEAN COOK TIME DELAY STOP TIME
HR
SET OFF CLOCK
MIN
START OFF
C
F
OVEN
LIGHT
TIMER
TEMP

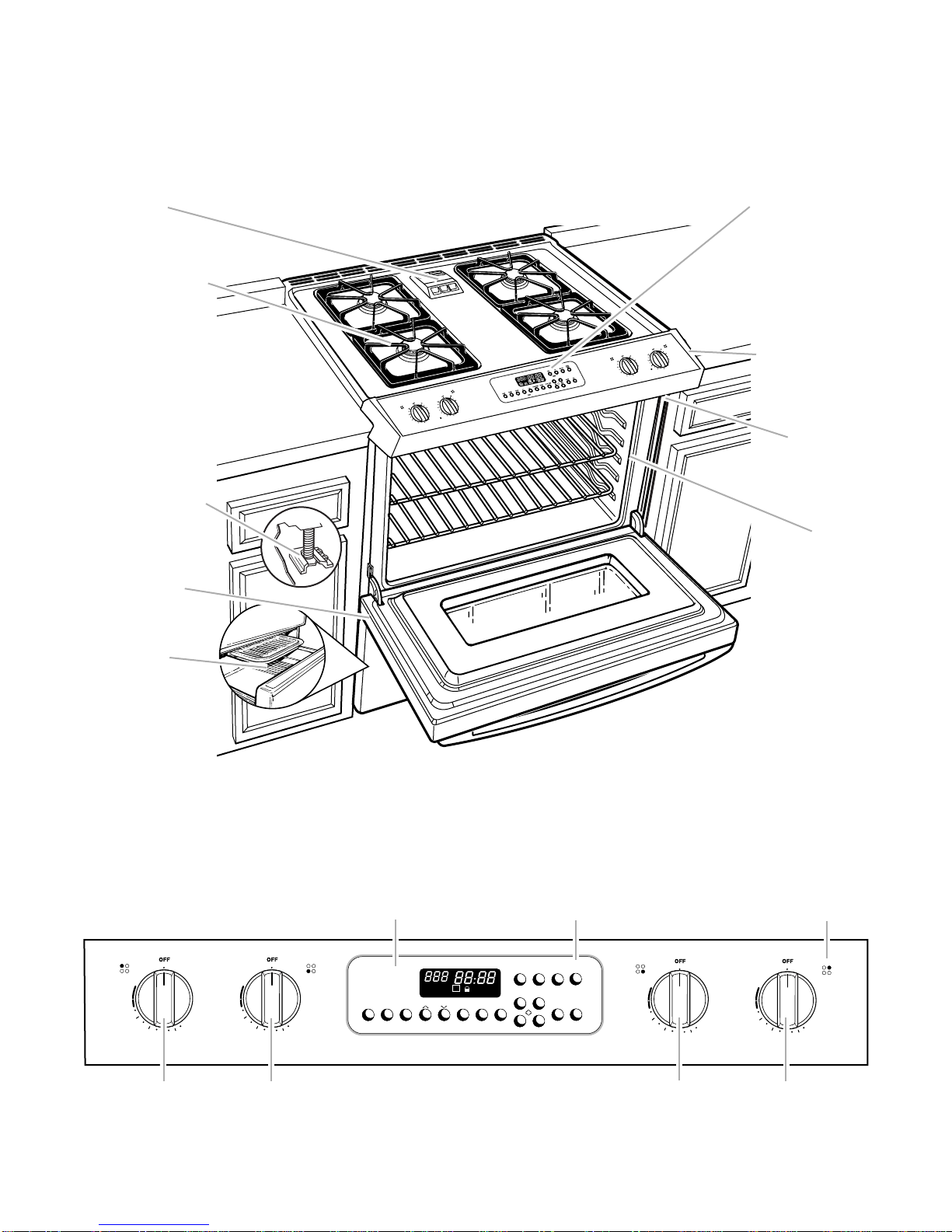

PARTS AND FEATURES
Oven vent
(p. 22)
Surface burners
(p. 6, 30-31)
Anti-tip bracket
(p. 3)
Model and serial
number plate
(behind top left side
of storage drawer)
Removable
storage drawer
(containing broiler
pan and grid)
(p. 23)

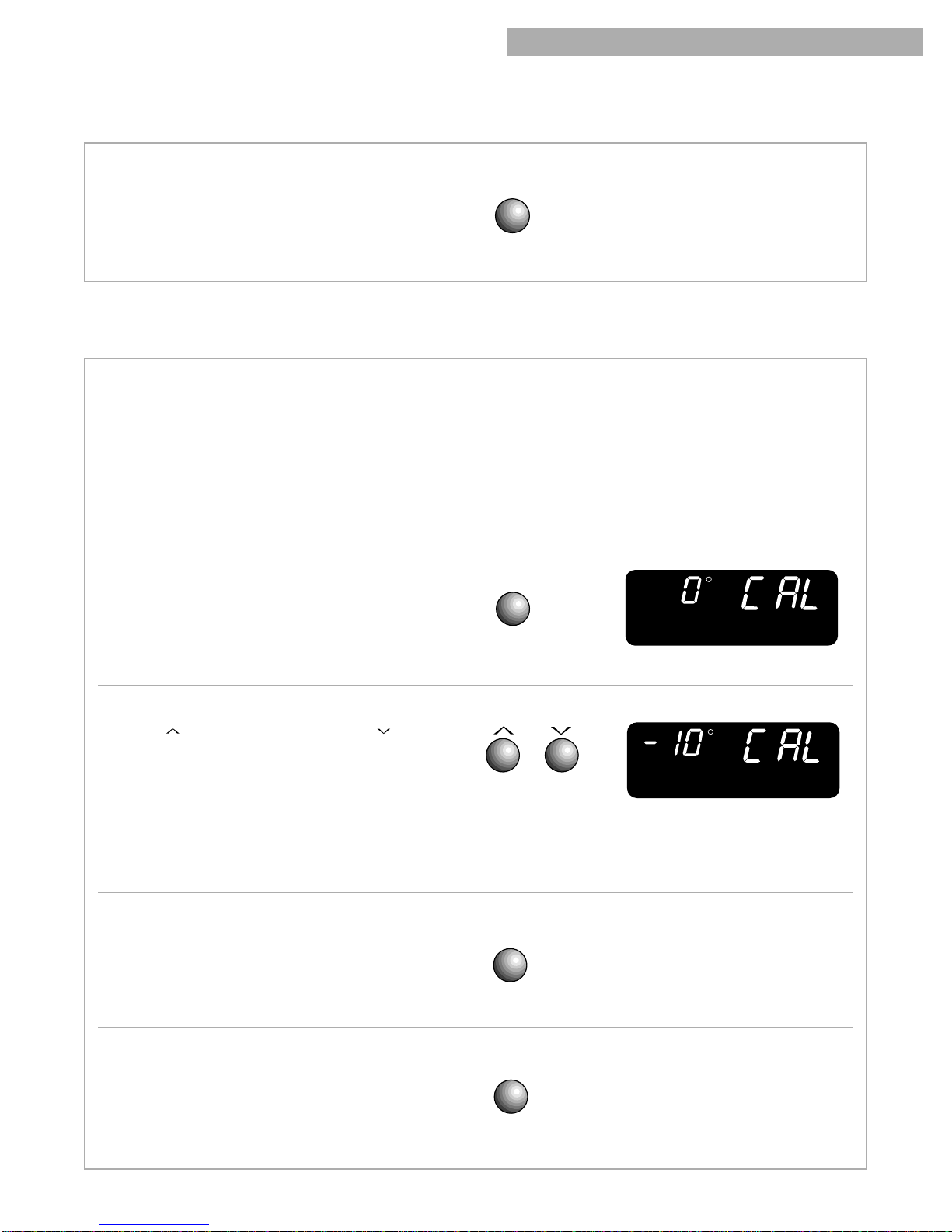

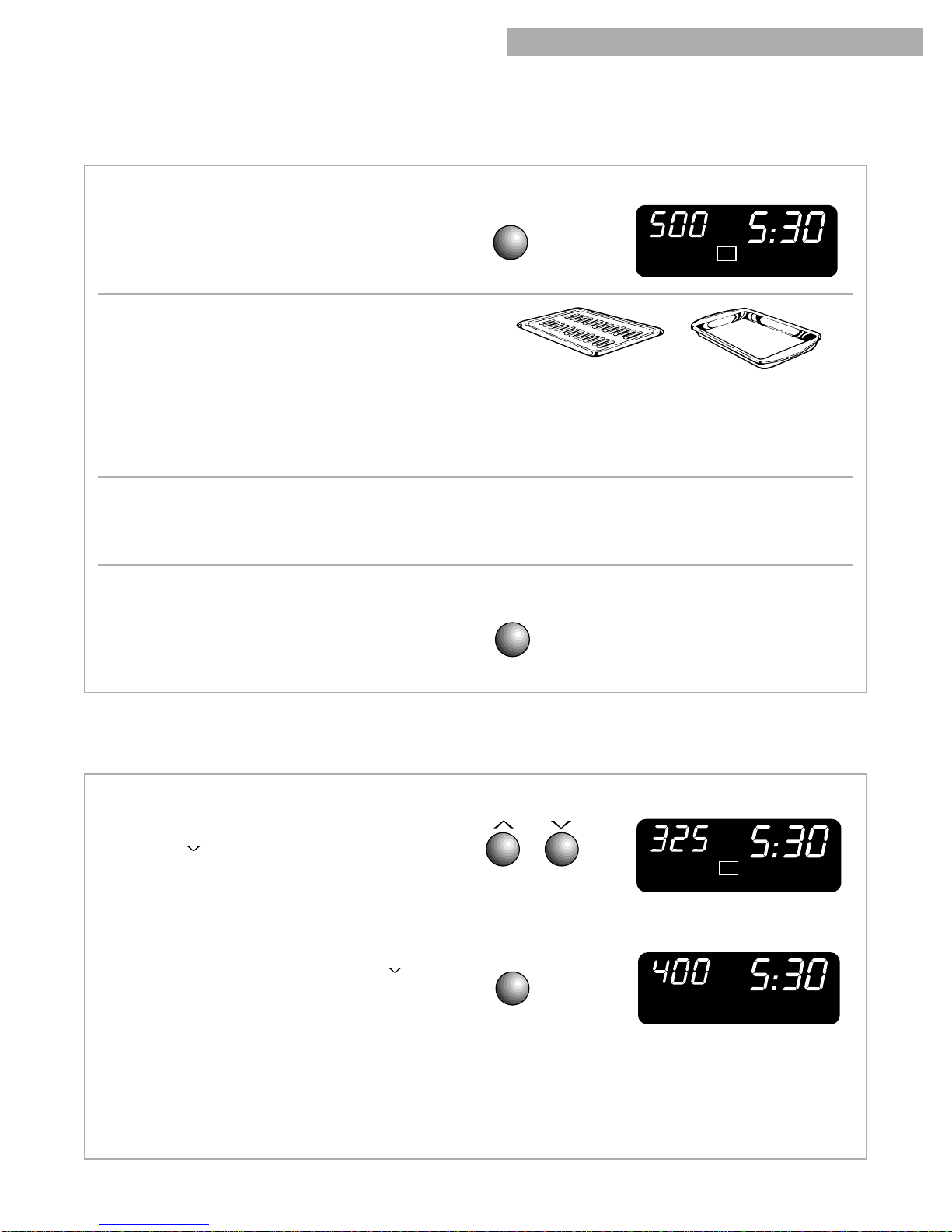

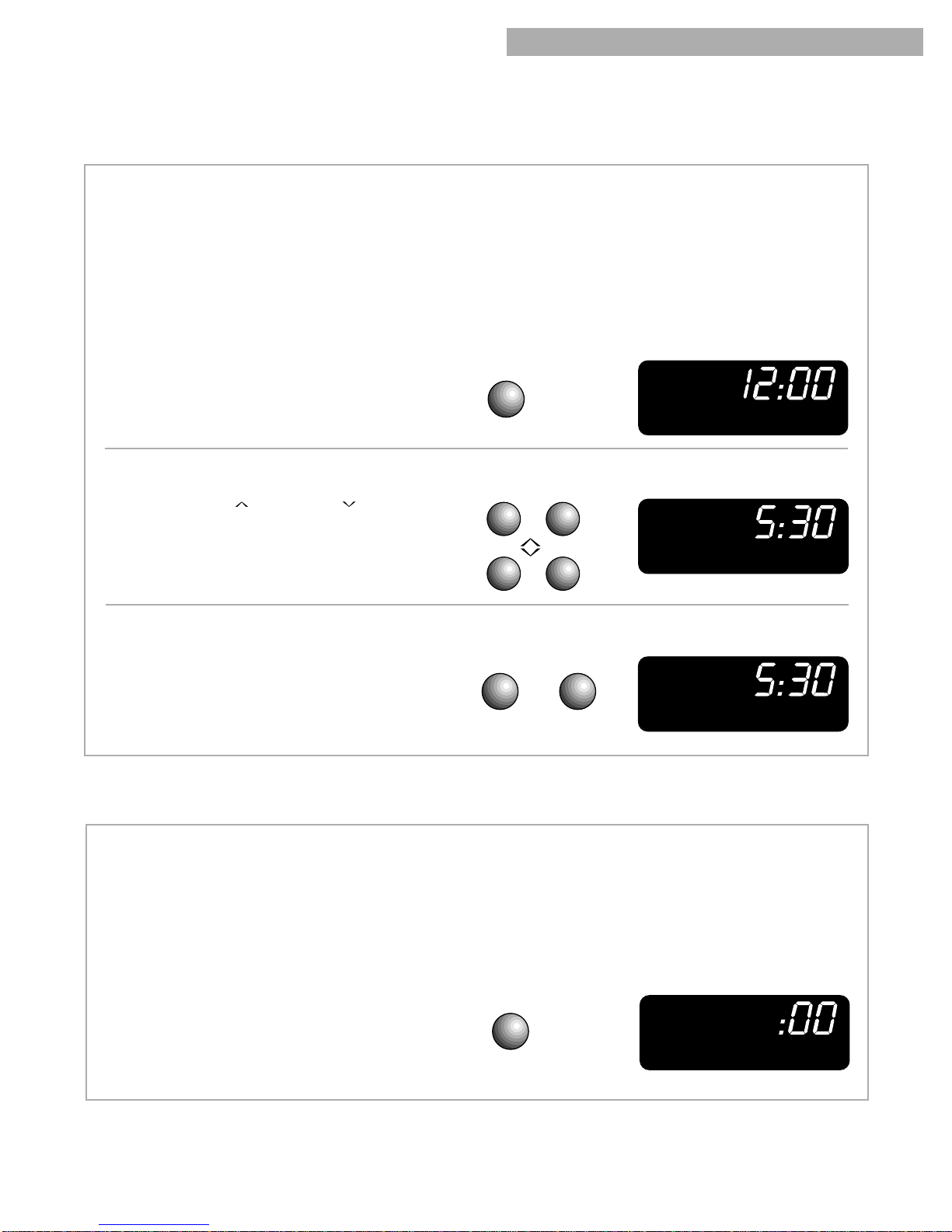

Electronic oven
control
(pp. 10-22)
Surface burner
control panel
(pp. 6, 28)
Automatic
oven light
(not shown)
(p. 32)
Gasket
(p. 24)
Left front
control knob
Left rear
control knob Right front
control knob Right rear
control knob
Surface burner marker
(shows which burner
you are setting)
Electronic
oven control
CONTROL PANEL
Manual oven
light button

6

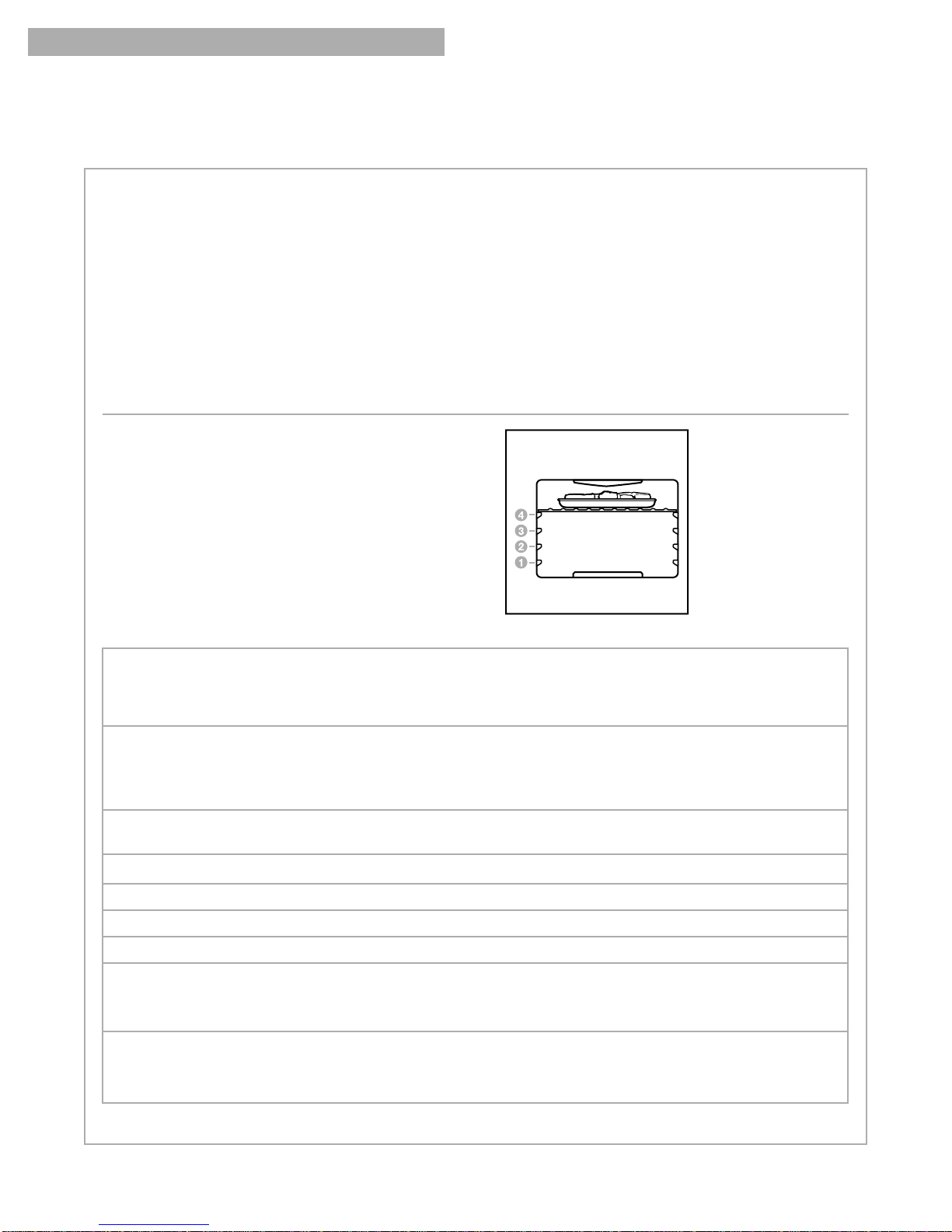

USING YOUR RANGE

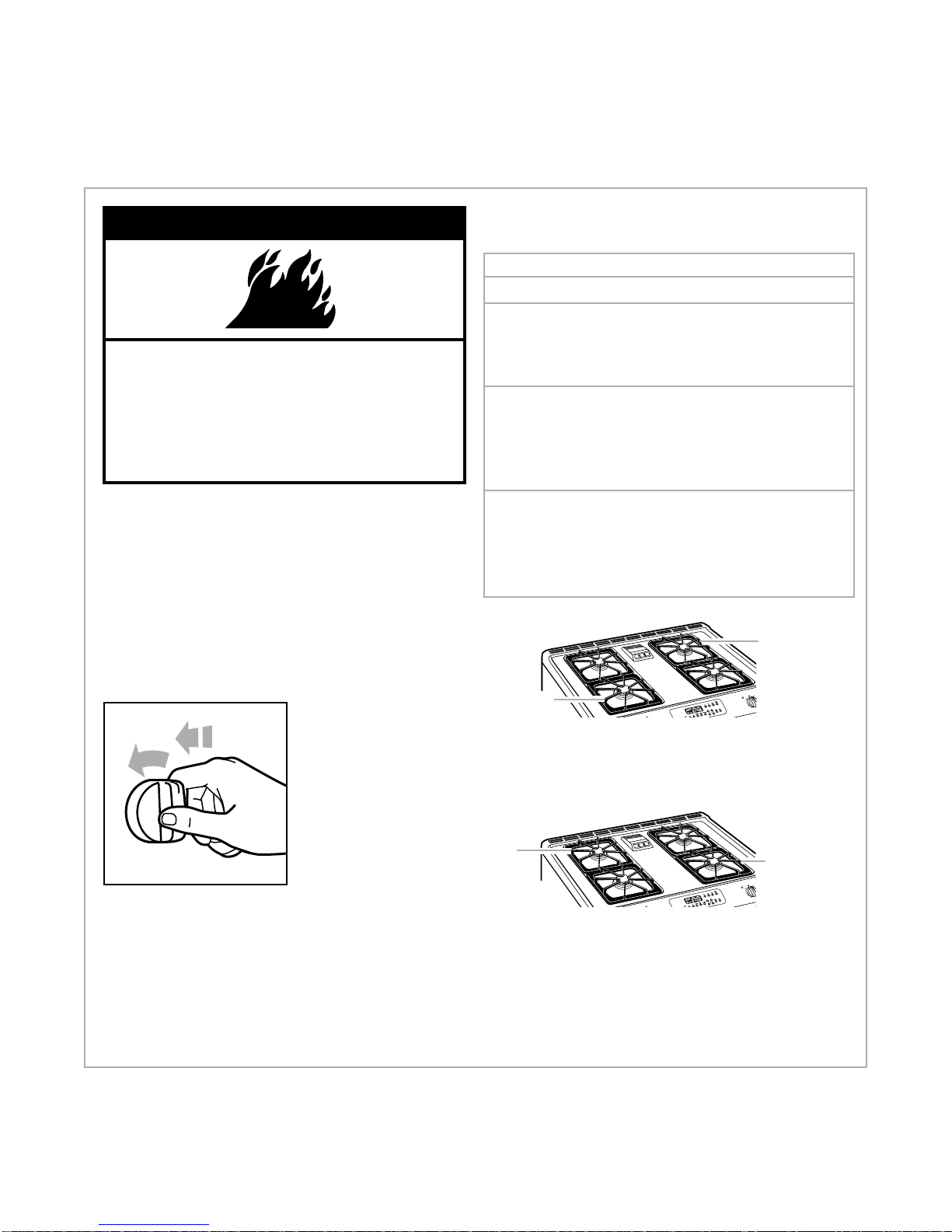

USING THE SURFACE BURNERS
