Whirlpool lSF014BEW User manual

I
I
--~ --
?ff GAS
Standard-Clean
Model lSF014BEW

Contents
Page
Before You Use Your Range. . . . 2
Important Safety Instructions. 3
Parts and Features. . . . . . . . . . . . 6
Using Your Range . . . . . . . . . 7
Using the Surface Burners . . . . 7
Setting the Clock . . . . . . . . . . 8
Using the Minute Timer. . . . . B
Using the Oven Control . . . . 9
Baking.. . . . . . . . . . . . . . . . . 9

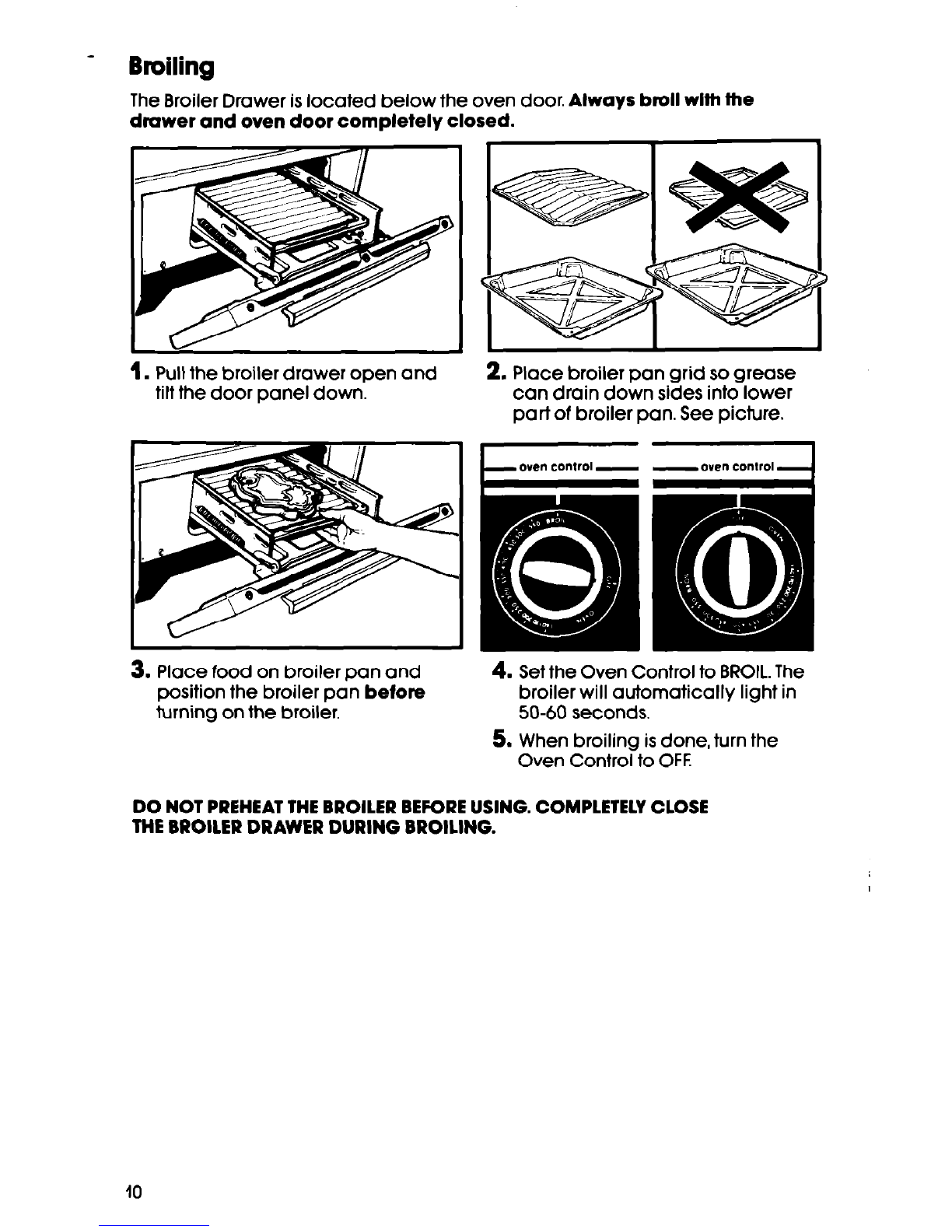

Broiling , . . . . . . . . . . . . . . . . . . 10

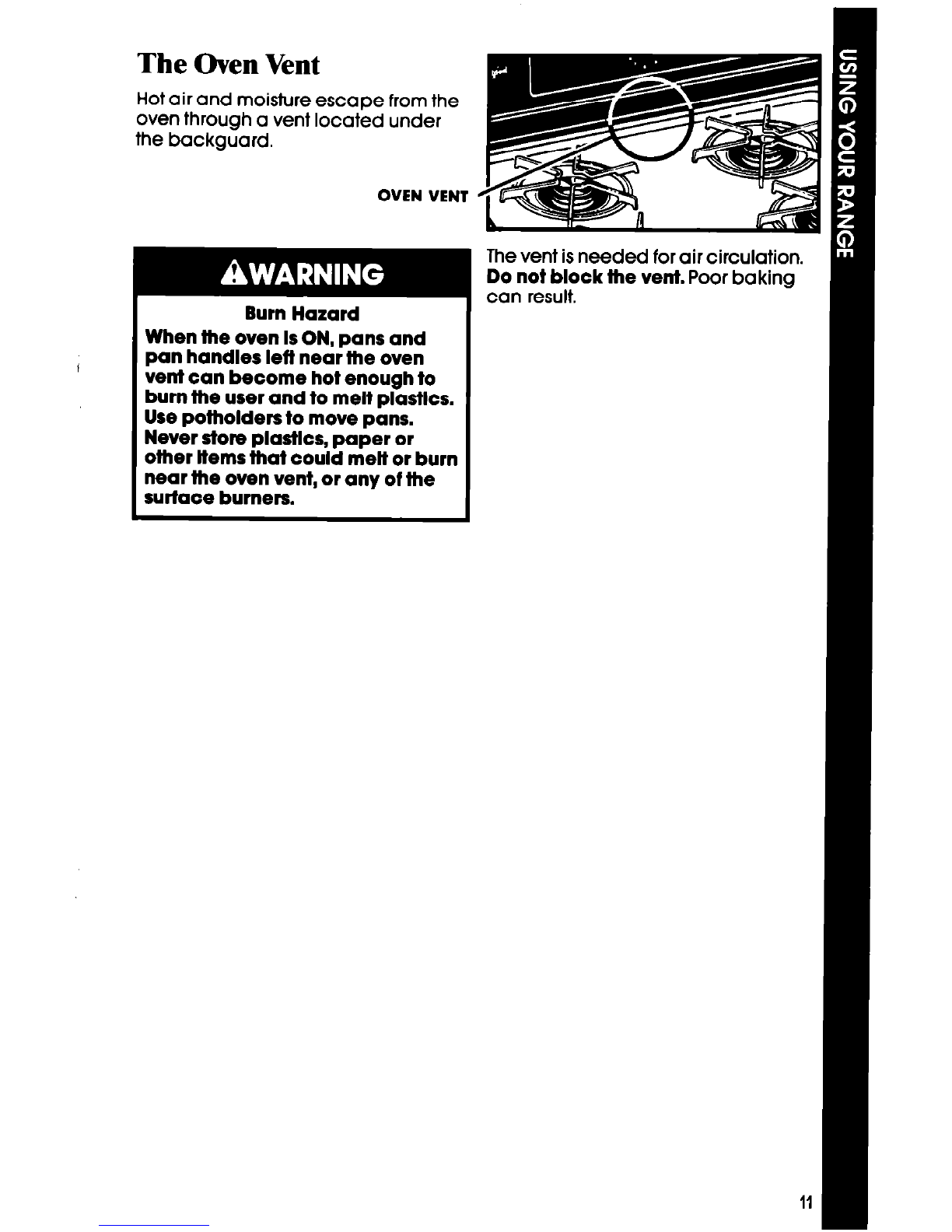

TheOvenVent . . . . . . . . . . . . . . . 11
Caring for Your Range . . .. . .
Control Panels . . . . . . . .

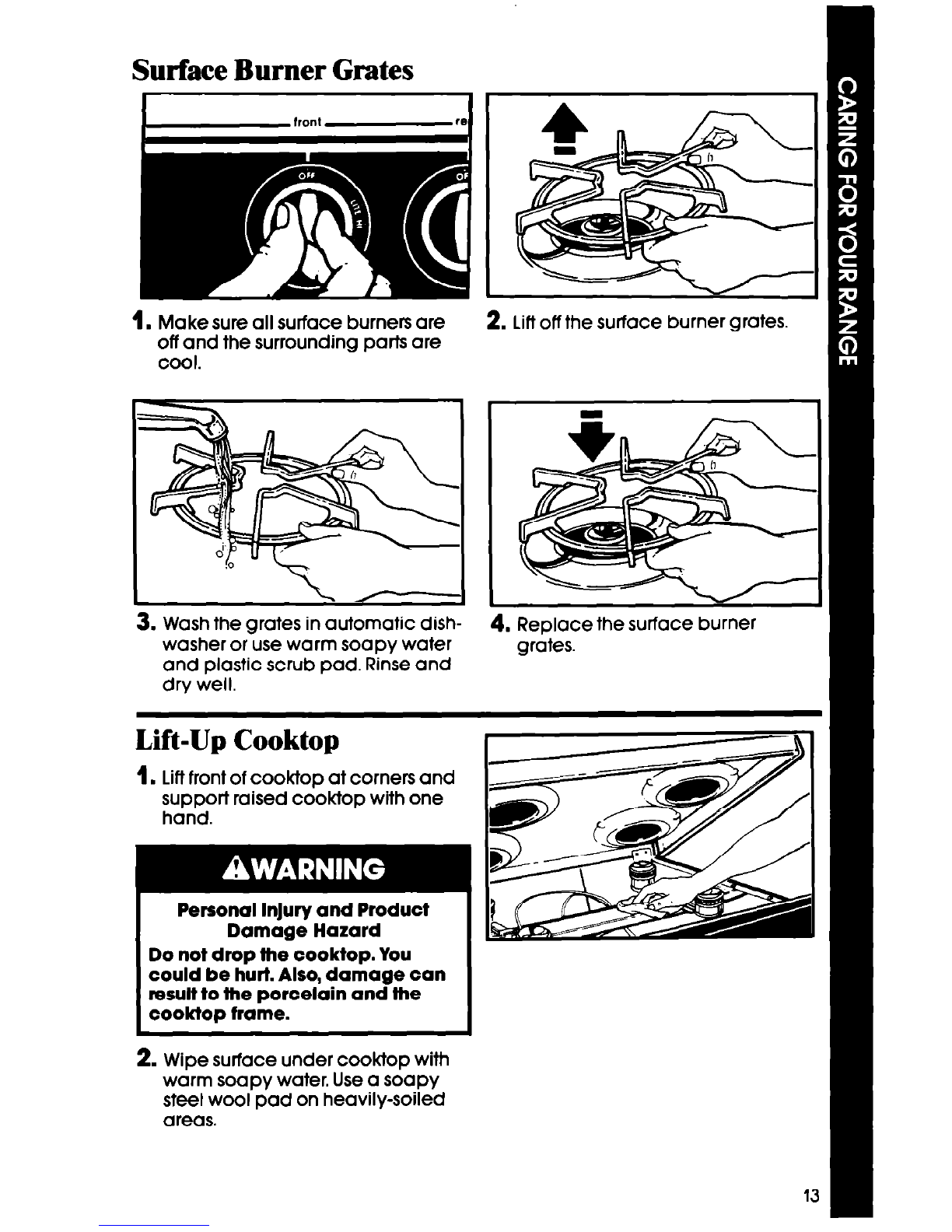

Surface Burner Grates . . .
Lift-Up Cook-top . . . . . . . . . . .

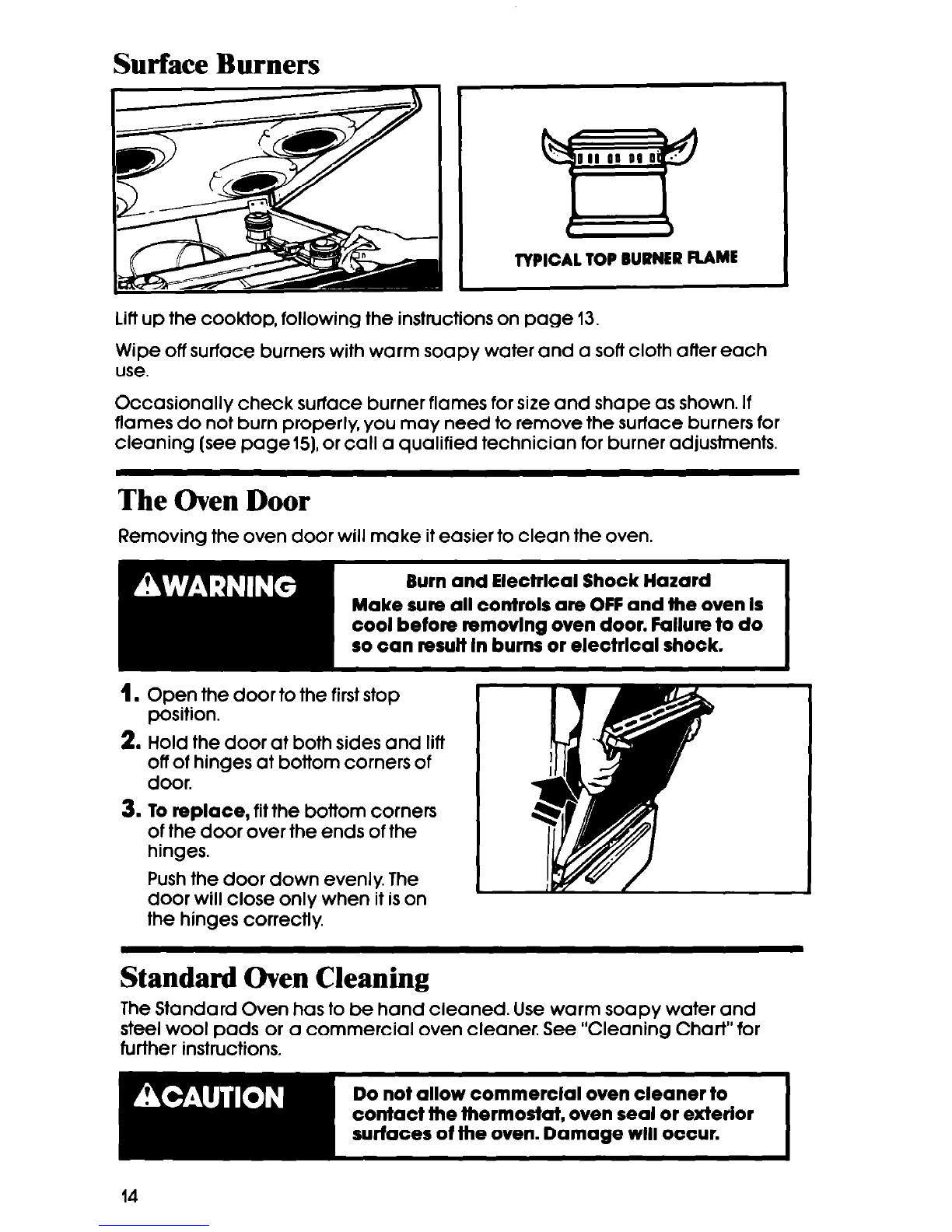

Surface Burners . . . . . . . .
The Oven Door . . . .
Standard Oven Cleaning. .

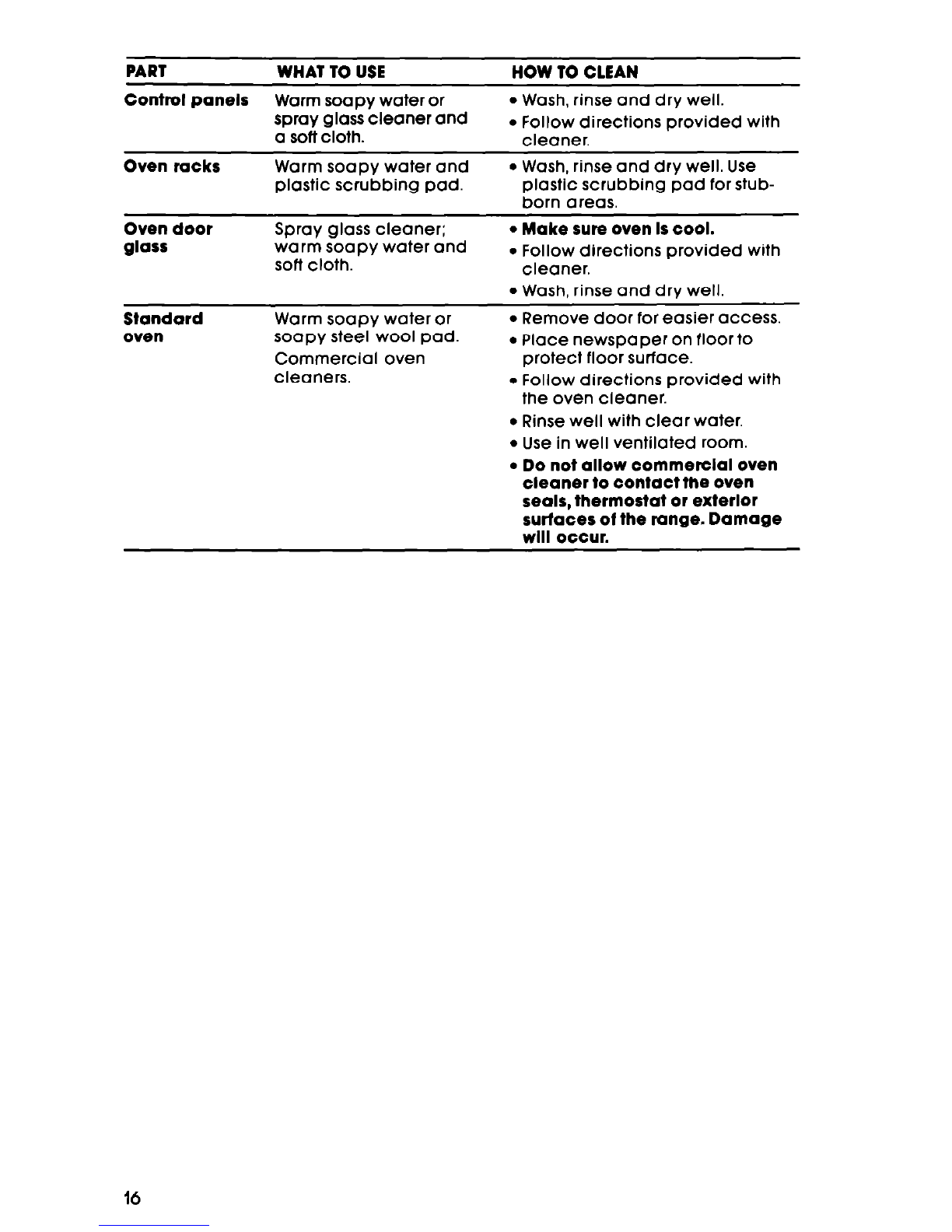

Cleaning Chart . . . . . . .
If You Need Service or
Assistance. . . . . . . . . . . . . . . . .
Whirlpool Range Warranty .
Page
. 12
. 12
13
. ifi
. 14
14
15
17
. 20
01989 Whirlpool Corporation
Before you useyour range
You are responsible for:
l Reading and following all safety precautions in this Useand CareGuide.
l Installing and leveling the range on a floor strong enough to hold itsweight,
and where it is protected from the elements. (See the Installation
Instructions.)
l Making sure the range is not used by anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs expected of a home range.
2

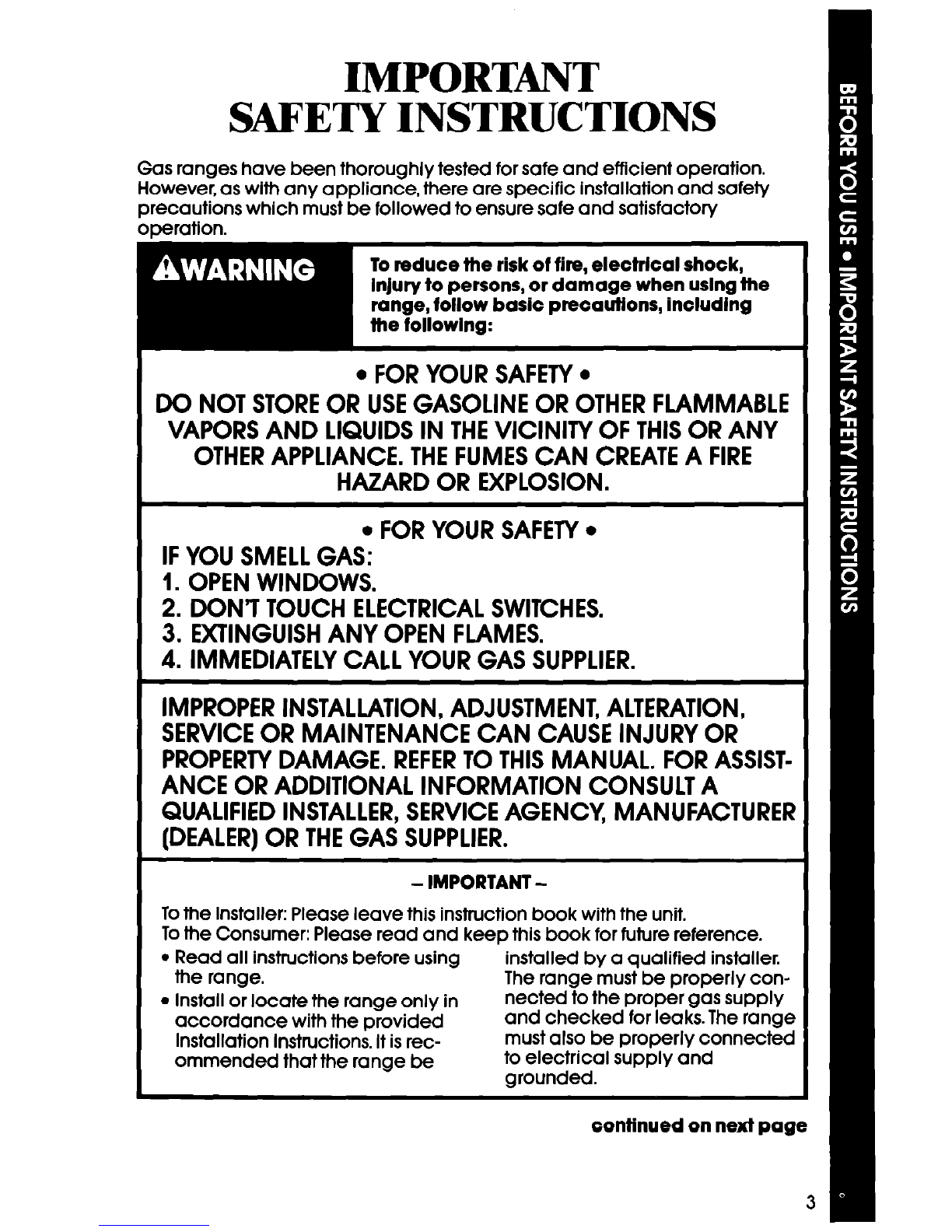

IMPORTANT
SAFETY INSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation.
However, as with any appliance, there are specific installation and safety
precautions which must be followed to ensure safe and satisfactory
operation.
. FOR YOUR SAFETY l
DO NOT STOREOR USEGASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THEVICINITY OF THIS OR ANY
OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
l FOR YOUR SAFETY.
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN FLAMES.
4. IMMEDIATELY CALL YOUR GAS SUPPLIER.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR
PROPERlY DAMAGE. REFERTO THIS MANUAL. FOR ASSIST-
ANCE OR ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER, SERVICE AGENCY, MANUFACTURER
(DEALER) OR THEGAS SUPPLIER.
- IMPORTANT -
Tothe Installer: Please leave this instruction book with the unit.
Tothe Consumer: Please read and keep this book for future reference.
l Read all instructions before using installed by a qualified installer.
the range. The range must be properly con-
* Install or locate the range only in netted to the proper gas supply
accordance with the provided and checked for leaks. The range
Installation Instructions. It is rec- must also be properly connected
ommended that the range be to electrical supply and
grounded.
continued on next p

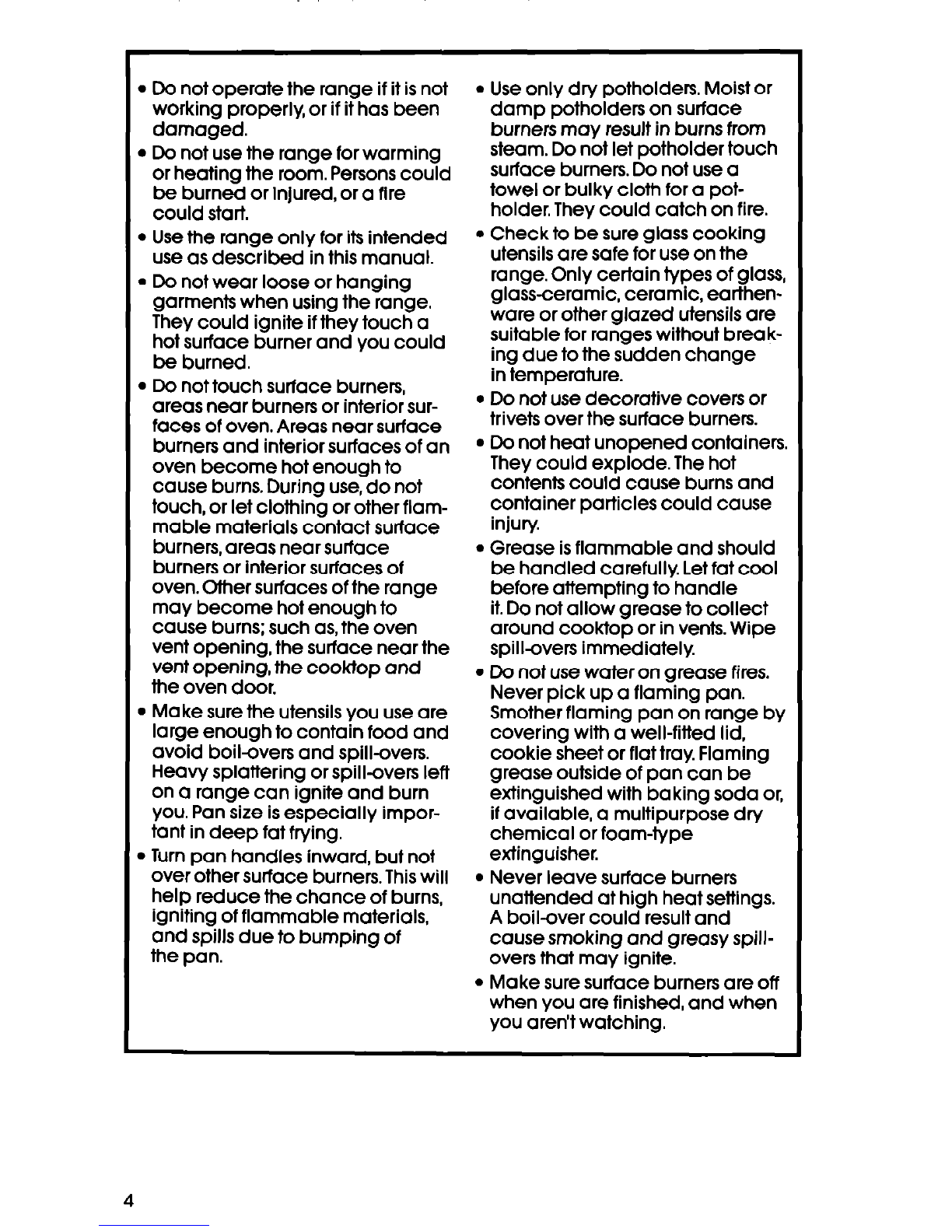

l Do not operate the range if it is not
working properly, or if it has been
damaged.
l Do not use the range for warming
or heating the room. Persons could
be burned or injured, or a fire
could start.
l Usethe range only for its intended
use as described in this manual.
l Do not wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot surface burner and you could
be burned.
l Do not touch surface burners,
areas near burners or interior sur-
faces of oven. Areas near surface
burners and interior surfaces of an
oven become hot enough to
cause burns. During use, do not
touch, or let clothing or other flam-
mable materials contact surface
burners, areas near surface
burners or interior surfaces of
oven. Other surfaces of the range
may become hot enough to
cause burns; such as,the oven
vent opening, the surface near the
vent opening, the cooktop and
the oven door.
l Make sure the utensils you use are
large enough to contain food and
avoid boilovers and spill-avers.
Heavy splattering or spill-avers left
on a range can ignite and burn
you. Pan size is especially impor-
tant in deep fat frying.
l Turn pan handles inward, but not
over other surface burners. Thiswill
help reduce the chance of burns,
igniting of flammable materials,
and spills due to bumping of
the pan.
l Use only dry potholders. Moist or
damp potholders on surface
burners may result in burns from
steam. Do not let potholder touch
surface burners. Do not use a
towel or bulky cloth for a pot-
holder. They could catch on fire.
l Check to be sure glass cooking
utensils are safe for use on the
range. Only certain types of glass,
glass-ceramic, ceramic, earthen-
ware or other glazed utensils are
suitable for ranges without break-
ing due to the sudden change
in temperature.
l Do not use decorative covers or
trivets over the surface burners.
l Do not heat unopened containers.
They could explode. The hot
contents could cause burns and
container particles could cause
injury
l Grease isflammable and should
be handled carefully. Let fat cool
before attempting to handle
it.Do not allow grease to collect
around cooktop or in vents. Wipe
spillovers immediately
l Do not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan on range by
covering with a well-fitted lid,
cookie sheet or flat tray. Flaming
grease outside of pan can be
extinguished with baking soda or,
if available, a multipurpose dry
chemical or foam-type
extinguisher.
l Never leave surface burners
unattended at high heat settings.
A boil-over could result and
cause smoking and greasy spill-
overs that may ignite.
l Make sure surface burners are off
when you are finished, and when
you aren’t watching.

) Use care when opening oven
door. Let hot air or steam escape
before removing or replacing
food.
bAlways position oven racks in
desired location while oven is
cool.
l Know where your main gas shut off
valve is located.
l Keep range vents unobstructed.
l Clean your range regularly. See
care and cleaning instructions in
this manual.
mDo not store flammable materials l Be sure all range parts are cool
on or near the range. They could before cleaning.
explode or burn. l Do not clean door heat seal. It is
mDo not store things children might essential for a good seal. Care
should be taken not to rub,
want above the range. Children
could be burned or injured while damage, or move the seal. Clean
climbing on it. only parts recommended in this
Use and Care Guide.
mDo not leave children alone or
unattended in area where the 0 Do not repair or replace any part
range is in use. They should never of the range unless specifically
recommended in this manual. All
be allowed to sit or stand on any
part of the range. They could be other servicing should be referred
burned or injured. to a qualified technician.
BNever use a match or other flame l Disconnect the electrical supply
to look for a gas leak. Explosion before servicing the range.
and injury could result.
- SAVETHESEINSTRUCTIONS -
Thank you for buying a Whlrlpool appllanoe. Please complete and
mall the Owner Reglstratlon Card provlded with this product. Then
complete the form below. Have this information ready if you need serv-
ice or call with a question.
l Copy model and serial numbers
from plate (under the cooktop)
Model Number
and purchase date from sales
slip.
Serial Number
l Keep this book and the sales slip
together in a handy place.
Purchase Date
Servloe Company Phone Number

Parts and features
Model lSF014BEW
CLOCK/MINUTE TIMER
MODEL AND
OVEN VENT SERIAL NUMBER
-I-
PLATE(under cookiop)
I SURFACE BURNER
GRATES
BR
SURFACE BURNERS
c/
CONTROL PANEL
Y
HEAT SEAL
OVEN
RACK
GUIDE
\ OVEN BURNER
[not shown)

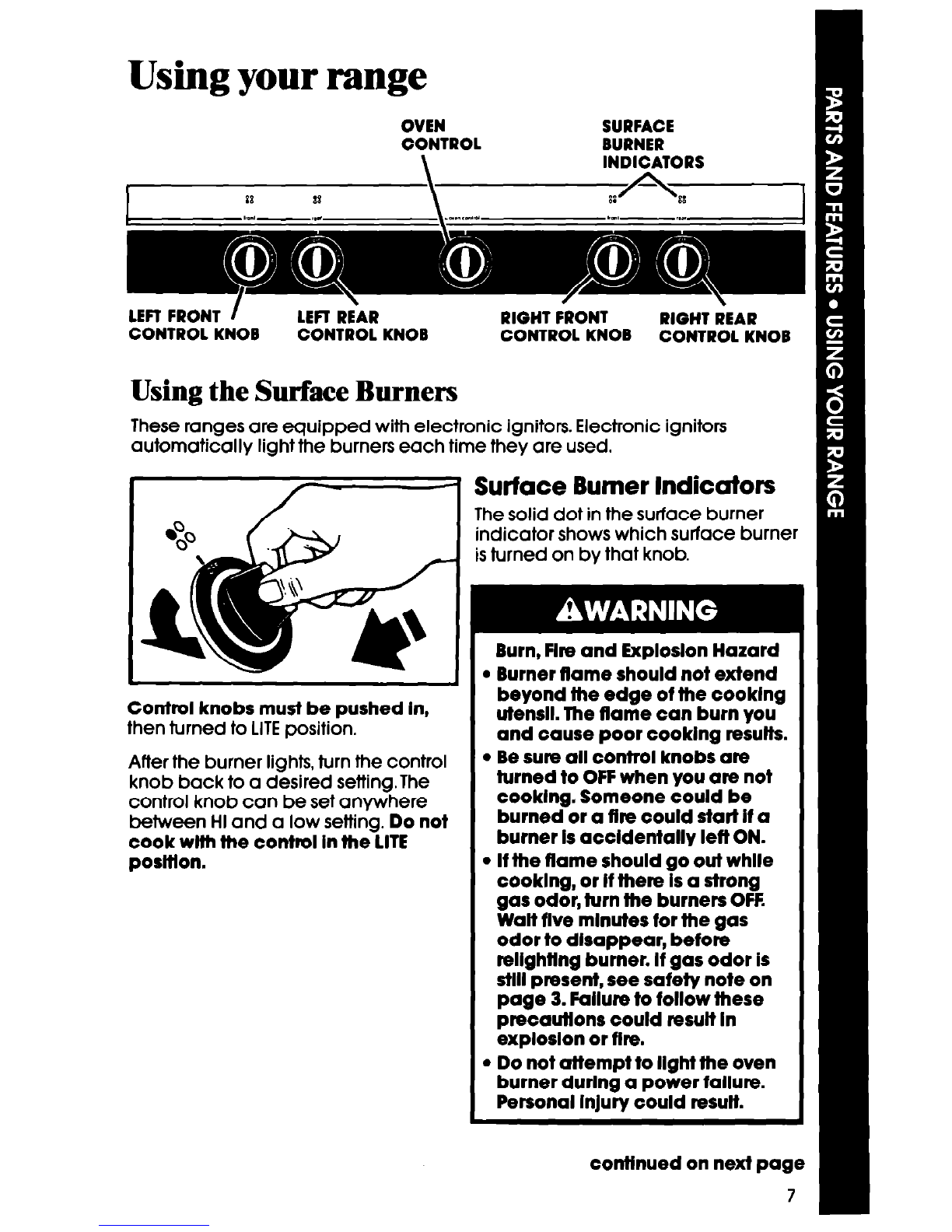

Using your range
RIGHT REAR
CONTROL KNOB
Using the Surface Burners
These ranges are equipped with electronic ignitors. Electronic ignitors
automatically light the burners each time they are used.
y Surface Burner Indicators
The solid dot in the surface burner
indicator shows which surface burner
isturned on by that knob.
Control knobs must be pushed In,
then turned to LITEposition.
Atter the burner lights, turn the control
knob back to a desired setting.The
control knob can be set anywhere
between HIand a low setting. Do not
cook wlth the control In the LITE
posltlon.
Burn, Fire and Exploslon Hazard
l Burner flame should not extend
beyond lhe edge of the cooklng
utensil. The flame can burn you
and cause poor cooking results.
l Be sure all control knobs are
turned to OFFwhen you are not
cooklng. Someone could be
burned or a the could start It a
burner Is accidentally letl ON.
l If the flame should go out while
cooklng, or If there Is a strong
gas odor, turn the burners OFF.
Walt tlve mlnutes for the gas
odor to disappear, before
rellghtlng burner. It gas odor Is
still present, see safety note on
page 3. Fallure to follow these
precautions could result In
exploslon or tire.
l Do not attempt to light the oven
burner during a power tallure.
Personal InJury could result.
continued on next page

In Caseof aProlonged Power Failure
Surface burners with electronic ignitors can be manually lighted. Hold a lit
match near the burner and turn the control to the LITEposition. After the burner
lights, turn the control to the desired setting.
Until you get used to the sefflngs, use the following as a guide.
Use LITE to light
the burner. After
the burner lights,
turn control
back to a de-
sired setting.
Do not cook wlth
the control In
the LITE porltlon.
Use a hlgh
settlng to start
cooking or to
bring liquids
to a boil.
Use a medlum
rettlng to start
cooking or to fry
chicken or pan-
cakes; for gravy,
puddings and
icing or to cook
large amounts
of vegetables.
Use a low set-
tlng to keep
foods warm until
ready to serve.
Push In and turn the Clockltullnute
Timer Knob to set the Clock.
1.
2.
Push In the ClocklMlnute Timer
Knob and turn In elther dlrectlon
until the clock shows the right time
of day.
let the ClocklMlnute Timer Knob
pop out. Turn clockwise until the
Clock/Minute Timer hand points
to OFF.The clock setting will
change It you push In the knob
when turnlng.
Using the Minute Timer
The Minute Timer does not start or stop the oven. Itworks like a kitchen timer.
Set it in minutes up to an hour. You will hear a buzzerwhen the set time is up.
DO NOT PUSHIN THEKNOB when setting the Minute Timer.
1. Wlthout pushing It In, turn the
2. Without pushing in, turn the knob
Minute Timer Knob until the hand back to the setting you want.
passes the setting you want.
-
When the time Is UD. a buzzer will
sound. Tostop the buzzer, turn the
Minute Timer hand to OFF.
PUSHING IN AND TURNING THEMINUTETIMER KNOB CHANGES THE
CLOCK SETTING.

Using the Oven Control
Baking
1. Position the racks properly before
turning on the oven. To change
rack posltlon, pull rack out to
stop, raise front edge and lift out.
I ovencontrol 1
2. Setthe Oven Control to the baking
temperature you want. The oven
burner will automatically light in
50-60 seconds.*
I - I
1
4. During baking, the oven burner
will turn on and off to maintain the
temperature setting.
Racks should be placed so the top
of the food will be centered in the
oven. Always leave at least lY2to 2
inches (4-5 cm) between the sides
of the pan and the oven walls and
other pans.
3. Preheat the oven for10 minutes
before adding food. NOTE: Oven
racks, walls and door will be hot.
Do not place food directly on
oven bottom.
I ownconlrol-I
5. When baking isdone, turn the
Oven Control to OFF.
*NOTE: The oven temperature selectlons on the Oven Control knob are
shown In “F.

- Broiling
The Broiler Drawer is located below the oven door. Always broil with the
dmwer and oven door completely closed.
1. Pull the broiler drawer open and
tilt the door panel down. 2. Place broiler pan grid so grease
can drain down sides into lower
part of broiler pan. See picture.
3. Place food on broiler pan and
position the broiler pan before
turning on the broiler,
4. Set the Oven Control to BROIL.The
broiler will automatically light in
50-60 seconds.
5. When broiling is done, turn the
Oven Control to OFF.
DO NOT PREHEATTHEBROILERBEFOREUSING. COMPLETELYCLOSE
THEBROILERDRAWERDURING BROILING.
10

The Oven Vent
Hot air and moisture escape from the
oven through a vent located under
the backguard.
OVEN VENT
Burn Hazard
When the oven Is ON, pans and
pan handles left near the oven
vent can become hot enough to
burn the user and to melt plastics.
Use potholders to move pans.
Never store plastics, paper or
other ttems that could melt or burn
near the oven vent, or any of the
surtace burners.

Caring for your range
Control Panels
Burn, Elect&al Shock, Fire and Exploslon Hazard
l Make sure all controls are OFFand the mnge Is cool before cleaning.
l Do not use oven cleaners, bleach or nrst removers.
l Do not use gasoline or other flammable llqulds or vapors to clean this
or any other appliance.
l Keep the appliance area clear and tree from combustible materials,
gasoline and other flammable vapors and Ilqulds.
l Do not obstruct the flow of oombustlon and ventllatlon air.
Failure to follow these guldellnes could result In burns, electrlcal shock,
flre or exploslon.
1. Pull control knobs straight off.
2. Usewarm soapy water or spray
glass cleaner and a soli cloth to
wipe the control panels. Rinse
and wipe dry.
3. Wash control knobs in warm
soapy water. Rinse well and dry.
Do not soak.
NOTE:Do not use abrasive cleansers.
They could rub off the markings.
4. Push control knobs straight back on.
Make sure they point to OFF.
12

Surface Burner Grates
1. Make sure all surface burners are
off and the surrounding parts are
cool.
2. Lift off the surface burner grates.
3. Wash the grates in automatic dish-
washer or use warm soapy water
and plastic scrub pad. Rinse and
dry well.
4. Replace the surface burner
grates.
Lift-Up Cooktop
1. Liftfront of cooktop at corners and
support raised cooktop with one
hand.
Personal Injury and Product
Damage Hazard
Do not drop the cooktop. You
could be hurt. Also, damage can
result to the porcelain and the
cooktop frame.
2. Wipe surface under cooktop with
warm soapy water. Usea soapy
steel wool pad on heavily-soiled
areas.

Surface Burners
I
TYPICAL TOP BURNER FLAME
Lift up the cooktop, following the instructions on page 13.
Wipe off surface burners with warm soapy water and a soft cloth after each
use.
Occasionally check surface burner flames for size and shape as shown. If
flames do not burn properly, you may need to remove the surface burners for
cleaning (see page15) or call a qualified technician for burner adjustments.
The Oven Door
Removing the oven door will make it easier to clean the oven.
Burn and Electrlcal Shock Hazard
Make sure all controls are OFFand the oven Is
cool before removing oven door. Fallure to do
so can result In burns or electrlcal shock.
1. Open the door to the first stop
position.
2. Hold the door at both sides and lift
off of hinges at bottom corners of
door.
3. lo replace, fit the bottom corners
of the door over the ends of the
hinges.
Push the door down evenly. The
door will close only when it is on
the hinges correctly.
Standard Oven Cleaning
The Standard Oven has to be hand cleaned. Use warm soapy water and
steel wool pads or a commercial oven cleaner. See “Cleaning Chart” for
further instructions.

Cleaning Chart
PART WHAT TO USE HOW TO CLEAN
Exterior
surfaces
Warm soapy water and a
l Wipe off regularly when cook-
soft cloth. top and range are cool.
Plastic scrubbing pad for l Do not allow food contalnlng
heavlly-solled areas.
acids (such as vinegar, tomato,
lemon juice or milk) to remain on
surtace. Acids will remove the
flnlsh.
l Do not use abraslve or harsh
cleansers.
Surface burner Automatic dishwasher or
l Wash with other cooking utensils.
grates
warm soapy water and
plastic scrubbing pad.
l Dry completely.
l Do not use abraslve or harsh
cleansers.
Surface burners
Warm soapy water and a l Lift-up the cooktop, see page 13.
plastic scrubbing pad.
l Wipe off spills immediately after
burner has cooled.
In case ot stubborn stalns:
l Remove burner from manifold
with phillips screwdriver.
l Soak in warm soapy water and
wipe with plastic scrubbing pad
and dishwashing detergent.
l Rinse and dry well.
l If ports are clogged, clean with a
straight pin. Do not enlarge or
dlstorl ports. Do not use a wood-
en toothplck.
l Do not clean surface burner In
dlshwasher.
Broiler drawer,
Warm soapy water and
l Clean after each use.
pan and grld plastic scrubbing pad.
l Wash pan and grid with other
utensils.
l Atter broiler Is cool, wipe
interior with warm damp cloth.
For stubborn spots, use a plastic
scrubbing pad.
Control knobs Warm Soapy water and l Wash. rinse and drv well.
soft cloth.
l Do not soak.
continued on next page 15

PART WHAT TO USE HOW TO CLEAN
Control panels
Warm soapy water or
l Wash, rinse and dry well.
spray glass cleaner and
a soft cloth.
l Follow directions provided with
cleaner.
Oven racks
Warm soapy water and
plastic scrubbing pad.
l Wash, rinse and dry well. Use
plastic scrubbing pad for stub-
born areas.
Oven door
glass
Spray glass cleaner;
warm soapy water and
soft cloth.
l Make sure oven Is cool.
9 Follow directions provided with
cleaner.
l Wash, rinse and dry well.
Standard
oven
Warm soapy water or
soapy steel wool pad.
Commercial oven
cleaners.
l Remove door for easier access.
0 Place newspaper on floor to
protect floor surface.
l Follow directions provided with
the oven cleaner.
l Rinse well with clear water.
l Use in well ventilated room.
l Do not allow commercial oven
cleaner to contact the oven
seals, thermostat or exterlor
surfaces of the range. Damage
will occur.
16

If you need service or assistance, we
suggest you follow these three steps:
1, Before calling for If control knob(s) will not turn:
assistance... l Did you push in before trying to turn?
Performance problems often result If cooking results aren’t what you
from little things you can find and fix expected’
without tools of any kind. l Is the range level?
If nothlng operates: l If baking, have you allowed 1Yzto 2
l Is the range properly connected to inches (4-5 cm] on all sides of the
gas and electrical supplies? (See pans for air circulation?
“Installation Instructions.“) l Have you preheated the oven as the
l Have you checked your home’s recipe calls for?
main fuses or circuit breaker box? l Are the pans the size called for in the
l Is the flow of combustion and/or recipe?
ventilation air to the range l Are you following a tested recipe
blocked? Do not block the air flow from a reliable source?
to and around the range. l Do the cooking utensils have
l Isthe Oven Control turned to a tem- smooth, flat bottoms and fit the sur-
perature setting or BROIL? face burners?
If burner falls to light:
l Isthe range connected to electrical 2. If you need service
powef? or assistance ...
l iiave you checked your home’s Contact the dealer from whom the
main fuses or circuit breaker box? unit was purchased to obtain the
(See name of the nearest Whirlpool autho-
rized service facility.
l Are burner ports clogged?
page 15.)
If burner flames ore uneven:
l Are burner ports clogged?
pagelS. [See
If burner flames lift off ports, ore
yellow, or ore noisy when turned off:
l The air/gas mixture may be incor-
rect. (Call for service.)
If burner makes a popping noise
when ON:
l Is the burner wet from washing? Let
dry.
3. If you need FSP”
replacement parts ...
FSPis a registered trademark of
Whirlpool Corporation for quality
parts. Look for this symbol of quality
whenever you need a replacement
part for your Whirlpool appliance. FSP
replacement parts will fit right and
work right, because they are made to
the same exacting specifications
used to build every new Whirlpool
appliance.
To locate FSPreplacement parts in
your area, refer to Step 2 above.

Notes
18

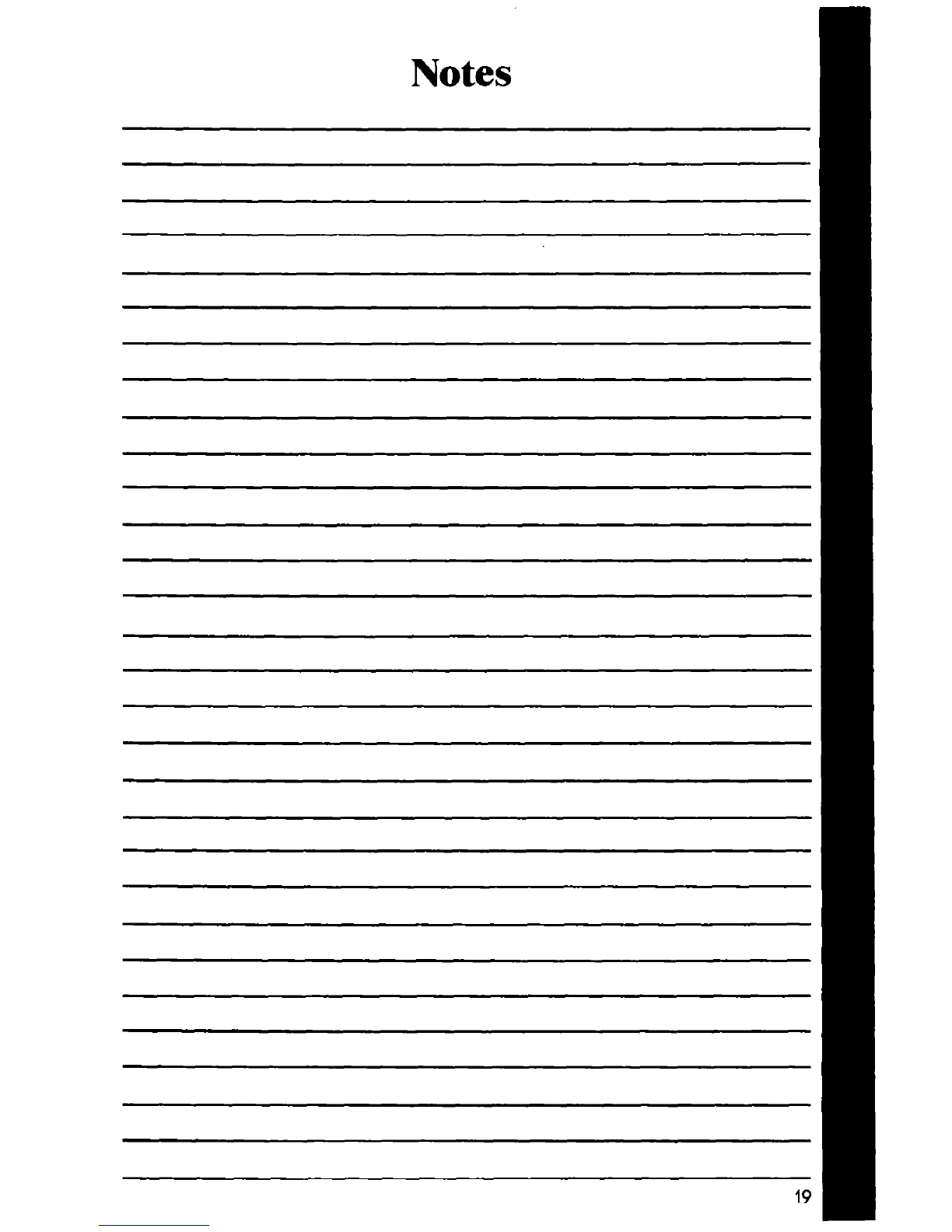

Notes
19

wHIRLPooL”
RANGE PRODUCT
W-T-Y
OR001
LENGTH OF WARRANTY [ WHIRLPOOL WILL PAY FOR
FULLONE-YEAR
WARRANTY
From Date of Purchase
FSP@replacement parts and repair labor to
correct defects in materials or workmanship.
Service must be provided by an authorized
WhirlooolSM service companv.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the range product.
2. Instruct you how to use the range product.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner accessible light bulbs.
8. Repairs when range product is used in otherthan normal, single-family
household use.
C. Pick up and delivery This product is designed to be repaired in the
home.
D. Damage to range product caused by accident, misuse, fire, flood, acts
of God or use of Droducts not aooroved bv WhirlDool.
1
WHIRLPOOL CORPORATION SHALL NOT BELIABLE FOR INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES.
Outside the United States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
Part No. 76528-0014315632
01989 Whirlpool Corporation Printed in U.S.A.
