Whirlpool RF32lOXP User manual

RANGE
Model RF32lOXP
(Continuous-Cleaning)
and
Model RF3OlOXP
Clowa~e Ovens. Trash Compactors. Room Air Condltloners. Oehumldtfwrs Automatic Washers. Clothes Dryers Freezers, Refrqerator-Freez

Contents
Paqe
Before You Use Your Range -2
Important Safety Instructions. 2
Parts and Features. 4
Using Your Range.
Using the Surface Units’ 5 5
Optional Canning Kit 6
Using the Oven Control 6
Page
Contrnuous-Clednrng Oven 11
jtandard Oven Cleaning 12
3venDoor 13
-ower Panel 13
Cleanrng Chart
If .You Need Service or’ 13
Assistance 14
Baking
Broiling
Oven Vent
Caring for Your Ran&
Control Panel
Surface Units and
Reflector Bowls
1

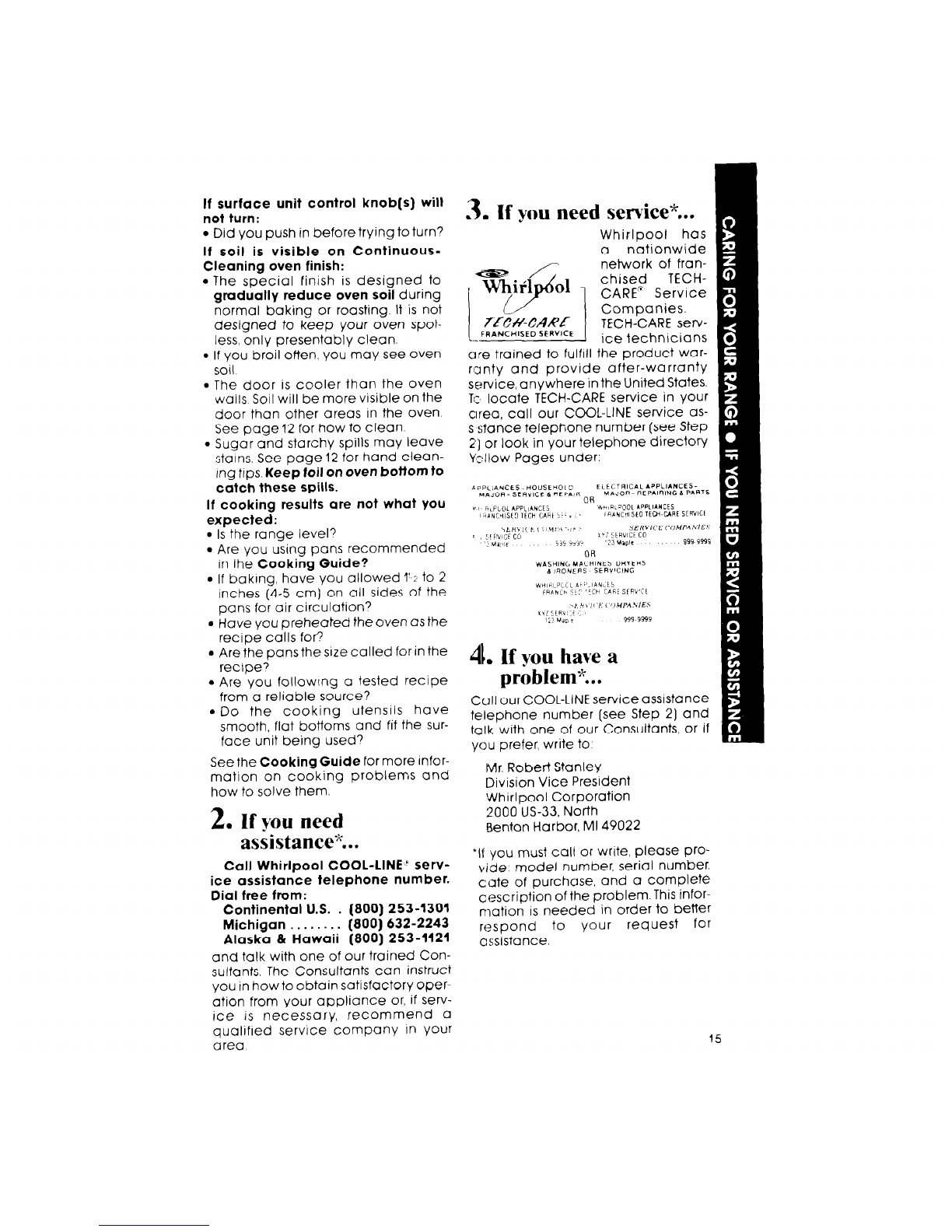

1 Before Calling for
@ f&istance ?4
2 If You Neeu Assistance 15
: 3 !f You Need Service “5
4 4 If You Have a Problem 15
9
~1985 Whirlpool Corporation
Before you use your range
Read this Use & Care Guide and The Cooking Guide for important safety
information.
You are personally responsible for:
l Reading and following all safety precautions in this Use & Care Guide and the
Cooking Guide.
l Installing the range where it is protected from the elements, and on a floor
strong enough to support its weight.
l Properly connecting the range to electrlcal supply and grounding. (See
“Installation Instructionsl’)
l Making sure the range is not used by anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs expected of a home range
See “Cooking Guide” for important safety and use information.
2

IMPORTANT
SAFETY INSTRUCTIONS
1. DO NOT allow children to use or 6. KEEP pan handles turned in, but not
play with any port of the range, or over another surface unit to ovoid
leave them unattended near it. burns, injury and to help prevent the
They could be burned or Injured. utensil from being pushed off the SUI
2. DO NOT store things children face units.
might wont above the range 7. DO NOT use water on grease fires.
Children could be burned or The fire will spread. Cover fire with
injured while climbing on it. large lid or smother with baking
3. DO NOT allow anyone to touch soda or salt.
hot surface units or heating ele- 8. DO NOT wear loose or hanging gar
ments. Dark colored units and ele- ments when using the range. They
ments con still be hot enough to could ignite if they touch a hot sur-
burn severely face unit or heating element and
1. KEEP children away from the you could be burned.
range when it is on. The cooktop 9. DO NOT heat unopened containers
and oven walls, rocks and door They could explode. The hot con-
con get hot enough to cause tents could burn and container par-
burns. titles could cause injury
i. DO NOT use the range to heat a 10. When adding or removing
room. Persons in the room could food, MAKE SURE to open the
be burned or injured, or a fire oven door 011the way to
could start. prevent burns.
l FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
CAUSING EXPLOSION AND/OR FIRE.
- SAVE THESE INSTRUCTIONS -
Copy your Model and Serial Numbers here
If you need service, or call with a question, hove this information ready:
1. Complete Model and Serial
Numbers (from plate just behind
the oven door).
Model Number
2. Purchase date from soles slip.
Serial Number
Copy this information in these
spaces. Keep this book, your
warranty and soles slip together.
Purchase Date
Service Company/Phone Number

Parts and features
Models RF3210XP and RF3010XP
OVEN CONTROL
SURFACE UNIT INDICATOR KNOB
LEFI FRONT
I
LEFl REAR
I I
OVEN SIGNAL
CONTROL KNOB CONTROL KNOB LIGHT
SURFACE UNIT
CONTROL PANEL
CONTINUOUS-
OVEN DOOR

SURFACE
SIGNAL LIGHT
I
RIGHT’REAR RIGHT’FRONT
CONTROL KNOB CONTROL KNOB
Using the surface units
Surface Unit Indicators
.
Control knobs must be pushed in
. -
Detore turning them to a setting. They
can be set anywhere between 9
and OFF.
The solid dot in the surface unit
indicator shows which surface unit
is turned on by that knob.
Surface Signal light
The Surface Signal Light will be on
when a surface unit is ON.
Until you get used to the settings, use the following as a guide. For best results,
start cooking at the high settings; then turn the control knob down to continue
cooking.
Use HI to start Use MED-HI Use MED Use MED-LO Use LO to
foods cook- to hold a for gravy to keep food keep food
ing; to bring rapid boil; to puddings cooking after warm until
liquids to a fry chicken and icing; to starting it ready to
boil. or pancakes. cook large on a higher serve. Set the
amounts of setting. heat higher
vegetables or lower
CAUTION: The use of the HI sefflng for llong perlods of ttme
can damage surface units and discolor chrome retlector
bowls. Start cooklng on HI and turn control down to con-

Use only flat-bottomed utensils for best cootclng results and to prevent damage
to the cooktop. Specialty items with rounded or ridged bottoms [woks, ridged
bottom canners or tea kettles) are not recommended
See the “Cooking Guide” for important utensil information.
Optional Canning Kit (Part NO. 242905)
The large diameter of most water-bath or pressure canners combined with
high heat settings for long periods of time can shorten the life of regular surface
units and cause damage to the cooktop
If you plan to use the cooktop for canntng. ‘we recommend the installation
of a Canning Kit. Order the kit from your Whirlpool Dealer or Tech-Care* Service
Company.
See the “Cooking Guide” for important c’anning information.
Using the Oven Controls
Baking
I
Rack should be placed so
the top of the food will be cen-
tered in the oven. Always leave
at IeastlYz to 2 inches (4-5 cm]
between the sides of the pan
and the oven walls and other
pans. For more information, see
the “Cooking Guide!’
1. Position the rack properly
before turning on the oven. To
change rack position, lift rack at
front and pull out.

2. Set Oven Control Knob to the 14. When baking is done, turn the
baking temperature you want Oven Control Knob to OFF
The Oven Signal Light will come
on The oven is preheated when
the Oven Signal Light first goes off
3. Put food in the oven. Note: Oven
rack, walls and door will be hot.
During baking, the element will
turn on and off to keep the oven
temperature at the setting. The
Oven Signal Light will turn on and
off with the element.

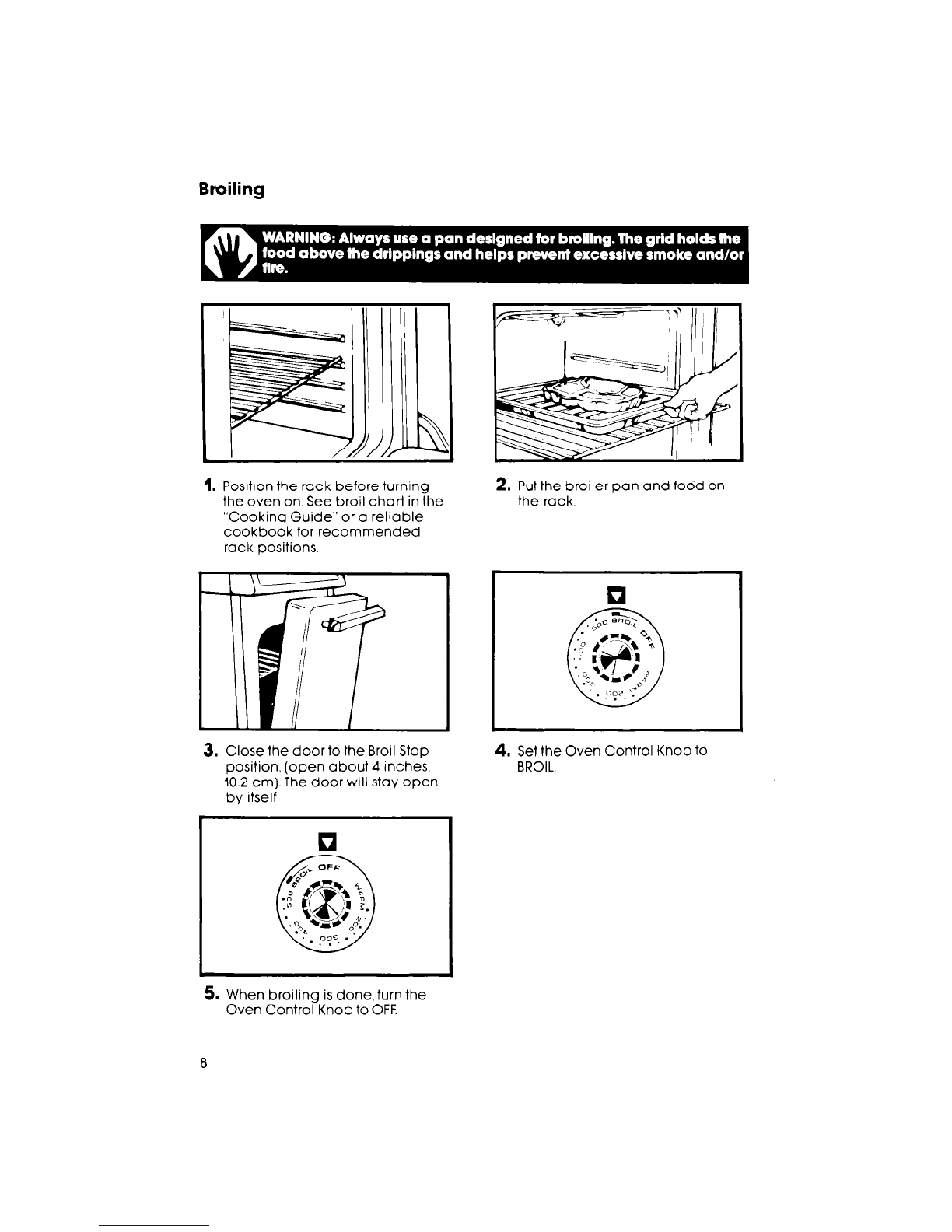

Broiling
1. Position the rack before turning
the oven on. See broil chart in the
“Cooking Guide” or a reliable
cookbook for recommended
rack positions.
2. Put the broiler pan and food on
the rack
3. Close the door to the Broil Stop
position, [open about 4 inches,
10.2 cm). The door will stay open
by itself.
4. Set the Oven Control Knob to
BROIL.
5. When broiling is done, turn the
Oven Control Knob to OFF.
8

The Oven Vent
The oven vent is located under the
right rear surface unit. When the oven is
on, hot air and moisture escape from
the oven through this vent. Poor baking
can result if this vent is blocked. When
using the oven, do not use oversized
pans or other items that might block
the oven vent.
1. First make sure the control knobs are set to OFF, then pull knobs
straight off
2. Use warm soapy water and a so17cloth, or spray glass cleaner, to wipe the
control panel. Rinse and wipe dry,
3. Wash control knobs in warm soapy water. Do not soak. Rinse well and dry.
4. Push control knobs straight back.on. Make sure they point to OFF.

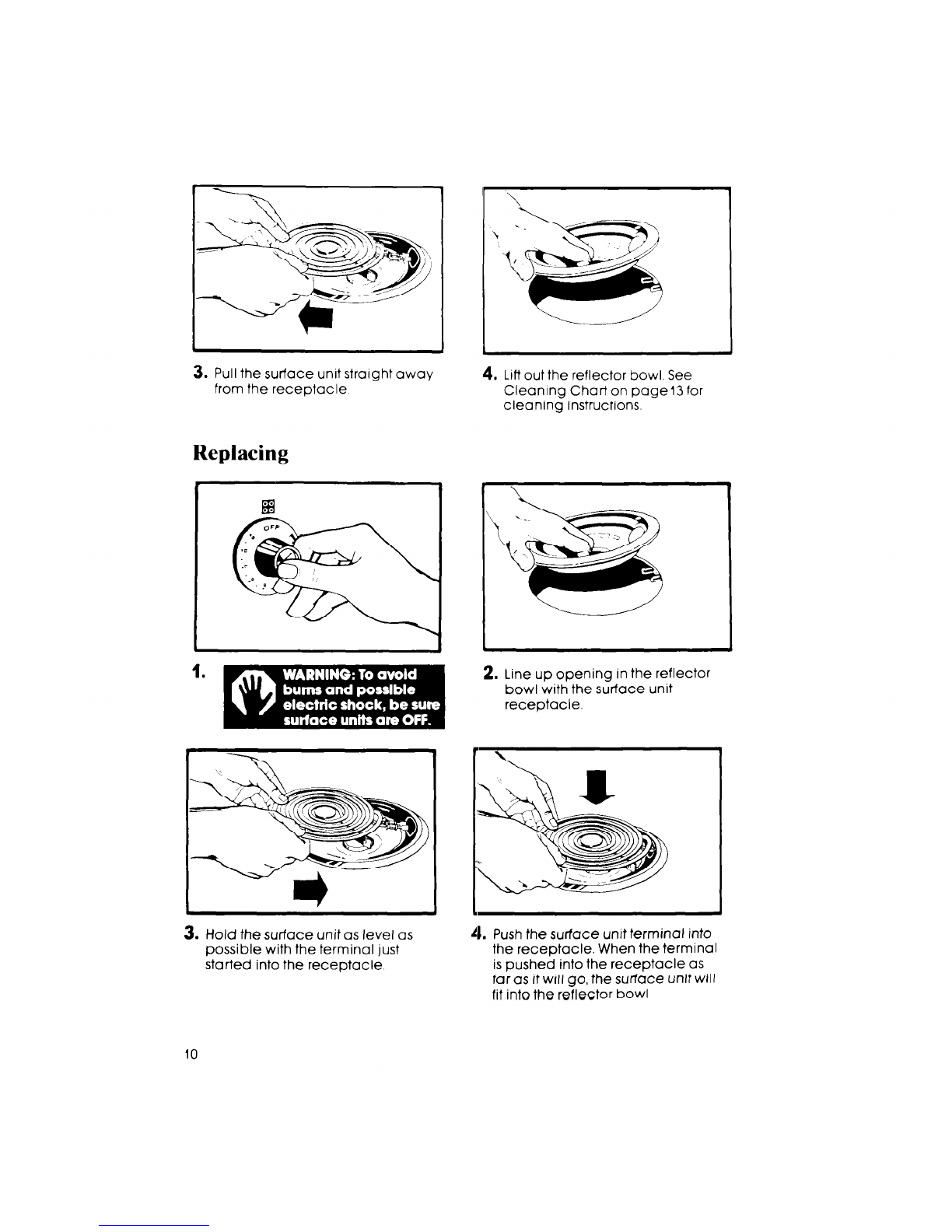

Surface Units and Reflector Bowls

3. Pull the surface unit straight away
from the receptacle
Replacing
3’. Hold the surface unit as level as
possible with the terminal just
started into the receptacle.
4. Llfi out the reflector bowl. See
Cleaning Char-t on page13 for
cleaning instructions.
2. Line up opening in the reflector
bowl with the surface unit
receptacle.
4. Push the surface unit terminal into
the receptacle. When the terminal
is pushed into the receptacle as
far as it will go, the surface unit will
fit into the reflector bowl
10

CAUTION: Reflector bowls reflect heat back to the utensils on the
surface units. They also help catch spills. When they are kept clean,
they reflect heat better and look new longer.
If a reflector bowl gets discolored, some of the utensils may not be
flat enough, or some may be too large for the surface unit. In elfher
case, some of the heat that’s meant to go info or around a utensil
goes down and heats the reflector bowl. This extra heat can discolor
if. See “Cooking Guide” for further inl’ormafion.
The Continuous-Cleaning Oven
Standard oven walls are coated with smooth porcelain-enamel. Your
continuous-cleaning oven walls are coated with a spectal, rougher porcelain-
?namel. A fat spatter beads up on the smooth surface, but spreads out on the
‘ougher surface. The bead af fat chars ancI turns black. The spread-out fat
gradually burns away at medium to high baking temperatures (350 -475 F,
76’-2 31 C] so the oven can return to a presentably clean condition. NEVER
JSE COMMERCIAL CLEANERS ON CONTINUOUS-CLEANING OVEN.
Contlnuous-cleaning
porcelain-enamel
Using Foil
Using foil on the oven bottom is recommended to catch sugar and starchy
spills from pies and casseroles. If must be Iused properly. Cut foil from a roll of
heavy-dutyl&inch (45 cm) aluminum foil, or buy a foil kit (Part No. 241430)
from your Whirlpool Appliance dealer
Lift the cool bake element slightly
to liff the feet off the oven
bottom.
bake dlemenf &all feet rest
solidly on the foil.
CAUTION: Do not let foil touch the bake element. If could damage the
element. Make sure foil is flat on the oven bottom and away from the
bake element.
1’

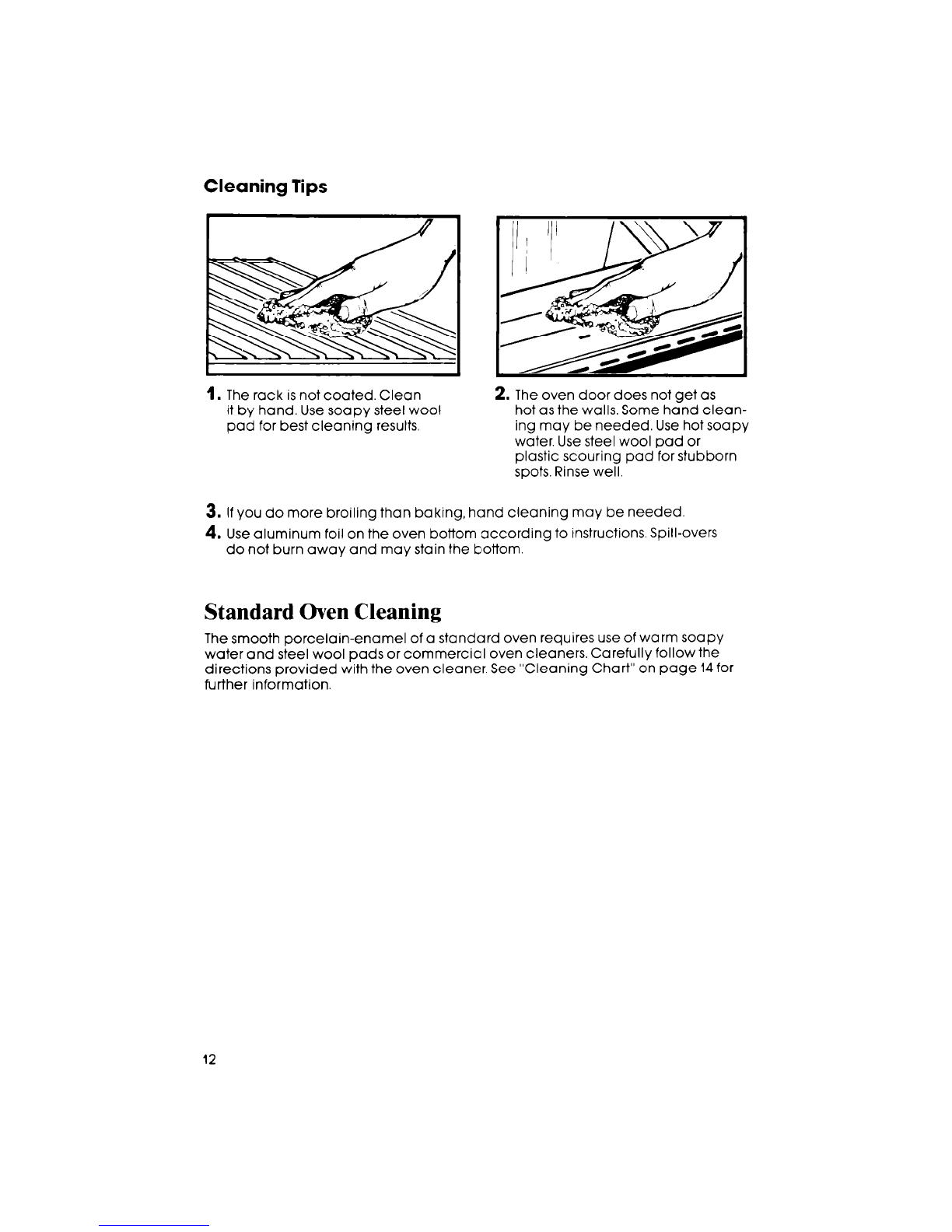

Cleaning Tips
1. The rack is not coated. Clean
it by hand. Use soapy steel wool
pad for best cleaning results.
2. The oven door does not get as
hot as the walls. Some hand clean-
ing may be needed. Use hot soapy
water. Use steel wool pad or
plastic scouring pad for stubborn
spots. Rinse well.
3. If you do more broiling than baking, hand cleaning may be needed.
4. Use aluminum foil on the oven bottom according to instructions. Spill-overs
do not burn away and may stain the bNottom.
Standard Oven Cleaning
The smooth porcelain-enamel of a standard oven requires use of warm soapy
water and steel wool pads or commercial oven cleaners. Carefully follow the
directions provided with the oven cleaner See “Cleaning Chart” on page 14for
further information.
12

The Oven Door
Removing the oven door will make it easier to clean the oven.
To Remove: To Replace:
1. Open the door to the first stop 1. Slip the door hinge arms into the
position. slots in the oven frame.
2. Grasp the door firmly at both sides 2. Using both hands and a knee, push
and lift it up and away in the bottom of the door Until
from the range. the hinges click. Close the door.
The Lower Panel
The lower panel can be removed to help make It easier to clean under the
range.
To remove the lower panel, lift it up To replace the lower panel, line it up
and out. with the bottom of the range, then
push in and down to hook it in place.
Cleaning Chart
PART WHAT TO USE HOW TO CLEAN
Exterior
surfaces Soft cloth and warm soapy
l Wipe off regularly when cooktop an
water lower oven are cool
Nylon or plastic scouring
l Do not allow toad containing acids
pad for stubborn spots. (such as vinegar, tomato, lemon
juice or milk) to remain on surface.
Acids will remove the glossy flnish.
l Do not use abrasive or harsh
cleansers.
Surface units No cleaning required.
l Spatters or spills WIII burn off
l Do not use abrasive or harsh
cleansers.
13

Chrome
Reflector
bowls
Automatic drshwasher or l Wash with other cooking utensils
warm, soapy water and
plastic scourrng pad
l Clean frequently
l Do not use abrasive or harsh
cleansers.
Broiler pan
and grid Warm, soapy water or steel
l Wash wrth otter cookIng utensils
wool pad.
Control knobs Warm, soapy water and a
l Wash, rinse and dry well
soft cloth.
l Do not soak.
Control panel Warm, soapy water or
l Wasn, rinse and dry well
spray glass cleaner
l Follow drrections provided with
cleaner.
Oven rack Warm, soapy water or
l Wash, rinse and dry. Use soapy steel
soapy steel wool pads wool pads for stubborn areas
Continuous- Warm, soapy water or
l Clean stubborn spots or stains.
cleaning oven soapy scrubbing pad Rinse well with clear water
(RF32lOXP) Heavy-duty aluminum . Place strip of aluminum foil on the
foil or order a foil kit [Part bottom of the oven to catch spillovers.
No. 241430) from your . Do not use commercial cleaners.
Whirlpool dealer or
TECH-CARE* service
company.
Most fat spatfers on the Continuous-Cleaning
porcelain-enamel interior surface gradually reduce
to a presentably cleain condition during normal
baking or roasting opc?rations.
Standard oven Warm, soapy water or
l Remove door for easrer access.
(RFJOlOXP) soapy steel wool pad.
l Place newspaper on floor to protect
floor surface
Commercial oven
l Follow directions provided with the
cleaners. oven cleaner.
l Rinse well with clear water
l Use in well ventilated room
l Do not allow commercial oven
cleaner to contact the heating
elements, oven seal, or exterior
surfaces of the range. Damage
will occur.
If you need service or alssistance,
we suggest you follow these four steps:
L Before calling for assistance...
Performance problems often result
If the oven will not operate:
from little things you can find and frx 8~Is the Oven Control turned to a
yourself without tools of any kind. temperature setting or BROIL?
If rrottdng operates:
l Is the power supply cord plugged
If surface units will not operate:
into a live circuit with the propervolt- 1~Have you checked your home’s
age? (See “Installation Instructions:‘) main fuses or circuit breaker box?
l Have you checked your home’s 1~Are surface units plugged in all the
main fuses or circuit breaker box? way?
1~Do the control knobs turn?
14

If surface unit control knob(s) will
not turn:
l Did you push in before trying to turn?
If soil is visible on Continuous-
Cleaning oven finish:
l The special finish is designed to
gradually reduce oven soil during
normal baking or roasting. It is not
designed to keep your oven spot-
less, only presentably clean.
l If you broil often you may see oven
soil
l The door is cooler than the oven
wails Soil will be more visible on the
door than other areas In the oven
See page 12 for how to clean
l Sugar and starchy spills may leave
stains. See page 12 for hand clean-
rng tips. Keep foil on oven bottom to
catch these spills.
If cooking results are not what YOU
expected:
9 Is the range level?
l Are you using pans recommended
in the Cooking Guide?
l If bakrng, have you allowed 1’2 to 2
inches (4-5 cm] on all sides of the
pans for air circulation?
l Have you preheated the oven as the
recipe calls for?
l Are the pans the srze called for in the
recrpe’
l Are you followrng a tested recipe
from a reliable source?
b Do the cooking utensils have
smooth, flat bottoms and fit the sur-
face unit being used?
See the Cooking Guide for more Infor-
mation on cooking problems and
how to solve them.
2. If you need
assistance*...
Call Whirlpool COOL-LINE” serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . , . . . . [phone]
Alaska 81 Hawaii [phone]
and talk with one of our trained Con-
sultants. The Consultants can instruct
you in howto obtuin satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area
13. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-
CARE’ Service
Companies.
TECH-CARE serv-
ice technicians
c:r:e trained to fulfill the product war-
ranty and provide after-warranty
service, anywhere in the United States.
Tc locate TECH-CARE service in your
c:irea, call our COOL-LINE service as-
s stance telephone number (see Step
2) or look in your telephone directory
&llow Pages under:
41. If you have a
problem*...
Call our COOL-LINE service assistance
telephone number (see Step 2) and
talk with one of our Consultants, or if
you prefer, write to.
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, MI 49022
*If you must call or write, please pro-
vide model number, serial number,
cate of purchase, and a complete
aescription of the problem. This infor-
mation is needed in order to better
respond to your reqUeSt for
assistance.
15

Whirlpool
Home L /Ap@ances
Making your world a little easier.
Part No. 5040207/877989 Rev. A
cl985 Whirlpool Corporation Printed in U.S.A.
allc Washers Clothes Dryers. Freezers Relrlgerator-Freezers Ice Makers. Dishwashers Bull-In Ovens and Surface Units Ranges. M
