Whirlpool RF332BXP User manual

Continuous-Cleaning
Model RF332BXP

Contents
Page
BEFORE YOU USE YOUR RANGE. 2
IMPORTANT SAFETY
INSTRUCTIONS. ............... 3
PARTS AND FEATURES ......... 4
USING YOUR RANGE .......... 5
Using the Surface Units. ...... 5
Optional Canning Kit ........ 6
Using the Oven Controls ..... 6
Baking .................... 6
Broiling ................... 8
Oven Vent. .................. 9
Storage Drawer ............. 10
Optional Rotisserie .......... 11
Page
CARING FOR YOUR RANGE
11
Control Panel 11
Surface Units and
Reflector Bowls . 11
Lift-Up Cooktop 13
OvenDoor . . . .. . ..___....... 13
Continuous-Cleaning Oven 14
Cleaning Chart 16

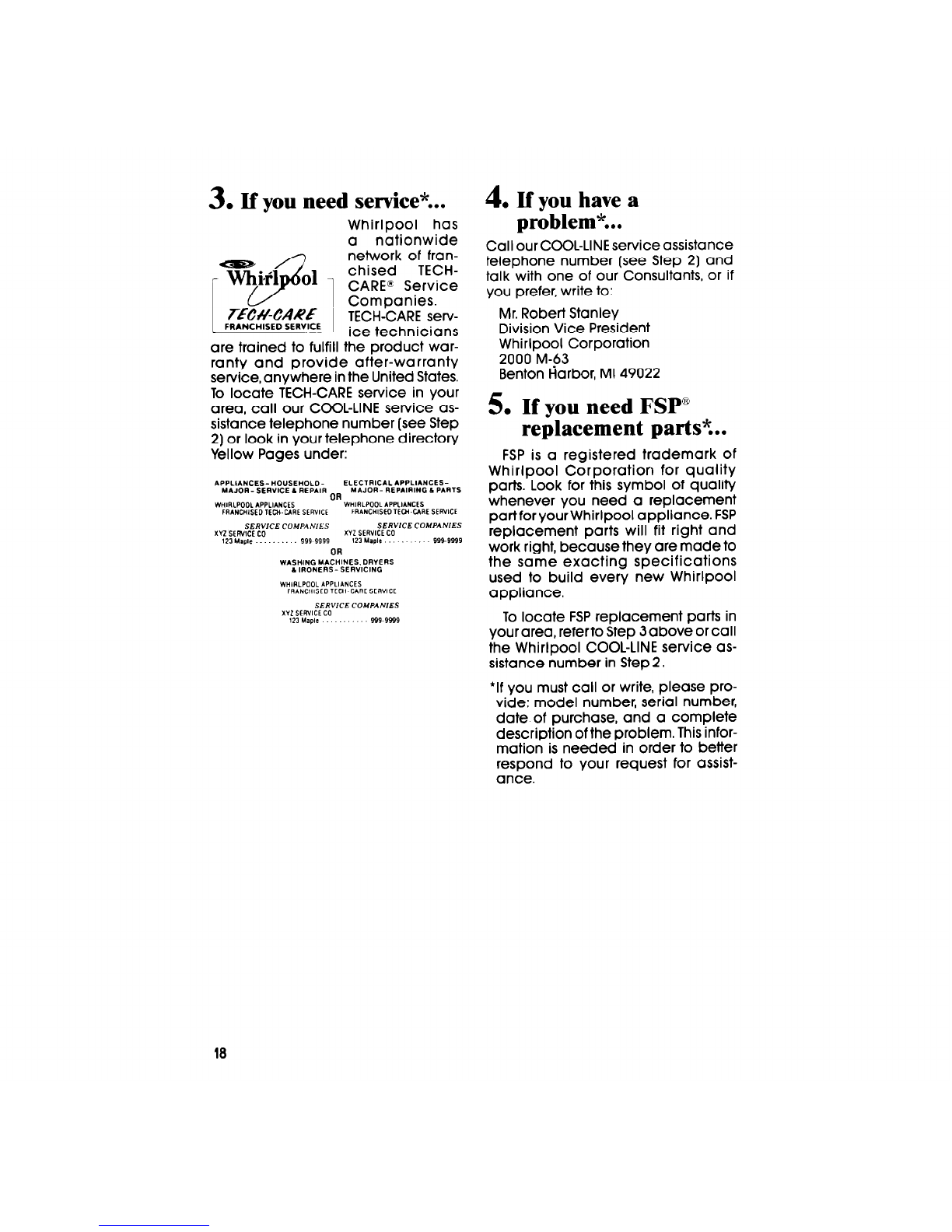

IF YOU NEED SERVICE OR
ASSISTANCE . . . 17

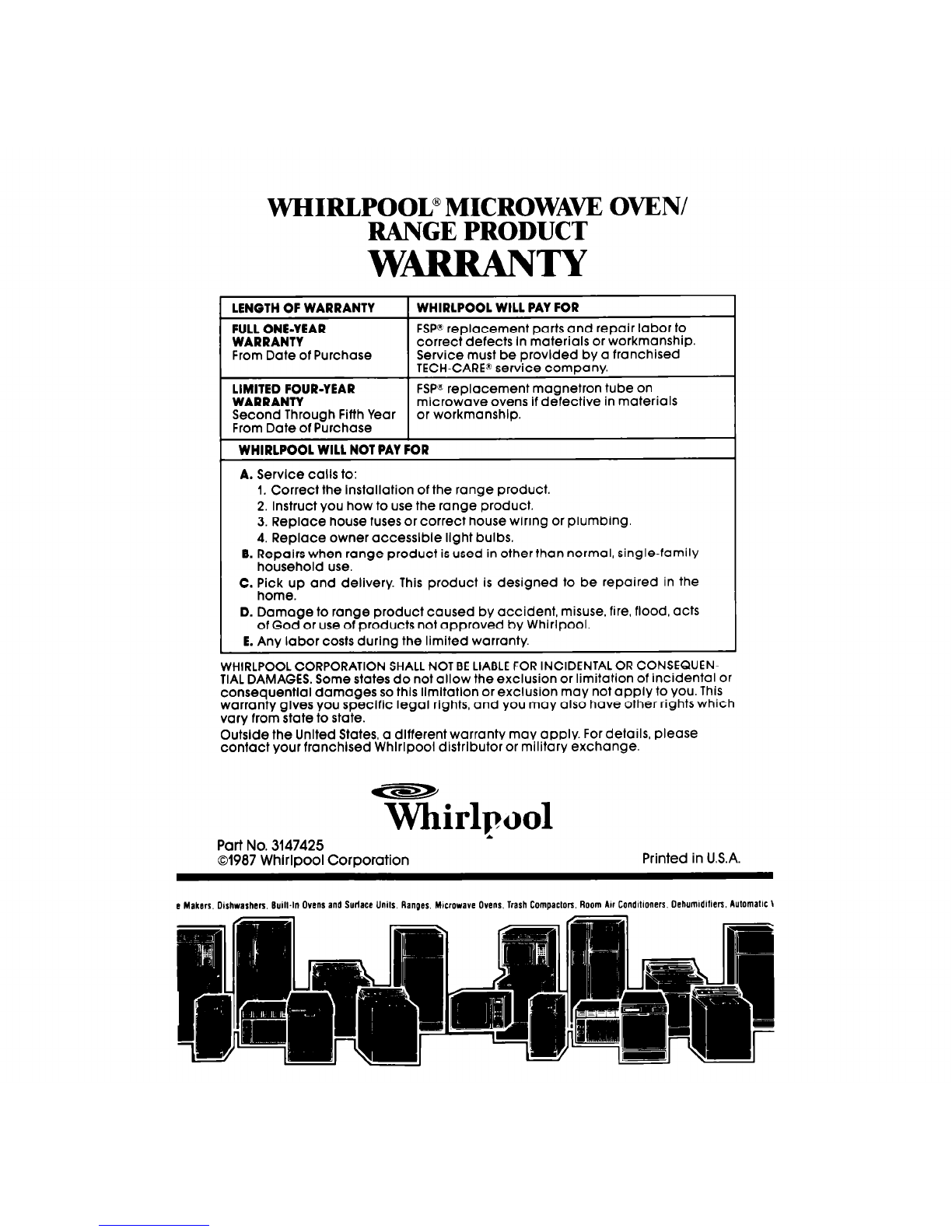

WHIRLPOOL RANGE
WARRANTY 20
L
01987 Whirlpool Corporation
Before you use your range
Read this Use 81Care Gulde and The Cooklng Guide for important safety
Intormatlon.
You are personally responsible for:
l Reading and following all safety precautions in this Use & Care Guide and the
Cooking Guide.
l Installing the range where it is protected from the elements, and on a floor
strong enough to support itsweight.
l Properly connecting the range to electrical supply and grounding. (See
“Installation Instructionsl’)
l Making sure the range is not used by anyone unable to operate it properly
l Properly maintaining the range.
l Using the range only for jobs expected of a home range.
See “Cooklng Guide” for Important safety and use information.
2

IMPORTANT
SAFETY INSTRUCTIONS
1. DO NOT allow children to use or
6. KEEP pan handles turned in, but not
play with any part of the range, or over another surface unit to avoid
leave them unattended near it. burns, injury and to help prevent the
They could be burned or injured. utensil from being pushed off the sur
1. DO NOT store things children face units.
might want above the range. 7.
DO NOT use water on grease fires.
Children could be burned or The fire will spread. Cover fire with
injured while climbing on it. large lid or smother with baking
#. DO NOT allow anyone to touch soda or salt.
hot surface units or heating ele-
8. DO NOT wear loose or hanging gar-
ments. Dark colored units and ele- ments when using the range. They
ments can still be hot enough to could ignite if they touch a hot sur-
burn severely. face unit or heating element and
1. KEEP children away from the you could be burned.
range when it is on. The cooktop 9. DO NOT heat unopened containers.
and oven walls, racks and door They could explode. The hot con.-
can get hot enough to cause tents could burn and container par-
burns. titles could cause injury.
i. DO NOT use thepnge to heat a
room. Persons in the room could
IO. When adding or removing
be burned or injured, or a fire food,
MAKE SURE to open the
oven door all the way to
could start. prevent burns.
l FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
CAUSING EXPLOSION AND/OR FIRE.
- SAVE THESE INSTRUCTIONS -
Copy your Model and Serial Numbers here I
If you need service, or call with a question, have this information ready:
1. Complete Model and Serial
Numbers (from plate just behind
the oven door].
Model Number
2. Purchase date from sales slip.
Copy this information in these
spaces. Keep this book, your
warranty and sales slip together in
the Literature Pac.
Please complete and mall the
Owners Reglstratlon Card tur-
nlshed wlth thls product.
Serial Number
Purchase Date
Service Company Phone Number
3

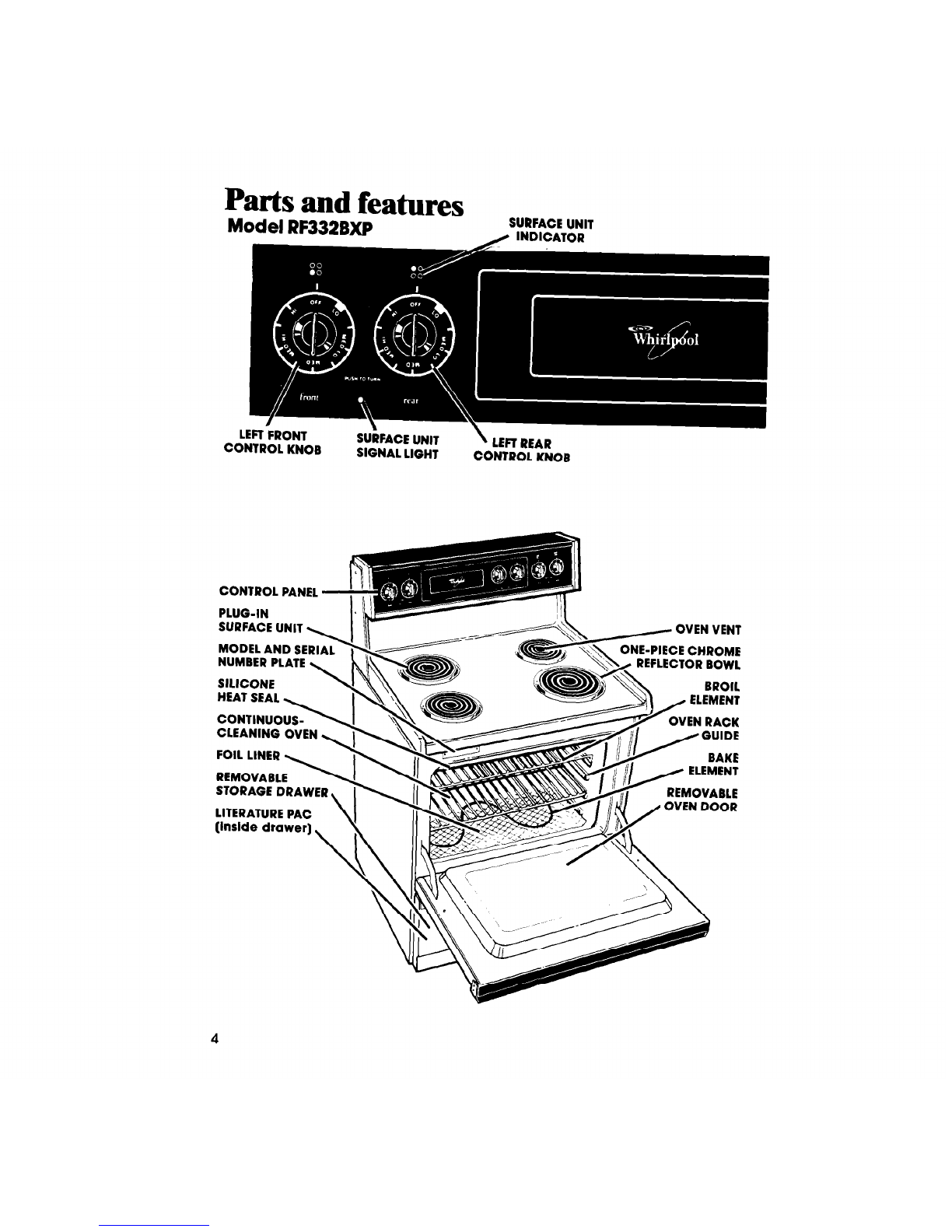

Parts and features
Model RF332BXP
SURFACE UNIT
L
CONTROL KNOB SIGNAL LIGHT CONTROL KNOB
CONTROL PANEL
PLUG-IN
SURFACE UNIT
CONTINUOUS-
CLEANING OVEN
REMOVABLE
STORAGE DRAWER
LITERATURE PAC
4

OVEN TEMPERATURE OVEN RIGHT REAR
CONTROL SELECTOR CONTROL KNOB
OVEN SIGNAL RIGHT FRONT
LIGHT CONTROL KNOB
Using the surface units
Control knobs must be pushed In
before turning them to a setting. They
can be set anywhere between HI
and OFF.
Surface Unit Indicators
The solid dot in the surface unit
indicator shows which surface unit
isturned on by that knob.
Signal light
One of the signal lights will glow
when a surface unit is on.
Until you get used to the settings, use the following as a gulde. For best results,
start cooking at the high settings; then turn the control knob down to continue
cooking.
Use HI to start Use MED-HI Use MED Use MED-LO
foods cook- to hold a for gravy, to keep food
ing; to bring rapid boil; to puddings cooking after
liquids to a fry chicken and icing; to starting it
boil. or pancakes. cook large on a higher
amounts of setting.
veaetables.
CAUTION: The use of the HI setlfng for long periods of tlme
can damage surface units and discolor chrome reflector
bowls. Start cooking on HI and turn control down to con-
ttnue cooklng.
Use Lo to
keep food
warm until
ready to
serve. Set the
heat higher
or lower
1
within the LO
band to keep
food at the
temperature
you want.
5

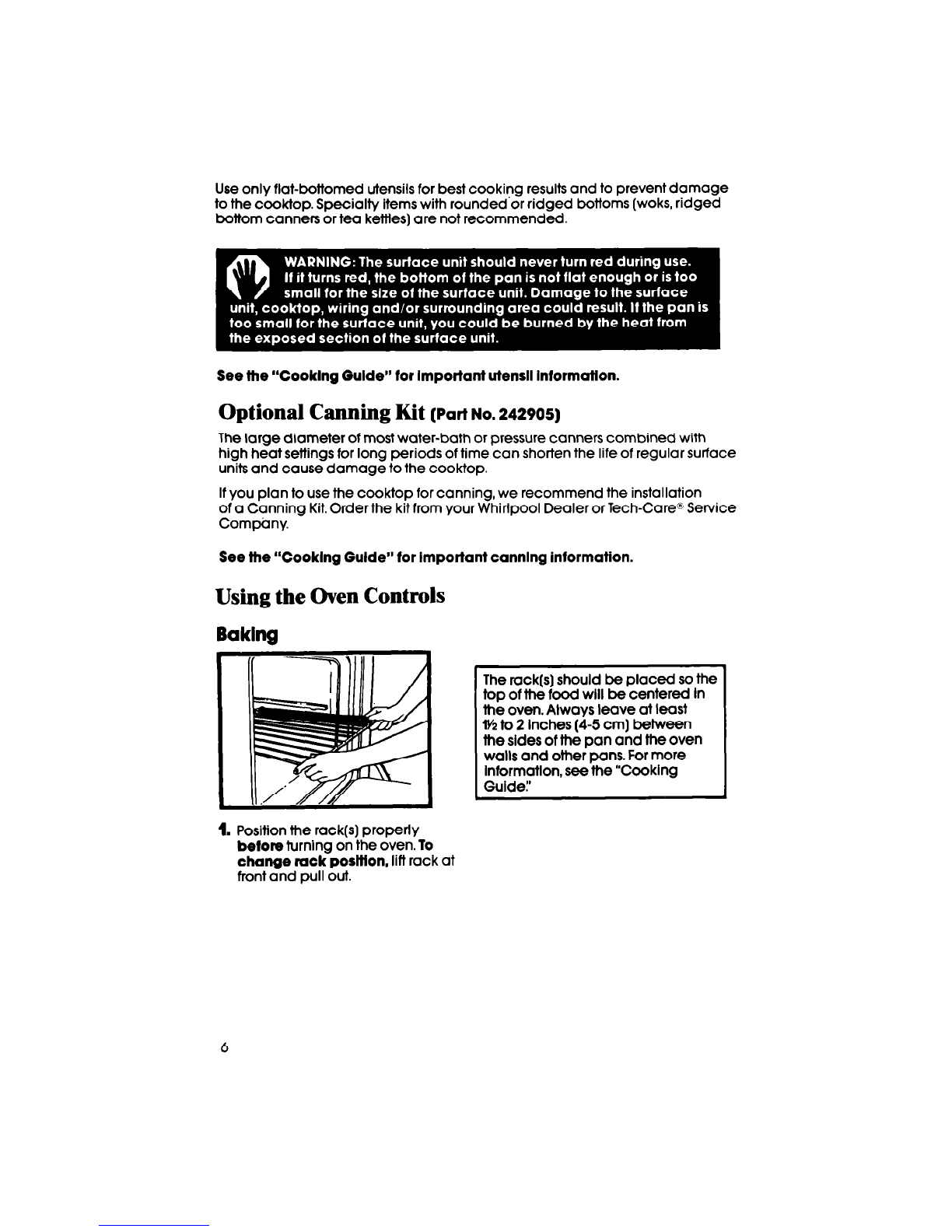

Use only flat-bottomed utensils for best cooking results and to prevent damage
to the cooktop. Specialty items with rounded.or ridged bottoms (woks, ridged
bottom canners or tea ketttes) are not recommended.
See the “Cooklng Guide” for Important utensil Intormatlon.
OptiOId hUlhg Kit (Part No. 242905)
The large diameter of most water-bath or pressure canners combined with
high heat settings for long periods of time can shorten the life of regular surface
units and cause damage to the cooktop.
If you plan to use the cooktop for canning, we recommend the installation
of a Canning Kit.Order the kit from your Whirlpool Dealer or Tech-CareE Service
Company.
See the “Cooklng Guide” for important cannlng information.
Using the Oven Controls
Baking
The rack(s) should be placed so the
top of the food will be centered In
the oven. AlWay6 leave at least
lY2 to 2 Inches (4-5 cm] between
the sides of the pan and the oven
walls and other pans. For more
Informatlon, see the “Cooking
Guide:
1. Position the rack(s) properly
before turning on the oven. To
change rack posltlon, lift rack at
front and pull out.
6

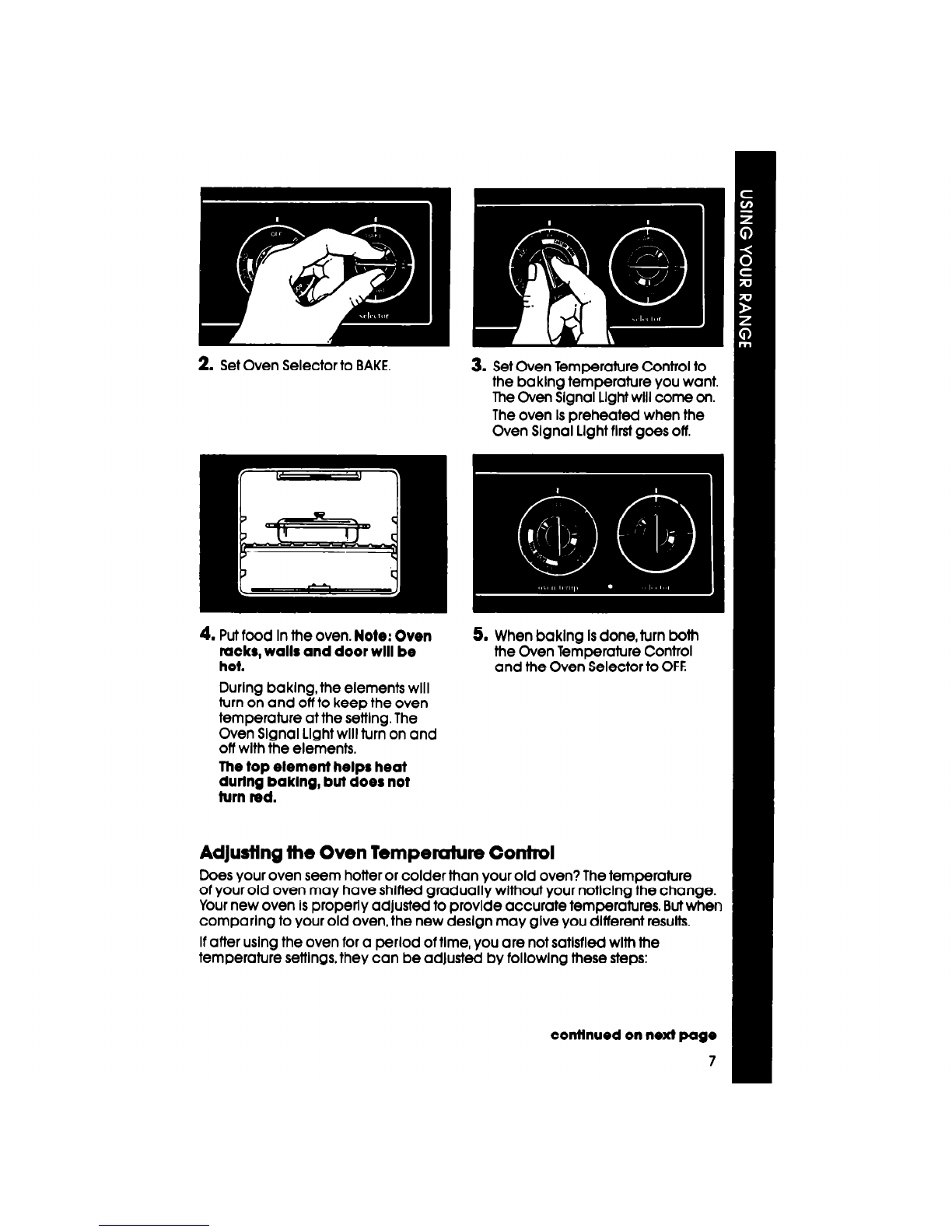

2. Set Oven Selector to BAKE. 3. Set Oven Temperature Control to
the baklng temperature you want.
The Oven Signal Llght will come on.
The oven Ispreheated when the
Oven Slgnal Llght flr6t goes Off.
4. Putfood In the oven. Note: Oven
racks, walls and door will be
hot.
Durlng baklng, the elements will
turn on and off to keep the oven
temperature at the setting. The
Oven Slgnal Light will turn on and
off wlth the elements.
The top element helps heat
durlng baklng, but does not
turn red.
5. When baklng Isdone, turn both
the Oven Temperature Control
and the Oven Selector to OFF.
AdJustlng the Oven Temperatuw Control
Does your oven seem hotter or colder than your old oven? The temperature
of your old oven may have shlfted gradually wlthouf your notlclng the change.
Your new oven Is properly adjusted to provlde accurate temperatures. Butwhen
comparlng to your old oven, the new de6lgn may glve you dlfferent results.
If after using the oven for a perlod of tlme, you are not satlsfled wlth the
temperature settings, they can be adlusted by followlng these steps:
oonttnued on next page
7

1. Pull the Oven Temperature Control
Knob straight off.
3. To lower the temperature, move
a notch closer to LO.Each notch
equals aboutlOT (5°C).
2. Loosen the locking screws inside
the control knob. Note the posl-
tlon of the notches.
4. To raise the temperature, move
a notch closer to HI.Each notch
equals aboutlOT (5°C).
Tlghten the locking screws and
replace the control knob.
Broiling
I -
I. Position the rack before turning 2. Putthe broiler pan and food on
the oven on. See broil chart in the
“Cooking Guide” or a reliable
cookbook for recommended
rack positions.
the rack.
8

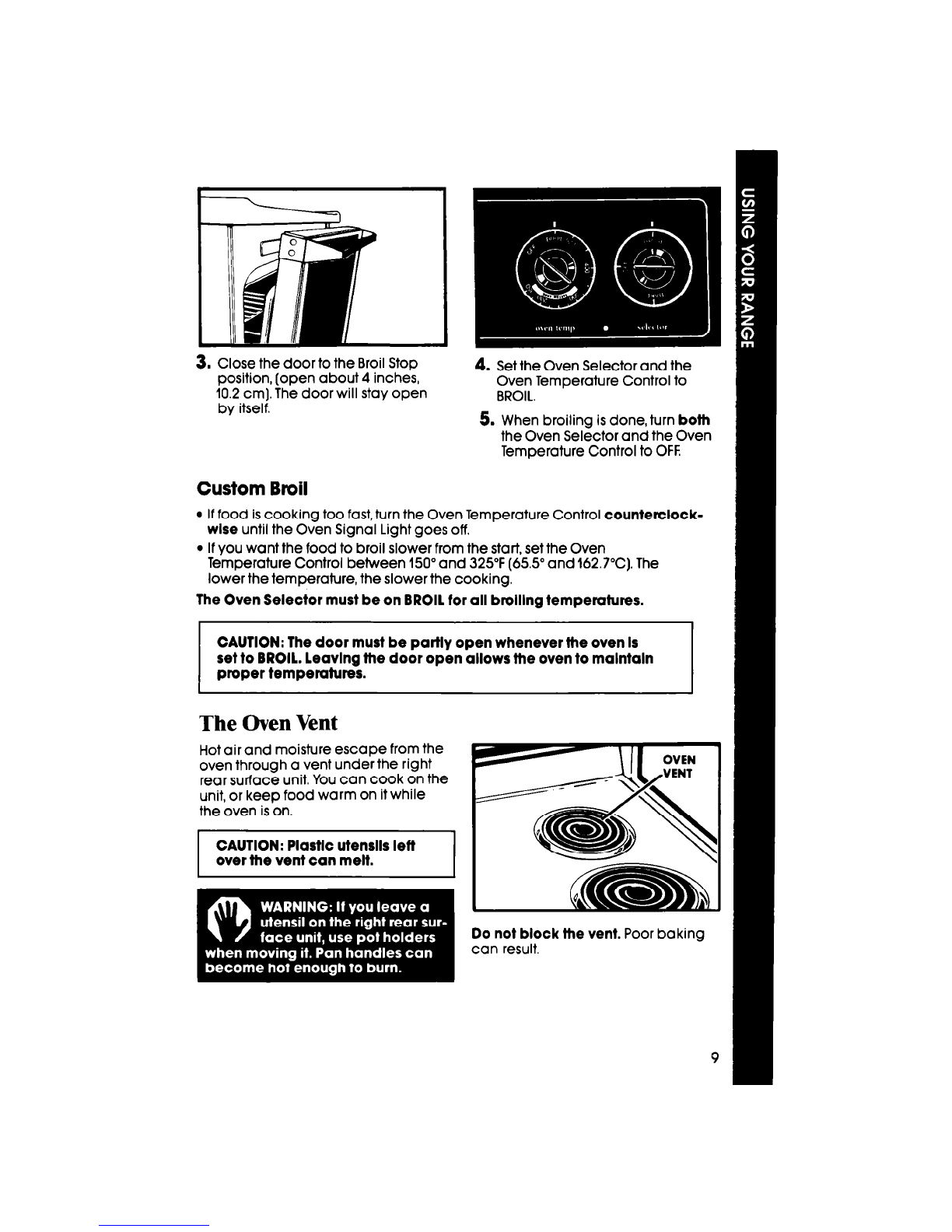

3. Close the door to the Broil Stop
position, [open about 4 inches,
10.2cm]. The door will stay open
by itself.
4. Set the Oven Selector and the
Oven Temperature Control to
BROIL.
5. When broiling is done, turn both
the Oven Selector and the Oven
Temperature Control to OFF.
Custom Broil
l Iffood iscooking too fast,turn the Oven Temperature Control counterciock-
wise until the Oven Signal Light goes off.
l Ifyou want the food to broil slower from the start, set the Oven
Temperature Control between 150” and 325°F (65.5” and 162.7”C). The
lower the temperature, the slower the cooking.
The Oven Selector must be on BROIL for ail broliing temperatures.
CAUTION: The door must be partly open whenever the oven is
set to BROIL. leaving the door open allows the oven to maintain
proper tempemtures.
The OvenVent
Hot air and moisture escape from the
oven through a vent under the right
rear surface unit, You can cook on the
unit, or keep food warm on it while
the oven ison.
CAUTION: Plastic utensils lefl
over the vent can melt.
Do not block the vent. Poor baking
can result.

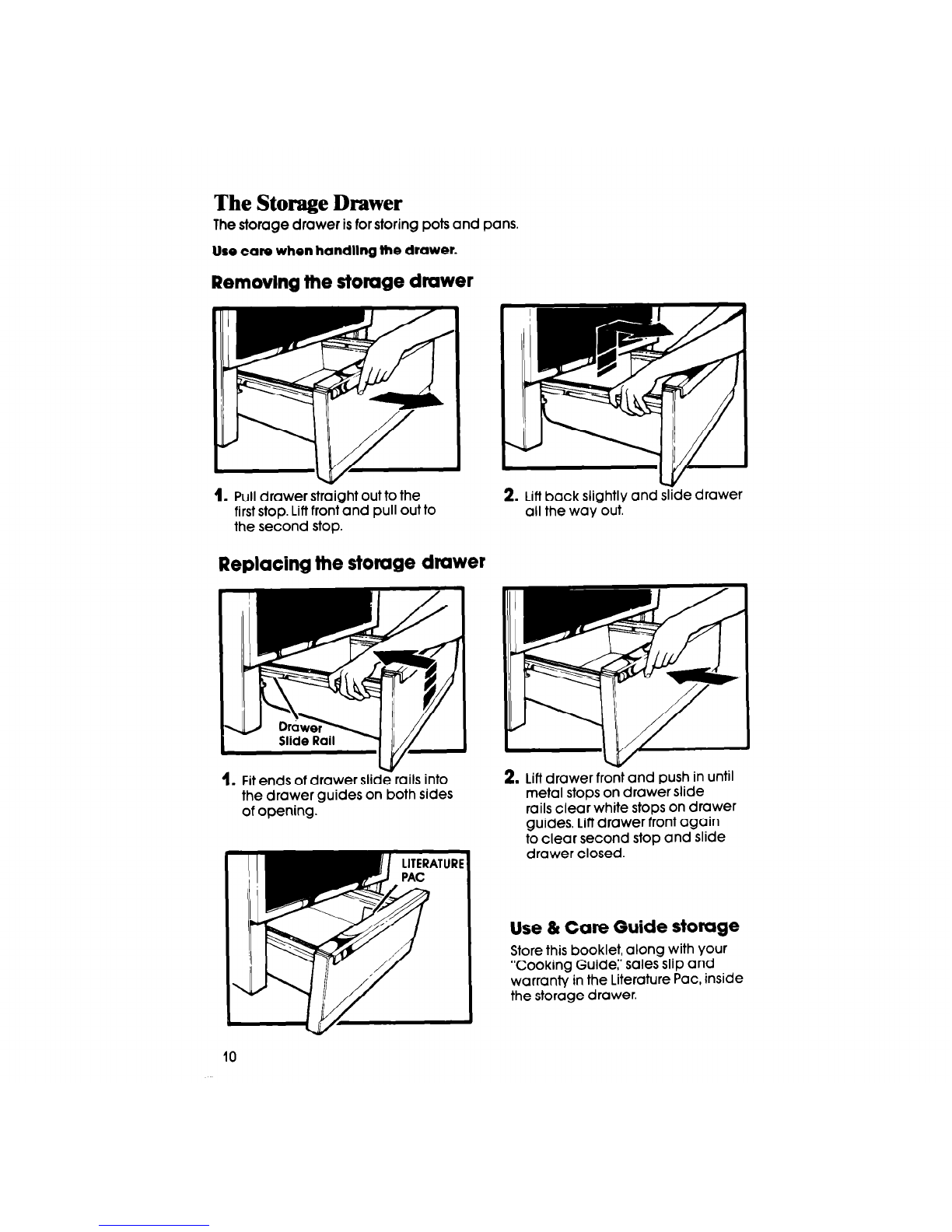

The Storage Drawer
The storage drawer is for storing pots and pans.
Use care when handllng the drawer.
Removlng the storage dmwer
1. Pull drawer s%ght out to the
first stop. Liftfront and pull out to
the second stop.
Replacing the stomge drawer
1. Fitends of drawer slidyrails into
the drawer guides on both sides
of opening.
2. Lift back slightly and sEde drawer
all the way out.
2. Lift drawer front and push in until
metal stops on drawer slide
rails clear white stops on drawer
guides. Lift drawer front again
to clear second stop and slide
drawer closed.
Use & Care Guide storage
Store this booklet, along with your
“Cooking Guide:’ sales slip and
warranty in the Literature Pat, inside
the storage drawer.

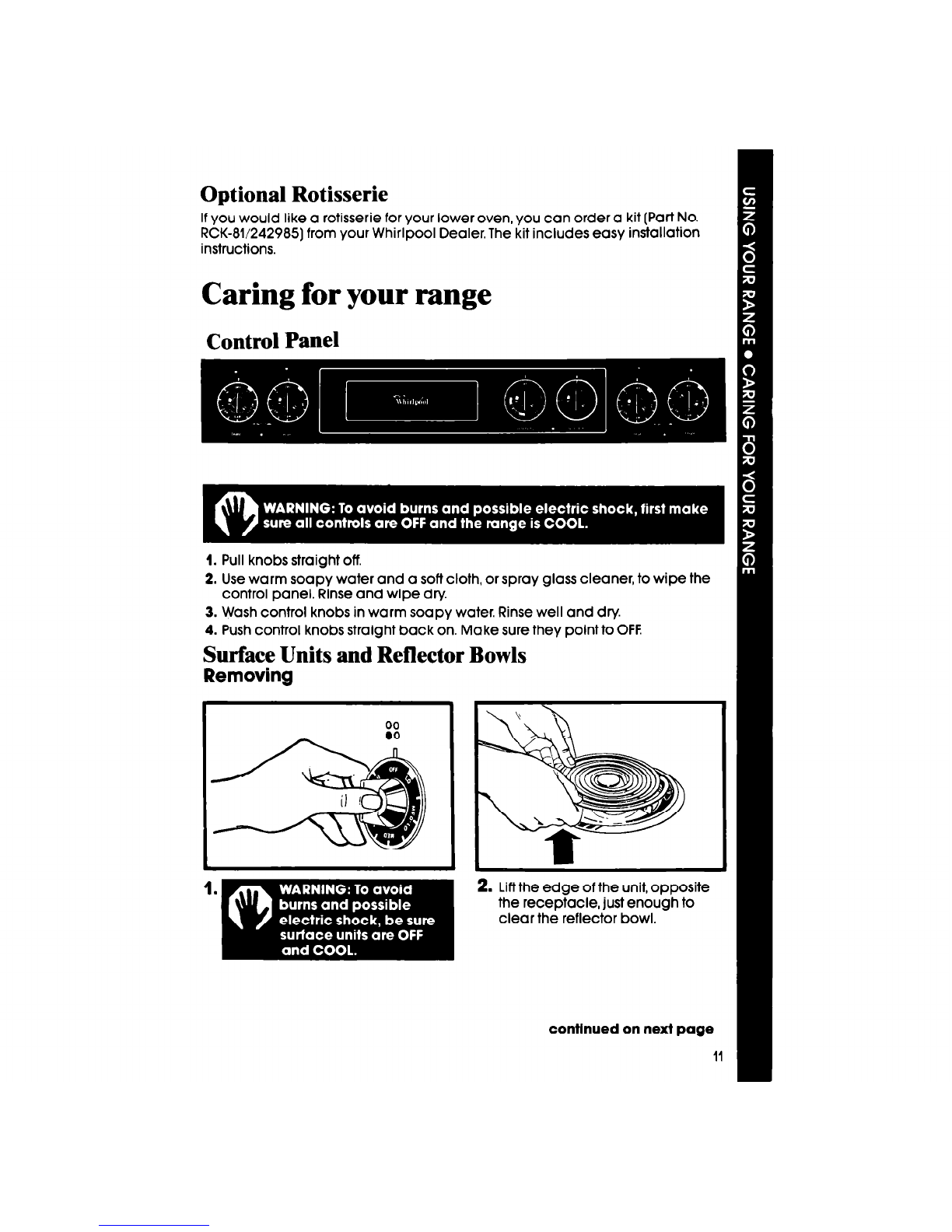

Optional Rotisserie
If you would like a rotisserie for your lower oven, you can order a kit [Part No.
RCK-81/242985) from your Whirlpool Dealer, The kit includes easy installation
instructions.
Caring for your range
Control Panel
1. Pull knobs straight off.
2. Usewarm soapy water and a soft cloth, or spray glass cleaner, to wipe the
control panel. Rinse and wipe dry.
3. Wash control knobs in warm soapy water. Rinse well and dry.
4. Push control knobs straight back on. Make sure they point to OFF.
Surface Units and Reflector Bowls
Removing
I 1
Liftthe edge of the unit, opposite
the receptacle, just enough to
clear the reflector bowl.
continued on next page
11

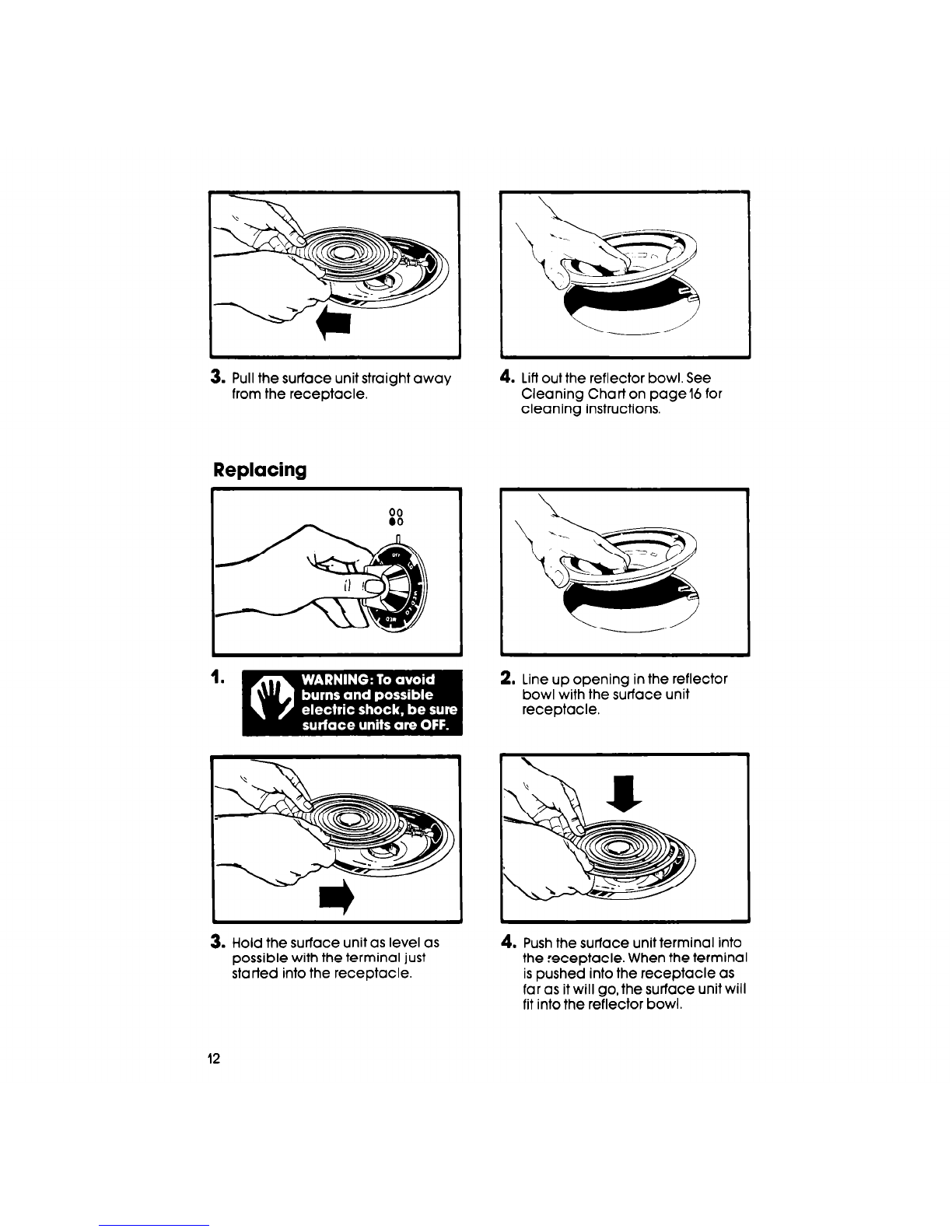

3. Pull the surface unit straight away
from the receptacle.
Replacing
3. Hold the surface unit as level as
possible with the terminal just
started into the receptacle.
4. Liftout the reflector bowl. See
Cleaning Chart on page16 for
cleaning instructions.
2. Line up opening in the reflector
bowl with the surface unit
receptacle.
4. Push the surface unit terminal into
the receptacle. When the terminal
is pushed into the receptacle as
far as it will go, the surface unit will
fit into the reflector bowl.
12

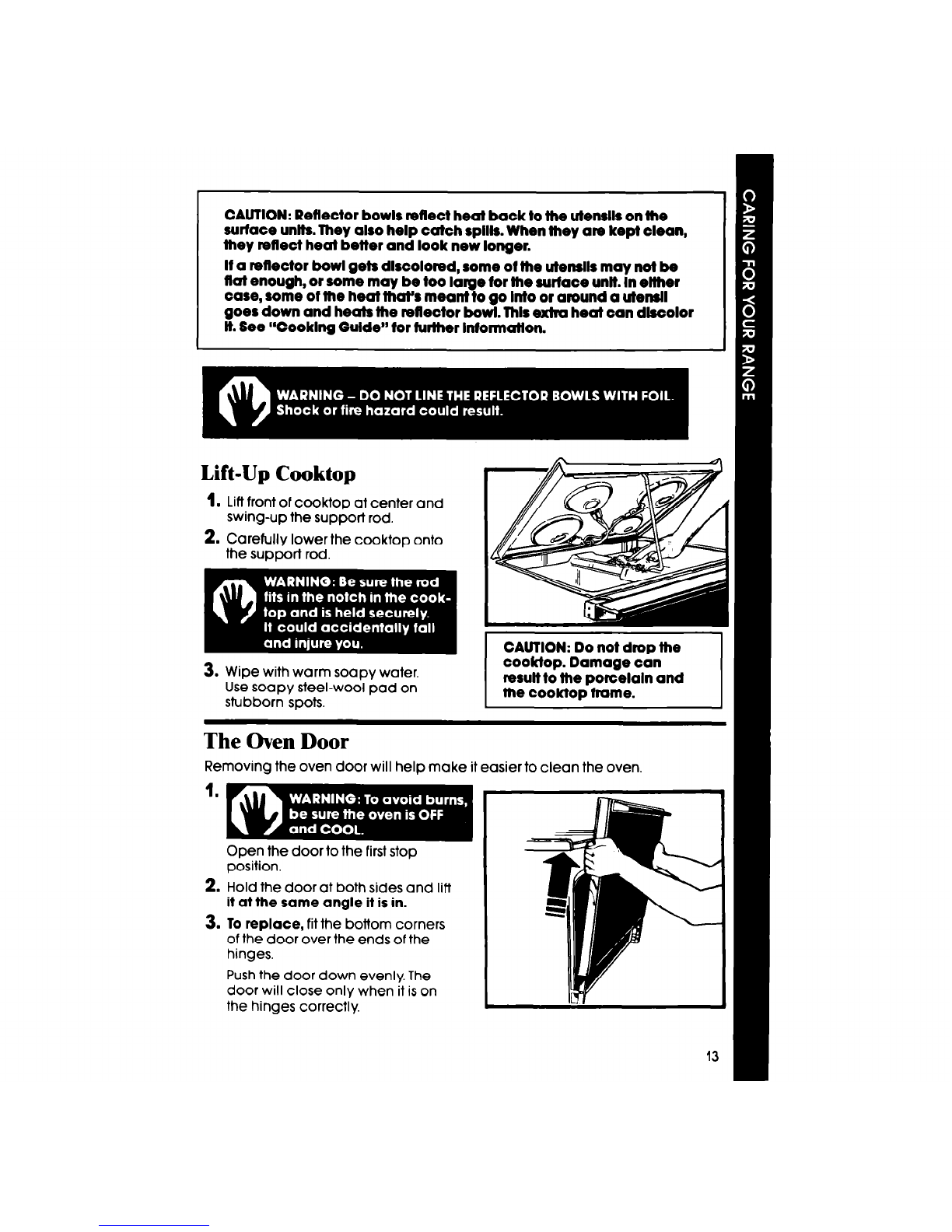

CAUTION: Reflector bowls reflect heat back to the utensils on the
surface units. They also help catch spills. When they are kept clean,
they reflect heat better and look new longer.
If a reflector bowl gets dlscolored, some of the utenslk may not be
flat enough, or some may be too large for the surface unlt. In elfher
case, some of the heat that% meant to go Into or around a ufensll
goes down and heats the reflector bowl. This extra heat can dlsoolor
ft. See “Cooklng Guide” for further Information.
1.
Liftfront of cooktop at center and
swing-up the support rod.
2. Carefully lower the cooktop onto
the support rod.
3. Wipe with warm soapy water.
Use soapy steel-wool pad on
stubborn spots.
CAUTION: Do not drop the
cooktop. Damage can
result to the porcelain and
the cooktop frame.
The Oven Door
Removing the oven door will help make it easier to clean the oven.
Open the door to the first stop
position.
2. Hold the door at both sides and lift
it at the same angle it is in.
3. To replace, fit the bottom corners
of the door over the ends of the
hinges.
Push the door down evenly. The
door will close only when it is on
the hinges correctly.

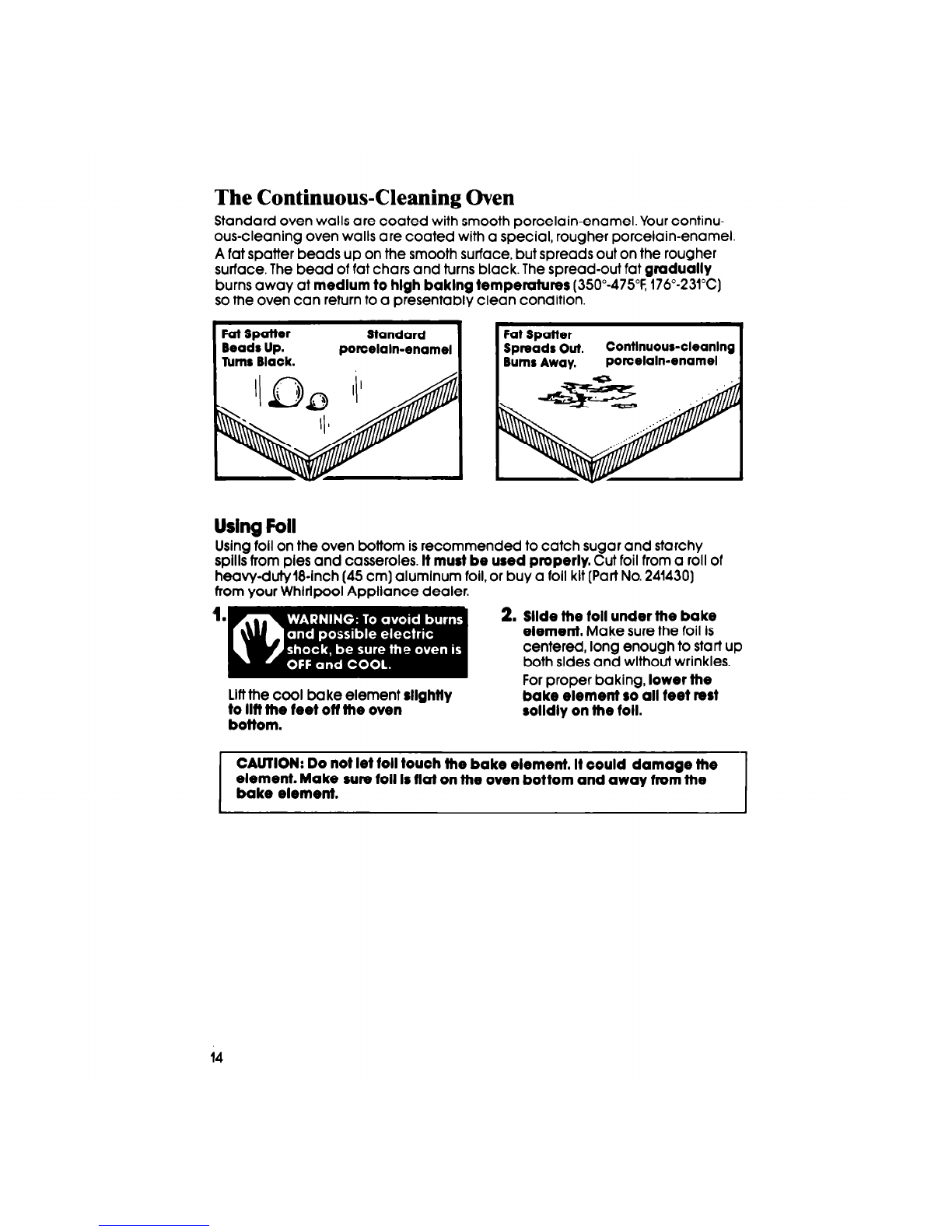

The Continuous-Cleaning Oven
Standard oven walls are coated with smooth porcelain-enamel. Your continu-
ous-cleaning oven walls are coated with a special, rougher porcelain-enamel.
A fat spatter beads up on the smooth surface, but spreads out on the rougher
surface. The bead of fat chars and turns black. The spread-out fat gradually
burns away at medium to high baking temperatures (350”-475”F, 176”-231°C)
so the oven can return to a presentably clean condition.
lter Standard 1 Fat SDatter
1
porceialn-enamel Contlnuous-cleaning
porcelain-enamel
Using Foil
Using foll on the oven bottom is recommended to catch sugar and starchy
spills from ples and casseroles. It must be used properly. Cut foil from a roll of
heavy-dutyl8-inch (45 cm] alumlnum foil, or buy a foil klt [Part No. 241430)
from your Whlrlpool Appliance dealer.
Liftthe cool bake element slightly
to lift the feet off the oven
bottom.
Slide the foil under the bake
element. Make sure the foil Is
centered, long enough to start up
both sides and wlthout wrinkles.
For proper baking, lower the
bake element so all feet rest
solidly on the foil.
CAUTION: Do not let foil touch the bake element. It could damage the
element. Make sure foil is fiat on the oven bottom and away from the
bake element.
1
14

Hand Cleaning
RACKS - Use soapy steel-wool
pad for best cleaning results.
Rinse well.
WALLS AND DOOR - Wash with
hot soapy water. Use a steel-wool
pad or plastic scouring pad for
stubborn spots. Rinse well.
Cleaning Tips
1. The oven racks are not coated. Clean them by hand.
2. The oven door does not get as hot as the walls. Some hand cleaning may
be needed.
3. If you do more broiling than baking, hand cleaning may be needed.
4. Use aluminum foil on bottom according to instructions. Spillovers do not
burn away and stain the bottom.

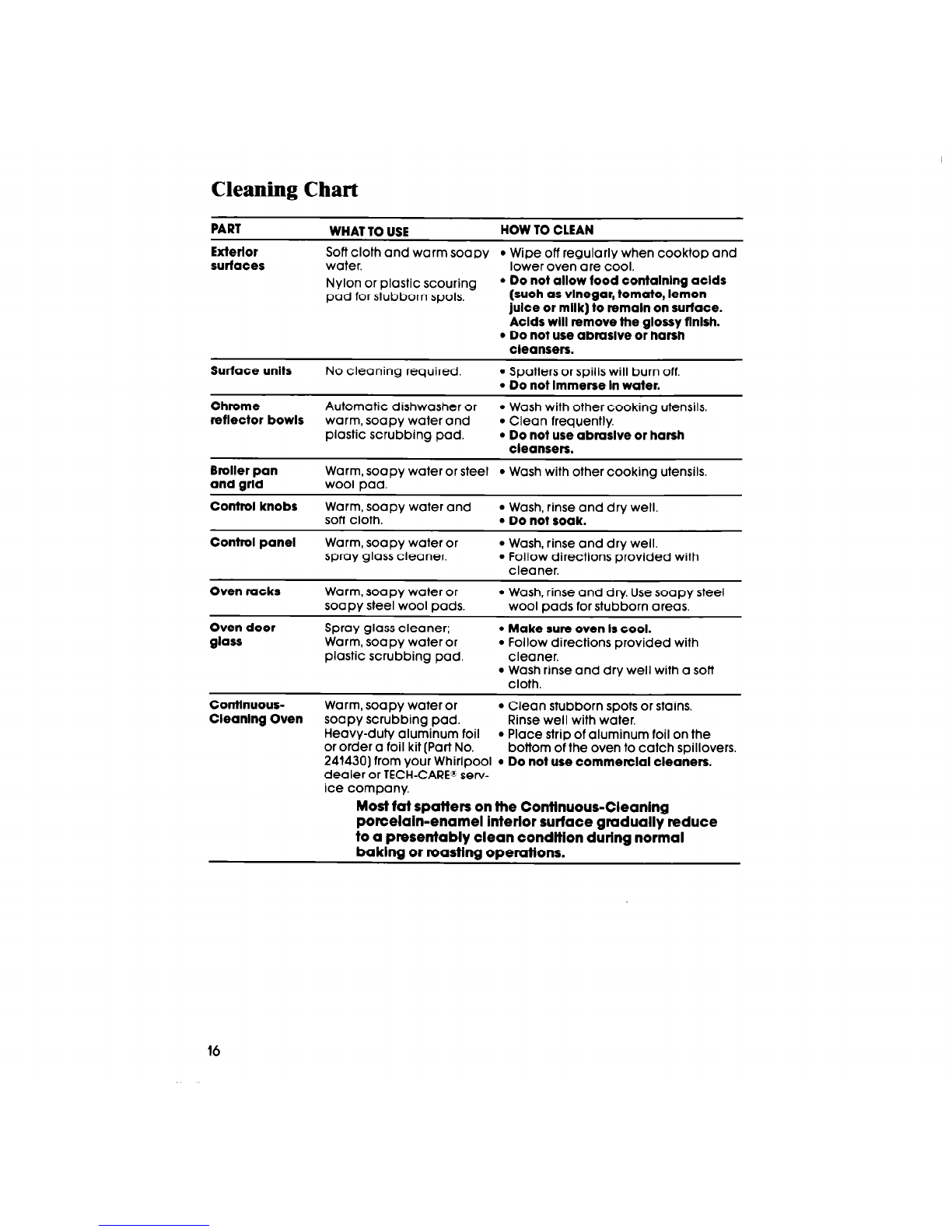

Cleaning Chart
PART
Exterior
surfaces
WHAT TO USE HOW TO CLEAN
Soft cloth and warm soapy
l Wipe off regularly when cooktop and
water. lower oven are cool.
Nylon or plastic scouring
l Do not allow food contalnlng acids
pad for stubborn spots.
(such as vinegar, tomato, lemon
)ulce or milk) to remain on surface.
Acids will remove the glossy flnlsh.
l Do not use abmslve or harsh
cleansers.
Surface units No cleaning required.
l Spatters or spills will burn off
l Do not Immerse In water.
Chrome Automatic dishwasher or l Wash with other cooking utensils.
reflector bowls
warm, soapy water ond l Clean frequently.
plastic scrubbing pad.
l Do not use abmslve or harsh
cleansers.
Broiler pan Warm, soapy water or steel
l Wash with other cooking utensils.
and grid wool pad.
Control knobs Warm, soapy water and
soft cloth.
l Wash, rinse and dry well.
l Do not soak.
Control panel Warm, soapy water or
spray glass cleaner.
l Wash, rinse and dry well.
l Follow directions provided with
cleaner.
Oven racks
Oven door
glass
Warm, soapy water or
soapy steel wool pads.
Spray glass cleaner;
Warm, soapy water or
plastic scrubbing pad.
l Wash, rinse and dry. Use soapy steel
wool pads for stubborn areas.
l Make sure oven Is cool.
l Follow directions provided with
cleaner.
l Wash rinse and dry well with a soft
cloth.
Contlnuous- Warm, soapy water or
l Clean stubborn spots or stains.
Cleanlng Oven
soapy scrubbing pad. Rinse well with water.
Heavy-duty aluminum foil . Place strip of aluminum foil on the
or order a foil kit (Part No. bottom of the oven to catch spillovers.
241430) from your Whirlpool l Do not use commercial cleaners.
dealer or TECH-CARESserv-
ice company.
Most fat spatters on the Contlnuous-Cleaning
porcelain-enamel interior surface gradually reduce
to a presentably clean condition during normal
baking or roasting operations.

If you need service or assistance,
we suggest you follow these five steps:
1, Before calling for
assistance...
Performance problems offen result
from little things you can find and fix
yourself without tools of any kind.
If nothing operates:
l Is the power supply cord plugged
into a live circuit with the proper volf-
age? (See “Installation Instructionsl’)
l Have you checked your home’s
main fuses or circuit breaker box?
If the oven will not operate:
l Isthe Oven Selector turned to a set-
ting (BAKE or BROIL)?
l Is the Oven Temperature Control
turned to a temperature setting?
If surface units will not operate:
l Have you checked your home’s
main fuses or circuit breaker box?
l Are surface units plugged in all the
way?
l Do the control knobs turn?
If surface unit control knob(s) will
not turn:
l Did you push in before frying to turn?
If soil is visible on Continuous-
Cleaning oven finish:
l The special finish is designed to
gradually reduce oven soil during
normal baking or roasting. It is not
designed to keep your oven spof-
less, only presentably clean.
l If you broil often, you may see oven
soil.
l The door is cooler than the oven
walls. Soil will be more visible on the
door than other areas in the oven.
See page 15for how to clean.
l Sugar and starchy spills may leave
stains. See page 15for hand clean-
ing tips. Keep foil on oven bottom to
catch these spills.
If cooklng results are not what YOU
expected:
l Is the range level?
l Are you using pans recommended
in the Cooklng Gulde?
l If baking, have you allowed lY2 to 2
inches (4-5 cm] on all sides of the
pans for air circulation?
l Have you preheated the oven asthe
recipe calls for?
l Are the pans the size called for in the
recipe?
l Are you following a tested recipe
from a reliable source?
l Do the cooking utensils have
smooth, flat bottoms and fit the sur-
face unit being used?
Seethe Cooklng Guide for more infor-
mation on cooking problems and
how to solve them.
2. If you need
assistance%.
Call Whlrlpool COOL-LINE@ sew-
Ice assistance telephone number.
Dial free from anywhere In the U.S.:
l-800-253-1301
and talk with one of our trained Con-
sultanfs. The Consultants can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if sew-
ice is necessary, recommend a
qualified service company in your
area.
continued on next page
17

3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-
1 CARE@ Service
,&ARE~gYg$=.k;
FRANCHISED SERVICE
are trained to fulfill the product war-
ranty and provide after-warranty
service, anywhere in the United States.
To locate TECH-CAREservice in your
area, call our CCCL-LINE service as-
sistance telephone number (see Step
2) or look in your telephone directory
Yellow Pages under:
4. If you have a
problem*...
Call our CCCL-LINEservice assistance
telephone number (see Step 2) and
talk with one of our Consultants, or if
you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
5. If you need FSP”
replacement parts?..
FSP is a registered trademark of
Whirlpool Corporation for quality
parts. Look for this symbol of quality
whenever you need a replacement
part for your Whirlpool appliance. FSP
replacement parts will fit right and
work right, because they are made to
the same exacting specifications
used to build every new Whirlpool
appliance.
To locate FSPreplacement parts in
your area, referto Step 3above or call
the Whirlpool COOL-LINE service as-
sistance number in Step 2.
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better
respond to your request for assist-
ance.
18

Notes

WHIRLPOOL@MICROWAw OVEN/
RANGE PRODUCT
W-T-Y
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
From Date of Purchase
WHIRLPOOL WILL PAY FOR
FSP@replacement parts and repair labor to
correct defects In materials or workmanship
Service must be provlded by a franchised
TECH-CARE8 service company.
LIMITED FOUR-YEAR FSPEreplacement magnetron tube on
WARRANTY
microwave ovens if defective in materials
Second Through Fifth Year or workmanshlp.
From Date of Purchase
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the Installation of the range product.
2. Instruct you how to use the range product.
3. Replace house fuses or correct house wlring or plumbing
4. Replace owner accessible light bulbs.
B. Repairs when range product is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in the
home.
D. Damage to range product caused by accident, misuse, fire, flood, aCtS
of God or use of products not approved by Whirlpool.
E. Any labor costs during the limited warranty. ,
WHIRLPOOL CORPORATION SHALLNOT BELIABLEFOR INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequentlal damages so thls llmltatlon or exclusion may not apply to you. This
warranty glves you specific legal rights, and you may also have other rights which
vary from state to state.
Outslde the Unlted States, a dlfferent warranty may apply. For details, please
contact your franchised Whlrlpool distrlbutor or military exchange.
TLlpool
.
Part No. 3147425
01987 WhlrlDool Corporation Printed in U.S.A.
e Maksrs. Dishwashers. Buill4n Ovens and Sutiace Units. Ranper. MIcrowave Ovens. Trash Compactors Room Au Condllloners. Oehumldllien. Aulomallc 1
