See the “Cooking Guide”tor important safety Inttxmctlo -

Proper installation and safe use of your range are your personal
responsibilities. Read this “Use and Care Guide”and the “Cooking
Guide”carefully for important use and safety information.
Installation
You must be sure your range is...
l installed and leveled on a floor l properly connected to the cor-
that will hold the weight; rect electric supply and
l installed in a well-ventilated groundlng. (See “Installation
area protected from the Instructions.“)
weather;
Proper use
You must be sure your range Is...
l used only for jobs expected
of home ranges;
l used only by people who can
operate it properly;
l properly maintained.

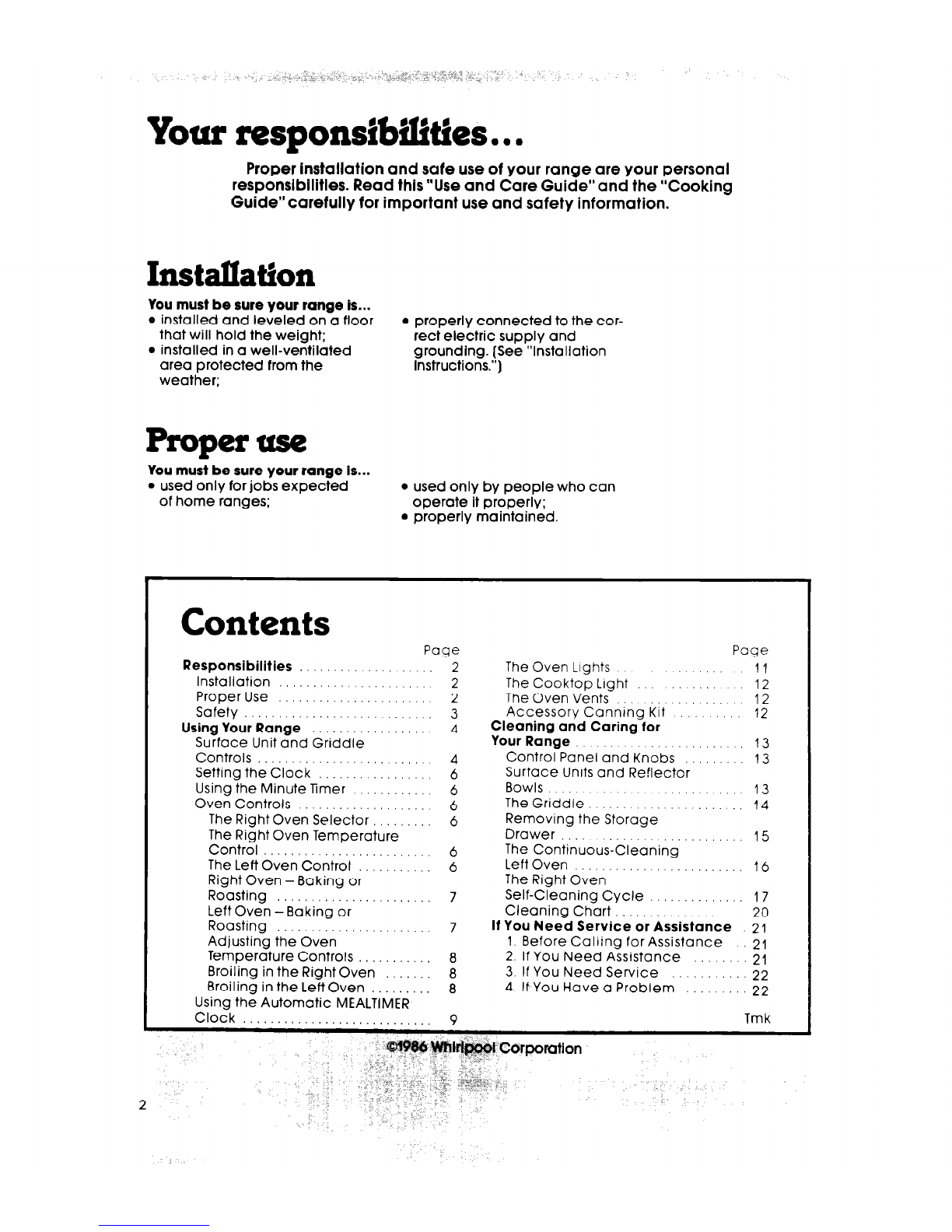

Contents
Page Page
Responsibilities ..................
2 The Oven Lights 11
Installation .......... 2 The Cooktop Light ....... : : 12
Proper Use ............ : : : 1I : : : : :. 2 The Oven Vents ... 12
Safety ........................... 3 Accessory Canning k/t .... .’ ..... 12
Using Your Range ................. 4 Cleaning and Caring for
Surface Unit and Griddle
Your Range .......................
I 3
Controls ......................... 4 Control Panel and Knobs ......... 13
Setting the Clock ................ 6 Surface Units and Reflector
Using the Minute flmer 6 Bowls
............ TheGriddle. ... 13
Oven Controls .................... 6 ........ ::::.:..:.:: :4
The Right Oven Selector ......... 6 Removing the Storage
The Right Oven Temperature Drawer ...
The Continuous%leani& 15
Control ......................... 6
The Left Oven Control ........... 6 Left Oven ......................... 16
Right Oven -Baking or The Right Oven
Roasting ....................... 7 Self-Cleaning Cycle .............. 17
Left Oven -Baking or Cleaning Chart .................. 20
Roasting ....................... 7
If You Need Service or Assistance
21
Adjusting the Oven 1. Before Calling for Assistance 21
Temperature Controls .......... 8 2. If You Need Assistance ........ 21
Broiling in the Right Oven ....... 8 3. If You Need Service ........... 22
Broiling in the Left Oven .. 8 4 IfYou Have a Problem ......... 22
Using the Automatic MEALTIMER
Clock ................... 9 Tmk

Using your range
Right Oven
Left Oven Cooktop Manual Surface Unit Surface Unit
Signal Light Light Switch Light Switch Control Signal Light
Left Oven Right Oven Right\Oven Right Oven Lock Light -Clean Light
Control Temperature Control Signal Light Selector
SURFACE UNIT AND GRIDDLE CONTROLS
Control knobs must
be pushed in before
turning. Turn either
way until the setting
you want shows in the
window. Set them any-
where from HI to OFF.
Until you get used to the settings, use the following as a guide.
The signal light will
glow when a surface
unit or griddle is on.
Be sure the lights are
off when you are
not cooking.
Use HI to start
foods cooklng or
to brlng llqulds
to a boll. Surface
unlt wlfl not turn
red If good con-
tact is made with
bottom of pan.
Use MED-HI to
hold a rapid boil
or to fry chlcken
or pancakes.
Use MED for
gravy, puddings
and icings, or
to cook large
amounts of
vegetables.
Use MED-10 to
keep food cook-
ing after startlng
it on a higher
settlng.
Use LO to keep
food warm until
ready to serve.
Set the heat
hlgher or lower
wlthln the LO
band to keep
food at the tem-
perature you
want.
See “The Accessory Canning Kit” (page 12) and
your “Cooking Guide” for important utensil
information.

Griddle Control
Automatic
MEALTIMER
Clock \
I /
Griddle Minute
Signal Light Timer
/
Stop Time
Knob
/
Start Time
Knob
Tmk
Before using the griddle for the first time:
1. Wash, rinse and dry griddle.
o Use warm sudsy water.
l DO NOT immerse griddle.
l DO NOT use metal scouring pads oi
abrasive cleaners They will
damage the non-stick surface
2. Lightly wipe with cooking oil to season You
don’t have to grease the griddle every time
vou use it However, oil or butter adds flavor++
und aids browning
1. Lift and remove
grIddIe cover
DO NOT
replace until
griddle is cool
2. Preneat for c
few minutes,
(untlr butter
melts or beads
of water dance
of the griddle:
3. Add food. Use
only nylon or
plastic utensils
Metal can
scratch the non-
stick finish
4. TURN OFF the
grlddle when
cooking is fin-
ished. Leaving it
ON will dam-
age the griddle.
Approximate Griddle Settings
E.ICON HI
(-rilled SandwicWs HI
Pancakes..
hamburgers ,.,,., MED-:I
E39 MED 5

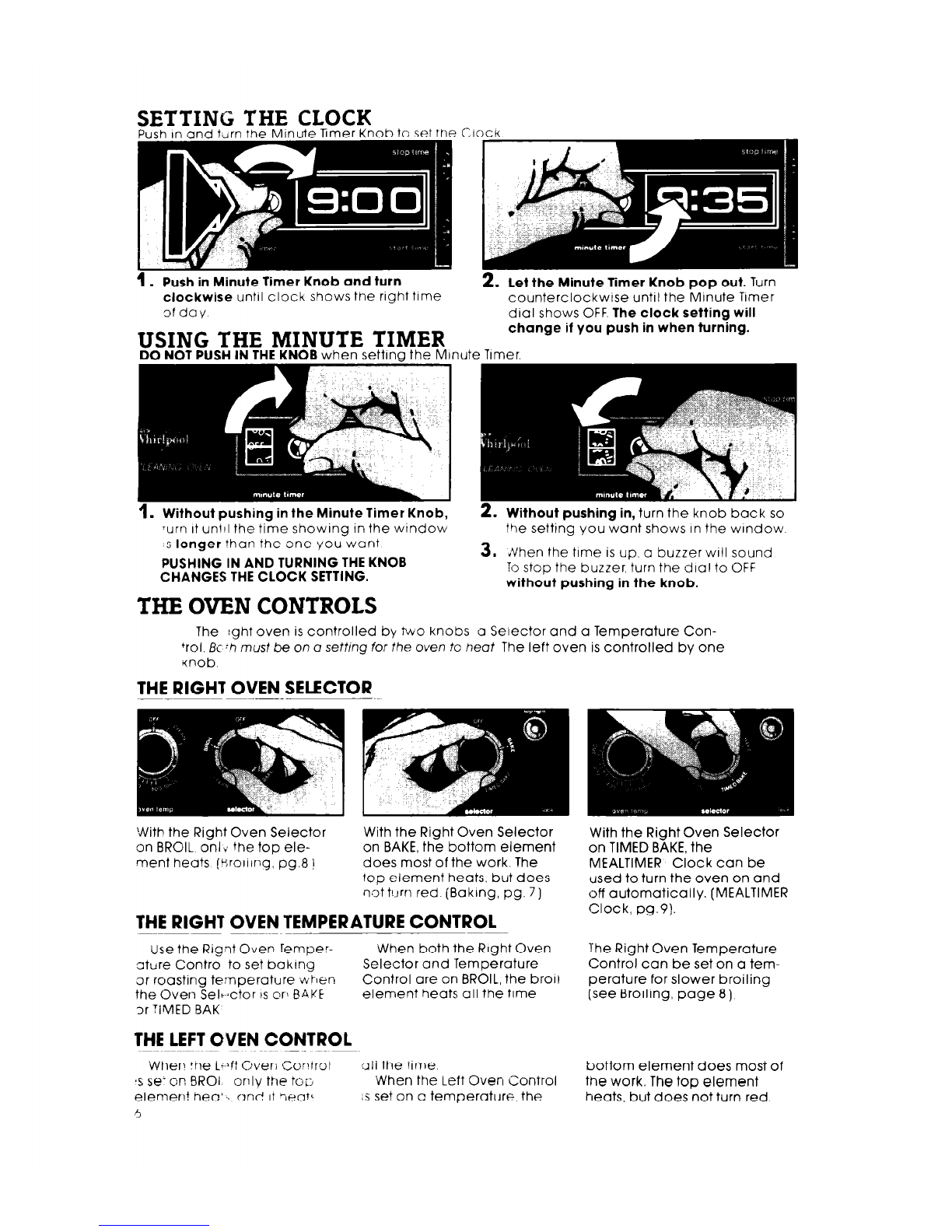

SETTING THE CLOCK
1 . Push in Minute Timer Knob and turn 2. let the Minute Timer Knob pop out. Turn
clockwise until clock shows the right time counterclockwise until the Minute Timer
ofdcly dial shows OFF.The clock setting will
USING THE MINUTE TIMER
change if you push in when turning.
DO NOT PUSH IN THE KNOB when settlna the Minute Timer.
1. Without pushing in the Minute Timer Knob, 2.
Turr7It unill the time showing in the window
‘s longer than the one you want
3.
PUSHING IN AND TURNING THE KNOB
CHANGES THE CLOCK SETTING.
THE OVEN CONTROLS
Without pushing in, turn the knob back so
the setting you want shows In the wlndow
“Vhen the time is up, a buzzer WIII sound
To stop the buzzer, turn the dial to OFF
without pushing in the knob.
The !ght oven is controlled by two knobs r3 Selector and a Temperature Con-
trol. Bc :h must be on Q setting for the oven tc /)eot The left oven is controlled by one
itnob
THE RIGHT OVEN SELECTOR
With the Right Oven Selector
on BROIL, onl i’ the top ele-
ment heats [3roliipg, pg.8 1
With the Right Oven Selector
on BAKE, the bottom element
does most of the work. The
top element heats, but does
not t!lrri red (Baking, pg. 7)
THE RIGHT OVEN TEMPERATURE CONTROL
else the Rigrlt Oven lemper- ‘When both the Right Oven
ature Contro to set baking Selector and Temperature
or roasting te-nperature when Control are on BROIL, the broil
the Oven Sele~ctor ISor’ @AKE element heats all the time
3r TIMED BAK
THE LEFTOVEN CONTROL
Wher? !he LLbf?Oven Controi all the time
‘s se-on BROI only the top When the Left Oven Control
elemen? nea’-. und 11-tea+: t.3set on c temperature, the
tl
With the Right Oven Selector
on TIMED BAKE, the
MEALTIMER Clock can be
used to turn the oven on and
off automatically. (MEALTIMER
Clock, pg.9).
The Right Oven Temperature
Control can be set on a tem-
perature for slower broiling
(see Broiling, page B)
bottom element does most of
the work. The top element
heats, but does not turn red.

RIGHT OVEN - BAKING
1
Lift rack at fro3 and pull ou;
OR ROASTING
___-__-~
Put the rack(s) where you
want them before turning on
the oven.
Rack(s) should be placed
so food can be centered in
the oven Always leave at
least 1I ; to 2 Inches (4-5 cm)
between the sides o! the pun
und the oven wulls and pans.
For more Information. see the
Cookrhg Guide ”
Set the Right Oven Selector
on BAKE
Put food in the oven Oven
rock, we//s and door will be hot.
Set the Right Oven
Temperature Control to the
boking temperature you
want.
6
During baking, the elements
will turn on and off to help
keep the oven temperature
at the setting. The Signal Light
will turn on and off with the
elements.
The top element helps heat
during baking, but does not
turn red.
Let the oven preheat until the
Right Oven Signal Light goes
Off
7
When baking is done, turn
both knobs to OFF.
LEFTOVEN - BAKING OR ROASTING
The left oven is best used as CIworr-i hg oveh tor heating smuller casseroles, OI
for baking many kinds L2ffrczen ::onvenlence foods Bakrng and brorlrng times
mc:y be longer than In the rrght oven Large puns ond bakeware can block urr
crr:;ulatron needed for proper baking The right. or prfmur’j. oven should be used
1
fo: ‘amily bokrng of cakes cookies. pies erc-
2
Put the rack where you want it Set the Left Oven Control to Put food in the oven Oven
before turning on the oven the temperature you want. Let
mck walls ond door w//l be hot
the oven preheat until the
Left Oven Signal Light goes off
Allow IV; to 2 inches (4-5 cm) between pans and oven walls for proper air circulation. 7

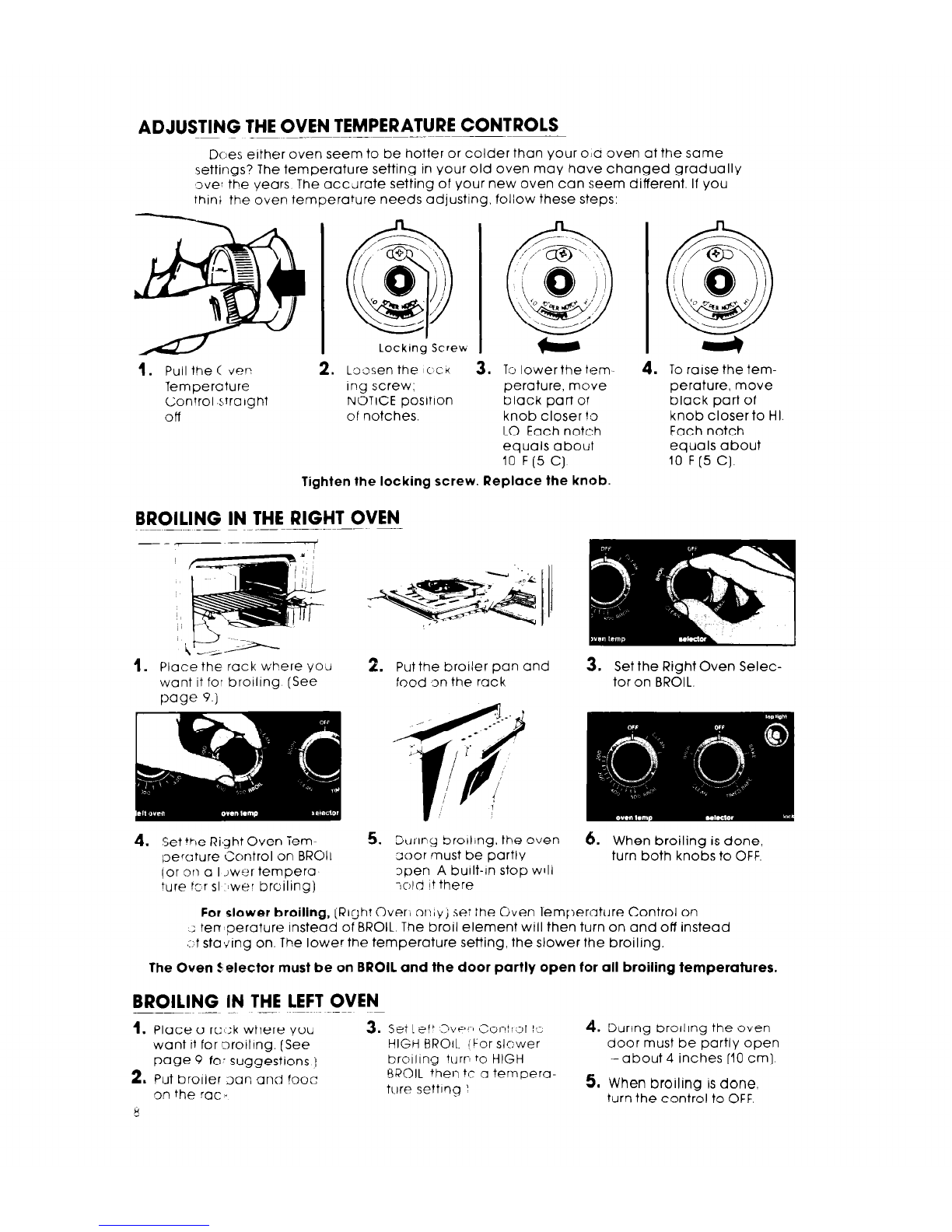

ADJUSTING THE OVEN TEMPERATURE CONTROLS
Dc:es erther oven seem to be hotter or colder than your ala oven at the same
settings? The temperature setting in your old oven may have changed gradually
eve: the years The accurate setting of your new oven can seem different. If you
thin1 the oven temperature needs adjusting, foliow these steps
Locking screw
Pull the ( iler
Temperature
Control .s,rra+ght
Off
2. Loosen the IC~X
3. Ts lower the iem 4. To raise the tem-
rng screw; perature, move perature, move
NOTICE posItIon black part of black part of
of notches. knob closer ro knob closer to HI
LO. Each notch Each notch
equals about equals about
10 F(5 C) 10 F (5 C].
Tighten the locking screw. Replace the knob.
BROILING IN THE RIGHT OVEN
1. Place the rack where you 2. Put the broiler pan and
want it for broiling (See food on the rack
page 9.)
4. Set the Right Oven iem- 5.
krny brolllng. the oven
perature Control on BROIL aoor must be partly
[or 311a I .Jwt:r tempera. open A built-In stop wrll
ture rrr sl :we’ broiling) -,cld it there
3. Set the Right Oven Selec-
tor on BROIL.
6. When broiling is done,
turn both knobs to OFF.
For slower broiling, (Right Over, OI>lyj set :he Oven lemperature Control on
.; ten perature instead of BROIL. Tne broil element will then turn on and off instead
c.t staving on. The lower the temperature setting, the slower the broiling.
The Oven S‘elector must be on BROIL and the door partly open for all broiling temperatures.
BROILING IN THE LEFT OVEN
1. Place a rack where you
3. Set1eff‘.>vPI~Con!~olI(;
4. Dunng bror!rng the oven
want rt for nrotllng. [See HIGH BROII (For slower door must be partly open
page 9 fo- suggestions I broiling turn to HIGH -about 4 inches [IO cm).
2. Put broiler San and foor: BROIL the+1 tc a ternpera-
on the rac- t+ire setting ! fi. When broiling ISdone.
turn the control to OFF.
Y

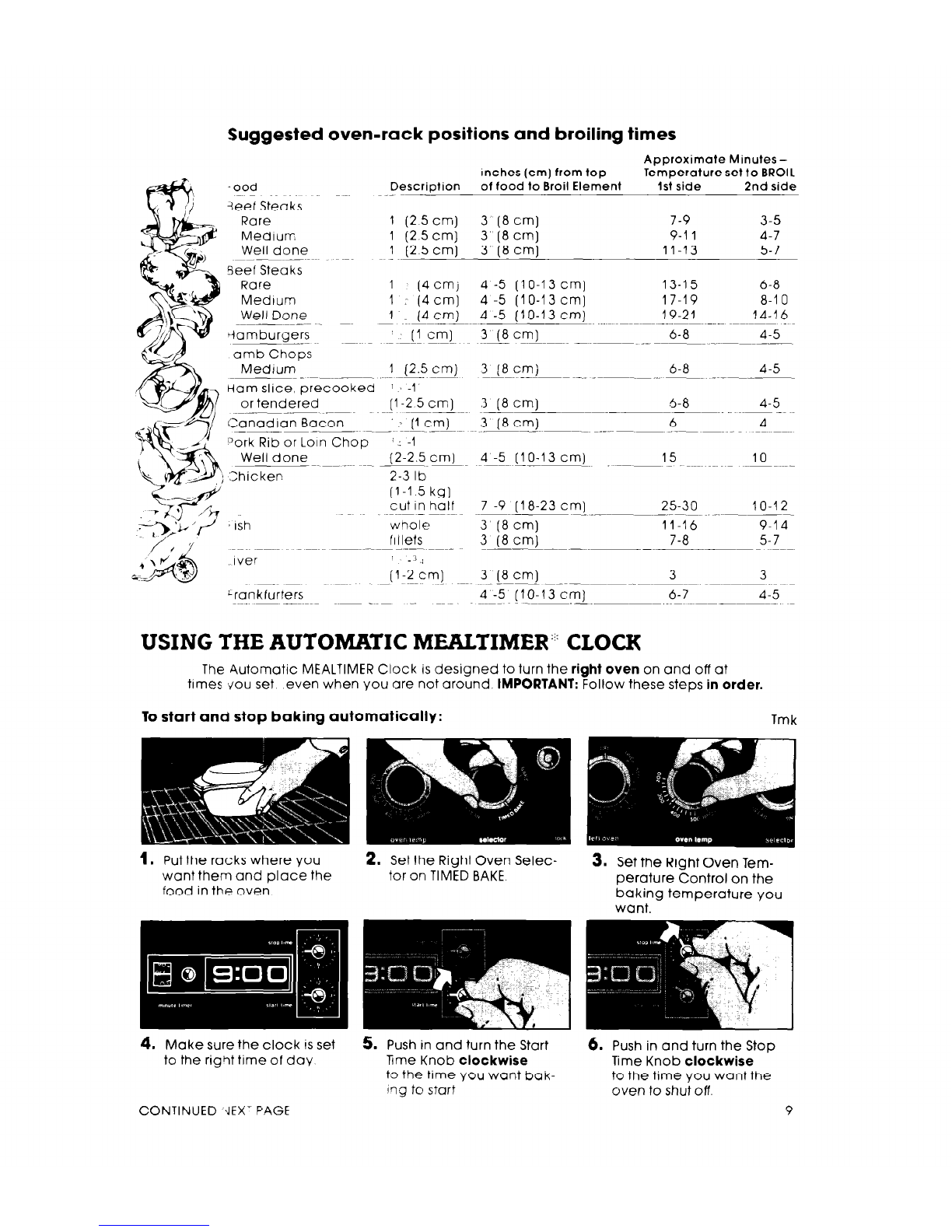

Suggested oven-rack positions and broiling times
Approximate Minutes -
inches (cm) from top Temperatureset to BROIL
ood Description of food to Broil Element 1st side 2nd side
+eef Steaks
Rare 1 (2.5 cm) 3’ (8 cm] 7-9 3-5
Medium 1 (2.5cm] 3” (8 cm] 9-1 1 4-7
Well done 1 (2.5 cm] 3’ (8 cm] II-13 5-7
fleef Steaks
Rare 1 (4 cm] 4 -5 (IO-13 cm] 13-I 5 6-8
Medrum 1 Y (4cm) 4 -5 (1 O-l 3 cm] 17-19 8-1 0
Well Done 1 (4cm) 4 -5 [IO-13 cm) 19-21 14-16
-iamburgers (1 cm] 3 (8cm) 6-8 4-5
~-~~
amb Chops
Medrum 1 (2.5 cm] 3 [8 cm] 6-8 4-5
Ham slice, precooked ’ >-1
or tendered (I-2 5 cm] 3 (8 cm) 6-8 4-5
Canadian Bacon 2 [I cm) 3 [8cm) 6 4
~----.~ -.~.~ --
l)ork Rib or Loin Chop i: -1
Well done (2-2.5 cm] 4 -5 (IO-13 cm) 15 10
::hicken 2-3 lb
(l-l 5 kg]
cut in half 7 -9 [I 8-23 cm] 25-30 1O-l 2
rsh whole 3 (8cm) II-16 9-14
II llets 3 (8cm) 7-a 5-7
iver -11
/
-(I -2-cy) 3 (8cm) 3 3
~~ ~
Lrankfurters 4 -5 (IO-13 cm] 6-7 4-5
USING THE AUTOMATIC MEALTIMER:” CLOCK
The Automatic MEALTIMER Clock is designed to turn the right oven on and off at
times ;/ou set .even when you are not around. IMPORTANT: Follow these steps in order.
Tostart and stop baking automatically:
Tmk
1. Put the racks where you
want them and place the
food in the oven.
2. Set the Right Oven Selec-
tor on TIMED BAKE 3. Set the Right Oven Tem-
perature Control on the
baking temperature you
want.
4. Make sure the clock is set 5. Push in and turn the Start
to the right time of day Trme Knob clockwise
to the time you want bak
1’19to start
CONTINUED \JEX- PAGE
6. Push in and turn the Stop
Time Knob clockwise
to the time you want the
oven to shut off 9

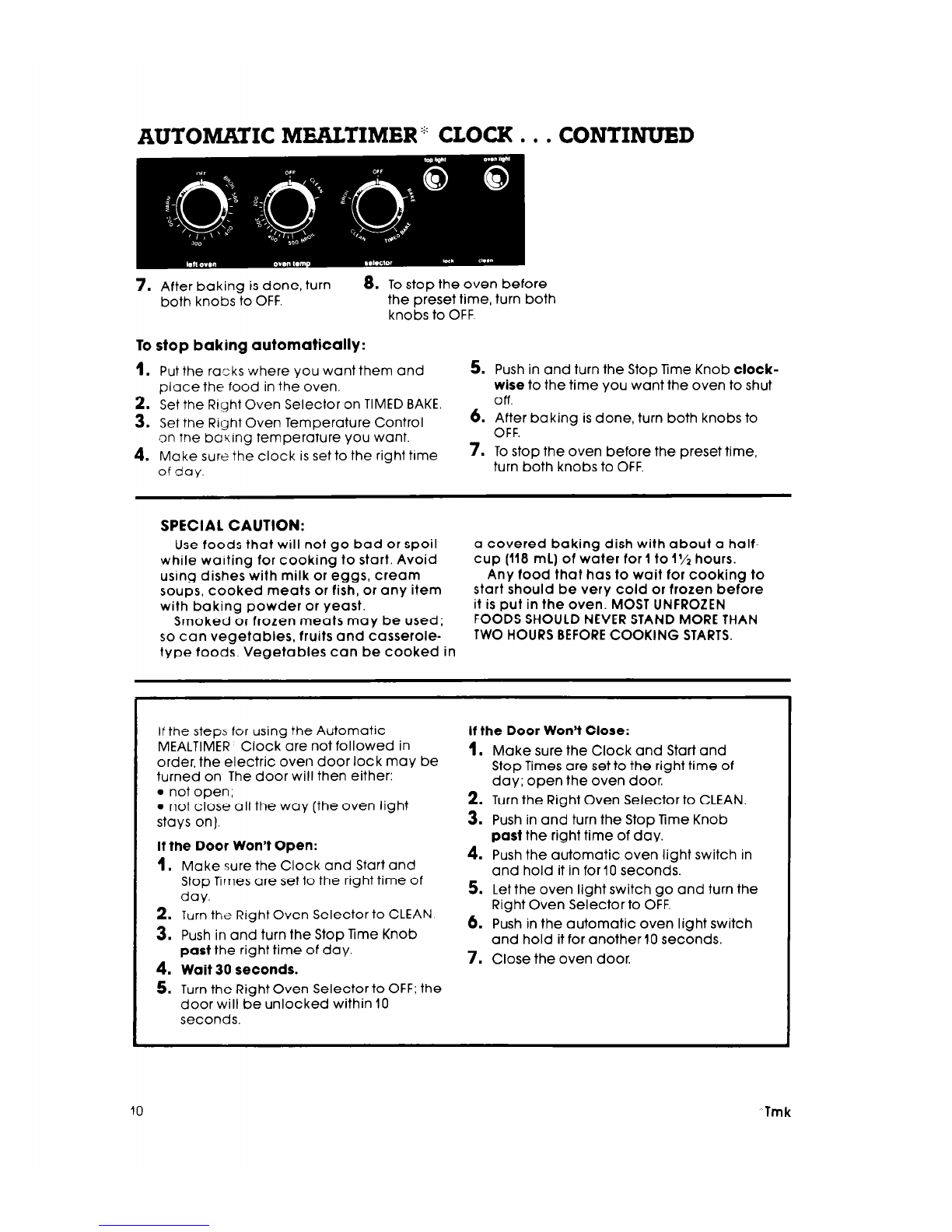

AUTOMATIC MEALTIMER”’ CLOCK . . . CONTINUED
7. After baking is done, turn
both knobs to OFF.
8. To stop the oven before
the preset time, turn both
knobs to OFF
To stop baking automatically:
1. Put the racks where you want them and 5. Push in and turn the Stop Time Knob
clock-
place the food in the oven. wise to the time you want the oven to shut
2. Set the Right Oven Selector on TIMED BAKE.
Off
3. Set the Right Oven Temperature Control
6. After baking is done, turn both knobs to
on the ba;iing temperature you want. OFF.
4. Make sure the clock is set to the right time 7. To stop the oven before the preset time,
of day. turn both knobs to OFF.
SPECIAL CAUTION:
Use foods that will not go bad or spoil a covered baking dish with about a half-
while waiting for cooking to start. Avoid cup (118 ml) of water for 1 to 1% hours.
using dishes with milk or eggs, cream Any food that has to wait for cooking to
soups, cooked meats or fish, or any item start should be very cold or frozen before
with baking powder or yeast. it is put in the oven. MOST UNFROZEN
Smoked or frozen meats may be used; FOODS SHOULD NEVER STAND MORE THAN
so can vegetables, fruits and casserole- TWO HOURS BEFORE COOKING STARTS.
type foods. Vegetables can be cooked in
If the steps for using the Automatic
MEALTIMER Clock are not followed in
order, the electric oven door lock may be
turned on The door will then either:
0 not open;
l not close all the way (the oven light
stays on).
If the Door Won’t Open:
1 I Make sure the Clock and Start and
Stop Times are set to the right time of
day.
2. Turn the Right Oven Selector to CLEAN
3. Push in and turn the Stop Time Knob
past the right time of day.
4. Wait 30 seconds.
5. Turn the Right Oven Selector to OFF; the
door will be unlocked within 10
seconds.
If the Door Won’t Close:
1. Make sure the Clock and Start and
Stop Times are set to the right time of
day; open the oven door.
2. Turn the Right Oven Selector to CLEAN.
3. Push in and turn the Stop Time Knob
past the right time of day.
4. Push the automatic oven light switch in
and hold it in for 10 seconds.
5. Let the oven light switch go and turn the
Right Oven Selector to OFF.
6. Push in the automatic oven light switch
and hold it for another 10 seconds.
7. Close the oven door.
10
Tmk

THE OVEN LIGHTS
The right oven light will come on when you open the oven door or when you
push the manual OVEN LIGHT switch. Close the oven door or push the switch
again to turn off the light.
The left oven light will come on only when you open the oven door. Close the
door to turn it off.
To replace the right or left oven light bulb:
1. Turn off the electric power
at the main power supply 2. Remove the bulb cover by 3. Remove the light bulb from
pulling out on the wire its socket.
holder and moving it to the
side.
4. Replace the bug with a 5. Replace the bulb cover
40-Watt appliance bulb and snap the wire holder
available from most gro- in place.
The bulb must
cery, variety and
have this cover when the
hardware stores.
oven is being used.
6. Turn electrical power back
on at main power supply.

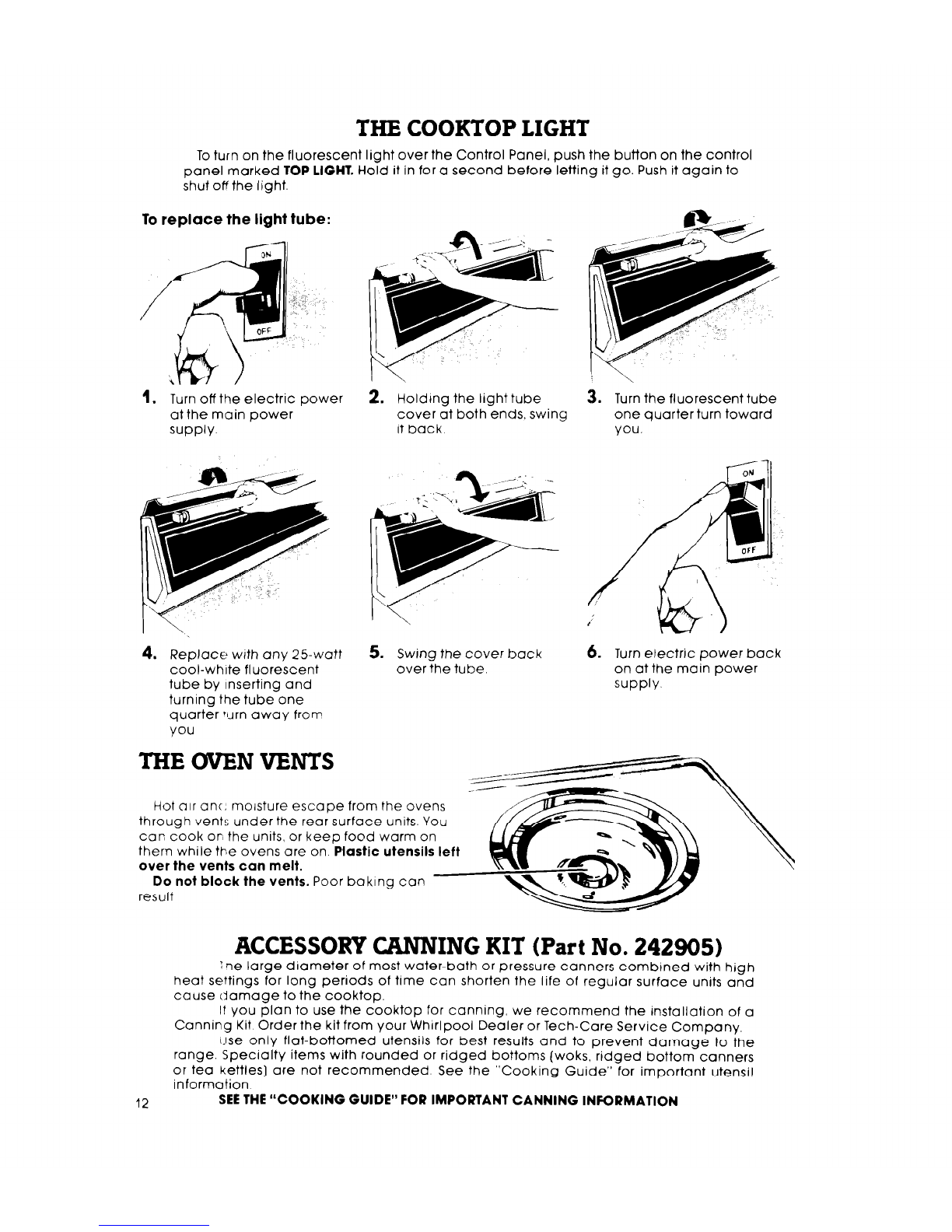

THE COOKTOP LIGHT
To turn on the fluorescent light over the Control Panel, push the button on the control
oanel marked TOPLIGHT. Hold it in for a second before letting it go. Push it again to
shut off the light.
To replace the light tube:
1. Turn off the electric power
at the main power
supply.
4. Replace with any 25.watt
cool-whrte fluorescent
tube by Inserting and
turning the tube one
quarter rclrn away from
YOU
2. Holding the light tube
cover at both ends. swing
it back
3. Turn the fluorescent tube
one quarter turn toward
you.
5. Swing the cover back
over the tube.
THE OVEN VENTS
Hot olr ant. moisture escape from the ovens
through vents under the rear surface units. You
can cook or the units, or keep food warm on
thern while the ovens are on Plastic utensils left
over the vents can melt.
Do not block the vents. Poor baking can -
result
6. Turn electric power back
on at the main power
supply.
ACCESSORY CANNING KIT (Part No. 242905)
: ne large diameter of most water-bath or pressure canners combined with high
heat settings for long periods of time can shorten the life of regular surface units and
cause damage to the cooktop.
I! you plan to use the cooktop for canning, we recommend the Installation of a
Canning Kit Order the kit from your WhIrlpool Dealer or Tech-C:are Service Company.
use only flat-bottomed utensils for best results and to prevent damage to the
range. Specralty items with rounded or ridged bottoms (woks, ridged bottom canners
or tea kettles) are not recommended See the “Cooking Guide” for important utensil
information
12 SEETHE “COOKING GUIDE” FOR IMPORTANT CANNING INFORMATION

Cleaning and caring for your range
CONTROL PANEL AND KNOBS
1. First make sure oven and surface unit
control knobs are set on OFF. All knobs
pull straight off. Surface unit knobs have
a collar and spring.
2. Use warrn soapy water and a soft cloth to
wipe the panel. Rinse and wipe dry
3. Wash knobs and surface unit collars In
warm soapy water. Rinse well and dry.
4. Push knobs straight back on Make sure
they point to OFF. Make sure the collar and
spring 011 surface unit knobs are put to-
gether a,. shown
SURFACE UNITS AND
REFLECTOR BOWLS
REMOVING
1. Be sure surface units are OFF and COOL.
\.-h
2. i.rft the edge ofthe unit opposite the recep-
tacle just enough to clearthe reflector bowl.
3. Pull the surface unit straight away from the
recebtacle
4. irft out the reflector bowl and trrn nng
13

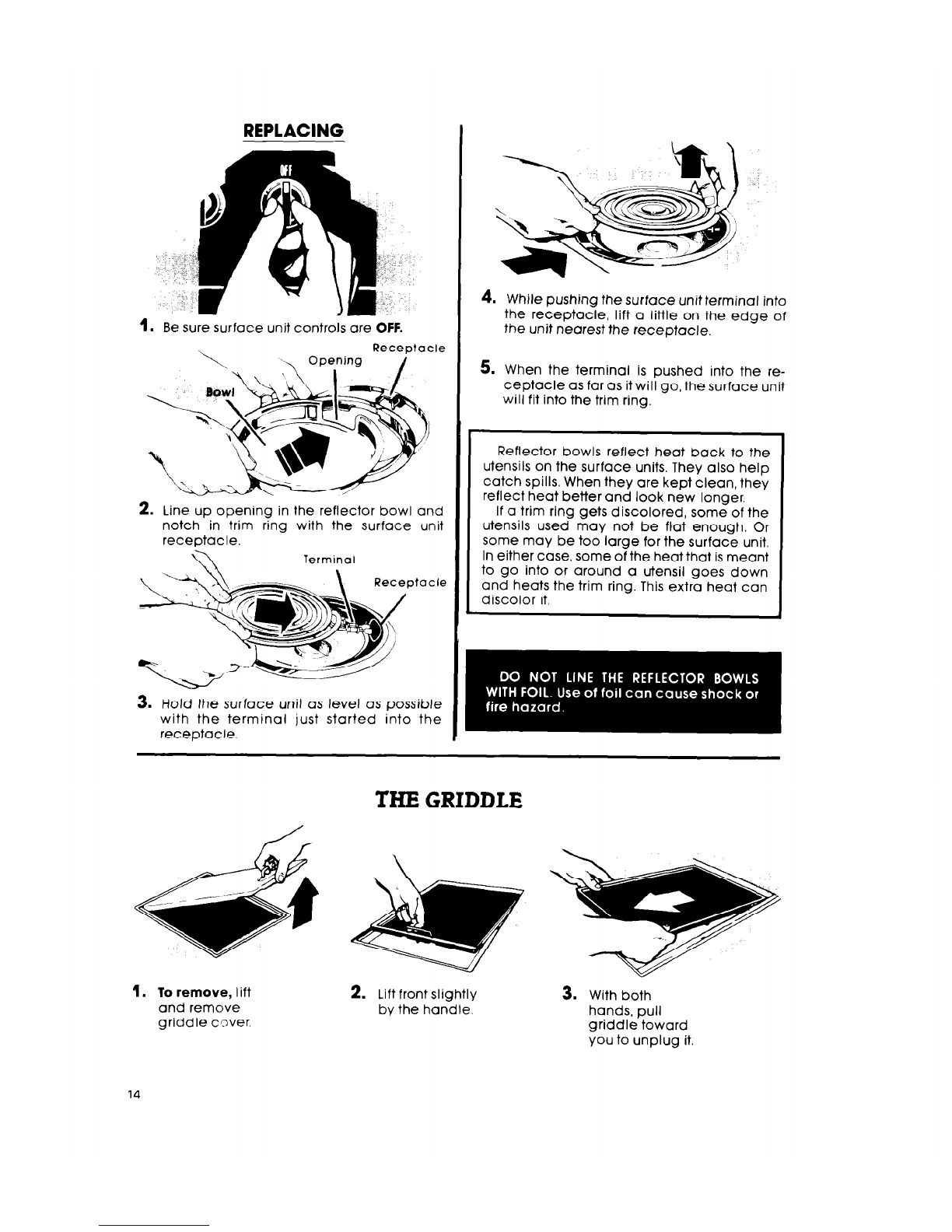

REPLACING
I. Be sure surface unit controls are OFF.
Receptacle
-, Opening I
2. Line up opening in the reflector bowl and
notch in trim ring with the surface unit
receptacle.
Terminal
3. Hold the surface unit as level as possible
with the terminal just started into the
receptacle.
4. While pushing the surface unit terminal into
the receptacle, lift a little on the edge of
the unit nearest the receptacle.
5. When the terminal is pushed into the re-
ceptacle as far as it will go, the surface unit
will fit into the trim ring.
Reflector bowls reflect heat back to the
utensils on the surface units. They also help
catch spills. When they are kept clean, they
reflect heat better and look new longer.
If a trim ring gets discolored, some of the
utensils used may not be flat enough. Or
some may be too large for the surface unit.
In either case, some of the heat that is meant
to go into or around a utensil goes down
and heats the trim ring. This extra heat can
discolor it.
THEGRIDDLE
1. To remove, Iift 2. Lift front slightly 3. With both
and remove by the handle.
griddle c’over. hands, pull
griddle toward
you to unplug it.
14

Termirxi
1. To replace, use
both hands to
line up the
terminal with
the receptacle.
2. Slide so tabs on
the griddle fit
into the notches
on each side
3. Replace cover
only over clean
cool griddle.

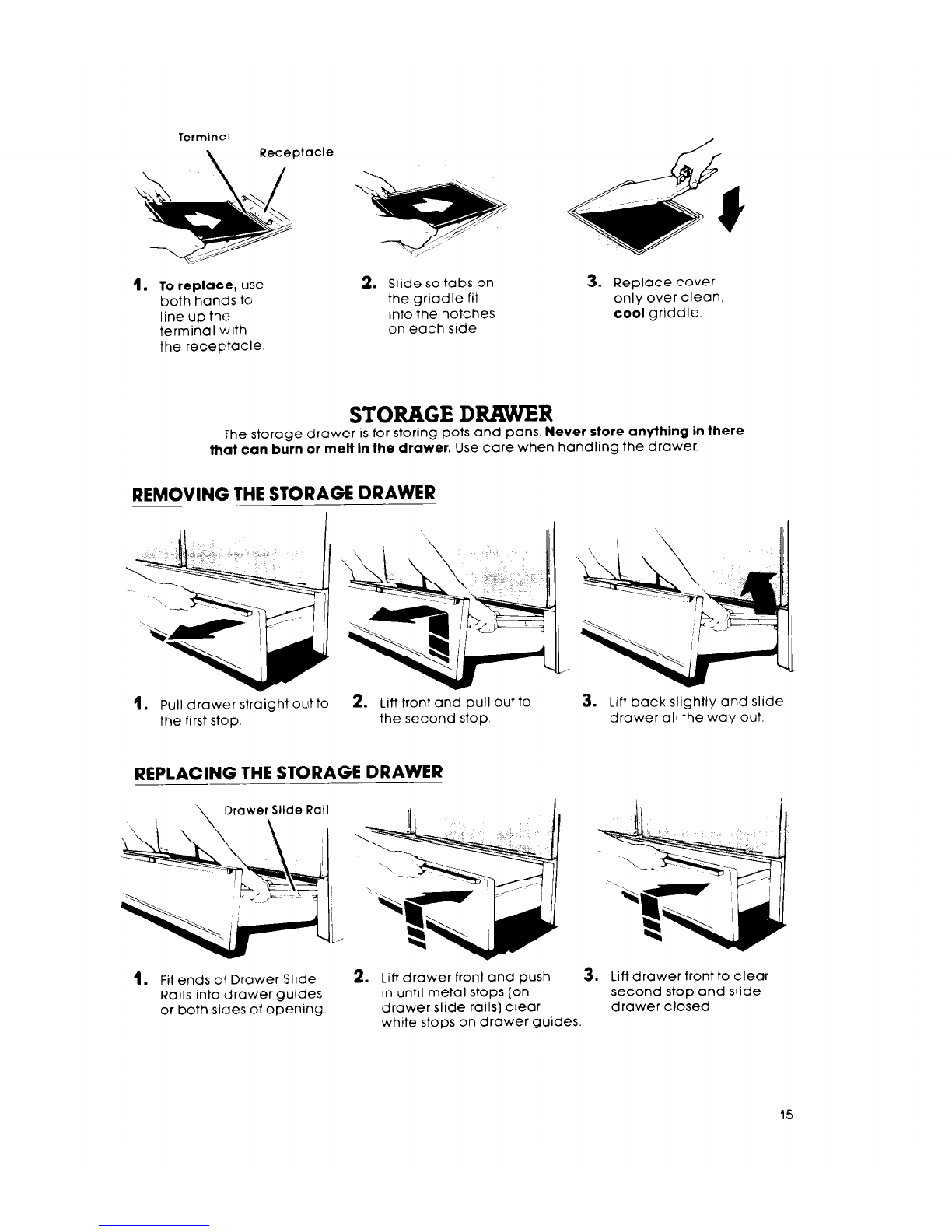

The storage drawer is for storing pots and pans. Never store anything in there
that can burn or mett In the drawer. Use care when handling the drawer.
REMOVING THE STORAGE DRAWER
1. Pull drawer striight out to 2. Lift front and pull out to 3. Lift back slightly and slide
the first stop. the second stop. drawer
all the way out.
REPLACING THE STORAGE DRAWER
Drawer Slide Rail
1. Fit ends or Drawer Slide 2. Lift drawer front and push
3. Lift drawer front to clear
Rails into drawer guides in until metal stops (on second stop and slide
or both sides of opening. drawer slide rails) clear drawer closed.
white stops on drawer guides.
15

THE CONTINUOUS-CLEANING LEFT OVEN
Standard oven walls are coated with smooth porcelain-enamel. Your
continuous-cleaning oven walls are coated with a special, rougher
po:celain-enamel.
P fat spatter beads up on the smooth surface, but spreads out on the rougher
surface. The bead of fat chars and turns black. The spread-out fat gradually
burns away at medium to high baking temperatures (350 -475 F,176 -231 C) so
the oven can return to a presentably clean condition.
Fat Spatter Fat Spatter
Beads Up, Spreads Out,
Turns Black Burns Away
Standard porcelain-enamel Continuous-cleaning porcelain-enamel
HAND CLEANING
DO NOT USE OVEN
CLEANING PRODUCTS.
Some can be trapped in
the porcelain-enamel
surface and give off
harmful fumes
WINDOW-Keep clean
with hot sudsy water.
Do not use steel wool or
abrasive cleansers. Use a
plastic scouring pad for
stubborn spots Rinse well
RACKS - Use a soapy
steel-wool pad for best
results. Rinse well
WALLS AND DOOR-Wash with hot soapy
water. Use a soapy steel-wool pad or
plastic scouring pad for stubborn spots
Rinse well.

TIPS
1. The ove:I rack does not have tQe
continuous-cleaning surface. c2lean It
by ban?
3. If you do more broiling than baking. hand
cleaning may be needed.
2. The oven door does not get a:, not as the
walls. Some hand cleaning mab
be neecled
J
THE RIGHT OVEN SELF-CLEANING CYCLE
The self-cleaning cycle uses very high heat to burn away soil. Before
you start, make sure you understand exactly how to use the cycle
safely.
BEFORE YOU START
1. Clean areas that may not be cleaned
during the cycle. Use hot water and deter-
gent or a soapy steel-wool pad on...
l the frame around the oven
l the inside of the door, especially the part
outside the oven seal.
DO NOT try to clean the fiberglass seal. DO
NOT move it or bend it.
2. Remove any pots or pans you may have
stored in the oven. They can’t stand the
3. high heat. Wipe out any loose soil or grease. This will
help reduce smoke during the cleaning
4. F?%zn racks on the top two guides. Put
two reflector bowls upside down on
each. They should not touch each other or
the oven walls.
Clean D3or
Clean Frame

SPECIAL TIPS
1. iteep -~a kitchen weil 2. Ciear: rhe oven before 3. If the cleaning Cycle
Ventilcted during the It gets heavily sotled. doesn’t get the oven as
,cleanlng cycle to help Cleaning a very soiled clean as you
get ric of normal heat oven takes longer and expected, the cycle
,odors and smoke. results In more SmOke may not have been set
then usual. long enough. Set the
cleaning time longer
for heavier soil.
4. ,Cven icks lose their shine, ~~ISCOIOI 5.
and bscome harder to slide on therr
guide: when they are left in the oven
during the cleaning cycle To make
them slide easier, polish the edges of
the rat- ks and rack guides with a soapy
steel-wool pad rinse well, and wrpe
on a tr.rn coat of salad oil
Tostop the cleaning cycle after it has
started
l Turn the Stop Time Knob clockwise
until the hand points to the right time
of day.
l Turn the Right Oven Selector and Right
Oven Temperature Control to OFF.
l When the oven cools, you can open
the door. Wait until the oven is cool.
SPECIAL CAUTIONS
DO NOT block the Vent DO NOT touch the range DO NOT use commercial
during the cleanlng cycle during the cleaning cycle oven cleaners in your oven
Air must move freelV for ..it can burn you. Damage to the porcelain
best re -tilts DO NOT use foil or other finish may occur.
liners tn the oven. During
the cleaning cycle they
car- burn or melt
SETTING THE CONTROLS
1. Make sure the clock
and start and stop
time dial: all nave the
right time of day
2. Push in the Stop Time
Knob and turn the
hand clockwise
about two or three
hours (Two hours for
light soil; three or
more for heavier soil.]
3. Set the Right Oven
Selector to CLEAN. The
Clean Light will come
on and the door will
lock automatically.

4. Set the Right Oven
Temperature Control
to CLEAN
5. The Lock Light comes
on when the oven
gets above normal
baking temperatures
The door can’t be
unlocked when the
Lock Light IS on
6. When the Lock Light
goes off.?urn the Right
Oven Selector to OFF
This unlocks the door
7. Turn the Right Oven
Temperatore Control
to OFF
I / / I
a.
After the oven is cool,
wipe off any residue
or ash with a damp
cloth.Ifneeded,
touch UD spots with
cleanser or soapy
steel-wool pad
DO NOT TOUCH THERANGE DURING THECLEANING CYCLE. ITCAN BURNYOU.
HOW IT WORKS
During the self-cleaning cycle, the oven gets much hotter than ii does
for baking or broiling...approximately 875 F (468’ C). This heat breaks
up grease and soil, and burns it off.
The graph shows approximate temperatures and times during a self-
clecning cycle set fortwo hours.
SELF-CLEANING CYCLE-TWO HOUR SFTTING
(Approximate Temperalures and Times]
l’,hrs 2 hrs 2’5 hrs
538 c
427 C
204 C
No? :e ?ha+ trle neatlng stops whep the tvK~7ou’ setting IS up but that It takes a
tihile onyer for the oven to coo; ,:lown enough tc un!ock

PART
Outside of range
Surface unl’s
Griddle
Control knobs and
chrome rims
Porcelain-enamel
reflector bowls
Chrome trir’) rings
Broiler pan and
grids
Oven door Jlass
and control panel
Qven rack:
Self-Clean!ig
Right Oven
Continuou:
Cleanrng L+ft
Oven
-
CLEANING CHART
~-- -.
WHAT TO USE HOW TO CLEAN
~~~--
Soft cloth, warm soapy water
l Wipe off regularly when range is cool.
Nylon or plastic scouring pad
l Do not allow food contarnrng acids (such
for stubborn spots as vinegar, tomato, lemon juice or milk) to
remain on surface Acids will remove the
glossy finish
No cleaning reaulred
Warm, soapy water
0 Do not use abrasive or harsh cleansers.
~.~--
l Spatters or spills will burn off.
l Wipe off excessive spills with a damp
cloth when surface unit is cold.
~~
l Wash, rinse and dry well.
4 Do not Immerse in water.
* Do not use steel wool, metal scouring
pads or harsh cleaners.
Warm. sudsy water and bristle l Wash, rinse and dry well.
brush
l Do not soak.
Automatic dishwasher or warm l Wipe out excess spills. Wash with other
soapy water cooking utensils for routine cleaning.
Self-Cleaning Oven I. ‘~3ie * Piace upside down on oven racks during
Self-Cleaning cycle of oven.
Automatic dishwasher. warm * Wash with other cooking utensils.
soapy water or plustic
scrubbing pud
l Do not place in Self-Cleaning Oven.
Warm, soapy water oi soapy e Wash with other cooking utensils
steel wool pads
l Do not place in Self-Cleaning Oven.
Warm, soapy water or plastic l Make certain oven is cool Wash, rinse
scrubbing pad and dry well with soft cloth
Commercial glass cleaner l Follow directions with cleaner.
~~.--~~~-
Self-Cleaning Oven cycle l Leave or:oven during Self-Cleaning
cycie
Warm. soapy stee; wtiol paas l Wash, rinse and dry Use soapy steel
wool pads for stubborn areas. -~.-~
For areas outside Self-Cleaning l Clean before using Self-Cleaning cycle
area use warm, soapy water or to prevent burn-on of soil.
soapy steel wool pads
l Follow directions given on pages 17-19.
~-~---
Warm, soapy ,water or soap:
l Clean stubborn spots or stains. Rinse well
steel wool pads with clear: water.
* Follow directions on page 16
Most fat spatters on the Continuous-Cleaning porcelain-enamel interior
surface gradually reduce to a presentably ciean condition during normal
baking or roasting operations
Do not use toil to line the bottom of your Self-Cleaning Oven.
Do not use commercial oven cleaners in either oven.
20
