Whirlpool SF367PEY User manual

UseAndCare
A Note to You .................2
Important Safety
Instructions ....................3
Parts and Features ........6
Using Your Range .........7
Using the
Self-Cleaning
Cycle ............................. 20
Caring for Your
Range ............................23
If You Need
Assistance
or Service .....................28
Warranty ....................... 32
1-800-253-I 301
Call us with questions or comments.
SELF-CLEANING GAS RANGE
\-w3
TO THE INSTALLER: PLEASE LEAVE THIS
INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND
KEEPTHIS BOOK FOR FUTURE REFERENCE.
MODEL SF367PEY
PART NO. 316000756/4372452

A Note to You
Thank you for buying a WHIRLPOOL@ appliance.
Because your life is getting busier and more complicated, WHIRLPOOL ranges are easy to
use, save time, and help you manage your home better. To ensure that you will enjoy years of
trouble-free operation, we developed this Use and Care Guide. It is full of valuable information
on how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your appli-
ance. This will help us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains warning symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of the
warning symbol.
I
This symbol will help alert you to such
dangers as fire, electrical shock, burns,
and personal injury. I
ALL RANGES CAN TIP.
INJURY TO PERSONS
COULD RESULT.
INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE.
SEE INSTALLATION
INSTRUCTIONS.
For more information, see the “The anti-tip brackets” on page 19.
Our Consumer Assistance Center number, 1-800-253-l 301,
is toll-free, 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service,
first see “If You Need Assistance or Service” on page 28. If you need further help, feel free to
call our Consumer Assistance Center. When calling, you will need to know your appliance’s
complete model number and serial number. You can find this information on the model and
serial number plate (see diagram on page 6). For your convenience, we have included a
handy place below for you to record these numbers, the purchase date from the sales slip,
and your dealer’s name and telephone number. Keep this book and the sales slip together
in a safe place for future reference.
Model Number
S&al Number
Purchase Date
Dealer Name
Dealer Phone
2

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation. However, as with
any appliance, there are specific installation and safety precautions which must be followed
to ensure safe and satisfactory operation.
WARNING: If the information in this manual is not followed exactly, a
fire or explosion could result causing death, personal injury, or prop-
erty damage.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
.Do not try to light any appliance.
@Do not touch any electrical switch; do not use any phone in your
building.
@Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
elf you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
General
l Install or locate the range only in accor-
dance with the provided Installation
Instructions. The range must be in-
stalled by a qualified installer. The range
must be properly connected to the
proper gas supply and checked for
leaks. The range must also be properly
connected to electrical supply and
grounded.
l Gas fuels and their use in appliances
can cause minor exposures to benzene,
formaldehyde, carbon monoxide, and
soot, primarily from incomplete combus-
tion. Significant exposure to these
substances could cause cancer or
reproductive harm. Properly adjusted
burners with a blue, rather than a
yellow, flame will minimize incomplete
combustion. Venting with a hood or an
open window will further minimize
exposure.
l Do not store things children might want
above the range. Children could be
burned or injured while climbing on it.
l Do not leave children alone or unat-
tended in area where the range is in
use. They should never be allowed to
sit or stand on any part of the range.
They could be burned or injured.
l Do not operate the range if it is dam-
aged or not working properly.
continued on next page
3

l Do not use the range for warming or
heating the room. Persons could be
burned or injured, or a fire could start.
l Do not attempt to light the oven burner
during a power failure. Personal injury
could result. Reset oven controls to the
off position in the event of a power
failure.
l Use the range only for its intended use
as described in this manual.
aiib
llldll
l Do not touch surface burners, areas
near surface burners, or interior sur-
faces of oven. Areas near surface
burners and interior surfaces of an oven
become hot enough to cause burns.
During and after use, do not touch, or let
clothing or other flammable materials
contact surface burners, areas near
surface burners, or interior surfaces of
oven until they have had sufficient time
to cool. Other surfaces of the range,
such as the oven vent opening, the
surface near the vent opening, the
cooktop, and the oven door and window,
could also become hot enough to cause
l Do not wear loose or hanging garments
when using the range. They could ignite
if they touch an open flame and you
could be burned.
l Use only dry pot holders. Moist or damp
pot holders on hot surfaces could result
in burns from steam. Do not let pot
holder touch an open flame. Do not use
a towel or bulky cloth for a pot holder. It
could catch on fire.
l Keep range vents unobstructed.
l Do not heat unopened containers. They
could explode. The hot contents could
cause burns and container particles
could cause injury.
l Use only utensils approved for oven use.
Follow utensil manufacturer’s instruc-
tions, especially when using glass or
plastic utensils.
l Do not store flammable materials on or
near the range. The fumes could create
an explosion and/or fire hazard.
l Do not use the oven for storage.
l Do not use aluminum foil to line burner
pans, oven bottom, or any other part of
the range. Use aluminum foil only as
recommended in this manual.
l Never use a match or other flame to look
for a gas leak. Explosion and injury could
result.
l Know where your main gas shutoff valve
is located.
When using the cooktop
*Make sure the utensils you use are large
enough to contain food and avoid boil-
overs and spillovers. Heavy splattering or
spillovers left on a range could ignite and
burn you. Pan size is especially important
in deep fat frying.
l Check to be sure glass cooking utensils
are safe for use on the range. Only
certain types of glass, glass-ceramic,
ceramic, earthenware, or other glazed
utensils are suitable for cooktops without
breaking due to the sudden change in
temperature.
l Never leave surface burners unattended
at high heat settings. A boilover could
result and cause smoking and greasy
spillovers that could ignite.
4

3-e
insulation and food decomposition. Signifi-
cant exposure to these substances could
cause cancer or reproductive harm.
Exposure can be minimized by venting
with a hood or open window and wiping
*Turn pan handles inward, but not over out excess food spills prior to self-cleaning.
other surface burners. This will help
reduce the chance of burns, igniting of
flammable materials, and spills due to
bumping of the pan. P
l Do not use decorative covers or trivets
over the surface burners. m
%
When using the oven l Do not use oven cleaners. No commer-
*Always position the oven rack(s) in cial oven cleaner or oven liner protective
desired location while oven is cool. coating of any kind should be used in or
l Use care when opening oven door. Let around any part of the oven.
hot air or steam escape before removing
l Before self-cleaning the oven, remove
or replacing food. broiler pan, broiler grid, oven racks, and
other utensils. Do not use your oven to
Grease
clean miscellaneous parts unless you are
instructed to do so in this Use and Care
@Greaseis flammable. Do not allow Guide.
grease to collect around cooktop or in
l Do not clean door heat seal. It is essen-
vents. Wipe spillovers immediately. tial for a good seal. Care should be taken
not to rub, damage, or move the seal.
Clean only parts recommended in this
Use and Care Guide.
l Do not repair or replace any part of the
. range unless specifically recommended
l ,Do not use water on grease fires. Never in this manual. All other servicing should
pick up a flaming pan. Smother flaming be referred to a qualified technician.
pan by covering with a well-fitted lid, *Any additions, changes, or conversions
cookie sheet, or flat tray. Flaming required in order for this appliance to
grease outside of pan can be extin- satisfactorily meet the application needs
guished with baking soda or, if available, must be made by a Whirlpool service
a multipurpose dry chemical or foam- company or Qualified Agency.
type extinguisher.
l Disconnect the electrical supply and the
gas supply at the shutoff valve near the
Care and cleaning range before servicing the range.
l Small amounts of formaldehyde and
carbon monoxide are given off in the
Self-Cleaning cycle from fiberglass
- READ AND SAVE THESE INSTRUCTIONS -
5

Parts and Features
This section contains captioned illustrations of your range. Use them to become familiar with
the location and appearance of all parts and features.
Oven vent
Surface burners
and grates
Lock lever
Oven control
Y22i- panel
Surface burner
-control oanel
(notshown)
Anti-tip brackets
Removable
Model and seria
Control panels
Left front
Left rear
control knob control knob Right rear Right front
control knob control knob
SurfLee burner markers
Oven
iock
Oven Automatic MEALTIMER” Oven
indicator indicator selector clock/Minute Timer temperature
light light control knob
6

Using Your Range
In This Section
Page Page
Using the surface burners.. ................ 7 Broiling ............................................... 13
Positioning racks and pans 9 Broiling tips ...................................... 14
...............
For best air circulation ..................... 10 Energy savlng tips ........................... 15
Setting the clock ............................... 11 Using the automatic
Using the Minute Timer 11 MEALTIMERTM clock ........................ 16 ....................
BaklngIroastlng The oven vent ................................... 16
................................. 12
Adjusting the oven The storage drawer .......................... 16
temperature control 19 .......................... 13 The anti-tip brackets ........................
To obtain the best cooking results possible, you must operate your range properly. This
section gives you important information for efficient and safe use of your range.
Using the surface burners
Your range is equipped with electric ignitors.
Electric ignitors automatically light the
burners each time they are used.
Push In the control knob and turn
counterclockwise to the LITE position.
The clicking sound is the ignitor sparking.
Visually check that burner has lit.
To stop the clicking sound after the
burner lights, turn the control knob to the
desired cook setting. The control knob has
six cook settings. However, you can set the
control knob anywhere between HI and OFF.
NOTE: All four electric ignitors will click at
the same time. However, the burner with the
control knob turned to LITE is the one that
will ignite.
Surface burner markers
The solid dot in the surface burner marker
shows which surface burner is turned on by
that knob.
Burner heat settings
Use correct burner heat settings (see next
page). If the heat setting is too high, it can:
l Char bacon and cause curling.
l Make eggs tough and crisp at the edges.
l Toughen liver, fish, and seafood.
l Scorch delicate sauces and custards.
l Cause a boilover. continued on next page
7

Until you get used to the settings, use
the following as a guide. For best results,
start cooking at the high setting; then turn
the control knob down to continue cooking.
;ETTING 1 RECOMMENDED USE
LITE
l To light the burner. After the
burner lights, turn control
back to a desired setting to
stop the clicking of the
ignitor.
(H;h)
l To start foods cooking.
l To bring liquids to a boil.
4-5
l To hold a rapid boil.
:Medium
High)
l To fry chicken or pancakes.
l For gravy, pudding, and
icing.
l To cook large amounts of
vegetables.
2-3
l To keep food cooking.
IMedium
Low)
l To poach and stew.
LOW
l To keep food warm until
Simmer) ready to serve.
l To melt.
l To simmer.
NOTE: Do not cook with the control in the
LITE position.
In case of a prolonged power
failure
Surface burners can be manually lighted.
Hold a lit match near a burner and turn the
control knob to the LITE position. After the
burner lights, turn the control knob to the
desired setting.
Fire Hazard
Burner flame should not extend beyond
the edge of the cooking utensil.
Be sure all control knobs are turned to
OFF when you are not cooking.
Failure to follow these precautions could
result in fire or burns.
NOTE: Do not leave an empty utensil, or
one which has boiled dry, on a hot surface
burner. The utensil could overheat and
damage the utensil or cooking product.
Cookware tips
No one brand of cookware is best for all
people. Knowing something about pan
materials and construction will help you
select the correct cookware for your needs.
l NOTE: For best results and greater fuel
efflclency, use only flat-bottomed cook-
ware in good condition.
l The pan should have straight sides and a
tight-fitting lid.
l Choose medium to heavy gauge (thick-
ness) pans that are fairly lightweight.
l The pan materlal (metal or glass) affects
how fast heat transfers from the surface
burners through the pan material and how
evenly heat spreads over the pan bottom.
Choose pans that provide the best cooking
results.
l Handles should be made of a sturdy,
heat-resistant material and be securely
attached to the pan.

l Pans should be easy to clean. Check to be
sure there are no crevices, rough edges,
or areas where food might collect.
l Be sure pans do not tip, whether they are
full or empty.
l Use cookware only as it was intended to
be used. Follow pan instructions. This is
very important for glass cookware because
some should be used only in the oven.
Other pans are marked as flameware and
may be used on the surface burners.
Home canning information
The larger diameter of most water-bath or
pressure canners combined with high heat
settings for long periods of time can cause
damage to the cooktop.
To protect your range:
l For best results, use a canner which can
be centered over the surface burner.
l Do not place canner on two surface
burners at the same time. Too much heat
will build up and will damage the cooktop.
l Start with hot water. This reduces the
time the control is set on high. Reduce
heat setting to lowest position needed to
keep water boiling.
l Refer to your canner manual for specific
instructions.
Positioning racks and pans
For baklng/roastlng with one rack, place
the rack so the top of the food will be
centered in the oven.
Rack placement for speclflc foods:
FOOD RACK POSITION
Frozen pies, large 1st or 2nd rack
roasts, turkeys, angel guide from bottom
food cakes
Personal Injury Hazard
Always position oven rack(s) in desired
location before turning oven on. Be
sure the rack(s) is level.
If rack(s) must be moved while oven is
hot, use pot holders or oven mitts to
protect hands.
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
2nd rack guide
from bottom
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
2nd or 3rd rack
guide from bottom
When baklng on two racks, arrange racks
on first and third rack guides from bottom.
NOTE: For recommended rack placement
when broiling, see “Broiling rack position
chart” on page 15.
Do not place items on the open oven
door.
Be careful when installing and remov-
ing large food items from extra oven
rack position. Food will be closer to
hot surfaces, including oven bottom
and sides.
Failure to follow the above precautions
could result in personal injury.
continued on next page
9

Extra oven rack position
(roasting rack)
When roasting food too large to be placed in
oven with rack in lowest position, place rack
on bottom of oven.
For proper roasting, follow these
guidelines:
l The rack must be level.
l Use adequate amount of liquid (meat
juices or water) so food does not get
overdone.
l Do not try to pull rack out over door.
Rack will be at the same level as door
when door is opened.
“I ‘q- h&a oven rack posltlon
For best air circulation
Hot air must circulate around the pans in the
oven for even heat to reach all parts of the
oven. This results in better baking.
l Place the pans so that one is not directly
over the other.
l For best results, allow 1X-2 inches
(4-5 cm) of space around each pan and
between pans and oven walls. There must
be a minimum space of 1 inch (3 cm).
l Use only one cookie sheet in the oven at
one time.
Use the following as a guide to determine
where to place the pans:
One pan
Place in the center of the oven rack.
Two pans
Place in opposite corners of the oven rack.
Three or four pans
Place in opposite corners on each oven rack.
Stagger pans so no pan is directly over
another.
10

Setting the clock
Push in and turn the Minute Timer Knob to
set the clock.
1. Push in Minute Timer Knob and turn
clockwise until clock shows the correct
time of day.
Using the Minute limer
The Minute Timer does not start or stop the
oven. It works like a kitchen timer. Set it in
minutes up to an hour. You will hear a
buzzer when the set time is up.
NOTE: Do not push in the knob when
setting the Minute Timer or when stopping
the buzzer. Pushing in and turning the
Minute Timer Knob changes the clock
setting.
1. Without pushing it in, turn the Minute
Timer Knob counterclockwise until the
timer hand passes the setting you want.
2. Without pushing it in, turn the knob
back to the setting you want. When the
time is up, a buzzer will sound. To stop
the buzzer, turn the Minute Timer hand
to OFF.
11

Baking/roasting
NOTE: Do not attempt to light the oven
burner during a power failure. See “lmpor-
tant Safety Instructions” on page 4 for more
information.
1. Position the rack(s) properly before
2.
3.
4.
5.
6.
turning on the oven: ?o change rack
position, lift rack at front and pull out.
For further information, see “Positioning
racks and pans” on page 9.
Set the Oven Selector to BAKE.
Push in and turn the Oven Temperature
Control counterclockwise to the baking/
roasting temperature you want. The oven
burner will automatically light in 50-60
seconds.
When baking, preheat the oven for
10 minutes. Put food in the oven.
NOTES:
l Do not preheat when roasting or
cooking items such as casseroles.
l Do not place food directly on the
oven bottom.
During baking/roasting, the oven burner
will turn on and off to maintain the tem-
perature setting.
When baking/roasting is done, turn
both the Oven Selector and the Oven
Temperature Control clockwise to OFF.
12

Adjusting the oven temperature control
Although your new oven is properly adjusted
to provide accurate temperatures, it may
cook faster or slower than your old oven.
If, after using the oven for a period of time,
you are not satisfied with the baking/roasting
results, you can change the temperature
calibration by following these steps:
1. Make sure the Oven Temperature
Control Knob is turned to the off position.
Pull knob straight off and flip it over.
2. Loosen the locking screws inside the
control knob. Note the position of the
notches.
3. To lower the temperature, hold knob
handle firmly and move the tooth a notch
clockwlse. Each notch equals about
20°F (11“C).
4. To raise the temperature, hold knob
handle firmly and move the tooth a notch
counterclockwise. Each notch equals
about 20°F (11“C).
5. Tlghten the locking screw and replace
the control knob.
Locking
screws
To
To lower
Notches/ ‘Tooth
Broiling
1. Posltlon the rack properly before turning
on the oven. Posltlon the oven rack so
that the surface of the food is at least 3
inches (7 cm) away from the broil burner.
See “Broiling rack position chart” on
page 15.
2. Preheat the broiler for 5 minutes before
using.
3. Put the broiler pan and food on the rack.
4. Completely close the oven door to
ensure proper broiling temperatures. continued on next page
13

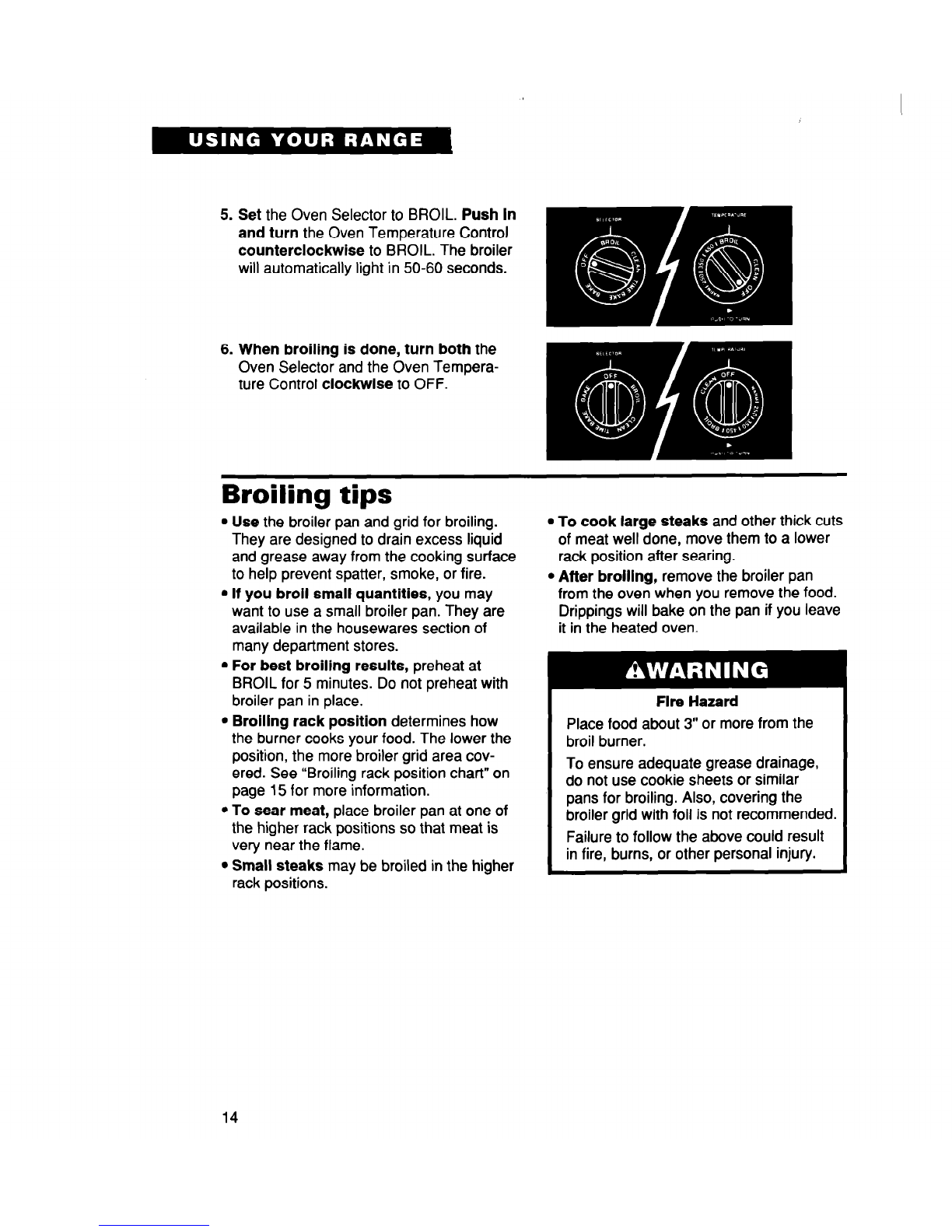

5. Set the Oven Selector to BROIL. Push In
and turn the Oven Temperature Control
counterclockwise to BROIL. The broiler
will automatically light in 50-60 seconds.
6. When broiling is done, turn both the
Oven Selector and the Oven Tempera-
ture Control clockwise to OFF.
Broiling tips
l Use the broiler pan and grid for broiling.
They are designed to drain excess liquid
and grease away from the cooking surface
to help prevent spatter, smoke, or fire.
. If you broil small quantities, you may
want to use a small broiler pan. They are
available in the housewares section of
many department stores.
l For best broiling results, preheat at
BROIL for 5 minutes. Do not preheat with
broiler pan in place.
l Brolllng rack position determines how
the burner cooks your food. The lower the
position, the more broiler grid area cov-
ered. See “Broiling rack position chart” on
page 15 for more information.
l To sear meat, place broiler pan at one of
the higher rack positions so that meat is
very near the flame.
l Small steaks may be broiled in the higher
rack positions.
l To cook large steaks and other thick cuts
of meat well done, move them to a lower
rack position after searing.
l After brolllng, remove the broiler pan
from the oven when you remove the food.
Drippings will bake on the pan if you leave
it in the heated oven.
Flre Hazard
Place food about 3” or more from the
broil burner.
1 To ensure adequate grease drainage,
do not use cookie sheets or similar
’ pans for broiling. Also, covering the
broiler grid with foil is not recommended.
Failure to follow the above could result
in fire, burns, or other personal injury.
14

Broiling rack position chart
3ACK POSITION
FROM BOlTOM FOOD
4 Rare steaks and fish
3 Medium and well-done
steaks and hamburg-
ers; well-done foods
such as chicken,
lobster, ham slices,
and pork chops
Energy saving tips
Although the energy used for cooking is
usually a very small percentage of the total
energy used in the home, cooking energy
can be used efficiently. Here are some tips
to help you save energy when using your
cooking product:
l Use pans with flat bottoms, straight sides,
and tight-fitting lids.
l Cook with a minimum of liquid or fat to
help shorten cooking time.
l Preheat pans only when recommended
and for the shortest time possible.
l Start food on higher heat settings, then set
surface burner control on low to finish
cooking.
l Use the more efficient surface burners
instead of the oven when possible.
l Turn on the surface burner only after
placing filled pan on the burner grate.
l “Oven peeking” may cause heat loss,
longer cooking times, and unsatisfactory
baking results. Rely on your timer to keep
track of the cooking time.
l Bake cakes, pies, or cookies when oven is
warm. Best time to bake is right after a
meal has been cooked in the oven.
l Preheat the oven no longer than
necessary.
l Plan your meals for the most efficient use
of the range. When using the oven to cook
one food, try to cook the rest of the meal in
it also.
l Do not preheat when roasting or cooking
items such as casseroles.
l Keep burner pans clean for best heat
reflection.
15

Using the automatic MEALTIMER’” clock
The automatic MEALTIMER clock is de-
signed to turn the oven on and off at times
you set, even when you are not around.
Delayed time baking/roasting is ideal for
foods which do not require a preheated
oven, such as meats and casseroles. Do
not use delayed time cooking for cakes,
cookies, etc. -they will not rise properly.
Before using the MEALTIMER clock,
make sure the clock is set to the correct
time of day. (See “Setting the clock” on
page 11.)
To delay start and stop
automatically:
1. Position the oven rack(s) properly and
place the food in the oven.
2. Push in and turn the Start Time Knob
clockwise to the time you want baking/
roasting to start.
3. Push in and turn the Stop Time Knob
clockwise to the time you want the oven
to shut off.
NOTE: There must be at least a half-hour
difference between the start and stop
times.
4. Set the Oven Selector to TIME BAKE.
5. Push in and turn the Oven Temperature
Control counterclockwise to the baking/
roasting temperature you want. The oven
will now start and stop automatically. The
Oven Indicator Light will come on when
the start time is reached.
6. After baking/roasting is done or to
cancel the setting at any time, turn
both the Oven Selector and Oven Tem-
perature Control clockwise to OFF.
16

To start baking/roasting now
and stop automatically:
1. Posltion the oven rack(s) properly and
place the food in the oven.
2. Push in and turn the Stop Time Knob
clockwise to the time you want the oven
to shut off. Make sure the Start Time
Knob is not pushed in.
3. Set the Oven Selector to TIME BAKE.
4. Push in and turn the Oven Temperature
Control counterclockwise to the baking/
roasting temperature you want.
5. After baking/roasting is done or to
cancel the setting at any time, turn
both the Oven Selector and the Oven
Temperature Control clockwise to OFF.
Food Spollage Hazard
Do not let most UNFROZEN food stand
for more than two hours before cooking
starts.
Do not allow food to remain in oven for
more than two hours after the end of
cooking cycle.
Failure to follow the above could result
in sickness.
NOTE: Do not use foods that will spoil while
waiting for cooking to start. Such foods are:
dishes with milk or eggs, cream soups, and
cooked meats or fish. Also, foods containing
baking powder or yeast will not rise properly
when cooked using delay start.
17

-
The oven vent
Hot air and moisture escape from the oven
through a vent located in lower part of
backguard. The vent is needed for air
circulation. Do not block the vent. Poor
baking/roasting will result.
NOTE: Never store plastics, paper, or other
items that could melt or burn near the oven
vent, or any of the surface burners.
Burn Hazard
When the oven is ON, pans and pan
handles left near the oven vent could
become very hot. Use pot holders to
move pans.
Failure to do so could result in burns.
Oven v&t
The storage drawer
You can remove the storage drawer to make
it easier to clean under the range and to
check for installation of the anti-tip floor
bracket. Use care when handling the
drawer.
Removing the storage drawer:
1. Empty drawer before removing. Pull
drawer straight out to the first stop. Lift
front and pull out to the second stop.
2. Lift back slightly and slide drawer all
the way out.
Replacing the storage drawer:
1. Flt ends of drawer slide rails into the
drawer guides on both sides of opening.
2. Lift drawer front and push in until metal
stops on drawer slide rails clear white
stops on drawer guides. Lift drawer front
again to clear second stop and slide
drawer closed.
I
r Drawer
slide rail
18

The anti-tip brackets
The range will not tip during normal use. However, tipping can occur if you apply too much
force or weight to the open door without the anti-tip brackets properly secured.
! AI~WW~
0
a-
Personal Injury Hazard
To reduce risk of range tipping over, secure range with properly
installed anti-tip brackets supplied with range.
If range is moved for cleaning or service, check that anti-tip brackets
are engaged before using range.
Failure to follow the above precautions could result in personal
injury.
To verify the anti-tip brackets
are engaged:
l Grasp rear of range and carefully try to tilt
forward. If anti-tip brackets are attached to
floor with screws and rear leveling legs are
positioned under brackets (one for each
rear leveling leg), range should not tilt
forward.
OR
l Remove the storage drawer.
(See page 18.)
l Make sure the rear leveling legs are
positioned under brackets.
l See Installation Instructions for further
details.
19

Using the Self-Cleaning Cycle
In This Section
Page Page
How the cycle works ......-.............. 20 Setting the controls .......................21
Before you start ............................... 20 Special tips .....................................
22
The Self-Cleaning cycle saves you from the toil and mess that often come with hand-cleaning
the oven interior. Like the other functions of your range, you operate the Self-Cleaning cycle
with the easy-to-use controls. Please review the instructions in this section to keep your oven
spotless.
How the cycle works
The Self-Cleaning cycle uses very high heat
to burn away soil and grease. During the
cycle, the oven gets much hotter than it does
for normal baking or broiling. This high heat
breaks up the soil or grease and burns it
away.
We recommend a 3hour Self-Cleaning
cycle. However, you can adjust the cycle time
to the amount of soil in your oven. You can set
the cycle anywhere between 2 and 4 hours.
(See “Setting the controls” on page 21.)
The graph at the right is representative of
a normal, 3-hour Self-Cleaning cycle. Note
that the heating stops when the 3-hour
setting is up, but it takes longer for the oven
to cool enough to unlock.
v Y
START 1
l-he I: Hours
3 STOP
Before you start
Before you start the Self-Cleaning cycle,
make sure you:
l Hand-clean the areas shown. They do
not get hot enough during the cleaning
cycle for soil to burn away. Use hot water
and detergent or a soapy, steel-wool pad
for cleaning.
NOTE: DO NOT clean, move, or bend the
seal. Poor cleaning, baking, and roasting
may result.
Hand-clean frame
DO NOT
hand-clean seal
Hand-clean door
around edge
20
