Whirlpool SE960PEP User manual

mnnmUGE
- ---
Model SE960PEP
‘-‘“““‘- “‘=“‘, 114a11cumPac~or*. noom AM Condltloners, Dehumldlflers, Automatic Washers, Clothes orvers. ~~~~~~~~

P Contents
Page
BEFORE YOU USE YOUR RANGE 2
IMPORTANT SAFETY
INSTRUCTIONS. . 3
PARTS AND FEATURES 5
USING YOUR RANGE. 6
Using the Surface Burners 6
Setting the Clock 7
Using the Minute Timer 8
Using the Ovens. , . 8
Baking or Roasting 8
Broiling , 9
Using the Automatic
MEALTIMER’ Clock 10
Oven Vent 11
Storage Drawer . 12
CARING FOR YOUR RANGE.. 13
Page
Control Panels 13
Surface Burner Grates and
Reflector Pans . 14
Surface Burners 14
Removable Cooktop 15
Upper Oven Rack Guides 16
Continuous-Cleaning
Upper Oven 16
Self-Cleaning Lower Oven 18
Cleaning Chart 21
Cooktop Light 23
Oven Lights 24
IF YOU NEED SERVICE OR
ASSISTANCE 25
WHIRLPOOL RANGE
WARRANTY 28
oiyu/ wnrnpoor Corporanon
Before you use your range
Read and carefully follow the “INSTALLATION INSTRUCTIONS”
packed wlfh your range.
Read this Use 81Care Guide and the Cooking Guide for important safety
informafion.

You are personally responsible for:
l Reading and following all safety precautions in this Use & Care Guide and the
Cooking Guide.
l Having your range installed by a qualified installer.
l Installing the range where it is protected from the elements, and on a level floor
strong enough to hold its weight.
l Having your range properly connected to electrical supply and grounded.
(See “Installation Instructions:‘)
l Having your range properly connected to the proper gas supply and
checked for leaks. (See “Installation Instructions!‘)
l Making sure the range is not used by children or anyone unable to operate it
properly.
l Properly maintaining your range.
l Using the range only for jobs expected of a home range.
See “Cooking Guide” for important safety and use information.

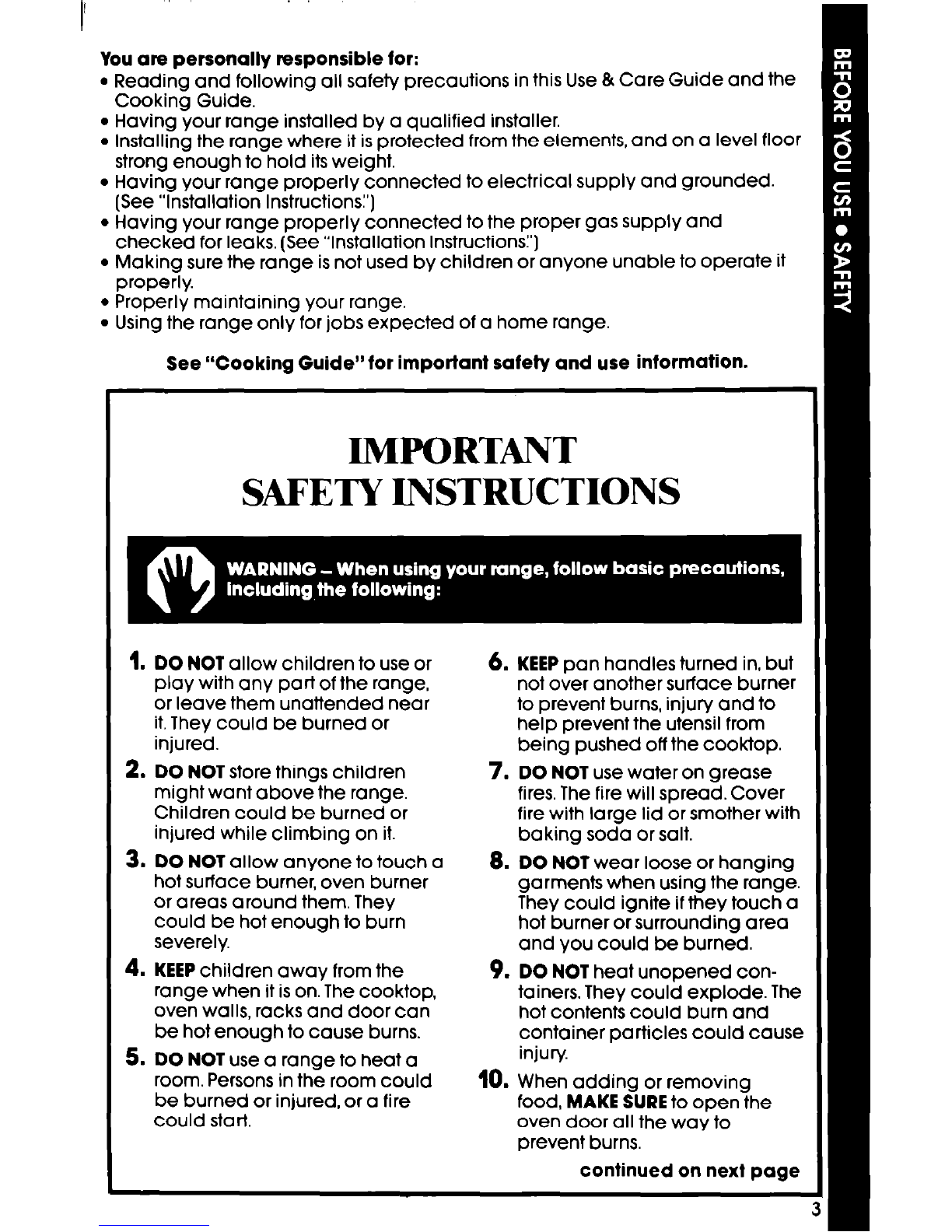

IMPORTANT
SAFETY INSTRUCTIONS
1. DO NOT allow children to use or
play with any part of the range,
or leave them unattended near
it. They could be burned or
injured.
2. DO NOT store things children
might want above the range.
Children could be burned or
injured while climbing on it.
3. DO NOT allow anyone to touch a
hot surface burner, oven burner
or areas around them. They
could be hot enough to burn
severely.
4. KEEP children away from the
range when it is on. The cooktop,
oven walls, racks and door can
be hot enough to cause burns.
5. DO NOT use a range to heat a
room. Persons in the room could
be burned or injured, or a fire
could start.
6. KEEP pan handles turned in, but
not over another surface burner
to prevent burns, injury and to
help prevent the utensil from
being pushed off the cooktop.
7. DO NOT use water on grease
fires. The fire will spread. Cover
fire with large lid or smother with
baking soda or salt.
8. DO NOT wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot burner or surrounding area
and you could be burned.
9. DO NOT heat unopened con-
tainers. They could explode. The
hot contents could burn and
container particles could cause
injury.
10. When adding or removing
food, MAKE SURE to open the
oven door all the way to
prevent burns.
continued on next page

11. DO NOT use a wet pot holder.
Steam burns can result. DO NOT
use a towel or bulky cloth as a
pot holder. They could catch fire
and burn you.
12. MAKE SURE the utensils you use
are large enough to contain
food and avoid boil overs and
spillovers. This will help prevent
hazardous build-ups of food.
Heavy splattering or spillovers
left on a range can ignite and
burn you. Pan size is especially
important in deep fat frying.
13. DO NOT leave surface burners
on high heat settings. Boil overs
and greasy spillovers could
cause steam, smoke and could
ignite and burn you.
14. GREASE is flammable and
should be handled carefully. Let
fat cool before attempting to
handle it. Do not allow grease
to collect around range or
in vents. Wipe spillovers
immediately.
15. NEVER use a match or other
flame to look for a gas leak.
Explosion and injury could result.
16. DO NOT repair or replace any
parts unless specifically recom-
mended in this manual. All other
servicing should be referred to a
qualified service technician.
. FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
CAUSING EXPLOSION AND/OR FIRE.
- SAW THESE INSTRUCTIONS -
Copy your Model and Serial Numbers here...
If you need service, or call with a
question, have this information
ready:
1. Complete Model and Serial
Model Number
Numbers (from the plate located
as shown).
Serial Number
2. Purchase date from sales slip.
Copy this information in these
Purchase Date
spaces. Keep this book, your war-
ranty and sales slip together in a
handy place.
Servlce Company Phone Number
Please complete and mall the Owner Registration Card
furnlshed with thls product.
4

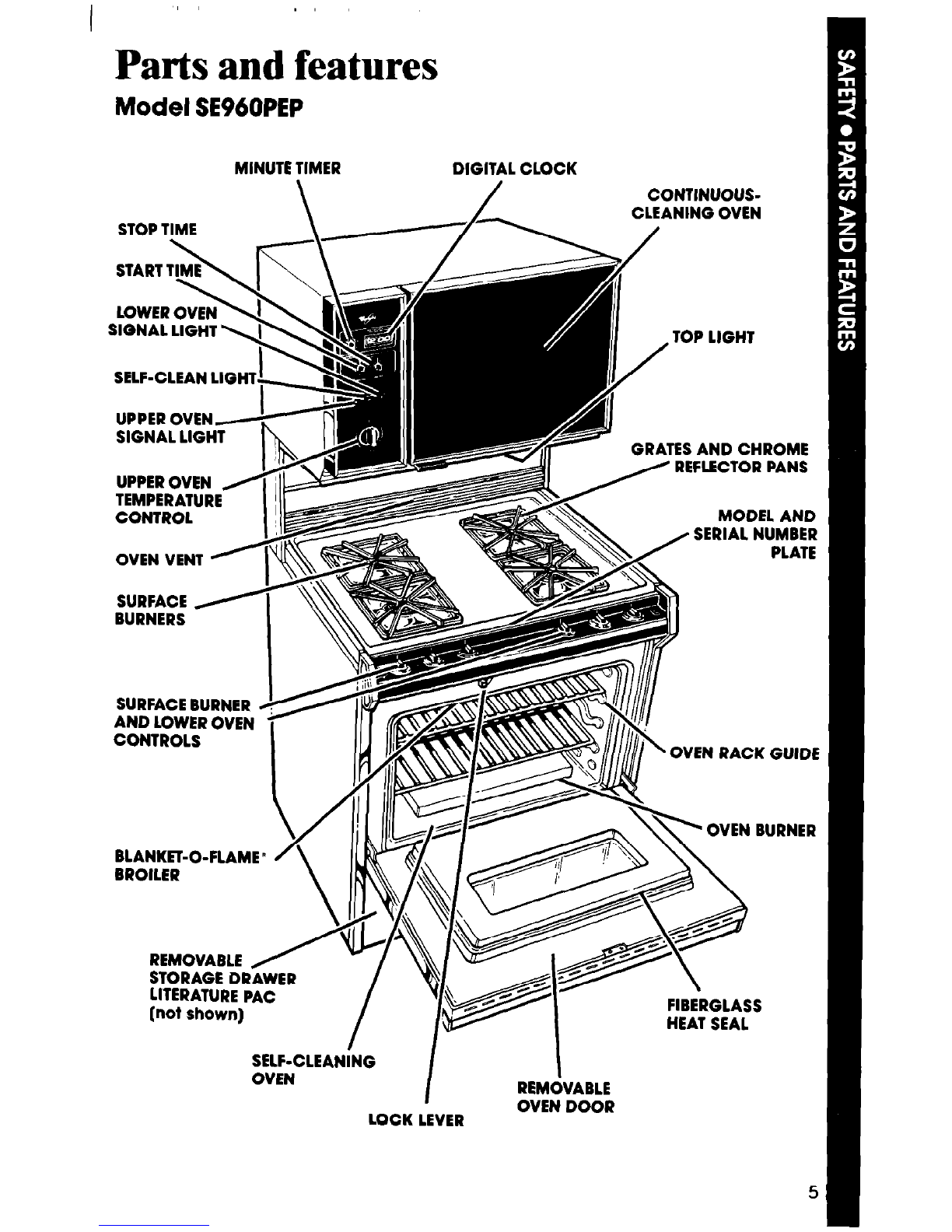

Parts and features
Model SE960PEP
MINUTE TIMER DIGITAL CLOCK
\ / --..-.....-..a
STOP TIME
\
/
STARTTA G y -
\
LOWER OVEN
i
SIGNAL LIGHT v
SELF-CLEAN LIGHT:
UPPER OVEN /
SIGNAL LIGHT
UPPER OVEN /
TEMPERATURE
CONTROL
OVEN VENT ’
SURFACE /
SURFACE BURNER
AND LOWER OVEN
CONTROLS
BLANKEI-O-FLAME” /\ 11
GRATES AND CHROME
REFLECTOR PANS
MODEL AND
SERIAL NUMBER
PLATE
OVEN RACK GUIDE
- \\ OVEN BURNER
REMOVABLE /
STORAGE DRAWER
LITERATURE PAC
(not shown)
SELF-CLEANING
OVEN I I
REMOVABLE
OVEN DOOR
LOCK LEVER

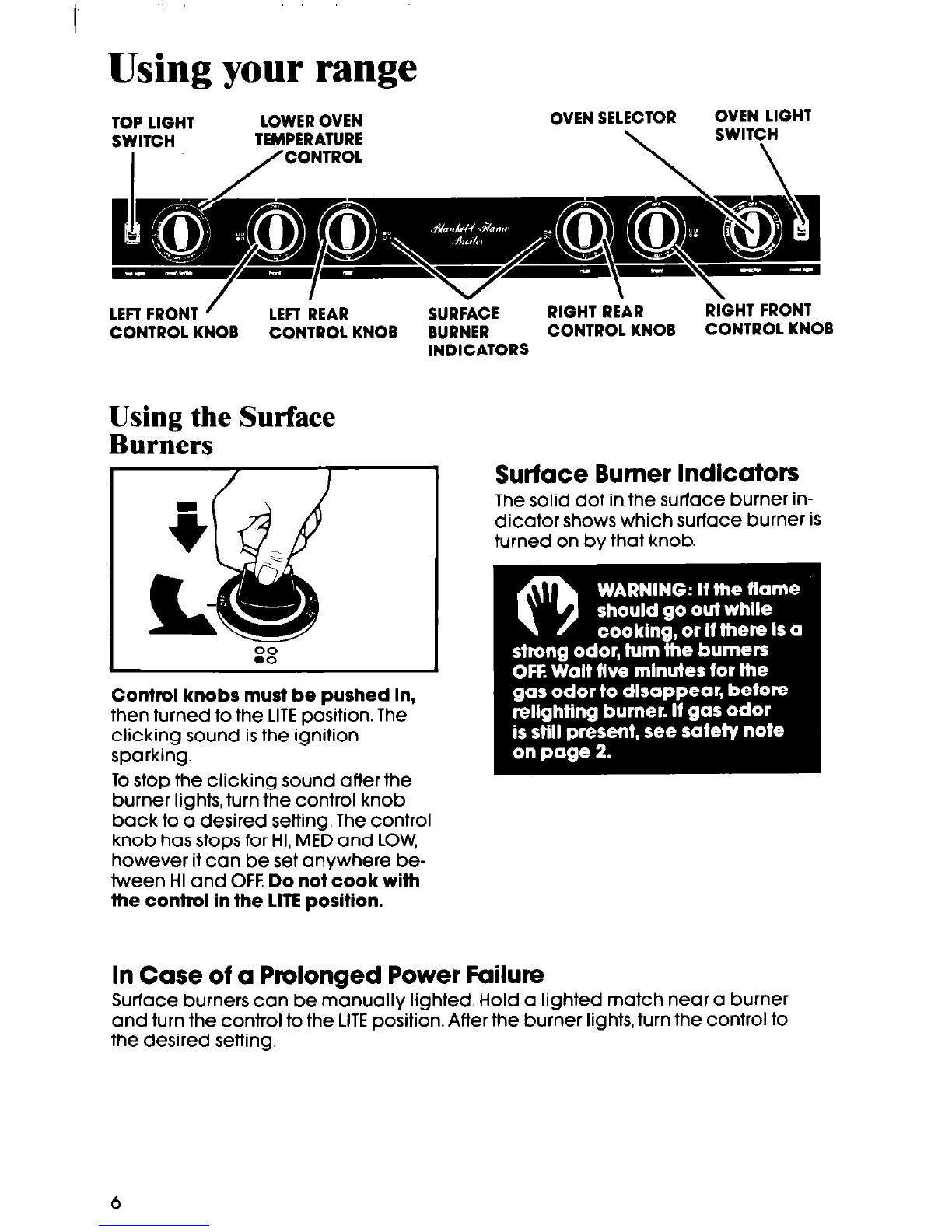

Using your range
TOP LIGHT
SWITCH
I
LOWER OVEN OVEN SELECTOR OVEN LIGHT
TEMPERATURE
/ CONTROL
/ I \ \
LEFl FRONT LEFl REAR SURFACE RIGHT REAR RIGHT FRONT
CONTROL KNOB CONTROL KNOB BURNER CONTROL KNOB CONTROL KNOB
INDICATORS
Using the Surface
Burners
Control knobs must be pushed in,
then turned to the LITEposition. The
clicking sound is the ignition
sparking.
To stop the clicking sound after the
burner lights, turn the control knob
back to a desired setting. The control
knob has stops for HI, MED and LOW,
however it can be set anywhere be-
tween HI and OFF.Do not cook with
the control in the LITE position.
Surface Burner Indicators
The solid dot in the surface burner in-
dicator shows which surface burner is
turned on by that knob.
In Case of a Prolonged Power Failure
Surface burners can be manually lighted. Hold a lighted match near a burner
and turn the control to the LITEposition. After the burner lights, turn the control to
the desired setting.

See the “Cooking Guide” for important utensil information.
Until you get used to the settings, use the following as a guide:
Use LITE to light
the burner. Afler
the burner lights,
turn control
back to a de-
sired setting to
stop the clicking
of the ignition.
Do not cook
with the control
In the LITE posi-
tion.
Use HI to start
foods cooking
or to bring liq-
uids to a boil.
Use MED to con-
tinue cooking or
to fry chicken or
pancakes; for
gravy, puddings
and icing or to
cook large
amounts of veg-
etables.
Use LOW to
keep foods
warm until
ready to serve.

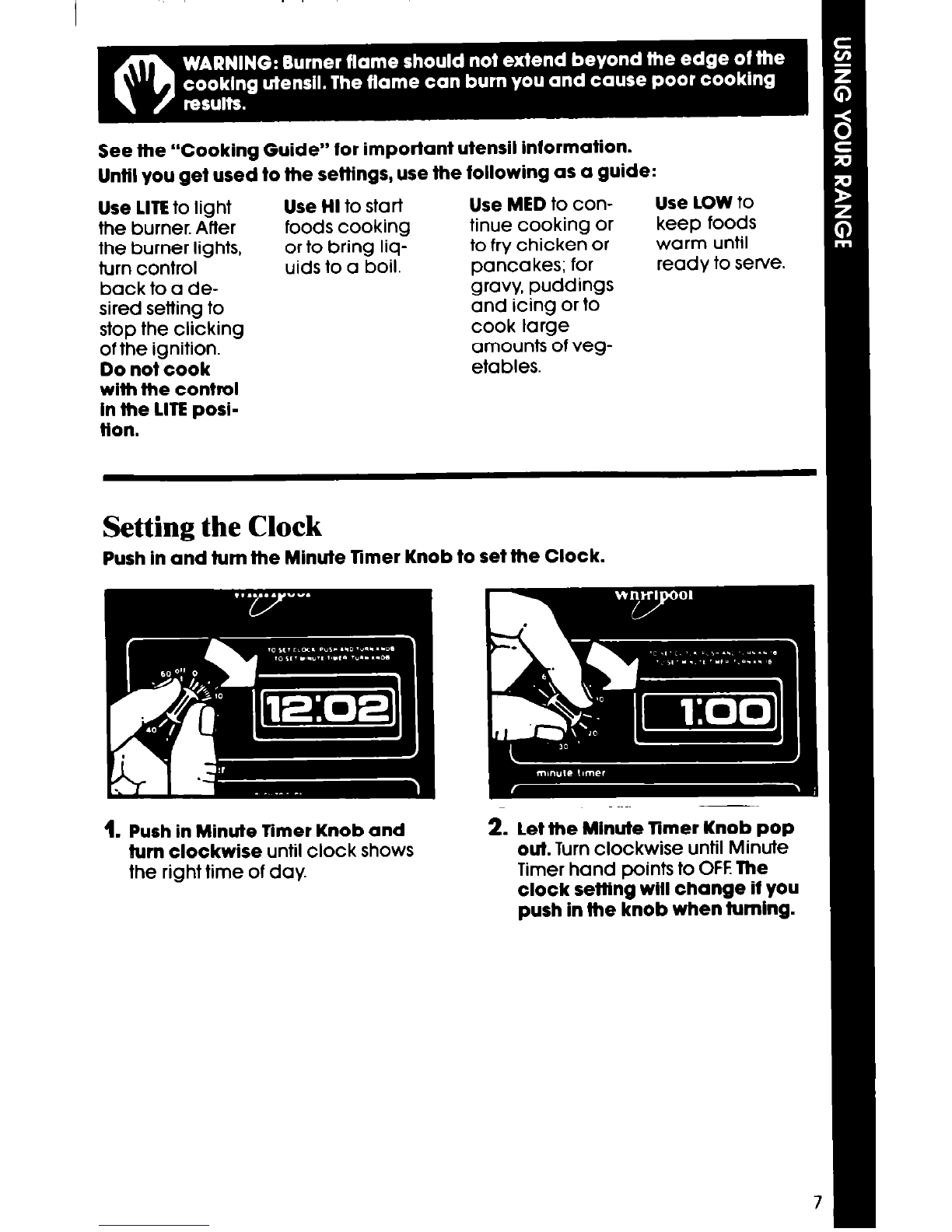

Setting the Clock
Push in and turn the Minute mmer Knob to set the Clock.
1. Push in Minute Timer Knob and
furn clockwise until clock shows
the right time of day.
Let the Minute Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF.The
clock setting will change if you
push in the knob when turning.

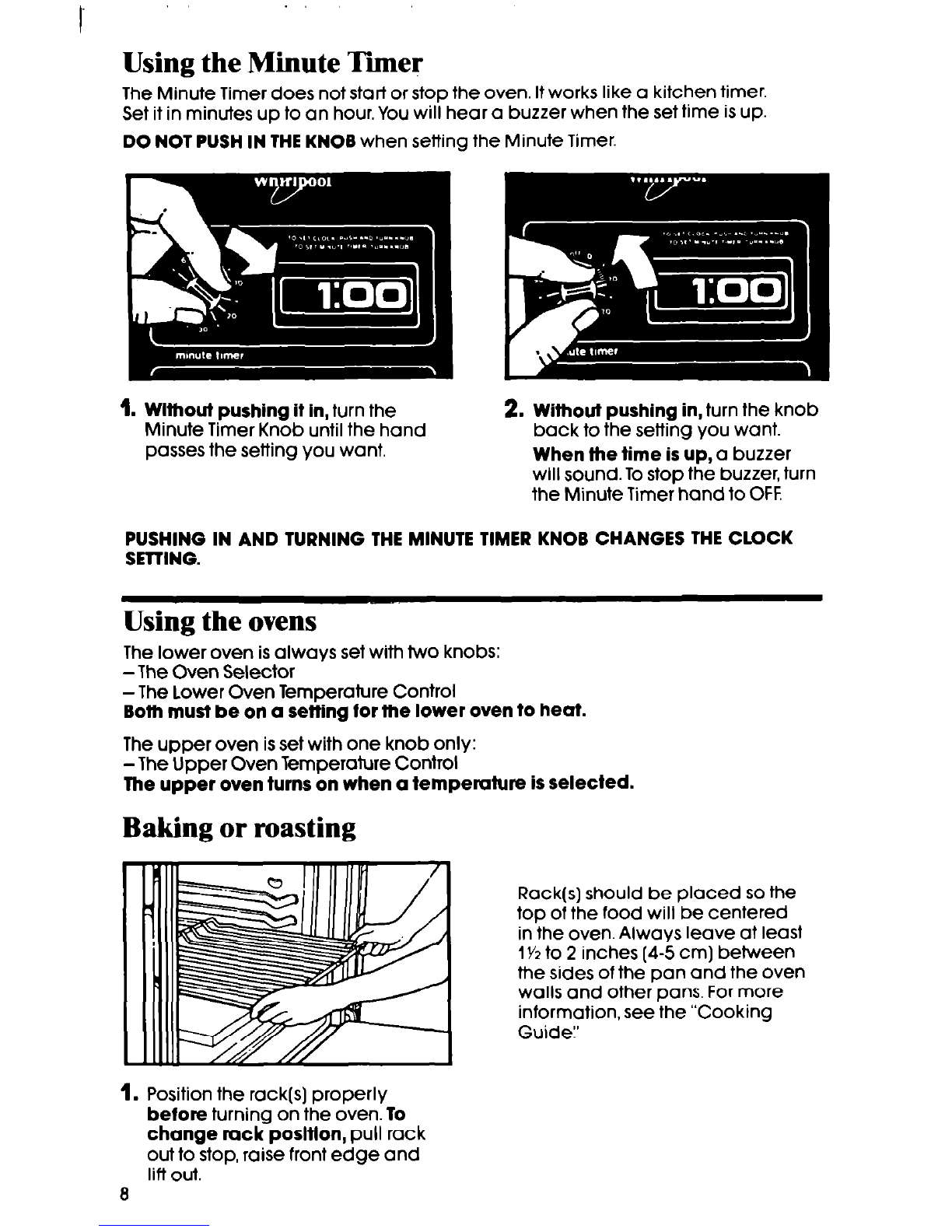

Using the Minute Tiier
The Minute Timer does not start or stop the oven. It works like a kitchen timer.
Set it in minutes up to an hour, You will hear a buzzer when the set time is up.
DO NOT PUSH IN THE KNOB when setting the Minute Timer.
1. Wlthouf pushing if in, turn the
Minute Timer Knob until the hand
passes the setting you want.
2. Without pushing in, turn the knob
back to the setting you want.
When the time is up, a buzzer
will sound. To stop the buzzer, turn
the Minute Timer hand to OFF.
PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THE CLOCK
SETTING.
Using the ovens
The lower oven is always set with two knobs:
-The Oven Selector
-The Lower Oven Temperature Control
Both must be on a setting for the lower oven to heat.
The upper oven is set with one knob only:
-The Upper Oven Temperature Control
The upper oven turns on when a temperature is selected.
Baking or roasting
Rack(s) should be placed so the
top of the food will be centered
in the oven. Always leave at least
1Y2to 2 inches (4-5 cm) between
the sides of the pan and the oven
walls and other pans. For more
information, see the “Cooking
Guide:’
1. Position the rack(s) properly
before turning on the oven. To
change rack poslfion, pull rack
out to stop, raise front edge and
lift out.
El

2. If you’re cooking in the lower
oven, set the Oven Selector
on BAKE and the Lower Oven Tem-
perature Control on the baking
temperature you want. The lower
oven burner will automatically
light in 50-60 seconds.
3. Preheat the oven. The oven is
preheated when the Oven Signal
Light first goes off. Note: Oven
racks, walls and door will be
hot. Do not place food directly
on oven bottom.
Broilincr
If you’re cooking in the upper
oven, set the Upper Oven
Temperature Control to the tem-
perature you want. The upper
oven burner will automatically
liaht in 50-60 seconds.
4. During baking, the oven burner
will turn on and off to maintain the
temperature setting. The Oven
Signal Light will turn on and off
with the burner.
When baking is done, turn both
the Oven Selector and the Lower
Oven Temperature Control to OFF
for the lower oven, or turn the
Upper Oven Temperature Control
to OFF for the umber oven.
The Blanket-0-Flamet Broiler uses infra-red rays to cook the food. Infra-red rays
create fast, searing heat and consume most smoke and spatters. Always broil
with the oven door closed.
1. Position the rack before turning
the oven on. See rack placement
chart and broiling chart in
the “Cooking Guide” for recom-
mended rack positions.
2. Put the broiler pan and food on
the rack and completely GlOXi
the oven door. DO NOT PREHEAT
THE BROILER BEFORE USING.

3. Set the Oven Selector and the
Lower Oven Temperature Control
to BROIL. The broiler will automati-
tally light in 5060 seconds.
4. When broiling is done,turn both
the Oven Selector and the Oven
Temperature Control to OFF
DO NOT PREHEAT THE BROILER BEK)RE USING. CLOSE OVEN DOOR
DURING BROILING.

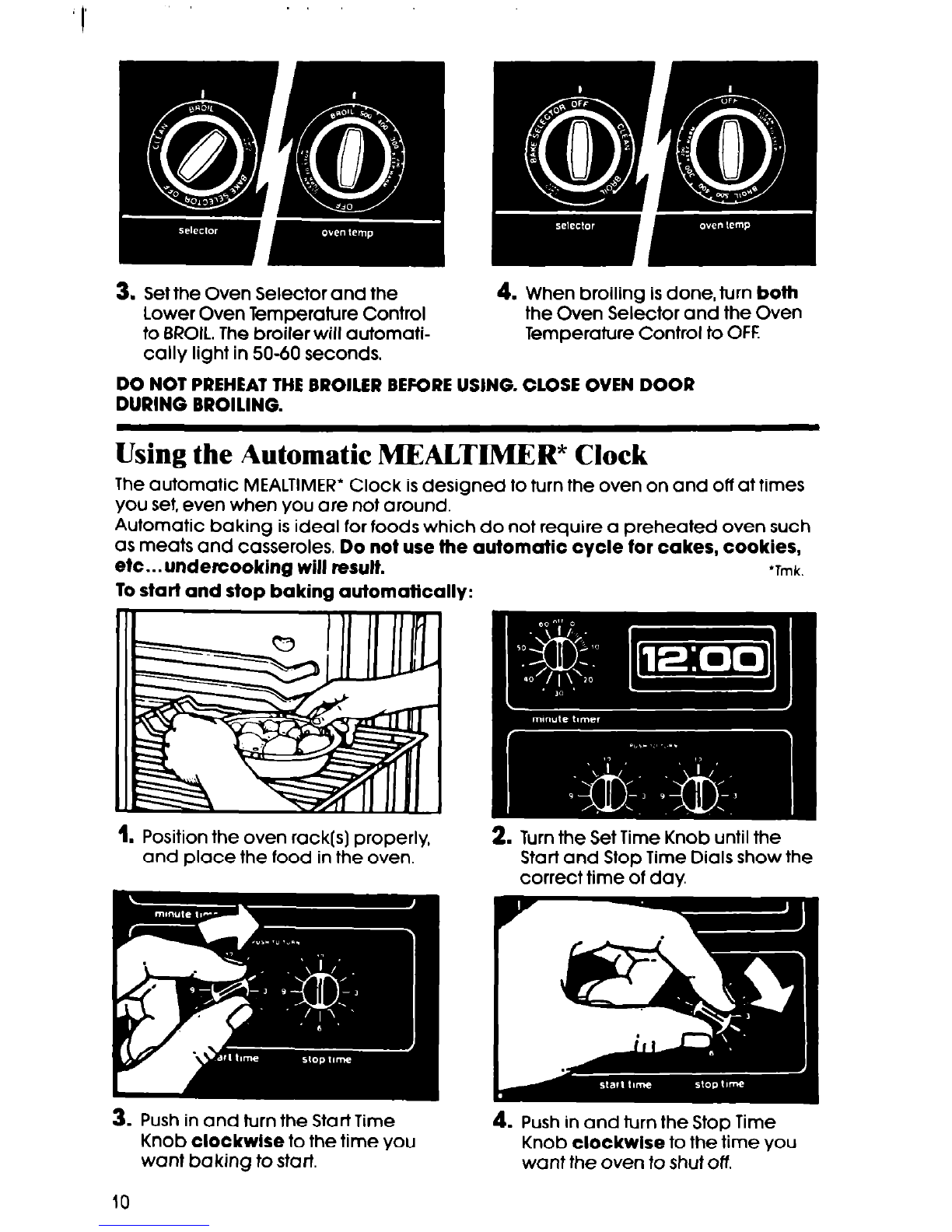

Using the Automatic MEALTIMER” Clock
The automatic MEALTIMER’ Clock is designed to turn the oven on and off at times
you set, even when you are not around.
Automatic baking is ideal for foods which do not require a preheated oven such
as meats and casseroles, Do not use the aufomafic cycle for cakes, cookies,
efc...undercooking will result.
To start and stop baking automatically:
1. Position the oven rack(s) properly,
and place the food in the oven. 2. Turn the Set Time Knob until the
Start and Stop Time Dials show the
correct time of day.
3. Push in and turn the Start Time 6. Push in and turn the Stop Time
Knob clockwlse to the time you Knob clockwise to the time you
want baking to start. want the oven to shut off.
10

5. Set the Oven Selector on TIMED
BAKE. 6. Set the Lower Oven Temperature
Control on the baking tem-
perature you want. The oven will
now start and stop automatically.
After baking is done or to sfop
the oven before preset time, turn
both the Oven Selector and the
Lower Oven Temperature Control
to OFF
To start baking now and stop automatically:
1. Position rack(s) properly, and place the food in the oven.
2. Make sure the clock is set to the right time of day.
3. Push in and turn the Stop Time Knob clockwise to the time you want the oven
to shut off.
4. Set the Oven Selector on TIMED BAKE.
5. Set the Oven Temperature Control on the baking temperature you want.
6. Affer baking is done or to stop the oven before the preset time, turn both
the Oven Selector and the Oven Temperature Control to OFF
The Oven Vent
Hot air and moisture escape from
the oven through a vent just under
the cooktop light. Do not block
vent. Poor baking will result.
OVEN VENT

‘I
The Storage Drawer
The storage drawer is for storing pots and pans.
Use care when handling the drawer. The edges could be sharp.
Removing the storage drawer
1. Pull drawer straight out to the
first stop. Lift front and pull out to
the second stop.
2. Lift back slightly and slide drawer
all the way out.
Replacing the storage drawer
1.
Fit ends of drawer slide rails into
the drawer guides on both sides
of opening.
2. Lift drawer front and push in until
white stops on drawer slide rails
clear white stops on drawer
guides, then slide drawer closed.
Use & Care Guide storage
Store this booklet, along with your
‘Cooking Guide:’ sales slip and war-
ranty in the Literature Pat, inside the
storage drawer.

I
”
.’
Caring for your range
Control Panels
1. Pull knobs straight off.
3. Wash knobs in warm soapy water
or use baking soda and a damp,
soft cloth. Rinse well and dry.
CAUTION: Do not use abrasive
cleansers. They could rub off the
markings.
2. Use warm soapy water or baking
soda and a damp soft cloth to
wipe the control panels. Rinse
and wipe dry
4. Push the knobs straight back on.
Make sure they point to OFF:

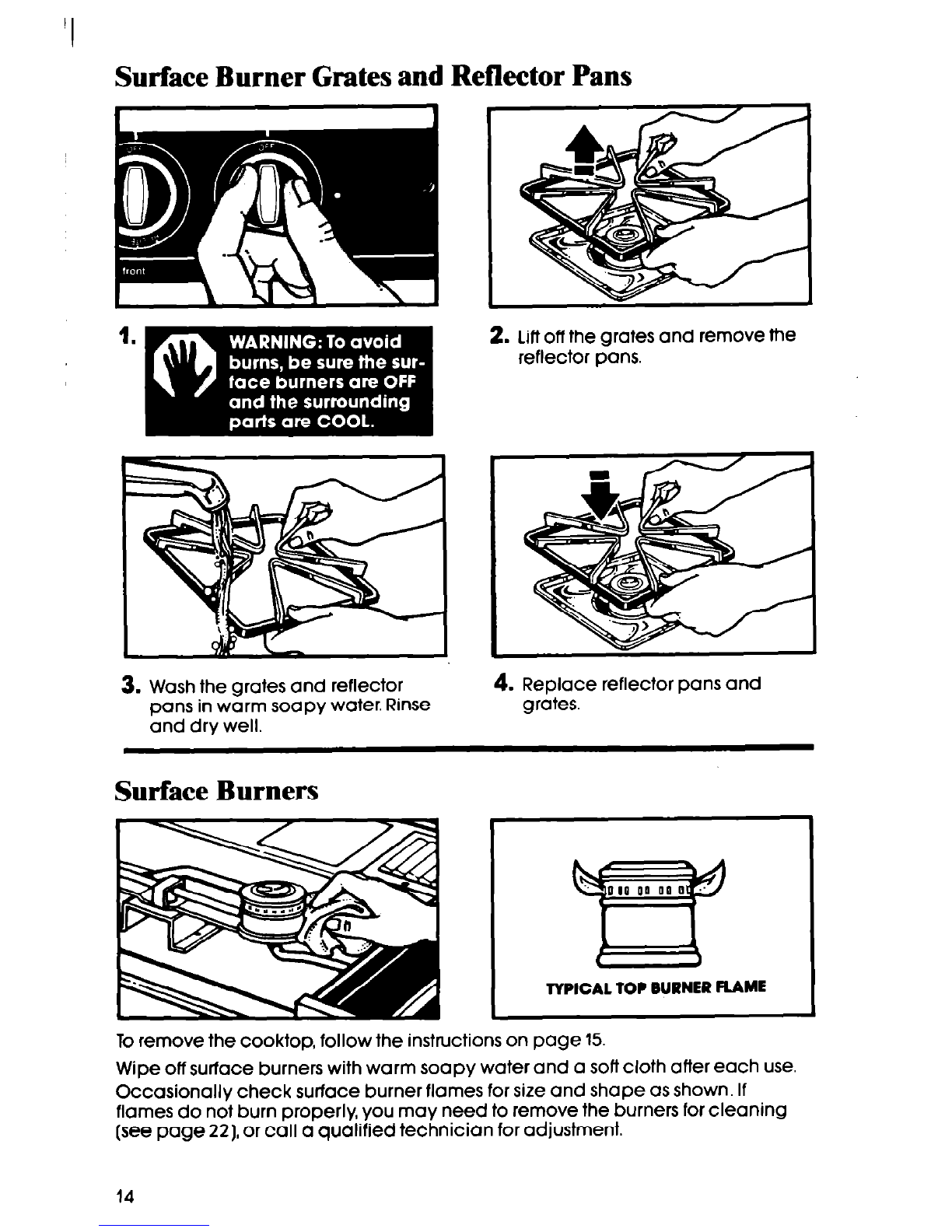

Surface Burner Grates and Reflector Pans
2. Lift off the grates and remove the
reflector pans.
3. Wash the grates and reflector
pans in warm soapy water. Rinse
and dry well.
4. Replace reflector pans and
grates.
Surface Burners
To remove the cooktop, follow the instructions on page 15.
Wipe off surface burners with warm soapy water and a soft cloth after each use.
Occasionally check surface burner flames for size and shape as shown. If
flames do not burn properly, you may need to remove the burners for cleaning
[see page 221, or call a qualified technician for adjustment.
14

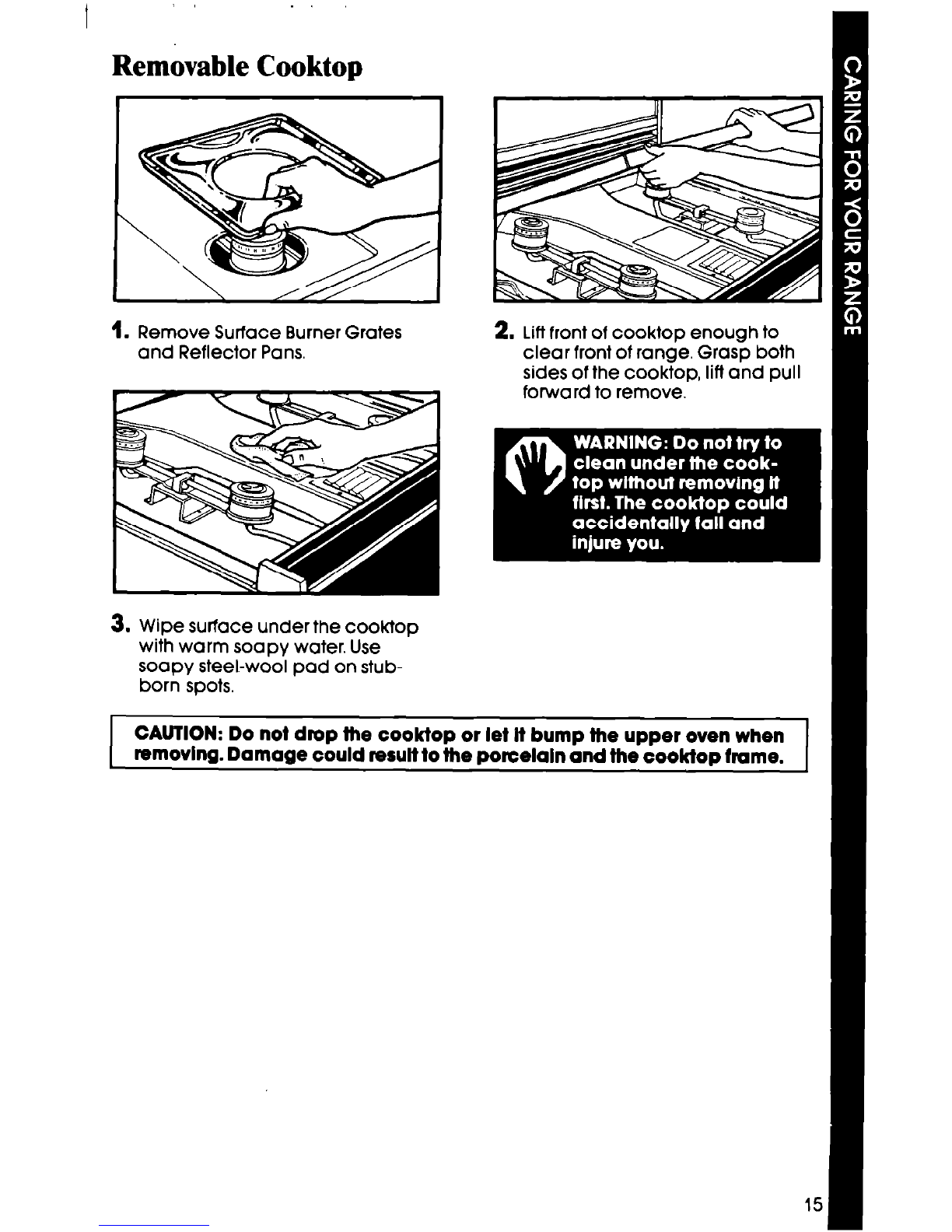

Removable Cooktop
1. Remove Surface Burner Grates
and Reflector Pans.
3. Wipe surface under the cooktop
with warm soapy water. Use
soapy steel-wool pad on stub-
born spots.
2. Lift front of cooktop enough to
clear front of range. Grasp both
sides of the cooktop, lift and pull
forward to remove.
CAUTION: Do not drop the cooktop or let lt bump the upper oven when
removlng. Damage could result to the portelaln and the oooktop frame.

The Upper Oven Rack Guides
Removing the upper oven burner cover, rack guides and back wall will help
make it easier to clean the upper oven.
Lift up the front of the burner cover
and’pull out.
2. Lift up front of rack guide and
swing out enough so the front tabs
clear the notches in the oven wall.
Pull the guide straight away from
the back oven wall.
3. Pull out bottom tab on back wall,
then remove.
REVERSE THE PROCEDURE TO
REPLACE BACK WALL AND RACK
GUIDES.
The Continuous-Cleaning Upper Oven
Standard oven walls are coated with smooth porcelain enamel. Your continu-
ous-cleaning oven walls are coated with a special, rougher porcelain enamel
A fat spatter beads up on the smooth surface, but spreads out on the rougher
surface. The bead of fat chars and turns black. The spread-out fat gradually
burns away at medium to high baking temperatures (350 -475-R 176 -246 C)
so the oven can return to a presentably clean condition.
16

I ” “’
Spillovers
Sugar and starchy spills (from pies and casseroles] and soils which occur in
heavy amounts will not be removed. After the oven is cooled, remove these
spillovers with a nylon scrubbing pad and water. If the soil is really baked on,
it can be loosened by using TOP JOB: HANDY ANDY,mor FANTASTIK.” Spray
cleaner on the spot and let soak for about 15 minutes. Brush with a wet nylon
scrubbing pad and rinse well with a wet sponge.
CAUTION: Do not use toll or foil liner on the oven bottom. It will cause
poor baking results and could damage the oven.
Cleaning Tips
1. The oven window and racks are not coated. Clean them by hand.
2. The oven door does not get as hot as the walls. Some hand cleaning may
needed
iand Cleaning
ACKS - Use soapy steel-wool
ad for best cleaning results.
nse well.
WINDOW-Keep clean with hot
sudsy water. Use a plastic scour-
ing pad for stubborn spots. Rinse
Do not use steel-wool or
abrasive cleansers.
WALLS AND DOOR-Wash with hot
soapy water. Use a plastic scouring
pad for stubborn spots. Rinse well.

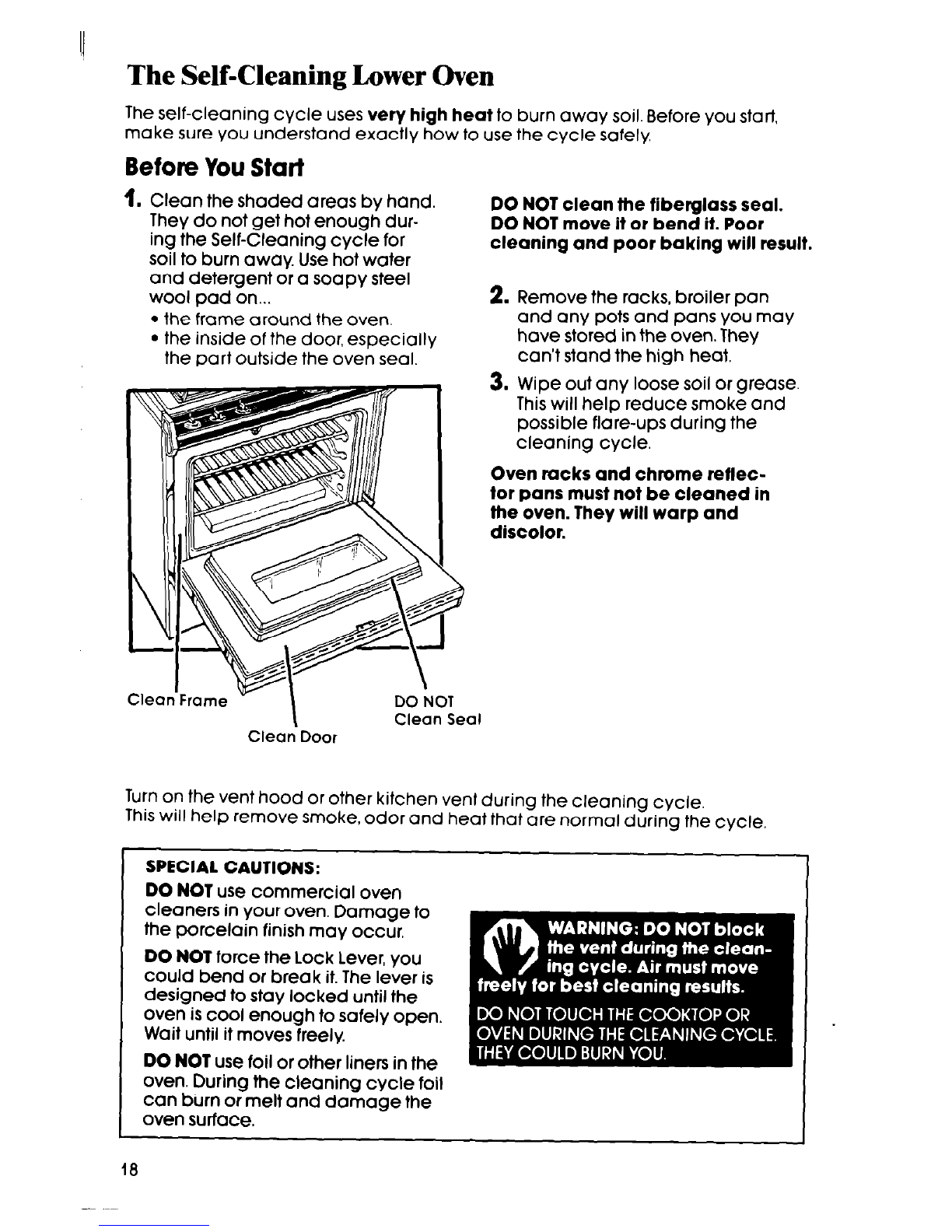

The Self-Cleaning Lower Oven
The self-cleaning cycle uses very high heat to burn away soil. Before you start,
make sure you understand exactly how to use the cycle safely,
Before You Start
1. Clean the shaded areas bv hand.
They do not get hot enough dur-
ing the Self-Cleaning cycle for
soil to burn away. Use hot water
DO NOT clean the fiberglass seal.
DO NOT move it or bend it. Poor
cleaning and poor baking will result.
and detergent or a soapy steel
wool pad on...
l the frame around the oven.
l the inside of the door, especially
the part outside the oven seal.
2. Remove the racks, broiler pan
and any pots and pans you may
have stored in the oven. They
can’t stand the high heat.
3. Wipe out any loose soil or grease.
This will help reduce smoke and
possible flare-ups during the
cleaning cycle.
Oven racks and chrome retlec-
tor pans must not be cleaned in
the oven. They will warp and
discolor.
Clean Door
DO NOT
Clean Seal
Turn on the vent hood or other kitchen vent during the cleaning cycle.
This will help remove smoke, odor and heat that are normal during the cycle.
SPECIAL CAUTIONS:
DO NOT use commercial oven
cleaners in your oven. Damage to
the porcelain finish may occur,
DO NOT force the Lock Lever, you
could bend or break it. The lever is
designed to stay locked until the
oven is cool enough to safely open.
Wait until it moves freely.
DO NOT use foil or other liners in the
oven. During the cleaning cycle foil
can burn or melt and damage the
oven surface.
18

I
”
Setting the Controls for Self-Cleaning
Be sure the kitchen is ventilated during the Self-Cleaning cycle. This will
remove normal smoke and heat odors from the room as quickly as possible.
1. Make sure the Clock, Start and
Stop Times all have the right time
of day.
3. Set the Oven Selector and Oven
Temperature Controls to CLEAN.
5. After the Clean Cycle Is
completed and the oven tem-
perature has dropped below
500°F (260°C) the Clean Light
goes off and the Lock Lever can
be moved back to the COOK
position, Do not foroe it, Wait
until it moves easily. Turn the
Oven Selector and Oven
Temperature Controls to OFF.
2. Push in the Stop Time Knob and
turn the hand clockwise 2-2%
hours.
l Use 2 hours for light soil.
l Use 2Yzhours for moderate to
heavy soil.
4. Move the Lock Lever to the CLEAN
position. This will start the Self-
Cleaning Cycle. If the door is not
completely closed or the lever
is not all the way to the right, the
cycle will not start.
When the oven temperature
exceeds normal baking tem-
peratures, the oven door can’t
be opened and the Lock Lever
must not be moved.
6. After the oven is cool, wipe off
any residue or ash witl ,
cloth.Ifneeded,touch
with cleaner or plastic
pad.

Special Tips
Keep the kitchen well ventilated Clean the oven before it gets
during the cleaning cycle to help heavily soiled. Cleaning a very
get rid of normal heat, odors and soiled oven takes longer and
smoke. results in more smoke than usual
If the cleaning cycle doesn’t get
the oven as clean as you ex-
pected, the cycle may not have
been set long enough or you
may not have prepared the oven
properly. Set the cleaning time
longer the next time and hand
clean areas noted on page 18.
To stop the cleaning cycle at any
time:
1. Push in and turn the Stop Time
Knob clockwise until it points to
the right time of day
2. Turn the Oven Selector and Oven
Temperature Controls to OFF.
When the oven temperature
drops below 500°F (260°C) the
Lock Lever can be moved to the
COOK Position. Do not force it.
Walt until it moves easily.
