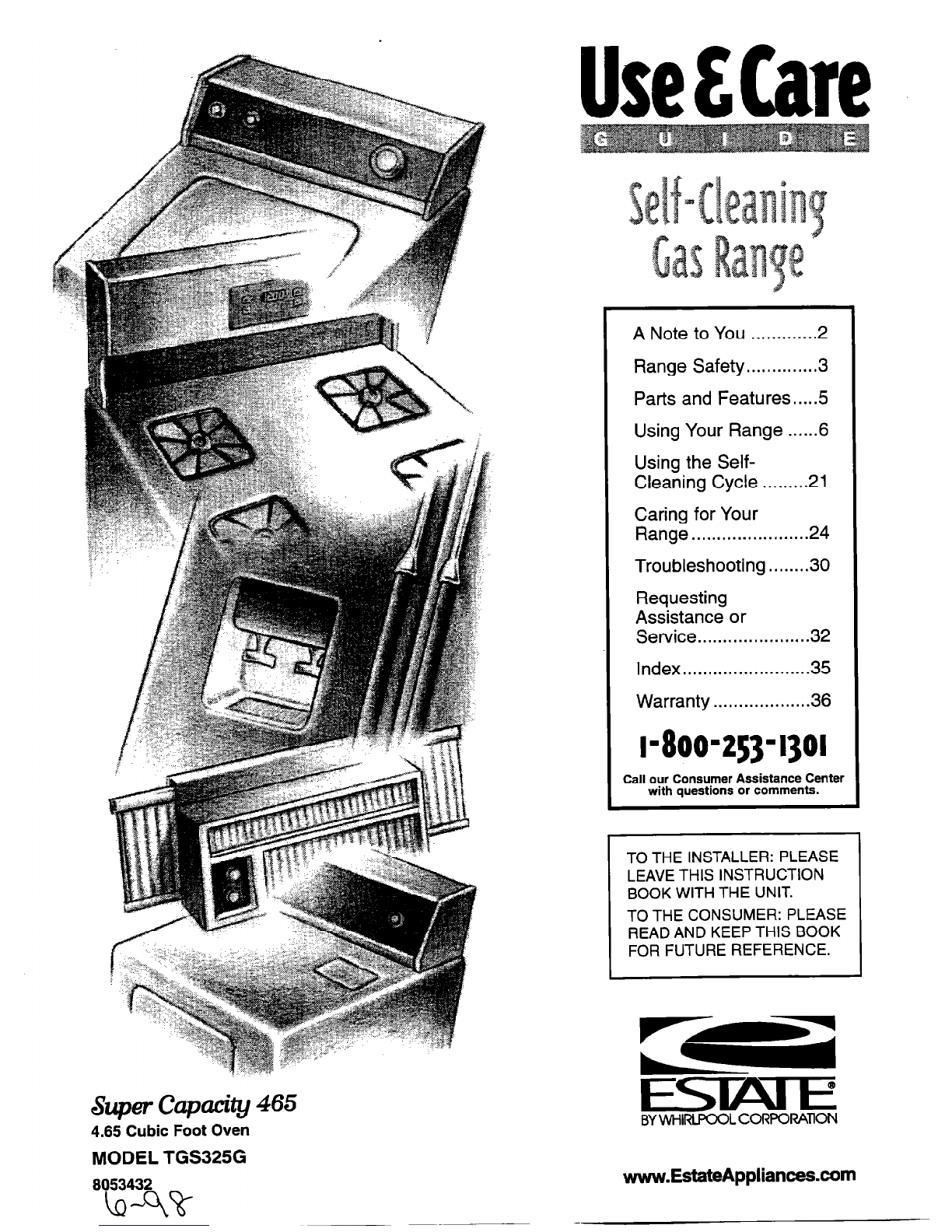

Whirlpool TGS325G Operating instructions

stcper Capacity 465
4.65 Cubic Foot Oven
MODEL TGS325G
a053432
b-98-
UseEC2we
A Note to You .............2
Range Safety.. ............3
Parts and Features.....5
Using Your Range ......6
Using the Self-
Cleaning Cycle .........21
Caring for Your
Range .......................24
Troubleshooting ........30
Requesting
Assistance or
Service ......................32
Index .........................35
Warranty ...................36
1=800=253=l’j01
Call our Consumer Assistance Center
with questions or comments.
TO THE INSTALLER: PLEASE
LEAVE THIS INSTRUCTION
BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE
READ AND KEEP THIS BOOK
FOR FUTURE REFERENCE.
BYWHIRLPOOLCORPORAllON
www.EstateAppliances.com

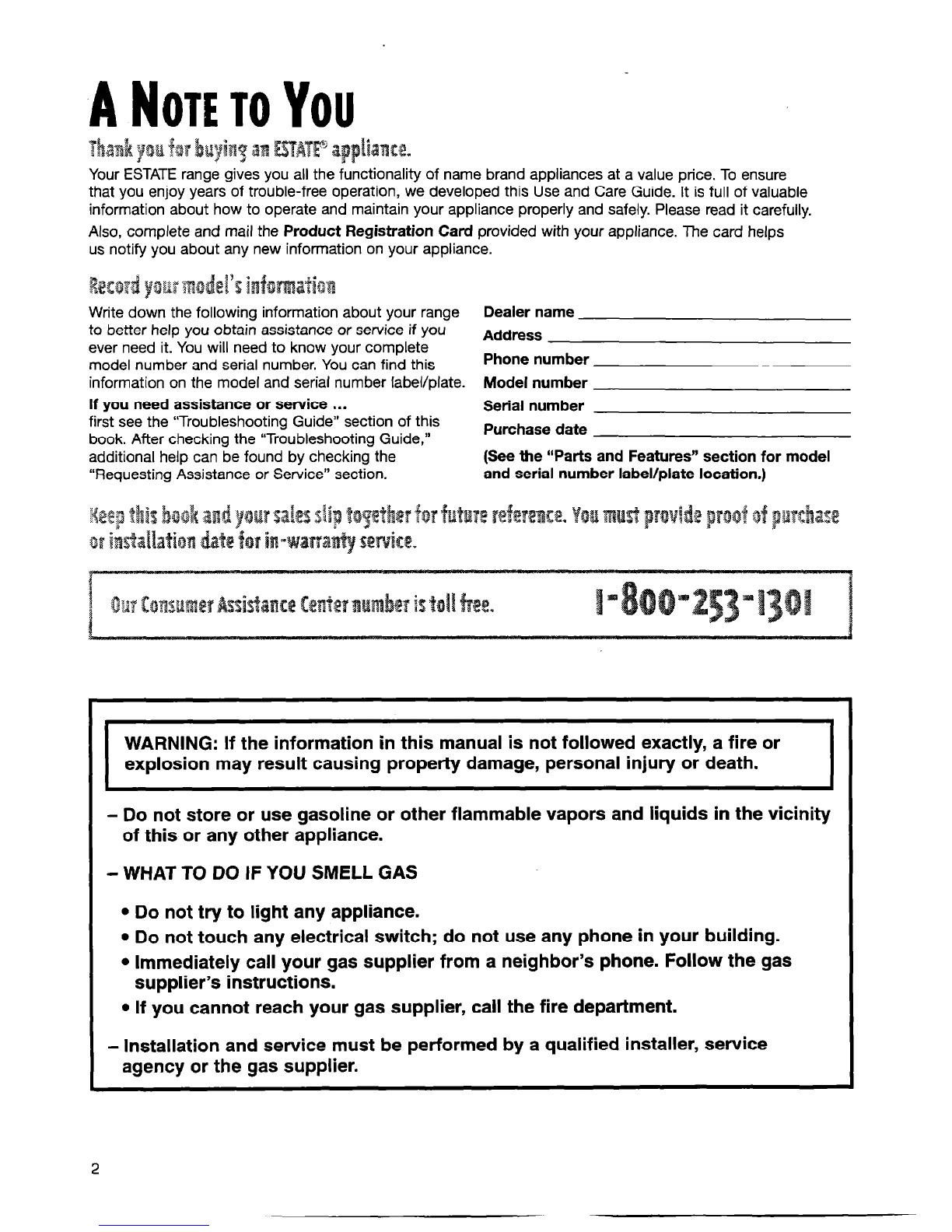

ANOTE TO You
ctionality of name brand appliances at a value price. To ensure
that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable
information about how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, complete and mail the Product Registration Card provided with your appliance. The card helps
us notify you about any new information on your appliance.
Write down the following information about your range
to better help you obtain assistance or service if you
ever need it. You will need to know your complete
model number and serial number. You can find this
information on the model and serial number label/plate.
If you need assistance or service ...
first see the “Troubleshooting Guide” section of this
book. After checking the “Troubleshooting Guide,”
additional help can be found by checking the
“Requesting Assistance or Service” section.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
(See the “Parts and Features” section for model
and serial number label/plate location.)
I
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death. I
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in your building.
l Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
l If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
2

RANGE SAFETY
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
0
This is the safety alert symbol.
! This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
0 ‘WARNING.” These words mean:
You y&l be killed or seriously injured if you don’t
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

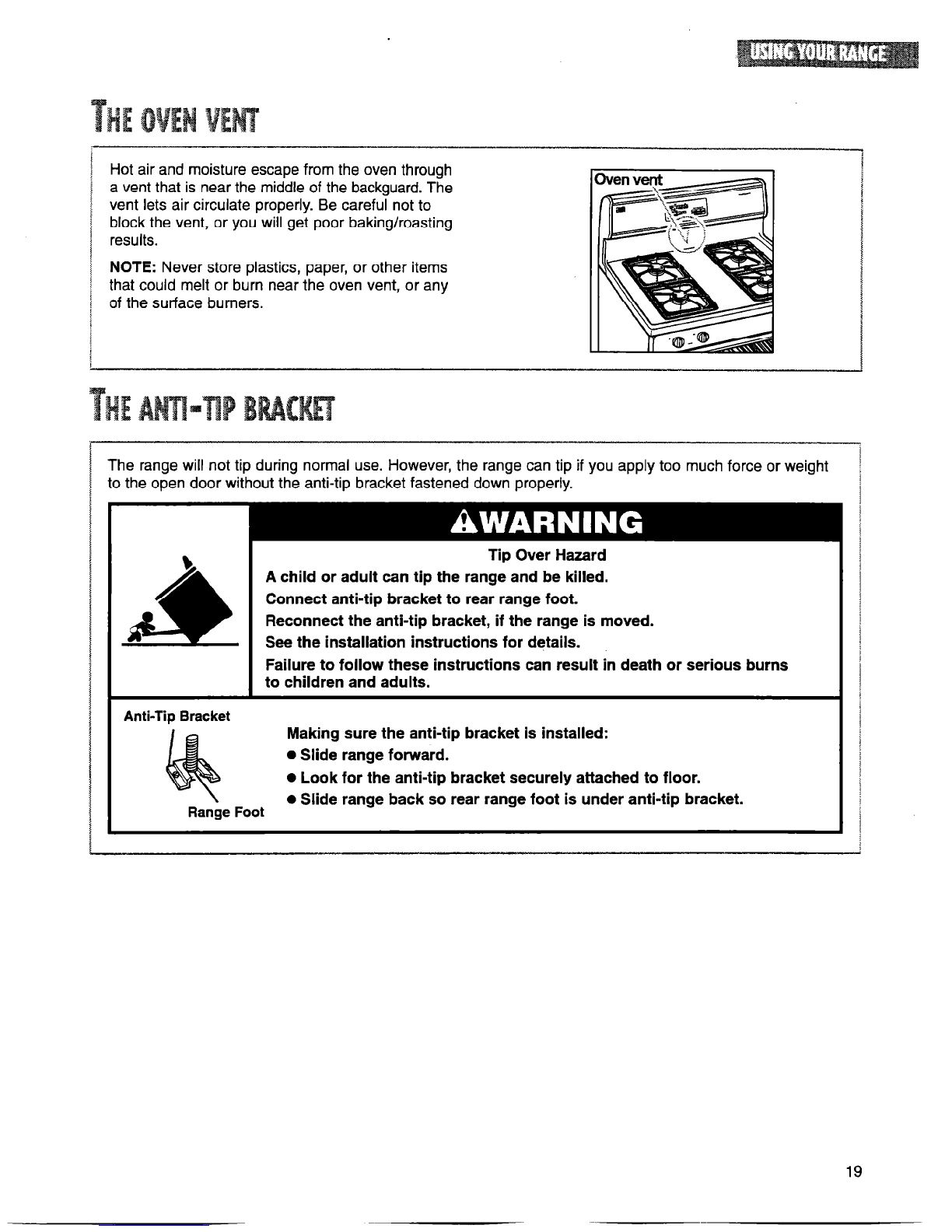

Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Anti-Tip Bracket
Making sure the anti-tip bracket is installed:
l Slide range forward.
l Look for the anti-tip bracket securely attached to floor.
l Slide range back so rear range foot is under anti-tip bracket.
Range Foot
continued on next page
3

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
l WARNING -TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY All-ACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
.CAUTlON -D
0 not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
l Proper Installation - The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANWNFPA 70. Be
sure the range is properly installed and grounded
by a qualified technician.
l This range is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug.
l Disconnect the electrical supply before
servicing the appliance.
l Never Use the Range for Warming or Heating
the Room.
l Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
l Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
l Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
*Top burner flame size should be adjusted so it
does not extend beyond the edge of the
cooking utensil.
For self-cleaning ranges -
l Before Self-Cleaning the Oven - Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.
- SAVE THESE INSTRUCTIONS -
4

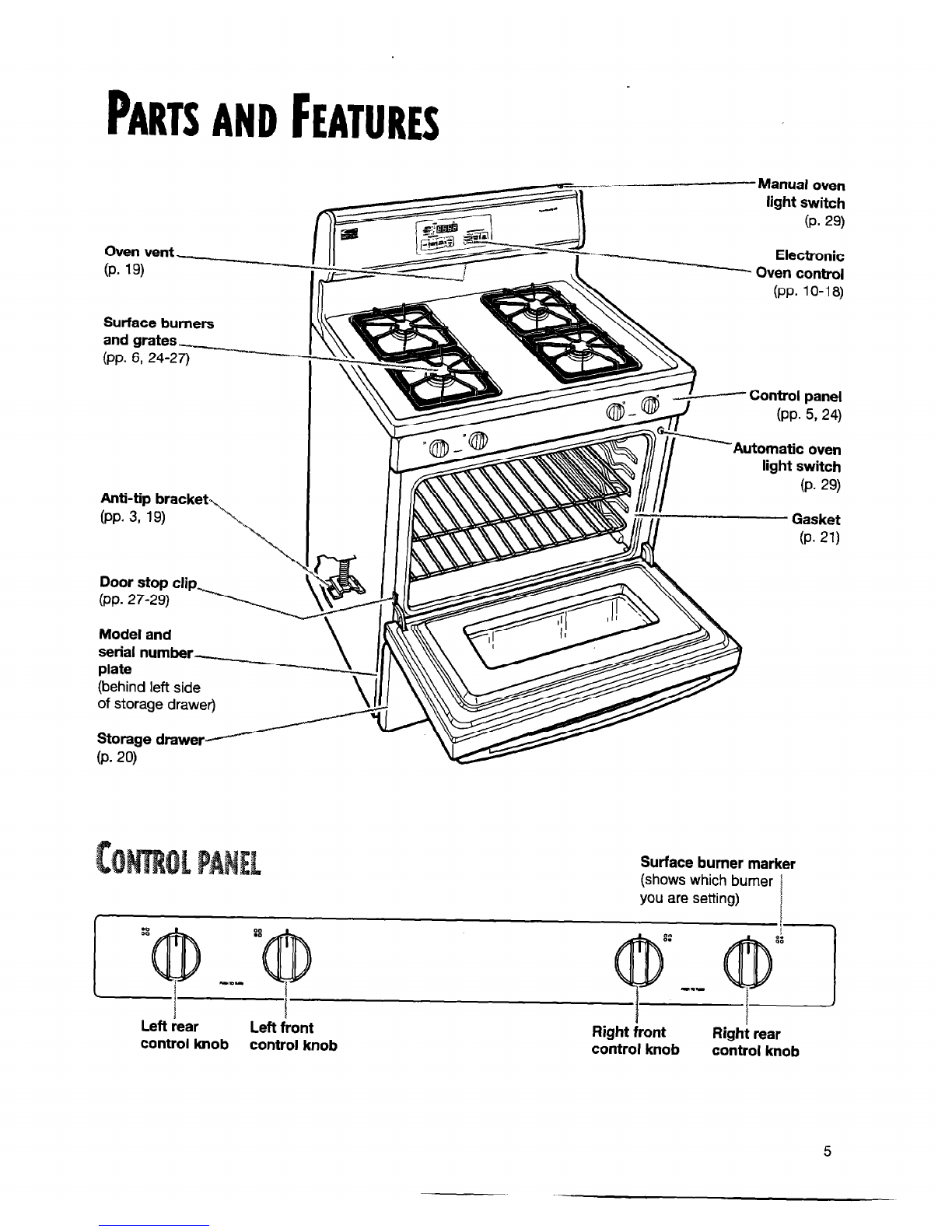

PARTS ANDFEATURES
Oven vent -~
(P. 19)
Surface burners
g! 69TZ7
Anti-tip bracket
(PP. 3, 19)
Door stop clip
(pp. 27-29)
Model and
serial number--
plate
(behind left side
of storage drawer)
Storage drawer--“”
(P. 20)
Manual oven
light switch
(P. 29)
I II

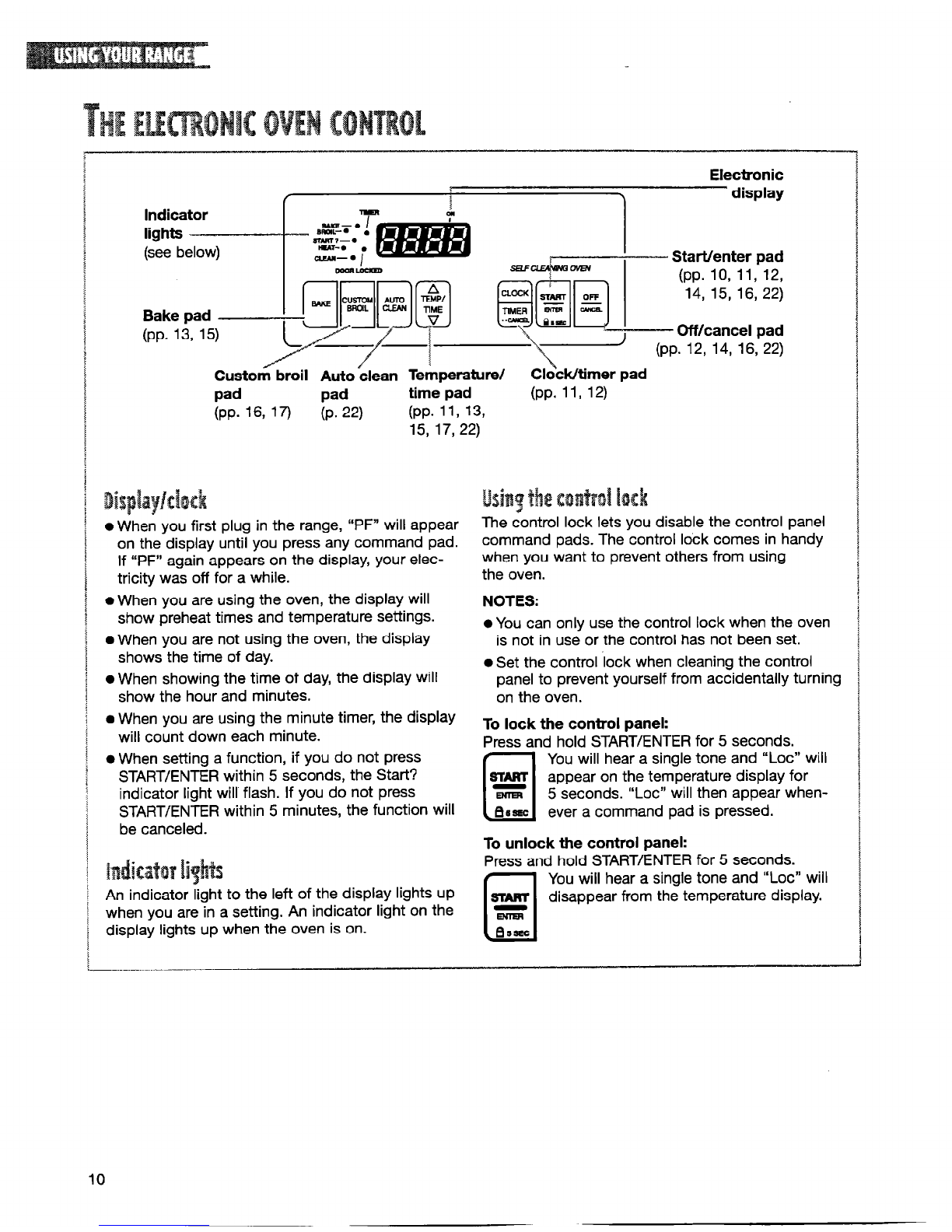

I /F- Electronic
Oven control
1n-i n\
Control panel
(PP. 5 24)
3
11-Automatic oven
b light switch
(P. 29)
Gasket
(p. 211
Surface burner marker
(shows which burner
you are setting)
Left iear Left iront
control knob control knob Right front Right rear
control knob control knob
5

USINGYOURhNCE
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
Your range comes with electric ignitors. Electric
ignitors automatically light the burners each time
you turn the control knobs to LIGHT.
l Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
0 Push in the control knob and turn it counter-
clockwise to the
LIGHT position. The
clicking sound is the
ignitor sparking. Make
sure the burner has lit.
l To stop the clicking
sound after the burner
lights, turn the control
knob to the cook setting
you want. You can set
the control knob
anywhere between HIGH and LOW.
NOTE: All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LIGHT is the one that will ignite.
Use the following chart as a guide.
SElTlNG
LIGHT
HIGH
Mid-range
(between HIGH
and LOW)
LOW
RECOMMENDED USE
0 To light the burner.
0 To start food cooking.
0 To bring liquid to a boil.
0 To hold a boil.
0 To fry chicken or pancakes.
a For gravy, pudding, and icing.
0 To cook large amounts of
vegetables.
0 To keep food warm.
0 To melt chocolate or butter.
l To simmer.
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
l To help shorten your cooking time, use the least
amount of liquid possible.
l Preheat your pots and pans only when
recommended and for the shortest time possible.
l Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
6

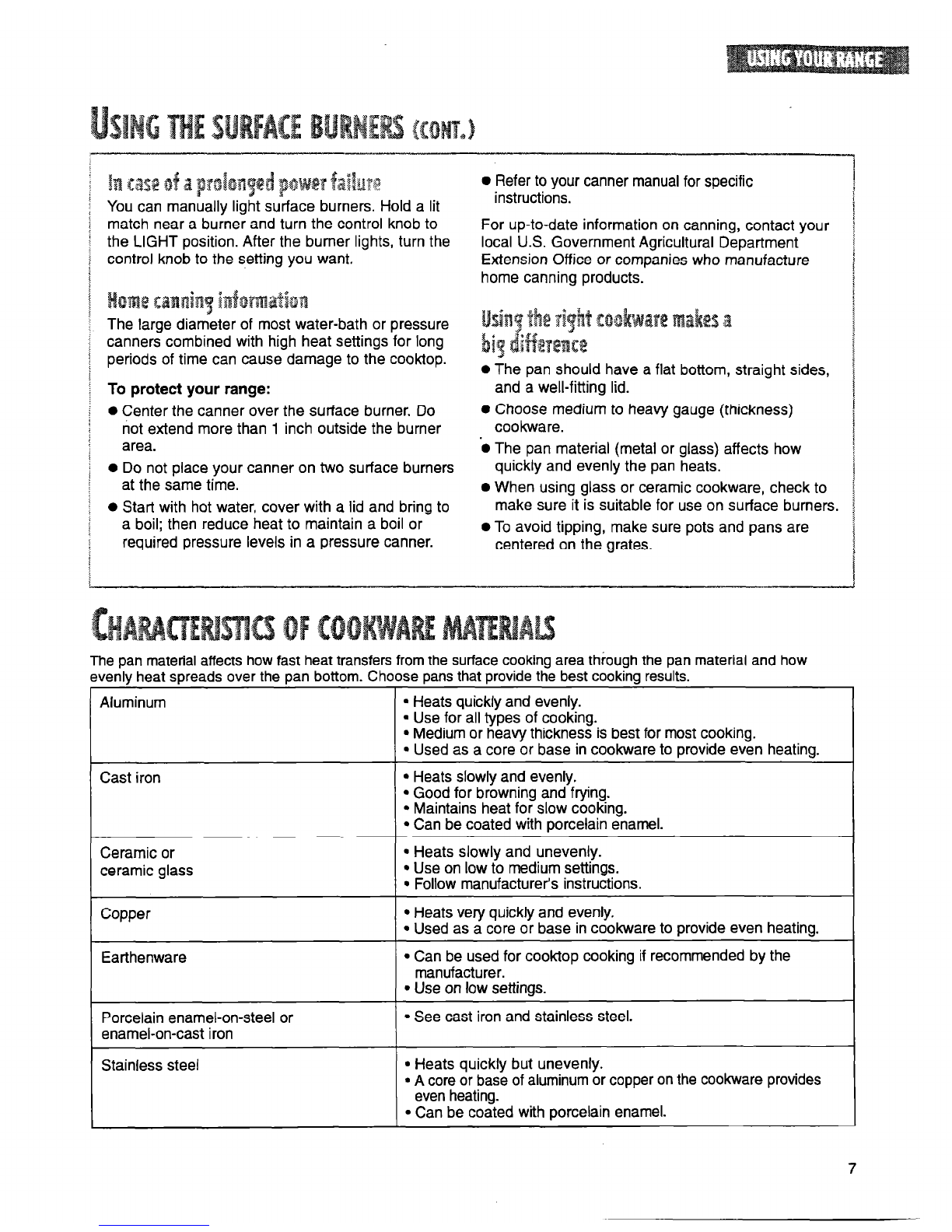

You can manua burners. Hold a lit
match near a burner and turn the control knob to
the LIGHT position. After the burner lights, turn the
control knob to the setting you want.
nin
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cook-top.
To protect your range:
0 Center the canner over the surface burner. Do
not extend more than 1 inch outside the burner
area.
l Do not place your canner on two surface burners
at the same time.
l Start with hot water, cover with a lid and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
1
i
l Refer to your canner manual for specific
instructions.
For up-to-date information on canning, contact your
local U.S. Government Agricultural Department
Extension Office or companies who manufacture
home canning products.
l The pan should have a flat bottom, straight sides,
and a well-fitting lid.
0 Choose medium to heavy gauge (thickness)
cookware.
‘0 The pan material (metal or glass) affects how
quickly and evenly the pan heats.
a When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
l To avoid tipping, make sure pots and pans are
centered on the grates.
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum . Heats quickly and evenly.
l Use for all types of cooking.
l Medium or heavy thickness is best for most cooking.
. Used as a core or base in cookware to provide even heating.
Cast iron l Heats slowly and evenly.
l Good for browning and frying.
l Maintains heat for slow cooking.
l Can be coated with oorcelain enamel.
Ceramic or
ceramic glass . Heats slowly and unevenly.
l Use on low to medium settings.
. Follow manufacturers instructions.
Copper l Heats very quickly and evenly.
l Used as a core or base in cookware to provide even heating.
Earthenware l Can be used for cooktop cooking if recommended by the
manufacturer.
9 Use on low settings.
Porcelain enamel-on-steel or
enamel-on-cast iron l See cast iron and stainless steel.
9 Heats quickly but unevenly.
l A core or base of aluminum or copper on the cookware provides
even heating.
l Can be coated with porcelain enamel.
7

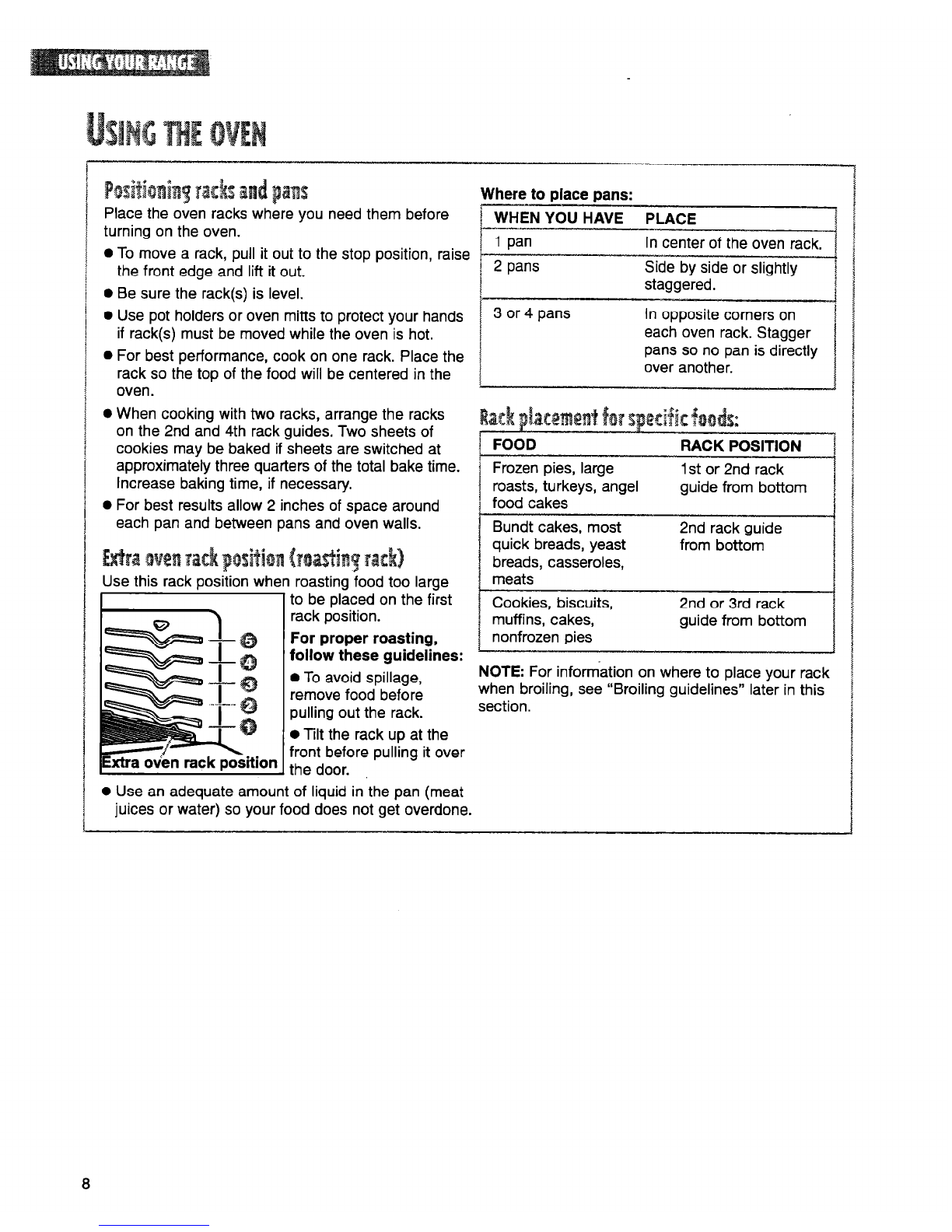

u need them before
turning on the oven.
0 To move a rack, pull it out to the stop oosition. raise
staggered.
the front edge and lift it out. ’ ’
0 Be sure the rack(s) is level.
0 Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
0 For best performance, cook on one rack. Place the
rack so the top of the food will be centered in the
oven.
0 When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake time.
Increase baking time, if necessary.
0 For best results allow 2 inches of space around
each pan and between pans and oven walls.
For proper roasting,
follow these guidelines:
0 To avoid spillage,
remove food before
pulling out the rack.
0 Tilt the rack up at the
front before pulling it over
0 Use an adequate amount of liquid in the pan (meat
3 or 4 pans In opposite corners on 1
each oven rack. Stagger f
pans so no pan is directly 1
over another. I
I P
FOOD
Frozen pies, large
roasts, turkeys, angel
food cakes
RACK POSITION
1st or 2nd rack
guide from bottom
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
2nd rack guide
from bottom
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
2nd or 3rd rack
guide from bottom
NOTE: For information on where to place your rack
when broiling, see “Broiling guidelines” later in this
section.
juices or water) so your food does not get overdone.
a

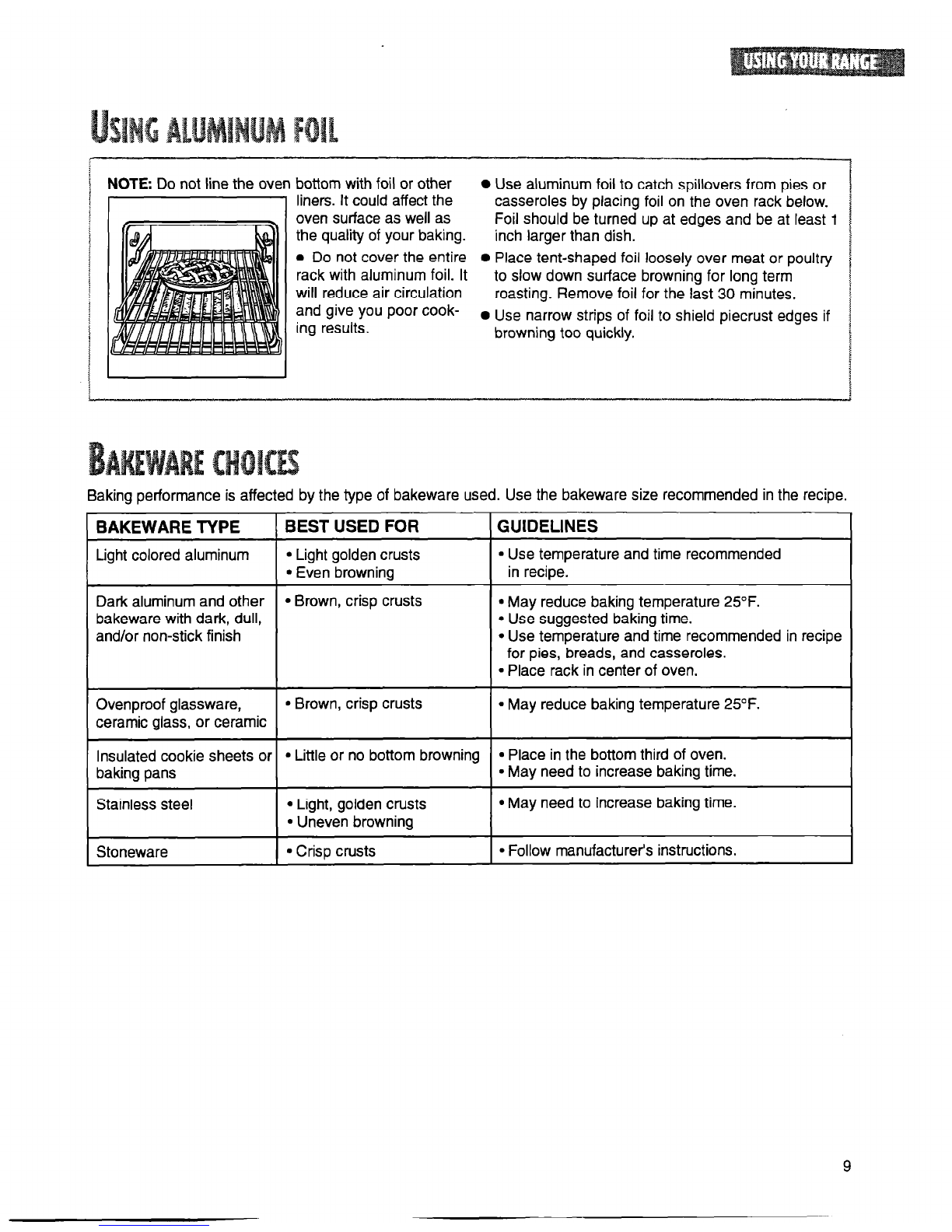

NOTE: Do not line the over
!
I bottom with foil or other 0 Use aluminum foil to catch spillovers from pies or
liners. It could affect the casseroles by placing foil on the oven rack below.
oven surface as well as Foil should be turned up at edges and be at least 1
the quality of your baking. inch larger than dish.
l Do not cover the entire l Place tent-shaped foil loosely over meat or poultry
rack with aluminum foil. It to slow down surface browning for long term
will reduce air circulation roasting. Remove foil for the last 30 minutes.
and give you poor cook-
ing results. 0 Use narrow strips of foil to shield piecrust edges if
browning too quickly.
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light colored aluminum
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
Ovenproof glassware,
ceramic glass, or ceramic
Insulated cookie sheets of
baking pans
Stainless steel
Stoneware
BEST USED FOR
. Light golden crusts
. Even browning
l Brown, crisp crusts
l Brown, crisp crusts
l May reduce baking temperature 25°F.
. Little or no bottom browning 9Place in the bottom third of oven.
l May need to increase baking time.
l Light, golden crusts
l Uneven browning
l May need to increase baking time.
. Crisp crusts
l Follow manufacturer’s instructions.
GUIDELINES
l Use temperature and time recommended
in recipe.
l May reduce baking temperature 25°F.
l Use suggested baking time.
l Use temperature and time recommended in recipe
for pies, breads, and casseroles.
l Place rack in center of oven.
9

Electronic
display
Start/enter pad
(PP. 16, 11, 12,
14, 15, 16, 22)
Off/cancel pad
(pp. 12, 14, 16, 22)
Custom broil Auto clean Temperature/
pad pad time pad (PP. 11, 12)
(PP. 16, 17) (P. 22) (PP. 11,13,
15, 17, 22)
l When you first plug in the range, “PF” will appear
on the display until you press any command pad.
If “PF” again appears on the display, your elec-
tricity was off for a while.
l When you are using the oven, the display will
show preheat times and temperature settings.
l When you are not using the oven, the display
shows the time of day.
l When showing the time of day, the display will
show the hour and minutes.
l When you are using the minute timer, the display
will count down each minute.
l When setting a function, if you do not press
START/ENTER within 5 seconds, the Start?
indicator light will flash. If you do not press
START/ENTER within 5 minutes, the function will
be canceled.
I
5
i
i
-..
An indicator light to the left of the display lights up
when you are in a setting. An indicator light on the
display lights up when the oven is on.
The control lock lets you disable the control panel
command pads. The control lock comes in handy
when you want to prevent others from using
the oven.
NOTES:
l You can only use the control lock when the oven
is not in use or the control has not been set.
l Set the control lock when cleaning the control
panel to prevent yourself from accidentally turning
on the oven.
To lock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and “Lot” will
START
cl
F appear on the temperature display for 5 seconds. “Lot” will then appear when-
Et55#: ever a command pad is pressed.
To unlock the control panel:
Press and hold START/ENTER for 5 seconds.
Ll
You will hear a single tone and “Lot” will
m~ disappear from the temperature display.
BSSEC
10

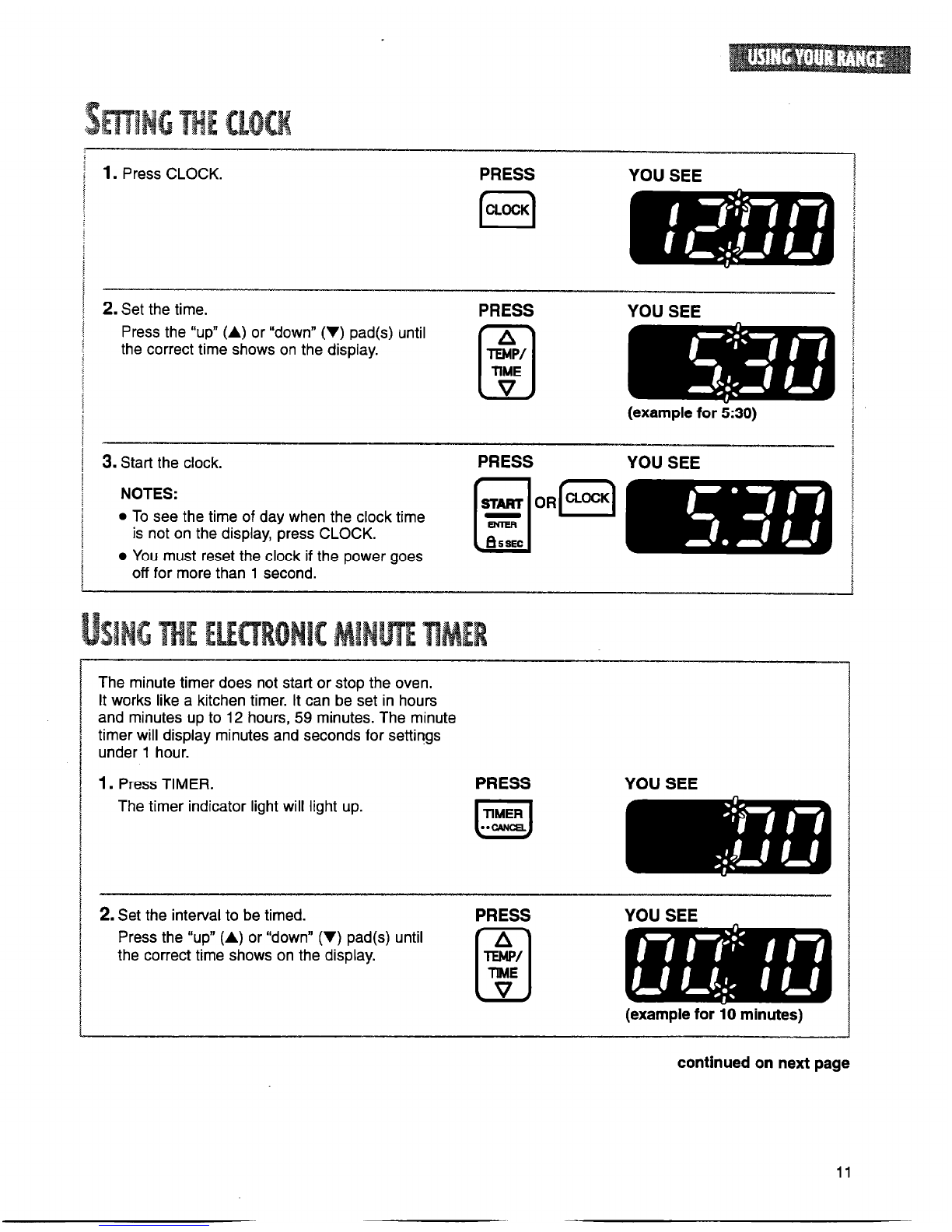

1. Press CLOCK. YOU SEE
2. Set the time. PRESS YOU SEE
Press the “up” (A) or “down” (V) pad(s) until
the correct time shows on the display.
A
TEMP/
0
TlME
V
3. Start the clock.
NOTES:
PRESS YOU SEE
l To see the time of day when the clock time
is not on the display, press CLOCK.
l You must reset the clock if the power goes
off for more than 1 second.
The minute timer does not start or stop the oven.
It works like a kitchen timer. It can be set in hours
and minutes up to 12 hours, 59 minutes. The minute
timer will display minutes and seconds for settings
under 1 hour.
1. Press TIMER.
The timer indicator light will light up.
PRESS YOU SEE
TIMER
0
..cANca
2. Set the interval to be timed.
Press the “up” (A) or “down” (V) pad(s) until
the correct time shows on the display.
PRESS
(example for i0 minutes)
continued on next page
11

3. Start the minute timer.
The minute timer will begin counting down
immmediately after the timer is started.
When the time is up:
You will hear four l-second tones.
NOTE: To display the time of day while the
minute timer is counting down, press CLOCK.
(display counts down)
YOU SEE
4. To clear the display, turn off the minute timer.
PRESS
(time of day)
PRESS
17
TIMER
..cxNcEL
(twice)
(time of day)
1 After setting a function for the first time, you OFF/CANCEL will cancel any function except for the 1
must press START/ENTER to start clock, minute timer, or control lock.
the function. j
I
12

IMPORTANT: Do not try to light the oven burner
during a power failure.
1. Place the racks where you need them. For more
information, see
“Positioning racks and
pans” in “Using the
Oven” earlier in this
section.
NOTE: Do not place food
directly on the oven door
or the oven bottom.
2. Choose the bake setting.
The bake indicator light will light up.
PRESS YOU SEE
[;1 m
3. Set the temperature (optional).
PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°F. Press A to raise the
temperature or V to lower the temperature in
5°F amounts. You can set a temperature any-
where from 170°F to 500°F. Use these pads until
the desired temperature shows on the display. El !!!!BBb
4. When roasting, put your food in the oven.
. You do not have to
preheat the oven when
l For even cooking, place the meat on a rack in a
roasting, unless your shallow pan. This keeps the meat out of the
recipe recommends it. drippings and allows the heat to circulate better.
l Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of the
largest muscle or thickest portion of the meat or
poultry. Make sure the thermometer is not touching
bone, fat, or the bottom of the pan.
continued on next page
13

5. Press START/ENTER.
PRESS YOU SEE
A preheat conditioning time counts down the
approximate preheat time after the oven
temperature has been set and START has been
pressed. The heat, bake, and on indicator lights
will light up. The oven control automatically sets [El mFi?idb
preheating times based on the oven temperature (example for set temperature
you select: of 325°F)
l For 245°F and less, the preheating time is
4 minutes.
l For 250°F~445”F, the preheating time is
10 minutes.
l For above 45O”F, the preheating time is
15 minutes.
The oven is preheated and ready to use when
you hear a l-second tone, the countdown is
finished, and the set temperature is displayed.
The preheat and set temperatures may be
different at the end of the countdown. This
is normal.
NOTES:
YOU SEE
l When the oven temperature is greater than
17O”F, no preheat conditioning time will be
shown in the display.
l You can change the temperature setting any
time after pressing START/ENTER. You do not
have to press START/ENTER again.
l The preheat conditioning time will not change if
you reset the temperature before the countdown
time ends.
l If you are baking/roasting while the minute timer
is counting down, you can see the set
baking/roasting temperature for 5 seconds by
pressing BAKE.
6. When baking, put your food in the oven after
the preheat condition-
ing time ends. During
baking/roasting, the
oven burner will turn
on and off to keep the
oven temperature at
the setting.
of heat, open the oven door as little
as possible.
l Use a timer to keep track of cooking time.
l Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
7. After cooking, turn off the oven. PRESS YOU SEE
(time of day or minute timer
countdown)

Although your new oven is properly adjusted to
provide accurate temperatures, it may cook faster or
slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the offset temperature by
following the steps below.
NOTE: DO NOT measure the oven temperature
with a thermometer. Opening the oven door will
lower the oven temperature and give you an incor-
rect reading. Also, the thermometer temperature
reading will change as your oven cycles.
1. Press and hold BAKE for 5 seconds.
The display will show the current offset tempera-
ture, for example “00,” if you have not already
adjusted the temperature.
YOU SEE
a!iEa
(factory setting of “W)
2. Set the new offset temperature.
PRESS
Press A to raise the temperature or V to lower
A
the temperature in 10°F amounts. You can set TEMP/
the temperature change to as low as -30°F or as 0
TIME
high as +3O”F. A minus (-) sign will appear before V
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the
temperature setting.
3. Enter the adjustment.
NOTE: The oven control will stay adjusted even
after a power failure.
PRESS YOU SEE
(time of day or minute timer
countdown)
The chart at the right tells you how much to adjust
the offset temperature to get the cooking results you
want. You can figure out cooking results by the
amount of browning, moistness, and rising times for
baked foods.

NOTE: Do not preheat when broiling, unless your
recipe recommends it.
1. Place the rack where you need it. See “Broiling
guidelines” later in this
section.
2. Put your food on the broiler pan and place the
pan in the center of
the oven rack.
Front
Rear
3. Close the door.
4. Press CUSTOM BROIL.
The broil indicator light will light up.
YOU SEE
ON
I
5. Start the oven.
PRESS YOU SEE
ON
The on and heat indicator lights will light up.
NOTES:
l You can change the temperature setting any
time after pressing START/ENTER. To change
the setting, see ‘70 custom broil at a lower
temperature” below.
l If you are broiling while the minute timer is
counting down, you can see the set broiling
temperature for 5 seconds by pressing
CUSTOM BROIL.
6. After broilina. turn off the oven.
PRESS YOU SEE
ON
16

T 8 e
l If food is cooking too fast, press the V temp pad
until “325°F” shows on the display.
l If you want food to broil slower from the start,
press CUSTOM BROIL and press the V temp
pad so a temperature between 300°F and 525°F
shows on the display. Press START/ENTER.
Lower temperature settings let the broil burner cycle
and slow cooking results. The lower the
temperature, the slower the cooking.
NOTE: Thicker cuts and unevenly shaped pieces
of meat, fish, and poultry may cook better if you use
lower broiling temperatures.
PRESS YOU SEE
ON
A
TEMP/
0
TlME
V
PRESS YOU SEE
ON
(example shows broil at 400°F)
TEMP/
U
TIME
V
l Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
l Pull out oven rack to stop position before turning
or removing food.
l To make sure the juices drain well, do not cover
the grid with foil.
l After broiling, remove the pan from the oven
when removing the food. Drippings will bake.on
the pan if left in the heated oven, making cleaning
more difficult.
l Trim excess fat to reduce spattering. Slit the fat
l For easier cleaning, line the bottom of the pan
on the edges to prevent curling. with aluminum foil. Clean the pan and grid as
l Use tongs to turn meat to avoid losing juices. soon as possible after each use.
continued on next page
17

I-
Recommended rack positions are numbered from
- the bottom (1) to the top
(5). For best results,
place food 3 inches or
more from broil burner.
APPROXIMATE TIME
RACK (MINUTES)
MEAT POSITION SIDE 1 SIDE 2
Steak, 1” thick 4
medium rare 14-15 7-8
medium 15-16 8-9
well done 18-19 9-l 0
Ground Meat Patties, 34”thick, well done 4 13-14 6-7
Pork Chops, 1” thick 4 21-22 10-11
Ham Slice, 1x” thick, precooked 4 8-10 4-5
Frankfurters 4 6-7 3-4
Lamb Chops, 1” thick 4 15-17 8-9
Chicken
bone-in pieces 3 18-20 18-20
boneless breasts 4 12-16 11-16
Fish 4
fillets %X thick 8-10 4-5
steaks X-1 ” thick 15-18 7-9
Times are guidelines only and may need to be adjusted for individual tastes.
18

Hot air and moisture escape from the oven through
a vent that is near the middle of the backguard. The
vent lets air circulate properly. Be careful not to
block the vent, or you will get poor baking/roasting
results.
NOTE: Never store plastics, paper, or other items
that could melt or burn near the oven vent, or any
of the surface burners.
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
l Slide range forward.
Range Foor
0 Look for the anti-tip bracket securely attached to floor.
0 Slide range back so rear range foot is under anti-tip bracket.
19

t
Use the storage drawer to store cookware. You can
remove the drawer to make it easier to clean under
the range.
1. Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
2. Lift the back of the drawer slightly and slide it all
the way out.
Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2. Lift the front of the drawer and push it in until the
metal stops on the drawer slide rails clear the
upper drawer guides. Then slide the drawer
closed.
drawer guide
20
