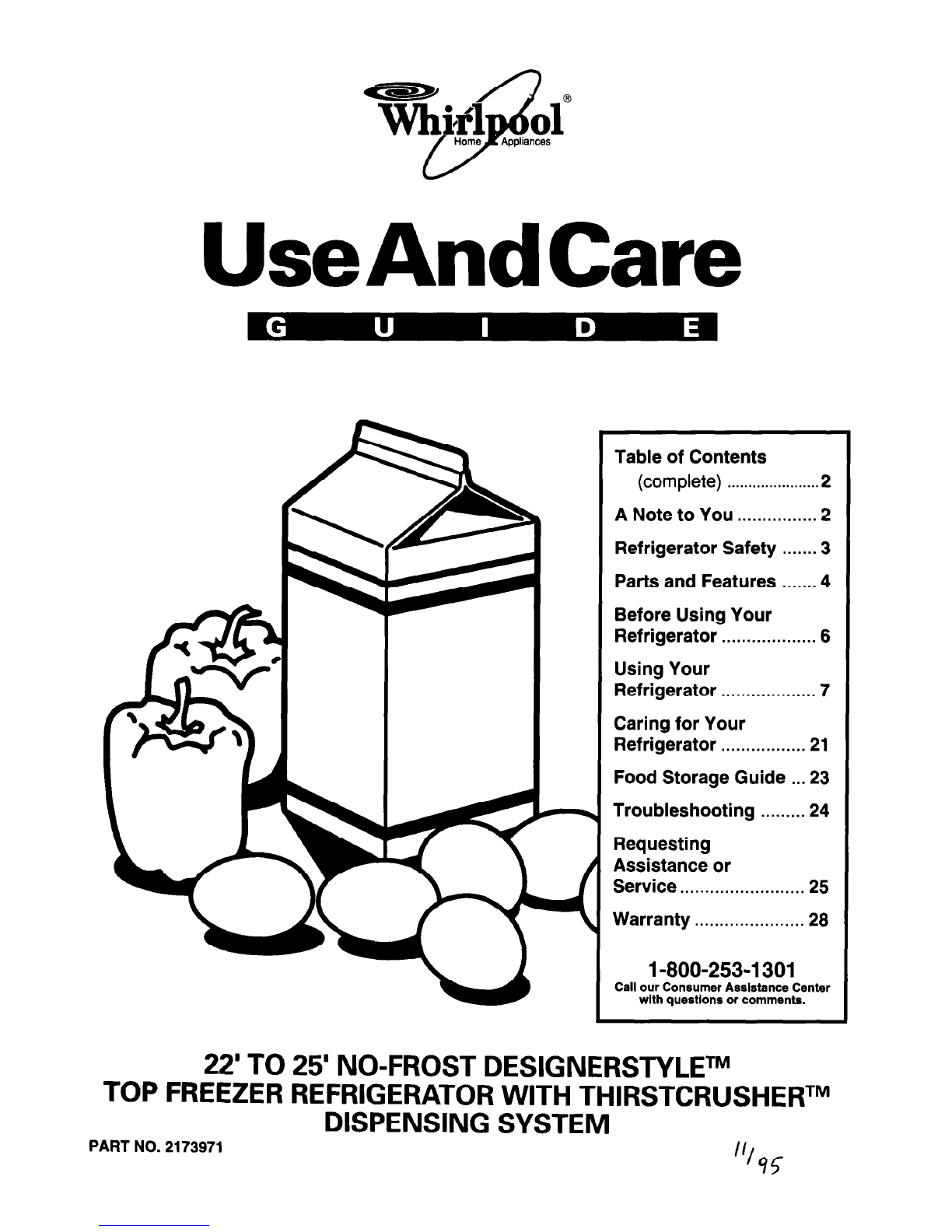

Whirlpool 22' TO 25' NO-FROST DESIGNERSTYLE TOP FREEZER REFRIGERATOR WITH THIRSTCRUSHERDISPENSING... User manual

UseAndCare
Table of Contents
(complete) ......................2
A Note to You ................ 2
Refrigerator Safety ....... 3
Parts and Features ....... 4
Before Using Your
Refrigerator ................... 6
Using Your
Refrigerator ................... 7
Caring for Your
Refrigerator ................. 21
Food Storage Guide ... 23
Troubleshooting ......... 24
Requesting
Assistance or
Service ......................... 25
Warranty ...................... 26
1-800-253-1301
Call our Consumer Assistance Center
wlth questions or comments.
22’ TO 25’ NO-FROST DESIGNERSTYLETM
TOP FREEZER REFRIGERATOR WITH THIRSTCRUSHERTM
DISPENSING SYSTEM
PART NO. 2173971
I/'95

Table of Contents
Page
A Note to You.. .......................................................... 2
Refrigerator Safety ................................................... 3
Parts and Features ................................................... 4
Before Using Your Refrigerator ............................. 6
Using Your Refrigerator ........................................... 7
Setting the controls ............................................... 7
Changing the control settings.. .............................. 6
Adjusting the door bins ......................................... 6
Adjusting the cantilever refrigerator shelves .........9
Adjusting the EZ-TRACKTMrefrigerator shelf ......
10

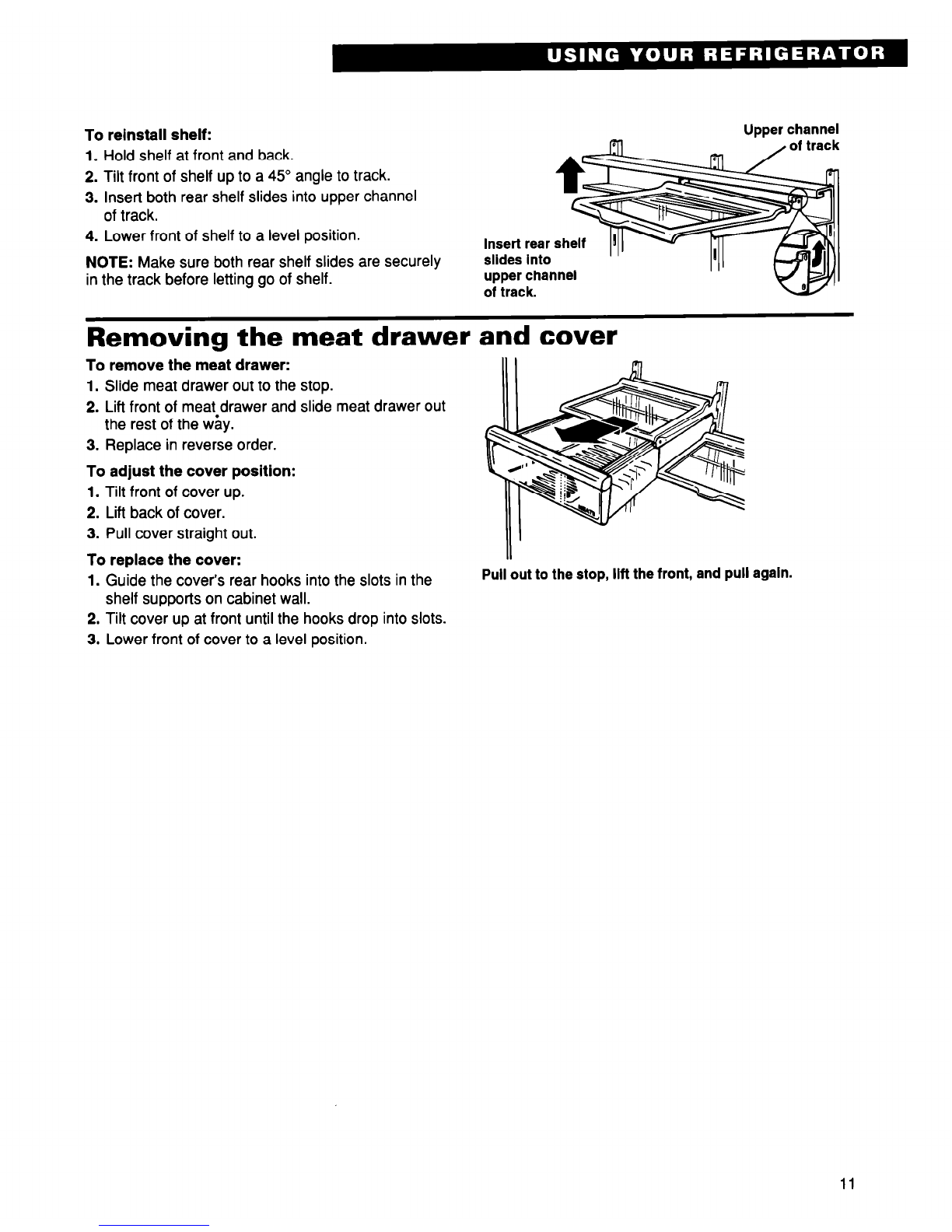

Removing the meat drawer and cover ................
11
Removing the crispers and crisper cover.. .......... 12
Adjusting the crisper humidity control ................. 12
Removing the freezer shelf .................................
12
Page

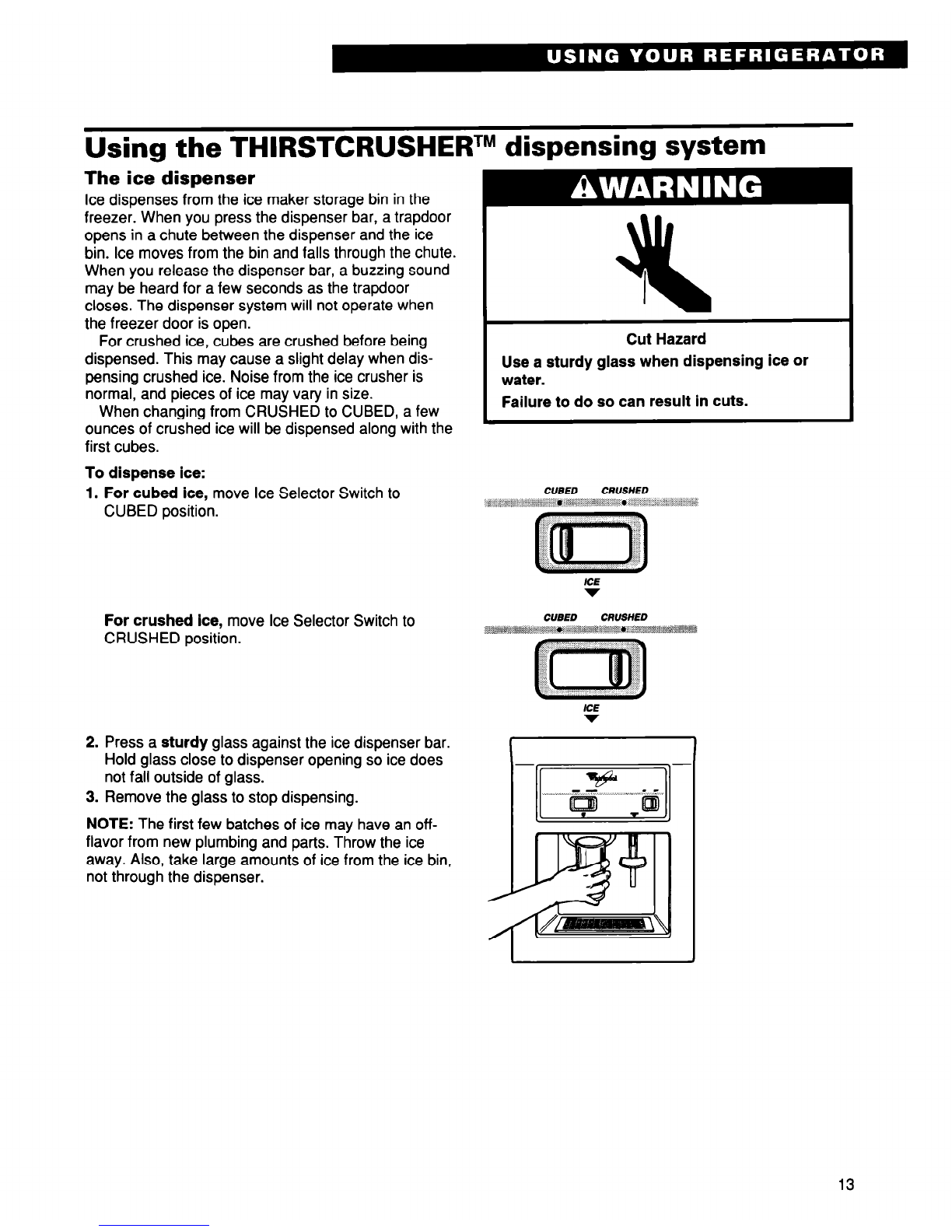

Using the THIRSTCRUSHERTM
dispensing system ..............................................
13

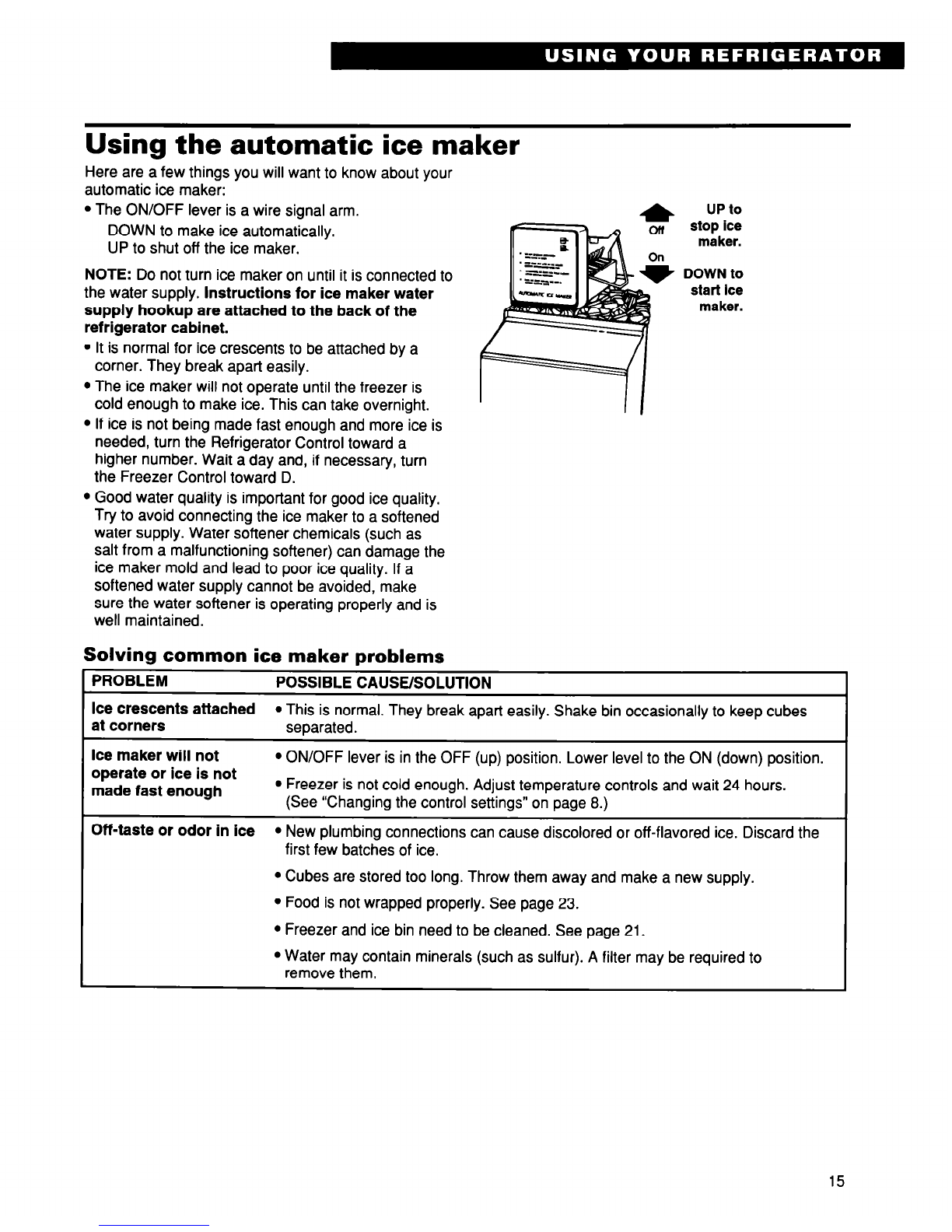

Using the automatic ice maker ............................ 15
Removing the ice maker storage bin.. ................. 16

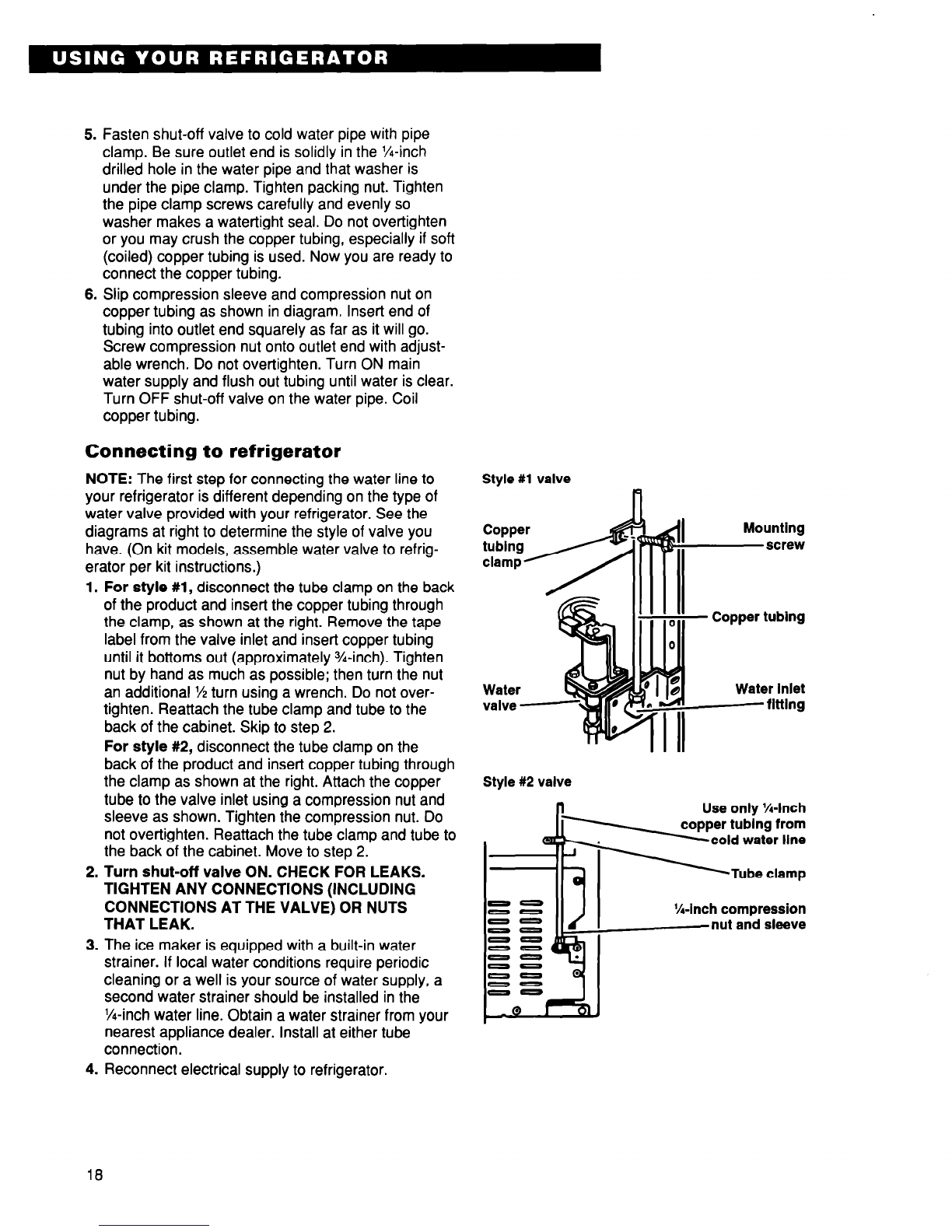

Attaching the ice maker to a water supply .......... 17
Removing the base grille.. ...................................
19
Changing the light bulbs .....................................
19

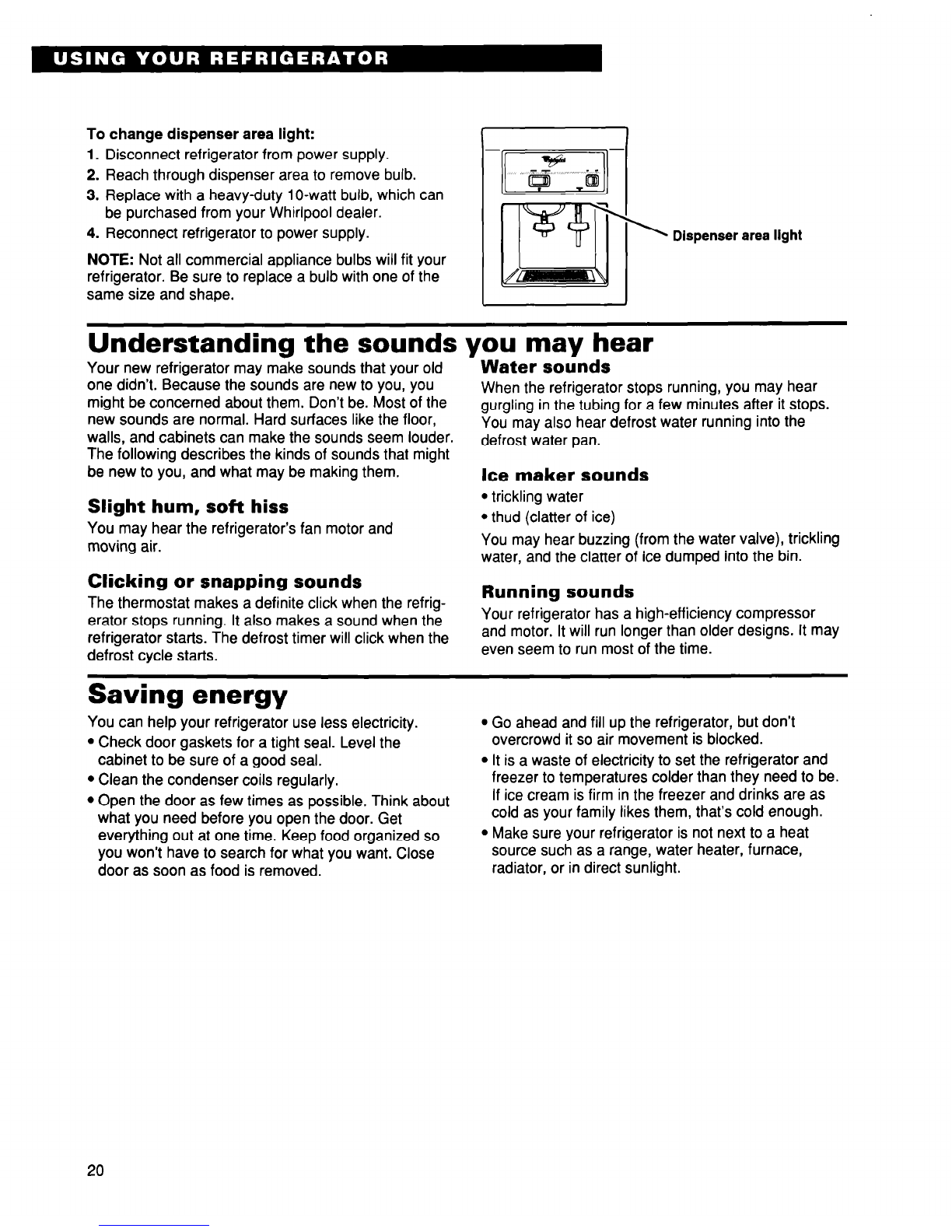

Understanding the sounds you may hear ........... 20
Saving energy .....................................................
20
Caring for Your Refrigerator.. ................................ 21
Food Storage Guide ............................................... 23
Troubleshooting ..................................................... 24
Requesting Assistance or Service.. ...................... 25
Warranty.. ................................................................ 26
A Note to You
Thank you for buying a WHIRLPOOL@ appliance.
Because your life is getting.busier and more complicated, WHIRLPOOL Refrigerators are easy to use, save time,
and help you manage your home better. To ensure you enjoy years of trouble-free operation, we developed this
Use and Care Guide. It contains valuable information about how to operate and maintain your appliance properly
and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided
with your appliance. This card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you Call to request service on your appliance,
Model Number
you need to know your complete model number and
serial number. You can find this information on the
Serial Number
model and serial number label (see diagram on page
Purchase Date
4 or 5 for location of label).
Please also record the purchase date of your appli-
Dealer Name
ance and your dealer’s name, address, and telephone
Dealer Address
number.
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
Our Consumer Assistance Center number is toll-
free from anywhere in the U.S.A. 24 hours a day.
1-800-253-1301

Refrigerator Safety
Your safety is important to us.
This guide contains statements under warning sym-
bols. Please pay special attention to these symbols
and follow any instructions given. Here is a brief
explanation of the use of the warning symbol.
This symbol alerts you to dangers such as
fire, electrical shock, burns, and personal
injury.
IMPORTANT SAFETY INSTRUCTIONS
l Read all instructions before using the refrigerator. @Neverallow children to operate, play with, or
@Childentrapment and suffocation are not problems crawl inside the refrigerator.
of the past. Junked or abandoned refrigerators are eNever clean refrigerator parts with flammable
still dangerous ... even if they will “just sit in the fluids. The fumes can create a fire hazard or
garage a few days.” explosion.
If you are getting rid of your old refrigerator, do
it safely. Please read the enclosed safety booklet
from the Association of Home Appliance Manufac-
turers. Help prevent accidents.
l FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE HAZARD OR
EXPLOSION.
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l Install and level the refrigerator on a floor that will
hold the weight and in an area suitable for its size
and use.
l Do not install the refrigerator near an oven, radiator,
or other heat source.
l Do not use the refrigerator in an area where the room
temperature will fall below 55°F (13%).
l Keep the refrigerator out of the weather.
l Connect the refrigerator only to the proper kind of
outlet, with the correct electrical supply and ground-
ing. (Refer to the Electrical Requirements and
Grounding Instructions Sheet.)
l Do not load the refrigerator with food before it has
time to get properly cold.
l Use the refrigerator only for the uses described in
this manual.
l Properly maintain the refrigerator.
l Be sure the refrigerator is not used by anyone unable
to operate it properly.
3

Parts and Features
This section contains captioned illustrations of your appliance. Use them to become familiar with where all parts
and features are located and what they look like. Page references are included for your convenience.
NOTE: The model you have purchased may have all or some of the parts and features shown and they
may not match the illustration exactly. This manual covers several models.
Freezer light ,
(P.19)
Removable
half-width
freezer shelves c
(P. 12)
EZ-TRACK””
SPILLGUARD”
glass shelf -
(P. 10)
Model
and serial
number label H
(on side wall)
Meat drawer -
(P. 11)
Crisper cover -
(P. 12)
Crlspers with
::zE;y-
(P. 12)
<
I
/
-
-
-
Leveling rollers
(behind base
grille)
(P.6) (P*19)
Automatic
- Ice maker
(P. 15)
ice bin
- Control panel
(P.7)
Utility
- compartment
wa;s;
(P. 13)
- Egg bin
Slide-out
SPILLGUARDm
\glass shelves
(P.9)
Adjustable
\ door bins
(P.8)

Freezer llgl
(P. 19)
Removable
half-wldth
freezer she
(P. 12)
Llght \
(P. 19)
EZ-TRACK’
SPILLGUAI
glass shelf
(P. 10)
Model
and serlal
number lab
(on side wal
Meat drawe
(P. 11)
Crlsper co\
(P. 12)
Crispers wi
humldlty
control -
(P. 12)
‘Ives -‘Ives H
grille)
(P.6)
m
‘.II INI
Control panel
5--
-\
Base grille
Automatic
- Ice maker
(P. 15)
- Ice bin
w Control panel
(P.7)
Utlllty
- compartment
vrl;m;
(P. 13)
- Egg bin
Slide-out
SPILLGUARDTM
\ glass shelves
(P.9)
Adjustable
\ door bins
(P.8)
Refrlgerator control Exterior moisture control Freezer control
5

It is important to prepare your refrigerator for use. This section tells you how to clean it, connect it to a power
source, install it, and level it.
Cleaning your refrigerator
Removing packaging materials
NOTE: Do not remove any permanent instruction
Remove tape and any inside labels (except the model labels inside your refrigerator. Do not remove the Tech
and serial number label) before using the refrigerator. Sheet fastened under the refrigerator at the front.
To remove any remaining tape or label glue:
l Rub briskly with thumb.
Cleaning it before use
OR After removing all packaging materials, clean your
refrigerator before using it, if necessary.
l Apply liquid hand-dishwashing detergent to area
before removing glue as described above. Do not use
sharp instruments, rubbing alcohol, flammable fluids,
or abrasive cleaners. These can damage the material.
See “Important Safety Instructions” on page 3.
See cleaning instructions on page 21.
Plugging it in
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and
properly grounded electrical supply is required. It is
recommended that a separate circuit serving only this
appliance be provided. Use a receptacle which cannot
be turned off with a switch or pull chain. Do not use an
extension cord. See Electrical Requirements and
Grounding Instructions Sheet in your Literature
Package.
C&prong grounding
type wall receptacle
Refrigerator
power cord
Installing it properly
1. Allow l/zinch (1.25 cm) space on each side and at
the top of the refrigerator for ease of installation.
2. If the hinge side of the refrigerator is to be against a
wall, you might want to leave extra space so the
door can be opened wider.
3. The refrigerator can be flush against the back wall.
Leveling it
Your refrigerator has two front leveling screws - one on
the right and one on the left. To adjust one or both of
these, follow the directions below.
Rlght to ralse;
left to lower
Use a screw-
1. Remove base grille. (See page 19.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclockwise.
4. Check with level.
drlver to adjust
5. Replace base grille. (See page 19.)
6

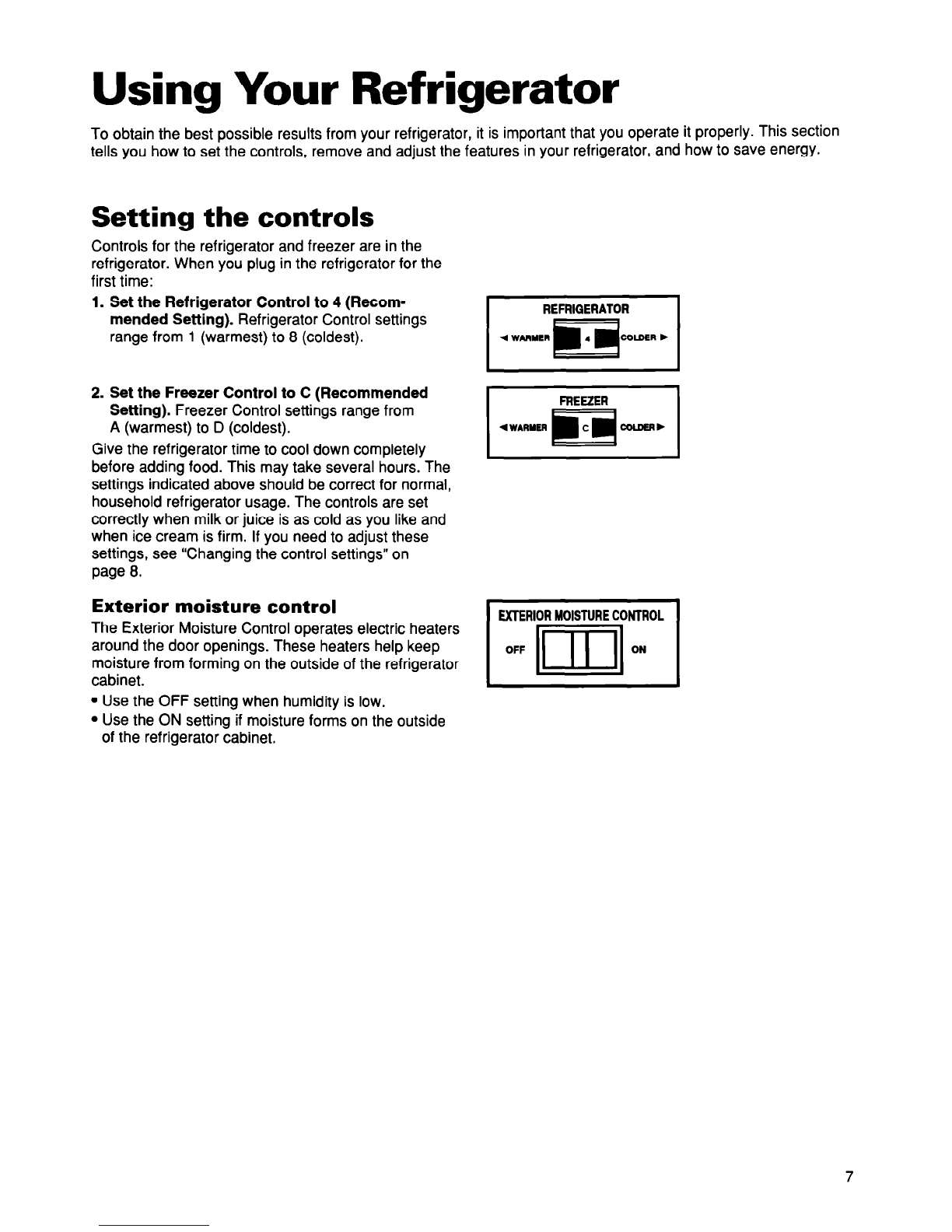

Using Your Refrigerator
To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section
tells you how to set the controls, remove and adjust the features in your refrigerator, and how to save energy.
Setting the controls
Controls for the refrigerator and freezer are in the
refrigerator. When you plug in the refrigerator for the
first time:
1. Set the Refrigerator Control to 4 (Recom-
mended Setting). Refrigerator Control settings
range from 1 (warmest) to 8 (coldest).
2. Set the Freezer Control to C (Recommended
Setting). Freezer Control settings range from
A (warmest) to D (coldest).
Give the refrigerator time to cool down completely
before adding food. This may take several hours. The
settings indicated above should be correct for normal,
household refrigerator usage. The controls are set
correctly when milk or juice is as cold as you like and
when ice cream is firm. If you need to adjust these
settings, see “Changing the control settings” on
page 8.
Exterior moisture control
The Exterior Moisture Control operates electric heaters
around the door openings. These heaters help keep
moisture from forming on the outside of the refrigerator
cabinet.
l Use the OFF setting when humidity is low.
l Use the ON setting if moisture forms on the outside
of the refrigerator cabinet.
REFRIGERATOR
FREEZER
7

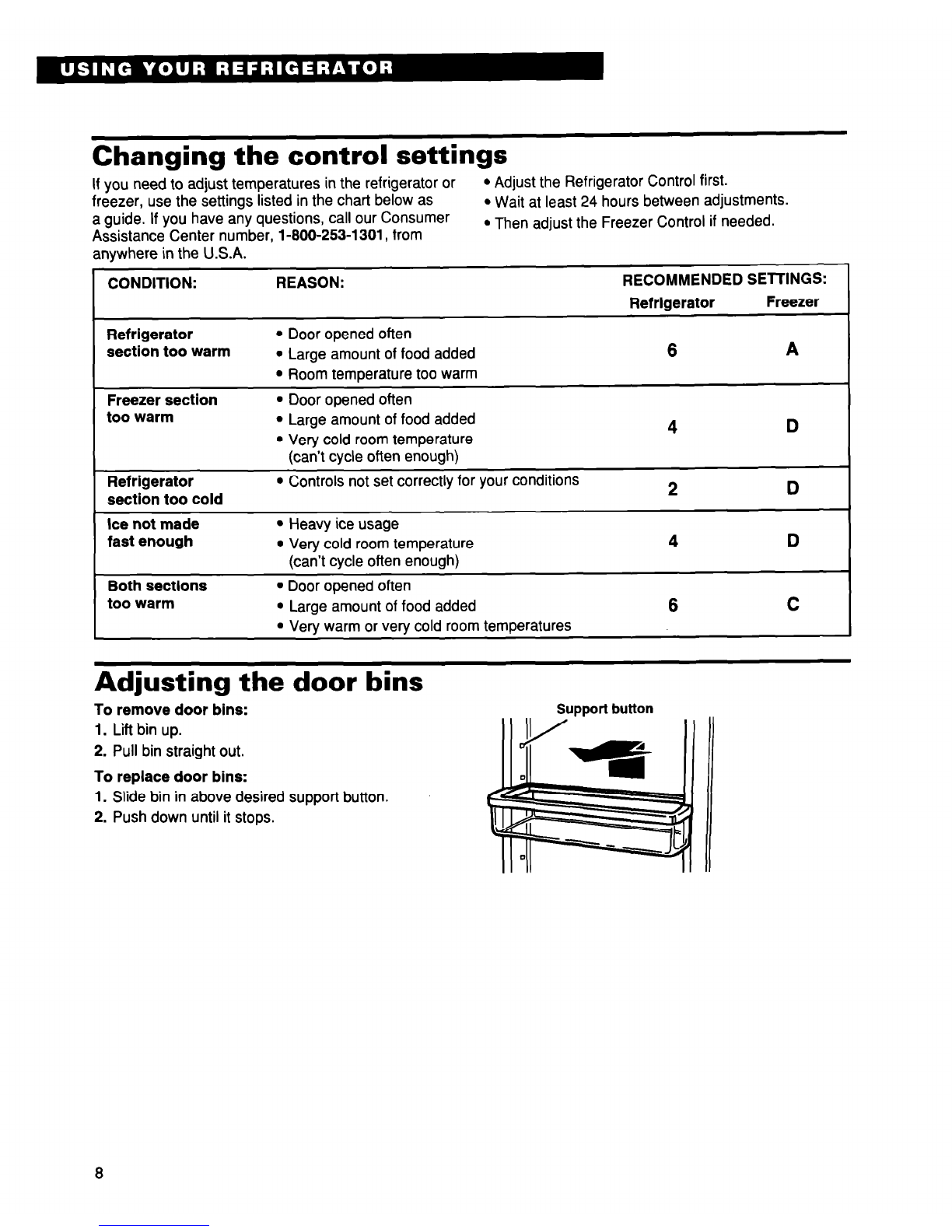

Changing the control settings
If you need to adjust temperatures in the refrigerator or
l Adjust the Refrigerator Control first.
freezer, use the settings listed in the chart below as
l Wait at least 24 hours between adjustments.
a guide. If you have any questions, call our Consumer
Assistance Center number, l-800-253-1301, from
l Then adjust the Freezer Control if needed.
anywhere in the U.S.A.
CONDITION: REASON: RECOMMENDED SETTINGS:
Refrigerator Freezer
Refrigerator
l Door opened often
section too warm
l Large amount of food added
6 A
l Room temperature too warm
Freezer section
too warm
Refrigerator
section too cold
Ice not made
fast enough
Both sections
too warm
l Door opened often
l Large amount of food added
l Very cold room temperature
(can’t cycle often enough)
l Controls not set correctly for your conditions
l Heavy ice usage
l Very cold room temperature
(can’t cycle often enough)
l Door opened often
l Large amount of food added
l Very warm or very cold room temperatures
4 D
2 D
4 D
6 C
Adjusting the door bins
To remove door bins:
1. Lift bin up.
2. Pull bin straight out.
To replace door bins:
1. Slide bin in above desired support button.
2. Push down until it stops. f ,
Support button

Adjusting the cantilever refrigerator shelves
Adjust the shelves to match the way you use your
refrigerator. Glass shelves are strong enough to hold
bottles, milk, and other heavy food items.
To remove a shelf:
1. Remove items from shelf.
2. Tilt shelf up at front.
3. Lift shelf at back.
4. Pull shelf straight out.
To replace a shelf:
1. Guide the rear shelf hooks into the slots in the shelf
supports on the back liner wall.
2. Tilt front of shelf up until hooks drop into slots.
3. Lower front of shelf to a level position.
NOTE: Glass shelves are heavy. Handle them
carefully.
To slide shelf out:
l Carefully pull front of shelf toward you.
To slide shelf in:
l Push shelf in until it stops.

Adjusting the EZ-TRACKTM SPILLGUARDTM
refrigerator shelf
The EZ-TRACK shelf slides from side to side for more
flexible storage in your refrigerator.
To slide shelf side to side:
1. Lift slightly on shelf front.
2. Slide to desired location.
3. Lower shelf front to level position.
NOTE: You do not have to remove small items from
the shelf before moving it side to side. You may need
to remove larger items.
To remove the shelf:
1. Remove all items from the shelf.
2. Hold back of shelf with one hand.
3. Lift front of shelf to 45” angle.
4. Lower shelf slightly to release shelf from upper
channel of track. Then pull shelf straight out.
NOTE: Shelf is heavy. Make sure you use both hands
when removing shelf.
To remove shelf track:
1. Lift both sides of track slightly.
2. Pull track straight out.
To replace shelf track:
1. Guide track hooks into the shelf support slots on
the back wall of the cabinet.
NOTE: Make sure both track hooks are in slots and
that the slots are parallel to each other.
2. Push track backward and down.
3. Check that track is completely seated in the
shelf supports.
then slide to new locatlon.
Upp:r channel
Hold with both hands
and lift front to 45” angle.
Make
sure
both
sets of
hooks
are in
support
slots.
Hold both sldes and
lift up and out. ’ ’
Shelf
L support
10

To reinstall shelf:
1. Hold shelf at front and back.
2. Tilt front of shelf up to a 45” angle to track.
3. Insert both rear shelf slides into upper channel
of track.
4. Lower front of shelf to a level position.
NOTE: Make sure both rear shelf slides are securely
in the track before letting go of shelf.
Upper channel
. of track
Insert rear shelf
slides Into
upper channel
of track.
Removing the meat drawer and cover
To remove the meat drawer:
1. Slide meat drawer out to the stop.
2. Lift front of meat drawer and slide meat drawer out
the rest of the wiy.
3. Replace in reverse order.
To adjust the cover position:
1. Tilt front of cover up.
2. Lift back of cover.
3. Pull cover straight out.
To replace the cover:
1. Guide the cover’s rear hooks into the slots in the
shelf supports on cabinet wall.
II
Pull out to the stop, lift the front, and pull again.
2. Tilt cover up at front until the hooks drop into slots.
3. Lower front of cover to a level position.
11

Removing the crispers and crisper cover
To remove the crispers:
1. Slide crisper straight out to the stop.
2. Lift the front and slide out the rest of the way.
3. Replace in reverse order.
To remove the cover:
1. Push up the glass insert from the bottom, then slide
out with both hands.
2. Lift front of cover frame.
3. Lift cover frame up and out.
To replace the cover:
1. Fit back of cover frame into notch supports on back
wall of refrigerator, then lower the front into place.
2. Make sure the front cover metal support is in the
notches in the sides of the liner.
NOTE: If the support is not positioned properly, the
doors may not close all the way.
3. Slide back of glass insert into place, then lower front.
Pull out to the stop, lltt
the front, and pull again.
Remove the glass insert.
Lift the cover front, then
the back.
NOTE: Glass Insert Is ,
heavy. Handle It carefully.
Adjusting the crisper humidity control
You can control the amount of humidity in the
moisture-sealed crispers. Adjust the control to any
setting between LOW and HIGH.
l LOW (open) lets moist air out of the crisper for best
storage of fruits and vegetables with skins.
l HIGH (closed) keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
Humidity Control
HlCH.*.~*LOW
-
Removing the freezer shelf
To remove the shelf:
1. Lift right side of shelf off supports.
2. Slide shelf out of shelf support holes,
3. Replace in reverse order.
12

Using the THIRSTCRUSHERTM dispensing system
The ice dispenser
Ice dispenses from the ice maker storage bin in the
freezer. When you press the dispenser bar, a trapdoor
opens in a chute between the dispenser and the ice
bin. Ice moves from the bin and falls through the chute.
When you release the dispenser bar, a buzzing sound
may be heard for a few seconds as the trapdoor
closes. The dispenser system will not operate when
the freezer door is open.
For crushed ice, cubes are crushed before being
dispensed. This may cause a slight delay when dis-
pensing crushed ice. Noise from the ice crusher is
normal, and pieces of ice may vary in size.
When changing from CRUSHED to CUBED, a few
ounces of crushed ice will be dispensed along with the
first cubes.
To dispense ice:
1. For cubed ice, move Ice Selector Switch to
CUBED position.
For crushed ice, move Ice Selector Switch to
CRUSHED position.
2. Press a sturdy glass against the ice dispenser bar.
Hold glass close to dispenser opening so ice does
not fall outside of glass.
3. Remove the glass to stop dispensing.
NOTE: The first few batches of ice may have an off-
flavor from new plumbing and parts. Throw the ice
away. Also, take large amounts of ice from the ice bin,
not through the dispenser.
Cut Hazard
Use a sturdy glass when dispensing ice or
water.
Failure to do so can result in cuts.
13

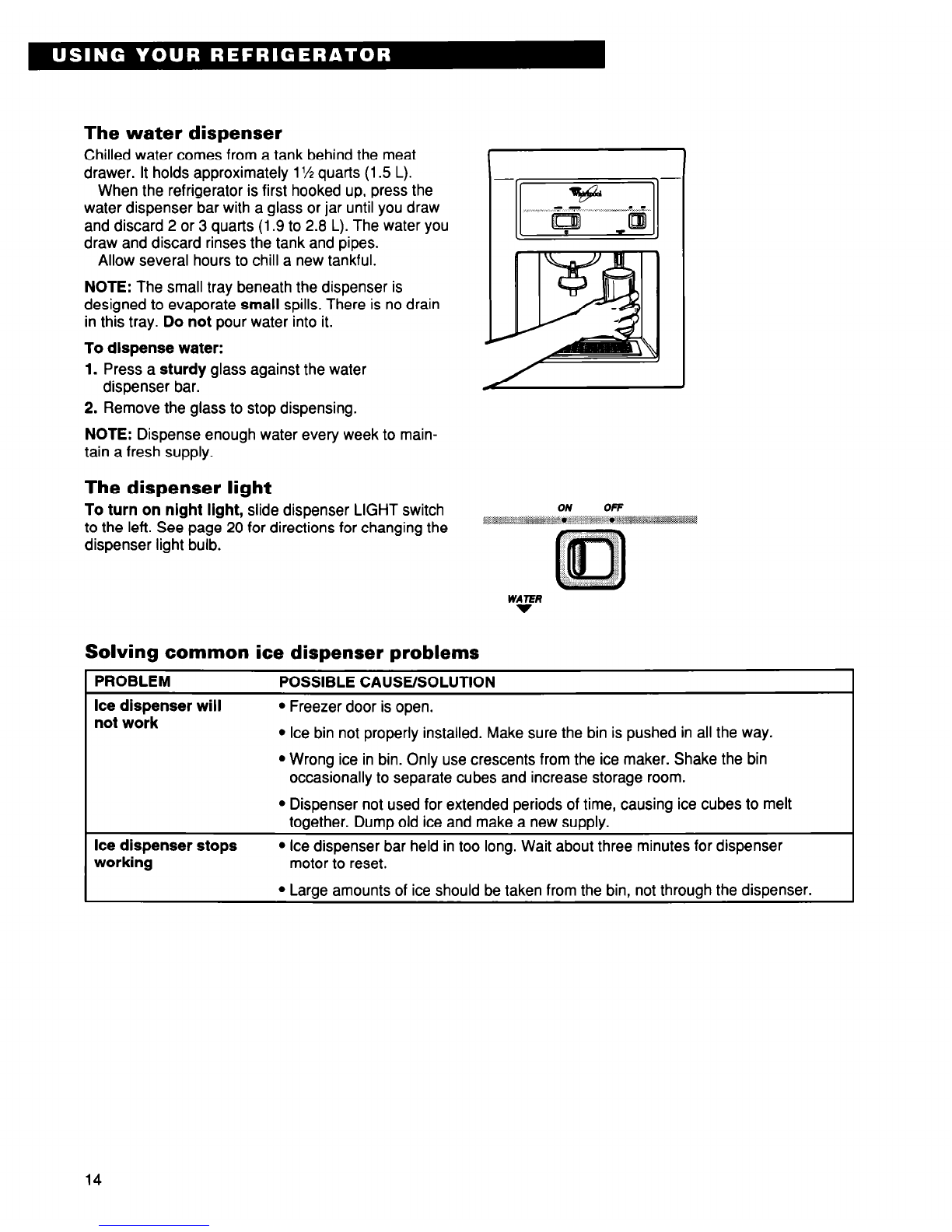

The water dispenser
Chilled water comes from a tank behind the meat
drawer. It holds approximately 1%quarts (1.5 L).
When the refrigerator is first hooked up, press the
water dispenser bar with a glass or jar until you draw
and discard 2 or 3 quarts (1.9 to 2.8 L). The water you
draw and discard rinses the tank and pipes.
Allow several hours to chill a new tankful.
NOTE: The small tray beneath the dispenser is
designed to evaporate small spills. There is no drain
in this tray. Do not pour water into it.
To dispense water:
1. Press a sturdy glass against the water
dispenser bar.
2. Remove the glass to stop dispensing.
NOTE: Dispense enough water every week to main-
tain a fresh supply.
The dispenser light
To turn on night light, slide dispenser LIGHT switch
to the left. See page 20 for directions for changing the
dispenser light bulb.
Solving common ice dispenser problems
PROBLEM
Ice dispenser will
not work
Ice dispenser stops
working
POSSIBLE CAUSE/SOLUTION
l Freezer door is open.
l Ice bin not properly installed. Make sure the bin is pushed in all the way.
l Wrong ice in bin. Only use crescents from the ice maker. Shake the bin
occasionally to separate cubes and increase storage room.
l Dispenser not used for extended periods of time, causing ice cubes to melt
together. Dump old ice and make a new supply.
l Ice dispenser bar held in too long. Wait about three minutes for dispenser
motor to reset.
l Large amounts of ice should be taken from the bin, not through the dispenser.
14

Using the automatic ice maker
Here are a few things you will want to know about your
automatic ice maker:
l The ON/OFF lever is a wire signal arm.
DOWN to make ice automatically.
UP to shut off the ice maker.
NOTE: Do not turn ice maker on until it is connected to
the water supply. Instructions for ice maker water
supply hookup are attached to the back of the
refrigerator cabinet.
l It is normal for ice crescents to be attached by a
corner. They break apart easily.
l The ice maker will not operate until the freezer is
cold enough to make ice. This can take overnight.
l If ice is not being made fast enough and more ice is
needed, turn the Refrigerator Control toward a
higher number. Wait a day and, if necessary, turn
the Freezer Control toward D.
l Good water quality is important for good ice quality.
Try to avoid connecting the ice maker to a softened
water supply. Water softener chemicals (such as
salt from a malfunctioning softener) can damage the
ice maker mold and lead to poor ice quality. If a
softened water supply cannot be avoided, make
sure the water softener is operating properly and is
well maintained.
Solving common ice maker problems
r
PROBLEM POSSIBLE CAUSE/SOLUTION
Ice crescents attached
l This is normal. They break apart easily. Shake bin occasionally to keep cubes
at corners
separated.
Ice maker will not
l ON/OFF lever is in the OFF (up) position. Lower level to the ON (down) position.
operate or ice is not
made fast enough
l Freezer is not cold enough. Adjust temperature controls and wait 24 hours.
(See “Changing the control settings” on page 8.)
Off-taste or odor in ice
l New plumbing connections can cause discolored or off-flavored ice. Discard the
first few batches of ice.
l Cubes are stored too long. Throw them away and make a new supply.
l Food is not wrapped properly. See page 23.
l Freezer and ice bin need to be cleaned. See page 21.
l Water may contain minerals (such as sulfur). A filter may be required to
remove them.
15

Removing the ice maker storage bin
Remove, empty, and clean the storage bin if:
l the ice dispenser has not, or will not, be used for
a week or more.
l a power failure causes ice in the bin to melt and
freeze together.
l the ice dispenser is not used regularly.
To remove ice bin:
1. Pull the covering panel out from the bottom and
slide it to the rear.
2. Lift the signal arm so it clicks into the OFF (up)
position. Ice can still be dispensed, but no more
can be made.
3. Lift the front of the storage bin and pull it out.
4. Empty the ice bin. Use hot or warm water to melt
the ice if necessary. Never use anything sharp to
break up ice in the bin. This can damage the bin
and dispenser mechanism.
5. Wash with mild detergent. Rinse well. Do not use
harsh or abrasive cleaners or solvents.
6. When replacing the bin, make sure it is pushed in
all the way. Then push the signal arm down to the
ON position to restart ice production.
16

Attaching the ice maker to a water supply
Read all directions carefully before you begin.
Electrical Shock Hazard
Disconnect electrical supply to refrigerator
before installing.
Electrical drill must be grounded before
drilling holes in water line.
Failure to do so can result in death or electri-
cal shock.
IMPORTANT:
l Use copper tubing only and check for leaks.
l Install ice maker tubing in areas where temperatures
are above freezing.
Tools required:
l Standard screwdriver
l ‘&inch and M-inch open-end wrenches or
two adjustable wrenches
l X-inch nut driver
l X-inch drill bit
l Hand drill or electric drill (properly grounded)
NOTE: Your appliance dealer has a kit available with
a %-inch saddle type shut-off valve, a union, and
copper tubing. Before purchasing, make sure a saddle
type valve complies with your local plumbing codes.
Do not use piercing type or %-inch saddle valve
which reduces water flow and clogs more easily.
Cold water supply
The ice maker water valve contains a flow washer
which is used as a water pressure regulator. The ice
maker needs to be connected to a cold water line with
water pressure limitations of 20-l 20 psi. If a problem
occurs, call your utility company.
IMPORTANT:
l It may take up to 24 hours for your ice maker to
begin producing ice.
l If operating the refrigerator before installing the
water connection, turn ice maker to the OFF position
to prevent operation without water.
l All installations must be in accordance with local
plumbing code requirements.
INSTALLATION IS NOT WARRANTED
BY REFRIGERATOR OR ICE MAKER
MANUFACTURER.
Connecting to water line
1. Find a %-inch to 1%-inch vertical COLD water pipe
near the refrigerator.
NOTE: Horizontal pipe will work, but the following
precaution must be taken: Drill on the top side of the
pipe, not the bottom. This will help keep water away
from the drill. This also keeps normal sediment from
collecting in the valve.
2. Measure from connection on rear of refrigerator to
water pipe. Add 7 feet (2.1 m) to allow for moving
refrigerator for cleaning. This is the length of %-inch
O.D. copper tubing you will need for the job (length
from connection to water pipe PLUS 7 feet [2.1 ml).
Be sure both ends of copper tubing are cut square.
3. Turn OFF main water supply. Turn ON nearest
faucet long enough to clear line of water.
4. Using a grounded drill, drill a %-inch hole on the cold
water pipe you have selected.
Vertical cold
water oioe
\!Pl
, Washer %-inch O.D. copper
tubing (length from
inlet on rear of refrig-
erator to water pipe
plus 7 feet [2.1 m])
/
Water \ J
shut-off
valve /
Compreision
sleeve TO REFRIGERATOR +
l Some models may not feature this second
compression nut and sleeve. continued on next page
17

5. Fasten shut-off valve to cold water pipe with pipe
clamp. Be sure outlet end is solidly in the X-inch
drilled hole in the water pipe and that washer is
under the pipe clamp. Tighten packing nut. Tighten
the pipe clamp screws carefully and evenly so
washer makes a watertight seal. Do not overtighten
or you may crush the copper tubing, especially if soft
(coiled) copper tubing is used. Now you are ready to
connect the copper tubing.
6. Slip compression sleeve and compression nut on
copper tubing as shown in diagram. Insert end of
tubing into outlet end squarely as far as it will go.
Screw compression nut onto outlet end with adjust-
able wrench. Do not overtighten. Turn ON main
water supply and flush out tubing until water is clear.
Turn OFF shut-off valve on the water pipe. Coil
copper tubing.
Connecting to refrigerator
NOTE: The first step for connecting the water line to
your refrigerator is different depending on the type of
water valve provided with your refrigerator. See the
diagrams at right to determine the style of valve you
have. (On kit models, assemble water valve to refrig-
erator per kit instructions.)
1. For style #l, disconnect the tube clamp on the back
of the product and insert the copper tubing through
the clamp, as shown at the right. Remove the tape
label from the valve inlet and insert copper tubing
until it bottoms out (approximately 3/4-inch).Tighten
nut by hand as much as possible; then turn the nut
an additional l/2turn using a wrench. Do not over-
tighten. Reattach the tube clamp and tube to the
back of the cabinet. Skip to step 2.
For style #2, disconnect the tube clamp on the
back of the product and insert copper tubing through
the clamp as shown at the right. Attach the copper
tube to the valve inlet using a compression nut and
sleeve as shown. Tighten the compression nut. Do
not overtighten. Reattach the tube clamp and tube to
the back of the cabinet. Move to step 2.
2. Turn shut-off valve ON. CHECK FOR LEAKS.
TIGHTEN ANY CONNECTIONS (INCLUDING
CONNECTIONS AT THE VALVE) OR NUTS
THAT LEAK.
3. The ice maker is equipped with a built-in water
strainer. If local water conditions require periodic
cleaning or a well is your source of water supply, a
second water strainer should be installed in the
X-inch water line. Obtain a water strainer from your
nearest appliance dealer. Install at either tube
connection.
4. Reconnect electrical supply to refrigerator.
Style #l valve
Water
valve -
Style #2 valve
n
Mounting
screw
Copper tubing
Water inlet
-fitting
Use only X-inch
18

Removing the base grille
To remove the grille:
1. Open refrigerator door.
2. Pull base grille forward to release the support
tabs from the metal clips.
3. Do not remove Tech Sheet fastened behind
the grille.
To replace the grille:
1. Line up grille support tabs with metal clips.
2. Push firmly to snap into place.
3. Close refrigerator door.
See cleaning instructions for defrost pan and
condenser coils on page 21.
Changing the light bulbs
Electrical Shock Hazard
Unplug the refrigerator before removing a
light bulb.
Failure to do so can result in death or
electrical shock.
To change the refrigerator light:
1. Unplug the refrigerator.
2. Reach behind the Control Panel to remove bulb.
3. Replace with a 60-watt appliance bulb.
4. Plug in the refrigerator.
To change freezer light:
1. Unplug the refrigerator.
2. Grasp top and bottom of light shield.
3. Squeeze and pull light shield out.
4. Replace with a 25-watt appliance bulb.
5. Snap light shield into place.
6. Plug in the refrigerator.
19

To change dispenser area light:
1.
2.
3.
4.
Disconnect refrigerator from power supply.
Reach through dispenser area to remove bulb.
Replace with a heavy-duty 1O-wattbulb, which can
be purchased from your Whirlpool dealer.
Reconnect refrigerator to power supply.
Dispenser area light
NOTE: Not all commercial appliance bulbs will fit your
refrigerator. Be sure to replace a bulb with one of the
same size and shape.
Understanding the sounds you may hear
Your new refrigerator may make sounds that your old
one didn’t. Because the sounds are new to you, you
might be concerned about them. Don’t be. Most of the
new sounds are normal. Hard surfaces like the floor,
walls, and cabinets can make the sounds seem louder.
The following describes the kinds of sounds that might
be new to you, and what may be making them.
Water sounds
When the refrigerator stops running, you may hear
gurgling in the tubing for a few minutes after it stops.
You may also hear defrost water running into the
defrost water pan.
Slight hum, soft hiss
You may hear the refrigerator’s fan motor and
moving air.
Ice maker sounds
l trickling water
l thud (clatter of ice)
You may hear buzzing (from the water valve), trickling
water, and the clatter of ice dumped into the bin.
Clicking or snapping sounds
The thermostat makes a definite click when the refrig-
erator stops running. It also makes a sound when the
refrigerator starts. The defrost timer will click when the
defrost cycle starts.
Running sounds
Your refrigerator has a high-efficiency compressor
and motor. It will run longer than older designs. It may
even seem to run most of the time.
Saving energy
You can help your refrigerator use less electricity.
l Check door gaskets for a tight seal. Level the
cabinet to be sure of a good seal.
l Clean the condenser coils regularly.
l Open the door as few times as possible. Think about
what you need before you open the door. Get
everything out at one time. Keep food organized so
you won’t have to search for what you want. Close
door as soon as food is removed.
. Go ahead and fill up the refrigerator, but don’t
overcrowd it so air movement is blocked.
l It is a waste of electricity to set the refrigerator and
freezer to temperatures colder than they need to be.
If ice cream is firm in the freezer and drinks are as
cold as your family likes them, that’s cold enough.
l Make sure your refrigerator is not next to a heat
source such as a range, water heater, furnace,
radiator, or in direct sunlight.
20
