Whirlpool ES5DVAXW User manual

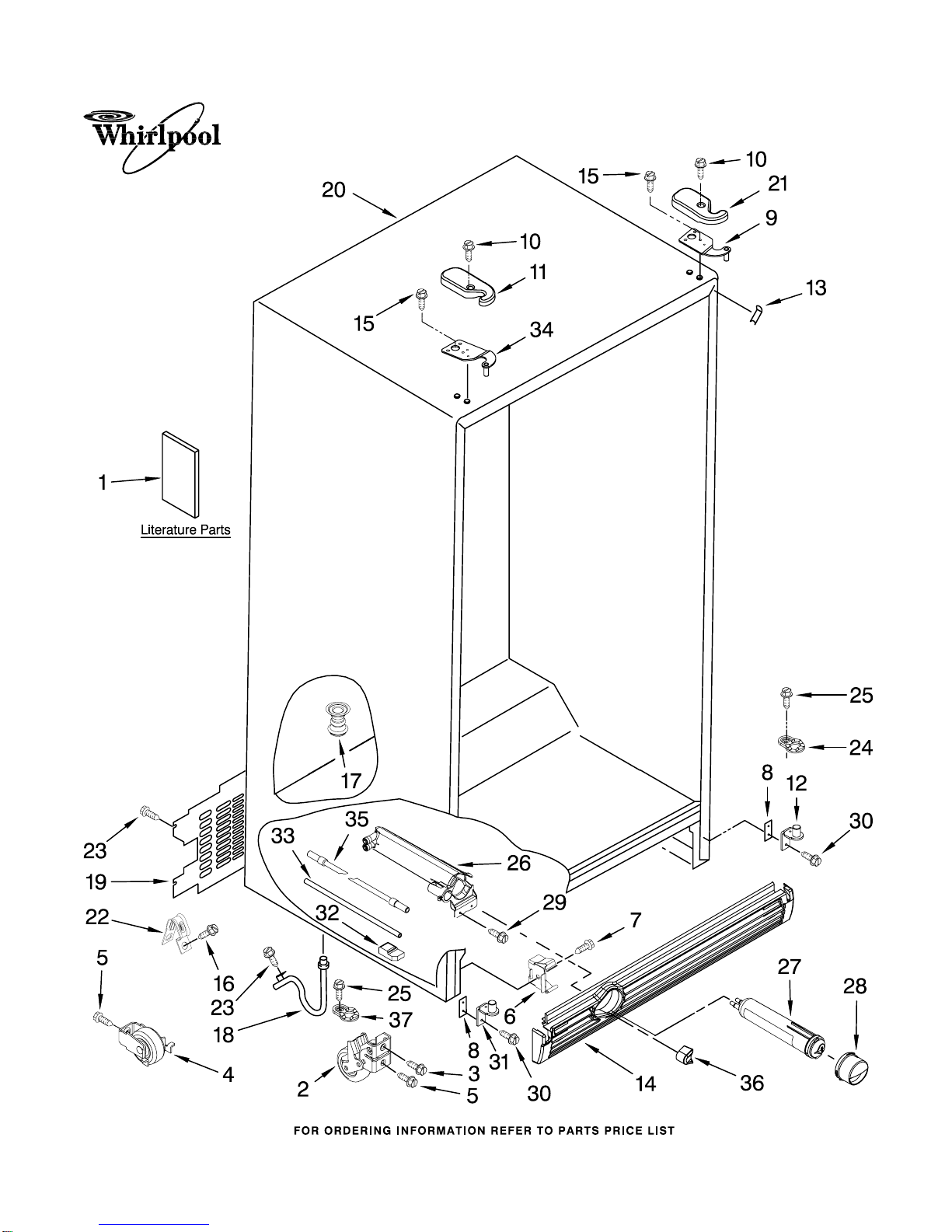

CABINET PARTS
1
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
7−09 Printed In U.S.A. (jdc) (psw) Part No. W10283349 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10253633 Energy Guide
W10193166 Owner’s Manual
W10238216 Service & Wiring
Sheet
2220407 Modular Icemaker
Service Sheet
W10206334 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 8281227 Screw
11 Hinge Cover (FC)
2203407W White
2203407B Black
2203407AP Apollo Gray
12
W10138965 Bottom Hinge (RC)
13 Filler, Wrapper
2304846 White
2304848 Black
W10143043 Apollo Gray
14 Grille
W10188054 White
W10188055 Black
W10188057 Midnight Grey
15 489497 Screw
16
W10142235 Screw
17 2304888 Drain Fitting
18
W10153550 Extension Tube
19 2188739 Cover, Unit
20 Cabinet (Not A
Serviceable Part)
21 Hinge Cover (RC)
2203408W White
2203408B Black
2203408AP Apollo Gray
22 549193 Clamp, Service
Cord
23 489084 Screw
24 2155311 Door Closer, RC
25 489483 Screw
26
W10121138 Housing, Water
Filter
27 9030 Water Filter
28 Cap, Water
Filter
2260502W White
2260502B Black
2260502MG Midnight Grey
29 489500 Screw
30
W10001250 Screw
31 2303141 Bottom Hinge (FC)
32 2260519 Block, Housing
Support
33 2255012 Tube, Filter
Outlet
34 2203770 Hinge Top (FC)
35
W10212512 Tube, Filter
Inlet
36 Button, Water
Filter
2260503W White
2260503B Black
2260503MG Midnight Grey
37 2223751 Door Closer, FC

REFRIGERATOR LINER PARTS
3
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 1118894 Switch,
Rocker Arm
6 2319866 Shelf Ladder
7
W10001260 Screw
8
W10128734 Air Diffuser
Assembly
9 2162085 Socket
10 2307107 Reservoir
11
W10194422 Light Bulb
12
W10242623 Shield Assy, Light
13
W10001250 Screw
16
W10128735 Cover, Air
Diffuser
17 2310527 Wire Assy −
RC Light
18 2326209 Trim, Light RC
19 2223680 Shield, Heat
20 2223857 Socket, Light
21 2326255 Bulb, Light
22
W10141632 Screw
23 2223506 Lens, Light

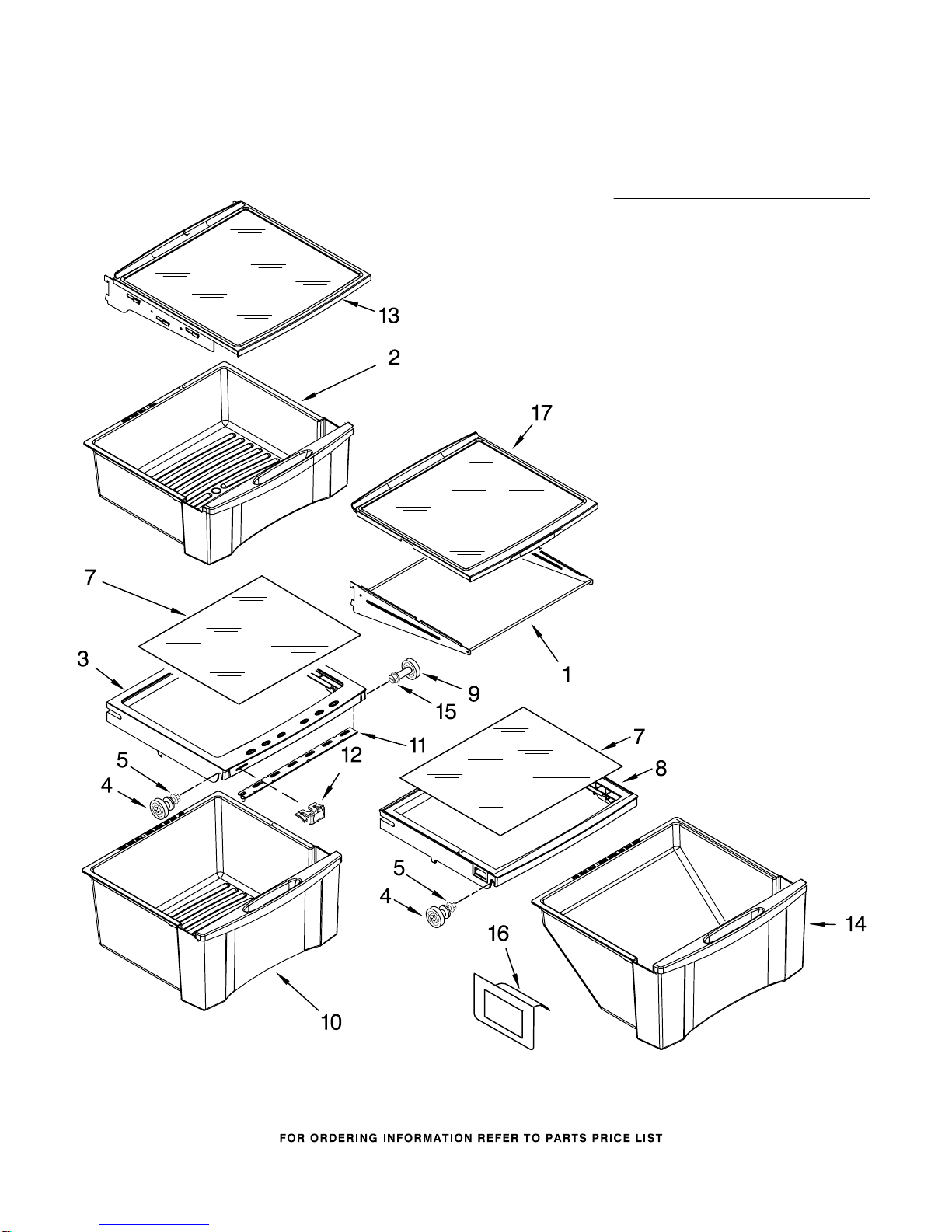

REFRIGERATOR SHELF PARTS
4
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 2195975 Frame Assembly (2)
2 2188667 Snack Bin Asm
3 2209698 Cover, Crisper
4 2196208 Stud Assembly
5
W10191954 Screw
7 2179259 Glass, Cover
8 2311726 Cover, Meat Pan
9 2196205 Stud Assembly
10
W10178772 Crisper Pan Asm
11 2179342 Slide, Humidity
Control
12 2179343 Knob, Humidity
Control
13
W10141750 Shelf Pan Assembly
14 2188665 Meat Pan Assembly
15
W10191952 Screw
16 2179350 Deflector
17
W10141748 Shelf,
Slide Out (2)

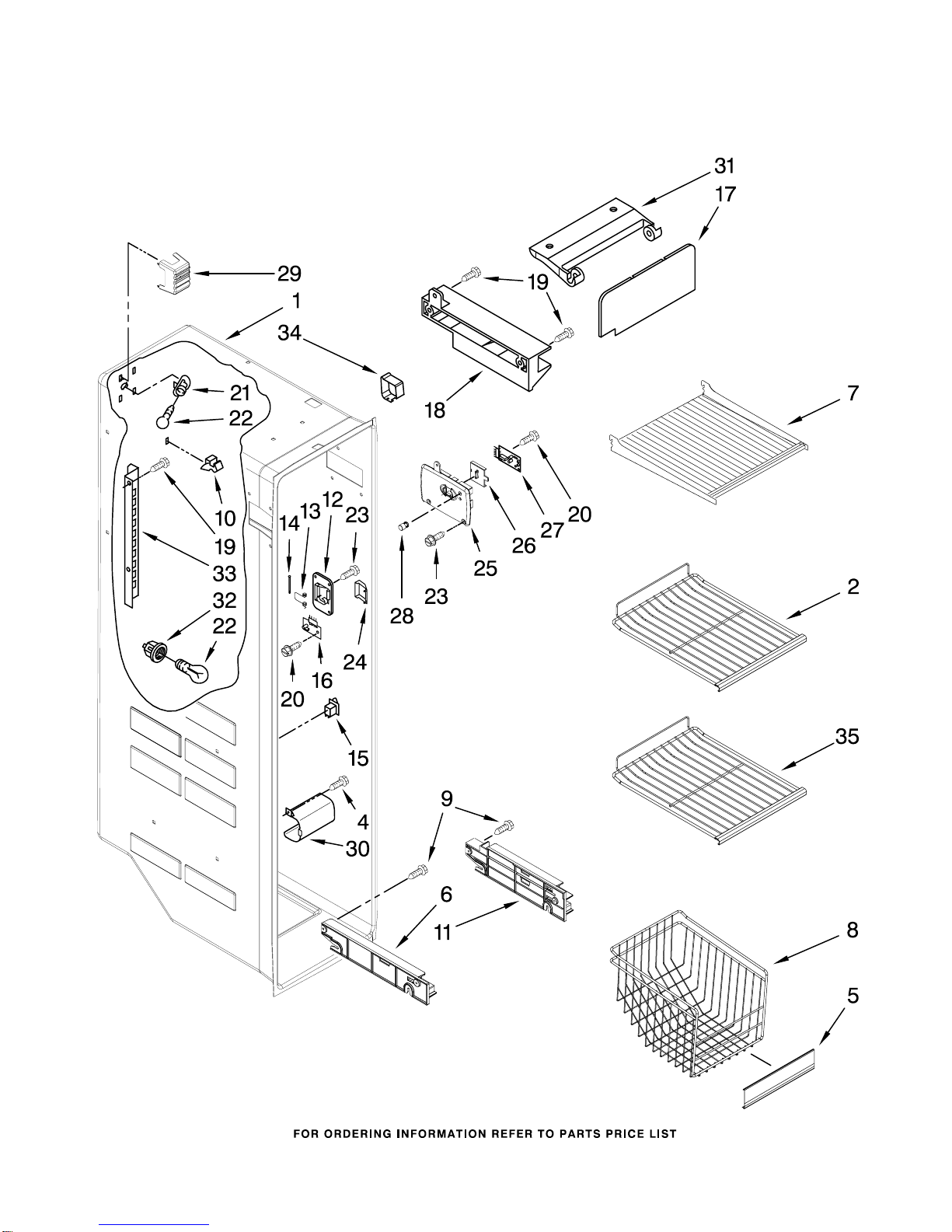

FREEZER LINER PARTS
5
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

FREEZER LINER PARTS
6
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2211746 Shelf, FC (2)
4 3400893 Screw
5 2219982 Trim, Basket
6 Shelf Track
2301289 Right Side
2301290 Left Side
7 2205837K Shelf (2)
8 2182971 Basket, Sloped
9
W10004810 Screw (8)
10 842534 Clip, Air Duct (2)
11 Shelf Track, Dual
2301291 Right Side
2301292 Left Side
12 2198587 Cover, Emitter
13 2198635 Spring
14 2198634 Pin
15 1115373 Switch, Rocker Arm
16
W10193840 P.C. Board
Emitter
17 2255720 Cover, Ice Maker
18 2212321 Slide, Ice Maker
Mounting
19
W10001260 Screw
20 489214 Screw
21 2162085 Light Socket
22
W10194422 Light Bulb
23 8281185 Screw
24 2198633 Flipper
25
W10173569 Cover, Receiver
26 2315398 Slide, Ice Maker
Shut Off
27
W10193666 P.C. Board,
Receiver
28 2198643 Lens
29 2198589 Light Shield
30 2212340 Light Lens
31 2198641 Bracket,
Ice Maker Cover
32 2155597 Socket
33 Light Ladder
2198609 Left Side
2198610 Right Side
34 2303234 Shield, Wiring
35 2211742 Shelf, Lower

MOTOR AND ICE CONTAINER PARTS
7
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

MOTOR AND ICE CONTAINER PARTS
8
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2317254 Crusher Bin
3 2317240 Auger
4 2258220 Washer, Auger
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317277 Latch, Bin
20 2198608 Spring, Latch
21
W10209450 Wire Assembly,
IDI Motor
22 2322488 Enclosure, Motor
23 2188919 Holder
24 2198628 Seal
25 2188916 Drive Shaft
26 2326873 Dispenser, Motor
27 2212305 Cover
28 8281163 Screw (2)
29 2315559 Sleeve, Coupling
30 2317243 Wiper
31 2317250 Divider −
Chamber
100 2317251 Ice Container
(Complete)

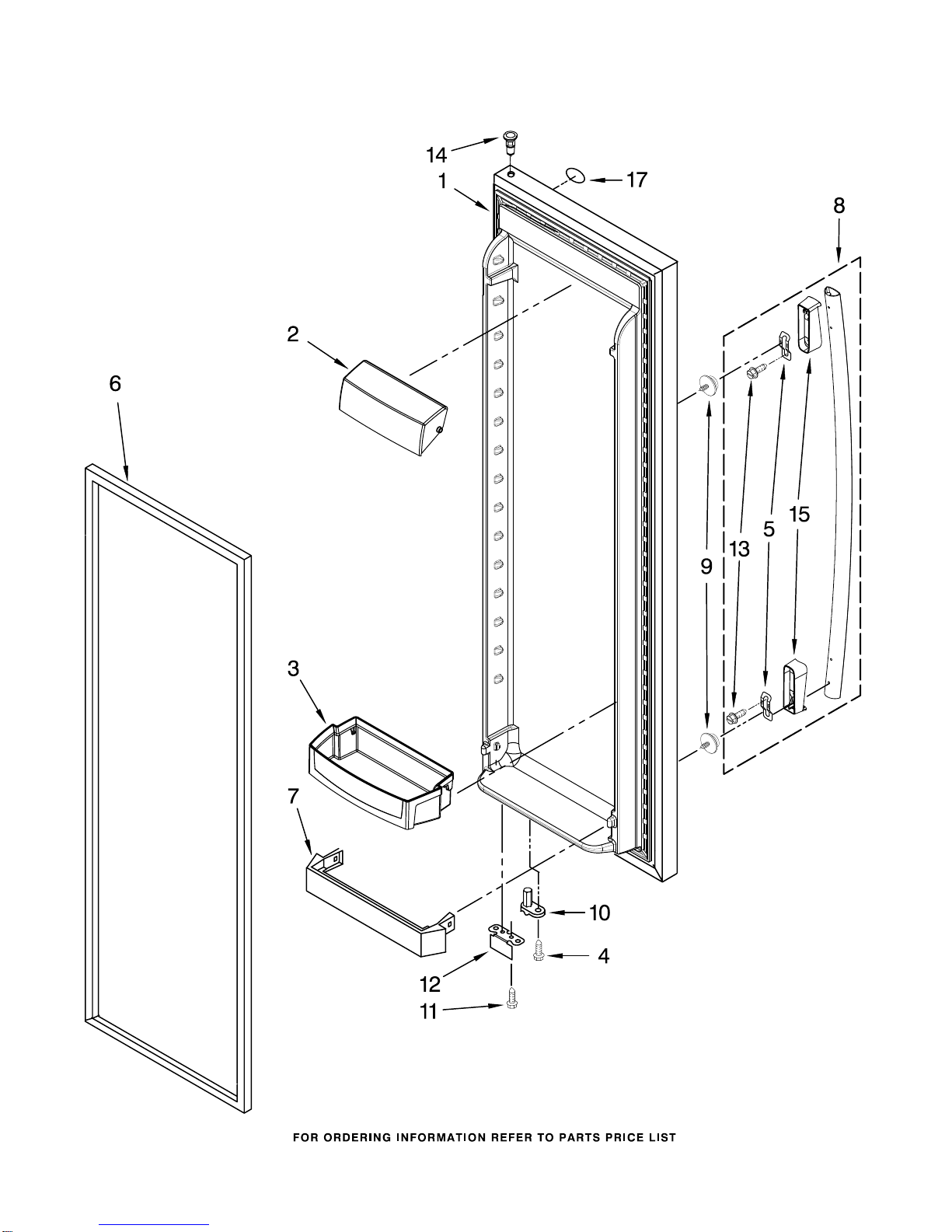

REFRIGERATOR DOOR PARTS
9
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

REFRIGERATOR DOOR PARTS
10
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10169204 White
W10169205 Black
W10169210 Mono Satina
W10169208 Monochromatic
Stainless
W10169207 Stainless
2 2256101 Dairy Door
3 2313199 Door Bin (3)
4 3400012 Screw
5 2255411 Clip
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
2326338 Apollo Grey
7 2156022 Trivet
8 Handle, Assy
W10127803 White
W10127804 Black
W10152865 Stainless, All
9
W10129563 Screw, Mounting
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
3400012 Chrome
W10175741 Black
13
W10201588 Screw
14 2200087 Thimble, Top
15 Handle, Endcap
W10127813 White
W10127814 Black
W10152864 Stainless, All
17 2255121 Nameplate

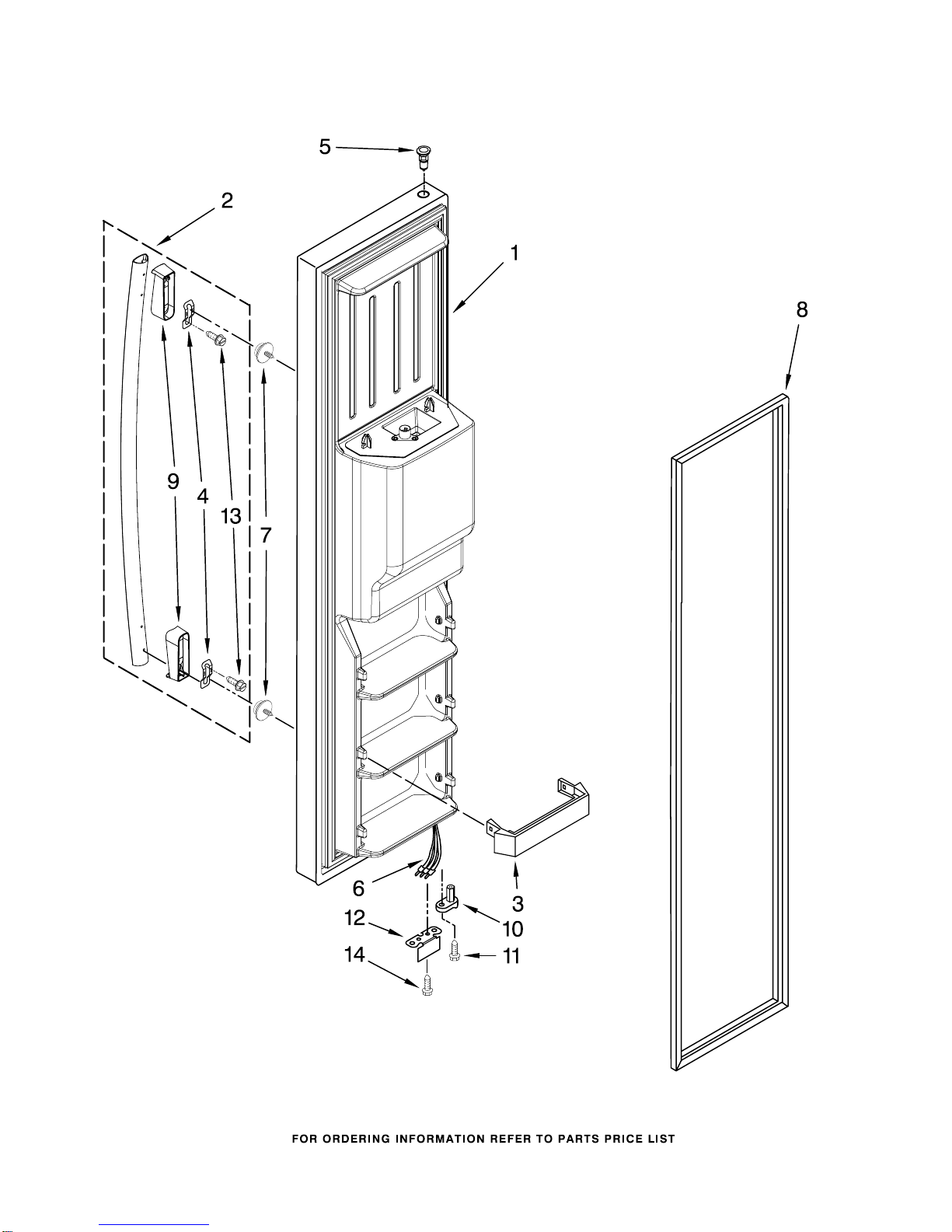

FREEZER DOOR PARTS
11
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

FREEZER DOOR PARTS
12
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10252723W White
W10252723B Black
W10252723LG Mono Satina
W10252723SS Monochromatic
Stainless
W10252723SB Stainless
2 Handle, Assy
W10127803 White
W10127804 Black
W10152865 Stainless, All
3 2171157K Trivet (3)
4 2255411 Clip
5 2200086 Thimble, Top
6
W10193330 Wire Assy, Door
7
W10129563 Screw
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
2326339 Apollo Grey
9 Handle, Endcap
W10127813 White
W10127814 Black
W10152864 Stainless, All
10 2323535 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
W10175735 Chrome
W10175736 Black
13
W10201588 Screw
14 3400012 Screw

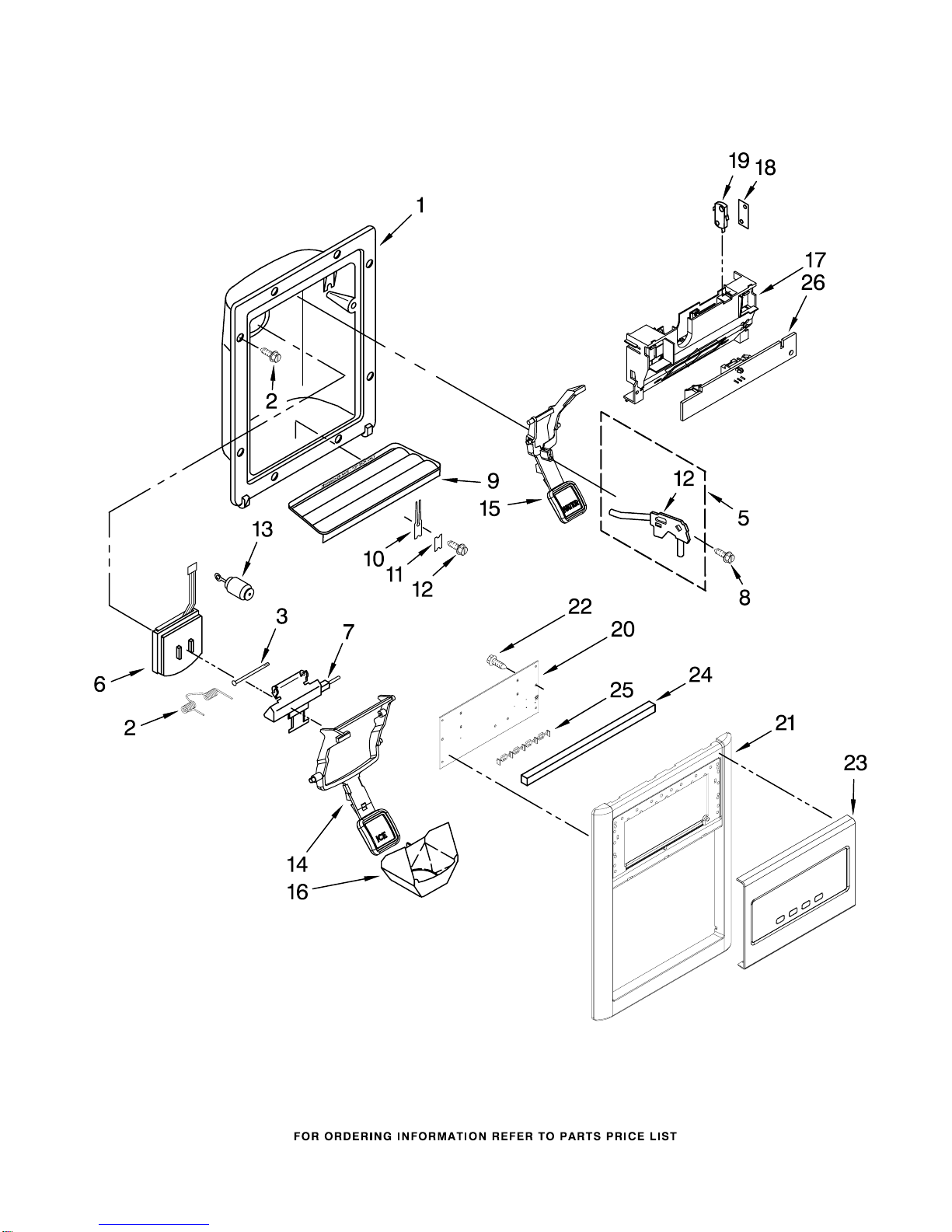

DISPENSER FRONT PARTS
13
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

DISPENSER FRONT PARTS
14
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2
W10224328 Spring, Torsion
3 2196195 Pin, Ice Door
5
W10133007 Water Fitting Assy
6 2180353 Door, Ice
7 2304355 Support, Ice Door
8
W10141632 Screw
9 Grille, Disp
W10139699 White
W10139700 Black
W10171995 Nickel One
10 2194719 Spring, Lever
11 2195051 Strain Relief
12 2304673 Bracket, Disp
13 2205686 Dashpot, Disp
14 Lever, Ice
W10152853 White
W10152854 Black
W10155161 Apollo Grey
15 Lever, Water
W10152858 White
W10152859 Black
W10155162 Apollo Grey
16 2180224 Guide, Ice
17
W10206221 Bracket, Control
18 625834 Spacer, Switch
19 2162361 Switch
20 2321751 Control, Elek
21 Bezel, Disp
2322507W White
2322507B Black
W10139840 Stainless
W10171990 Mono Satina
22 489214 Screw (2)
23 Fascia, Disp
W10123495 White
W10123497 Black
W10123505 Stainless
W10123498 Mono Satina
24
W10129948 Gasket, Disp
25
W10170416 Support, Window
26
W10245284 LED Assy

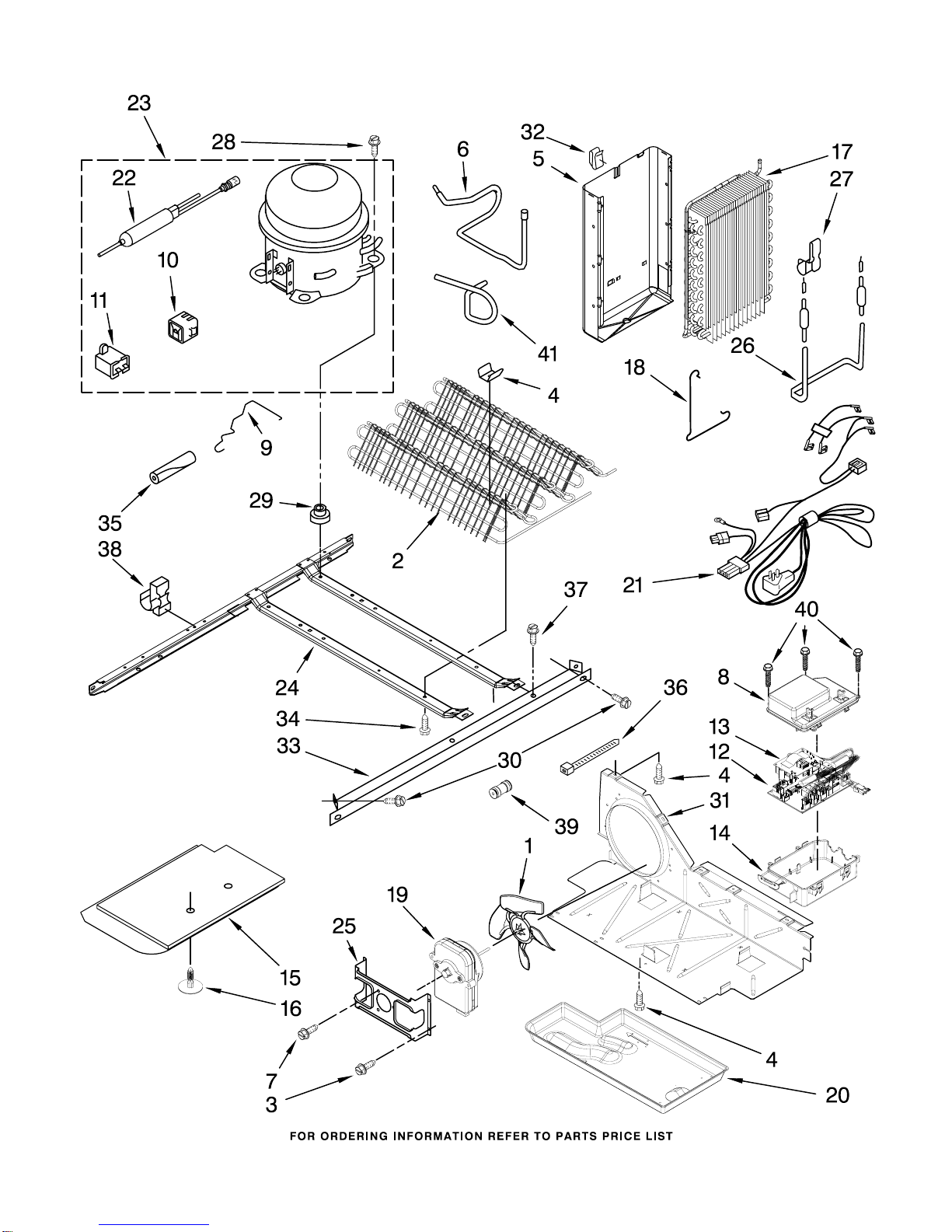

UNIT PARTS
15
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

UNIT PARTS
16
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 12825802 Fan, Blade
2 2324712 Condenser Assembly
3
W10142235 Screw
4 2216914 Clip, Condenser
5
W10203138 Heat Shield
And Drain Pan
6 2205765 Tube, Suction
7 8533993 Screw
8 2323188 Cover
9
W10204187 Clip, Retaining
10
W10197427 Start−Device,
Combination
(Start Relay and
Overload)
11 2264017 Capacitor
12
W10120821 Ctrl−Elek, Main
13
W10210789 Ctrl−Elek, Gemini
14 2323186 Control Box
15 2304899 Unit Cover, Bottom
16 489396 Clip
17 2188823 Evaporator
18 2161324 Clip
19 2188874 Motor, Fan
20 1105523 Tray, Evaporator
21 2310497 Harness, Unit
22
W10177049 Drier
23
W10120457 Compressor
(Also Order
876765 Tube Kit)
24 2304904 Unit Mounting
Frame
25 2181929 Bracket, Fan Motor
26 2323198 Heater, Defrost
27 2304287 Clip, Heater
28 489373 Screw
29 1100826 Grommet (4)
30 489340 Screw
31 2196202 Air Baffle
32 2155547 Clip, Heat
33 2305374 Unit Mounting
Rail
34 8281232 Screw
35 2161302 Sleeve
36 2172840 Wire Tie
37 489427 Screw
38 2326941 Clip, Wire & Tube
39
W10133008 Union
40 8533859 Screw
41 2325479 Tube, Process
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
17
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349

ICEMAKER PARTS
18
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4
W10001260 Screw (3)
5 2188708 Smart Valve
6 2305274 Clip, Tube
7 2174358 Cover
8 488649 Screw
9
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10 2304969 Cup−Water Fill
11 627843 Ejector
12 2198598 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 2303583 Bracket, Ice Maker
Mounting
18 489276 Screw
19 2187467 Harness, Wiring
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626683 Motor
22 489136 Screw
100
W10190960 Icemaker Assembly

AIR FLOW PARTS
19
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2321799 Bi−metal, Defrost
6 2315549 Fan Motor
7 2169142 Fan Blade
8 2304241 Gasket, Evaporator
Cover (2)
9 2176759 Fan Grommet (2)
10
W10129815 Harness, Fan
Evaporator
(Includes # 5)
11 2155789 Gasket, Fan Scroll
12 2172840 Strap
13 2203876 Gasket
14 2206314 Cover, Evaporator
(Includes #8)
15 8281159 Screw (6)
16
W10001260 Screw
17 2203595 Support, R.S.
18 2203596 Support, L.S.

OPTIONAL PARTS (NOT INCLUDED)
20
For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00
(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)
W10283349
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350942 Primer, White
350939 Black
350930 White
4392901 Biscuit
8171357 Graphite
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
72032 Black
80051 Graphite
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
PAINT, BULK (1 qt.)
799340 Black
799344 White
4392900 Biscuit
8171358 Graphite
Miscellaneous
8129 Coil Brush
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
ACCESSORIES
2217192 Cleaner, Stainless
Steel
TORX SCREW WRENCH
1117510 Torx Key
