Whirlpool GC3NHAXVA00 User manual

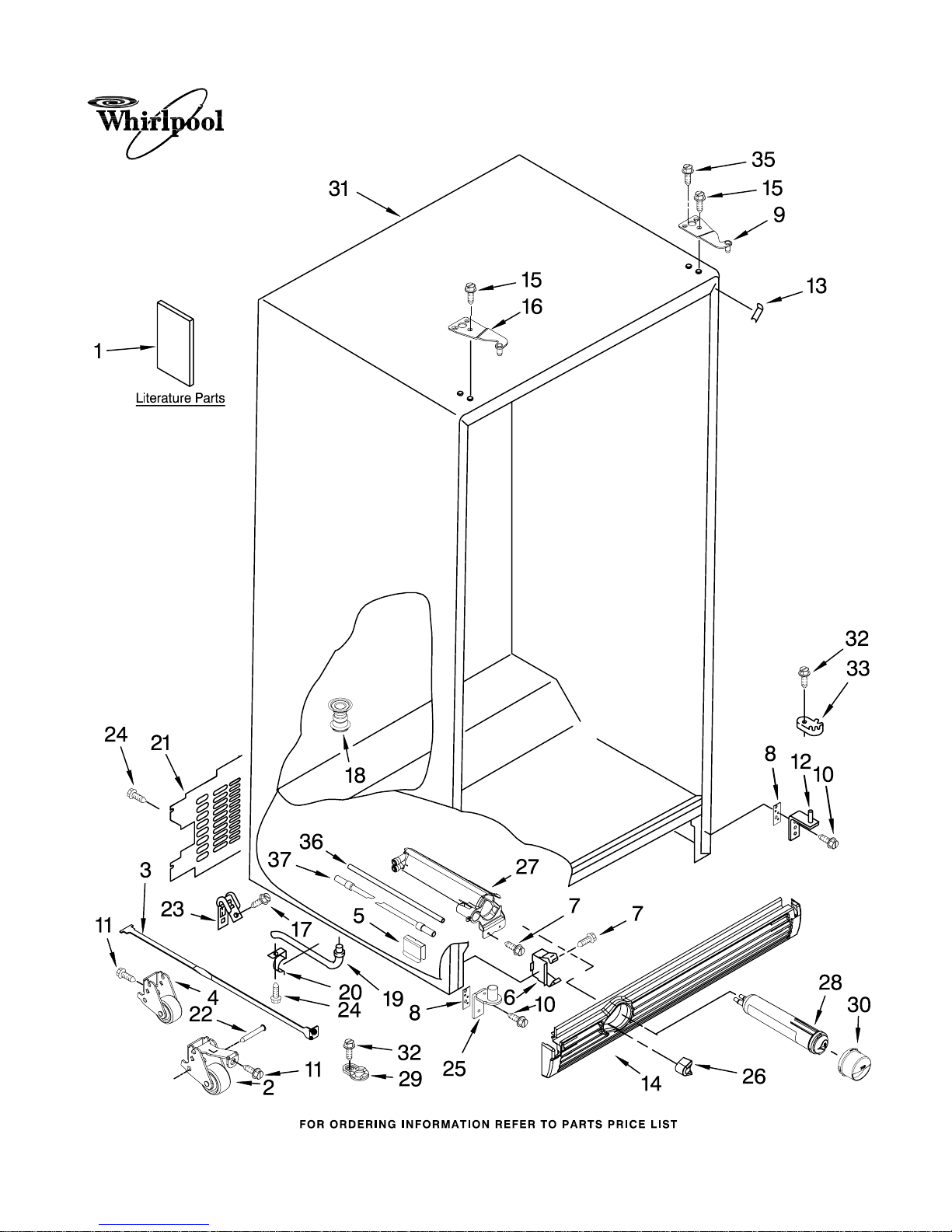

CABINET PARTS
1
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
02−08 Printed In U.S.A. (jdc) Part No. W10187556 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2318582 Use & Care Guide
W10152830 Service & Wiring
Sheet
2318510 Installation
Instructions
W10175675 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008B Black
2307008AP Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
13 Filler, Wrapper
2223893W White
2223893B Black
2223893AP Apollo Gray
14 Grille
2322234W White
2322234B Black
2322234MG Midnight Grey
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007B Black
2307007AP Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
20 488366 Clip, Drain Tube
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503W White
2260503B Black
2260503MG Midnight Grey
27 2260526 Housing, Water
Filter
28 4396841 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260502W White
2260518B Black
2260518MG Midnight Grey
31 Cabinet (Not A
Serviceable Part)
32 489483 Screw
33 2307049 Door Closer, RC
35 3400858 Screw
36 2255153 Tube, Filter
Outlet
37 8201597 Tube, Filter
Inlet

REFRIGERATOR LINER PARTS
3
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide Meat
Pan Control
4 1118894 Switch, Rocker
Arm
5 2188820 Thermistor
6 2319866 Ladder, Shelf (2)
7 489084 Screw
8 2171846 Release Valve
9 2209204 Clip, Thermistor
10 1116793 Cover, Thermistor
11 489478 Screw
12 2304597 Gasket,
Air Baffle
13 2223403 Cover,
Air Baffle
14 2224076 Air Diffuser
Assembly
15 2220377 Air Baffle
16 2162085 Socket
17 2307107 Reservoir
18 2205813 Strap
19 2255743 Light Bulb
20 2223663 Light Lens
21 488280 Screw

REFRIGERATOR SHELF PARTS
4
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 2223288 Pan Assembly
(Includes #31)
2 2223309 Button, Humidity
3 2223308 Slide, Humidity
4 2203027 Cover, Meat Pan
(Includes Items
8, 9, 10, & 15)
5 2223261 Snack Pan
6 2223307 Cover, Crisper
(Includes 2 & 3)
7 2223591 Glass, Cover
8 2174478 Eyelet, Roller
9 2188212 Roller
10 489211 Screw
11 2223235 Crisper Pan
12 2223526 Meat Pan
(Includes 8,
9, 10, & 15)
13 2224059 Shelf and Frame
Assembly (3)
14 489261 Screw
15 2223487 Deflector
16 2203029 Handle
17 2196485 Stud Assembly
18 3400894 Screw
19 2196483 Stud Assembly
20 8281158 Screw
21 2223320 Slide, Pan

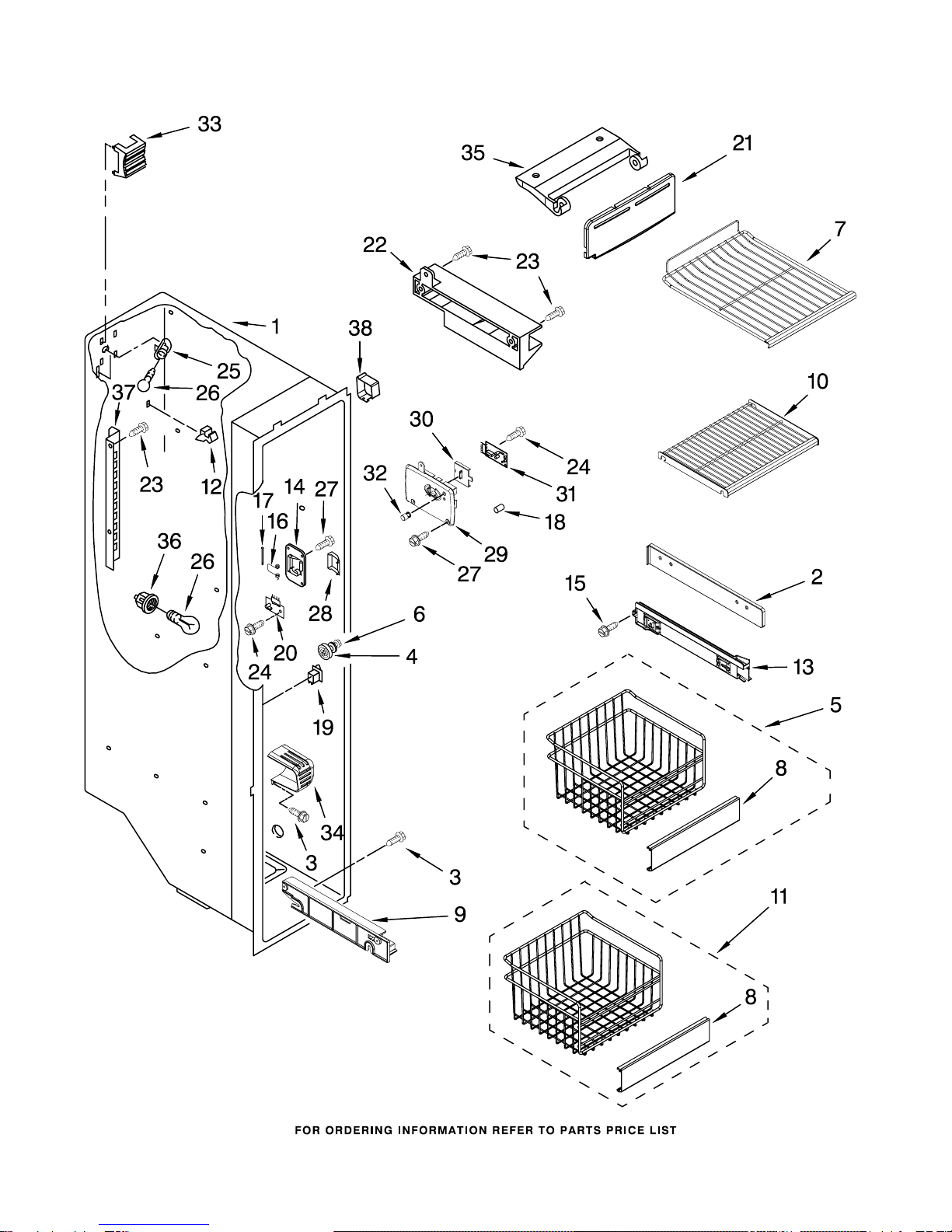

FREEZER LINER PARTS
5
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

FREEZER LINER PARTS
6
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 3400893 Screw
4 2196483 Stud Assembly
5 2223690 Basket, Deep (2)
6 8281158 Screw
7 2223500 Shelf Assembly,
Cantilever (2)
8 2223782 Front, Basket
9 Shelf Track
2223787 Right Side
2223788 Left Side
10 2254615 Shelf, Fixed
11 2223692 Basket, Lower
12 842534 Clip, Air Duct (2)
13 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
14 2259487 Cover, Emitter
15 8534064 Screw
16 2198635 Spring
17 2198634 Pin
18 2198665 Tube, P.C. Board
19 1115373 Switch, Rocker Arm
20 2220398 P.C. Board
Emitter
21 2223321 Cover, Ice Maker
22 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
23 489478 Screw
24 489214 Screw
25 2162085 Light Socket
26 2255743 Light Bulb
27 8281185 Screw
28 2198633 Flipper
29 2255558 Cover, Receiver
30 2255562 Slide, Ice Maker
Shut Off
31 2255114 P.C. Board,
Receiver
32 2198643 Lens
33 2198589 Light Shield
34 2212340 Light Lens
35 2198641 Bracket, Ice Maker
Cover
36 2155597 Socket, Light
37 Ladder
2198609 Left Side
2198610 Right Side
38 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

MOTOR AND ICE CONTAINER PARTS
8
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 2305416 Ice Bin
2 2305206 Crusher Bin
3
W10140642 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2305244 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20 2305443 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 2212369 Holder
24 2220458 Coupling, Bottom
25 2198628 Seal
26 2212370 Washer
27 2198607 Spring
28 2305243 Drive Shaft
29 2252130 Dispenser, Motor
30 2305208 Bracket, Motor
31 8281163 Screw
32 2212365 Sleeve, Coupling
100 2320330 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

REFRIGERATOR DOOR PARTS
10
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
W10168248 White
W10168249 Black
W10168250 Mono Satina
W10168251 Monochromatic
Stainless
W10172106 Stainless Steel
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223463K Door Bin
5 2223464K Mat, Bin (3)
6 2255411 Clip, Mounting
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
2326342 Apollo Grey
8 Handle
W10127808 White
W10127809 Black
W10127811 Nickel Alloy
9
W10155511 Screw
10 2223879 Dairy Compartment
11 Endcap, Handle
W10127813 White
W10127814 Black
W10152864 Nickel Alloy
12 2182178 Door Closer,
Upper Cam
13 2182181 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223239K Door Bin (2)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
20 2156006K Plug, Trim
21 2220214 Nameplate
22
W10129563 Screw, Handle

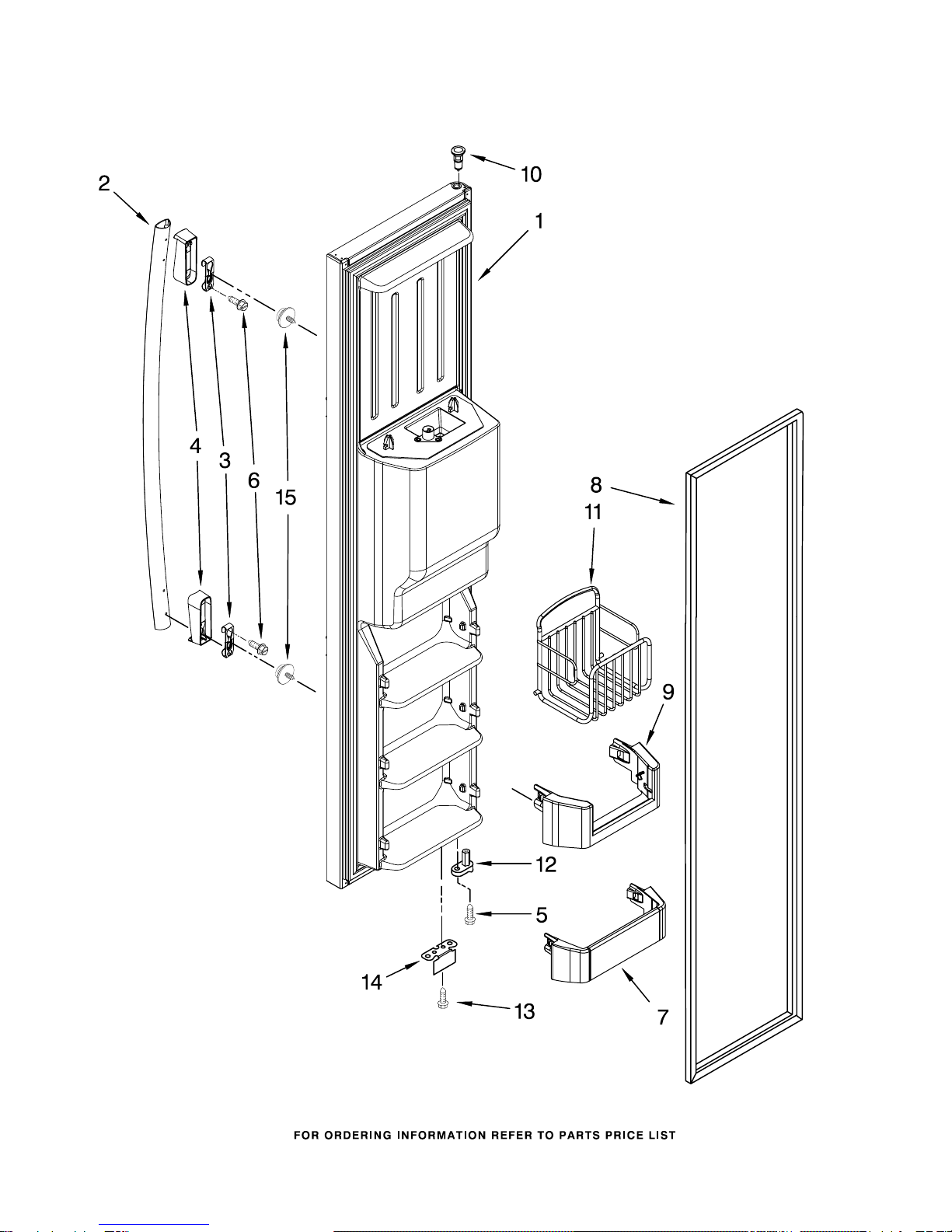

FREEZER DOOR PARTS
11
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

FREEZER DOOR PARTS
12
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8)
W10168272 White
W10168273 Black
W10168274 Mono Satina
W10168275 Monochromatic
Stainless
W10172108 Stainless Steel
2 Handle
W10127808 White
W10127809 Black
W10127811 Nickel Alloy
3 2255411 Clip, Mounting
4 Endcap, Handle
W10127813 White
W10127814 Black
W10152864 Nickel Alloy
5 3400012 Screw
6
W10155511 Screw
7 2171157K Shelf Bin
8 Door Gasket,
Magnetic
2223850 Mist Beige
2223912 Black
2326343 Apollo Grey
9 2223334 Trivet,
Tilt−Out (2)
10 2308050 Thimble, Top
11 2304309 Basket,
Tilt−Out (2)
12 2223752 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2306940 Chrome
2306940B Black
15
W10129563 Screw, Handle
Following Parts Not Illustrated
2310224 Wire Harness,
Freezer Door
2317707 Tube, Door

DISPENSER FRONT PARTS
13
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

DISPENSER FRONT PARTS
14
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 939101 Screw (4)
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (2)
9 Grille, Slide
2305413W White
2305413B Black
2305413AP Apollo Gray
10 2308165 Ferrite Bead
11 Separator Assembly
2305460W White
2305460B Black
2305460NA Nickel Alloy
12 2303843 Electronic
Control (Core)
13 2305235 Spigot
14 Pad, Ice & Water
2305247CG For White Model
2305247GM For Black Model
2305247MG For All Stainless
Models
15 Cover Assembly,
User Interface
16 Overlay, Front
Control (Not
Available,
Order #20)
17 LED Assembly
18 Front Cover,
Housing
(Not Available,
Order #20)
19 Tray, Housing
2305408W White
2305408B Black
2305408NO Nickel One
20 Front Cover
Assembly
(Includes Items
14, 15, 16,
17 & 18)
W10168543 White
2317715B Black
W10173643 Nickel One
21 2187814 Wire Assembly,
User Interface
(Includes #10)
22 2305447 Clip, Wiring

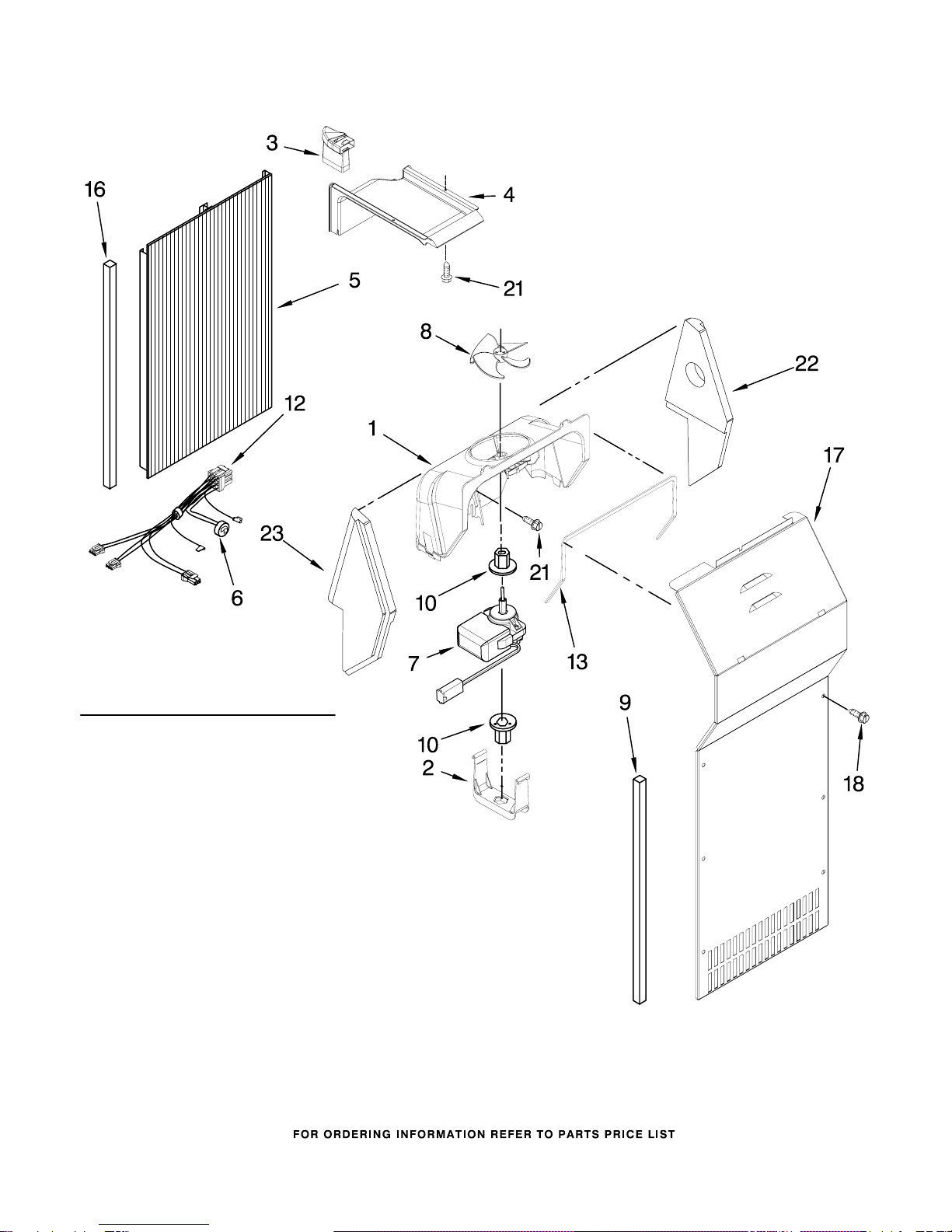

AIR FLOW PARTS
15
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223771 Air Duct Freezer
6 2321799 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
12
W10129813 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket, Fan Scroll
16 2203876 Gasket
17 2223413 Cover, Evaporator
(Includes #9)
18 8281159 Screw (6)
21 489478 Screw
22 2223395 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 2319752 Control Box
(Includes #6)
2 2223877 Latch
3 2306952 Trim, Control Box
4 2223512 Spring, Torsion
5 2223882 Heat Shield Asm
6 2307037 Control Board Asm
7 2223506 Light Lens,
Control Box
8 2223857 Light Socket
9 2223678 Light Bulb

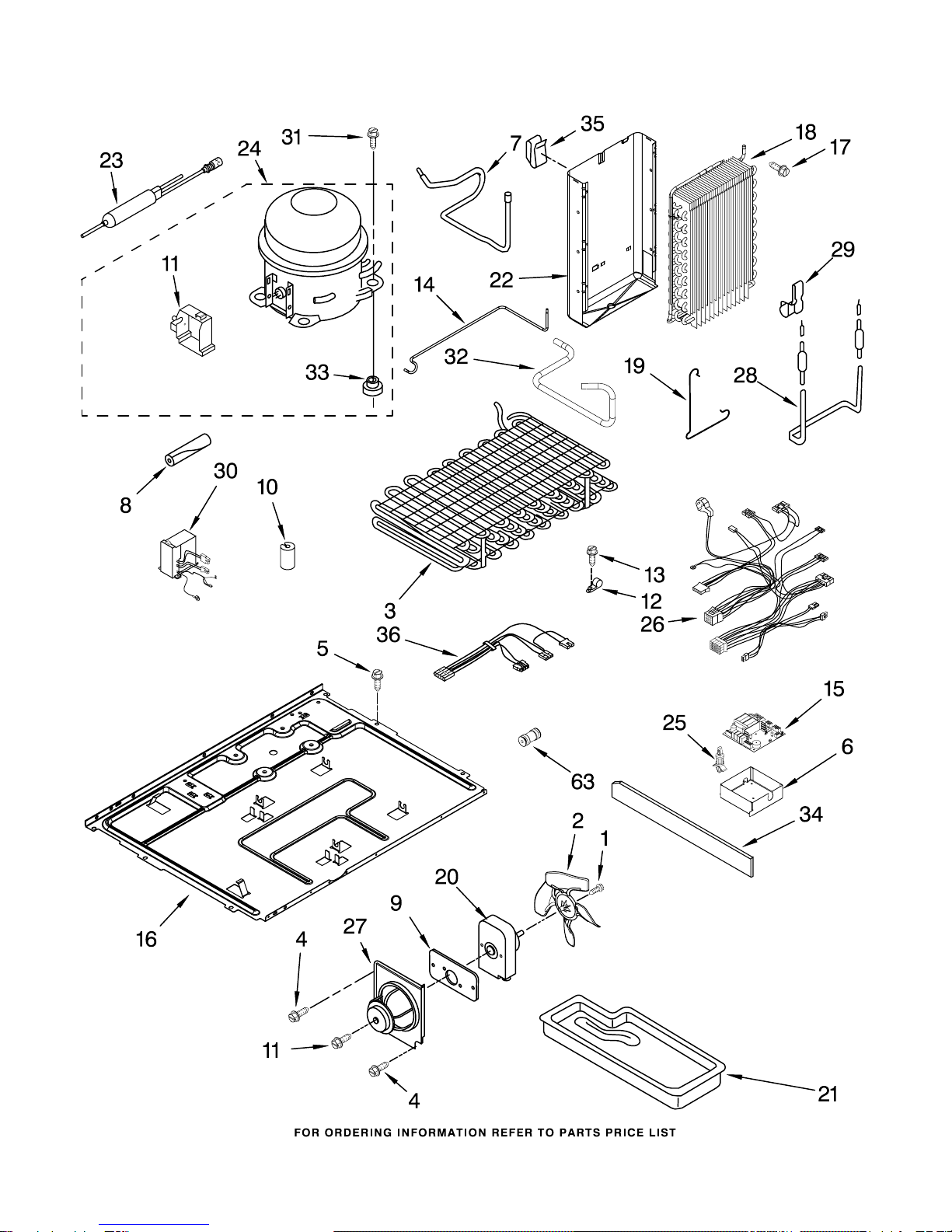

UNIT PARTS
17
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

UNIT PARTS
18
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 777070 Screw
2 2225834 Fan, Blade
3
W10131059 Condenser
Assembly
4 8533859 Screw
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
9 2301979 Plate, Mounting
10 2319835 Grommet, Cond (4)
11 2215676 Cover, Terminal
12 2305373 Clamp, Cable
13 488649 Screw
14
W10132546 Tube, Condenser
to Heat Loop
15 2307028 Electronic Control
16 2306932 Baseplate
17 489478 Screw
18 2188823 Evaporator
19 2161324 Clamp
20 2188874 Fan, Motor
21 2223398 Tray, Evaporator
22 2224022 Heat Shield
23 Drier−UV
W10177049 Production
24 2223801 Compressor
(Includes Items
11 & 33)
25 2223800 Spacer (5)
26 2310122 Harness,
Main Control
27 2224024 Fan, Motor Bracket
28 2323199 Heater, Defrost
29 2304287 Clip
30 2304175 Inverter Box
31 489387 Screw
32 2223352 Tube, Discharge
33 Grommet (4)
4388295 Production
4387558 Service
34 2223394 Extension,
Air Baffle
35 2155547 Clip, Heat Shield
36 2310121 Unit Harness
63 2300868 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

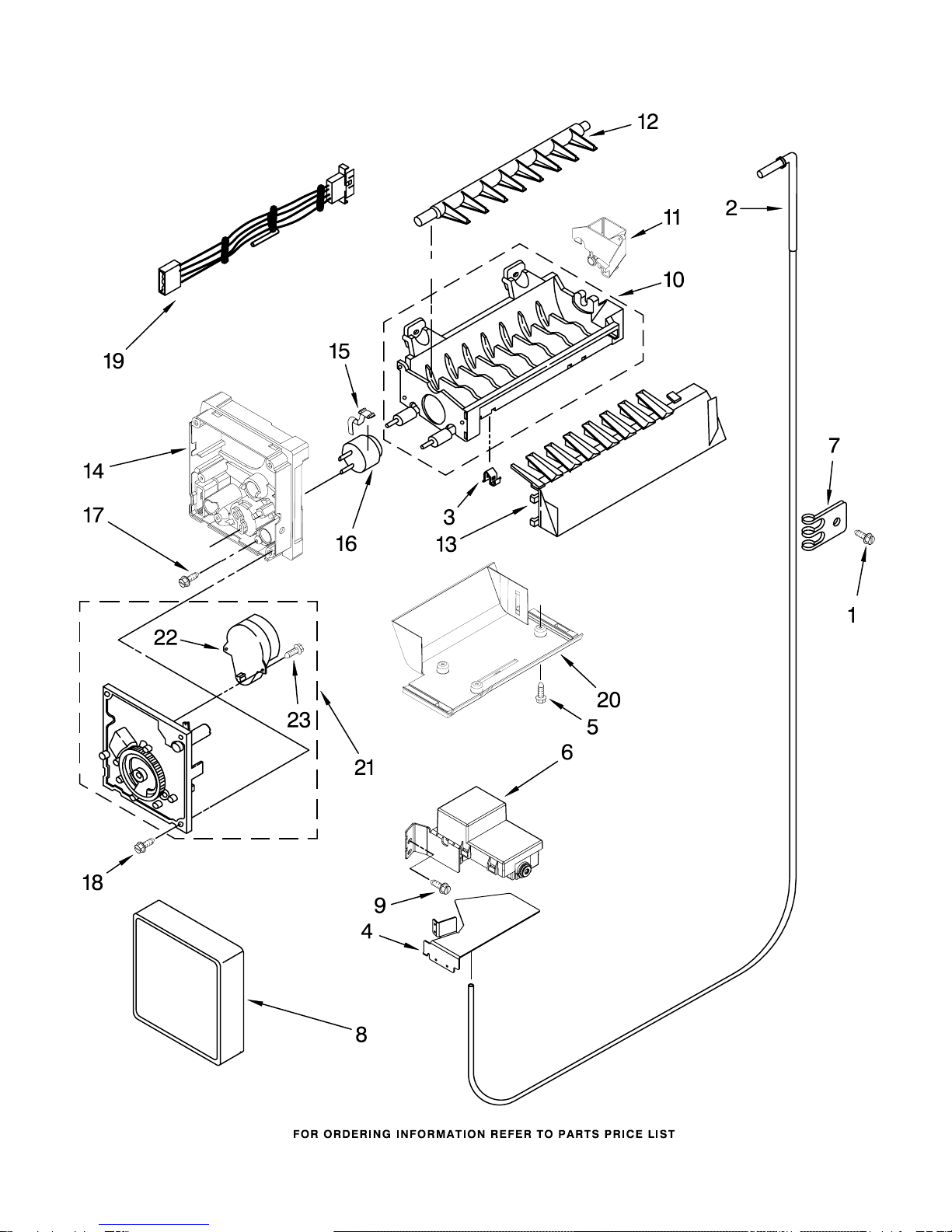

ICEMAKER PARTS
19
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556

ICEMAKER PARTS
20
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4 2313394 Shield, Water
Valve
5 489478 Screw
6
W10159840 Water Valve Asm
7 2208136 Tube Clip
8 2174358 Cover
9 488649 Screw
10
W10122527 Mold & Heater
Assembly (Also
Order 542638
11 2304969 Cup, Water Fill
12 627843 Ejector
13 2198598 Ice Striper
14 2194712 Support
15 2315522 Retainer,
Thermostat
16 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489276 Screw
19 2187467 Harness, Wiring
20 2303583 Bracket, Icemaker
Mounting
21 8201515 Module Assembly
(Includes Items
22 & 23)
22 626691 Motor
23 489136 Screw
100
W10122502 Icemaker Assembly
