INSTRUCTION MANUAL
CURVED GLASS HOOD
AKR 6222/AKR9222
WHIRLPOOL

1
Dear Customer,
If you follow the recommendations contained in this Instruction
Manual, our appliance will give you constant high performance and
will remain efficient for many years to come.
CONTENTS
RECOMMENDATIONS AND SUGGESTIONS
CHARACTERISTICS
INSTALLATION & USE
MAINTENANCE
Product Specification & Technical Parameters
Model
AKR6222/AKR9222
Rated Voltage
220-240V
Rated Power Frequency
50Hz
Light Power
2x20W
Motor Power
320W
Total Power
360W
Motor
1
Diameter of Exhaust Pipe
150mm
Product Dimension (mm) AKR6222
L 600 x W 480 x H 510-985
Product Dimension (mm) AKR9196
L 900 x W 480 x H 510-985
Net Weight AKR6222
16.5kg
Gross Weight AKR6222
21.5kg
Net Weight AKR9222
19kg
Gross Weight AKR9222
24.5kg
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
* The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.

2
* Please read this instruction manual before installing and using this
cooker hood. Properly keep this instruction manual in a safe place for
future reference.
* This cooker hood designed to be used only in the Ducted Mode
* Only a qualified and trained service technician can undertake the
work of installation and servicing.
* Check that the mains voltage corresponds to the one indicated on
the rating plate fixed inside the hood.
* Check that the domestic power supply guarantees adequate
earthing.
* Do not connect the hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.)
* If the hood is used in conjunction with non-electrical appliances (e.
g. gas burning appliances), a sufficient degree of ventilation must be
guaranteed in the room in order to prevent the backflow of exhaust
gas. The kitchen must have an opening directly with the open air in
order to guarantee the entry of clean air.
* The minimum distance is 750mm from the cooker hood to a gas
hob, and is 650mm to an electric hob. If the installation instructions
for gas/electric hobs specify a greater distance the same must be
taken into account.
NOTICE: Considering excessive weight, two or more people are
required to install or move this appliance. Failure to do so can cause
physical injuries and damage to the product.
USE
* The cooker hood has been designed only for domestic use to
eliminate kitchen fumes.
* Never use the hood for purposes other than what it has been
designed for.
* Never leave high naked flames under the hood when it is in
operation.

3
* Adjust the flame intensity to direct it onto the bottom of the pan
only make sure that it does not engulf the pan sides.
* Deep fat fryer must be continuously monitored during use:
overheated oil can burst into flame.
* The hood should not be used by children or person not instructed
on its correct usage.
MAINTENANCE
* Proper maintenance of the Range Hood will assure proper
performance of the unit.
* Disconnect the hood from the main supply before carrying out any
maintenance work.
* Clean and/or replace aluminum grease filters after specified period
of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special treatment is
necessary.
WARNING!!
In certain circumstances electrical appliances may be a danger
hazard.
* Do not check the status of the filters while the cooker hood is
operating.
* Do not touch the light bulbs during/ immediately after appliance
use.
* Do not disconnect the appliance with wet hands.
* Avoid naked flame, as it may damage the filters and a fire hazard.
* Constantly check a frying food to avoid that the overheated oil may
become a fire hazard.
* Disconnect the electrical plug prior to any maintenance.
* Children don’t recognize the risks of electrical appliances.
Therefore use or keep the appliance only under supervision of adults
and out of the reach from children.

4
* Don’t use this product outdoor.
* This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
* There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
* There is a fire risk if cleaning is not carried out in accordance with
instructions.
* Do not leave bare flames under the range hood.
* The discharge air must not be discharged into a flue which is used
for exhausting fumes from appliances burning gas or other fuels.
CHARACTERISTICS
DIMENSIONS

5

6
COMPONENTS
Ref
Qty
Components
1
3pcs
grease filter
2
1pcs
Hood body
3
2pcs
steel bolt
4
3pcs
Cross self-drill bolt
5
1pcs
Exhaust
6
1pcs
Exterior chimney
7
1pcs
Inner chimney
8
2pcs
Cross discal thread bolt
9
1pcs
Fixing frame
10
2pcs
Cross discal bolt-big head
11
2pcs
Flat rubber band
12
2pcs
Plastic distensible sleeve
Ref
Qty
Documentations
13
1pc
Instruction Manual
14
1pc
Warranty Card
INSTALLATION & USE
Note 1: Carefully remove the protective film from chimney and front
panel prior to final installation.
Note 2: At least two people will be required to mount the hood.
FIXING TO THE WALL
Fig.1
1. Drill the holes according to the distances indicated (Fig.2).
2. Fix the appliance to the wall and align it in horizontal position to

7
the wall units.
3. When the appliance has been adjusted, fix the hood using the
screws A. For the various installations use screws and screw anchors
suited to the type of wall (e.g. reinforced concrete, plasterboard,
etc.). If the screws and screw anchors are provided with the product,
kindly check the screws are suitable for the type of wall in which the
hood is to be fixed.

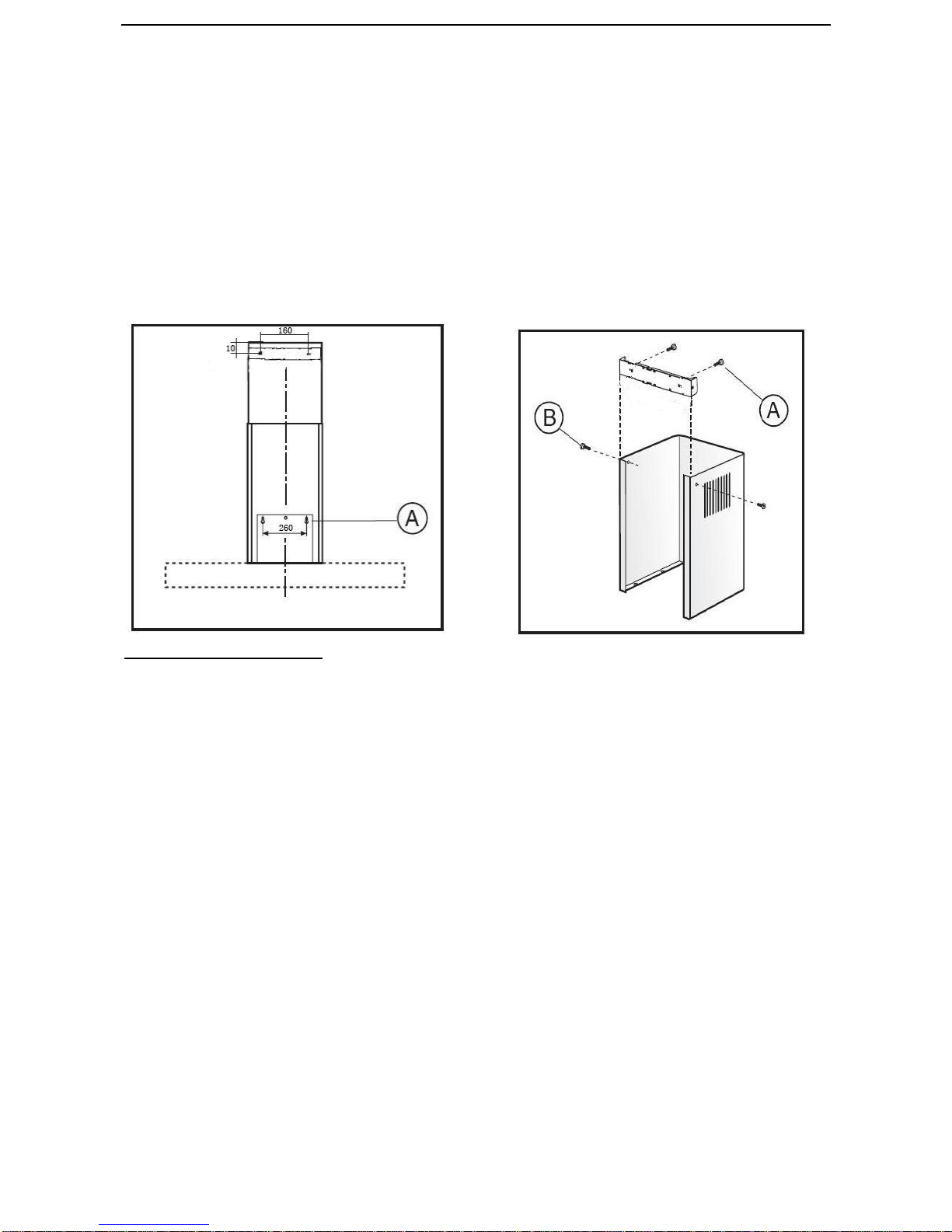

Fig.2 Fig.3
Fixing Chimney
1. Arrange the electrical power supply within the dimensions of the
chimney. If your appliance is to be installed in the ducting version or
in the version with external motor, prepare the air exhaust opening.
2. Adjust the width of the support bracket of the exterior chimney
(Fig.3). Then fix it to the ceiling using the screws A (Fig.2) make sure
that it is in line with your hood and respecting the distance from the
ceiling indicated in Fig.2. Connect the flange C to the air exhaust hole
using a connection pipe (Fig.4).

8
Fig.4 Fig.5
DUCT FIXING
Caution: To reduce the risk of fire, recommend use aluminum ductwork.
1. Attach an adequate length of φ150mm round duct into the recessed
area of the air outlet adapter.
2. The duct has to be secured using two screws from two sides of the air
outlet adapter. Make sure the duct is fixed well on.
DESCRIPTION/CONNECTIONS

9
Ducted mode air exhaust system
The hood draws the cooking fumes saturated with fumes and odor through
the grease filters and expels it to the outside through an outlet pipe.
Caution: To reduce the risk of fire, use metal
ductwork only.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the
hood to perform most efficiently.
3. Long duct runs, elbows, and transitions
will reduce the performance of the hood.
Use as few of them as possible. Larger
ducting may be required for best
performance with longer duct runs.
4. Attach an adequate length of φ160mm round duct to the air outlet
adapter.
5. The air must not be discharge into a flue that is used for exhausting
fumes from appliances burning gas or other fuels" "Regulations
concerning the discharge of air have to be fulfilled.
6. Install a roof/wall cap. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal the joints
between ductwork sections.
Electrical Connection
* Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. Turn off
electrical power at service entrance before wiring.
* If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
* Do not use the plug and an extension cord other than the ones
initially supplied with the hood.
* The earthing of this hood is compulsory. Do not remove ground
prong of the plug.

10
OPERATION OF CONTROLS
The hood is operated using the electronic switch on the front panel.
The light switch turns the lamps on and off.
The blower switch turns the blower on to three speed settings:
A= Timer (automatic shut off)
B= Speed 1 / adjust / switch off
C= digital display screen (showing timer and speed)
D= Speed 3 / adjust / switch off
E= Light
1. When key A is being pressed, digital display screen will show "15 minutes"
for timer whereas the minutes can be adjusted by pressing "+" or "-" on key
B and D. When the first speed is on, pressing key A once to switch off, the
digital display will shows "00" on the screen.
2. When key B is being pressed, it shows "F1" on the digital display screen at
the same time first speed is on. By pressing key B again to switch off,
the digital display will show "00" on the screen.
3. When key D is being pressed, it shows "F3" on the digital display screen at
the same time the third speed is on. By pressing key D again to switch off,
the digital display will show "00" on the screen.
4. The second speed F2 and Turbo speed F4 can be adjusted by pressing key
B or D. When key E is being pressed, the light will on, by pressing key E
again is to switch off the light.
5. If the motor and light are operating together or only the motor is working,
pressing key A, automatic switch off timer mode will get on. In other word
the unit will delay 15 minutes to turn off the motor and the light. To press
key B or key D is to adjust the time, whereas to press key A again is to stop
the timer.

11
MAINTENANCE
Switch off or unplug the appliance from the mains supply before
carrying out any maintenance work.
GREASE FILTER
* The grease filters should be cleaned frequently (every two months
of operation, or more frequently for heavy use). Use a warm
detergent solution.
* Grease filters are washable.
1. Remove the grease filter by pressing the latch on the filter (Fig5).
This will disengage the filter from the hood. Tilt the filter
downward and remove.
2. Wash the filters, taking care not to bend them. Allow them to be
dry before refitting.
3. To install the grease filter, press the latch on the filter again.
Make sure the filter is securely engaged after assembly.
WARNING:
1. Always switch off the electrical supply before carrying out any
operation on the appliance.
2. Only a qualified and trained service technician can undertake the
work of blubs replacement and servicing.
CAUTION:
1. THE SURFACE, THE COVER OF THE LAMP MAY BE HOT. TAKE
CARE while replacing.
2. BULBS MAY BE HOT. TAKE CARE WHEN TAKING THE
REPLACEMENT.
Replace lamp
1. Take off the cap by a screw driver.
2. Remove the metal ring
3. Replace the bulb with a 20 watt halogen light.

12
We recommend only using lamps of the same specification as the
ones being replaced.
GREASE FILTER CLEANING
* Remove the filters from the cooker hood and wash them in a solution of
water and neutral liquid detergent, leaving to soak.
*Rinse thoroughly with warm water and leave to dry.
*The filters may also be washed in the dishwasher.
* Please take note that the aluminum panels may alter in color after several
washes.
HOOD CLEANING
Glass and aluminum are two of the easiest materials to keep clean.
Occasional care will help preserve its fine appearance.
Cleaning tips:
* Hot water with soap or detergent is all that is usually needed.
* Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft
cloth to avoid water marks.
* For discolorations or deposits that persist, use a non-scratching household
cleanser or stainless steel polishing powder with a little water and a soft
cloth.
* For stubborn cases use a plastic scouring pad or soft bristle brush together
with cleanser and water. Rub lightly in direction of polishing lines or “grind”
of the aluminum finish. Avoid using too much pressure that may mar the
surface.
* Do not allow deposits to remain for long periods of time.
* Do not use ordinary steel wool or steel brushes. Small bits of steel may
adhere to the surface causing rust.
* Do not allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with aluminum finish for extended periods. Many of
these compounds contain chemicals that may be harmful. Rinse with water
after exposure and wipe dry with a clean cloth.
* Painted surfaces should be cleaned with warm water and mild detergent
only.

13
TROUBLE SHOOTING
The cooker hood may not work or work improperly. Before calling the
After-sales service, switch off the appliance, unplug the power supply and
refer to this guide to determine the problem.
Status
Reasons
Solutions
The lamp doesn’t
work.
The lamp is damaged.
Replace the damaged
lamp.
The hood body
gives out strong
vibrations and a
loud noise.
The hood has not been
installed properly
according to the
installation process
described in the
instruction manual.
Ensure the hood has
been installed
properly according to
the instruction
manual.
The air exhaust
performance is
bad.
Check if the distance
between the hood and
the cooker top is too big.
The ideal distance is
65-75cm.
Ensure there is
adequate ventilation.
Improve the
environment.
The duct is damaged.
Repair or replace the
damaged duct.
WARRANTY CARD
At the purchase of the appliance properly fill out the product warranty card
and properly keep it after having it signed and stamped by the dealer in
order to use it in case of need of maintenance service.
