Whirlpool AKR3200/IX User manual

INSTRUCTION MANUAL
Decorative Hood
AKR3200/IX
WHIRLPOOL

1
Dear Customer,
If you follow the recommendations contained in this Instruction Manual, our
appliance will give you constant high performance and will remain efficient
for many years to come.
CONTENTS
RECOMMENDATIONS AND SUGGESTIONS
CHARACTERISTICS
INSTALLATION & USE
MAINTENANCE
Product Specification & Technical Parameters
Model
AKR3200/IX
Rated Voltage
220-240V
Rated Power Frequency
50Hz
Light Power
2x20W
Motor Power
320W
Total Power
360W
Maximum suction
1000m3/hr
Diameter of Exhaust Pipe
150mm
Product Dimension (mm)
L 900 x W 400 x H 857-1332
Net Weight
28kg
Gross Weight
39.76kg
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
* The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
* Please read this instruction manual before installing and using this
cooker hood. Properly keep this instruction manual in a safe place for
future reference.
* This cooker hood designed to be used only in the Ducted Mode

2
* Only a qualified and trained service technician can undertake the
work of installation and servicing.
* Check that the mains voltage corresponds to the one indicated on
the rating plate fixed inside the hood.
* Check that the domestic power supply guarantees adequate
earthing.
* Do not connect the hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.)
* If the hood is used in conjunction with non-electrical appliances
(e. g. gas burning appliances), a sufficient degree of ventilation must
be guaranteed in the room in order to prevent the backflow of
exhaust gas. The kitchen must have an opening directly with the
open air in order to guarantee the entry of clean air.
* The minimum distance is 750mm from the cooker hood to a gas
hob, and is 650mm to an electric hob. If the installation instructions
for gas/electric hobs specify a greater distance the same must be
taken into account.
NOTICE: Considering excessive weight, two or more people are
required to install or move this appliance. Failure to do so can cause
physical injuries and damage to the product.
USE
* The cooker hood has been designed only for domestic use to
eliminate kitchen fumes.
* Never use the hood for purposes other than what it has been
designed for.
* Never leave high naked flames under the hood when it is in
operation.
* Adjust the flame intensity to direct it onto the bottom of the pan
only make sure that it does not engulf the pan sides.
* Deep fat fryer must be continuously monitored during use:
overheated oil can burst into flame.
* The hood should not be used by children or person not instructed

3
on its correct usage.
MAINTENANCE
* Proper maintenance of the Range Hood will assure proper
performance of the unit.
* Disconnect the hood from the main supply before carrying out any
maintenance work.
* Clean and/or replace grease filters after specified period of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special treatment is
necessary.
WARNING!!
In certain circumstances electrical appliances may be a danger
hazard.
* Do not check the status of the filters while the cooker hood is
operating.
* Do not touch the light bulbs during/ immediately after appliance
use.
* Do not disconnect the appliance with wet hands.
* Avoid naked flame, as it may damage the filters and a fire hazard.
* Constantly check a frying food to avoid that the overheated oil may
become a fire hazard.
* Disconnect the electrical plug prior to any maintenance.
* Children don’t recognize the risks of electrical appliances.
Therefore use or keep the appliance only under supervision of adults
and out of the reach from children.
* Don’t use this product outdoor.
* This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a

4
person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
* There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
* There is a fire risk if cleaning is not carried out in accordance with
instructions.
* Do not leave bare flames under the range hood.
* The discharge air must not be discharged into a flue which is used
for exhausting fumes from appliances burning gas or other fuels.
CHARACTERISTICS

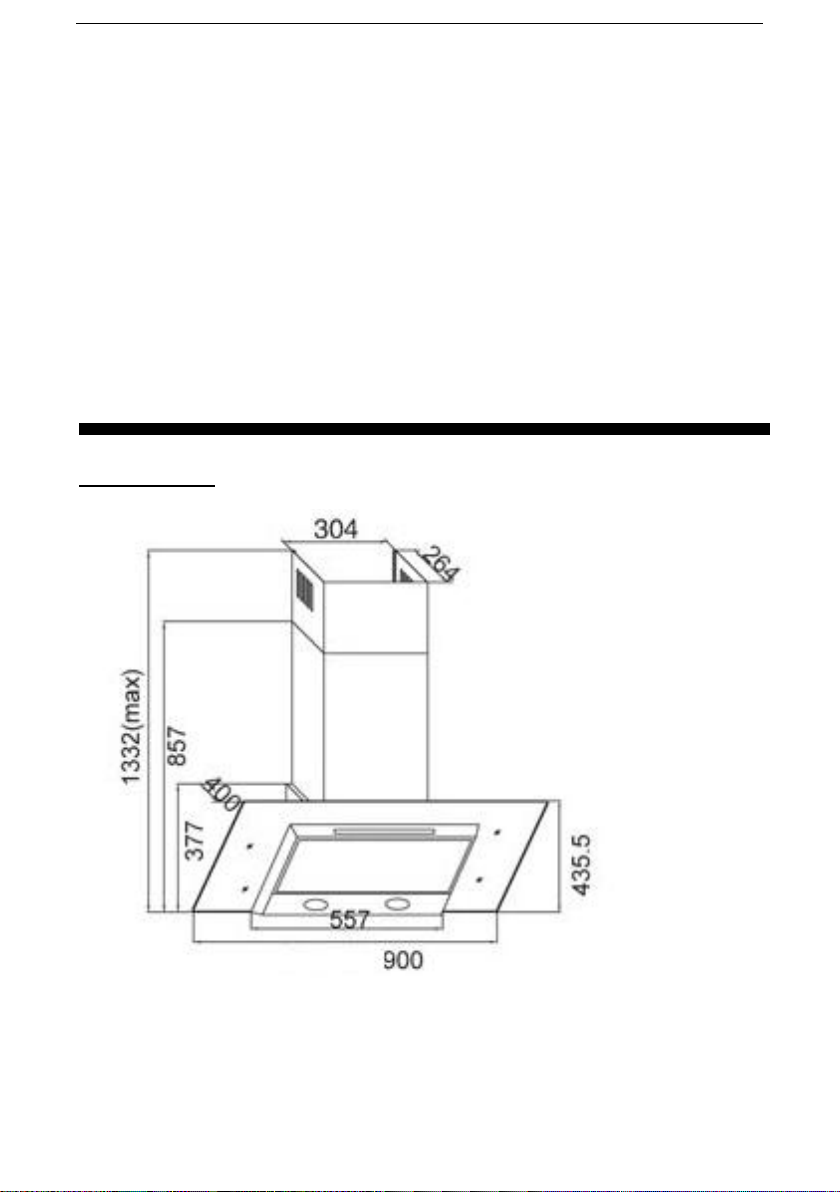

DIMENSIONS

5

6

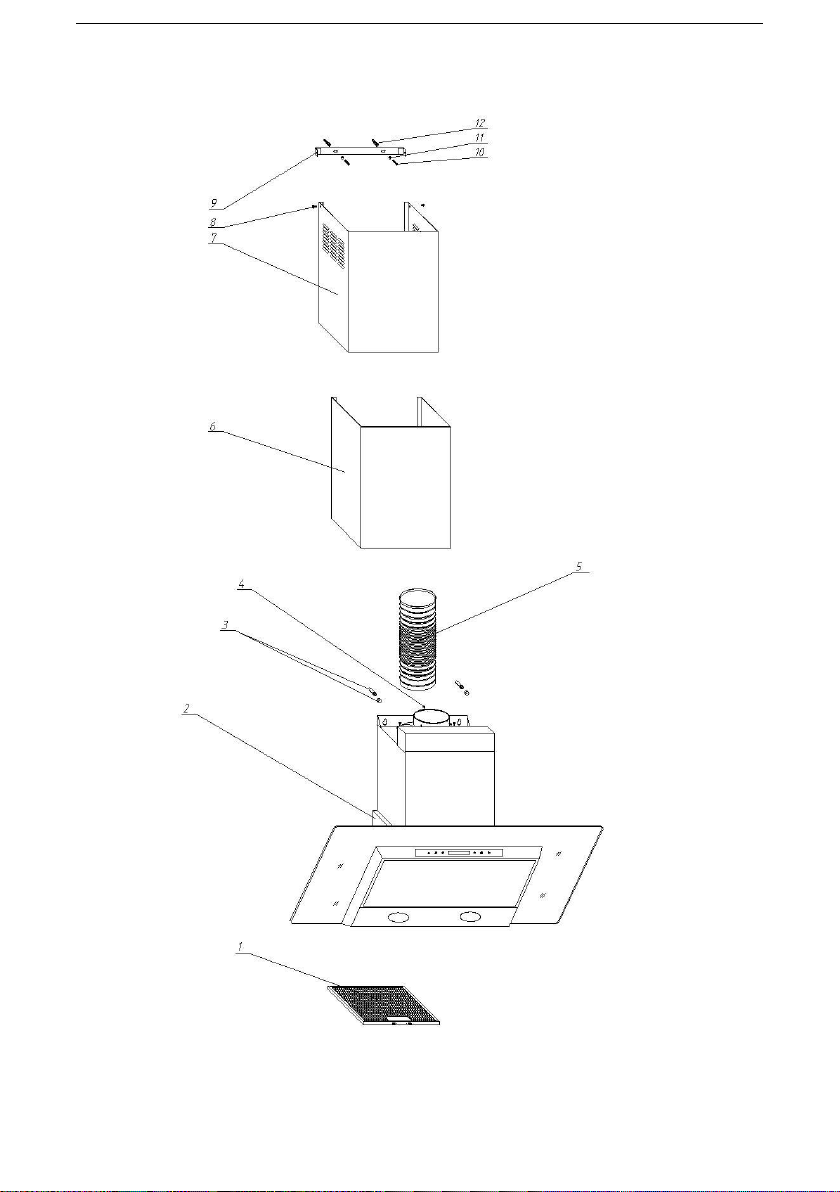

COMPONENTS
Ref
Qty
Components
1
1pcs
Grease filter
2
1pcs
Hood body
3
2pcs
steel bolt
4
3pcs
Cross self-drill bolt
5
1pcs
Exhaust
6
1pcs
Exterior chimney
7
1pcs
Inner chimney
8
2pcs
Cross discal thread bolt
9
1pcs
Fixing frame
10
2pcs
Cross discal bolt-big head
11
2pcs
Flat rubber band
12
2pcs
Plastic distensible sleeve
Ref
Qty
Documentations
13
1pc
Instruction Manual
14
1pc
Warranty Card
INSTALLATION & USE
Note 1: Carefully remove the protective film from chimney and front panel
prior to final installation.
Note 2: At least two people will be required to mount the hood.
FIXING TO THE WALL
Fig.1

7
1. Drill the holes according to the distances indicated (Fig.2).
2. Fix the appliance to the wall and align it in horizontal position to
the wall units.
3. When the appliance has been adjusted, fix the hood using the
screws A. For the various installations use screws and screw anchors
suited to the type of wall (e.g. reinforced concrete, plasterboard,
etc.). If the screws and screw anchors are provided with the product,
kindly check the screws are suitable for the type of wall in which the
hood is to be fixed.
Fig.2 Fig.3
Fixing Chimney
1. Arrange the electrical power supply within the dimensions of the
chimney. If your appliance is to be installed in the ducting version or
in the version with external motor, prepare the air exhaust opening.
2. Adjust the width of the support bracket of the exterior chimney
(Fig.3). Then fix it to the ceiling using the screws A (Fig.2) make sure
that it is in line with your hood and respecting the distance from the
ceiling indicated in Fig.2. Connect the flange C to the air exhaust hole
using a connection pipe (Fig.4).

8
Fig.4 Fig.5
DUCT FIXING
Caution: To reduce the risk of fire, recommend use aluminium ductwork.
1. Attach an adequate length of φ150mm round duct into the recessed
area of the air outlet adapter.
2. The duct has to be secured using two screws from two sides of the air
outlet adapter. Make sure the duct is fixed well on.
DESCRIPTION/CONNECTIONS

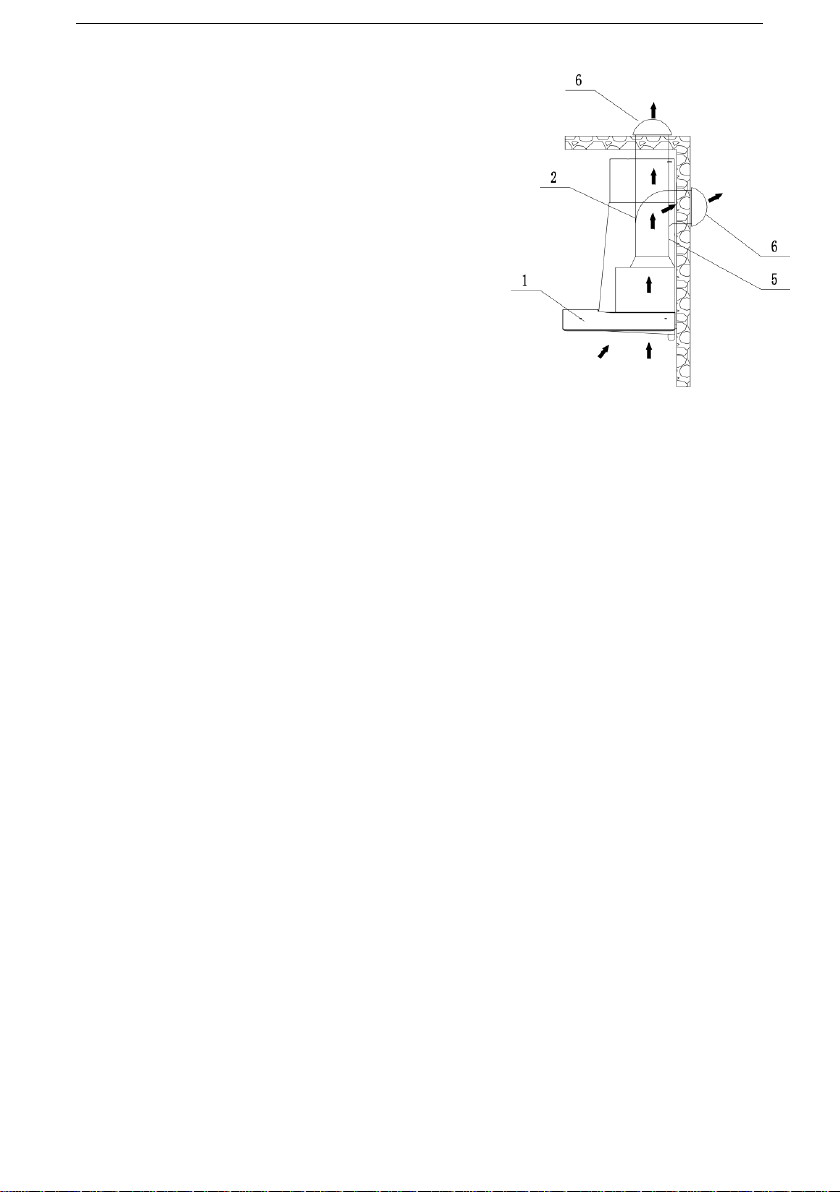

Ducted mode air exhaust system
The hood draws the cooking fumes saturated with fumes and odor through
the grease filters and expels it to the outside through an outlet pipe.

9
Caution: To reduce the risk of fire, use metal
ductwork only.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the
hood to perform most efficiently.
3. Long duct runs, elbows, and transitions
will reduce the performance of the hood.
Use as few of them as possible. Larger
ducting may be required for best
performance with longer duct runs.
4. Attach an adequate length of φ150mm round duct to the air outlet
adapter. Let the exhaust run for a minimum of 1 meter in Straight line in
between bends / elbows for better efficiency.
5. The air must not be discharge into a flue that is used for exhausting
fumes from appliances burning gas or other fuels" "Regulations
concerning the discharge of air have to be fulfilled.
6. Install a roof/wall cap. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal the joints
between ductwork sections.
Electrical Connection
* Electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards. Turn off electrical power at service
entrance before wiring.
* If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
* Do not use the plug and an extension cord other than the ones initially
supplied with the hood.
* The earthing of this hood is compulsory. Do not remove ground prong of
the plug.

10

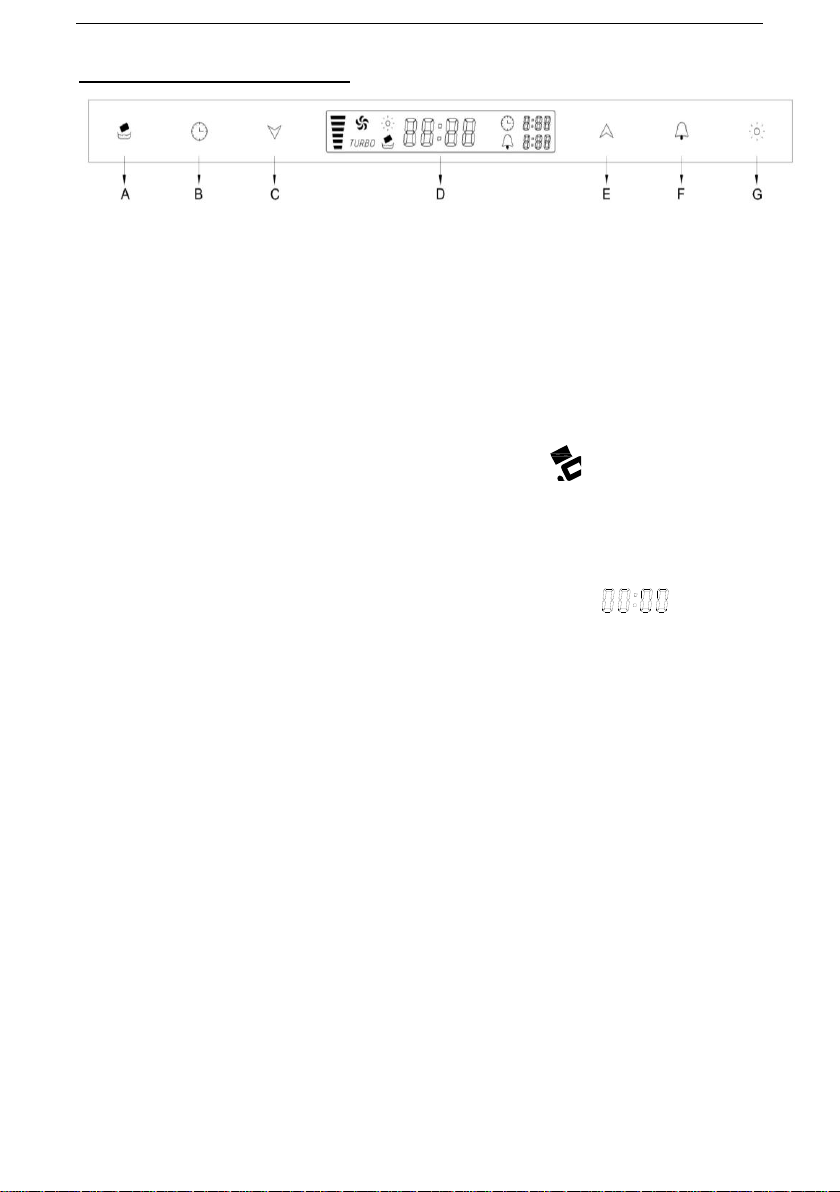

OPERATION OF CONTROLS
A= Filtering system / Set clock
B= Delay Timer
C= Speed S1/ “-” adjust / off
D= Digital display
E= Speed S1/ “+” adjust / off
F= Alarm
G= Light
When the Key A is flashing, at the same time “ ”is flashing on the
digital display, it reminds the user to clean the filters. After the filter
has been cleaned assemble back. Press key A till the light is off and
the unit is back to setting function again.
When pressing key A for 3 seconds, the clock “ ”on the
digital display will flash, press key A to switch the mode function
to set hours and minutes, and then press key C or E to set the
correct time. The Clock’s system is 24 hours.
Normal Mode Operation
1. Press ‘C’ to turn ON at speed 1 / Adjust speed / turn OFF
2. Press ‘E’ to turn ON at Speed 3 / Adjust speed / turn OFF
3. Pressing ‘E’ twice operates the appliance at ‘Turbo Speed’
Timer Mode Operation
1. Press ‘B’ to turn OFF the machine after a preset time of 15min
2. Press ‘B’ again to set the turn OFF time in hours
3. Press ‘C’ / ‘E’ to change the preset time when the time is
blinking

11
4. Press ‘C’ / ‘E’ to change the speed of operation when timer
stops blinking。
5. Press “F”to set the working time. Press it for 3 seconds, the
clock “ ”on the digital display will flash and then press
key C or E to set the working time.
6. Press ‘G’ to turn ON / OFF the lamp
MAINTENANCE
Switch off or unplug the appliance from the mains supply
before carrying out any maintenance work.
GREASE FILTER
* The grease filters should be cleaned frequently (every two months
of operation, or more frequently for heavy use). Use a warm
detergent solution.
* Grease filters are washable.
1. Remove the grease filter by pressing the latch on the filter (Fig5).
This will disengage the filter from the hood. Tilt the filter
downward and remove.
2. Wash the filters, taking care not to bend them. Allow them to be
dry before refitting.
3. To install the grease filter, press the latch on the filter again.
Make sure the filter is securely engaged after assembly.
WARNING:
1. Always switch off the electrical supply before carrying out any
operation on the appliance.
2. Only a qualified and trained service technician can undertake the
work of blubs replacement and servicing.
CAUTION:
1. The surface and the cover of the lamp may be hot. TAKE CARE
while replacing.

12
2. Bulbs may be hot. Take care while replacing.
Replace lamp
1. Take off the cap by a screw driver.
2. Remove the metal ring
3. Replace the bulb with a 20 watt halogen light.
We recommend only using lamps of the same specification as the
one being replaced.
GREASE FILTER CLEANING
* Remove the filters from the cooker hood and wash them in a solution of
water and neutral liquid detergent, leaving to soak.
*Rinse thoroughly with warm water and leave to dry.
*The filters may also be washed in the dishwasher.
* Please take note that the aluminum panels may alter in color after several
washes.
HOOD CLEANING
Glass and aluminum are two of the easiest materials to keep clean.
Occasional care will help preserve its fine appearance.
Cleaning tips:
* Hot water with soap or detergent is all that is usually needed.
* Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft
cloth to avoid water marks.
* For discolorations or deposits that persist, use a non-scratching household
cleanser or stainless steel polishing powder with a little water and a soft
cloth.
* For stubborn cases use a plastic scouring pad or soft bristle brush together
with cleanser and water. Rub lightly in direction of polishing lines or “grind”
of the aluminum finish. Avoid using too much pressure that may mar the
surface.
* Do not allow deposits to remain for long periods of time.
* Do not use ordinary steel wool or steel brushes. Small bits of steel may
adhere to the surface causing rust.
* Do not allow salt solutions, disinfectants, bleaches, or cleaning compounds

13
to remain in contact with aluminum finish for extended periods. Many of
these compounds contain chemicals that may be harmful. Rinse with water
after exposure and wipe dry with a clean cloth.
* Painted surfaces should be cleaned with warm water and mild detergent
only.
TROUBLE SHOOTING
In case if the Cooker Hood is not working or working improperly,
before calling the after sales service, switch off the appliance, unplug
the power supply and refer to the guide below to determine the
problem
S.No.
Status
Reasons
Solutions
1
Lamp doesn’t
work
Power supply not
connected
Check if the power
cord is properly
connected or not
Lamp is damaged
Call consumer
service for support
2
Hood gives out
loud noise
Filter not properly
fitted
Remove and refit
the filters in its
place
Hood is not
installed properly
Call consumer
service for support
3
The air exhaust
performance is
bad
Distance between
Hood and Hob is
too high
Call consumer
service for support
Filter is choked
Clean filter and refit
in its place
Duct is damaged
Call consumer
service for support
