QUICK REFERENCE GUIDE GB
BEFORE USING THE APPLIANCE FOR THE FIRST TIME:
•IMPORTANT: MAKE SURE YOU HAVE READ THE INSTALLATION INSTRUCTIONS
•REMOVE THE TRANSIT BOLTS BEFORE USING THE MACHINE FOR THE FIRST
TIME
•First wash cycle without laundry:
1. Open the tap(s).
2. Close the door.
3. Pour a little detergent (about 100ml) into the detergent compartment .
4. Select a short wash programme (see programme chart).
5. Press the “ON/OFF” button.
This will remove any water remaining in the machine from the manufacturer's test run.
ROUTINE WASHES:
1. Open the tap(s).
2. Sort the laundry according to fabric type and colour and load the machine.
3. Close the door.
4. Add detergent and any additives required.
5. Select the programme, temperature and special options (depending on model).
6. Press the “ON/OFF” button.

4
GB CONTENTS
APPLIANCE AND ACCESSORIES PAGE 5
PROTECTING THE ENVIRONMENT PAGE 6
SAFETY INSTRUCTIONS PAGE 6
MOVING AND TRANSPORTING THE APPLIANCE PAGE 6
SORTING THE WASH PAGE 7
DETERGENT AND ADDITIVES PAGE 8
DYEING AND BLEACHING PAGE 9
SELECTINGTHEPROGRAMME AND
SPECIAL OPTIONS/PROGRAMMESTART PAGE 10
DOORLOCK/PROGRAMMEEND/
PROGRAMMERESELECTION PAGE 25
REMOVING THE FILTER /
DRAINING RESIDUAL WATER PAGE 11
CARE AND MAINTENANCE PAGE 12
CHILD SAFETY DEVICE PAGE 12
TROUBLE-SHOOTING GUIDE PAGE 13
AFTER-SALES SERVICE PAGE 13
INSTALLATION INSTRUCTIONS PAGE 14

5
1. Worktop
2. Control panel
3. Detergent drawer
4. After-Sales Service sticker (inside door)
5. Door
6. Door handle
-To open: pull handle
-To lock: press the door firmly (the lock will click into place)
7. Door lock child safety device (inside door)
8. Filter (inside compartment door, depending on model)
9. Residual water drain (depending on model)
APPLIANCE AND ACCESSORIES

6
•Packing
The packaging is marked with the recycling
symbol , signifying that it can be 100%
recycled.
•Appliance
The appliance is made of recyclable
materials. Dispose of the appliance in
conformity with environmental regulations.
Make it inoperable: pull out the plug and cut
off the power cable so that the appliance
cannot be connected to the mains.
•Eco-tips
-A full load (depending on the programme
selected) gives the best energy and water
consumption.
-Laundry which is lightly to moderately soiled
does not require a prewash.
-Lightly soiled laundry should be washed at a
low temperature or with a short programme.
-When washing small loads press the “Lightly
Soiled”/“Half load” button (if present) and
use less detergent.
-If you wish to dry the laundry in a household
dryer,usethehighestspinspeed(depending
on the programme).
The dryer will then consume less energy.
-Do not exceed the recommended dosages
on the detergent packet.
-Only use bleach or stain remover if
absolutely necessary.
•The appliance must only be used in the
household for the prescribed uses.
•All connections to the water and electrical
mains must be made in accordance with the
manufacturer's instructions and following
local utility company safety regulations (see
“Installation Instructions”).
•Beforeany cleaning andmaintenance switch
off the machine or disconnect it from the
mains.
•Switch off the washing machine and turn off
the tap(s) whenever the machine is not in
use.
•Never use excessive force to open the door.
•Children must not be allowed to play with or
insidethemachine.Donotrestany weighton
the door.
•Packaging materials can be dangerous for
children. Keep the packaging material
(plastic bags, polystyrene, etc.) well out of
their reach.
•The appliance conforms to European safety
regulations,ECdirective93/68/EWGandEN
60555.
1. Pull out the mains plug.
2. Shut off the water tap(s).
3. Disconnect the inlet and drain hoses.
4. Drain residual water from the appliance and
hoses (see “Draining Residual Water”).
5. Fit the transit bolts (see “Installation
Instructions”).
PROTECTING THE ENVIRONMENT
SAFETY INSTRUCTIONS
MOVING AND TRANSPORTING THE APPLIANCE

7
1. Sort the load according to:
•Fabric type / care label symbol
Cotton, mixed fibres, synthetics, wool.
•Colours
Separate coloured and white articles. Wash new
coloured articles separately.
•Article size
Washing articles of different sizes together
improves wash efficiency and distributes the load
better in the drum.
•Fabric delicacy
Wash delicates separately. Select the appropriate
special programme for machine - washable wool
, curtains or delicates. Either remove curtain
hooks or tie into a cloth bag. Only wash machine-
washable fabrics. Wash small articles (e.g. nylon
stockings, belts etc.) and articles with hooks (e.g.
bras) in a cloth bag or pillow case with zip.
2. Empty all pockets
Coins, safety pins etc. can damage the laundry,
drum and tub.
3. Closures
Close zips and hooks and eyes. Loose belts or
ribbons should be tied together.
STAIN REMOVAL
•Blood,milk, egg,andotherorganicsubstancesare
generally removed by the enzyme phase of the
programme.
•To remove red wine, coffee, tea, grass and fruit
stains, etc. add a biological stain removing agent
to the main wash in chamber or a chlorine
bleach in chamber of the detergent drawer
(depending on the model).
•Particularly stubborn stains can be treated with
stain remover before the wash.
LOADING THE WASH
Open the door.
Load the articles one at a time loosely into the
drum, without overfilling.
Close the door.
LOAD CAPACITY
See the programme overview.
Note: Overloading the machine reduces the wash
efficiency and encourages creasing.
SORTING THE WASH
1.
2.
3.
1
2
3

8
CHOOSING THE RIGHT DETERGENT
The type of detergent depends on
•the type of fabric (cottons, synthetics,
delicates, wool)
Note: Use only specific detergents for
washing wool.
•colour
•wash temperature
•degree and type of soiling
Note:
•Whitish residues on dark fabrics are due to
the insoluble water softeners in modern
phosphate-free detergents. If this occurs,
shake or brush out the fabric or use liquid
detergents.
•Keep detergents and additives in a safe, dry
place out of the reach of children.
•Use only detergent and fabric conditioner
specifically produced for automatic domestic
washing machines.
•When using water softeners, descaling
agents, dyes or bleaches, make sure that
they are suitable for use in domestic washing
machines.
•Do not use solvents in the machine (e.g.
turpentine, benzine, etc.). Do not wash
fabrics in the machine which have been
treated with solvents or flammable liquids.
DETERGENT DOSAGES
Do not exceed manufacturers’ recommended
dosages as shown on the detergent package.
The amounts depend on
•degree and type of soiling
•size of wash
-full load: according to manufacturers’
instructions
-half load: 3/4 of the normal amount
-minimumload (about 1 kg):1/2 the amount
used for full load
•water hardness in your area (request
information from the water company): soft
water requires less detergent than hard
water.
Note:
•Overdosing the detergent results in
excessive foaming and reduces the wash
efficiency.Ifthewashingmachinedetectstoo
much foam, it may prevent spinning.
•Using insufficient detergent results in grey
laundry.The heating elements anddrumalso
build up scale.
•If using chlorine bleach, follow the bleach
instructions carefully. Overdosing the bleach
can damage the wash.
If the machine has a three chamber detergent drawer set the hardness pointer to the domestic water
hardness level.
Move the hardness pointer sideways to the desired position.
DETERGENT AND ADDITIVES
WATER HARDNESS
WATER HARDNESS
CATEGORY CHARACTERISTICS GERMAN °dH
FRENCH
°fH
ENGLISH
°eH
1
2
3
4
soft
medium
hard
very hard
0-7
7-14
14-21
over 21
0-12
12-25
25-37
over 37
0-9
9-17
17-26
over 26

9
FILLING THE DETERGENT AND
ADDITIVES

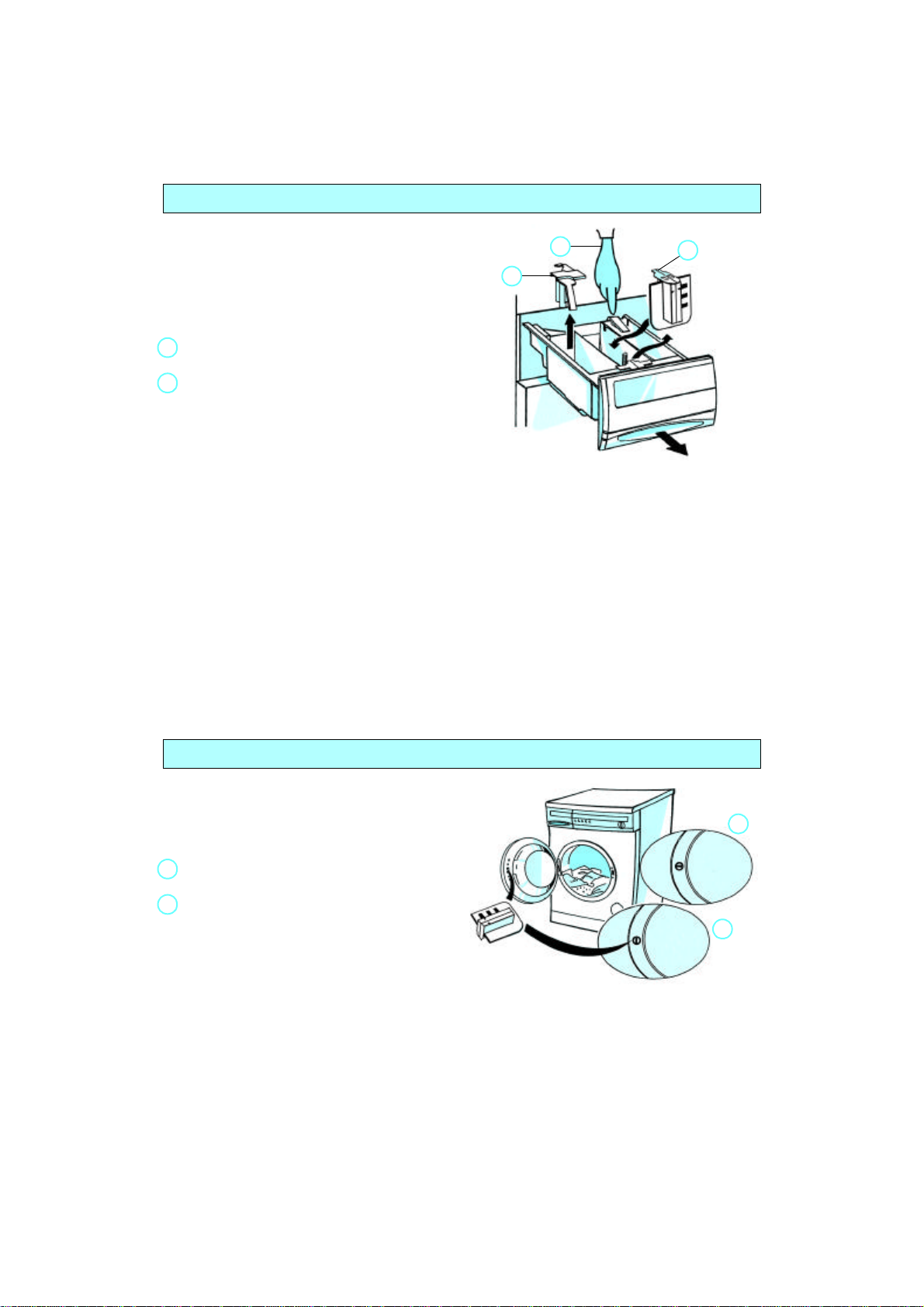

1. Pullout the detergent drawer.Thedrawerwill
have three or four chambers depending on
the model.
2. Filling the detergent
3. Slide the drawer in until it clicks shut.
Notes:
•When using highly concentrated detergents,
use the detergent ball provided with the
detergent and place it directly in the drum to
avoid dispensing problems (for programmes
without pre-wash only).
•For programmes with prewash: liquid
detergents can be used for the prewash.
For the main wash then a powder detergent
has to be used.
•Dose the correct amount of concentrated
fabric softener and dilute with water up to the
maximum level marked in the softener
compartment.
Dyeing:commerciallyavailableproductsusually
consist of a dye colour, fixing agent and salt.
Pour the dye colour, fixing agent and salt directly
into the empty drum, and only then load the
laundry.
•Only use products designed for use in
washing machines.
•Follow the manufacturer’s instructions.
•Plastic and rubber components of the
machine can be stained by dyes or bleaches.
DETERGENT AND ADDITIVES
•Programmes with pre- and main
wash.
•Main wash programme without
prewash.
When using liquid detergent,
extract the coloured insert from the
drawer and put it in the
compartment . The insert has a
scale to make dosing easier.
•Add fabric softeners and
conditioners (no further than the
“Max” mark (three chamber
models) or the “100 ml” mark (four
chamber models).
•Fill chlorine bleach only to the
“Max” mark (if model is suited to its
use).
•Stain remover.
•Water softener
(water hardness class 4).
•Starching
Dissolve/dilute the starch, powder
or liquid, in approximately 1 litre of
water in a container. Load the
machine, close the door, select
“Rinse and Spin” and start. Once
themachinehasstartedfilling,pour
the dissolved starch into detergent
dispenser chamber . Flush the
chamber straight away by adding
about half a liter of water.
Detergent drawer with 3 chambers.
Detergent drawer with 4 chambers.
DYEING AND BLEACHING

10
SELECTING THE PROGRAMME
(See also the separate programme chart and
consumption data)
For appliances WITH temperature
selector knob
1. Turn the programme selector knob
clockwise to the desired programme.
2. Set the temperature knob to the desired
temperature.
For appliances WITHOUT temperature
selector knob
Turn the programme selector knob clockwise to
the programme with the desired temperature.
PRESS THE DESIRED SPECIAL OPTION
BUTTON
(Depending on model, see also the separate
programme chart).
Spin speed reduction button
•Press this button to reduce the spin speed.
No spin button
•Press this button to exclude the spin function
from the programme.
Rinse hold/Spin delay button
•The laundry remains in the last rinse water
without being spun, to avoid heavy creasing.
•Especially suitable for the “Synthetic” or
“Delicate” programmes, if the laundry is not
to be unloaded immediately after the end of
the programme.
Stopping Rinse hold
Press the Rinse hold button again; the load
will be spun according to the selected
programme.
Lightly soiled/Half load button
•Reduces water consumption, above all
during the rinse.
•Especially suitable for lightly soiled or small
loads (reduce the detergent quantity).
Cold wash button
•The water is used at the water supply
temperature.
Intensive rinse button
•This function is especially suitable in areas
with extremely soft water, for baby clothes
and to help people with allergies.
•In the rinsing cycle approx. 10 l more water
are used.
•This special function is recommended for the
95°C “Cotton” and 60°C “Synthetic”
programmes, since in this way the wash
water is cooled before drainage.
95°C Cotton
•This function can be selected in the “Cotton”
programme.
•Suitable for fabrics with this symbol on the
label.
•Recommended only for heavily soiled
laundry.
PROGRAMME START
1. Plug in the appliance.
2. Turn on the water supply tap.
3. Press the “ON/OFF” button.
DOOR LOCK
The door locks automatically after the
programme start until the end of the programme.
PROGRAMME END
•The programme sequence indicator is at “Stop”.
1. Press the “ON/OFF” button.
2. Cancel the special options by pressing the
appropriate buttons.
3. Turn the water supply tap(s) off.
4. Wait for the door to unlock (about 2 minutes).
5. Open the door and unload the machine.
Note: Do not fully close the door but leave it ajar
to allow the drum to dry out.
PROGRAMME RESELECTION
1. Press the “ON/OFF” button.
2. Select the new programme, temperature and
relative options.
3. Press the “ON/OFF” button.
SELECTINGTHEPROGRAMME
ANDSPECIALOPTIONS/PROGRAMMESTART
A
B
A
B
DOORLOCK/PROGRAMMEEND/PROGRAMMERESELECTION

11
WHEN TO REMOVE THE FILTER / DRAIN
RESIDUAL WATER
•Check and clean the filter at least 2 or 3 times a
year.
•When the appliance does not drain or spin
properly.
•When the pump is blocked by an object (buttons,
coins, safety pins).
Important: Before draining, make sure that the
water has cooled.
REMOVING THE FILTER
1. Switch off the appliance (press the “ON/OFF”
button).
Open the filter cover with the coloured insert from
the detergent drawer.
3. Place a tub or container beneath it.
Slowlyturnthe filter anticlockwise until itshandleis
vertical without unscrewing it completely.
5. Wait until all the water has drained.
Now unscrew the filter completely and remove it.
7. Remove any foreign material from the filter.
8. Check that the pump rotor moves freely.
9. Insert the filter and screw it in clockwise until it
locks (until the grip is horizontal).
10.Close the cover.
11.Pour 1/2 litre of water into the detergent drawer to
reactivate the Eco system.
Some models have no filter, since they are fitted
with a self-cleaning pump.
WHEN TO DRAIN RESIDUAL WATER
•When transporting (moving) the machine.
•If there is danger of freezing in the installation
room. In this case the machine should be drained
after every wash.
DRAINING RESIDUAL WATER
The residual water drain hose (if provided) is located
in the machine plinth.
Lift the cover upwards with light pressure.
Pull out the hose by about 15 cm (6 inches). Pull
off its endcap.
Let the water drain into a flat container until the
flow stops.
Close the drain hose and replace it.
If your washing machine is not provided with a drain
hose in the plinth, to drain the residual water please
follow the instructions given in the chapter “Removing
the Filter”.
REMOVING THE FILTER / DRAINING RESIDUAL WATER
2.
4.
6.
1.
2.
3.
2
8
6
2
1
3
4

12
APPLIANCE EXTERIOR AND CONTROL
PANEL
•Clean using normal household detergent (do
not use abrasive products).
•Dry with a soft cloth.
DETERGENT DRAWER
Disengage the drawer by pressing down the
release lever and extract it.
Remove the inserts (the siphon from the
softener compartment the siphon from the
chlorine bleach compartment and the
coloured insert for liquid detergent).
3. Wash all the parts under running water.
4. Reposition the inserts, fit in the drawer until it
locks.
DOOR SEAL
•Clean with a damp cloth when necessary.
•Check the seal folds for foreign bodies
periodically.
WATER HOSE MESH FILTER
•Check and clean periodically
1. Turn off the tap(s).
2. Unscrew the hose(s) from the tap(s).
3. Remove the mesh filter and clean it.
4. Refit the filter and screw the hose connection
to the tap.
5. Unscrew the hose(s) from the machine.
6. Remove the filter from the washing machine
with pliers and clean it.
7. Replace the filter and screw the hose
connection back on to the machine.
8. Turn on the tap(s) and ensure that the
connections are completely water-tight.
APPLIANCE FILTER
•Check the filter at least two or three times a
year and clean if necessary (see “Removing
the Filter”).
Topreventimproper use of themachine,turnthe
plastic screw on the inside of the appliance door
with the thick, rounded edge of the coloured
insert from the detergent dispenser or with a
coin.
Vertical Slot - Safety position: door cannot
lock into place.
HorizontalSlot -Normalposition:doorcanbe
closed as before.
CARE AND MAINTENANCE
1.
2.
2
1
2
CHILD SAFETY DEVICE
1.
2.
2
1

13
The appliance will not switch on.
•Power plug properly inserted in mains
socket?
•Mains fuse OK?
•Power failure?
•Tap turned on? Is water coming through?
•Door closed? Child safety device activated?
•Programme selected?
•ON/OFF button pressed?
No water or insufficient water supply.
•Tap turned on completely?
•Kink in water hose?
•Water hose filter clogged? (See “Care and
Maintenance”).
•Water hose frozen up?
Waste water not pumped out.
•Drain hose installed correctly? (See
“Installation Instructions”).
•Filter clogged? (See “Removing the Filter /
Draining Residual Water”).
•Drain hose frozen up?
•Is the rinse hold button pressed?
Detergent and additive product residues in
detergent drawer at end of wash.
•Siphon installed correctly?
•Siphon clogged?
•Not enough water delivered? (See above).
•Also see “Detergent and Additives” and
“Care and Maintenance”.
Machine vibrates during spin cycle.
•Machine perfectly horizontal with all four feet
on ground? (See “Installation Instructions”).
•Transitboltsremoved? The transit bolts must
be removed before the machine is used (see
“Installation Instructions”).
Final spin results are poor.
•Pump impeller obstructed? (See “Removing
the Filter / Draining Residual Water”).
•Wash consists of a single heavy/large size
article (bathrobe, etc.)? If this is the case the
wash machine may detect load imbalance
and activate the spin cycle at reduced speed.
In this case add further garments and repeat
the spin cycle.
Before contacting After-Sales Service:
1. Try to remedy the problem (see “Trouble-
Shooting Guide”).
2. Restart the programme to see if the fault is
repeated.
3. If the malfunction persists, call After-Sales
Service and specify:
•The nature of the problem.
•The exact model of the appliance.
•The service code
(number after the word SERVICE).
The After-Sales Service sticker is on the
inside of the door.
•Your full address.
•Your telephone number and area code.
•The After-Sales Service telephone number
and address can be found in the warranty or
on application to the retailer.
TROUBLE-SHOOTING GUIDE
AFTER-SALES SERVICE

14
TRANSIT BOLTS
The appliance is fitted with transit bolts to prevent
internal damage while it is being moved.
Before using the appliance the transit bolts MUST
be removed (Fig. 1).
1. Slacken the bolts with the spanner supplied (Fig. 2).
2. Unscrew the bolts by hand.
3. Hold each bolt head and pull the bolts complete
with red plastic spacer through the wide part of the
holes.
4. Close the holes with the provided plastic caps.
Fit the caps in the direction indicated by the arrow
in the large opening and slide them into the narrow
slot until they sit properly (Fig. 3).
5. Keep the transit bolts for future use.
Note:
Fit the transit bolts before transporting the appliance as
follows:
1. Pry up the plastic caps with a screwdriver, slide
them out against the direction indicated with the
arrow and remove them.
2. Fit the transit bolts by following the above
procedure in reverse order.
INSTALLATION INSTRUCTIONS
Fig.1
Fig.2
Fig.3

15
INSTALLATION
•Install the appliance on a solid and level floor
surface, preferably in a corner of the room.
•Make sure that all four feet are resting firmly on
the floor and check that the appliance is perfectly
level (use a spirit level).
•If the floor is uneven adjust the front right levelling
foot as requested (do not insert pieces of wood,
cardboard etc. under the feet).

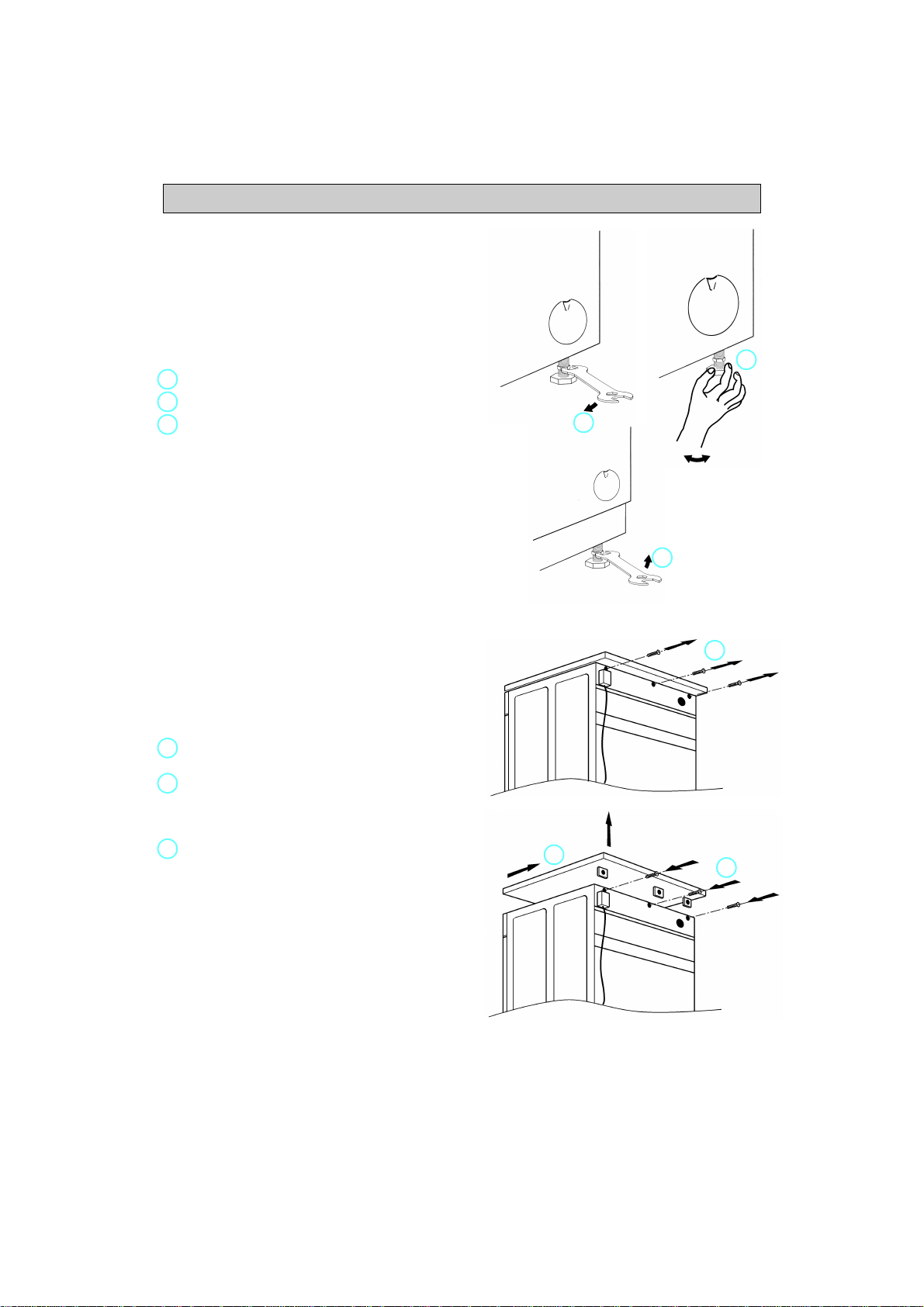

Slacken the locknut using the spanner supplied.
Adjust the height of the foot, turning it by hand.
Tighten the locknut anticlockwise towards the
washing machine.
•Ifthe appliance is tobeinstalledona wooden floor,
distribute the weight by placing it on a 60x60 cm
sheetof plywoodatleast 3cminthickness.Secure
the plywood sheet to the floor.
BUILD-UNDER / WORKTOP
The appliance must be installed only under a
fitted, continuous kitchen worktop.
The appliance must only be built under using the
built under set UBS.
•Unplug the appliance from the mains.
Unscrew the worktop fixing screws from the rear
of the appliance.
Slide the worktop fully backward and lift it
upwards to remove.
Install the cover panel following the relative
instructions.
Refit the fixing screws and tighten them.
BUILD-UNDER OPENING DIMENSIONS
Width 600 mm
Height 825 mm
Depth 600 mm
WARNING:
Only plug the machine into the mains power socket
after you have fitted the cover panel or the machine
worktop.
INSTALLATION INSTRUCTIONS
1.
2.
3.
1.
2.
3.
1
23
3
1
2

16
WATER SUPPLY
•Water supply: only cold water.
•Tap: 3/4” threaded hose connector.
•Water pressure (mains pressure):
10-100N/cm2(1-10bar).
For Great Britain and Ireland only
•Water inlet: hot and cold fill. The warm water inlet
temperature must not exceed 60°C.
INLET HOSE(S)
Note: If the inlet hose is already fitted to the rear panel
on the appliance, ignore points 1 and 4.
1. Remove the inlet hose from the drum.
2. Fit the mesh filter supplied in the thread between
the straight end of the inlet hose(s) and the tap(s).
3. Carefullyscrewthestraightendof the inlet hose(s)
to the tap(s) by hand.
4. Screw the curved end of the hose to the appliance
taking care that the hose is not kinked.
5. Turn the tap(s) on fully and check that the joints at
the washing machine and the tap(s) are watertight.
•If the hose is not long enough, replace it with a
suitable length of pressure-resistant hose
(approved under EN50065 to withstand a
minimum of 10bar).
•Checkthehoseregularlyforbrittleness and cracks
and replace if necessary.
•Thewashingmachine may be connected without a
non-return valve.
•Observe any special local regulations regarding
connection to the water supply.
INSTALLATION INSTRUCTIONS

17
DRAIN HOSE
•Drain hose connection to water outlet.
1. Unhook the drain hose from the left clip;
see arrowA in Fig. 1.
Important:
Do NOT loosen the drain hose connection;
see arrow B in Fig. 1, otherwise there is the risk of
leakage (danger of scalding with hot water).
2. Fit the drain hose either to the siphon or hook it
over the edge of a sink or bath tub with the “U”
bend (Fig. 1). Small hand basins are not suitable.
3. Minimum drain height: 70cm.
Maximum U-bend drain height: 125cm.
4. If you need to add an extension, use a flexible
hose of the same type and secure the union with
screw-on hose clips. Maximum overall drain hose
length 2.5m.
Important:
Make sure that there are no kinks in the drain hose run
and take precautions against it falling while the
appliance is running (Fig. 2).
CONNECTION TO THE MAINS
•Observe local utility company regulations.
•The connection must be made with a correctly
installed, earthed and insulated socket.
•The system must be earthed.
The manufacturer declines all responsibility for
injury to persons or pets and damage to property
caused by disregarding the above instructions.
•The data concerning voltage, consumption and
necessary fuse are supplied on the inside of the
appliance door.
•The mains connection cable may only be replaced
by a qualified electrician.
•The appliance conforms to European safety
regulations, ECdirective93/68/EWG and
EN60555.
•Do not use extension leads or multiplugs.
INSTALLATION INSTRUCTIONS
Min 70 cm
Max 125 cm
Fig.1
Fig.2

18
1) ELECTRICAL CONNECTIONS
“Warning - this appliance must be earthed”
This appliance is normally supplied with a mains
lead having a plug fitted in the factory which has
been checked for correct earth continuity.
If the fitted plug is not suitable for your socket
outlet, or if the machine’s mains lead is not fitted
with a plug, you should fit a suitable new, good
quality plug by following the instructions in (2)
below.
Any unsuitable plug should be cut off and
disposed of in order to avoid a possible shock
hazard should it be inserted into a socket.
2) CONNECTION TO A REWIRABLE PLUG - to be
carried out only by a qualified electrician
The wires in the mains lead are coloured in
accordance with the following code:
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN AND YELLOW - “EARTH” (“E”)
To fit a new plug, proceed as follows:
2.1Polarized Plugs (e.g. 3 pin, 13 amp plug
conforming to BS 1363A)
a. The GREEN AND YELLOW wire must be
connected to the terminal in the plug which is
marked with the letter “E” or by the Earth
symbol or coloured yellow or green and
yellow.
b. The BLUE wire must be connected to the
terminalwhich is marked withthe letter “N” or
coloured black.
c. The BROWN wire must be connected to the
terminal which is marked with the letter “L” or
coloured red.
2.2Non-polarized plugs (e.g. 2 pin with side
earth contact)
The wire which is coloured GREEN AND
YELLOW must be connected to the earth
contact. The other two wires should be
connected to the two pins, irrespective of colour.
3) FUSE REPLACEMENT
If the mains lead of this appliance is fitted with a
BS 1363A 13 amp fused plug, replace the fuse
only with an A.S.T.A. approved type conforming
to BS 1362 and proceed as follows:
1. Remove the fuse cover (A) and the fuse (B).
2. Fit the replacement 13 A fuse into the fuse
cover.
3. Refit both into the plug.
For all other types of plug, the supply socket
should be protected by a 16A fuse or circuit
breaker at the distribution board.
INSTALLATION INSTRUCTIONS

19
INSTALLATION INSTRUCTIONS
MOBILITY WHEELS
(for UK only)
Depending on model, your washing machine is
provided with mobility wheels.
Youwillfindthesewheelsintheaccessorykitsupplied
with the machine, or you can order them from our
After-Sales Service.
MOUNTING INSTRUCTIONS
1. Tilt the machine forward.
2. Loosen the two rear feet.
3. Insert the wheels as close as possible to the
screw (1).
4. Tighten the screw completely (2).
5. Put the machine in an upright position.
6. Adjustthefrontfeetmaking surethatthe machine
is completely level with the floor.
Note: Levelling is extremely important to avoid any
risk of instability and vibrations.
MOVING THE MACHINE
1. Open the door of the machine.
2. Lift the machine by 1 or 2 cm (3).
3. Push or pull the machine according to your need.
1
2
3
